kincrome K16130 User manual

Hazard Signal Word Definitions
Owner's Manual
Instructions for Assembly, Testing, Operation, Servicing, and Storage
Tow Behind Boom Kit: For outdoor use with non-potable liquids such as
agricultural pesticides and other water based liquids**
WARNING
READ and UNDERSTAND the Owner's Manual completely before using this product. Assemble,
test, and use only in accordance with the Owner's Manual instructions.
READ and FOLLOW chemical label instructions. Pesticides are hazardous chemicals.
KNOW emergency procedures BEFORE handling chemicals. Sprayer leaks, bodily chemical
contact, poisoning, and spills require immediate response.
AVOID inhaling, ingesting, or coming into contact with any chemicals.
WEAR personal protective gear when filling, using, cleaning, and servicing the sprayer.
KEEP sprayer and spray materials away from children and pets. Pesticides are especially toxic to
them.
EXERCISE CAUTION in vehicle handling when towing/hauling a filled sprayer to avoid loss of
control or sprayer overturning.
DO NOT TURN ON POWER to sprayer until ready to spray in order to avoid unintentional spray
release.
ALWAYS keep a fire extinguisher rated “ABC” nearby.
Improper use of the sprayer or handling of chemicals could result in serious injury or illness to the
operator or nearby persons/animals, or could cause damage to the environment.
Only use the cable clamps provided with the sprayer to connect it with the vehicle battery.
**This boom is recommended for use in spraying non-flammable liquids such as pesticides and water for dust control.
The boom will be damaged and warranty voided if used to apply bleach, chlorine, ice control chemicals, or any
petroleum based product (gasoline, diesel, kerosene, oil). The boom should not be used to transfer any product intended
for human consumption. WE RECOMMEND THAT THE BOOM NOT BE USED FOR OTHER PURPOSES ONCE IT
HAS BEEN USED FOR SPRAYING PESTICIDES. Any chemical will leave some residual in the boom components,
even after the boom has been properly cleaned. These residual chemicals can have unexpected effects on future uses. For
example, spraying water or other liquids that are contaminated with residual pesticide may result in unforeseen hazards to
plant or animal life. This boom should not be used by people with reduced physical, sensory or mental capabilities or lack
of experience and knowledge.
Any Questions, Comments or Parts Orders
Call Kincrome Tools + Equipment 1300 657 528
ITEM NUMBER: K16130
SERIAL NUMBER: _____________

2
Hazard Signal Word Definitions

3
Table of Contents
Intended Use.......................................................................................................................................4
Summary of Important Safety Information ....................................................................................5
Unpacking...........................................................................................................................................9
Unpacking the Manual Bag ............................................................................................................10
Assembly ...........................................................................................................................................11
Operation – Important Safety Information...................................................................................17
Operation – Using the Sprayer .......................................................................................................21
Exploded View & Parts List............................................................................................................26
Appendix A –Broadcast Spray Calibration Tables ......................................................................28
Limited Warranty............................................................................................................................29

4
Intended Use
The boom kit is intended for use in spraying agricultural pesticides and other non-
flammable liquids.
SPRAYING PESTICIDES:
Pesticides are hazardous chemicals that must be handled with caution as directed throughout
this manual and on the pesticide label. Pesticides are regulated by the Environmental
Protection Agency (EPA) and defined as:
Any substance or mixture of substances intended for preventing, destroying,
repelling, or mitigating any pest. Though often misunderstood to refer only to
insecticides, the term pesticide is a comprehensive term that applies to insecticides,
herbicides, fungicides, and various other substances used to control pests.
SPRAYING OTHER LIQUIDS
In addition to spraying pesticides, this boom may be used to spray other non-flammable
liquids. An example is spraying water for dust control.
WE RECOMMEND WHAT THE BOOM NOT BE USED FOR OTHER PURPOSES
ONCE IT HAS ALREADY BEEN USED FOR SPRAYING PESTICIDES. Any
chemical will leave some residual in the boom components, even after the boom has been
properly cleaned. These residual chemicals can have unexpected effects on futures uses. For
example spraying water or other liquids that are contaminated with residual pesticides may
result in unforeseen hazards to plant or animal life.
NOTE: The boom will be damaged and warranty voided if used to apply bleach, chlorine,
ice control chemicals, or any petroleum based product (gasoline, diesel, kerosene, oil).
Contact Kincrome Product Support on 1300 657 528 for any questions about the
appropriate use of the boom kit.

5
Summary of Important Safety Information
WARNING
Read and understand this owner's manual completely before using the boom kit. Read each chemical
label's instructions before handling the chemical.
Improper use of the boom kit or handling of chemicals could result in serious injury or illness for the
operator or nearby persons/animals, or cause damage to the environment.
LISTED BELOW is a summary of safety information of particular importance. See individual
sections of this owner's manual for more details.
-------------------------------------- DURING ASSEMBLY --------------------------------------
CHECK and TEST completed assembly as directed in this manual. Serious injury could result from chemical
leaks if sprayer is improperly assembled.
DO NOT MODIFY sprayer design.
------------------------------------- DURING OPERATION -------------------------------------
General Chemical Safety
READ and FOLLOW each chemical label's instructions and warnings.
AVOID inhaling, ingesting, or coming into contact with any chemicals.
KNOW applicable licensing and regulatory requirements for the chemical you plan to use.
KNOW emergency procedures before handling chemicals. Carefully review "Chemical Accident Procedures"
listed below and later in this manual. Also see First Aid instructions on the chemical label.
WEAR protective clothing, eye protection, and chemical resistant gloves when filling, using and cleaning the
sprayer. Wear additional protective gear, such as facemask or apron, as recommended on the chemical label.
EXERCISE EXTRA CAUTION around children and pets. Pesticides are especially toxic to them. Keep
sprayer and spray materials away from them at all times.
DO NOT MIX OR POUR chemicals in an enclosed, unventilated area
DO NOT USE flammable or corrosive chemicals in the sprayer.
FLUSH the sprayer before switching chemicals in order to prevent dangerous chemical interactions.
STORE pesticides in a correctly labeled container and in a secure location.
MONITOR the health of operators frequently exposed to pesticides, as recommended by the chemical label or
local/federal regulations.
Chemical Application Safety
Before Spraying
INSPECT and PREPARE sprayer before each use as directed in this manual.
DO NOT TURN ON POWER to sprayer until ready to spray in order to avoid unintentional spray release.
MAKE SURE BROADCAST NOZZLES ARE ORIENTED to spray straight down before starting the sprayer.
An incorrectly positioned broadcast nozzle may spray chemicals on you or others.
DO NOT SPRAY when wind speed exceeds 5 KPH in order to minimize spray drift.
CLEAR work area of people/ pets and POST warning notices to restrict access for the period recommended on
chemical label.
KEEP sprayer and spray away from children/pets. Pesticides can be especially toxic to children and animals.
DO NOT ALLOW anyone younger than 16 to operate sprayer since pesticides are especially toxic to children.
During Spraying
DO NOT OVERAPPLY pesticide. Apply at rate recommended by chemical manufacturer. Excess pesticide can
be dangerous to humans/animals, damage desirable plants, and contaminate soil and water sources.
DO NOT EAT, DRINK, SMOKE, RUB YOUR EYES, or TOUCH YOUR BARE SKIN while handling
chemicals and spraying.
NEVER POINT THE SPRAY GUN at people or animals.
Summary of Important Safety Information (continued)

6
EXERCISE EXTRA CAUTION when spraying near areas accessible to children and pets.
CLEAN up spills immediately per instructions on the chemical label.
TURN OFF vehicle and set brake or chock wheels, TURN OFF power to sprayer, and RELIEVE system
pressure before leaving sprayer unattended.
SEE Troubleshooting section of this manual before attempting any repairs. Wear personal protective
equipment and follow safety instructions.
After Spraying
CLEAN sprayer immediately after use according to the directions provided in this manual.
DECONTAMINATE yourself after you are done spraying and have cleaned the sprayer. Wash all exposed areas
of the body with soap and water, and remove and launder clothing.
DISPOSE OF or STORE remaining chemicals in secure storage with correctly marked container.
Towing/Hauling Safety
READ towing/hauling safety instructions in your towing/hauling vehicle manual.
DO NOT ALLOW drivers younger than 16 to operate the towing/hauling vehicle with the filled sprayer
attached.
MAKE SURE SPRAYER IS SECURELY ATTACHED to vehicle.
EXERCISE CAUTION in vehicle handling when towing/hauling filled sprayer to avoid loss of control or
overturning.
oKeep speed to a minimum so you can maintain control. Reduce speed prior to turns.
oAllow for wider turns and for more distance to stop.
oAvoid any sudden steering maneuvers, starts, or stops that could create sway.
SLOW DOWN AND EXERCISE EXTRA CAUTION ON SLOPED OR UNEVEN TERRAIN. Pick the
most level route possible. Drive up and down slopes when necessary, rather than across. Use a vehicle
equipped with a roll over protection system (ROPS) if you will be working on non-level terrain.
BE AWARE of the added length of the sprayer and that visibility may be reduced when making turns or
backing up.
DO NOT RIDE or TRANSPORT cargo on the sprayer.
COMPLY WITH all local, state, and federal towing requirements if you will be towing on public roads.
TURN OFF both sprayer and vehicle, and SET BRAKES or CHOCK WHEELS before leaving unattended.
Please fold the boom arms while transporting from one place to another.
Chemical accident procedures
Immediate response is necessary in the event of sprayer leaks, bodily chemical contact, poisoning, or spills.
Sprayer leak
If the sprayer develops a leak, immediately stop spraying. Turn off power to the
sprayer and follow directions below, as applicable.
Bodily chemical
contact
Personal contamination can occur when chemicals splash, spill, or spray
directly onto a person.
1. Immediately follow First Aid instructions on chemical label.
General procedures can include:
a) Eyes – immediately flush with water.
b) Skin – wash all contaminated skin surfaces with soap and water.
c) Clothing – remove contaminated clothing. Dispose of heavily
contaminated clothing per chemical label instructions.
2. Seek medical advice if instructed on the label or the victim experiences
symptoms of harmful effects. Bring the chemical label for reference.

7
Summary of Important Safety Information (continued)
Poisoning by
ingestion or
inhalation
In case of poisoning from ingestion or inhalation:
If the victim has collapsed or is not breathing, call 000. Otherwise:
1. If you are the victim, immediately seek assistance from nearby personnel
because you may become incapacitated.
2. Immediately follow first aid instructions on chemical label.
3. Call a poison control center for further advice. In Australia. Call 13 11 26.
Have the chemical label available for reference.
Chemical spills
Chemical spills must be quickly contained and properly cleaned up.
Refer to the chemical label for any specific clean-up instructions.
General procedures include:
1. Controlling the spill by stopping the source of the spill.
2. Containing the spill so that it does not spread and get into water sources.
3. Cleaning up the spill immediately.
4. Seeking additional advice from:
- Chemical manufacturer. See chemical label for contact information.
- Contact the APVMA (Australian Pesticides & Veterinary Medicines
Authority), by emailing [e-mail] or calling [phone].

8
Summary of Important Safety Information (continued)
Part#
Description
K16-798567
Decal, Pinch Point

9
Unpacking
Closely inspect all contents in the shipping carton.
Note that some parts are shipped inside the tank.
If you have missing or damaged components, please call Kincrome Customer Service on 1300 657 528.
Fig06551
Boom Assembly
(Qty 1)
Boom Mount Bracket
K16-799249
(Qty 2)
Hose, 3/8” x 442mm
K16-798898
(Qty 2)

10

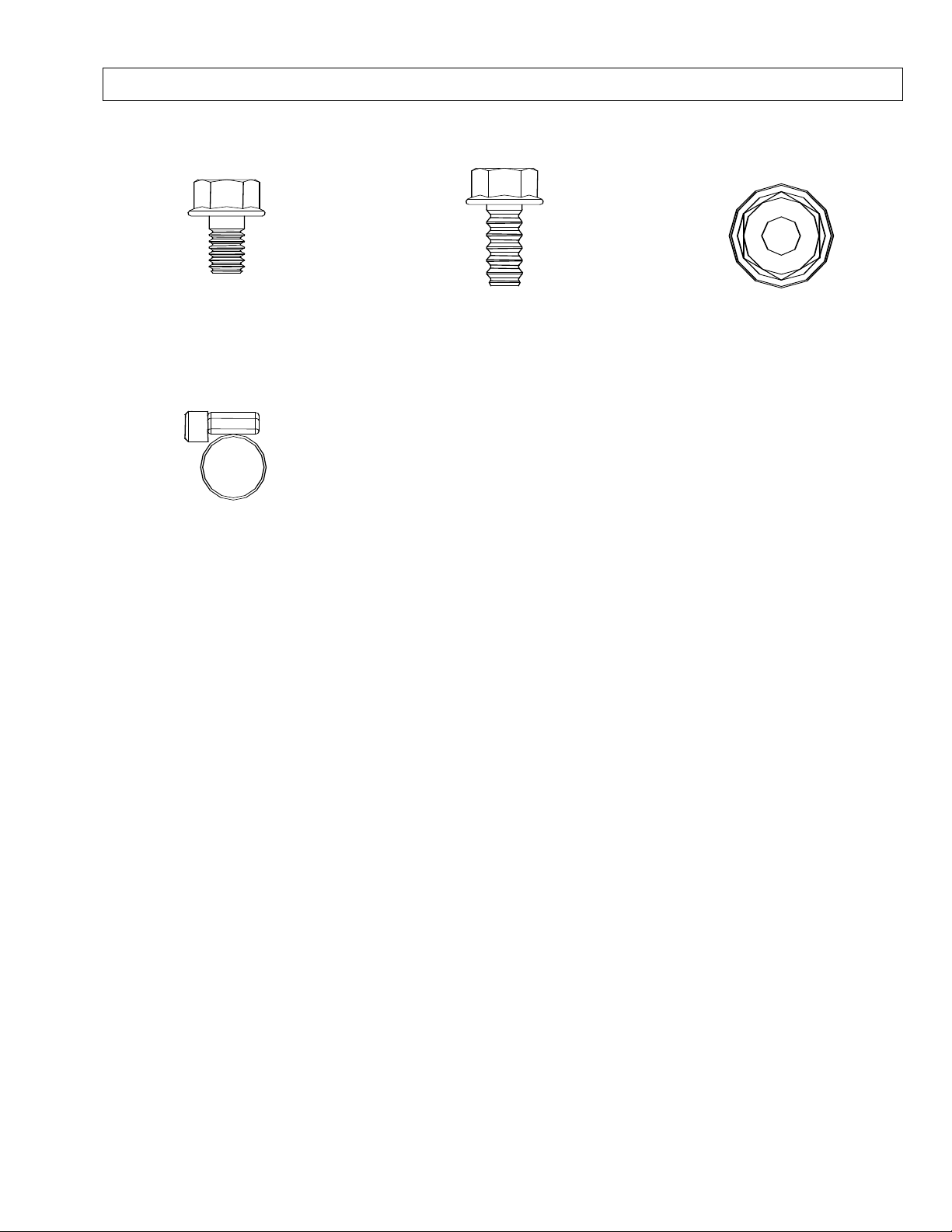

Unpacking the Manual Bag
Note: Items in this section are found in the manual bag.
5/16" Flange Nut
K16-82019
(Qty 4)
5/16"-18 x 3/4" Bolt
K16-82015
(Qty 4)
3/8" Hose Clamp
K16000-2
(Qty 5)
5/16"-18 x 1/2" Bolt
K16001-14
(Qty 4)

11
Assembly

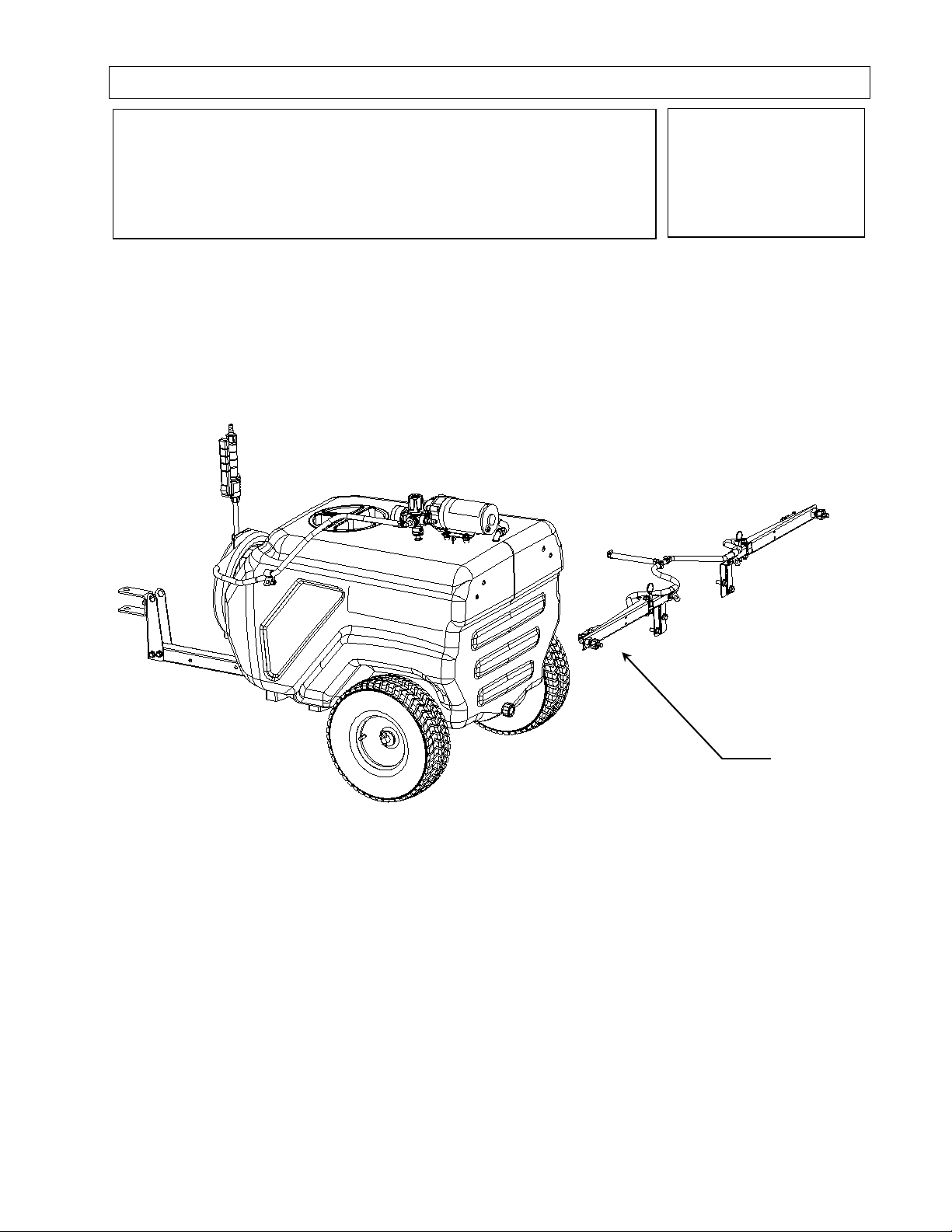

Step 1 – For removing the existing boom on
sprayer.
Disconnect boom supply hose.
Remove old boom assembly from sprayer.
Tools Needed
1/2" Spanner
Screwdriver
Fig06570
Boom

12
Assembly

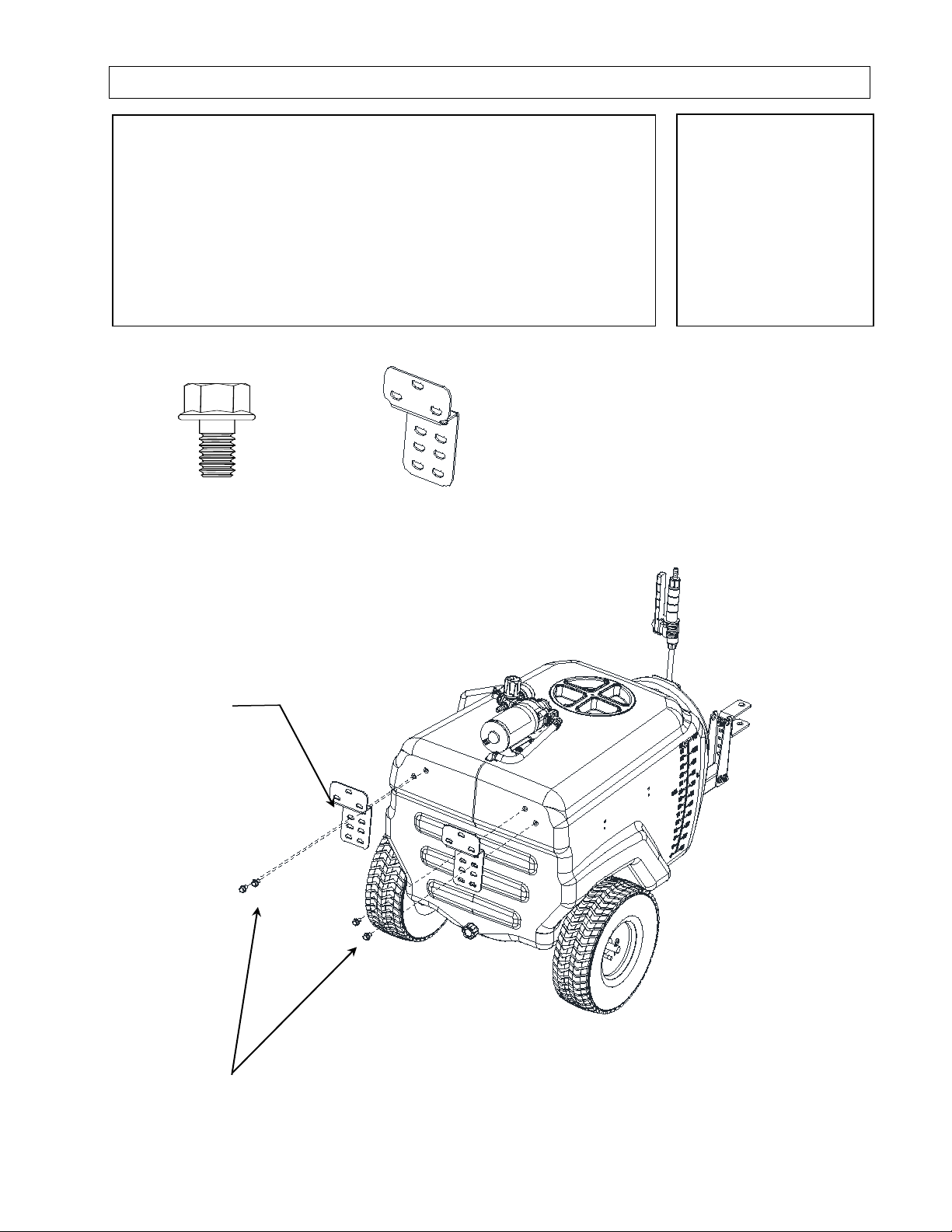

Step 2 – Bolt boom mount brackets to tank
Install boom mount brackets to tank with four 5/16"-18 x
1/2" Bolts.
Tighten bolts to 5 Ft-lbs (6.78nM).
Use top four mounting slots.
Nozzle tip should be 20” from ground after assembly
Tools Needed
1/2" Spanner
Torque Wrench
Fasteners Needed from Owner’s Manual Bag:
Fig06547
5/16"-18 x 1/2" Bolt
K16001-14
(Qty 4)
Boom Mount Bracket
K16-799249
(Qty 2)
5/16"-18 x 1/2" Bolt
Boom Mount Bracket

13
Assembly
Fig06548
Step 3 – Attach boom assembly to boom mount
brackets
Install boom assembly to boom mount brackets with four 5/16"-
18 x 3/4" bolts and nuts.
Tools Needed
1/2” Spanner
Fasteners Needed from Owner’s Manual Bag:
5/16" Flange Nut
K16-82019
(Qty 4)
5/16"-18 x 3/4" Bolt
5/16" Flange Nut
Fig06551
Boom Assembly
(Qty 1)
Boom Assembly

14
Assembly
Fig06549
3/8" Hose Clamp
K16000-2
(Qty 1)
3/8" Hose Clamp
Regulator
Boom Supply Hose

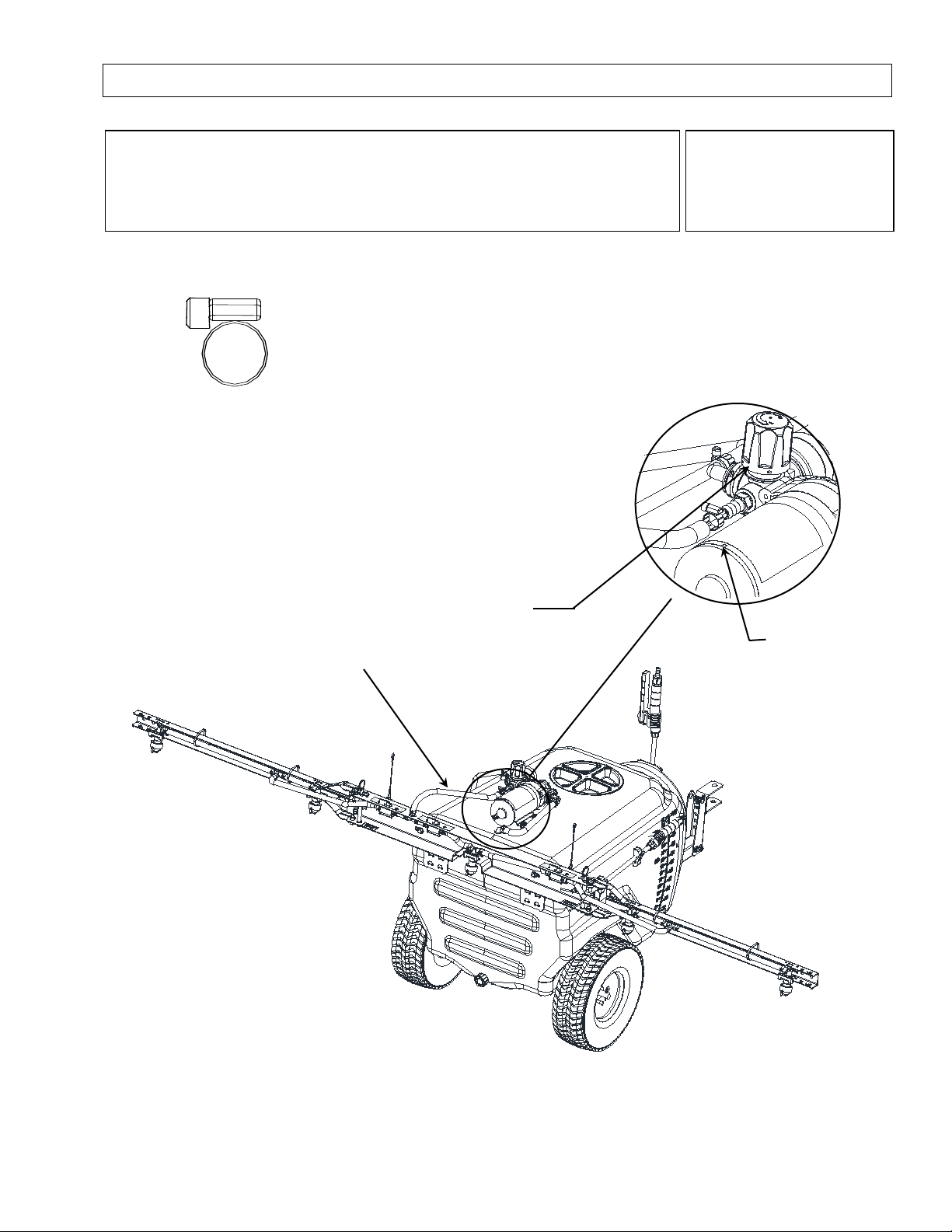

Step 4 – Attach boom supply hose to fitting in
regulator
Tighten 3/8" hose clamp as shown.
Tools Needed
Flat Head Screw
Driver
Fasteners Needed from Owner’s Manual Bag:

15
Assembly
Step 5 – Install boom hoses
Install one end of hose to tee and secure it by tightening
hose clamp.
Install other end of hose to ball valve hose barb and secure it
by tightening hose clamp.
Repeat for other arm.
Tools Needed
Flathead
Screwdriver
Fasteners Needed from Owner’s Manual Bag:
Hose Clamp
K16000-2
(Qty 4)
Hose, 3/8” x 442mm
K16-798898
(Qty 2)
Hose Clamp
Hose Clamp
3/8” x 442mm Hose

16
Assembly
Step 6: Check and test completed assembly.
1. Test with water
Test the system for leaks with water:
a) Partially fill the tank with water.
b) Connect the remote switch to the pump power cord and turn the remote
switch ON. The pump is an "on demand" pump. When turned on, the
pump will prime itself, and then turn off. When the gun trigger is
squeezed, the pump will automatically start.
c) Operate the spray gun by squeezing the gun trigger.
d) Operate the broadcast nozzles by opening the boom valves.
e) Check for leaks throughout the system. If a leak is detected, fix the leak
and re-test the system with water until no leaks are detected.

17
Operation – Important Safety Information
Now that you have completed and tested your assembly, there is some important safety and health information
you need to know with regard to handling and spraying chemicals, as well as vehicle handling with the sprayer
attached.
WARNING
Carefully read and make sure you understand the following safety information before
using the sprayer.
General Chemical Safety:
WARNING
Pesticides are hazardous chemicals.
Heed the warnings below and follow all instructions carefully.
Improper handling of chemicals can result in serious injury or illness,
or cause damage to the environment.
Chemical label. ALWAYS READ and FOLLOW all chemical label instructions.
Licensing/regulation. Refer to any applicable licensing restrictions or state/federal regulations with regard to
the application of the particular chemical you plan to use.
Emergency procedures. Before handling chemicals, carefully review the "Chemical Accident Procedures"
listed later in this section, as well as the "Statement of Practical Treatment" on the chemical label.
Inhalation/contact. ALWAYS take precautions to avoid inhaling or coming into contact with the chemical.
Personal protective equipment. ALWAYS wear protective clothing, eye protection, and chemical-resistant
gloves when filling, using and cleaning the sprayer. Wear additional protective gear (such as facemask or
apron) as recommended on the chemical label.
Children/pets. Pesticides can be especially toxic to children and animals. ALWAYS exercise extra caution
around children. Keep sprayer and all spray materials away from children and animals.
Ventilation. ALWAYS ensure there is adequate ventilation when mixing, pouring, or spraying.
Flammables. NEVER use any flammable chemicals in the sprayer.
Corrosives. DO NOT use corrosive chemicals in the sprayer. They can weaken the sprayer and its parts,
resulting in leaks. Check with the chemical manufacturer to ensure chemical is compatible with all
components of the sprayer.
Chemical interaction. ALWAYS flush the sprayer before switching chemicals. Different chemicals may
interact dangerously with each other.
Chemical storage. ALWAYS store pesticides in a properly labeled container and in a secure location per the
manufacturer's recommendations.
Health monitoring. Monitor the health of operators who are frequently exposed to pesticides, as
recommended by the chemical label or local/federal regulations.

18
Operation – Important Safety Information
Chemical Application Safety:
WARNING
Caution must be used when spraying chemicals to avoid unsafe exposure to
humans and the environment.
Heed the warnings below and follow all instructions carefully.
Before Spraying
Sprayer prep. ALWAYS inspect and prepare the sprayer before use according to the directions provided
in this manual.
Keep sprayer off. Do not turn on power to the sprayer until ready to spray in order to avoid unintentional
spray release.
Broadcast nozzle down. Make sure broadcast nozzle is oriented to spray straight down before starting the
sprayer. An incorrectly positioned broadcast nozzle may spray chemicals on you or others
Wind speed. NEVER spray when wind speed exceeds 5 KPH in order to minimize spray drift.
Clear area/post. ALWAYS keep the work area clear of people and pets. POST warning notices to
restrict access by the public for the period recommended on chemical label.
Operator age. You must be 16 years of age or older to operate this sprayer. Pesticides are especially toxic
to children.
During Spraying
Over application. DO NOT over apply pesticide. Apply at a rate recommended by chemical
manufacturer. Excess pesticide can be dangerous to humans, damage desirable plants, and contaminate
soil and water sources.
Never point gun. NEVER point the spray gun at people or animals.
Children/pets. ALWAYS exercise extra caution when spraying near areas accessible to children and
pets.
Eating/smoking. DO NOT eat, drink, smoke, rub your eyes, or touch any part of your bare skin while
handling chemicals and spraying.
Heat/flames. DO NOT spray near open flames or sources of heat.
Spills. ALWAYS clean up spills immediately per instructions on the chemical label.
Unattended. ALWAYS turn off vehicle and set brake or block wheels, turn off power to sprayer, and
relieve system pressure before leaving sprayer unattended.
Troubleshooting. ALWAYS refer to the safety instructions in the Troubleshooting Section before
attempting any repairs.
After Spraying
Clean sprayer. ALWAYS clean the sprayer immediately after use according to the directions provided in
this manual.
Decontaminate. ALWAYS decontaminate yourself immediately after you are finished spraying and
handling chemicals. Wash all exposed areas of the body with soap and water and remove and launder
clothing.
Chemical disposal/storage. ALWAYS dispose of or store remaining chemicals properly as
recommended on the chemical label.

19
Operation – Important Safety Information
Towing/hauling Safety:
WARNING
The filled sprayer is very heavy. It can crush and cause serious injury if it rolls out of control
or tips over.
Follow the instructions below for safely towing the sprayer.
Read vehicle instructions. Review towing safety instructions in your towing/hauling vehicle manual.
Driver age. You must be 16 years of age or older to operate the towing/hauling vehicle with the sprayer
attached.
Securely attached. Be sure sprayer is securely attached to the towing/hauling vehicle.
Tyres. Make sure sprayer tyres are fully inflated and in good repair before towing. Do not over inflate.
Serious injury could occur if tyre explodes.
Vehicle handling. Be aware that vehicle handling will be affected when towing the filled sprayer. Exercise
caution to avoid loss of control or sprayer overturning:
oKeep speed to a minimum so you can maintain control at all times. Reduce speed prior to turns.
oAllow for wider turns and for more distance to stop.
oAvoid any sudden steering maneuvers, starts, or stops that could create sway.
Rough or sloped terrain. Slow down and exercise extra caution on rough or sloped terrain in order to reduce
risk of rollover. Pick the most level route possible when transporting across fields. Drive up and down slopes
that cannot be avoided, rather than across. Use a vehicle equipped with a Roll Over Protection System
(ROPS) if you will be operating on non-level terrain.
BE AWARE of the added length of the sprayer and that visibility may be reduced when making turns or
backing up.
Ride / transport. Never ride or transport cargo on the sprayer.
Under the influence. Never tow or operate this sprayer while under the influence of alcohol, drugs, or
medication
On public roads. If towing on a public road, make sure to comply with all local, state, and federal towing
requirements. It is the sole responsibility of the purchaser to obtain licensing, trailer lights, safety chains or
signage as needed to comply.
Unattended. Turn off both the sprayer and the vehicle, and set the brake or chock the wheels, before leaving
the sprayer unattended.
Chemical accident procedures:
WARNING
Before you fill the sprayer, review the following information with regard
to handling accidents.
Chemical spills, sprayer leaks, personal contamination, and poisoning are
accident situations which you may encounter. All require an immediate
response – See instructions below.
