Kincrome Kp10106 User manual

Manual No. 80028626 Revision -

Model Number _____________________________

Revision __________________________________

Serial Number ______________________________

Date Purchased ____________________________

1800-356-632 (AUS) or 0800-484-282 (NZ)

BRIGGSandSTRATTON.com.au

Outdoor Inverter Generator

Operator’s Manual

KP10106

2 BRIGGSandSTRATTON.com.au

Equipment Description

Table of Contents

Equipment Description .........................2

Features and Controls .........................4

Operation....................................6

Maintenance ................................13

Storage ....................................15

Troubleshooting/Specifications .................16

Warranty ...................................20

Symbols and Meanings

Signal Meaning

DANGER Indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING Indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION Indicates a hazard which, if not avoided,

could result in minor or moderate injury.

NOTICE Indicates information considered important,

but not hazard-related

Symbol Name Explanation

Safety Alert

Symbol

Indicates a potential personal injury

hazard.

Operator’s

Manual

Failure to follow warnings,

instructions and operator’s manual

could result in death or serious

injury.

Toxic Fumes

Engine exhaust contains carbon

monoxide, a poisonous gas that

could kill you in minutes. You

cannot smell it or see it.

Fire

Fuel and its vapors are extremely

flammable which could cause

burns or fire resulting in death or

serious injury.

Engine exhaust could cause fire

resulting in death or serious injury.

Electric

Shock

Generator could cause electrical

shock resulting in death or serious

injury.

Hot Surface Muffler could cause burns or

resulting in serious injury.

Equipment Description

Read this manual carefully and become familiar

with your product. Know its applications, its

limitations, and any hazards involved. Save these

original instructions for future reference.

The inverter generator is an engine–driven, revolving

field, alternating and direct current (AC & DC) generator.

It was designed to supply electrical power for operating

compatible electrical lighting, appliances, tools and

motor loads. The generator’s revolving field is driven

at about 4,350 rpm (with QPT™ (QUIET POWER

TECHNOLOGY™) switch off) by a single-cylinder engine.

The inverter generator produces power that can be used for

outdoor items using extension cords or an optional parallel

kit. This inverter generator is not intended to restore power to

a home.

Extension cords running directly into the home

increase your risk of carbon monoxide poisoning through

openings. Install carbon monoxide alarm(s).

Every effort has been made to ensure that the information in this

manual is both accurate and current. However, the manufacturer

reserves the right to change, alter or otherwise improve the

generator and this documentation at any time without prior notice.

NOTICE If you have questions about intended use, contact an

authorized service dealer. This equipment is designed to be used

with Briggs & Stratton authorized parts only.

System Ground

The generator has a system ground that connects the

generator frame components to the ground terminals on the

AC output receptacles. The generator neutral is floating,

which means that the AC stator winding is isolated from

the grounding fastener and the AC receptacle ground pins.

Electrical devices, such as RCD, requiring a grounded

neutral may not operate properly from this generator.

Earthing of the generator is not required.

Special Requirements

There may be regulations, local codes, or ordinances that

apply to the intended use of the generator. Please consult

a qualified electrician, electrical inspector, or the local

agency having jurisdiction.

This generator is not intended to be used at a construction

site.

Equipment Description

Air Cleaner (under side maintenance cover) — Protects

engine by filtering dust and debris out of intake air.

Choke Lever — Used when starting a cold engine.

Engine Switch — Set this switch to ON (I) before using

recoil starter. Set switch to OFF (0) to stop engine. Also

turns fuel valve on and off.

Fuel Cap — Add unleaded fuel here.

Grounding Fastener — Consult your local agency having

jurisdiction for grounding requirements in your area.

Identification Label — Provides model and serial number of

generator.

Oil Fill Cap (under side maintenance cover) — Check and

add engine oil here.

Recoil Starter — Used to start the engine manually.

Retractable Handle — Press button and pull handle out to

move generator. Press button to push handle back in.

Side Maintenance Cover — Remove to gain access to the

air cleaner and oil service.

Spark Arrester Muffler — Exhaust muffler lowers engine

noise and is equipped with a spark arrester screen.

Top Maintenance Cover — Remove to gain access to the

spark plug.

Choke Lever

Top Maintenance Cover

Fuel Cap

Spark Arrester Muffler

Side Maintenance Cover

Recoil Starter

Engine Switch

Retractable Handle

Oil Fill Cap

Air Cleaner

Grounding Fastener

Identification Label

4 BRIGGSandSTRATTON.com.au

Features and Controls

12 Volt DC

Receptacle

Compare the illustrations with your generator to familiarize yourself with the locations of various controls and product

warnings.

Generator

Reset

12 Volt DC Receptacle — Use this receptacle with battery

charge cables to charge a 12 Volt battery. This receptacle

is protected by a push to reset circuit breaker.

230 Volt AC, 15 Amp Receptacle — May be used to supply

electrical power for the operation of 230 Volt AC, 15 Amp,

single phase, 50 Hz electrical, lighting, appliance, tool, and

motor loads.

Circuit Breaker — A “push to reset” circuit breaker is

provided to protect the generator against electrical

overload.

DC Circuit Breaker — The 12 Volt DC receptacle is

provided with a “push to reset” circuit breaker to protect the

generator against electrical overload.

Generator Reset — Push to reset generator if overloaded.

Low Oil Indicator — A yellow LED light comes on when the

oil in the generator drops below a preset level.

Output Indicator — A green LED light comes on when the

generator is working correctly and producing power at the

receptacles.

Overload Alarm — A red LED light comes on and

cuts power to the receptacles when the generator is

overloaded.

Parallel Operation Port — Use this port with optional parallel

operation kit to allow two generators to run in parallel.

QPT Switch— QPT (QUIET POWER TECHNOLOGY ™)

Switch — Use this switch to turn the QPT on and off.

Statstation™ LCD Screen — Built in LCD screen to monitor

certain features on the generator. See STATSTATION™.

USB Port — Use this port to recharge any USB powered

device.

“View” Button — Pressing the “View” button will toggle

between the flashing load percentage and the flashing hour

display. Once maintenance has been performed, you must

push and hold the “View” button on the control panel for

a minimum of 3 seconds to stop the display from flashing

and return it to normal operation.

DC Circuit

Breaker

Statstation™ LCD Screen

230 Volt AC 15 Amp

Receptacle

Parallel

Operation Port

USB Port

“View” Button

Output Indicator





Overload Alarm

Circuit

Breaker

Low Oil Indicator

Features and Controls

Muffler

Point away from home

6 BRIGGSandSTRATTON.com.au

Operation

Step 1: Safe Location

Before starting the inverter generator there are two equally

important safety concerns regarding carbon monoxide

poisoning and fire that must be addressed.

Operation Location to Reduce the Risk of

Carbon Monoxide Poisoning

The engine exhaust of all fossil fuel burning equipment,

such as an inverter generator, contains carbon monoxide,

a poisonous gas that could kill you in minutes. You cannot

smell it, see it, or taste it. Even if you do not smell exhaust

fumes, you could still be exposed to carbon monoxide gas.

A carbon monoxide alarm is an electronic device that

detects hazardous levels of carbon monoxide. When there

is a buildup of carbon monoxide, the alarm will alert the

occupants by flashing visual indicator light and alarm.

Smoke alarms cannot detect carbon monoxide gas.

WARNING! Engine exhaust contains carbon

monoxide, a poisonous gas that could kill you in

minutes. You cannot smell it, see it, or taste it.

Even if you do not smell exhaust fumes, you could still be

exposed to carbon monoxide gas.

• Operate this product only outdoors far away from

windows, doors and vents to reduce the risk of carbon

monoxide gas from accumulating and potentially being

drawn towards occupied spaces.

• Install battery-operated carbon monoxide alarms or

plug-in carbon monoxide alarms with battery back-up

according to the manufacturer’s instructions. Smoke

alarms cannot detect carbon monoxide gas.

• Do not run this product inside homes, garages,

basements, crawlspaces, sheds, or other partially-

enclosed spaces even if using fans or opening doors

and windows for ventilation. Carbon monoxide can

quickly build up in these spaces and can linger for

hours, even after this product has shut off.

• Always place this product downwind and point the

engine exhaust away from occupied spaces.

If you start to feel sick, dizzy, or weak while using this

product, get to fresh air right away. See a doctor. You may

have carbon monoxide poisoning.

Carbon monoxide alarm

Install carbon monoxide alarms inside

your home. Without working carbon

monoxide alarms, you will not realize

you are getting sick and dying from

carbon monoxide poisoning.

CARBON MONOXIDE ALARM(S)

USE OUTDOORS - AVOID CARBON MONOXIDE POISONING

point away

from home

MUFFLER

Operation

Operation Location to Reduce the Risk of Fire

WARNING! Exhaust heat/gases could ignite

combustibles, structures or damage fuel tank

causing a fire, resulting in death or serious injury.

• Inverter generator must be at least 1.5 m (5 ft.) from any

structure, overhang, trees, windows, doors, any wall

opening, shrubs, or vegetation over 30.5 cm (12 in.) in

height.

• Do not place inverter generator under a deck or other

type of structure that may confine airflow. Smoke alarm(s)

must be installed and maintained indoors according to the

manufacturer’s instructions/recommendations.

• Carbon monoxide alarms cannot detect smoke.

• Do not place inverter generator in manner other than

shown.

1.5 m (5 ft.) min.

8 BRIGGSandSTRATTON.com.au

Operation

Step 2: Oil and Fuel

Oil Recommendations

We recommend the use of Briggs & Stratton Warranty

Certified oils for best performance. Other high-quality

detergent oils are acceptable if classified for service SF or

higher. Do not use special additives.

Outdoor temperatures determine the proper oil viscosity for

the engine. Use the chart to select the best viscosity for the

outdoor temperature range expected.

* Below 4°C (40°F) the use of SAE 30 will result in hard starting.

** Above 27°C (80°F) the use of 10W30 may cause increased oil

consumption. Check oil level more frequently.

Checking/Adding Engine Oil

Oil level should be checked prior to each use or at least

every 8 hours of operation. Keep oil level maintained.

1. Place generator on a level surface.

2. Loosen the two maintenance cover screws and

remove the side maintenance cover.

3. Clean area around oil fill and remove yellow oil fill cap.

4. Verify oil is at the point of overflowing at the oil fill

opening.

5. If needed, using oil funnel, slowly pour recommended

engine oil into oil fill opening to the point of overflowing.

NOTICE DO NOT attempt to crank or start engine before

it has been properly serviced with recommended oil. This

could result in an engine failure.

6. Replace oil fill cap and fully tighten.

7. Replace the maintenance cover and hand tighten the

two maintenance cover screws.

Add Fuel

Fuel must meet these requirements:

• Clean, fresh, unleaded fuel with a minimum of

87 octane/87 AKI (91 RON).

• Gasoline with an ethanol content up to 10% is acceptable.

E10

E15

NOTICE Do not mix oil in fuel or modify engine to run on

alternate fuels. Use of unapproved fuels could damage

engine and will not be covered under warranty.

See High Altitude for 1524 m (5,000 ft.) and above.

WARNING! Fuel and its vapors are extremely

flammable which could cause burns or fire

resulting in death or serious injury.

• Do not refuel during operation.

• Turn engine off and let it cool at least 2 minutes before

removing fuel cap.

• Fill fuel tank outdoors. Keep fuel away from sparks, open

flames, pilot lights, heat, and other ignition sources.

Check fuel lines, tank, cap and fittings frequently for

cracks or leaks. Replace if necessary.

1. Clean area around fuel fill cap, remove cap.

2. Slowly add unleaded fuel to red fuel level indicator in

fuel tank. Be careful not to fill above the indicator. This

allows adequate space for fuel expansion.

Fuel Level

Indicator

3. Install fuel cap and let any spilled fuel evaporate

before starting engine.

High Altitude

At altitudes over 1524 m (5,000 ft.), a minimum 85 octane/85

AKI (89 RON) fuel is acceptable. To remain emissions

compliant, high altitude adjustment is required. Operation

without this adjustment will cause decreased performance,

increased fuel consumption,

and increased emissions.

See an authorized Briggs & Stratton dealer for high altitude

adjustment information. Operation of the engine at altitudes below

762 m (2,500 ft.) with the high altitude kit is not recommended.

Transporting

When transporting equipment with a vehicle or trailer, turn engine

switch to OFF (0) position. Do not tip engine or equipment at an

angle which causes fuel to spill.

Step 3: Generator Start Up

Disconnect all electrical loads from the generator. Use the

following start instructions:

1. Make sure unit is outdoors on a level surface.

NOTICE Failure to operate the unit on a level surface may

cause the unit to shut down.

2. Turn the engine switch to the ON (I) position.

3. Push choke lever to CHOKE ( ) position.

NOTICE To start the engine for the very first time, after

running out of fuel or after a long period of storage, fill fuel

tank as described in Add Fuel. It will require more than

several start attempts until the air in the fuel system has

been purged.

5. Grasp recoil handle and pull slowly until slight

resistance is felt. Then pull rapidly to start engine.

6. Slowly move choke lever to RUN ( ) position. If

engine falters, move choke lever to half choke position

until engine runs smoothly, and then to RUN ( )

position.

NOTICE If engine starts but fails to run, see Low Oil

Indicator.

QPT (QUIET POWER TECHNOLOGY™)

This feature is designed to greatly improve fuel economy.

When this switch is turned ON (I), the engine speed will

increase as electrical loads are connected, and decreased

as electrical loads are removed.

With the switch off, engine will run at full governed speed.

NOTICE Always have the switch OFF (0) when starting or

stopping the generator or when using the DC receptacle.

Step 4: Connecting Electrical Loads

Make sure the green output indicator light comes on (it

may take up to three seconds).

Using Extension Cords

When using extension cords or mobile distribution

networks, the total length of cords for a cross section of

1.5mm2should not exceed 60 m, for a cross section of

2.5mm2this should not exceed 100 m.

Use only grounded extension cords marked for outdoor

use rated for your loads. Follow cord safety instructions.

WARNING! Damaged or overloaded extension

cords could overheat, arc, and burn resulting in

death or serious injury.

NOTICE For generator output required see Generator

Capacity. Connect electrical loads in off position then turn

on for operation.

230 Volt AC, 15 Amp Receptacles

These receptacles are protected against overload by an

internal overload system.

Use receptacles to operate 230 Volt AC, single–phase,

50 Hz electrical loads requiring up to 2,600 watts (2.6 kW)

at 7.4 Amps of current. Use cord sets that are rated for

230 Volt AC loads at 15 Amps (or greater).

5 Volt DC USB Port

The maximum current available for the USB port is 1 Amp

at 5 Volts. The USB port allows you to recharge any USB

powered device with a USB charging cable (not included).

NOTICE For charging ITE (Information Technology

Equipment) only.

Operation

Engine

Switch

Choke Lever

10 BRIGGSandSTRATTON.com.au

12 Volt DC Receptacle

The maximum current available for the battery charge circuit

is 5 Amps. A DC circuit breaker protects this receptacle from

overloads. If an overload occurs, the circuit breaker will trip

(push button pops out). Wait a few minutes and push the

button in to reset the circuit breaker.

This receptacle allows you to recharge a 12 Volt

automotive or utility style storage battery with the battery

charge cable provided.

This receptacle can not be used to crank an engine having

a discharged battery. See Charging a Battery before

attempting to recharge a battery.

NOTICE When using the battery charge circuit and USB

port, turn the QPT switch to the OFF (0) position.

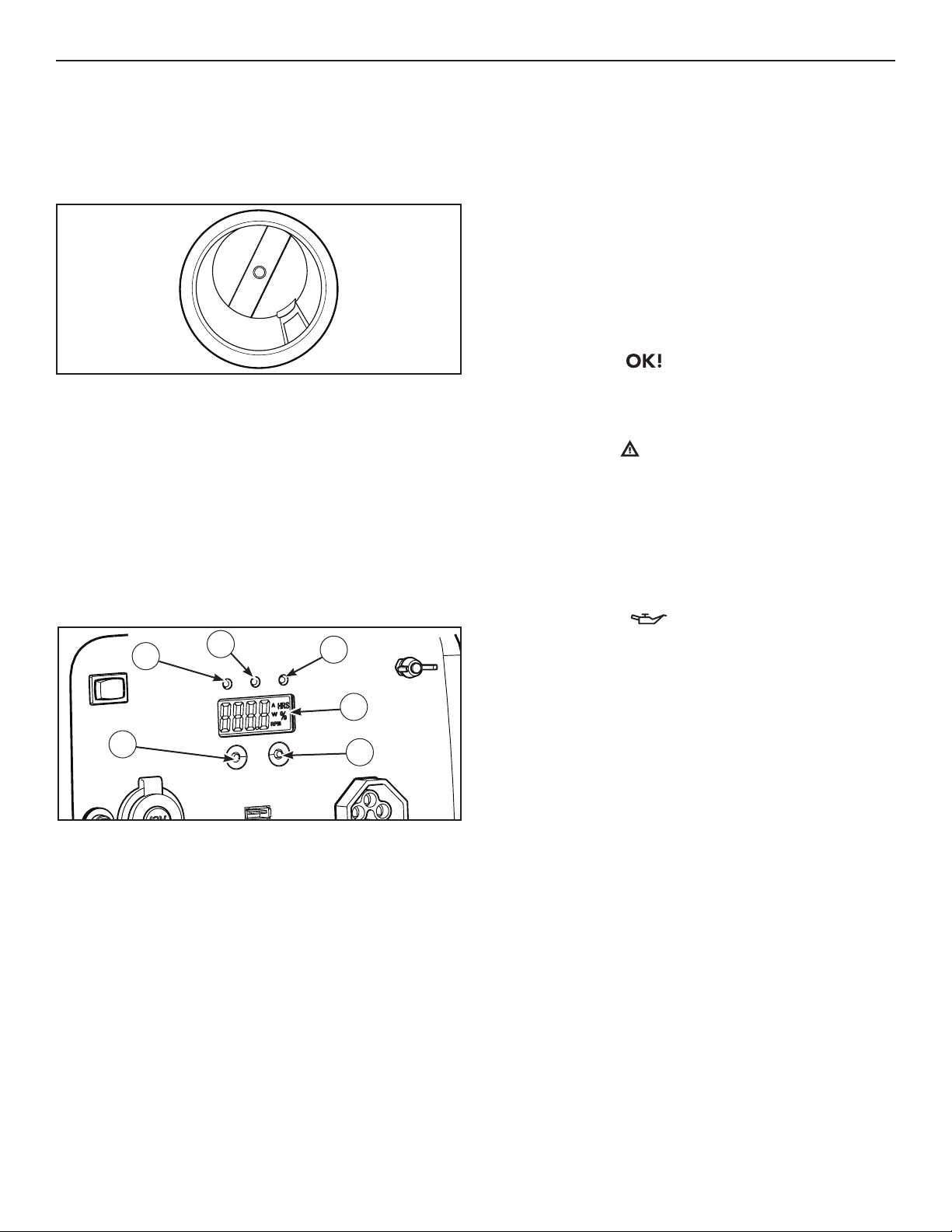

STATSTATION™

The control panel has a built in LCD display (A) to monitor

the following features:

• Load Monitor (Total Generator Load)

• Hour Meter (Total Generator Hours)

• Maintenance Reminder (En gine Maintenance)

Load Monitor

The load monitor measures the output wattage (generator

load) of all the generator receptacles and will display the

percentage of total generator load.

Hour Meter

The LCD on the control panel also has a built in hour meter

that displays and records how many hours your generator

has run (up to 999.9).

Maintenance Reminder

The LCD on the control panel also has a built in

maintenance reminder to alert you to change air filter,

change oil, and change spark plug. The LCD display will

flash both the load percentage and the hour display every

50 hours for the different maintenance intervals. See

Maintenance Schedule for different maintenance intervals.

Pressing the “View” button (B) will toggle between the

flashing load percentage and the flashing hour display.

Once maintenance has been performed, you must push

and hold the “View” button on the control panel for a

minimum of 3 seconds to stop the display from flashing

and return it to normal operation.

Output Indicator

The green LED output indicator light (C) comes on when

the generator is operating normally. It indicates that the

generator is producing power at the receptacles.

Overload Alarm

The red LED overload alarm light (D) comes on and cuts

power to the receptacles if you overload the generator. The

green output indicator light will also go off. If the generator

was overloaded, you must turn off and unplug all electrical

loads, press the “Reset” button (E) on the generator control

panel and then plug in and restart electrical loads one at a

time to continue in normal operating mode.

Low Oil Indicator

The low oil indicator system is designed to prevent engine

damage caused by not enough engine oil. If the engine

oil level drops below a preset level, the yellow LED low oil

indicator light (F) comes on and an oil level switch will stop

the engine. If the engine stops or the yellow LED low oil

indicator light comes on when you pull the recoil handle,

check the engine oil level.

Operation

Models Maximum Output

P2200 & P2200 3000 Watts

P2200 & P3000 3000 Watts

P3000 & P3000 4800 Watts

Parallel Operation

Two Briggs & Stratton inverter generators can be run

in parallel with a Briggs & Stratton parallel operation kit

(optional equipment). When running in parallel, the total

output of power is shown in chart.

NOTICE Total electrical load connected to the parallel kit

must not exceed the maximum output.

See the parallel operation kits instruction sheet for detailed

instructions on installation and operation of the connected

generators.

NOTICE

• Turn electrical loads OFF and disconnect from both

generators.

• The QPT switch must be in the same position on both

generators.

• Connect the parallel kit’s power cables to both

generators before starting the engines. See instruction

sheet supplied with parallel kit.

• Start engine on one of the inverter generators

according to Generator Start Up.

• Once the green LED output indicator light on the first

generators is steady, start second generator.

• Connect and turn on electrical loads to the parallel

panel receptacles.

• DO NOT disconnect parallel kit’s power cables after

engines have been started.

• Shut down engines as described in Generator

Shutdown.

Charging a Battery

Your generator has the capability of recharging a

discharged 12 Volt automotive or utility style storage battery.

NOTICE

• Not for use with any other type of battery.

• DO NOT use the unit to charge any 6 Volt batteries.

• DO NOT use the unit to crank an engine having a

discharged battery.

To recharge 12 Volt batteries, proceed as follows:

1. Make sure QPT switch is in OFF (0) position.

2. If necessary, clean battery posts or terminals.

3. Check fluid level in all battery cells. If necessary, add

ONLY distilled water to cover separators in battery

cells. DO NOT use tap water.

4. If the battery is equipped with vent caps, make sure

they are installed and are tight.

Connect battery charge cable clamp with red handle to

battery post or terminal indicated by Positive,POS or (+).

6. Connect battery charge cable clamp with black

handle to battery post or terminal indicated by

Negative, NEG, or (–).

7. Connect battery charge cable connector plug to the

12 Volt DC panel receptacle.

8. Start generator as described in Starting The Engine.

Let the engine run while battery recharges.

NOTICE Normally a period of 30 to 120 minutes is

sufficient to recharge a weak battery.

9. When battery has charged, shut down engine as

described in Stopping The Engine.

10. Remove the battery charging cable from the generator

and then disconnect from the battery posts.

NOTICE Use an automotive hydrometer to test battery

state of charge and condition. Follow the hydrometer

manufacturer’s instructions carefully. Generally, a battery

is considered to be at 100% state of charge when specific

gravity of its fluid (as measured by hydrometer) is 1.260 or

higher.

Operation

WARNING Storage batteries give off explosive

hydrogen gas during recharging.

Hydrogen gas stays near battery for a

long time after battery has been

charged. Slightest spark could ignite hydrogen causing

explosion resulting in death or serious injury.

Battery electrolyte fluid contains acid and is extremely

caustic. Contact with battery fluid could cause chemical

burns resulting in serious injury.

• DO NOT allow any open flame, spark, heat, or lit cigarette

during and for several minutes after charging a battery.

• Wear protective goggles, rubber apron, and rubber gloves.

• DO NOT continue to charge a battery that becomes hot or is

fully charged.

• DO NOT leave battery unattended.

12 BRIGGSandSTRATTON.com.au

Generator Capacity

To make sure your generator can supply enough running

watts and starting watts for the items you will power at the

same time, follow these simple steps:

1. Select the items you will power at the same time. See

following list for typical wattages.

* Typical wattages listed are approximate only. Check tool

or appliance for actual wattage.

** Per Briggs & Stratton 628K, Starting Watts represents

the momentary electrical current the generator can

provide to start electric motors. Starting Watts does

not represent the power required to continuously run

electrical loads. Starting Watts is the maximum current

that can momentarily be supplied when starting a motor,

multiplied by the generator’s rated voltage.

2. Total the running watts. This is the amount of power

your generator must produce to keep your items

running. See following example:

Example

Total running watts = 2355

Highest starting watts = 2000

Total generator watts required = 4355

3. Estimate the starting watts you will need. Because not

all motors start at the same time, total starting wattage

can be estimated by adding only the item with the

highest additional starting watts requirements to the

total running watts from step 2.

Power Management

To manage generator power, sequentially add loads as

follows:

1. With nothing connected to generator, start the engine

outdoors.

2. Plug in and turn on the first load, preferably the largest

load you have.

3. Permit the generator output to stabilize (engine runs

smoothly and attached device operates properly).

4. Plug in and turn on the next load.

5. Again, permit the generator to stabilize.

6. Repeat steps 4 and 5 for each additional load.

Never add more loads than the generator capacity. Take

special care to consider surge loads in generator capacity.

Step 6: Generator Shutdown

1. Turn off and unplug all electrical loads from generator

panel receptacles. Never stop engine with electrical

devices plugged in and turned on.

2. Let engine run at no-load for one minute to stabilize

internal temperatures of engine and generator.

3. Turn engine switch to OFF (0) position.

Tool or Appliance Running Watts Starting Watts

Window air conditioner 1200 1800

Refrigerator 800 2000

Television 280 —

Light (75 Watts) 75 —

2355 Total

Running Watts

2000 Highest

Starting Watts

Tool or Appliance Running

Watts*

Starting

Watts**

Light Bulb - 75 Watt 75 -

Sump Pump 800 1200

Refrigerator/Freezer 800 2000

Water Well Pump - 1/3 HP 1000 2000

Window AC - 10,000 BTU 1200 1800

Furnace Fan Blower - 1/2 HP 800 1300

Microwave Oven - 1000 Watt 1000 -

Color Television - 42” 280 -

Personal Computer w/17” monitor 800 -

Garage Door Opener - 1/2 HP 480 520

Operation

Maintenance

Maintenance Schedule

Follow the hourly or calendar intervals, whichever occurs

first. More frequent service is required when operating in

adverse conditions noted below.

1Service more often under dirty or dusty conditions.

2See any authorized dealer for service.

General Recommendations

Regular maintenance will improve the performance and

extend the life of the generator. See any authorized dealer

for service.

The generator’s warranty does not cover items that have

been subjected to operator abuse or negligence. To

receive full value from the warranty, the operator must

maintain the generator as instructed in this manual.

All service and adjustments should be made at least once

each season. A new spark plug and clean air filter assure

proper fuel-air mixture and help your engine run better and

last longer. Follow requirements in Maintenance Schedule.

Cleaning

Daily or before use, look around and underneath the

generator for signs of oil or fuel leaks. Clean any accumulated

debris. Keep area around muffler free from any debris.

• Use a soft bristle brush to loosen caked on dirt or oil.

• Use a damp cloth to wipe exterior surfaces clean.

NOTICE Improper treatment of generator could damage

it and shorten its life. Do not expose generator to excessive

moisture, dust, dirt, or corrosive vapors. Do not insert any

objects through cooling slots.

Cleaning Fuel Strainer

The fuel strainer helps prevent debris from entering the fuel

system.

Clean the fuel strainer as follows:

1. Make sure generator is on a level surface.

2. Remove the fuel cap and fuel strainer.

3. Wash fuel strainer in liquid detergent and water.

4. Wipe fuel strainer clean with a clean, dry cloth.

5. Carefully reinstall the fuel strainer and fuel cap.

Engine Maintenance

Check Engine Oil Level

Oil level should be checked prior to each use or at least

every 8 hours of operation. Keep oil level maintained. See

Checking/Adding Engine Oil.

Changing Engine Oil

If you are using your generator under extremely dirty or

dusty conditions, or in extremely hot weather, change the

oil more often.

CAUTION Avoid prolonged or repeated skin contact

with used motor oil. Used motor oil has been shown

to cause skin cancer in certain laboratory animals.

Thoroughly wash exposed areas with soap and water.

KEEP OUT OF REACH OF CHILDREN. DON’T

POLLUTE. CONSERVE RESOURCES. RETURN

USED OIL TO COLLECTION CENTERS.

Change oil while engine is still warm from running, as

follows:

1. Make sure unit is on a level surface.

2. Loosen the side maintenance cover screws and

remove the side maintenance cover.

3. Clean area around oil fill and remove oil fill cap.

4. Tip your generator to drain oil from oil fill into a

suitable container making sure you tip your unit toward

the oil filler neck. When crankcase is empty, return

generator to upright position.

Every 8 Hours or Daily

• Clean debris

• Check engine oil level

First 10 Hours

• Change engine oil

Every 50 Hours

• Service engine air cleaner and breather filter1

• Change engine oil1

Every 100 Hours

• Clean fuel strainer

• Service spark plug

• Inspect muffler and spark arrester

Every 250 Hours or Yearly

• Check valve clearance2

Fuel Cap

Fuel Strainer

Maintenance

14 BRIGGSandSTRATTON.com.au

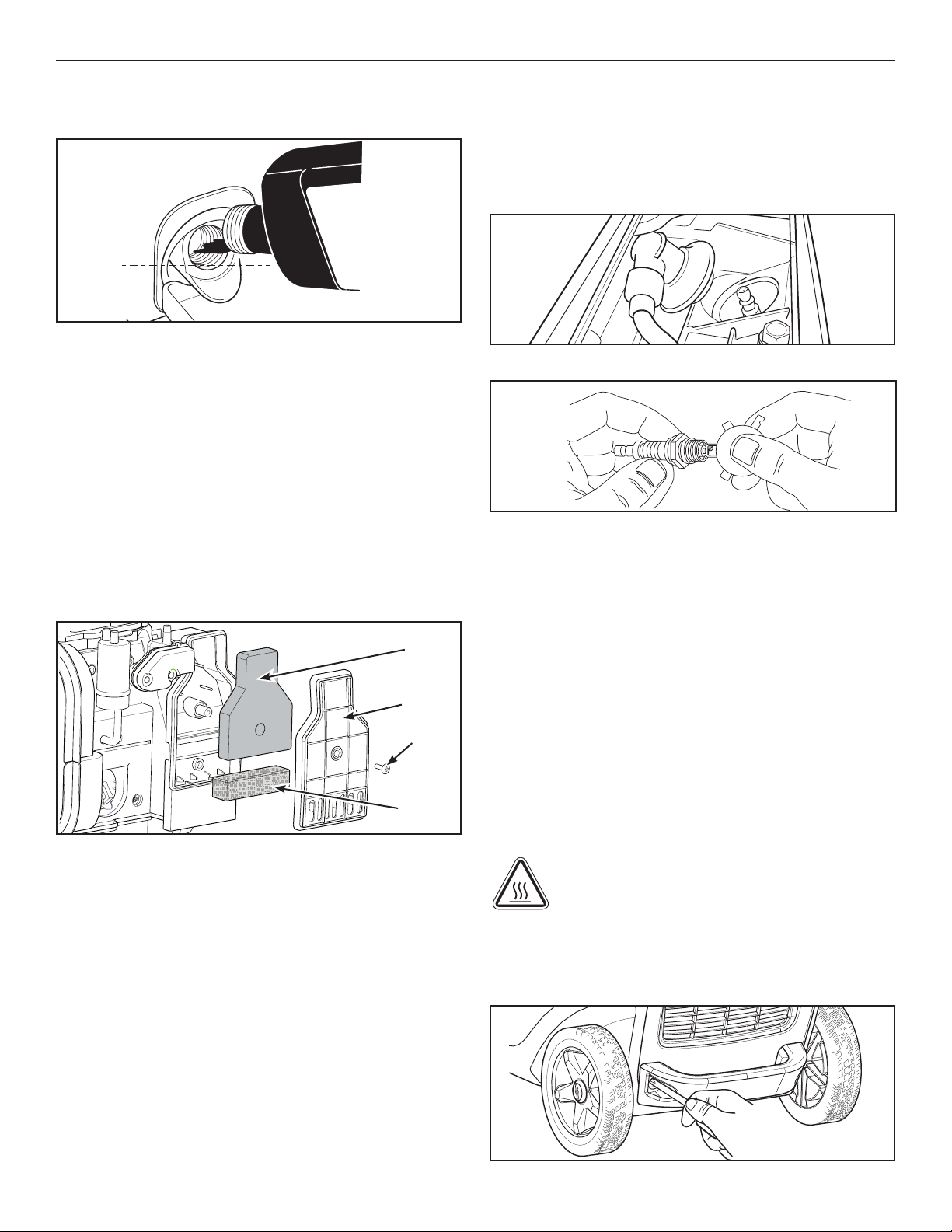

Maintenance

5. Slowly pour oil (about 0.6 l (20 oz.)) into oil fill opening

to the point of overflowing at oil fill cap. DO NOT

overfill.

6. Reinstall oil fill cap. Finger tighten cap securely.

7. Wipe up any spilled oil.

8. Reinstall the side maintenance cover and hand tighten

the cover screws.

Service Air Cleaner

Your engine will not run properly and may be damaged if

you run it with a dirty air cleaner. Clean or replace more

often if operating under dusty or dirty conditions.

To service the air cleaner, follow these steps:

1. Loosen the side maintenance cover screws and

remove the side maintenance cover.

2. Loosen air cleaner cover screw and remove air

cleaner cover.

3. Carefully remove foam air cleaner and breather filter

by pulling them out towards you.

4. Wash foam air cleaner and breather filter in liquid

detergent and water only. Squeeze dry in a clean

cloth.

NOTICE If the filter is excessively dirty, replace with a

new filter. See Common Service Parts.

5. SATURATE foam air cleaner in clean engine oil and

squeeze in a clean cloth to remove excess oil.

6. Reinstall clean or new foam air cleaner and breather

filter inside base.

7. Reinstall the air cleaner cover and tighten screw.

8. Reinstall the side maintenance cover and hand tighten

the cover screws.

Service Spark Plug

Changing the spark plug will help your engine to start

easier and run better.

1. Remove top maintenance cover.

2. Clean area around spark plug and remove spark plug

boot.

3. Remove spark plug and inspect spark plug.

4. Replace spark plug if electrodes are pitted, burned

or porcelain is cracked. Use the recommended

replacement plug. See Common Service Parts.

5. Check electrode gap with wire feeler gauge and reset

spark plug gap to recommended gap if necessary

(see Specifications).

6. Install spark plug and tighten firmly. Reinstall spark

plug boot.

7. Reinstall top maintenance cover.

Inspect Muffler and Spark Arrester

The engine exhaust muffler has a spark arrester screen.

Inspect the muffler for cracks, corrosion, or other damage.

Inspect spark arrester screen for damage or carbon

blockage. Clean if carbon blockage is found using brush

and commercial solvent or replace if damaged.

WARNING! Contact with muffler area could

cause burns resulting in serious injury.

• Do not touch hot parts.

Clean and inspect the spark arrester as follows:

1. Remove two screws that attaches back bumper to

muffler guard. Remove back bumper.

Cover

Filter

Screw

Breather

Filter

Maintenance/Storage

2. To remove muffler guard, remove four screws that

connects guard to generator.

3. Remove screw that attaches spark arrester screen to

muffler. Remove spark arrester screen.

4. Inspect screen and obtain a replacement if torn,

perforated or otherwise damaged. DO NOT use a

defective screen. If screen is not damaged, clean it

with a brush.

5. Reattach screen to muffler. Reattach muffler guard.

Check Valve Clearance

Regular valve clearance check and adjustment will improve

performance and extend engine life. This procedure cannot

be done without partial engine disassembly and the use

of special tools. For this reason we recommend that you

have an authorized Service Dealer check and adjust valve

clearance at recommended intervals (see Maintenance

Schedule).

Common Service Parts

Foam Air Cleaner............................ 705473

Breather Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 705475

Resistor Spark Plug.................... NGK BPR6ES

Engine Oil Bottle ...................100005 or 100028

Synthetic Oil Bottle .......................... 100074

Fuel Stabilizer .....................100120 or 100117

Contact an authorized service dealer or

BRIGGSandSTRATTON.com for a full list of parts and

diagrams.

Storage

If storing the unit for more than 30 days, use the following

guidelines to prepare it for storage.

Long Term Storage Instructions

1. Clean the generator as outlined in Cleaning.

2. Change engine oil while engine is still warm, drain oil

from crankcase. Refill with recommended grade. See

Changing Engine Oil.

3. Treat or drain fuel from generator as fuel can become

stale when stored over 30 days.

Stale fuel causes acid and gum deposits to form in the fuel

system or on essential carburetor parts. To keep fuel fresh,

use Briggs & Stratton® Advanced Formula Fuel Treatment

& Stabilizer, available wherever Briggs & Stratton genuine

service parts are sold. See Common Service Parts.

There is no need to drain gasoline from the engine if a

fuel stabilizer is added according to instructions. Run the

engine for 2 minutes to circulate the stabilizer throughout

the fuel system before storage.

If gasoline in the engine has not been treated with a fuel

stabilizer, it must be drained into an approved container.

Run the engine until it stops from lack of fuel. The use of a

fuel stabilizer in the storage container is recommended to

maintain freshness.

WARNING! Fuel and its vapors are extremely

flammable and explosive which could cause

burns, fire or explosion resulting in death or

serious injury.

• When storing fuel or equipment with fuel in tank, store

away from furnaces, stoves, water heaters, clothes dryers

or other appliances that have pilot light or other ignition

source because they could ignite fuel vapors.

• When draining fuel, turn generator engine off and let it

cool at least 2 minutes before removing fuel cap. Loosen

cap slowly to relieve pressure in tank. Drain fuel tank

outdoors. Keep fuel away from sparks, open flames, pilot

lights, heat, and other ignition sources.

• Check fuel lines, tank, cap and fittings frequently for

cracks or leaks. Replace if necessary.

4. Store generator in clean, dry area and cover with a

suitable protective cover that does not retain moisture.

WARNING! Storage covers could cause a fire

resulting in death or serious injury.

• Do not place a storage cover over a hot generator. Let

equipment cool for a sufficient time before placing the

cover on the equipment.

16 BRIGGSandSTRATTON.com.au

Troubleshooting/Specifications

Problem Cause Correction

Engine is running, but no AC

output is available.

1. One of the circuit breakers is open.

2. Poor connection or defective cord set.

3. Connected device is bad.

1. Reset circuit breaker.

2. Check and repair.

3. Connect another device that is in

good condition.

Engine runs well at no-load but

“bogs down” when loads are

connected.

1. Generator is overloaded. 1. See Generator Capacity.

Engine will not start; starts and

runs rough or shuts down when

running.

1. Engine switch set to off (0) position.

2. Low oil level.

3. Dirty air cleaner.

4. Out of fuel.

5. Spark plug wire not connected to

spark plug.

6. Flooded with fuel.

1. Set switch to on (I) position.

2. Fill crankcase to proper level or

place generator on level surface.

3. Clean or replace air cleaner.

4. Fill fuel tank.

5. Connect wire to spark plug.

6. Wait 5 minutes and re-crank

engine.

For all other issues, see a Briggs & Stratton authorized dealer.

Specifications

Starting Watts* .......................................3,000 Watts

Running Watts**......................................2,600 Watts

Load Current:

at 230 Volts AC ......................................11.3 Amps

at 12 Volts DC ..........................................5 Amps

Rated Frequency ........................................50 Hertz

Phase .............................................Single Phase

Displacement ................................171 cc (10.44 cu. in.)

Spark Plug Gap ........................0.6-0.7 mm (0.023-0.027 in.)

Fuel Capacity ..............................5.7 L (1.5 U.S. Gallons)

Oil Capacity ....................................0.6 L (20 Ounces)

Sound Pressure @ 7 m§ ................................. XX dBA

Power Ratings: The gross power rating for individual gasoline engine models is labeled in accordance with SAE (Society of Automotive

Engineers) code J1940 Small Engine Power & Torque Rating Procedure, and is rated in accordance with SAE J1995. Torque values are

derived at 2600 RPM for those engines with “rpm” called out on the label and 3060 RPM for all others; horsepower values are derived at

3600 RPM. The gross power curves can be viewed at www.BRIGGSandSTRATTON.COM. Net power values are taken with exhaust and

air cleaner installed whereas gross power values are collected without these attachments. Actual gross engine power will be higher than

net engine power and is affected by, among other things, ambient operating conditions and engine-to-engine variability. Given the wide

array of products on which engines are placed, the gasoline engine may not develop the rated gross power when used in a given piece of

power equipment. This difference is due to a variety of factors including, but not limited to, the variety of engine components (air cleaner,

exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity,

altitude), and engine-to engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of

higher rated power for this engine.

* This generator is rated in accordance with Briggs & Stratton standard 628K.

** Generator rated in accordance with CSA (Canadian Standards Association) standard C22.2 No. 100-14, Motors and Generators.

§ Measured sound values in accordance to AS 2790-1989, Electricity Generating Sets - Transportable (Up to 25 kw).

Notes

18 BRIGGSandSTRATTON.com.au

Notes

20 BRIGGSandSTRATTON.com.au

Warranty

80015715_EN Rev -

BRIGGS & STRATTON PRODUCTS WARRANTY POLICY

LIMITED WARRANTY

Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material or workmanship

or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for

and is subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at

BRIGGSandSTRATTON.COM The purchaser must contact the Authorized Service Dealer, and then make the product available to the Authorized Service Dealer for

inspection and testing.

There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to the

warranty period listed below, or to the extent permitted by law. Liability for incidental or consequential damages are excluded to the extent exclusion

is permitted by law. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion

or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you

may also have other rights which vary from state to state or country to country.**

WARRANTY PERIOD

** In Australia - Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major

failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be

of acceptable quality and the failure does not amount to a major failure. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at

BRIGGSandSTRATTON.COM, or by calling 1300 274 447, or by emailing or writing to [email protected], Briggs & Stratton Australia Pty Ltd, 1

Moorebank Avenue, NSW, Australia, 2170.

The warranty period begins on the date of purchase by the first retail or commercial consumer. “Consumer use” means personal residential household use by a retail

consumer. “Commercial use” means all other uses, including use for commercial, income producing or rental purposes. Once a product has experienced commercial

use, it shall thereafter be considered as a commercial use product for purposes of this warranty.

To ensure prompt and complete warranty coverage, register your product at the website shown above or at www.onlineproductregistration.com, or mail the complete

registration card (if provided), or call 1-800-743-4115 (in USA).

Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the

product will be used to determine the warranty period. Product registration is not required to obtain warranty service on Briggs & Stratton products.

ABOUT YOUR WARRANTY

Warranty service is available only through Briggs & Stratton Authorized Service Dealers. Most warranty repairs are handled routinely, but sometimes requests for

warranty service may not be appropriate. This warranty covers only defects in materials or workmanship. It does not cover damage caused by improper use or abuse,

improper maintenance or repair, normal wear and tear, or stale or unapproved fuel.

Improper Use and Abuse - The proper, intended use of this product is described in the Operator’s Manual. Using the product in a way not described in the Operator’s

Manual or using the product after it has been damaged will not be covered under this warranty. Warranty coverage will also not be provided if the serial number on the

product has been removed or the product has been altered or modified in any way, or if the product has evidence of abuse such as impact damage or water/chemical

corrosion damage.

Improper Maintenance or Repair - This product must be maintained according to the procedures and schedules provided in the Operator’s Manual, and serviced or

repaired using genuine Briggs & Stratton parts or equivalent. Damage caused by lack of maintenance or use of non-original parts is not covered by warranty.

Normal Wear and Tear - Like most mechanical devices, your unit is subject to wear even when properly maintained. This warranty does not cover repairs when normal

use has exhausted the life of a part or the equipment. Maintenance and wear items such as filters, belts, cutting blades, and brake pads (except engine brake pads) are

not covered by warranty due to wear characteristics alone, unless the cause is due to defects in material or workmanship.

Stale or Unapproved Fuel - In order to function correctly, this product requires fresh fuel that conforms to the criteria specified in the Operator’s Manual. Engine or

equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty.

Other Exclusions - This warranty excludes damage due to accident, abuse, modifications, alterations, improper servicing, freezing or chemical deterioration.

Attachments or accessories that were not originally packaged with the product are also excluded. There is no warranty coverage on equipment used for primary power in

place of utility power or on equipment used in life support applications. This warranty does not include used, reconditioned, second-hand, or demonstration equipment or
