Kinder KRTC00MN User manual

Trimless Inset Gas Fire
DECORATIVE FUEL EFFECT GAS FIRE
Installation and Maintenance Instructions
Hand these instructions to the user
Model No. KRTC00MN is for use on Natural Gas (G20) at a supply
pressure of 20 mbar in G.B. / I.E.

CONTENTS
Section 1 Information and Requirements PAGE
1.0 Appliance Information 3
1.1 Conditions of Installation 4
1.2 Flue and chimney suitability 4
1.3 Fireplace / surround suitability 5
1.4 Shelf position 5
1.5 Chimney inspection 5-6
1.6 Fire place opening / catchment space 6-7
1.7 Metal Flue Boxes 8
1.8 Hearths 8
1.9 Spillage Monitoring System 9
Section 2 Installation of Fire
2.1 Unpacking the fire 10
2.2 Installing the fire box 10-16
2.3 Gas tightness and inlet pressure 16
Section 3 Assembling Fuel Bed and Commissioning
3.1 Assembling the ceramics and fuel bed 17-21
3.2 Lighting the appliance 21
3.3 Checking for clearance of combustion 22
products
Section 4 Maintenance
4.1 Removal of the Burner Assembly 23
4.2 Removal of the Piezo Igniter 23
4.3 Removal of the Control Tap 24
4.4 Removal of the Pilot Assembly 24
This appliance has been manufactured by:-
CFM Europe Ltd,
Trentham Lakes,
Stoke-on-Trent, ST4 4TJ
2

SECTION 1
INFORMATION AND REQUIREMENTS
1.0 APPLIANCE INFORMATION
Model KRTC00MN
Gas Type G20
Main injectors (2 off) Size 340
Pilot Type Copreci
Single Flame
21100 / 141
Max. Gross Heat Input : 8.5 kW
Min. Gross Heat Input : 4.1 kW
Cold Pressure : 20.0 +/-1.0 mbar NG
Ignition : Push-button Piezo
Electrode Spark Gap 4.5mm
Packed Weight 19 kg
Fire box Dimensions (with trim fitted)
Width : 428mm
Height : 586mm (610mm with efficiency baffle fitted)
Depth : (overall-without fret) 275mm
NOTE :ADDITIONAL VENTILATION OF AMINIMUM
100cm2IS REQUIRED FOR THIS PRODUCT
3

INSTALLATION REQUIREMENTS
1.1 CONDITIONS OF INST ALLATION
It is the law that all gas appliances are installed only by a CORGI Registered
Installer , in accordance with these installation instructions and the Gas Safety
(Installation and Use) Regulations 1998 as amended. Failure to install appliances
correctly could lead to prosecution. It is in your own interest and that of safety to
comply with the law.
The installation must also be in accordance with all relevant parts of the Local and
National Building Regulations where appropriate, the Building Regulations
(Scotland Consolidation) issued by the Scottish Development Department, and all
applicable requirements of the following British Standard Code of Practice.
1. B.S. 5871 Part 3 Installation of Decorative Fuel Effect Gas Fires
2. B.S. 6891 Installation of Gas Pipework
3. B.S. 5440 Parts 1 & 2 Installation of Flues and Ventilation
4. B.S. 1251 Open fire place components
5. B.S. 715 Metal flue pipes for gas appliances
6. B.S. 6461 Part 1 Installation of Chimneys and flues
7. B.S. 1289 Clay Flue Blocks and Terminals
8. I.S. 813 : 1996 Domestic Gas Installation (Republic of Ireland)
Additional Ventilation of a minimum 100cm2is required when installing this
product in G.B. When Installing in I.E. please consult document I.S. 813 :
1996 Domestic Gas Installation, which is issued by the National Standards
Authority of Ireland. If installing in Northern Ireland, please consult local
building regulations. Any purpose made ventilation must be checked
periodically to ensure that it is free from obstruction.
1.2 FLUE AND CHIMNEY SUITABILITY
This appliance is designed for use with conventional brick built or lined chimneys
and fabricated flues / metal flue boxes conforming to BS 715. All flues must con-
form to the following minimum dimensions.
Minimum diameter of circular flues 125 mm (Without Flue
Restrictor Fitted)
Minimum effective height of all flue types 3 metres
The efficiency baffle must be fitted when installing this product into a
conventional brick built chimney , to prevent debris falling onto the fuelbed.
If fitting into a class 1 (175mm) metal flue box and liner, it is desirable to leave the
baffle in place to reduce the flue flow and thus increase the heat output from the
appliance. Safe clearance of products must always be checked by carrying out a
smoke match test as described on page 21.
4

1.3 FIREPLACE / SURROUND SUITABILITY
The fire must only be installed on a hearth it must not be installed directly onto
carpet or other combustible floor materials.
The fire is suitable for fitting to non-combustible fire place surrounds and
proprietary fire place surrounds with a temperature rating of at least 150
oc.
If a heating appliance is fitted directly against a wall without the use of a fire
surround or fire place all combustible material must be removed from behind
the fire surround. Soft wall coverings such as blown vinyl, wall paper etc.
could be affected by the rising hot air and scorching and/or discoloration
may result. Due consideration should be made to this when installing or
decorating.
1.4 SHELF POSITION
The fire may be fitted below a combustible (e.g. wooden) shelf providing there is a
minimum distance of 200mm above the top of the fire and the shelf does not
project more than 150mm. If the shelf overhangs more than 150mm the distance
between the fire and the shelf must be increased by 15mm for every 25mm of
additional overhang over 150mm.
1.5 FLUE / CHIMNEY INSPECTION
Before commencing installation, a flue or chimney should be inspected to ensure
that all the following conditions are satisfied.
1. Check that the chimney / flue only serves one fire place and is clear of any
obstruction. Any dampers or register plates must be removed or locked in
the open position.
2. Brick / stone built chimneys or any chimney or flue which has been used
for an appliance burning fuel other than gas must be thoroughly swept.
The base of the chimney / flue must also be thoroughly cleared of debris
etc.
3. Any under-floor air supply to the fire place must be completely sealed off.
4. Ensure that the inside of the chimney / flue is in good condition along it’s
length and check that there is no leakage of smoke through the structure
of the chimney during and after the smoke pellet test.
5. Using a smoke pellet, check that there is an up-draught in the
chimney / flue and that the smoke can be seen issuing from the
terminal / chimney pot outside.
5

There must be no leakage of smoke through the structure of
the chimney during or after the smoke pellet test and it is
important to check inside upstairs rooms adjacent to the chimney /
flue. Check the chimney pot / terminal and general condition of the
brickwork or masonry. If the chimney or flue is in poor condition or if
there is no up-draught do not proceed with the installation. If there is a
history of down-draught conditions with the chimney / flue, a tested and
certificated flue terminal or cowl suitable for the relevant flue type should
be considered.
6. A spillage test must always be carried out during commissioning of
the appliance.
1.6 FIRE PLACE OPENING AND CHIMNEY CATCHMENT SPACE
The front opening of the fire place must be between 433mm and 444 mm wide,
and between 568 to 573mm high. If the opening exceeds these dimensions then
a surround must be constructed from suitable non-combustible material to produce
a correct size opening. Any surround must be suitably sealed to the fire place to
prevent leakage. See below in fig.1
When installing into a brick built chimney, you must ensure that there is sufficient
depth to accomodate any debris which may fall from the chimney .This depth
must be sufficient to accomodate 12 litres of volumetric space.

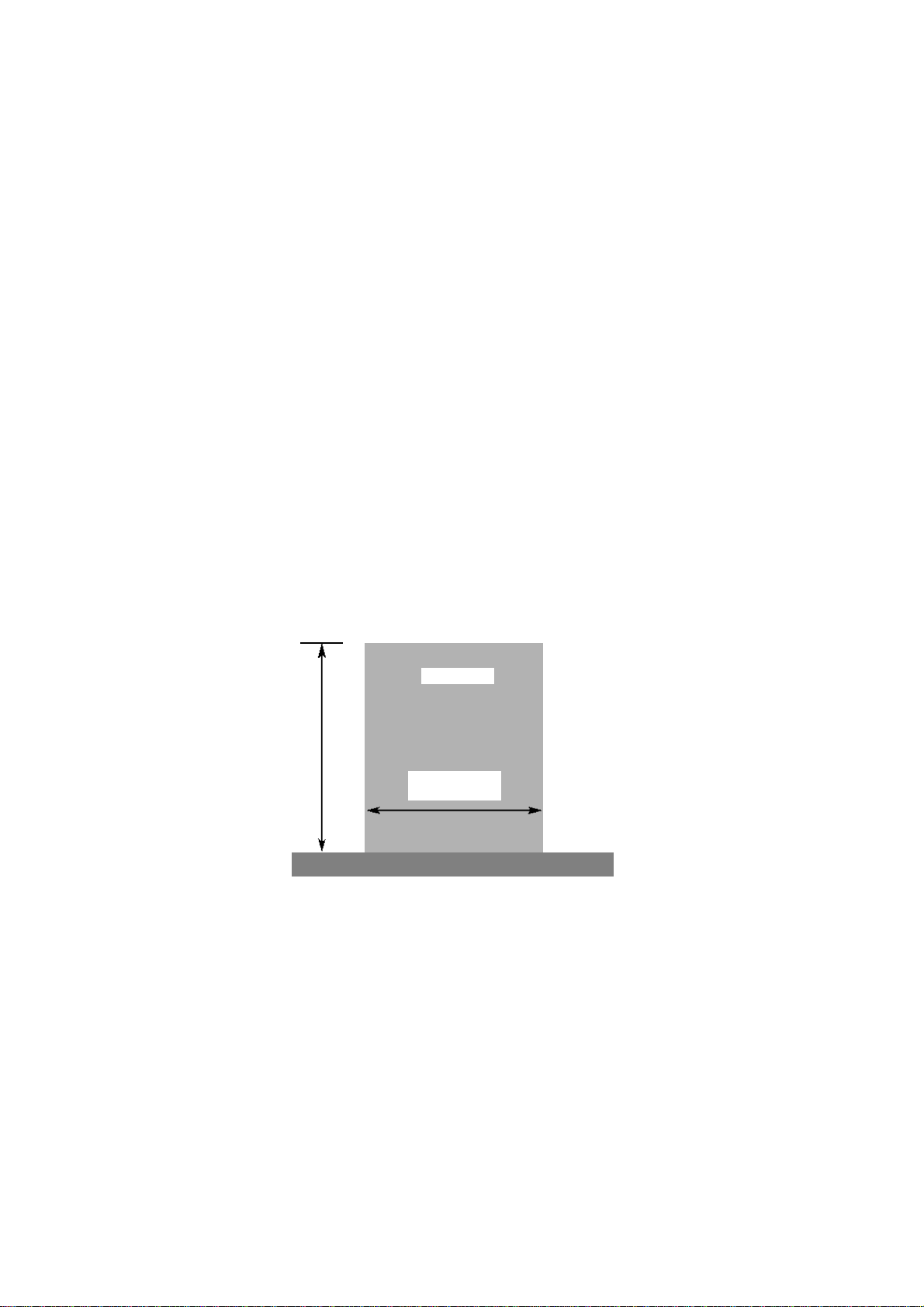

Fire Opening
433mm Minimum
444mm Maximum
Fig. 1
568mm Minimum
573mm Maximum
6

Fig. 2 - Installation Depth Requirements for a Kinder T rimless Inset Gas Fire
being installed into a brick built chimney , requiring 12.0 litres of debris
collection volume.
When installing this product into a builders opening / brick-built chimney , the depth
required is a minimum of 323mm. This fire is not suitable for use in fireplaces
fitted with an existing chairbrick. The chairbrick must be removed to give the
required clearances. The fireplace must be checked to ensure that no rear part of
the fireplace opening is within 50mm of the flue outlet of the fire when installed.
For example, if the appliance was to be fitted into a 433mm wide opening, the
depth required would be 323mm. See fig. 2 below for explanatory diagram.

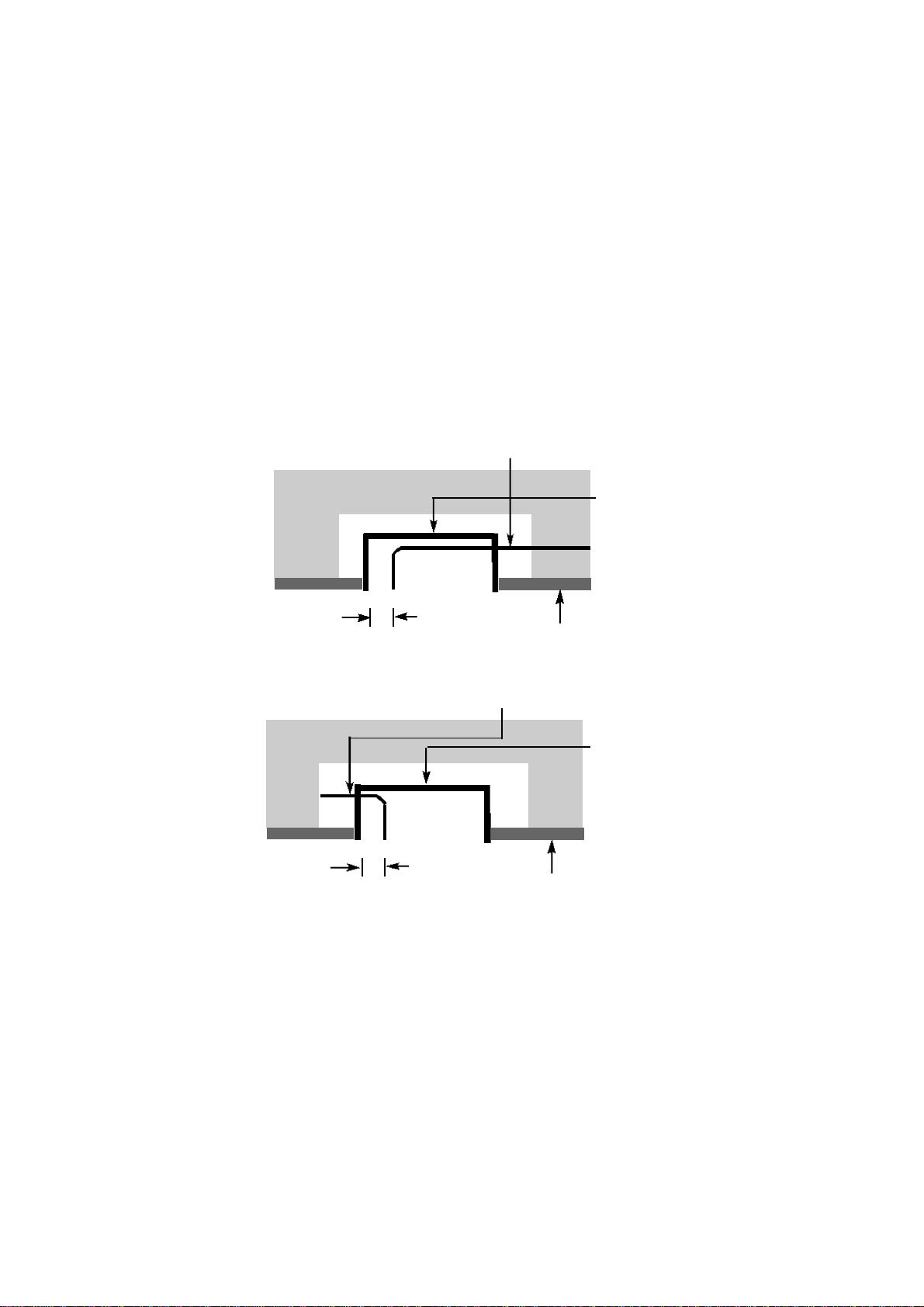

Fig. 2
7
Opening Width ( e.g. 433mm)
Depth Required
(e.g. 323mm)

1.7 FITTING TO PRE-FABRICATED TWIN WALL METAL FLUE BOXES
The appliance may be fitted to twin wall metal flue boxes conforming to the
constructional requirements of BS 715, (for example the Selkirk LFE 125 box).
The box must have a minimum flue diameter of 125mm internal and minimum
internal dimensions of 323mm deep by 680mm high by 435mm wide. There are
no maximum dimensional requirements for the box. The top face of the box must
be insulated with a minimum thickness of 50mm of non-combustible mineral wool
insulation or similar material. The flue box must stand on a non-combustible base
of minimum thickness 12mm.
1.8 HEARTHS
This appliance must only be installed on to a concrete or non-combustible hearth.
The hearth material must be a minimum thickness of 12mm with the top surface at
least 50mm above the floor. The hearth must be fitted symmetrically about the fire
opening and have a minimum width of 760mm and a minimum projection of
300mm forwards from the fire opening.
8

1.9 SPILLAGE MONITORING SYSTEM
This appliance is fitted with an atmosphere sensing spillage monitor-
ing system in the form of an oxygen sensing pilot. This is designed
to shut the fire off in the event of a partial or complete blockage of
the flue causing a build up of combustion products in the room in
which the fire is operated. The following are important warnings
relating to this spillage monitoring system :-
1) The spillage monitoring system must not be adjusted by the installer .
2) The spillage monitoring system must not be put out of operation.
3) When the spillage monitoring system is exchanged only a complete original
manufacturers part may be fitted. It is not possible to replace individual parts on
the pilot system on this appliance, only a complete pilot assembly (including the
thermocouple) may be fitted.
9

SECTION 2
INSTALLATION OF FIRE
2.1 UNPACKING THE FIRE
Carefully lift the fire out of the carton. Remove the loose item packaging carefully
from the front of the appliance. Check the contents as listed :-
Packing Check List
1offFire box / burner assembly
1off Boxed fuelbed base, ceramic front rail, overlays and 24 coals
1offLoose items bag.
1offCable Fixing Kit
1off each User instruction book and Installation book
1offLength Aluminimum foil tape
2offFixing Brackets & Wingnuts
2.2 INSTALLING THE FIRE BOX
Establish which type of flue you are intending to install the fire in to :-
225 x 225mm (9 inch x 9 inch) brick built chimneys, 175mm (7 inch) diameter
lined brick or stone flue, insulated pre-fabricated metal flue box to B.S. 715. -
When fitting this appliance to a Class 1 brick chimney with no flue liner, the
efficiency baffle must be left in place.
When installing into 125mm (5 inch) diameter lined flues, or insulated pre-
fabricated metal flue box to B.S. 715, the restrictor baffle must be removed.
Aspillage test must always be carried out to check satisfactory
clearance of flue products, regardless of the type of flue the
appliance is being fitted to.
10

Proceed as follows :-

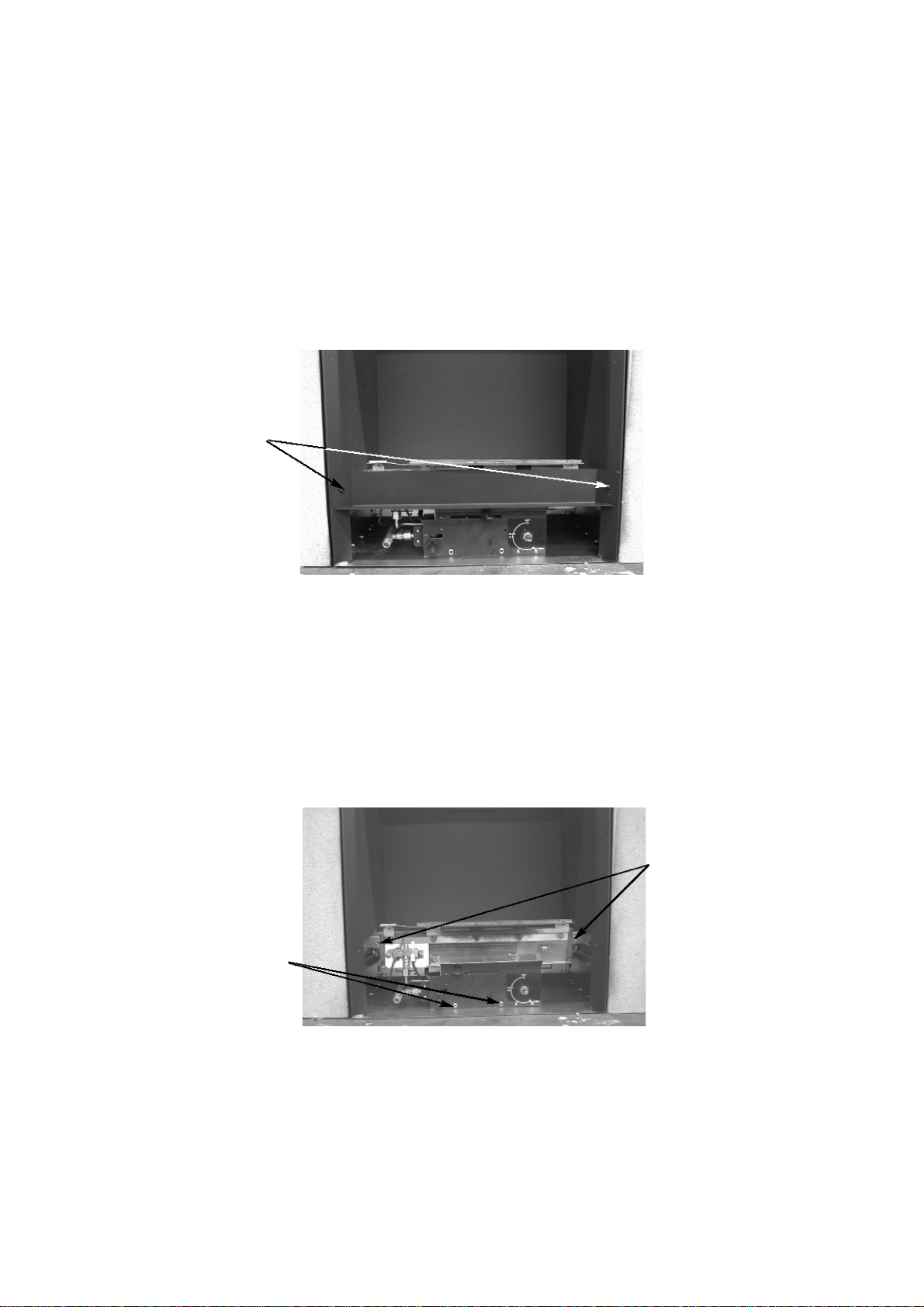

a) Remove the burner heat shield from the front of the fire box to allow
access to the burner. See fig. 3 below.
Fig. 3
b) Ensure that the hearth is protected from damage and carefully lift the
fire box into the fire opening, then slide it back into position. Check that
the fire box flange fits flush to the sealing face of the fire surround or
wall with no gaps present.
c) Remove the four retaining screws securing the burner to the firebox.
The base of the burner unit can now be pulled forward, allowing the
burner to be removed from the fire box. See fig. 4 below .
Fig. 4
11
2 off Burner
Heat Shield
Retaining
Screws
2 off Burner Base
Retaining Screws
L/H & R/H
Burner Bracket
Retaining
Screws

d) Whilst the fire box is still in position, decide which side the gas supply is
to enter the fire from. If concealed pipe work is required plan the pipe
run to enter the fire box through one of the openings in the sides or rear
of the fire box below the fuelbed support panel and connect to the
isolating / inlet elbow.The gas connection to the appliance should be
made to the isolating / inlet elbow using 8mm rigid tubing. There must
be no soldered joints within the firebox. See fig. 5a & 5b below for
suggested concealed pipe layouts.
Fig. 5a
Fig. 5b
Note : Before breaking into the gas supply a pressure drop test should be
carried out to establish that the existing pipework is sound.
Carefully withdraw the fire box from the opening to enable the gas supply and fire
fixing to be completed.
12
Firebox
Approx.
40mm Fireplace
Gas Supply
Firebox
Approx.
40mm Fireplace
Gas Supply

IMPORTANT : Sealing of the Gas Unused Gas Pipe Inlet Apertures
In line with current CORGI regulations, it is imperative that the gas supply inlet
apertures that are not utilised during the installation are sealed with the foil
tape as supplied . Failure to seal these inlet apertures could lead to flame
reversal, which in turn will damage the burner and control systems of the product.
Fig. 6 below shows a correctly sealed installation.
Fig. 6
PLEASE NOTE :-
Seal off unused gas inlet
apertures as shown
Only holes to be left are the specifically
sized air relief holes as indicated by the
labels positioned by them and the gas
inlet aperture that is used
CFM EUROPE LTD. WILL NOT BE LIABLE FOR
GUARANTEE CLAIMS THATARE AS ADIRECT
RESULT OF THE UNUSED GAS INLET APERTURES
NOT BEING CORRECTLYSEALED.
13

The preferred method of fixing which is suitable for almost all situations is
the cable fixing method which is described in the following section in detail.
The fire may be secured using the cable method as described below , if the
masonary in the rear of the fireplace opening is loose, it must be repaired prior to
the installation of the product.
To fit using the preferred cable method proceed as follows-

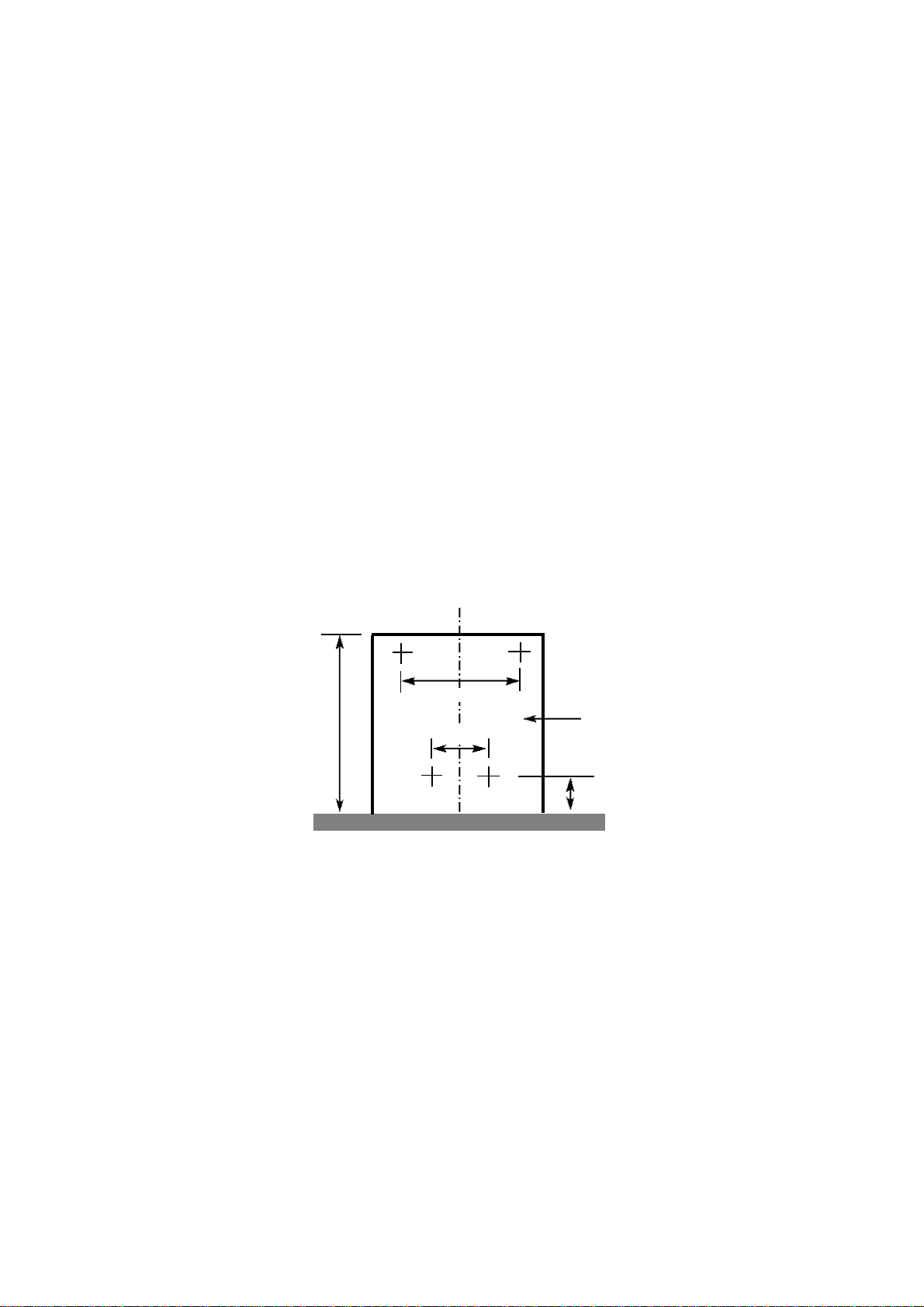

e) Mark out and drill 4 off No 14 (7mm) holes in the back face of the fire
opening in the positions shown below in fig. 7
Fig. 7
Fit the wallplugs provided and screw the fixing eyes securely into the rear of the
fire opening.
f) Uncoil the two fire fixing cables and thread one end of each of the
cables through one of the holes on each side of the rear of firebox
lid.
g) Position the fire carefully on the (protected) surface of the hearth and
reach into the fire opening. Thread each of the cables vertically
downwards through the pair of fixing eyes on the same side of the fire.
Thread the free end of the cables through the corresponding circular
14
Fireplace Opening
325mm
100mm
500mm
20mm

hole on each side of the lower rear of the fire. Tilt the firebox and slide
carefully into the opening, taking care not to damage the hearth panel.

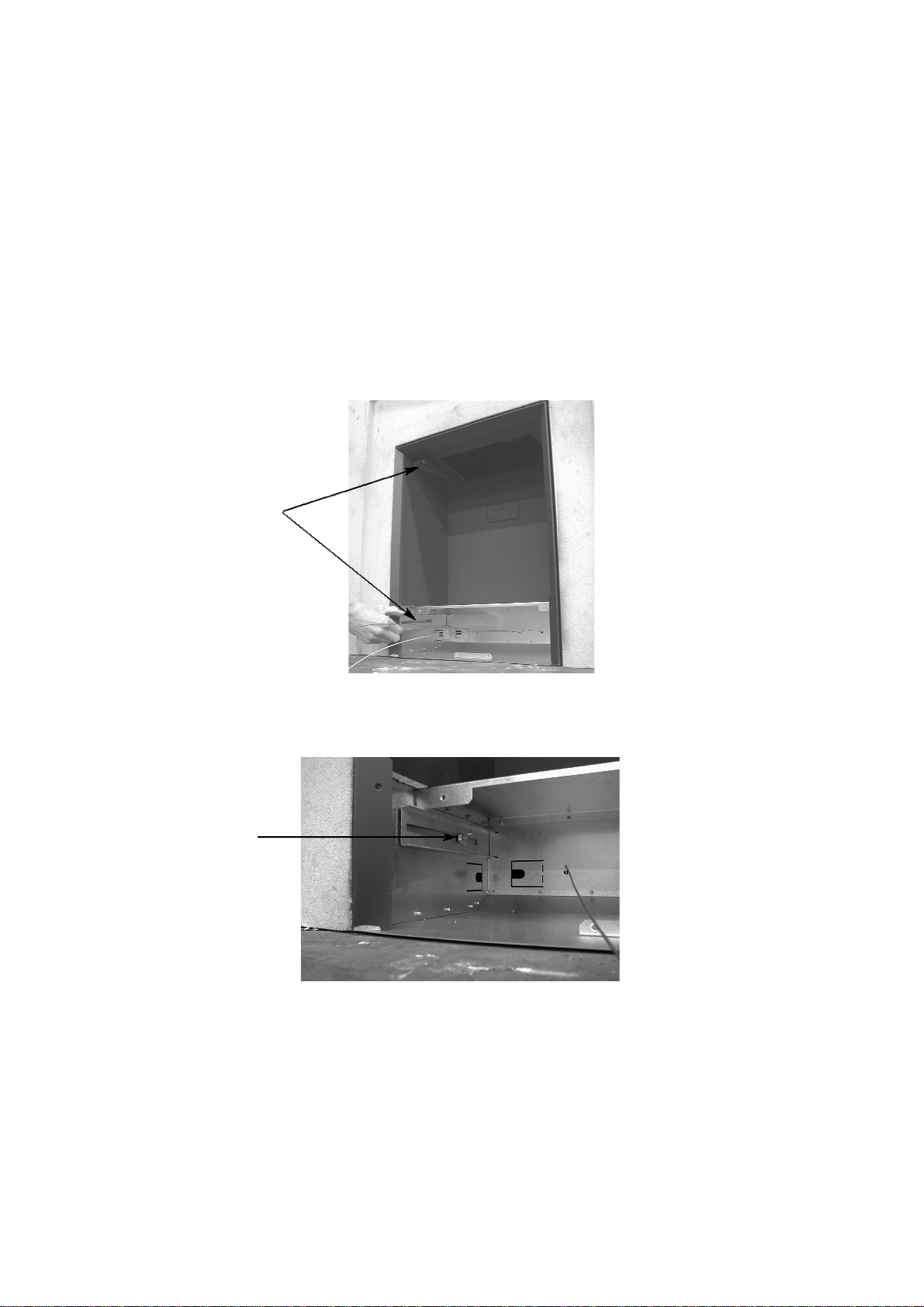

h) Slide the four fixing brackets through the cut outs in the firebox, (2 off
top, 2 of f bottom) until they come into contact with the back of the fire
place opening. (See fig. 8 below) If, at this points the brackets are too
long, these will be required to be removed and cut to length.
Fig. 8
i) Align the firebox so it is square and flush with the fire surround, then
when the brackets are in contact with the back face of the fireplace
opening, lock in place with the wingnuts supplied. (See Fig. 9 below)
Fig. 9
15
Wingnuts
Brackets

j) Pull the cables tight and remove any slack. Lock the cables in place
using the tensioning bolts to secure as described in section l) & m)
below.
k) Thread a tensioning screw over each of the cables and ensure that the
tensioning nut is screwed fully up against the hexagon shoulder of the
tensioning screw (this provides maximum travel for the tensioning nut).
l) Fit a screwed nipple on to each of the cables and pull hand tight up
against the tensioning screw, then secure each nipple with a flat
bladed screwdriver.
m) With the fire securely in place, if a concealed gas connection has been
made through either of the access holes in the sides or rear of the fire,
the holes should be closed around the pipe to prevent leakage of air
through the gap around the pipe, with the length of aluminimum foil tape
supplied.
n) Refit the burner. Fit the four retaining screws and check that the burner
is correctly locked into position.
o) Refit the front burner heat shield to the sides of the fire box (2 Screws)
p) Before making the final gas connection, thoroughly purge the gas
supply pipework to remove all foreign matter, otherwise serious
damage may be caused to the gas control valve on the fire.
2.3 GAS TIGHTNESS AND INLET PRESSURE
a) Remove the pressure test point screw from the inlet elbow and fit a
manometer.
b) T urn on the main gas supply and carry out a gas tightness test.
c) Depress the control knob and turn anti-clockwise to the position marked
pilot. Hold in the control knob for a few seconds to purge the pipe work
then press the igniter button. The burner should light, continue to hold
the control knob for a few seconds then turn to the full-on position.
d) Check that the gas pressure is 20.0 mbar (+/- 1.0mbar) 8.0 in w .g.(+/-
0.4 in w.g.) for Natural Gas models
e) Turn off the fire, remove the manometer and refit the pressure test point
screw. Check the pressure test point screw for gas tightness with the
appliance turned on using a suitable leak detection fluid or detector .
16

SECTION 3
ASSEMBLING FUEL BED AND COMMISSIONING
3.1 ASSEMBLING THE CERAMICS AND FUEL BED
a) Place the ribbed ceramic fuelbed base on top of the fuelbed support
and pull fully forwards to the burner , Position the two halves of the front
ceramic (L/H & R/H) on the locating channel in the front ceramic
support ensuring it is located onto the lip on the burner front ceramic
support.
Make sure that the fuelbed base is located centrally in the fire box .
Ensure that the fuelbed base fits fully down onto the fuel bed
support and is not lodged on the burner . See Fig. 10 below.
Fig. 10

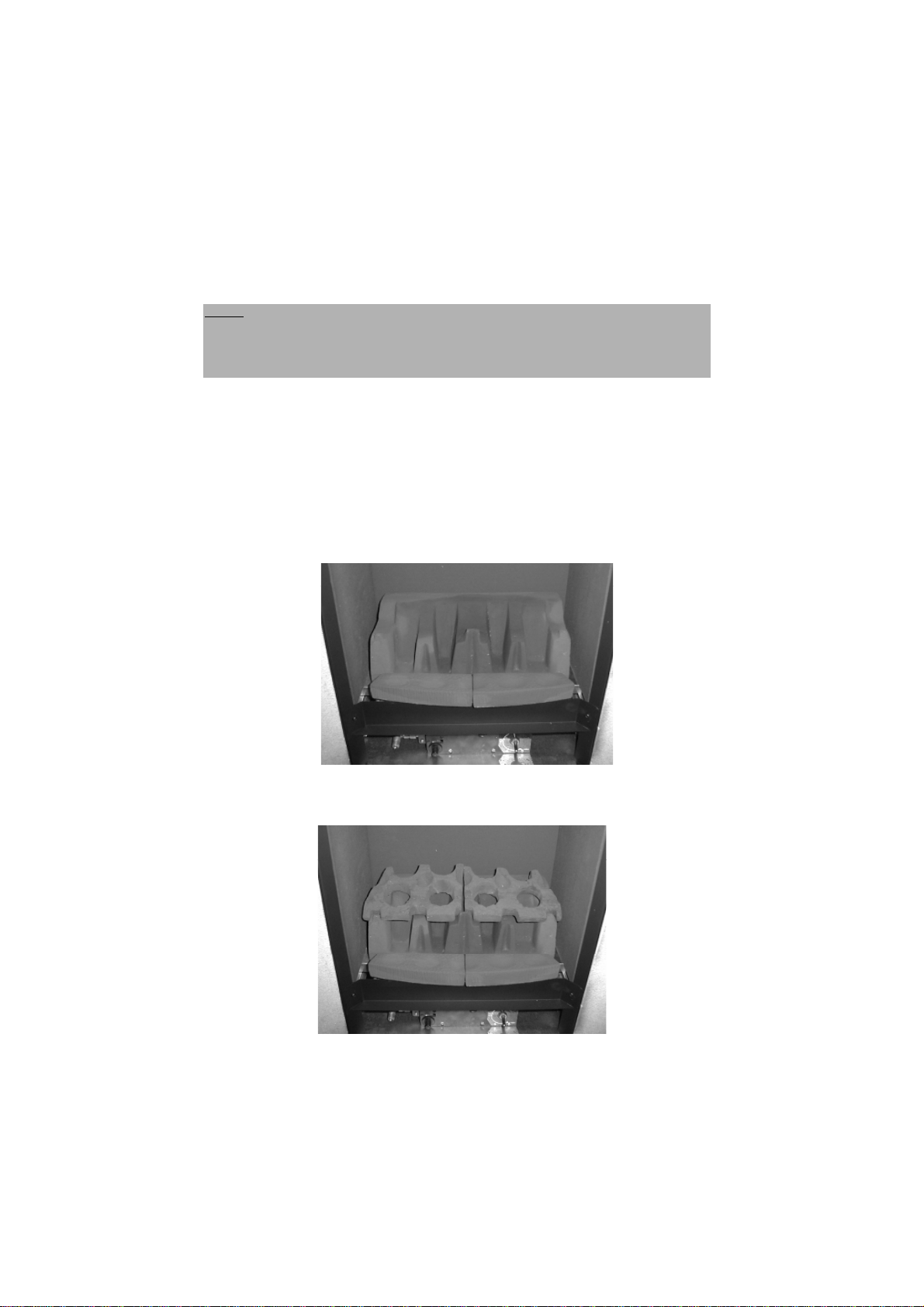

b) Fit the two ceramic overlays (L/H & R/H) onto the fuelbed base as
shown. (See fig. 11 below)
Fig. 11
17
NOTE : The position of the fuel-bed components are critical to the
performance of the product. Therefore please ensure that the fuel-bed
components are positioned as described in the following section prior to
requesting a service call due to soot build up, poor flame pattern etc.

c) Select four of the coals marked “O” and place behind the rear of the
fuelbed overlays, as shown below in Fig. 12
NOTE : Coals are stamped with the relevant no’s on their base
Fig. 12
d) Select coals No. 1 to No. 5 and arrange along the front fuelbed
ceramic rails, from left to right (See fig. 13 below) -
NOTE : Coals are stamped with the relevant no’s on their base
Fig. 13
18

e) Select coals No. 6 to No. 11 and arrange from left to right along the
fuelbed, behind the front row of coals. See fig. 14 below
NOTE : Coals are stamped with the relevant no’s on their base
Fig. 14
f) Select coals No. 12 to No. 16 and arrange from left to right along the
fuelbed, behind the second row of coals. See fig. 15 below
NOTE : Coals are stamped with the relevant no’ s on their base
Fig. 15
19

g) Select coals No. 17 to No. 20 and arrange from left to right along the
fuelbed, behind the third row of coals. See fig. 16 below
NOTE : Coals are stamped with the relevant no’s on their base
Fig. 16
h) When the fuelbed is fully assembled, make a final check that the coal
positions are as shown below in Fig. 17
NOTE : Coals are stamped with the relevant no’s on their base
Fig. 17
The exact position and fit of the coals may be finely adjusted to give the most
pleasing and random appearance.
W arning : Use only the coals supplied with the fire. When replacing the
coals remove the old coals and discard them. Fit a complete set of
coals of the correct type. Do not fit additional coals or any coals
other than a genuine replacement set.
20
12 3 45
678 9 10 11
12 13 14 15 16
17 18 19 20
