EXTERIOR BASE MOUNT INSTALLATION (FIG. 2)
1. Select an area on the roof for the base mount keeping in mind the following IMPORTANT POINTS
:
a) The point of the base mount with the adjustable connector should face the front of the vehicle (Fig. 1).
b) The center of the roof hole must be at least 510mm away from any object taller than 120mm to provide clearance for
the antenna head to rotate freely. The center of the roof hole must also be at least 120mm from the edge of the roof.
c) There must be room on the interior ceiling of the vehicle to attach the rotation knob and enclosure to the
adjustable connector. The interior enclosure can be mounted in any direction.
2. Drill a 50mm hole perpendicular to the roof surface all the way thru the vehicle roof where the adjustable connector will go.
(A 45mm hole will work for flat roofs. If roof has a pitch (up to 3 degrees) you may need a larger hole up to 58mm.)
3. Inside the vehicle, place the enclosure base over the hole and against the ceiling in the position it will be mounted. Mark the
coax hole on the ceiling. Enlarge the interior roof hole only at this location to accommodate the coax cable where it will
exit the roof and enter the enclosure base (Fig. 3).
4. On the roof of the vehicle, carefully pull out the adjustable connector so it will extend beyond the thickness of the roof when
the base mount is installed. It must extend thru the roof to allow installation of interior components. Exact length will be
adjusted when interior components are installed.
5. Connect the coax from the antenna input of the power supply switch to the open connection on the splitter in the base
mount.
6. Apply sealant to ring seal and base mount, and fill the coax channel with sealant. (Butyl tape may be used in combination
with sealant.) Carefully place the base mount in position with the adjustable connector and coax going thru the roof hole
and into the interior of the vehicle. Make sure the point of the base mount with the adjustable connector is pointed
towards the front of the vehicle.
7. Center the adjustable connector in roof hole and fasten the base mount to the roof. Use the mounting holes in the base
mount as a guide to install the fasteners (determined by the installer) into the roof. Make sure the base mount is sealed all
the way around and the coax channel is fully sealed as well. ALL EXISTING HOLES MUST BE SEALED!
IMPORTANT! The installer is responsible for determining the most appropriate fastener to secure the base mount to the
roof and weatherproofing all holes with sealant. The installer is responsible for sealing all existing holes
when replacing an existing antenna mount.
IMPORTANT! In Step 6, ring seal sealant must not get on the adjustable connector.

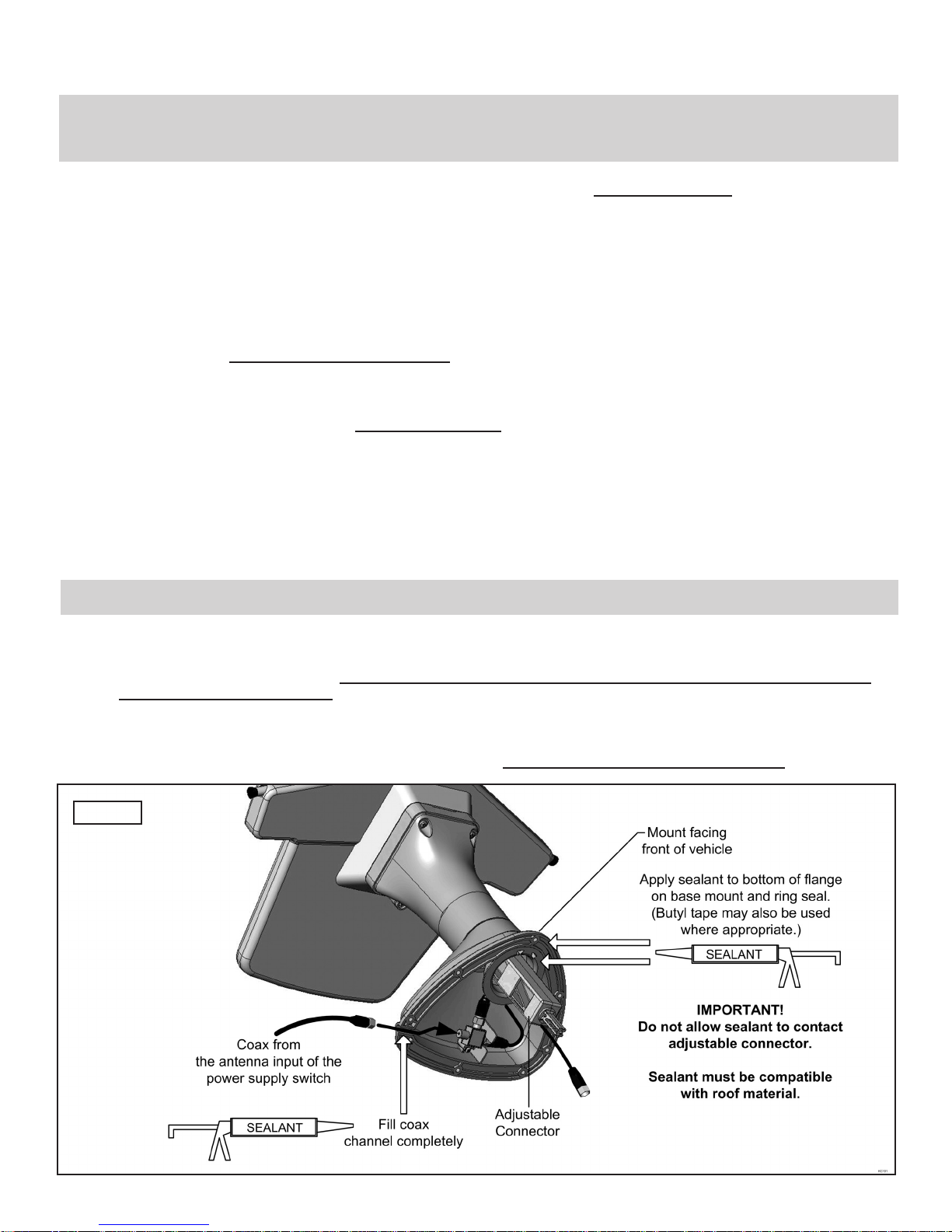

FIG. 2

Page 4
INTERIOR ENCLOSURE INSTALLATION (FIG. 3)
1. Press knob button and remove knob from enclosure base.
2. Make sure the coax exits the roof thru the enlarged portion of the roof hole and route the coax thru the coax hole in the
enclosure base. Place the enclosure base around the adjustable connector and against ceiling (The enclosure base will
seat around the raised circle on the adjustable connector.) Fasten the enclosure to the ceiling with four included screws.
3. Press the knob button and push knob onto the end of the adjustable connector. (The knob only fits on the end of the
adjustable connector in one direction. The knob will fit into the raised ring on the enclosure.) Fasten knob to connector
with screw.
4. Route the coax around the raised ring as shown and connect the coax to the RF connector on the SureLock signal meter.
5. Optional: If desired, apply the decal to the enclosure cover.
6. Carefully align the cover and snap into place. Make sure not to damage or bend LED lights or pinch the coax cable.
IMPORTANT! The rotation knob only fits on the end of the adjustable connector in one direction. SEE INSET BELOW.
FIG. 3
