King-Dome KD3000 User manual

Automatic Satellite System
KD2000 Stationary
KD3000 In-Motion
Installation and Operating Instructions
11200 Hampshire Avenue South, Bloomington, MN 55438-2453
Phone: [phone] Fax: [phone]
www.kingcontrols.com
21456 REV A
Digital TV Solutions for Mobile Markets
®

Page 1
TABLE OF CONTENTS
Section Contents Page
1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
2. DEFINITION OF TERMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
4. ANTENNA CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-25
5. OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27
6. SECOND RECEIVER OPERATION FOR DISH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-29
7. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9. LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Bell TV is an official trademark of Bell Canada.
DIRECTV is a registered trademark of DIRECTV, Inc.
DISH is a registered trademark of DISH Network L.L.C.
HDMI is a registered trademark of HDMI Licensing L.L.C.
King Controls and King-Dome are registered trademarks of Electronic Controlled Systems, Inc.
IMPORTANT!
The TV market is expanding and changing. The information in this manual was accurate at the time of
printing. If your King-Dome does not operate as outlined in this manual please call King Controls at
[phone] or visit our website at www.kingcontrols.com. King Controls is not responsible for changes
outside of its control.
The King-Dome is factory pre-set for DIRECTV®standard digital programming broadcast from the
101° W satellite. If you also receive your local channels from DIRECTV’s 119 satellite or if you subscribe to
DISH®or Bell TV programming, YOU MUST CONFIGURE THE ANTENNA to work with your satellite service.
Doing this will allow the King-Dome to lock on the correct satellites to receive your programming and also
enable automatic satellite switching via the receiver’s remote control for multi-satellite service.
Antenna configuration is a one time procedure that MUST BE COMPLETED before using your King-Dome
antenna. Configuration may be done with the supplied wall mount controller, or the #1844 Keypad
(dealer tool). See the antenna configuration section in this manual for specific instructions.
The King-Dome will not receive HD channels broadcast from DIRECTV’s Ka band satellites at 99° and 103°.
Please read this entire manual before beginning the installation.

Page 2

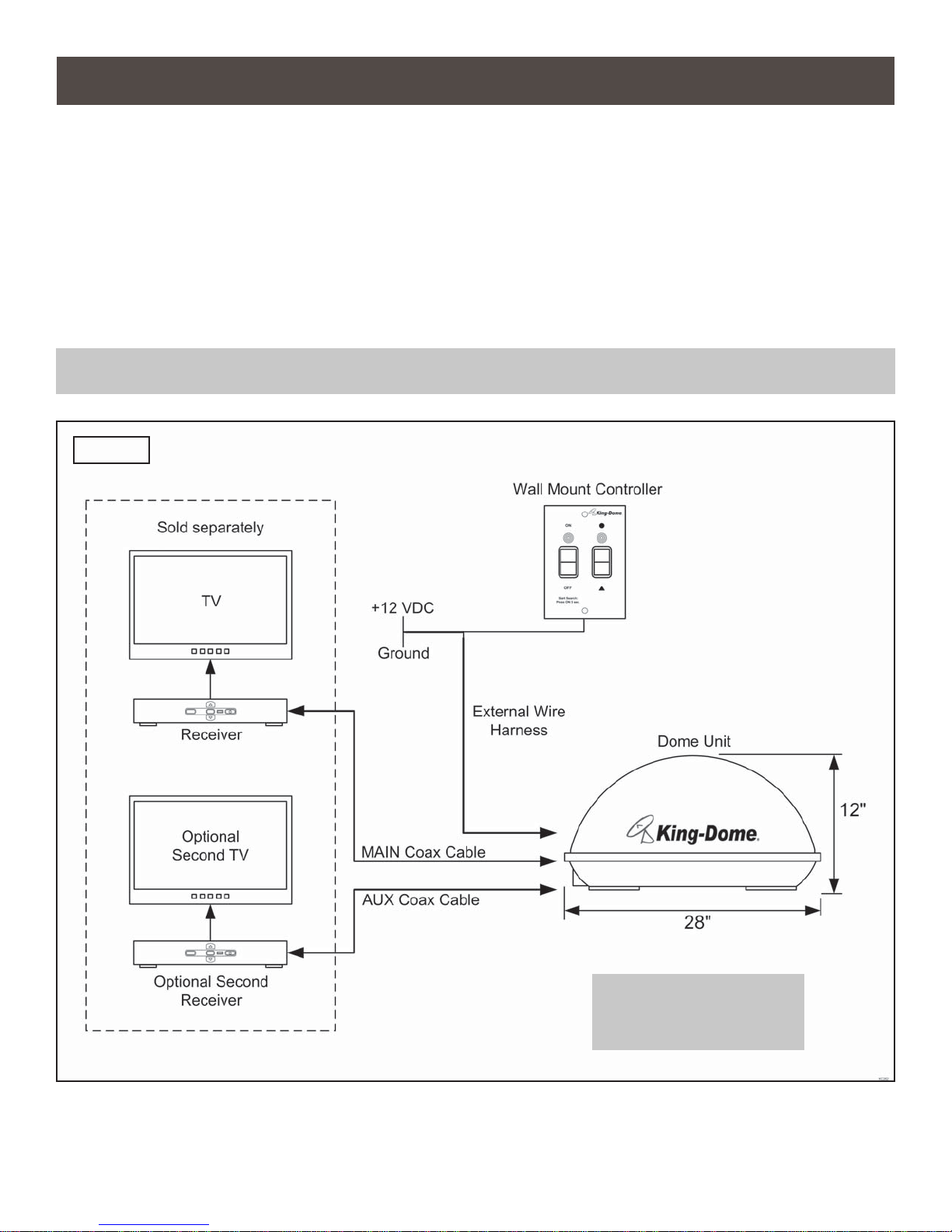

The King-Dome 2000 and 3000 Satellite Systems include (2) main components (Fig. 1).
Dome (Antenna) Unit Located on the roof of the vehicle. The satellite dish and
electronics are covered by a protective dome that keeps operational
components free from the elements.

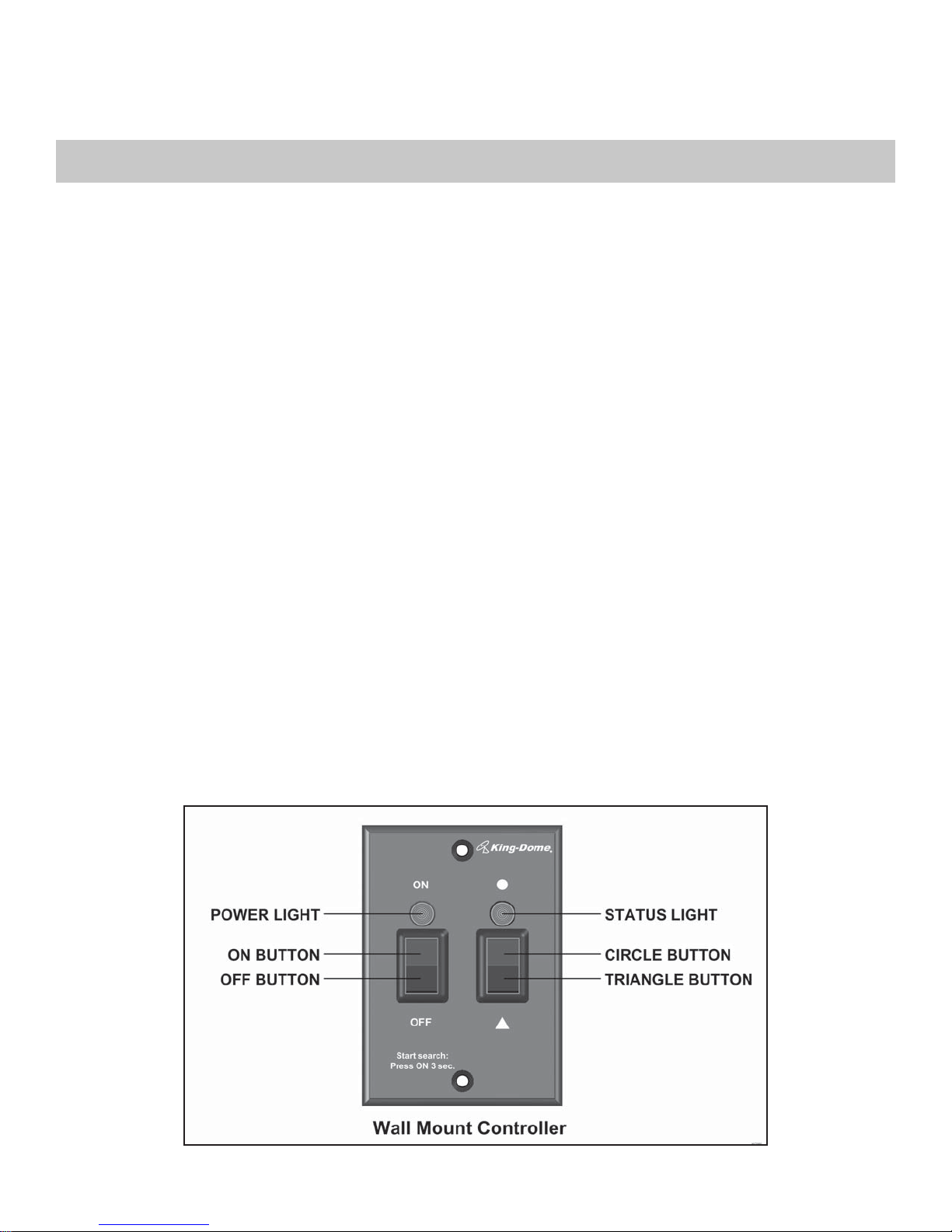

Controller Located in the vehicle. Activates the search mode and provides
limited diagnostic functions using the status light.
Section 1 INTRODUCTION
NOTE: ATV, satellite receiver, and program subscription are also required for satellite TV viewing (sold separately).
FIG. 1
NOTE: Overview only.
See Installation Section for
specific wiring diagrams.

Page 3
Section 2 DEFINITION OF TERMS
SIGNAL STRENGTH: Intensity of signal received from the satellite.
FIG. 3
FIG. 4
ELEVATION: Angle in degrees measured from a level plane.
AZIMUTH:
Circular rotation around the vehicle.
Using the clock as a reference,
the front of the vehicle is 12:00
and the rear is 6:00.
IMPORTANT!
The antenna unit requires a “direct line of
sight” to the satellite for signal reception. Any
tall objects such as poles, trees, buildings,
mountains, etc. can all block the signal from
reaching the dish.
FIG. 2

Page 4
TOOLS AND MATERIALS REQUIRED
• drill and drill bit set
• tape measure
• 7/16” open end wrench (coax connections)
• adhesive sealant (compatible with roof material)
• appropriate fasteners to install all components and wiring
• 5/32” allen wrench, channel lock or pliers (to remove shipping bolts)
• wire cutter (to remove shipping tie strap)
• Optional: #1844 King Controls Keypad
Section 3 INSTALLATION
#1844 Keypad
KIT CONTENTS
1. Unpack and identify all components (Fig. 5).
FIG. 5

Page 5
IMPORTANT! The tie strap and spacer, and the shipping bolts and washers must be removed from the bottom
of the dome unit prior to installation. DO NOT REMOVE THE DOME COVER TO REMOVE THESE
SHIPPING RESTRAINTS.
YOU MUST PLUG THE SHIPPING BOLT HOLES WITH THE SUPPLIED PLUGS (ATTACHED TO TIE
STRAP SHIPPING RESTRAINT).
2. Remove and discard the tie strap and spacer (KEEP RUBBER PLUGS AND GREASE
PACKET), and the (2) bolts and (2) washers that pass through the bottom of the base (Fig. 6).
3. Insert provided plugs into holes that were occupied by the shipping bolts. Inserted plugs
should be flush with base (Fig. 6).
IMPORTANT!
After removing shipping bolts, firmly
insert plugs into holes. Plugs should
be flush with base.
IMPORTANT!
Remove and discard Tie
Strap and Plastic Spacer
prior to installation.
KEEP RUBBER PLUGS
AND GREASE PACKET.
IMPORTANT!
Remove and discard
Shipping Bolts and
Washers prior to
installation.
FIG. 6

Page 6
DOME LOCATION
4. Select an area on the roof for the dome unit and the location where the wiring will enter the
vehicle through the roof to the satellite receiver, controller and 12 volt power source inside,
using the following criteria:
a) A shorter distance between the dome unit and the satellite receiver is most desirable.
b) The dome unit requires a 28 inch diameter mounting area.
c) The dome unit should be mounted on the centerline of the vehicle.
d) There must be no “line of sight” obstructions. Air conditioning units, other antennas, and
storage areas that are too close to the dome unit may obstruct the satellite signal
(Fig. 7).
HEIGHT OF
OBSTRUCTION
APPROXIMATE
MINIMUM DISTANCE
TO DOME EDGE
10” 8”
11” 10”
12” 12”
13” 14”
14” 16”
15” 18”
16” 20”
FIG. 7
NOTE: Many RVs are pre-wired for satellite with RG6 coaxial cable. Contact the manufacturer of your RV or your local
dealer to verify where the coax cable for satellite pre-wire is located.
If pre-wired, run the existing pre-wiring from the pre-wire location to the dome unit. When choosing the dome
unit location, make sure the pre-wiring will reach the dome unit.
Make all connections, properly route and fasten wiring to roof, and completely waterproof entry hole with the
cable entry cover as shown in this section. You may still run the second coax to the rear of the vehicle for an
optional second receiver.

Page 7
5. Place dome unit on installation location chosen using the criteria discussed in the previous
section. Shipping restraints must be removed, plugs must be inserted in holes (Fig. 6,
Page 5), and cable connections must be positioned facing rear of vehicle.
6. Position the dome unit so that both feet on each side of the vehicle are equal distances from
the roof edge. This should be checked by measuring the distance from each foot to the roof
edge. Confirm that these measurements are equal (Fig. 8).
7. Mount the dome unit. Use the pre-drilled holes in the mounting feet as a guide to install the
fasteners into the roof. Use additional fasteners whenever necessary.
8. Test that the dome unit is secure by pulling upward from each foot location.
DOME INSTALLATION
IMPORTANT! Make sure shipping restraints are removed from bottom of dome unit and plugs are inserted in
holes (Fig. 6, Page 5).
Cable connections must ALWAYS be positioned facing the rear of vehicle.
NOTE: The installer is responsible for determining the most appropriate fastener to secure the dome unit to the roof.
Depending on the roof material, fasteners such as lag screws, sheet metal screws, toggle bolts and T anchors
may be used, and should always be used in combination with a roof compatible sealant.
IMPORTANT! The installer is responsible for weatherproofing all holes with sealant.
FIG. 8
IMPORTANT!
Cable connections
must always face
REAR of vehicle.
IMPORTANT! The dome unit should never be mounted so that it is tilted
more than two degrees in any direction.

Page 8
EXTERNAL WIRING
9. Plug external wire harness into wiring port on back of dome unit and tighten connection until it
clicks past the detent lock (Fig. 9).
10. Fill end of coax cable that will connect to the MAIN port on the dome unit with supplied
dielectric grease. Connect this end of the coax cable to the MAIN port and tighten connection
(Fig. 9).
If installing second receiver, fill end of coax cable that will connect to the AUX port on the dome
unit with supplied dielectric grease. Connect this end of the coax cable to the AUX port and
tighten connection.
DO NOT OVER TIGHTEN CONNECTIONS.
NOTE: The King-Dome is wired for multiple receiver support. There are two coax ports on the back of the dome
unit. The one labeled “MAIN” MUST be connected to the main receiver in vehicle. This is the receiver that
will control automatic satellite switching if applicable. The one labeled “AUX” can be used for an additional
receiver hook-up as well. You may wish to label the ends of the coax cables to avoid confusion when making
connections.
IMPORTANT! You must fill the ends of all external coax cables with the supplied dielectric grease. Failure to
do so will void product warranty.
IMPORTANT!
The alignment tabs on the
wiring port and the external
wire harness plug must
match up when engaging
plug onto port.
YOU MUST TIGHTEN THE
PLUG UNTIL IT CLICKS
PAST THE DETENT LOCK.
A channel lock pliers may
be used to tighten the
connection.
IMPORTANT!
Fill ends of coax cables with supplied dielectric grease.
Failure to do so will void product warranty.
Coax connections should be snug. DO NOT OVER TIGHTEN!
FIG. 9

Page 9

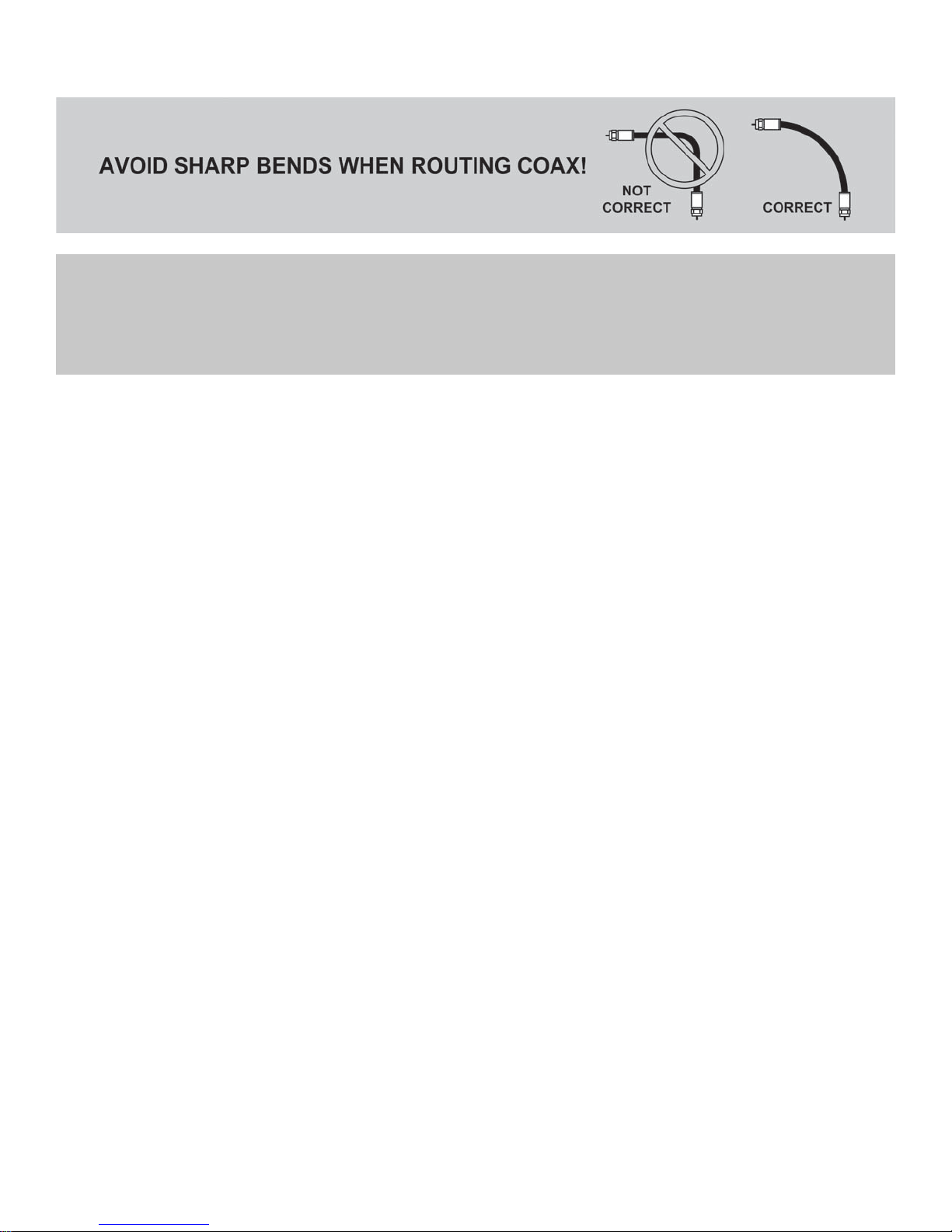

11. Run wires from the back of the dome unit to the roof edge, then along edge to location where
wiring will be fed into the vehicle. If installing an optional second receiver, run second coax to
location where it will enter the vehicle. Secure wiring to roof every 12-18 inches (Fig. 10).
12. Drill 3/4” hole through the roof and into the cabinet where receiver is stored. Feed wiring down
through hole. Seal opening with roof compatible sealant so that it is completely waterproof
(inside and outside of the 3/4” hole). Repeat for second coax if present.
13. Fasten cable entry cover to roof. Seal mounting holes, perimeter of cover and cable opening
so they are completely waterproof.
14. Remove blue protective sheet and red “position to rear” sticker from the dome unit.
IMPORTANT! Installer is responsible for determining proper roof compatible fasteners for cable entry cover.
Roof hole for wiring must be sealed so it is completely waterproof. Mounting holes, perimeter of
cable entry cover and cable opening of cable entry cover must be sealed so they are completely
waterproof. SEALANT MUST BE ROOF COMPATIBLE.
IMPORTANT!
Sealant must be roof compatible.
FIG. 10

Page 10
NOTE: Using multiple receivers is not recommended for multi-satellite services where automatic satellite switching is
desired.
Components and wiring supplied with the KD2000/KD3000 are shown in black.
Existing components and wiring or those sold separately are shown in gray.
15. Choose your desired wiring configuration.
DIRECTV / Bell TV
(single satellite). . . . . . . . . . . . . . . . . . . . . . . . . Fig. 11, Page 11
DIRECTV / DISH / Bell TV
(2 or more satellites with auto switching) . . . . . Fig. 12, Page 12
16. Inside the vehicle, make the connections as shown in the wiring diagrams, keeping in mind the
following important points:
a) The connection between the dome unit and the main satellite receiver must be a direct
connection with no other devices in between.
b) Power connection must be a non-shared circuit. Excessive current draw on the circuit will
cause the unit to operate improperly. Power and ground connections must be made after
all wiring is connected to the dome unit.
c) If fusing the circuit, the fuse must be rated at 7.5 amps.
d) HDTV receivers require HDMI or component video/audio cable connection to TV (sold
separately).
17. When installation is complete, go to Section 4, ANTENNA CONFIGURATION on page 13.
INTERNAL WIRING

Page 11
FIG. 11 DIRECTV / Bell TV
King-Dome Models KD2000 & KD3000
Single satellite
IMPORTANT!
Main coax cable must be
connected to 18V input on
multi-switch.

Page 12
FIG. 12 DIRECTV / DISH / Bell TV
King-Dome Models KD2000 & KD3000
2 or more satellites with auto-switching
NOTE: Using multiple receivers is not recommended for multi-satellite services where automatic satellite
switching is desired.
DISH SUBSCRIBERS: See section 6, SECOND RECEIVER OPERATION FOR DISH, if using an optional
second receiver.
NOTE:
An optional second receiver
connected to the AUX port
is not recommended when
auto switching is used.

Page 13
The King-Dome is factory pre-set for DIRECTV standard digital programming broadcast from the
101° W satellite.
If you also receive your local channels from DIRECTV’s 119 satellite or if you subscribe to DISH or
Bell TV programming, you must configure the antenna to work with your satellite service. Doing this
will allow the King-Dome to lock on the correct satellites to receive your programming and also enable
automatic satellite switching via the receiver’s remote control for multi-satellite service.
Antenna configuration is a one time procedure that MUST BE COMPLETED before using your
King-Dome antenna.
To configure your antenna, follow these steps:
1. ANTENNA CONFIGURATION
Configure the antenna for your service.
You can use either:
A) the supplied wall mount controller (page 14).
OR
B) #1844 Keypad (page 19).
2. DISH AND BELL TV CHECK SWITCH TEST
For all DISH and Bell TV services:
Configure your receiver for mobile use by running a check switch test (page 23).
Section 4 ANTENNA CONFIGURATION
#1844 Keypad

Page 14
ANTENNA CONFIGURATION
USING WALL MOUNT CONTROLLER
On pages 15-18, find your service and follow the instructions in the box.
DIRECTV
DIRECTV SD (Factory Pre-set). . . . . . . . . . . . . . Page 15
DIRECTV SD with Locals . . . . . . . . . . . . . . . . . .Page 15
DISH
DISH SD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 16
DISH SD and HD . . . . . . . . . . . . . . . . . . . . . . . . Page 16
DISH SD and HD Alternate . . . . . . . . . . . . . . . . . Page 17
Bell TV
Bell TV SD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 18
Bell TV SD and HD . . . . . . . . . . . . . . . . . . . . . . . Page 18
NOTE: If you are using the keypad for programming, go to page 19.

Page 15
DIRECTV SD (Satellite 101)
1. On the King-Dome controller, press and release the ON button.
Wait for status light to flash orange, then WAIT 4 MORE SECONDS.
2. Press and release the ON button 16 times.
The status light starts rapidly flashing green and red.
3. Press and hold the button for 4 seconds. The status light will turn
orange for 1 second, and then start flashing green or red.
4. Press OFF.
RECEIVER CONFIGURATION
5. If you have a newer receiver or current software, choose the following dish configuration
settings (do this through the receiver’s satellite set-up menu screens):
Dish Type: 01: 18” Round Switch Type: 02:Multiswitch
If you have an older receiver, choose round dish-1 satellite.
Configuration is complete. Go to page 26.
The King-Dome is factory pre-set for the DIRECTV 101 satellite. Unless the antenna has been configured for
another option since leaving the factory, PERFORM STEP 5 ONLY.
DIRECTV ANTENNA CONFIGURATION
DIRECTV SD with Locals (Satellites 101, 119)
1. On the King-Dome controller, press and release the ON button.
Wait for status light to flash orange, then WAIT 4 MORE SECONDS.
2. Press and release the ON button 8times.
The status light starts rapidly flashing green and red.
3. Press and hold the button for 4 seconds. The status light will turn
orange for 1 second, and then start flashing green or red.
4. Press OFF.
RECEIVER CONFIGURATION
5. If you have a newer receiver or current software, choose the following dish configuration
settings (do this through the receiver’s satellite set-up menu screens):
Dish Type: 02: 3-LNB (18 x 20”) Switch Type: 02:Multiswitch
If you have an older receiver, choose oval dish-2 satellites.
Configuration is complete. Go to page 26.

Page 16
DISH ANTENNA CONFIGURATION
DISH SD (satellites 110, 119)
1. On the King-Dome controller, press and release the ON button.
Wait for status light to flash orange, then WAIT 4 MORE SECONDS.
2. Press and release the ON button 12 times.
The status light starts rapidly flashing green and red.
3. Press and hold the button for 4 seconds.
The status light will turn orange for 1 second,
and then start flashing green or red.
4. Press OFF.
5. After you have successfully configured the antenna, you must configure your receiver for
mobile use.
To configure your receiver for mobile use, go to page 23 and run the check switch test.
DISH SD and HD (satellites 110, 119, 129)
1. On the King-Dome controller, press and release the ON button.
Wait for status light to flash orange, then WAIT 4 MORE SECONDS.
2. Press and release the ON button 20 times.
The status light starts rapidly flashing green and red.
3. Press and hold the button for 4 seconds.
The status light will turn orange for 1 second,
and then start flashing green or red.
4. Press OFF.
5. After you have successfully configured the antenna, you must configure your receiver for
mobile use.
To configure your receiver for mobile use, go to page 23 and run the check switch test.

Page 17
DISH SD and HD Alternate (satellites 61.5, 110, 119)
1. On the King-Dome controller, press and release the ON button.
Wait for status light to flash orange, then WAIT 4 MORE SECONDS.
2. Press and release the ON button 16 times.
The status light starts rapidly flashing green and red.
3. Press and hold the button for 4 seconds.
The status light will turn orange for 1 second,
and then start flashing green or red.
4. Press OFF.
5. After you have successfully configured the antenna, you must configure your receiver for
mobile use.
To configure your receiver for mobile use, go to page 23 and run the check switch test.

Page 18
Bell TV SD and HD (satellites 82, 91)
1. On the King-Dome controller, press and release the ON button.
Wait for status light to flash orange, then WAIT 4 MORE SECONDS.
2. Press and release the ON button 32 times.
The status light starts rapidly flashing green and red.
3. Press and hold the ON button for 4 seconds.
The status light will turn orange for 1 second,
and then start flashing green or red.
4. Press OFF.
5. After you have successfully configured the antenna, you must configure your receiver for
mobile use.
To configure your receiver for mobile use, go to page 23 and run the check switch test.
BELL TV ANTENNA CONFIGURATION
Bell TV SD (satellite 91)
1. On the King-Dome controller, press and release the ON button.
Wait for status light to flash orange, then WAIT 4 MORE SECONDS.
2. Press and release the ON button 8times.
The status light starts rapidly flashing green and red.
3. Press and hold the button for 4 seconds.
The status light will turn orange for 1 second,
and then start flashing green or red.
4. Press OFF.
5. After you have successfully configured the antenna, you must configure your receiver for
mobile use.
To configure your receiver for mobile use, go to page 23 and run the check switch test.
