Kingfisher NMRS1500 User manual

RAKER & SCARIFIER
1500 W
Original Instructions – NMRS1500_GB_V20323
WARNING: Read the instructions before using the product.
NMRS1500
EAN: 3663602627173 / 3663602627203
MAND1_2223
3663602627173_MNL_GB_V03.indd 1 30/3/2023 11:49 AM

2
NMRS1500
Getting Started . . .
Let’s
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting Started... 02
Safety information 03
Your product 09
Before you start 12
In more detail... 19
Product functions 19
Operation 23
Care and maintenance 25
Troubleshooting 28
Recycling and disposal 29
Guarantee 30
Declaration of 33
3663602627173_MNL_GB_V03.indd 2 30/3/2023 11:49 AM

3
NMRS1500
Getting Started . . .
Safety warnings
Children should be supervised to ensure that they do not play with the product.
IMPORTANT Read carefully before use.
Keep for future reference.
Safe operation practices
Training
1.
Read the instructions carefully. Be familiar with the controls and the proper use
of the machine.
2. Never allow children, persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge or people unfamiliar with these instructions
to use the machine. Local regulations can restrict the age of the operator.
3. Keep in mind that the operator or user is responsible for accidents or hazards
occurring to other people or their property.
Preparation
1. Wear ear protection and safety glasses at all times while operating the machine.
2.
Before use check the supply and extension cord for signs of damage or aging.
If the cord becomes damaged during use, disconnect the cord from the supply
immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE
SUPPLY. Do not use the machine if the cord is damaged or worn.
3. While operating the machine always wear substantial footwear and long trousers.
Do not operate the machine when barefoot or wearing open sandals. Avoid wearing
4. Thoroughly inspect the area where the equipment is to be used and remove all
objects which can be thrown by the machine.
5.
6. Do not operate the machine on a paved or gravel surface where ejected material
could cause injury.
7. Before starting the machine, check that all screws, nuts, bolts, and other fasteners
are properly secured and that guards and screens in place. Replace damaged or
unreadable labels.
8. Never operate the machine while people, especially children, or pets are nearby.
Safety information
3663602627173_MNL_GB_V03.indd 3 30/3/2023 11:49 AM

4
NMRS1500
Getting Started . . .
Operation
1.
2. Avoid operating the machine in wet grass.
3. Never overreach and keep the balance at all times. Always be sure of your footing
at all times, especially on slopes.
4. Walk, never run.
5. Mow across the face of slopes, never up and down.
6. Exercise extreme caution when changing direction on slopes.
7. Do not scarify or aerate excessively steep slopes.
8. Use extreme caution when reversing or pulling the machine towards you.
9. Stop the tines if the machine has to be tilted for transportation when crossing
surfaces other than grass, and when transporting the machine to and from the
area to be used.
10. Never operate the machine with defective guards or shields, or without safety
damaged or worn.
11. Switch on the motor carefully according to instructions and with feet well away
from the tines.
12. Keep supply and extension cord away from tines. The tines can cause damage
to the cords and lead to contact with live parts.
13. Do not tilt machine when switching on the motor, except if the machine has to be
tilted for starting. In this case, do not tilt it more than absolutely necessary and lift
only the part which is away from the operator. Always ensure that both hands are
in the operating position before returning the machine to the ground.
14. Do not transport the machine while the power source is running.
15. Do not put hands or feet near or under rotating parts. Keep clear of the discharge
opening at all times.
16. Stop the machine, and remove plug from the socket. Make sure that all moving
parts have come to a complete stop:
• whenever you leave the machine,
• before clearing blockages or unclogging chute,
• before checking, cleaning or working on the machine,
• after striking a foreign object. Inspect the machine for damage and make repairs
before restarting and operating the machine; if the machine starts to vibrate
abnormally (check immediately)
• inspect for damage,
• replace or repair any damaged parts,
• check for and tighten any loose parts.
17. Do not touch moving hazardous parts before the machine is disconnected from
the mains and the moving hazardous parts have come to a complete stop.
Safety information
3663602627173_MNL_GB_V03.indd 4 30/3/2023 11:49 AM

5
NMRS1500
Getting Started . . .
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working
condition.
2. Check the debris collector frequently for wear or deterioration.
3. Replace worn or damaged parts for safety.
4. On machines with multiple timeassemblies, take care as rotating one timeassembly
can cause another time assembly to rotate.
5.
between moving time
6. Always allow the machine to cool down before storing.
7. When servicing the time assembly be aware that, even though the power source
is switched off, the time assembly can still be moved.
8.
Replace worn or damaged parts for safety. Use only genuine replacement parts
and accessories.
9. When the machine is stopped for servicing, inspection, or storage, or to change an
accessory, shut off the power source, disconnect the machine from the supply and
make sure that all moving parts are come to a complete stop. Allow the machine
to cool before making any inspections, adjustments, etc. Maintain the machine
with care and keep it clean.
10. Store the machine out of the reach of children.
Additional safety warnings
WARNING! Beware of sharp tines. Tines continue to rotate after the motor
is switched off.
1. Do not use the product if the cords are damaged or worn.
2.
Do not to connect a damaged cord to the supply or touch a damaged cord before it
is disconnected from the supply. A damaged cord can lead to contact with live parts.
3.
for outdoor use and not lighter than H05VV-F or H05RN-F, 2x1.0 mm² and its
length max 75 m.
Recommendation for class II products
1.
The product should be supplied via a residual current device (RCD) with a tripping
current of not more than 30 mA.
2. Avoid using the machine in bad weather conditions especially when there is a
risk of lightning.
Safety information
3663602627173_MNL_GB_V03.indd 5 30/3/2023 11:49 AM

6
NMRS1500
Getting Started . . .
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit the time of operation, use
low-vibration and lownoise operating modes as well as wear personal protective
equipment.
Take the following points into account to minimize the vibration and noise exposure risks:
1. Only use the product as intended by its design and these instructions.
2. Ensure that the product is in good condition and well maintained.
3. Use correct application tools for the product and ensure they in good condition.
4.
5. Maintain this product in accordance with these instructions and keep it well lubricated
(where appropriate).
6.
Plan your work schedule to spread any high vibration tool use across a number
of days.
Emergency
Familiarise yourself with the use of this product by means of this instruction
manual. Memorise the safety directions and follow them to the letter. This will
help to prevent risks and hazards.
1.
Always be alert when using this product, so that you can recognise and handle
risks early. Fast intervention can prevent serious injury and damage to property.
2. Switch off and disconnect from the power supply if there is any malfunction.
before you put it into operation again.
Residual risks
Even if you are operating this product in accordance with all the safety
requirements, potential risks of injury and damage remain. The following dangers
can arise in connection with the structure and design of this product:
1. Health defects resulting from vibration emission if the product is being used over
long periods of time or not adequately managed and properly maintained.
2. Injuries and damage to property due to broken application tools or the sudden
impact of hidden objects during use.
3.
WARNING!
persons with medical implants to consult their doctor and the medical implant
Safety information
3663602627173_MNL_GB_V03.indd 6 30/3/2023 11:49 AM

7
NMRS1500
Getting Started . . .

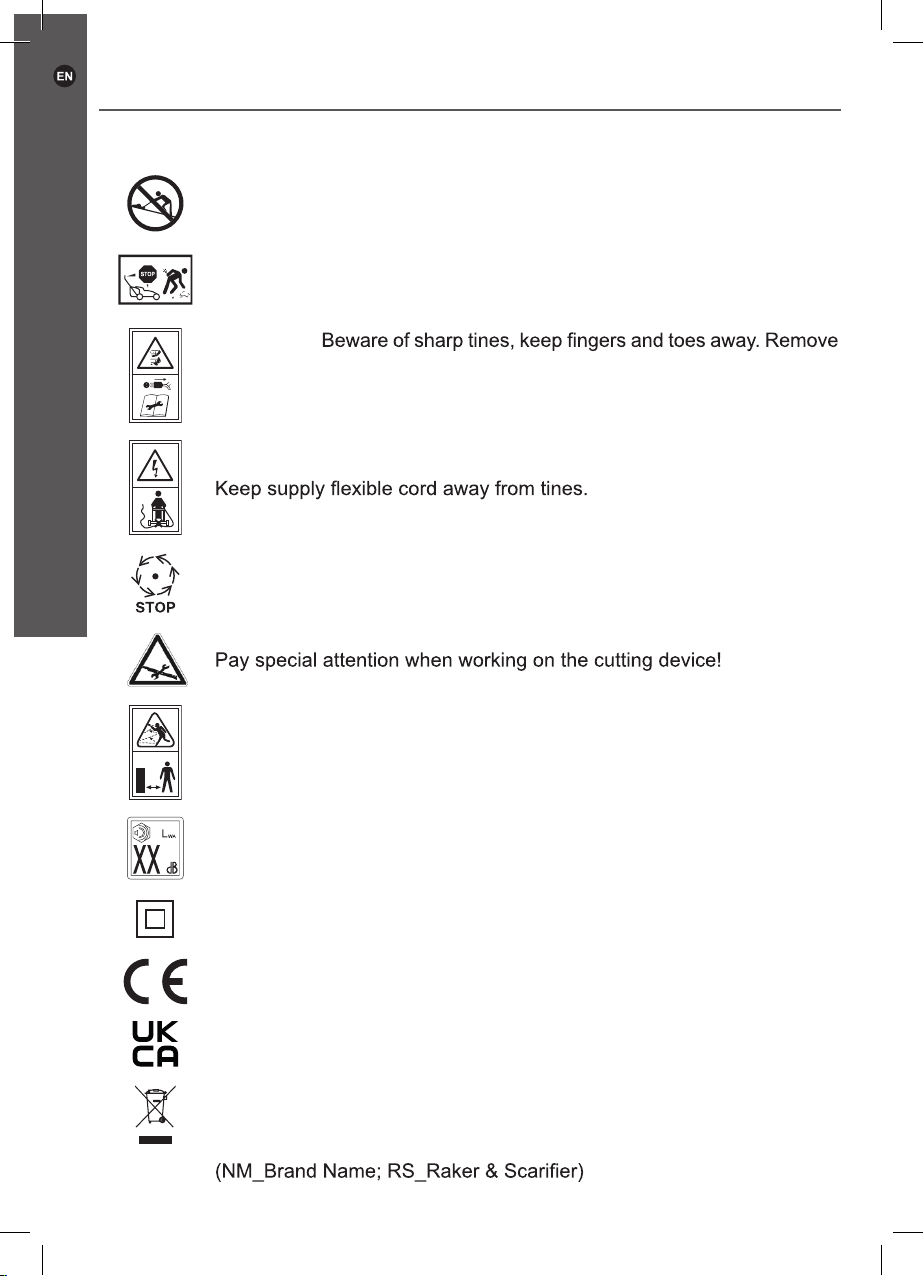

Symbols
the following symbols and abbreviations. Familiarise yourself with them to reduce
hazards like personal injuries and damage to property.
V~ Volt, (alternating voltage) W Watt
Hz Hertz A Ampere
kW Kilowatt cm³ Cubic centimetre
per minute mm Millimetre
kg Kilogram dB(A) Decibel (A-rated)
Metres per second squared IPX4 Water protection class:
yyWxx
Manufacturing date code; year
of manufacturing (20yy) and
week of manufacturing (Wxx)
Read the instruction manual.
Wear hearing protection. Wear eye protection.
Wear respiratory protection. Wear protective gloves.
Wear safety footwear. clothes.
damaged or cut.
Switch the product off and disconnect it from the power supply before
assembly, cleaning, adjustments, maintenance, storage and transportation.
Do not use in rain or wet conditions.
Safety information
3663602627173_MNL_GB_V03.indd 7 30/3/2023 11:49 AM

8
NMRS1500
Getting Started . . .
Work across the face of slopes, never up and down.
Inspect the area where the product is to be used and remove all objects
which could be thrown by the product. If objects are hidden while operating
stop the motor and remove them.
WARNING!
plug from mains before maintenance, adjusting, cleaning or if the cord
is entangled or damaged. Tines continue to rotate after the motor is
switched off.
Cutting device continues to rotate after the product is switched off. Wait
until all components have completely stopped before touching the product.
Keep bystanders away. Objects thrown by the product could hit the user
or other bystanders. Always ensure that other people and pets remain
at a safe distance from the product when it is in operation. In general,
children must not come near the area where the product is.
Guaranteed sound power level
This product is of protection class II. That means it is equipped with
enhanced or double insulation.
The product complies with the applicable European directives and an
evaluation method of conformity for these directives was done.
UK Conformity Assessed
WEEE symbol. Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check with your
Local Authority or local store for recycling advice.
NMRS1500
Safety information
3663602627173_MNL_GB_V03.indd 8 30/3/2023 11:49 AM

9
NMRS1500
Getting Started . . .
1
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5b
5a
5
4
3
2
21
24
23
22
25
26

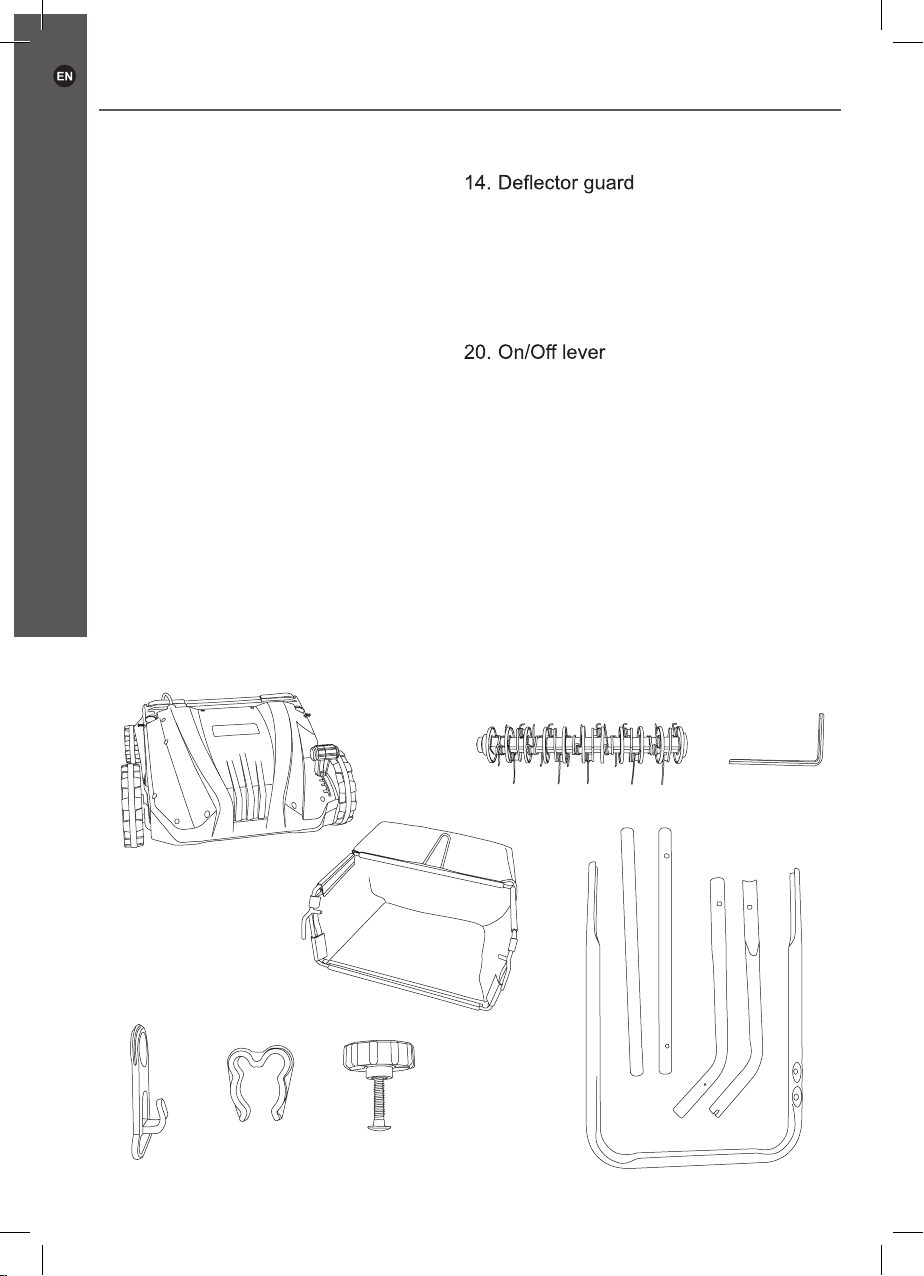

Your product
3663602627173_MNL_GB_V03.indd 9 30/3/2023 11:49 AM

10
NMRS1500
Getting Started . . .
1. Handle
2. Upper handle bar
3. Middle handle bar
4. Power cord & plug
5. Handle assembly set (x4)
a. Locking knob
b. Bolt
6. Lower handle bar
7. Grip
8. Support
9. Screw (x2) (pre-assembled)
10. Castor
11. Wheel
12. Depth adjustment lever
13. Air vent
15. Grass catcher
16. Cord clip (x2)
17. Cord strain relief
18. Switch box
19. Lock-off button
21. Cutting device (scarifying cylinder)
22. Drive shaft
23. Bearing seat
24. Cutting device assembly sets
a. Bolt
b. Spring washer
25. Cutting device (raking cylinder)
26. Hex key 4 mm
All un-assembled parts
Motor
15
16 5
25
17
26
6
3
1
x4x2
Your product
3663602627173_MNL_GB_V03.indd 10 30/3/2023 11:49 AM

11
NMRS1500
Getting Started . . .
General :
> Rated voltage : 230-240V~, 50Hz
> Rated input power: : 1500 W
> Rated no-load speed :
> Max. cutting width : 320 mm
> Working height range : 4 adjustments
Scarifying :
Raking :
> Grass catcher volume : 28 l
> Insulation protection class :, class II
> Water protection class : IPX4
> Net weight : 10.35 kg
> Sound pressure level LpA :84.5 dB(A)
> Uncertainty K: : 3 dB(A)
> Sound power level LWA :97.3 dB(A)
> Uncertainty K : 1.05 dB(A)
> Guaranteed power level L
WA
:98 dB(A)
> Vibration :
> Uncertainty K :
The declared vibration value has been measured in accordance with a standard test
method and may be used for comparing one tool with another. The declared vibration
value may also be used in a preliminary assessment of exposure.
Your product
3663602627173_MNL_GB_V03.indd 11 30/3/2023 11:49 AM

12
NMRS1500
Getting Started . . .

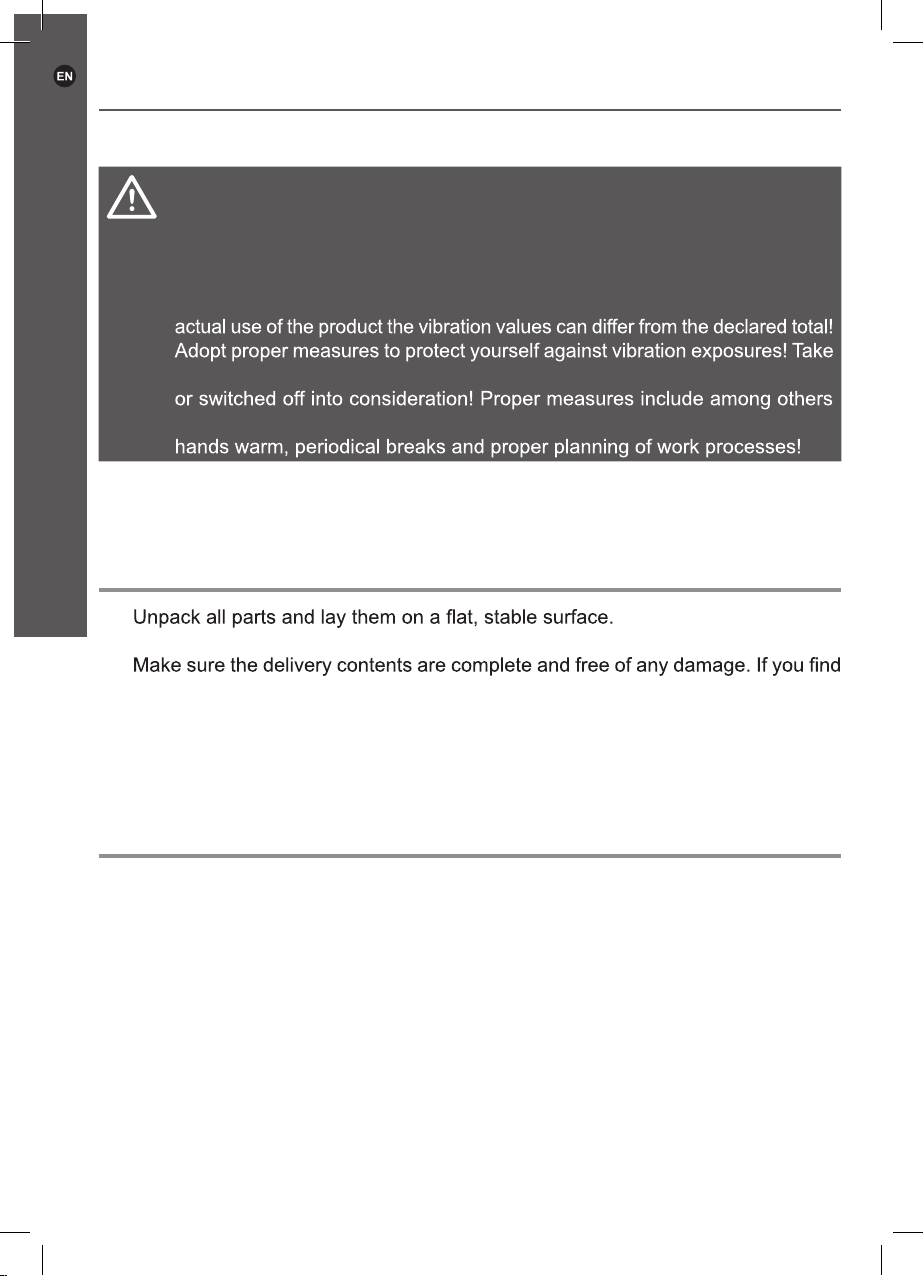

WARNING! The vibration emission value during actual use of the tool can
differ from the declared value depending on the ways in which the tool is
used. Identify safety measures to protect the operator that are based on an
estimation of exposure in the actual conditions of use (taking account of all
parts of the operating cycle such as the times when the tool is switched off
and when it is running idle in addition to the trigger time). Depending on the
the whole work process including times the product is running under no load
regular maintenance and care of the product and application tools, keeping
The sound intensity level for the operator may exceed 80 dB(A) and ear protection
measures are necessary.
Unpacking
1.
2. Remove all packing materials and shipping devices if applicable.
3.
that parts are missing or show damage do not use the product but contact your
dealer. Using an incomplete or damaged product represents a hazard to people
and property.
4. Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
You will need
(items not supplied)
> Suitable personal protective equipment
> Crosshead screwdriver
(items supplied)
> Hex key 4 mm x 1 (26)
Your product / Before you start
3663602627173_MNL_GB_V03.indd 12 30/3/2023 11:49 AM

13
NMRS1500
Getting Started . . .
Assembly

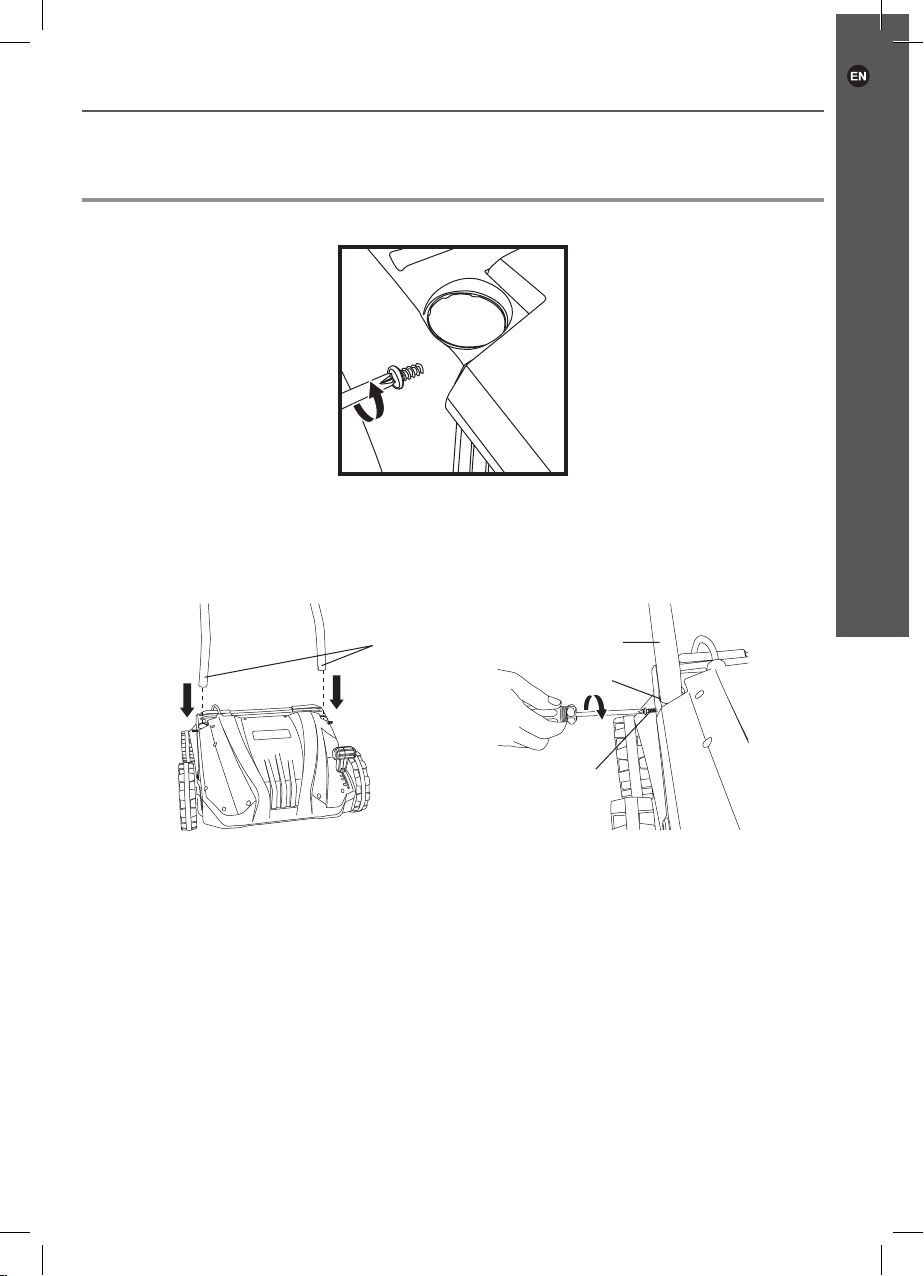

1. Loosen screws (9) on both side, do not remove completely (Fig. 1).
Fig. 1
2. Align the lower hand bars (6) with the supports (8) (Fig. 2). Make sure the holes
in the lower handle bars face outwards and secure the bars with one screw (9) to
each support (8) (Fig. 3).
66
8
9
Fig. 2 Fig. 3

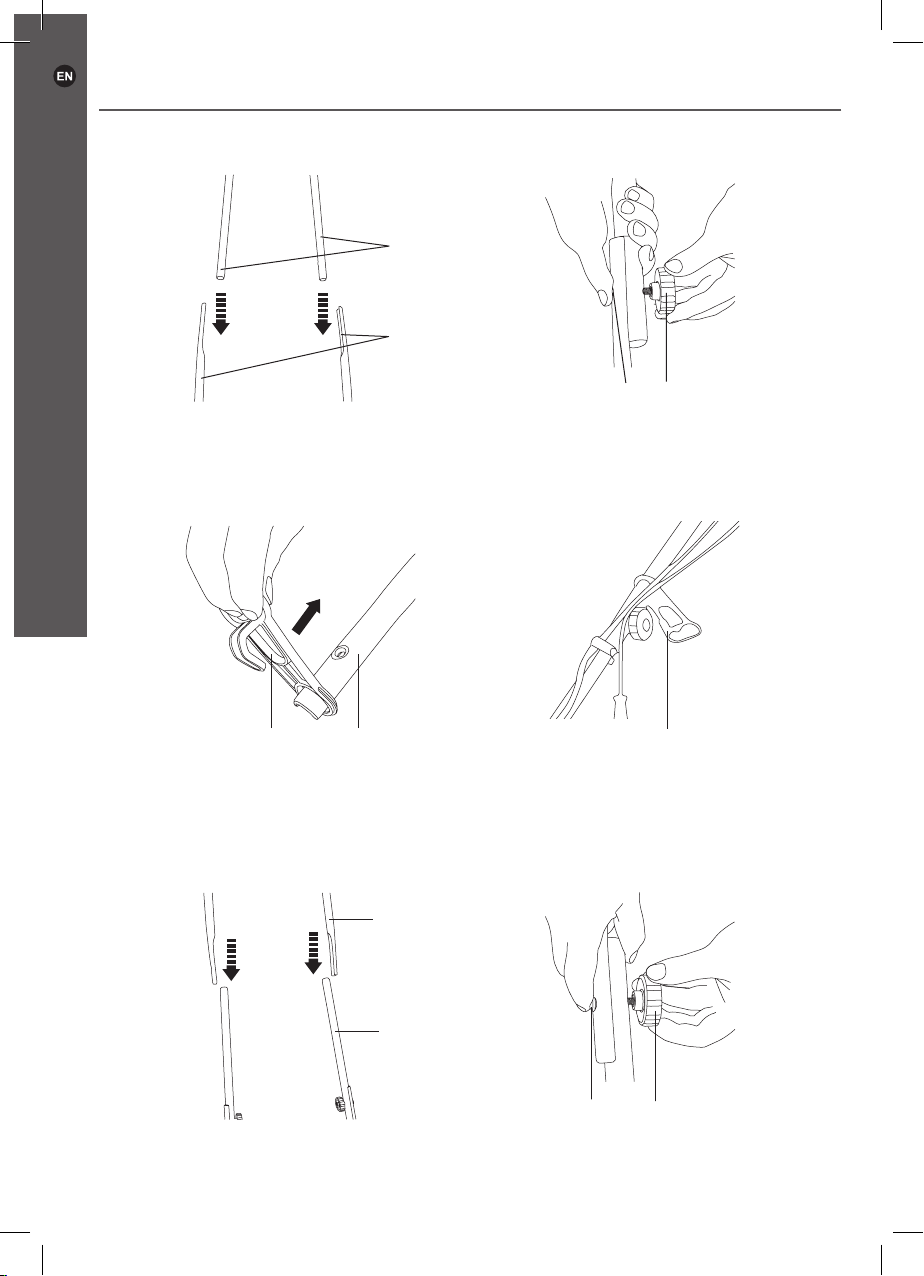

3. Align the middle handle bars (3) to the lower ones (6). Make sure the holes of the
handle bars (3, 6) correspond and secure them with handle assembly set (5) on
each side , make sure the locking knob is located inside. (Fig. 4&5).
Before you start
3663602627173_MNL_GB_V03.indd 13 30/3/2023 11:49 AM

14
NMRS1500
Getting Started . . .
6
3
5b 5a
Fig. 4 Fig. 5
4. Slide the cord strain relief (17) onto the upper handle bar (2) (the side of handle
with two holes) before assembly (Fig. 6&7).
17 2
17
Fig. 6 Fig. 7
5. Align the upper handle bar (2) with the middle handle bar (3), make sure the two
holes are on the right side (Fig. 8). Secure them with handle assembly set (5) with
locking knob located inside on each side (Fig. 9).
2
3
5b 5a
Fig. 8 Fig. 9
Before you start
3663602627173_MNL_GB_V03.indd 14 30/3/2023 11:49 AM

15
NMRS1500
Getting Started . . .
6.
back cover and keep them on hand. Take down the back cover, and attach switch
box (18) onto the upper handle bar (2). Click the back cover into place. Then secure
it by tightening the screws (Fig.10&11&12).
18
Screws
18
2
Fig. 10 Fig. 11 Fig. 12
7. Fix the cord with the cord clips (16) to the handle bar (Fig. 13).
16
Fig. 13
Before you start
3663602627173_MNL_GB_V03.indd 15 30/3/2023 11:49 AM

16
NMRS1500
Getting Started . . .
Grass catcher
Attach the grass catcher (15) to the product before operation.
WARNING! Do not attempt to use the product without the grass catcher
1.
(15) (Fig.14&15).
The frame
The plastic
cllip 1
2
34
5
Fig. 14 Fig. 15
2.
the hooks on the grass catcher (15) with the supports to hang it onto (Fig. 16).
15
14
7
Fig. 16
3.
Empty the grass catcher (15) frequently during use. Do not wait until it is completely
full. We recommend emptying it when it is half full.
Before you start
3663602627173_MNL_GB_V03.indd 16 30/3/2023 11:50 AM
Grass catcher
Attach the grass catcher (15) to the product before operation.
WARNING! Do not attempt to use the product without the grass catcher
1.
(15) (Fig.14&15).
The frame
The plastic
cllip
1
2
34
Fig. 14 Fig. 15
2.
the hooks on the grass catcher (15) with the supports to hang it onto (Fig. 16).
15
14
7
Fig. 16
3.
Empty the grass catcher (15) frequently during use. Do not wait until it is completely
full. We recommend emptying it when it is half full.

17
NMRS1500
Getting Started . . .
NOTE: A full grass catcher will reduce the performance of this product.
4.
remove it.
5. Empty the collected material onto a compost heap and reattach the grass catcher
(15) onto the product.
WARNING! The motor must be switched off and the cutting device must have
Connection to the power supply (for UK only)
WARNING! Always use a residual current supply (RCD) protected supply.
designed for outdoor use and not lighter than H05VV-F or H05RN-F,
2x1.0 mm² and max 75 m.
1. Make sure the lock-off button (19) is in its off position..
2. Connect the power plug to a suitable power source.
3. Now your product is ready for use.
Connection to the power supply (not for UK)
For safety reasons the product is equipped with a short power cord (4). Do not connect
the product directly to the power supply using this power cord. A proper extension cord
is required for operation. Observe the technical requirements for this product when
purchasing an extension cord.
WARNING! For your safety, it is required that the product is always supplied
be supplied via a residual current device (RCD) with a tripping current of
not more than 30mA
4. Make sure the lock-off button (19) is in its off position.
5. Double the extension cord about 30 cm (12 inches) from the end. Lead the loop
through the hole and hook the loop over the cord strain relief (17). Gently pull on
Do not attempt to use the product without the grass catcher
5
Empty the grass catcher (15) frequently during use. Do not wait until it is completely
Before you start
3663602627173_MNL_GB_V03.indd 17 30/3/2023 11:50 AM

18
NMRS1500
Getting Started . . .
17
Fig. 17 Fig. 18
6. Connect the plug (4) to the socket of the extension cord (Fig.19).
4
Fig. 19
7. Connect the plug of the extension cable to a suitable power source.
WARNING!
8. Your product is now ready to be used.
Before you start
3663602627173_MNL_GB_V03.indd 18 30/3/2023 11:50 AM

19
NMRS1500
In more detail . . .
Intended use
•
This product is intended for raking and scarifying on the lawns in domestic gardens.
•
the grass with specially adapted prongs that collect and remove any thatch from the
the ground resulting in better airing.
• When used as a raker, this product helps to remove the dead matter, moss and
prevents water getting through to the ground.
• This product is not to be used in wet weather conditions and may not be used to
mow dry, wet or unusually high grass, e. g. pasture grass or for shredding leaves.
• This product is intended for private domestic use only, not for any commercial trade
use. It must not be used for any purposes other than those described.
NOTE:Thatch is a build-up of organic materials which can include dead grass
or leaves, stems, rhizomes and overcrowded grass roots as well as lateral
encourages the lawn to thicken up and makes it stronger and less susceptible
to disease. Reducing the thatch level increases the levels of water, air and
nutrients that can get through to the root zone of the grass plants.
Cutting depth adjustment
Adjust the depth according to the needs of your lawn. The most suitable depth depends
on the kind of lawn and the actual height of the grass.
1. Lift up the depth adjustment lever (12), meanwhile move it forward or backward
to the desired position, and release it. Make sure it is well seated in the groove
on the housing. (Fig.20).
Groove
Fig. 20
Product functions
3663602627173_MNL_GB_V03.indd 19 30/3/2023 11:50 AM

20
NMRS1500
In more detail . . .
2. Adjust the lever (12) to one out of the four positions. Read the adjusted depth
from the scale.
Position Setting Application
Depth Scarifying Depth Raking
1
maximum -12 mm
scarifying an unkempt
lawn, removing thick
thatch layers
-6 mm DO NOT use for
raking
2 middle -8 mm scarifying healthy lawn,
removing thicker thatch -2 mm raking an unkempt lawn
3 minimum -4 mm scarifying healthy lawn,
removing thatch 2 mm raking healthy lawn
4 transport 4 mm for transportation
and storage 10 mm
for
transportation
and storage
Lock-off button
1.
(1), hold it in position during operation (Fig. 21).
19
20
1
2
Fig. 21
2.
Cutting device
The product has two functions, raking and scarifying. The scarifying cylinder is pre-
assembled on the product.
Replacing
1.
2.
3.
Product functions
3663602627173_MNL_GB_V03.indd 20 30/3/2023 11:50 AM
