Kingsman marquis SERENE Series User manual

Model Numbers:
ZCVRB60N, ZCVRB60NE, ZCVRB60LP, ZCVRB60LPE
MQZCVRB60NE2, MQZCVRB60LPE2
Certified to:
ANSI Z21.88-2017 • CSA 2.33-2017 Vented Gas Fireplace Heaters • CSA 2.17-2017
Installation Instructions
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
A Division of R-Co. Inc.
2340 Logan Ave.
Winnipeg, Manitoba Canada
R2R 2V3 Ph.: [phone]
Printed in Canada August 15, 2019
Part# 60ZCV-MAN17
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or
mobile home, where not prohibited by
local codes.
This appliance is only for use with
the type of gas indicated on the
rating plate. This appliance is not
convertible for use with other
gases, unless a certified kit is
used.
SERENE
C#400720
⚠ WARNING:
DO NOT OPERATE THIS APPLIANCE
WITHOUT DECORATIVE GLASS EMBERS
ON BURNER AND MEDIA TRAY

ZCVRB60 Table of Contents
Table of Contents……………………………………………………………...........................................................
2-3
Safety Screen Installation / Removal................................................................................................................
4
Pre-installation Questions and Answers / Operating Instructions.....................................................................
5
Warnings, Installations, and Operations…………………………………............................................................
6-7
Mobile Home/Manufactured Housing Installation……………………................................................................
8
INSTALLATION
Framing Your Gas Fireplace.............................................................................................................................
9
Nailing Tab Guide.............................................................................................................................................
10
ZCVRB60 -Facing Requirements- Units With Unvented Chase (as Shipped).................................................
11
Tile Lip Kit- V60PTLK.......................................................................................................................................
12
Fireplace Installations in Covered Outdoor Locations......................................................................................
13
Locating Your Appliance / Fireplace Dimensions.............................................................................................
14
ZCVRB60 –Unvented Chase VS Vented Chase- Choose Your Installation.....................................................
15
INSTALLATION – UNVENTED CHASE
Framing Dimensions –Unvented Chase- Ventilation Plates In Place -As Shipped..........................................
16
Mantel Clearances – Unvented Chase - Ventilation Plates In Place –As Shipped...........................................
17
Clearance to Combustibles – Unvented Chase -Ventilation Plates in Place -As Shipped...............................
18
INSTALLATION – VENTED CHASE
Vented Chase –Removal of Ventilation Plates.................................................................................................
19
Vented Chase – Style 1 – Opening With No Grill.............................................................................................
20-21
Vented Chase – Style 2 – Opening With Grill..................................................................................................
22-23
Vented Chase -Style 2 – Opening With Grill - Kingsman VL60EG...................................................................
24
VL60EG Grill Installation...................................................................................................................................
25
VL60EGS Side Grill Installation........................................................................................................................
26
Framing Dimensions –Vented Chase -Ventilation Plates Removed.................................................................
27
Optional Recessed Cavity Dimensions.............................................................................................................
28
Mantel Clearances –Vented Chase -Ventilation Plates Removed....................................................................
29
Clearance to Combustibles –Vented Chase -Ventilation Plates Removed......................................................
30
COMPONENTS AND ACCESSORIES
Surround Dimensions / Clearances..................................................................................................................
31
Surround Installation.........................................................................................................................................
32
UHS Box...........................................................................................................................................................
33
Component Locations.......................................................................................................................................
33
Fan Kit Installation............................................................................................................................................
34
Split Receptacle- Fan Speed Control Outside of Fireplace..............................................................................
35
Door and Glass Information..............................................................................................................................
36
Valve Access Cover Removal / Removable Lower Face Panel.......................................................................
37
ZCVRB60PL Liner Installation..........................................................................................................................
38-39
MQVRB60RLF Liner Installation......................................................................................................................
40
GAS LINE AND MAINTENANCE
Gas Line Installation………………………………………………………………………………………...................
41
Millivolt System, Lighting, & Burner Control......................................................................................................
42
Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace...................................
43
Burner System Maintenance............................................................................................................................
44
Gas Conversion Part A.....................................................................................................................................
45
Gas Conversion Kit For Top Convertible Pilot PART B....................................................................................
46
Gas Conversion for Modulator – PART C.........................................................................................................
47
Burner Tube Removal.......................................................................................................................................
48
2

Burner System Removal/Installation Guide......................................................................................................
48
LOGS AND MEDIA
ULK64 Universal Light Kit (Optional Accent Lighting Kit).................................................................................
49-50
LED Lighting.....................................................................................................................................................
51
RBCB1 -Cannonballs- Installation Instructions.................................................................................................
52
MQ Dealer Accessories for ZCVRB60..............................................................................................................
53-54
MQRBD3 5-Piece Driftwood Log Set……………………………………………………………………..................
55
PROFLAME 1 IPI SYSTEM
IPI Electronic Ignition System...........................................................................................................................
56
Remote Control Operation................................................................................................................................
57
IPI Electronic Ignition Parts List – Standard System........................................................................................
58
Configuration #1: Basic System........................................................................................................................
59
Configuration #2: Remote On/Off.....................................................................................................................
60
EGTM / GTM System -No Batteries..................................................................................................................
61
Configuration #3: Remote ON/OFF, variable HI/LO, and fan...........................................................................
62
IPI Lighting Instructions....................................................................................................................................
63
PROFLAME 2 IPI SYSTEM
Proflame 2 Parts List.........................................................................................................................................
64
Proflame 2 IFC Module and Remote Control....................................................................................................
65
Cold Climates – CPI Setting - Proflame 2 Remote Control..............................................................................
66
Remote Flame Control, Room Thermostat.......................................................................................................
67
Smart Thermostat, Fan Speed Control, Remote Dimmer Control....................................................................
68
Proflame 2 Label Diagram................................................................................................................................
69
VENTING SECTION
Vent Terminal Clearances...............................................................................................................................
70
General Vent Installation Information...............................................................................................................
71
Installation Of Side Wall Venting......................................................................................................................
71
Venting Routes And Components....................................................................................................................
72
Venting Straight Up Through Roof....................................................................................................................
73-74
Glass Safety / Termination Cap Safety ............................................................................................................
75
Approved for Power Vent PVH58 / PVH58FM..................................................................................................
76
PARTS LISTS
PVH58 Parts List...............................................................................................................................................
77
ZCVRB60 Parts List..........................................................................................................................................
78-79
Troubleshooting the Gas Control System.........................................................................................................
80
WARRANTY
Limited Lifetime Warranty.................................................................................................................................
81
3

60ZCVCSS Safety Screen Installation / Removal
To remove Safety Screen, WAIT UNTIL FIREPLACE IS COMPLETELY COOL. Push up at center of Screen Frame
and pull bottom away from fireplace.
⚠ WARNING:
Wait until unit is COMPLETELY cool before touching glass or attempting to install or
remove Child Safety Screen.
Engage slots in top of Screen
Mount Brackets onto screw in
fireplace opening and push
bottom in.
4

Pre-installation Questions and Answers
About curing of the paint
Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20
minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure
when heat is applied to the appliance as it is first used. The following information applies to the curing process to get the
paint fully hard and durable.
Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between each. Be aware
during log and firebox paint curing that a white deposit may be developing on the inside of the glass doors. It is important
to remove this white deposit from the glass doors using a fireplace glass cleaner.
 Babies, small children, pregnant women and pets should leave the area during the cure phase.
 Ventilate well, open doors and windows.
 Do not touch during curing.
Why does my fireplace or stove give off odour?
It is normal for your fireplace to give off some odor at first. This is due to the curing of the paint, adhesives, silicones and
any undetected oil from the manufacturing process as well as the finishing materials used with the installations (e.g.
marble, tile and the adhesives used to adhere this product to the walls can react with heat and cause odours).
It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with the fan off (if a fan
is present) after the curing of the paint has been completed. These odours can last upward to 40 hours of burn time; keep
burning at a minimum of four hours per use until odours dissipate.
Noise coming from the fireplace?
Noise is caused by the expansion and contraction of metal as the appliance heats up and cools down. This is normal and
is similar to the sounds produced by a furnace or heating duct. This noise does not affect the operation or longevity of
your fireplace.
It is also normal for the fan to make some noise when it comes on. This noise can be reduced somewhat by turning down
the speed of the fan with the variable speed control. Be aware, however, that this will reduce the volume of heated air
circulated into the room by the fan.
Note to the Installer:
Be sure appliance is working properly and its operation (including remote control operation, if included) is fully explained
to and understood by the customer.
Operations and Maintenance Instructions
For safe installation and operation note the following:
 Be sure to read and understand all the instructions in this manual before operation of appliance.
 Ensure all wiring is correct and properly enclosed to prevent possible shock.
 Check for gas leaks.
 Make sure the glass door is properly installed before operation. Never operate the appliance with the glass door
removed.
 Make sure venting and termination cap are installed and unobstructed.
 If brick or porcelain liners are used, ensure they are installed.
 Verify that the pilot can be seen when lighting the appliance. If not, the log or rock placement is incorrect.
 If the unit is turned off, you must wait a minimum of 60 seconds before re-lighting it.
 Venting systems should be periodically examined by a qualified agency.
 The flow of combustion and ventilation air must not be obstructed.
 The Burner/Log Assembly has been engineered and permanently adjusted for proper flame control.
 Periodically remove the logs from the grate assembly and vacuum any loose particles from the grate and burner
areas. See Log Placement page to remove logs. Vacuum burner parts and replace logs.
 Never use your gas fireplace as a cooking device.
 Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
 Areas in and around the Chase Vent Openings should be cleaned annually.
5

Warnings, Installations and Operations - Installation Regulations
This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current
CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the United States.
This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the
current CSA C22.1 Canadian Electrical Code or with the National Electrical Code; ANSI/NFPA 70 when installed in the United States.
In the U.S.A. Thermostats are not permitted for Vented Gas Fireplaces (ANSI Z21.50b-Decorative).
WARNING
FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING:
1. Do not clean when the glass is hot.
2. Do not use abrasive cleaners.
3. Using a substitute glass will void all product
warranties.
4. For safe operation, glass doors must be closed.
5. When purging the gas line, the glass front must be
removed.
6. Do not strike or abuse glass. Take care to avoid
breakage.
7. Do not alter gas orifice.
8. No substitute materials may be used other than
factory supplied components.
9. This appliance gives off high temperatures and should
be located out of heavy traffic areas and away from
furniture and draperies.
10. Children and adults should be alerted to the hazards
of the high surface temperatures of this appliance and
should stay away to avoid burns or ignition of clothing.
11. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to
accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the
house. To restrict access to a fireplace or stove, install
an adjustable safety gate to keep toddlers, young
children and other at risk individuals out of the room
and away from hot surfaces.
12. Under no circumstances should any solid fuels (wood,
paper) be used in this appliance.
13. Under no circumstances should this appliance be
modified. Any parts that have to be removed for
servicing should be replaced prior to operating this
appliance.
14. Any safety screen, guard, or barrier removed for
servicing an appliance must be replaced prior to
operating the appliance.
15. Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning may be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control
compartments, burners and circulating air
passageways of the appliance be kept clean. Make
sure that the gas valve and pilot light are turned off
before you attempt to clean this unit.
16. Clothing or other flammable material should not be
placed on or near the appliance. This appliance
should not be used as a drying rack for clothing nor
should Christmas stockings or decorations be hung
from it.
17. Do not use this heater if any part has been under
water. Immediately call a qualified service technician
to inspect the heater and to replace any part of the
control system and any gas control which has been
under water.
18. Do not operate appliance unless completely installed
as per installation instructions.
19. Failure to position the parts in accordance with these
diagrams or failure to use only parts specifically
approved with this appliance may result in property
damage or personal injury.
20. WARNING: Do not operate appliance with the
glass front removed, cracked or broken.
Replacement of the glass should be done by a
licensed or qualified service person.
21. The appliance area must be kept clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
22. The front of the fireplace gives off high temperatures
that could ignite combustible material which is kept
close to the front of the unit.
23. Ensure that power to the Fireplace is turned off before
servicing.
24. Do not operate this Fireplace without the glass front or
with a broken glass.
25. Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this appliance. For assistance or additional information
consult a qualified installer, service agency, or the gas
supplier.
26. Operation of this appliance when not connected to a
properly installed and maintained venting system or
tampering with the blocked vent shutoff system can
result in carbon monoxide (CO) poisoning and
possible death.
27. This appliance is equipped with a three-prong
(grounding) plug for your protection against shock
hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or
remove the grounding prong from this plug.
28. Gas fired appliances may be used only for
supplemental heat and/or decorative purposes and
under no circumstances shall they provide a primary
heat source.
29. This appliance must not be connected to a chimney
flue serving a separate solid-fuel burning appliance.
6

Installation Requirements for the Commonwealth of Massachusetts
In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the
Commonwealth.
When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO
detector per the requirements listed below.
1. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of
the vent terminal and the air intake is installed below four feet above grade the following requirements must be
satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide
detector and alarm shall be placed in the living area outside the bedroom(s). The carbon monoxide detector
shall comply with NFPA 720.
B. A carbon monoxide detector shall be located in the room that houses the appliance or equipment and shall:
 Be powered by the same electrical circuit as the appliance or equipment such that only one service switch
services both the appliance and the carbon monoxide detector;
 Have battery back-up power;
 Meet ANSI./UL 2034 Standards and comply with NFPA 720; and
 Have been approved and listed by a Nationally Recognized Testing Laboratory as recognized under 527
CMR.
C. A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be
used. Installation shall be in strict compliance with the manufacturer’s instructions. A copy of the installation
instructions shall remain with the appliance or equipment at the completion of the installation.
D. A metal or plastic identification plate shall be mounted at the exterior of the building, four feet directly above
the location of vent terminal. The plate shall be of sufficient size to be easily read from a distance of eight feet
away, and read “Gas Vent Directly Below”.
2. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment where the bottom of
the vent terminal and the air intake is installed above four feet above grade the following requirements must be
satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide
detector and alarm shall be placed in the living area outside the bedroom(s). The carbon monoxide detector
shall comply with NFPA 720.
B. A carbon monoxide detector shall:
 Be located in the room that houses the appliance or equipment;
 Be either hard-wired or battery powered or both; and
 Shall comply with NFPA 720.
A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used.
Installation shall be in strict compliance with the manufacturer instructions. A copy of the installation instructions shall
remain with the appliance or equipment at the completion of the installation.
For the state of Massachusetts a T-handle gas shut-off valve must be used on a gas appliance. This T-handle gas shut-
off valve must be listed and approved by the state of Massachusetts. This is in reference to the state of Massachusetts
state code CMR238.
Carbon Monoxide (CO) Detector
NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of
your home. Place a detector about 15ft [4.5m] outside the room that houses your gas appliance.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat.
In USA see local codes.
7

Mobile Home/Manufactured Housing Installation

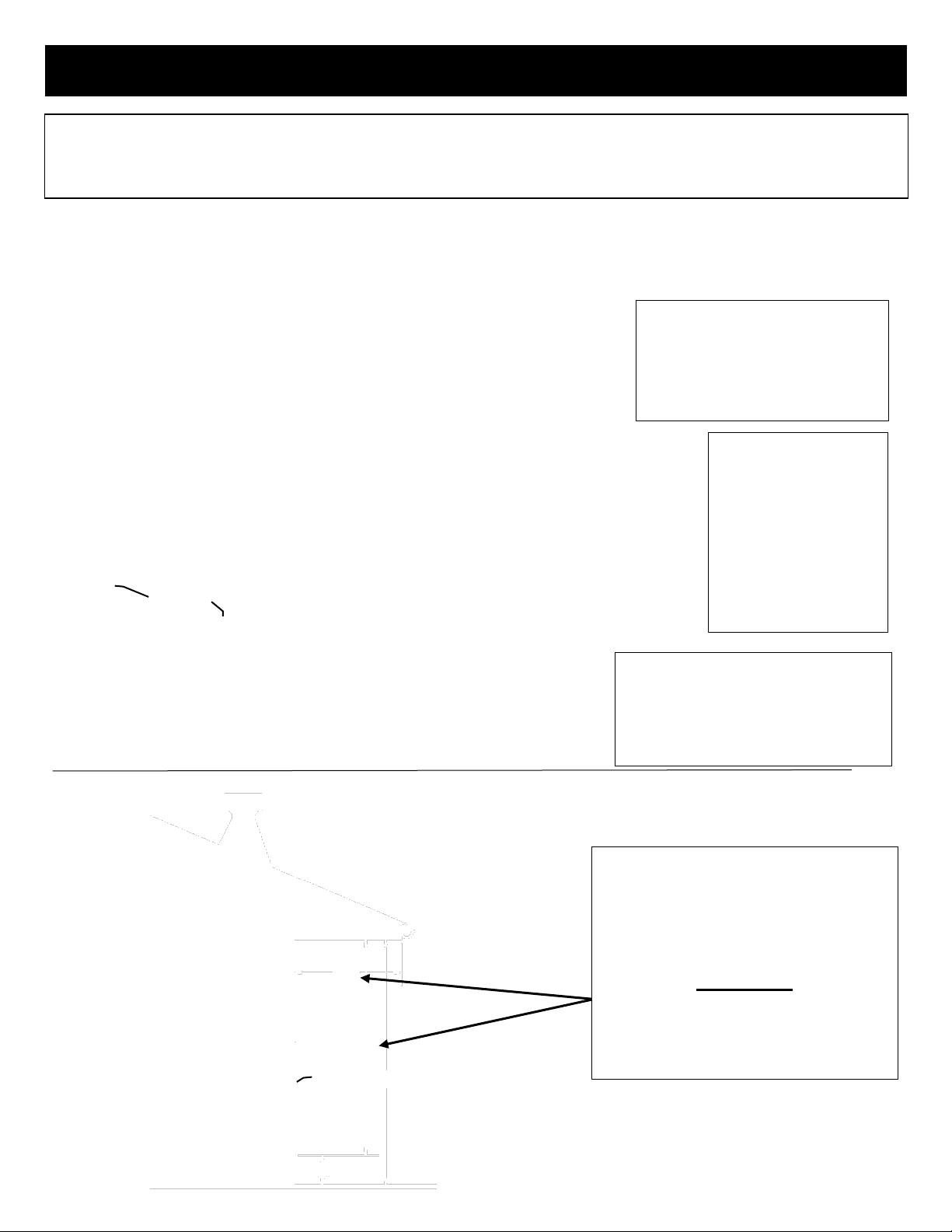

This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the
Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for
Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in
Canada.
THE VENTED GAS FIREPLACE HEATERS (ANSI Z21.88) IN THIS MANUAL MAY BE INSTALLED IN MANUFACTURED (MOBILE)
HOMES AFTER FIRST SALE IN THE USA.
THE VENTED GAS FIREPLACE HEATERS (ANSI Z21.88) IN THIS MANUAL MAY BE INSTALLED IN MANUFACTURED (MOBILE)
HOMES IN CANADA.
Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National
Electrical Code in Canada.
An appliance must be grounded to the steel chassis of the home with 8 ga. copper wire using a serrated or star washer to
penetrate paint or protective coating to insure grounding.
Use carriage bolt at the attachment point (see diagram above) to secure the appliance to the floor.
For required venting components see venting installation in appropriate section of this manual.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat. In USA see local
codes.
Warning: Do not compromise the structural integrity of the manufactured home wall, floor
or ceiling, during installation of appliance or venting.
Appliance Must Be Secured To
Structure Using Supplied Nailing
Tabs And Or Fastened To Floor.
Use Existing Hole Or Remove
Existing Screw To Mount Ground
Wire (Nailing Tab Screw).
Serrated Or Star Washer
Ground Wire From Appliance To Steel
Chassis Of Mobile Home. USE 8GA
COPPER WIRE.
8

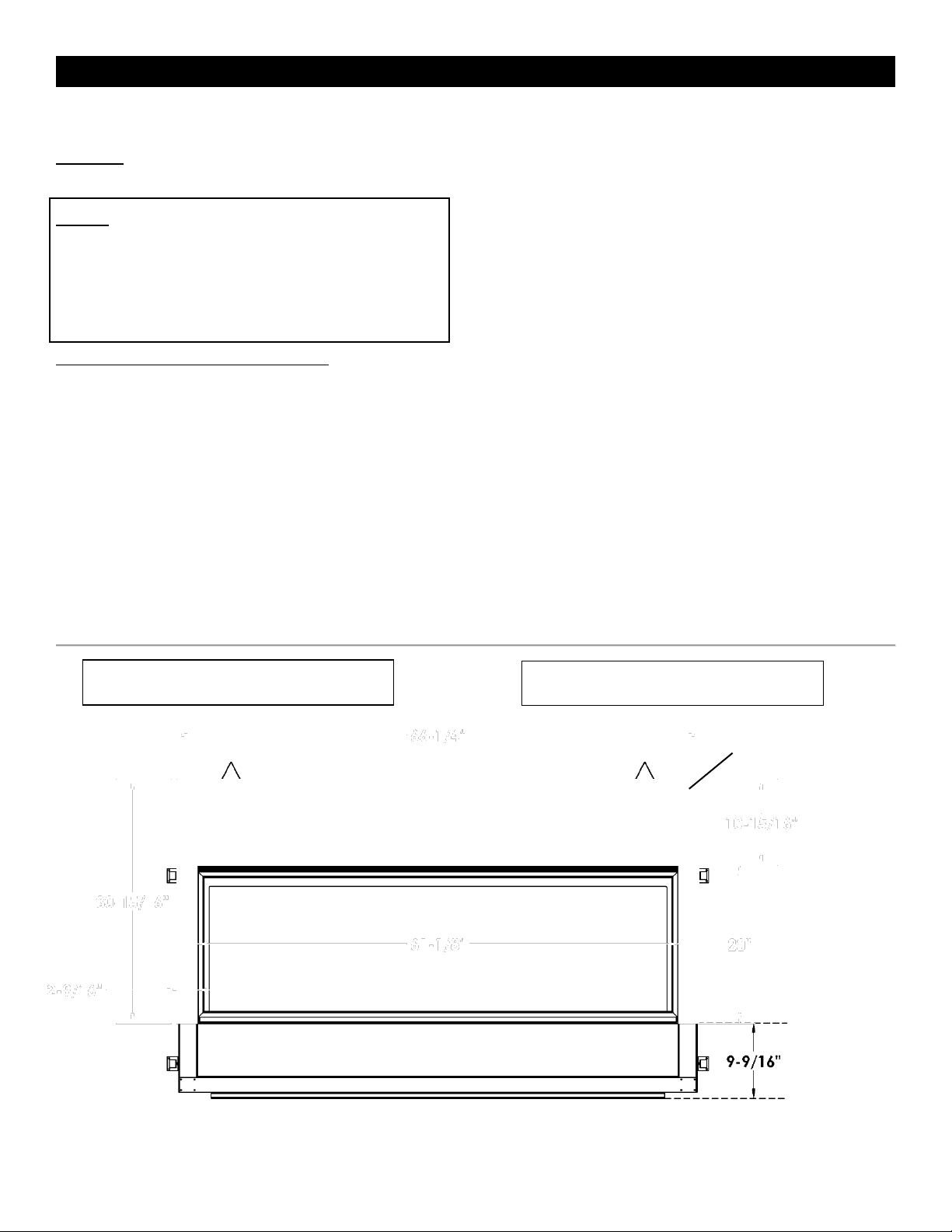

ZCVRB60 Framing Your Gas Fireplace
This section is intended for qualified installers only.
Before beginning, make note of where the gas and
electrical accesses are located on the unit. This will
streamline the construction process. Furthermore,
familiarize yourself with the venting and clearance
requirements (see Venting section) for this appliance.
Failure to comply with those requirements can seriously
compromise the safety and operation of the fireplace.
Specifications
1. Cold climate installation recommendation: When
installing this fireplace against non-insulated exterior
wall or chase, it is recommended that the outer walls
be insulated to conform to applicable insulation
codes. Drywall & vapor barrier must be installed over
insulation to prevent contact of insulation and unit.
2. Choose fireplace location and frame in accordance
with the fireplace framing dimensions specified (view
diagrams).
3. Drywall or other combustible material can extend up
to the Drywall Stops located on the sides of the unit,
and up to the bottom and top.
4. A Hearth is not required for this unit.
Vertical Venting in Cold Climates
In cold climate conditions where temperatures go below
-10 degrees Celsius or 14 degrees Fahrenheit, we
recommend that the chase be insulated and where the
vent pipe enters into the attic space that the pipe be
wrapped with an insulated Mylar sleeve. This will
increase the temperature of the vent and help the
appliance to vent properly in cold weather conditions.
It is also important in vertical vented direct vent
appliances that the appliance be operated daily during
the winter months as this will help stop the termination
from freezing up. We recommend using a thermostat
(Not permitted for decorative vented gas fireplaces
installed in the U.S.A.) set at room temperature to allow
the unit to cycle.
For IPI models it may be necessary to set the appliance
to Standing Pilot mode to maintain heat in the cavity.
The purpose of this procedure is to prevent cold air from
penetrating the chimney and then onto the living space.
Therefore, when the internal temperature is slightly
elevated the fireplace is able to freely exhaust its
combustion and hence making it easier to startup.
Certified for installation in a bedroom or bedsitting room. In Canada must be installed with listed
millivolt thermostat (Not permitted for decorative vented gas fireplaces installed in the U.S.A.). In
USA see local codes.

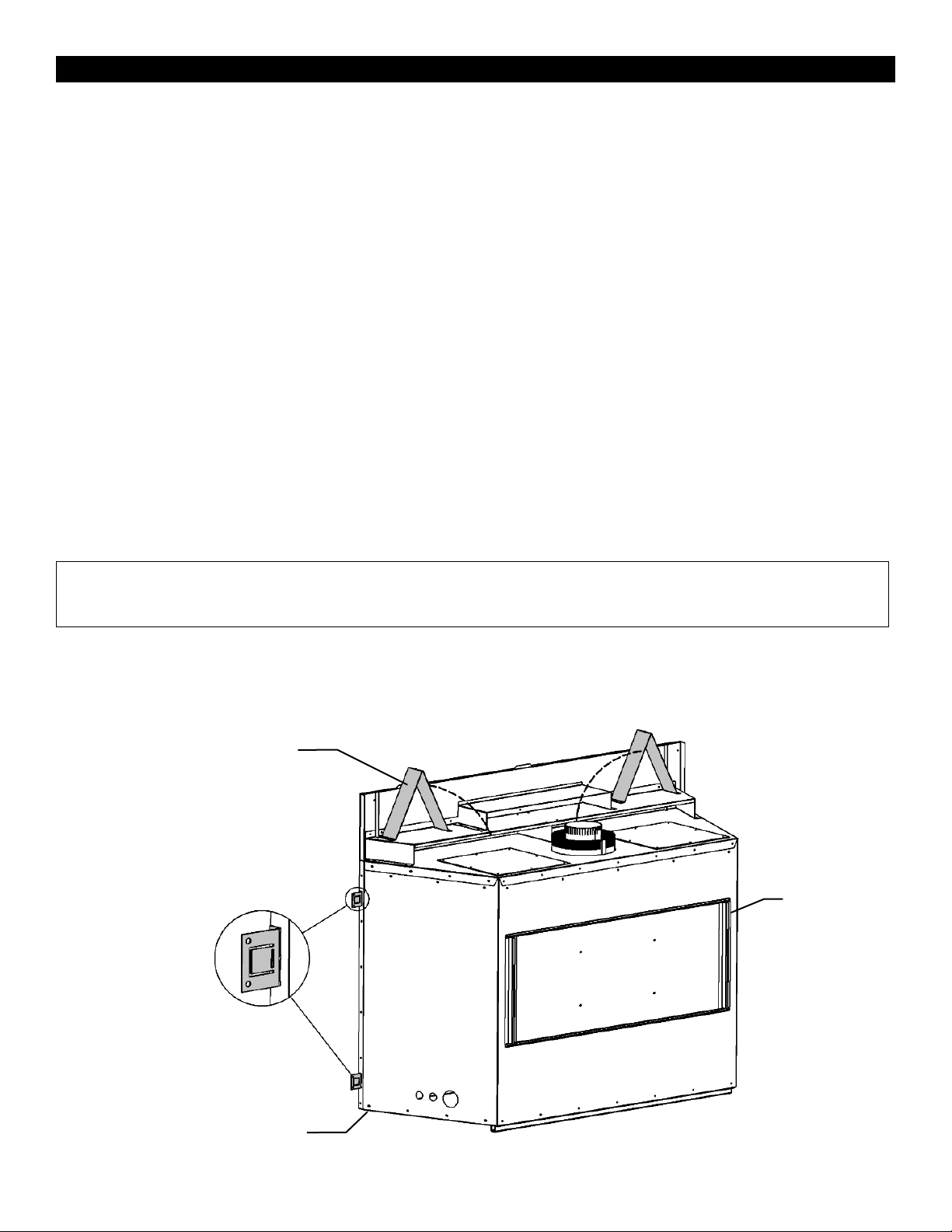

Stand-off Locations
Make note of where the stand-off locations are. These stand-offs are provided as indicators to illustrate the boundaries for
framing. Therefore, no framing material is permitted to extend beyond these stand-offs.
Caution: Standoffs on top of the
unit must be folded into position &
screwed down prior to installation.
Nailing Tabs
Back Standoffs
Holes are provided in bottom of
unit to secure appliance to floor
after installation.
9

ZCVRB60 Nailing Tab Guide
These Nailing Tabs can be used in two ways:
1/2” Drywall Flush with Face of Fireplace
Fireplace and Combustible Wall to be covered with a
surround and / or Non-Combustible Materials (e.g. Stone
around Fireplace).
Framing Flush with Face of Fireplace
Fireplace to be covered with Non-Combustibles (e.g.
Concrete Board) for Flat Wall appearance.
[Qty] 2 Nailing Tabs are
located on each side of the
fireplace front frame.
Drywall
Concrete Board
Nailing Tab
Nailing Tab
TOP VIEW
RIGHT SIDE
TOP VIEW
RIGHT SIDE
Framing Standoff
Framing
Stud
Concrete Board
Drywall
Framing
Stud
Nailing Tab
Nailing Tabs Must Be
Rotated 180° And
Folded Back Onto
Framing Stud.
Framing Standoff
10

ZCVRB60 -Facing Requirements- Units With Unvented Chase (as Shipped)
NOTE: ANY MATERIALS COVERING THE FACE OF THE
FIREPLACE BESIDE AND ABOVE THE FIREPLACE
OPENING MUST BE NON-COMBUSTIBLE (i.e. brick,
stone, tile, concrete board). FIREPLACE WITH SCREEN
(AS SHIPPED) SHOWN HERE.
Notice: Granite, tile, or other facing materials are not
covered by the fireplace warranty. Natural stone, tile,
and other facing materials may crack or discolor (i.e.
yellowing of lighter colored materials).
NOTE: these issues can be avoided if the Chase is
Vented.
Televisions are not covered by fireplace warranty.
Notice: DurockR Brand Cement Board: The
manufacturer recommends CGC SheetrockR Brand
DurabondR 90 Setting- Type Drywall Compound rather
than a ready-mix product for finishing.
When finishing the wall around the fireplace, it is critical
that the wall covering be fastened properly. It is acceptable
to pre-drill holes and use self-tapping screws which may be
used to fasten a backer for tile, marble, etc. Screws being
installed through non-combustible board should be self-
tapping type with a maximum length of 2 inches.
Do not drill or install longer screws (over 2”) as this
may damage internal components.
 We recommend that CONCRETE BOARD (non-
combustible material) be tied in to the entire perimeter of the
fireplace for durability.
Finishing Recommendations (Obtained from professional
construction contractors and finishers):
 Frame unit with metal studs (minimum 20 gauge).Wooden
studs may be used, but may cause drywall screws to
pop or pull due to wood studs drying out.
 Minimum of 1/2” CONCRETE BOARD cement board (this
non-combustible panel is ULC listed as a wall shield/floor
protector) and fasten to the entire perimeter framing.
 Use fiberglass (mesh) tape for all joints in area of the
fireplace.
 Use Yellow joint mud (contains high amounts of glue) –
two coats, finishing with one coat of green topping mud,
sand and prep for painting.
 If not using a surround, a metal “L” Trim may be used to
finish perimeter of CONCRETE BOARD.
 OTHER NOTES:
-A full single sheet of non-combustible board (no joints)
above the unit is recommended if possible.
-It is preferred to attach the non-combustible board to
framing only and not directly to the unit to allow for
expansion and contraction during normal operation.
-Lighter colored painted surfaces may discolor due to heat
exposure.
REQUIRED: NON COMBUSTIBLE OVER
UPPER FACE OF APPLIANCE
SUGGESTED: NON COMBUSTIBLE
MATERIAL SCREWED TO FRAMING
The area below the fireplace opening can have a combustible surface
(i.e. drywall, hearth).
Do not drill or install longer screws (over 2”)
as this may damage internal components.
Non-Combustible Material
11

V60PTLK ZCVRB60 Tile Lip Kit
ZCVRB60 Tile Lip Kit (V60PTLK):
-1 Bottom Piece
-2 Sides
- [Qty] 11 Pan Head DT Screws
Side
Bottom
SIDE VIEW
Side
5/8”
12

Fireplace Installations in Covered Outdoor Locations
– FOR BASIC MILLIVOLT UNITS ONLY- NO FAN – NO LIGHTS-
Kingsman and Marquis Direct Vent fireplaces may be installed into outdoor locations provided they are suitably protected
from direct water impingement.
However, all installation clearances in the appliance manual must be observed. Framing, Clearances to
Combustibles, Mantel Heights, Facing Requirements, Venting Installation, etc. Use supplied Safety Screen.
CAUTION – Installation of an indoor gas fireplace with an outdoor exposure is not covered under the (ANSI
Z21.88 – CSA 2.22 or ANSI Z21.50 – CSA 2.33) standard(s) used to certify the indoor gas-fired fireplace. The
Intertek safety certification will not apply to this installation method. This installation method must be deemed
acceptable by the Authority Having Jurisdiction (AHJ) prior to the indoor gas fireplace being installed.
A Minimum sheltering cover
(overhang) of
1/2 the distance from the base
of the fireplace to the ceiling
(base of roofline) is required.
EXAMPLE:
The bottom of the fireplace is 84”
from the ceiling.
Therefore, 42” of sheltering cover
is required above fireplace.
All wiring connections to line
power shall be in accordance
with outdoor requirements of;
-NECA NFPA 70 in the USA
-Canadian Electrical Code, CSA
C22.1 for Canada.
Outdoor Area
(Deck)
Indoor Area
(Living Room)
⚠ NOTE: TEMPERED
GLASS WARNING:
Tempered glass is
vulnerable to rapid
and/or extreme changes
in temperature (thermal
shock). Take care to
prevent water from
contacting the fireplace,
especially if it is hot.
NOTE: See-Through Units are
suitable for an outdoor location,
but not on the outside wall of a
house or other structure, as air
flows through both sides of the
fireplace.
Outdoor
Area
42”
84”
96”
12”
Outdoor
Area
42”
84”
96”
12”
Glass
Door
Glass
Door
The Fireplace is not to be operated in
temperatures below freezing (0°C / 32°F).
Glass
Door
13

ZCVRB60 Locating Your Appliance
LOCATION KEY:
A. Flat on Wall
B. Across the Corner
C. As an Island
D. As a Room Divider
E. Flat on Wall Corner
F. Exterior Wall
See Mantel Leg Clearances Instruction for
the proper placement of fireplace.
Island installation with a top vent is
possible as long as the horizontal portion
of the vent system does not exceed 20
feet (6.1 m).
ZCVRB60 Fireplace Dimensions
FRONT
RIGHT
SIDE
TOP
14

ZCVRB60 –Unvented Chase VS Vented Chase- Choose Your Installation
Look at the following chart before you begin the installation.
Lowest
Enclosure
Wall Surface
Temperature
above front of
fireplace
TV above Fireplace
with Recessed
Installation option
Mantel Height
(From Bottom of
Unit)
Heat can be
directed to
second room
UNVENTED CHASE
76”
Moderately Hot
Yes
39-3/4”
No
VENTED CHASE
76”
40% Cooler than
unvented chase
Yes (Recommended)
29-1/2”
Yes
FRAMED AS
UNVENTED CHASE:
This is a traditional fireplace installation where the
fireplace is built into an unvented chase.
 Non-Combustible Materials Must be used on
upper face of fireplace
 Wall surface temperature will be moderately hot
 TV above Fireplace is allowed
 Mantel height is higher
Fireplace will be installed with Ventilation Plates in place
(as shipped).
FRAMED AS
VENTED CHASE:
The fireplace is installed into a vented chase. There are many
different styles of vented chase. See pages in manual for
installation details and information.
 Combustible Materials may be used over upper face
of fireplace
 Chase walls will be cool to the touch.
 A TV is allowed above the fireplace (recommended)
 Mantel height is lower
Fireplace will be installed with Ventilation Plates removed
(see instructions in manual).
 A minimum opening of 200 square inches of
ventilation area is required.
 Kingsman VL60EG or VL60EGS Grills may be used.
 If a custom grill is used, free air opening must total
220 square inches with no sloping louvers.
See “Chase Not Vented” Framing Section
See “Vented Chase” Framing Section
⚠ CAUTION: IF VENTILATION PLATES ARE REMOVED, YOU MUST VENT THE CHASE!
15

ZCVRB60- Framing Dimensions –Unvented Chase-Ventilation Plates In Place- As Shipped
Determine whether face of fireplace will be:
 Flush with finished wall (e.g., for surround, cultured stone or other non combustible covering).
 Flush with framing (to be covered with concrete board for a Flat Wall appearance).
 Refer to Nailing Tab Guide section also.
39-3/4”
HEADER
56” MIN
Plus Rise of
1/4” Per Foot
MIN 76”
Ceiling &
Enclosure
MIN 76”
Ceiling &
Enclosure
Fig.1
Framing for Horizontal Vent
Termination
(See Installation of Side
Wall Venting Section)
Vertical Venting MUST maintain 1” clearance to combustibles.
These Structures Are Not
Load Bearing.
Fig. 1
Shown flush
with framing.
TV
Optional
Recess
12”
12”
9”
Non-
Combustible
15-1/2”
16

ZCVRB60 -Mantel Clearances –Unvented Chase- Ventilation Plates In Place -As Shipped
Mantel Leg Clearances
Before installing any mantels it is
important to determine the
combustibility of its material(s). There
are two types of mantels to consider:
Combustible and Non-Combustible.
A Combustible Mantel is one that
consists of material(s) that may
discolor, combust, or lose its integrity
in the presence of heat. These types
of mantels must strictly conform to the
dimensional requirements shown.
Conversely, a Non-Combustible
Mantel is one that is constructed with
material(s) that will not combust.
Check your local codes and
regulations to determine whether your
mantel is Combustible or Non-
Combustible.
The advantage to Non-Combustible
Mantels is that it may extend right up
to the tile lip of the fireplace.
Combustible mantels must adhere to
the dimensional restrictions shown.
-Combustible Objects on Non-
Combustible Mantel Warning-
Combustible objects must not be placed
on a Non-combustible Mantel unless the
mantel meets the dimensional
requirements for a Combustible Mantel.
Determine whether your mantel
conforms to the requirements of a
Combustible Mantel.
Adjacent Wall
Adjacent Wall
Top View
Mantel Dimensions are from front
face or Non-Combustible Facing
Materials covering fireplace.
Combustible
Mantel Line
29-1/2”
Tile Lip / Top
of Opening
76”
Minimum
Enclosure
Height
Header
Height is
39-3/4”
9-9/16”
Combustible Hearth
is allowed below
opening of appliance
17

ZCVRB60 -Clearance to Combustibles –Unvented Chase-
Ventilation Plates In Place – As Shipped
Clearance to Combustibles ZCVRB60 Unvented Chase
Front
36” [92cm]
Back (from Stand-offs)
0” [0cm]
Side (from Stand-offs)
0” [0cm]
Floor
0” [0cm]
Minimum Ceiling Height (from bottom of fireplace)
76” [193cm]
Top (from Stand-offs)
0” [0cm]
Top of 90° Bend in minimum Enclosure of 76”
4” [10.2cm]
Top of 90° Bend in Enclosure over 76”
4” [10.2cm]
VENTING SYSTEMS
Top of Horizontal Pipe
2” [5cm]
Side & Bottom of Horizontal Pipe
1” [2.5cm] All Vent Systems
Vertical Vent Pipe
1” [2.5cm] All Vent Systems
REFER TO FACING REQUIREMENTS SECTION FOR FACING MATERIALS
Sealed Enclosure Top
Sealed Enclosure Top
⚠ NOTE: If using insulation in unvented chase (i.e. for outside wall), wall board / drywall is required to support all insulation.
Unvented chase must be clean and free of all debris (i.e. loose insulation, pieces of wood, etc.).
⚠ NOTE: HEAT CANNOT BE DISCHARGED INTO THE WALLS, FLOOR, OR CEILING.
18

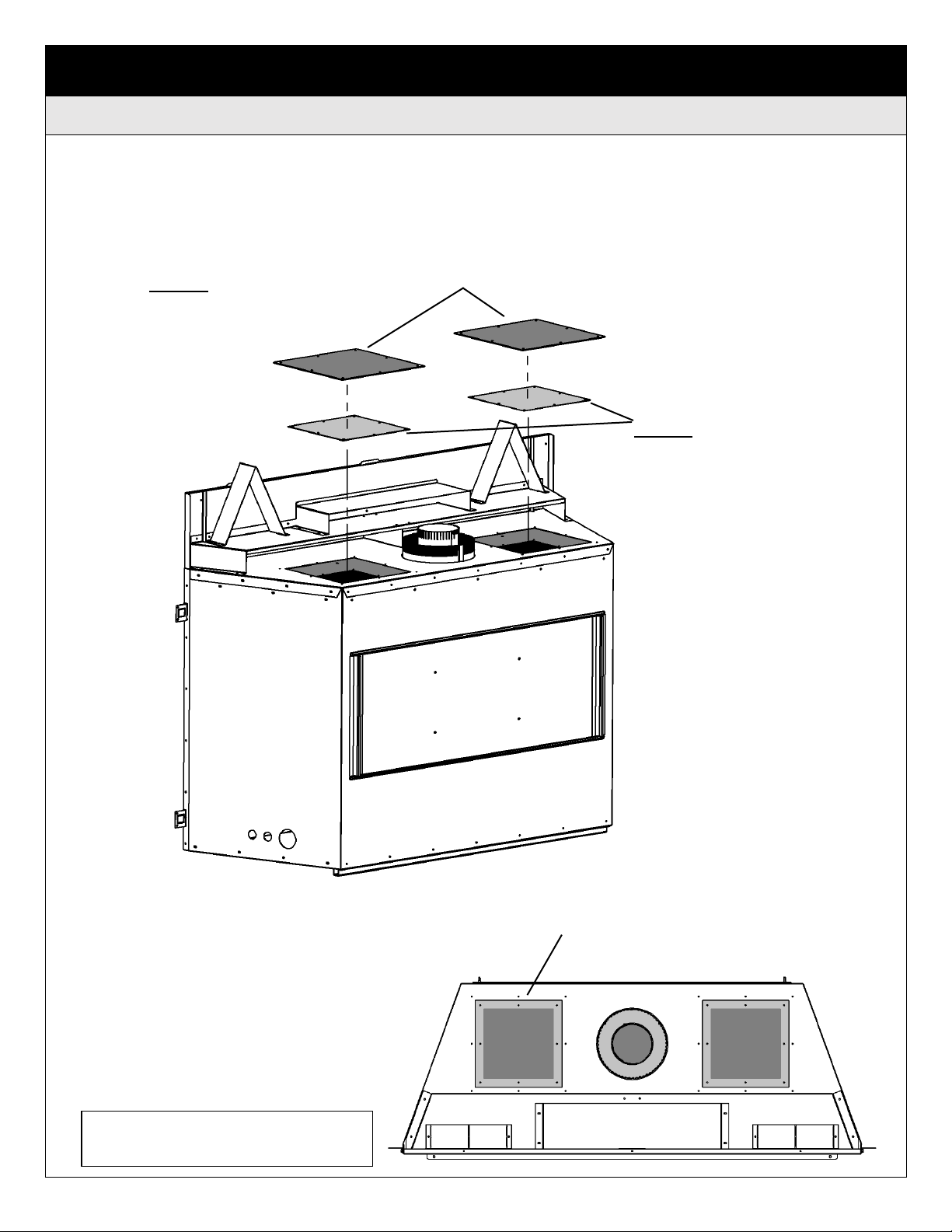

ZCVRB60 -Vented Chase –Removal of Ventilation Plates-
See Framing for Vented Chase
⚠ CAUTION: Ventilation Plates must be removed before ZCVRB60 is installed into a Vented Chase.
STEP 1: Remove [Qty 2] Outer Top Covers.
STEP 2: Remove [Qty 2] Ventilation Plates inside opening.
STEP 1: Remove [Qty 2] Outer Top Covers
STEP 2: Remove [Qty 2] Ventilation
Plates.
Remove 1/4” drive screws and pry
loose from sealant.
TOP VIEW After Outer Top Covers and
Ventilation Plates have been removed.
See “Vented Chase” Framing
Section
19

ZCVRB60 – Vented Chase – Style 1 – OPENING WITH NO GRILL
 VENTILATION PLATES MUST BE
REMOVED.
 Minimum Enclosure Height is 76” from
the bottom of the appliance.
 For vertical venting use a Firestop
(Z58FS) or Attic Insulation (Z58AIS,
Z58AIS24) Shield through enclosure top.
MINIMUM CHASE OPENING IS 200
SQUARE INCHES FREE AIR.
⚠NOTE:
HEAT CANNOT BE DISCHARGED INTO THE WALLS, FLOOR, OR
CEILING. Heat must exit through the required vented chase opening near
the ceiling.
ELECTRICAL WIRES IN CHASE MUST BE PROPERLY ATTACHED
TO INSIDE WALL OF CHASE. DO NOT RUN WIRES ABOVE THE
APPLIANCE.
Please follow the current CSA C22.1 Canadian Electrical Code or the
National Electrical Code; ANSI/NFPA 70 when installed in the United
States.
If using insulation in vented chase (i.e. for outside wall), wall board / drywall is required to support all insulation.
Vented chase must be clean and free of all debris (i.e. loose insulation, pieces of wood, etc.)
FRAMING TO CEILING-
OPEN FRONT
NO GRILL
Finished Minimum
Opening is 200 square
inches of free air.
-OPEN CHASE
FRAMING-
ENCLOSURE MIN
1-7/8” BELOW
CEILING
Finished Minimum
Opening is 200
square inches of
free air.
Requires 1-7/8”
Minimum Opening
below Ceiling
Opening
directly below
Enclosure
Top / Ceiling
FRAMING TO CEILING-
OPEN SIDES
NO GRILLS
Finished Minimum
Opening is 200 square
inches of free air.
NOTE: Sides of
enclosure must have
equal sized openings.
Openings are
directly below
Enclosure
Top / Ceiling
Openings are
directly below
Enclosure
Top / Ceiling
FRAMING TO
CEILING- OPEN
FRONT AND BACK
NO GRILL
Each opening must be
200 square inches of
free air.
Both Chase Vent
Openings Must be in
the same Pressure
Zone
(Room / Area)
70”
MIN
19-1/4”
MIN
20
