Kinivo WHD110 User manual
WHD110 WIRELESS 5G HD AV KIT
User Manual
© 2012 Kinivo LLC. All rights reserved.
Kinivo is a trademark of Kinivo LLC. Bluetooth word mark and the Bluetooth logo are registered trademarks of Bluetooth
SIG. All other trade names are registered trademarks of respective manufacturers. This manual may not be copied in any
media or form without the written consent of Kinivo LLC.
Kinivo Product Support
Online : http://support.kinivo.com
Kinivo WHD110 Wireless 5G HD AV Kit
2
Table of Contents
Important Safety Instructions.......................................................................................................................... 3
Introduction ...................................................................................................................................................... 3
Features ............................................................................................................................................................. 3
Contents............................................................................................................................................................. 3
Product Overview ............................................................................................................................................. 4
Getting Started.................................................................................................................................................. 5
Installation......................................................................................................................................................... 6
1. Transmitter .....................................................................................................................................................................................6
2. Receiver ............................................................................................................................................................................................7
Connection ........................................................................................................................................................ 7
IR Extender / Emitter Function......................................................................................................................... 7
General Specications ...................................................................................................................................... 7
Troubleshooting................................................................................................................................................ 8
1. Not receiving any output / The display is blank................................................................................................................. 8
2. The wireless link LED indicator is not lit................................................................................................................................8
3. The IR Extender does not work................................................................................................................................................ 8
Warranty ............................................................................................................................................................ 8
Online Support / Contact Us............................................................................................................................. 9
3
Kinivo WHD110 Wireless 5G HD AV Kit
Read all safety and operation instructions before installing and using the product.
Warning: To reduce the risk of re or electric shock, do not expose the product to water or moisture.
Important Safety Instructions
1. Do not expose the product to liquid, moisture or areas of high humidity.
2. Do not use abrasive cleaners to clean the product as it may damage the unit. Always unplug and power o the
unit before cleaning.
3. Do not expose the product to extremely high or low temperatures.
4. Keep the product away from direct sunlight.
5. Use only accessories and attachments as supplied and designated in the instruction manual.
6. Do not attempt to open or modify the product in any way.
7. Store the product in a cool dry place.
8. Always dispose of the packaging and unit in accordance with the local regulations and in a responsible manner.
Introduction
The Wireless HDMI Transmitter & Receiver Kit operates in the 5GHz frequency region to deliver high quality HD video
and audio up to 1080p. The HDMI Transmitter & Receiver Kit can be used to wirelessly connect HDMI devices such as
Blu-ray, computers, gaming consoles, cable boxes, receivers, audio devices, HDTVs, monitors, and much more.
Features
Extends HDMI signal up to 65 feet in an open area or 40 ft. indoors*
Supports full HD 1080p with 3D support
Designed for home audio video
Convenient setup; simply plug in and play
Remotely control your DVD player or other input device (using the IR emitter/extension)
*Actual distances will vary depending on the materials of the building and walls between the transmitter and receiver.
Contents
Wireless HDMI Transmitter (TX)
Wireless HDMI Receiver (RX)
Two Power Adapters
IR Extension Cable
HDMI Cable
User Manual
Kinivo WHD110 Wireless 5G HD AV Kit
4
Product Overview
WHD110
WIRELESS HD AV KIT RECEIVER
WHD110
WIRELESS HD AV KIT TRANSMITTER
IR Output
Power Switch
Power Switch
Link Indicator
Link Indicator
Power LED
Power LED
IR Sensor
Pairing Button
Pairing Button
HDMI Input
Power Input
Power Input
HDMI Output
Wireless HDMI Transmitter Unit (TX)
Wireless HDMI Receiver Unit (RX)
5
Kinivo WHD110 Wireless 5G HD AV Kit
Getting Started
Wireless 5G HDMI Environment Setup
The Wireless HDMI Transmitter broadcasts wirelessly over 5G to the HDMI Receiver.
The wireless transmitter and receiver can be set up horizontally or vertically, however for optimal performance it is
recommended that the device is placed vertically.
Note: Before starting the installation, please ensure that all HDMI devices are powered o.
IR “EYE”Input
HDMI Input
TV/Projector
HDMI Output
Wireless HDMI Transmitter Unit (TX) Wireless HDMI Receiver Unit (RX)
Remote control of the
HDMI Input device
(DVD Player, gaming console,
cable/satelite box etc)
HDMI Input device
(DVD Player,
gaming console,
cable/satelite box etc)
Kinivo WHD110 Wireless 5G HD AV Kit
6

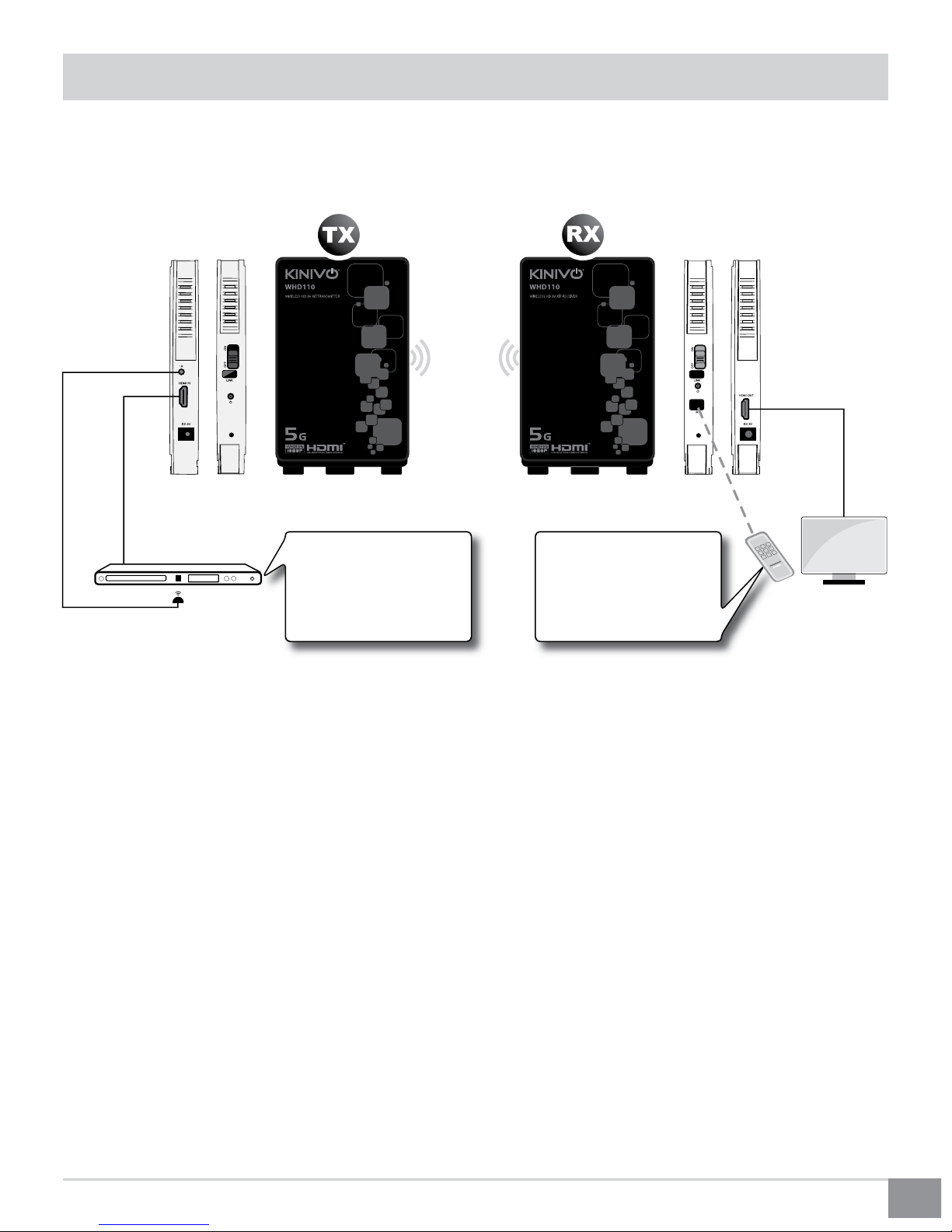

Installation
1. Transmitter
1. Place the Transmitter (TX) near the HDMI input device (Media player, gaming console, cable box, etc.)
2. Connect the HDMI input device to the HDMI IN port of the Transmitter using an HDMI cable.
3. If you want to control your input device using IR remotes, connect the included IR extension cable to the IR port on
the Transmitter and place the receiving end of the IR cable near the IR receiver of your HDMI input device (typically
in front of the device).
Wireless HDMI Transmitter Unit (TX) Wireless HDMI Receiver Unit (RX)
IR Extension Cable
HDMI Input
HDMI Input device
(DVD Player,
gaming console,
cable/satelite box etc.)
HDMI Output device
(HDTVs, Monitors,
Projectors etc.)
HDMI Output
Video Format Support TV: 1080p, 1080i, 720p, 576p, 480p PC: up to 1920x1080
Audio Format Support PCM, DTS, DOLBY DIGITAL
RF Communication System MIMO
Modulation OFDM
Image Delay < 1ms
Antenna High Performance Internal Antennas
Operating Frequency 5.1GHz to 5.9GHz
Maximum Transmission Power 12dBm ±2dBm
IR Carrier Modulation Frequency Support 38kHz
Power Supply AC Input 100~240V, DC Output 5V
Operation Temperature 320F to 1040F
7
Kinivo WHD110 Wireless 5G HD AV Kit
2. Receiver
1. Place the Receiver (RX) near the HDMI output device (HDTVs, monitors, projectors, etc.)
2. Connect the HDMI output device to HDMI OUT port of the Receiver using an HDMI cable.
3. Connect the power adapters to the Transmitter and the Receiver.
After following these steps, the Wireless HDMI Kit is ready to use. Simply power on all devices to begin operation.
Connection
The Transmitter and Receiver will automatically create a wireless link upon being powered on. The connection process
may take several seconds depending on the distance between the units and other environmental factors. Once the
wireless link has been established, a blue LED light will be lit on both units. During the initial power up phase, it is nor-
mal for your HDMI display to turn on and o for a short time.
IR Extender / Emitter Function
To ensure that the Transmitter and Receiver is positioned to receive IR commands:
1. Connect the included IR extension cable to the IR port on the Transmitter.
2. Place the emitter end of the IR cable near the IR receiver of your DVD player / gaming console / other HDMI input
device (typically in front of the input device)
You can now control your input device (DVD player / gaming console / cable box) from the display side of your installa-
tion using the Transmitter IR Extender.
General Specications
Video Format Support TV: 1080p, 1080i, 720p, 576p, 480p PC: up to 1920x1080
Audio Format Support PCM, DTS, DOLBY DIGITAL
RF Communication System MIMO
Modulation OFDM
Image Delay < 1ms
Antenna High Performance Internal Antennas
Operating Frequency 5.1GHz to 5.9GHz
Maximum Transmission Power 12dBm ±2dBm
IR Carrier Modulation Frequency Support 38kHz
Power Supply AC Input 100~240V, DC Output 5V
Operation Temperature 320F to 1040F
Kinivo WHD110 Wireless 5G HD AV Kit
8
Troubleshooting
1. Not receiving any output / The display is blank
1. Check that all connections are correctly made and that all units are powered on.
2. Check that the blue LEDs are lit on both the Transmitter and Receiver.
3. If the Transmitter or Receiver are positioned horizontally, move them to the vertical position. The vertical position
may help improve the signal quality.
4. Power the Transmitter and Receiver on and o.
5. Reduce the distance between the Transmitter and Receiver then power both of the devices on.
2. The wireless link LED indicator is not lit
1. If the Transmitter or Receiver are positioned horizontally, move them to the vertical position. The vertical position
may help improve the signal quality.
2. Power the Transmitter and Receiver on and o.
3. Reduce the distance between the Transmitter and Receiver then power both of the devices on.
3. The IR Extender does not work
1. Verify if the IR extension cable is correctly connected to the Transmitter unit.
2. Reposition the IR receiving end of the cable to another location near the IR port of your input device (typically in
front of the input device).
3. Verify if the IR transmitter on the Receiver is visible and able to transmit from your remote control.
Warranty
1 Year Limited Hardware Warranty.
Kinivo hereby warrants to the customer of record that this product is in good-working condition and free from defects
in material or workmanship under normal use for a duration of 1 year after the date of purchase. The product has been
tested to meet the highest quality standards in each testing category. In the unlikely event that the product proves to
be defective, Kinivo will repair or replace the product free of charge. If replacement is required and if Kinivo then no
longer carries the same product, then Kinivo reserves the right to substitute the product with a replacement product of
like quality and size, suitable for the intended use.
This warranty is limited to repair or replacement of the mentioned product only, is non-transferable and does not
extend to any product damaged by misuse, natural disasters or any other circumstances beyond Kinivo’s control. The
warranty does not cover or provide for the reimbursement or payment of incidental or consequential damage result-
ing from breach of the limited warranty described above. Except for the limited warranty described above we oer no
other warranties expressed or implied, and other than limited warranty expressly contained herein, we hereby disclaim
any and all warranties, including without limitation any implied warranties of merchantability, suitability or tness for
a particular purpose.
If your product is not functioning or you have any concerns please contact Kinivo Support before returning the product.
9
Kinivo WHD110 Wireless 5G HD AV Kit
Online Support / Contact Us
Please visit us at support.kinivo.com or www.kinivo.com for support information, downloads and how-to’s. You may
also reach us via email or live chat (details below).
Kinivo Product Support
Live chat : http://support.kinivo.com
Kinivo Product Support
Online : http://support.kinivo.com
Email : support@kinivo.com
