KINNEY KVO Series User manual

Kinney®
Oil Sealed Rotary Vane Vacuum Pumps
KVO Series
Models
KVO-50 KVO-75 KVO-150
KVO-200 KVO-300 KVO-400
KVO-500 KVO-700 KVO-900
KVO-1100 KVO-1300
OPERATOR’S MANUAL
Manual 1867 Rev A p/n 1867
WARNING: Do Not Operate Before Reading Manual
Operator’s Manual: KVO Oil Sealed Rotary Vane Vacuum Pumps
Original Instructions
800.825.6937 | www.kinneyvacuum.com

Disclaimer Statement:
All information, illustrations and specications in this manual are based on the latest
information available at the time of publishing. The illustrations used in this manual are in-
tended as representative reference views only. Products are under a continuous improvement
policy. Thus, information, illustrations and/or specications to explain and or exemplify a
product, service or maintenance improvement may be changed at any time without notice.
Rights Reserved Statement:
No part of this publication may be reproduced or used in any form by any means - graphic,
electronic or mechanical, including photocopying, recording, taping or information storage
and retrieval systems - without the written permission of Kinney®.
Product information and specications subject to change.

i
Manual 1867 Rev A p/n 1867
Table of Contents
Table of Contents
Introduction .................................................................................. 1
Conventions and Data Plate ....................................................... 2
Graphic Conventions Used in this Manual............................................ 2
Lifting ............................................................................................ 5
Lifting Configuration.............................................................................. 5
Description ................................................................................... 6
Designated Use .................................................................................... 6
Unacceptable Operating Modes .......................................................... 7
Specifications........................................................................................ 7
Materials of Construction...................................................................... 7
KVO-50 / KVO-75 / KVO-100 / KVO-150 Feature Setup........................ 8
KVO-200 / KVO-300 Feature Setup....................................................... 9
KVO-400 / KVO-500 / KVO-700 / KVO-900 / KVO-1100 / KVO-1300
Feature Setup...................................................................................... 10
Installation ...................................................................................11
Safety .................................................................................................. 11
Filling the Pump with Oil...................................................................... 12
Location .............................................................................................. 12
Foundation................................................................................ 12
Piping Connections............................................................................. 12
Vacuum Connection............................................................................ 12
Length of Connection Pipes .................................................... 13
Exhaust Air Must Not be Restricted ......................................... 13

ii
Table of Contents
Manual 1867 Rev A p/n 1867
Connecting the Motor ......................................................................... 13
Power Supply ........................................................................... 13
Operation .................................................................................... 14
Checking Rotor Rotation Direction...................................................... 14
Maintenance ............................................................................... 15
Ensuring Operational Safety ............................................................... 15
Maintenance Interval Schedule .......................................................... 16
Changing the Oil ................................................................................. 16
Oil Removal ......................................................................................... 16
KVO-50 – KVO-300 Oil Removal .............................................. 17
KVO-400 – KVO-1300 Oil Removal .......................................... 17
Oil Diagrams ...................................................................................... 17
KVO-50 – KVO-300 Oil Diagram .............................................. 17
KVO-400 – KVO-1300 Oil Diagram ......................................... 17
Air Filtering (models KVO-50 – KVO-300) ........................................... 18
Intake Air Filter ......................................................................... 18
Gas Ballast Valve Filter........................................................................ 18
Coupling.............................................................................................. 19
KVO-50 – KVO-300 Coupling ................................................... 19
KVO-400 – KVO-1300 Coupling .............................................. 19
Replacement Parts ............................................................................. 19
Factory Service and Repair ................................................................ 19
Troubleshooting......................................................................... 20
Part Number Designations.................................................................. 22
Exploded Views and Parts Lists............................................... 23
Replacement Kits................................................................................ 33
Warranty – Vacuum Products ................................................... 34
Operating Data Form / Product Registration........................... 35

1
Manual 1867 Rev A p/n 1867
INTRODUCTION
01
CONGRATULATIONS on the purchase of a new
Kinney®KVO Series Oil Sealed Rotary Vane
vacuum pump. Please examine the pump for
shipping damage, and if any damage is found,
report it immediately to the carrier. If the pump is to
be installed at a later date, make sure it is stored
in a clean, dry location and rotated regularly. Make
sure covers are kept on all openings. If pump is
stored outdoors, be sure to protect it from weather
and corrosion.
This manual applies to Kinney Vacuum models
KVO Series. Become thoroughly familiar with these
instructions before attempting to install, operate
or repair this unit. Consult Kinney when problems
arise that cannot be resolved after reading
this manual. Always include pump nameplate
information when ordering parts or components.
Kinney KVO Series vacuum pumps are built to
exacting standards and, if properly installed
and maintained, will provide many years of
reliable service. Read and follow every step of
these instructions when installing and maintaining
the pump.
WARNING
!
Serious injury can result from operating or
repairing this machine without rst reading the
service manual and taking adequate safety
precautions.
OTE:N Record the pump model and serial
numbers in the OPERATING DATA form
on the inside back cover of this manual.
Use this identication on any replacement
part orders, or if service or application
assistance is required.
SCOPE OF MANUAL
The scope of this manual includes the KVO Series
oil sealed rotary vane vacuum pumps.

2Manual 1867 Rev A p/n 1867
CONVENTIONS AND DATA PLATE
02
GRAPHIC CONVENTIONS IN THIS
MANUAL
The following are hazard levels referenced within
this manual:
DANGER
!
Indicates a hazardous situation that, if not
avoided, will result in death or serious injury.
WARNING
!
Indicates a hazardous situation that, if not
avoided, could result in death or serious
injury.
CAUTION
!
Indicates a hazardous situation that, if not
avoided, could result in minor or moderate
injury.
Indicates a situation that can cause damage
to the engine, personal property, and/or
the environment or cause the equipment to
operate improperly.
OTE:N Indicates a procedure, practice, or
condition that should be followed in
order for the equipment to function in the
manner intended.
CAUTION
!
Read manual before operation
or bodily harm may result.
Attention should be given to the
safety related sections of this
manual.
WARNING
!
Keep body & clothing away
from machine.
During operation, keep body
and clothing away from inlet
and outlet of the pump.
WARNING
!
Do not operate without guards
in place. Assure that the guards
are in place and secure prior to
operation.

3
02
Conventions and Data Plate
Manual 1867 Rev A p/n 1867
CAUTION
!
Hearing protection is required
while the pump is in operation.
At ultimate pressure noise
levels are 80 dBA at 60 Hz,
however due to process or
installation conditions noise
levels may be higher.
CAUTION
!
Do not touch hot surfaces.
Do not touch the vacuum pump
while it is in operation and
assure that the pump is cool
before touching, when not in
operation.

4
02
Conventions and Data Plate
Manual 1867 Rev A p/n 1867

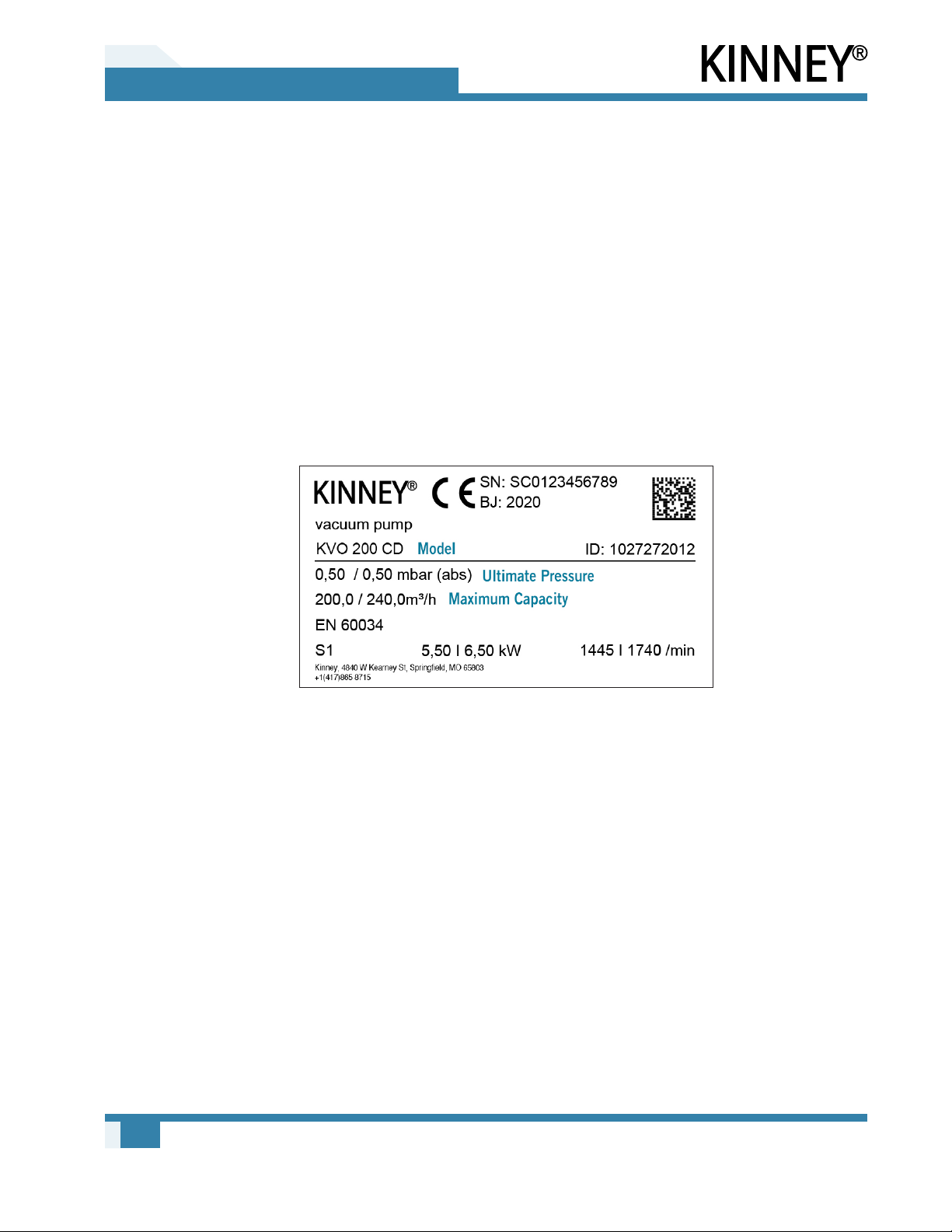

MODEL NUMBER: The specic model of the pump
SERIAL NUMBER: Unique to each pump. Use with any service issues and with any contact with
the manufacturer.
YEAR: Year of manufacture
MAX RPM: Maximum RPM at which the pump can be operated
This manual describes instructions and precautions to be observed in the
handling and maintenance of Kinney®KVO Series oil sealed rotary vane
vacuum pumps. It is strongly recommended that those who operate or maintain
the pump read this manual carefully prior to pump operation, to ensure
personal safety and pump life.
The following information is contained on the data plate:

5
LIFTING
03
Manual 1867 Rev A p/n 1867
WARNING
!
The vacuum pump must be handled using
an appropriate device such as a fork truck
or appropriate lifting device. See Table 4-1
on page 7 for approximate weights. Care
should be taken to assure pump does not
over-turn during handling and installation.
Lift the vacuum pump using eye bolts directly
attached to the top of the pump housing, or
with both fork truck forks underneath the pump.
Lifting Conguration
Refer to Figure 3-1 – Lifting Conguration for
further details on how to properly lift KVO Series
vacuum pump.
1. Eyebolts
2. Eyebolts
Figure 3-1 – Lifting Configuration
1
2
OTE:NThis image applies to models 400 and above.
OTE:NThis image applies to models below 400.
1

6Manual 1867 Rev A p/n 1867
DESCRIPTION
04
The KVO vane vacuum pumps are single-stage oil
ooded rotary vane vacuum pumps. The rotary vane
divides the pump housing into several chambers
whose volumes change periodically. The oil ensures
for the sealing of the gap, an optimum lubrication
and the dissipation of the compression heat.
The pumps have an integrated mesh lter on the
suction side and on the outlet side an oil and oil
mist separator to return the oil to the oil circulation
system. With optimum air routing, a fan and an oil
cooler ensure for the cooling of the oil and pump
housing. An integrated non-return valve prevents
the evacuated system from being ventilated after the
pump has stopped. With standstill times longer than
two minutes, we recommend venting the connecting
lines to atmospheric pressure in order to avoid
possible damage.
When the pump is at operating temperature,
a standard gas ballast valve prevents the
condensation of low quantities of water vapor inside
the pump. The water vapor compatibility may vary
depending on the pump version.
It is driven via a coupling by a anged, three-phase
standard motor.
DESIGNATED USE
The machine must only be operated in such areas
as are described in the operating instructions:
• Only operate in technically perfect condition
• Do not operate the machine when it is only
partially assembled
• The machine must only be operated at an
ambient temperature and a suction temperature
of between 5 and 40°C Please contact us for
temperatures outside this range.
• The machine may convey, compress or extract
the following media:
○Air - The air extracted may contain water
vapor but no water or other liquids. For
water vapor compatibility.
○All non-explosive, non-inammable, non-
aggressive and non-poisonous dry gases
and gas air mixtures

7
04
Operation
Manual 1867 Rev A p/n 1867
SPECIFICATIONS
UNIT KVO-50 KVO-75 KVO-100 KVO-150 KVO-200 KVO-300 KVO-400 KVO-500 KVO-700 KVO-900 KVO-1100 KVO-1300
Nominal
Displacement
cfm
(m3/h)
35.3
(60)
49.4
(84)
70.6
(120)
106
(180)
141
(240)
212
360)
283
(480)
388
(660)
494
(840)
586
(995)
777
(1320)
903
(1534)
Motor Power HP 235 5 7.5 10 15 20 25 30 40 40
Rotation Speed RPM 1740 1740 1740 1740 1770 1770 1140 1140 1140 1140 1140 1140
Oil Capacity
(Total/Rell)
U.S. gal
(L)
.75
(2.8)
.75
(2.8)
.75
(2.8)
.875
(3.3)
1.6
(6)
1.7
(6.5)
3
(11.5)
4.4
(17)
4.4
(17)
5
(19)
6.5
(25)
6.5
(25)
Suction
Connection FNPT 1 1/4" FNPT 1 1/4" FNPT 1 1/2" FNPT 1 1/2" FNPT 2" FNPT 2" FNPT 3" FNPT 3" FNPT 3" FNPT 4" FNPT 4" FNPT 4" FNPT
Discharge
Connection MBSP 1 1/4" FBSP 1 1/4" FBSP 2" FBSP 2" FBSP 2" FBSP 2" FBSP 3" FNPT 3" FNPT 3" FNPT 3" FNPT 3" FNPT 3" FNPT
Height Inches
(mm)
10.51
(267)
10.51
(267)
11.69
(297)
11.69
(297)
15.28
(388)
15.28
(388)
23.15
(588)
23.19
(589)
26.93
(684) 29.02 (737) 29.02 (737)
29.02
(737)
Floor Space
Required
Inches
(mm)
13.23 × 24.66
(366 × 627)
13.23 × 24.67
(586× 759)
15.98 × 31.77
(406× 807)
15.98 × 31.78
(406× 807)
20.47 × 38.71
(520 × 983)
20.47 × 40.21
(520 × 1021)
36.65 × 57.44
(931 × 1459)
38.82 × 62.79
(986 × 1595)
38.82 × 65.4
(986 × 1661)
42.64 × 64.57
(1083 ×1640)
44.17 × 73.96
(1122 × 1879)
44.17 × 73.96
(1122 × 1879)
Weight lb
(kg)
145
(66)
191
(87)
256
(116)
254
(115)
220
(100)
220
(100)
1250
(567)
1422
(645)
1512
(685)
1723
(782)
2471
(1121)
2486
(1128)
Ultimate Pressure mbar 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 1 1
Noise Level* dBA 67 68 69 71 71 72 75 77 80 81 83 84
* Noise level may vary based upon motor selection.
Table 4-1 – Specifications
WARNING
!
Do not exceed maximum rotation speed
(RPM) as stated in Table 4-1.
MATERIALS OF CONSTRUCTION
HOUSINGS AND
CYLINDER:
Cast iron
ROTORS: Cast iron
SHAFT: Carbon Steel
SHAFT SEALS: Carbon/Viton®
VANES: Composite Resin
KVO-50 – KVO-300
Aluminum
KVO-400 – KVO-1300
UNACCEPTABLE OPERATING MODES
• Extracting, conveying, and compressing
explosive, inammable, aggressive or poisonous
media, e.g. dust as per ATEX zone 20-22,
solvents or gaseous oxygen and other oxidants
• Extracting, conveying and compressing
explosive, inammable, aggressive, oxidative or
poisonous media, e.g. dust as per ATEX zone
20-22, solvents
• Modications to the machine and accessories
• Using the machine in non-commercial plants
if the necessary precautions and protective
measures have not been taken in the plant
• Installing in environments at risk of explosions
• Using the machine in areas with ionizing radiation
• Back pressures on the outlet side of more than
+0,1bars

8
04
Description
Manual 1867 Rev A p/n 1867
KVO-50 / KVO-75 / KVO-100 / KVO-150 FEATURE SETUP
AVacuum connection
B Exhaust air outlet
D Suction ange
E Cooling air inlet
F Cooling air outlet
H Oil lling point
IOil sight glass
K Oil discharge point
LOil separator element
M Oil recommendation plate
NData plate
O Rotation direction arrow
PDrive motor
P1 Motor data plate
Q Hot surfaces > 70 °C
TOil remover housing
U Gas ballast valve

9
04
Operation
Manual 1867 Rev A p/n 1867
KVO-200 / KVO-300 FEATURE SETUP
AVacuum connection
B Exhaust air outlet
D Inlet ange with non-return valve
E Cooling air inlet
F Cooling air outlet
H Oil lling point
IOil sight glass
K Oil discharge point
L Air oil removal device
M Oil recommendation plate
NData plate
ODirection of rotation arrow
PDrive motor
Q Hot surfaces > 70 °C
TOil remover housing
U Gas ballast valve (standard)

10
04
Description
Manual 1867 Rev A p/n 1867
KVO-400 / KVO-500 / KVO-700 / KVO-900 / KVO-1100 / KVO-1300
FEATURE SETUP
AVacuum connection
B Exhaust air outlet
D Filter housing
E Cooling air inlet
F Cooling air outlet
H, H1 Oil lling points
IOil sight glass
K, K1 Oil discharge points
M Oil recommendation plate
NData plate
O Rotation direction plate
PDrive motor
P1 Motor data plate
Q Hot surfaces > 70°C
TOil remover housing
U Gas ballast valve
WMaintenance cover
X Adjusting bolt

11
Manual 1867 Rev A p/n 1867
SAFETY
DANGER
!
Internal and external rotating
parts of the pump and driving
equipment can produce serious
physical injuries. The pump
should never be run with the inlet
or discharge piping removed. If
it becomes necessary to inspect
the rotating parts of the pump or
to change the belt, be absolutely
sure that all power to the motor
controls has been shut off, the
motor controls are locked out,
and properly tagged before
proceeding.
WARNING
!
Vacuum pump housing and
associated piping or accessories
may become hot enough to cause
major skin burns on contact as a
result of process conditions.
WARNING
!
Use lockout / tagout procedures to disable the
electrical energy source before any service or
work is done on the vacuum pumps.
CAUTION
!
Avoid extended exposure in
close proximity to machinery with
high intensity noise levels. Wear
adequate ear protection.
CAUTION
!
Other potential hazards to safety may also be
associated with operation of this equipment. All
personnel working in or passing through the
area should be warned by signs and trained to
exercise adequate general safety precautions.
Use proper care and good procedures in
handling, lifting, installing, operating, and
maintaining the equipment.
05
INSTALLATION

12
05
Installation
Manual 1867 Rev A p/n 1867
WARNING
!
Never attempt to change or add lubrication while
the pump is running. Failure to heed this warning
could result in damage to the equipment or
personal injury.
WARNING
!
Properly dispose of spent lubricants. Refer to the
manufacturer of the lubricant and any applicable
regulations to ensure proper and safe disposal.
If the oil level is too low, bearings and seals will
be damaged as a result of improper lubrication.
The machine may only be operated when it is
set up horizontally.
Material damage resulting from the machine
tipping over and falling.
When installed at more than 3280 feet (1000
meters) above sea level a reduction in power
is noticeable. In this case we would ask you to
contact Kinney directly for guidance.
FILLING THE PUMP WITH OIL
Use oil recommended by Kinney and see the
specications for the quantity of oil required to ll
the pump. Remove the oil ll plug at the top of the
housing and add oil until the level reaches mid-
center of the gauge. With the pump shut off, add or
drain oil as necessary to keep the oil level.
CAUTION
!
Do not overll the pump as excess oil will be
blown out the discharge during the high pressure
operation of the pump.
LOCATION
The pump should be mounted on a at, level
surface. There should be enough space around
the pump to allow for safe maintenance work and
periodic inspections. This includes, at a minimum,
the ability to access oil ll and drain locations,
view the oil level glass and the oil temperature and
pressure gauges. Allow accessibility to all sides.
Do not close cooling air entry and exit.
Foundation
The foundation for the pump assembly should be
at and level, and have adequate load-bearing
capacity. The pump and its base frame, peripheral
equipment and piping should be installed after the
foundation concrete has been cured. It is possible
to install the machine on a rm base without
anchoring. When installing on a sub-structure
Kinney recommends xing with exible buffers.
PIPING CONNECTIONS
WARNING
!
Pipe loading on the pump should be negligible
as pipe loading can cause distortion of the pump.
Use proper supports and pipe hangers to assure
that there is no loading.
VACUUM CONNECTION
The pumping capacity of the vacuum pump is
reduced if the suction pipe is too narrow and/or long.
Discharged air can be blow out through the exhaust
silencer conducted away using a hose or a pipe.

13
05
Installation
Manual 1867 Rev A p/n 1867
Exhaust Air Must Not be Restricted
When the exhaust air pipe is connected it must be
checked regularly for impurities.
WARNING
!
Do not block the exhaust pipe of the pump.
Material damage resulting from the forces and
torques of the pipes on the unit being too high.
Only screw pipes in by hand.
CONNECTING THE MOTOR
DANGER
!
Danger of death if the electrical
installation is not professionally
completed. The electrical
installation must be completed by
a qualied electrician observing
EN 60204. The operating
company is required to provide
the main switch.
The motor’s electrical data is given on the data
plate or on the motor data plate. The motors
comply with DIN EN 60034 and are in protection
class IP55 and insulation class F. The appropriate
connection diagram is located in the motor’s
terminal box (not for the plug connection version).
The motor data must be compared with the data of
the existing mains network (current type, voltage,
network frequency, and permitted current value).
Connect the motor via the plug connection or
the motor overload. For safety reasons, a motor
overload is required and the connecting cable
must be installed via a cable tting to provide
strain relief. Kinney recommends using motor
protection switches with delayed switch off,
depending on possible excess current. Temporary
excess current may occur when the machine is
started cold.
Power Supply
The conditions at the installation location must
match the information on the motor data plate.
Without derating the following is permissible:
• ± 5% Voltage deviation
• ± 2% Frequency deviation

14
OPERATION
06
Manual 1867 Rev A p/n 1867
WARNING
!
Improper use may lead to severe or fatal injuries.
Therefore be sure to obey the safety instructions.
CAUTION
!
Hot surfaces. When the machine
is at operating temperature the
surface temperature on the
components may go above 158°F
(70°C).You must avoid touching
the hot surfaces. These areas are
marked with warning plates.
CAUTION
!
Noise emission. The highest
noise pressure levels measured
as per EN ISO 3744. When
spending a long time in the vicinity
of the running machine use ear
protection to avoid permanent
damage to your hearing.
Wait until the machine stops. The machine
must only be switched on again after it stops.
CHECKING ROTOR
ROTATION DIRECTION
Operating in the wrong direction of rotation leads
to damage to the machine. Use a phase sequence
indicator to check the direction of rotation
(clockwise rotating eld).
The intended direction of rotation of the drive
shaft is shown by the rotary direction arrow on the
motor ange. Start the motor briey (maximum of
2 seconds) to check the direction of rotation. When
looking at the motor fan, it must rotate clockwise.
Operating in the wrong direction of rotation
leads to damage to the machine. Use a phase
sequence indicator to check the direction of
rotation (anti-clockwise rotating eld).
After correcting the direction of rotation if
necessary, start the motor again and stop it again
after 2 minutes in order to top missing oil up to the
upper edge of the sight glass. This topping up at
the lling point must be repeated until all the oil
pipes have been lled completely. The lling point
must not be open when the pump is running.

15
07
MAINTENANCE
Manual 1866 Rev A p/n 1866
ENSURING OPERATIONAL SAFETY
DANGER
!
Danger of death from touching
live parts. Before maintenance
work disconnect the machine
by pressing the main switch or
unplugging it and ensure it cannot
be turned on again.
WARNING
!
Hot surfaces and equipment.
During maintenance work there
is the danger of getting burnt on
hot components and by machine
lubricating oil. Allow ample time
for the machine to cool down prior
to maintenance work.
Regular maintenance work must be carried
out in order to ensure operational safety.
Maintenance intervals also depend on the
operational demands on the machine. Observe
the safety instructions described in the section
labeled “Safety” on page 11. The entire unit
should always be kept in a clean condition.

16
07
Maintenance
Manual 1866 Rev A p/n 1866
SPECIFICATIONS
INTERVAL MAINTENANCE TO BE CARRIED OUT
Daily Check the oil level
Depending on the degree of pollution Clean vacuum pump
At least 1 x per month Check the pipes and screws for leaks and ensure
their tight t and if necessary re-seal or re-tighten.
Check the terminal box and cable inlet holes for
leaks and if necessary re-seal.
Clean the ventilation slots on the machine and the
motor cooling ribs.
Cleaning the oil cooler
Depending on how dirty the sucked in medium is
or at least 1 x per month
Clean the mesh lter in the inlet connection
Clean the lter cartridge in the gas ballast valve
500 hours First oil change
500 - 2,000 hours Oil change
2000 hours Change the air oil removal devices
At least 1 x per year Check couplings for wear
As per manufacturer's instructions Motor (maintenance, lubrication and cleaning)
Table 7-1 – Maintenance Interval Schedule
CHANGING THE OIL
The oil level must be checked at least once a day,
if necessary top the oil up to the upper edge of
the sight glass. First oil change after 500 hours of
operation. Subsequent oil changes after 500-2000
hours of operation. Reduce the change intervals
accordingly depending on how contaminated the
discharged medium is.
Only lubricating oils complying with DIN51506
group. The viscosity of the oil must comply with
ISO VG 100 as per DIN51519. KV100M (mineral)
and KV100S (synthetic) oils must be used.
OIL REMOVAL
The oil separator elements can become
contaminated by dust particles after they have
been running for some time (power consumption
and pump temperature increase). Replace these
components every 2000 operating hours or when
the lter resistance is
0.7 bar (see pressure gauge » Accessories,
Checking with short term, atmospheric suction)
because it is not possible to clean them.
Reduce the change intervals accordingly
depending on how contaminated the discharged
medium is.
