Kiramek VISION SCIBORG TR365S User manual

TM
The Ultimate in Car Security
User’s Guide
For 1480 & 1460 Series Security Systems
TR365S
TR365D
models
REMOTE & ANTENNA KIT
© 2022 KIRAMEK, INC., Aichi Japan
Ver. 1.0, Jan. 2022

VISION™ • SCIBORG®
I

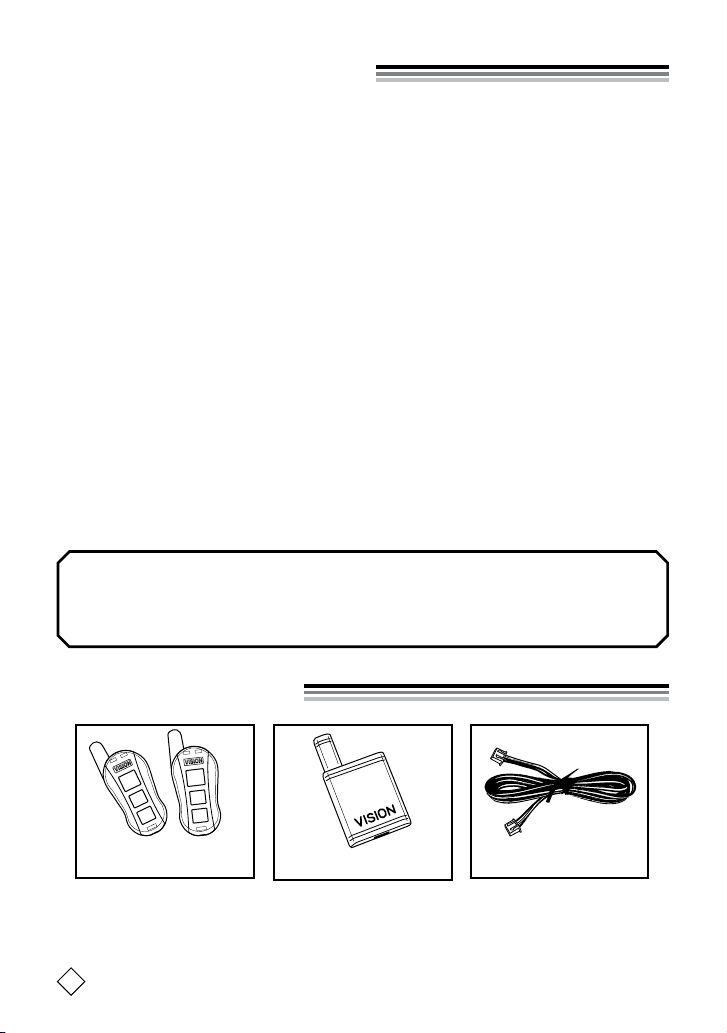

Other Included Items:
Antenna Unit: 1pc
Antenna Harness: 1pc
• 2-sided Mounting Tape (for Antenna Unit): 1pc
• Printed Documentation (this guide)
TR365D: 2pcs
TR365S: 1pc
I
II
III
I
II
III
TABLE OF CONTENTS
Included Items............................................ I
Remote Overview ........................................ II
Button Quick Reference ................................... II
Battery Note ............................................. II
Specifications ........................................... II
How to Replace the Battery ................................. 1
How to Remove the Center Plate (for Custom Film) ............. 2
Operation ................................................ 3
Arming................................................ 3
Disarming ............................................. 4
Panic Mode ........................................... 5
Installation ............................................... 5
Learn Mode .............................................. 6
Troubleshooting ........................................... 7
Warranty ................................................. 8
INCLUDED ITEMS
NOTICE! Although reasonable efforts have been taken to ensure accuracy in this User’s
Guide, Kiramek Inc. shall not be held liable for any errors, omissions, property damage,
or injury resulting from the use of this information.
All product specifications and features are subject to change without notice.

© KIRAMEK, INC. II
Japan ARIB Wireless Conformity RCR Standard Compliant
Button Cell Battery Type CR2032 (1pc per remote)
Battery Life Approx. 1 year with a fresh battery and normal use
RF Range 20m~100m (varies by noise conditions, obstacles)
ID Codes 266 (73.7 quintillion)
Code Security Rolling
Waterproof or Shockproof? No. Keep away from water. Don't drop on hard surfaces.
I
II
III
Button-1 Button-press Indicator (Blue LED)
(If the battery is low or if it is very
cold, the indicator will blink to show
that the transmitter's range is shorter
than normal.)
(You can Arm &
Disarm with any
of the 3 buttons.
See pp.3~4.)
Button-2
Button-3
FUNCTION BUTTON | Press Type
Arm/Disarm with Confirmation Chirps Ishort
Silent Mode Arm/Disarm (Siren OFF*) II very short
Arm/Disarm without Confirmation Chirps III short
Arm with Sensors OFF I&II very short
Panic Mode I or III long
The CR2032 Battery included with the remote(s) does not have a long
life and may not last long. Please install a fresh battery soon.

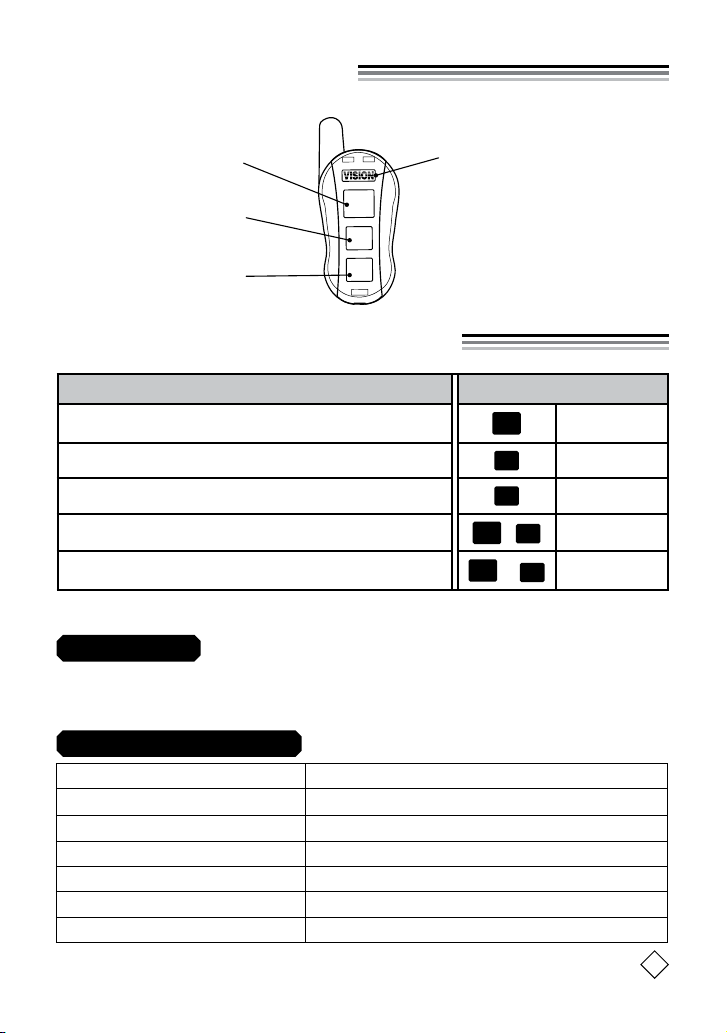

REMOTE OVERVIEW
BUTTON QUICK REFERENCE
* Siren OFF not only for Confirmation Chirps, but for all sounds (Warning Chirps & Alarm Blast too).
BATTERY INFO
REMOTE SPECIFICATIONS

1
VISION™ • SCIBORG®
CR2032
3V
CR2032
3V
CR2032
3V
1
2
3
1
2
3
Slide cover off as shown in
direction of arrow.
Battery Cover Removal
Don’t pry under
metal hook. It will
break. Not covered
under warranty.
Also, don’t use your
fingernail!
Brown
Plastic
Hook
Be careful as you pry out
the battery because it can
pop out with great speed.
Insert small tool between battery
and brown plastic hook, then push
up as shown. This will release battery
from the metal hook.
Inserting Battery
Brown
Plastic
Hook
Metal Hook
Insert Battery under metal
hook.
Push Down until battery
snaps under brown plastic
hook.
When replacing the battery cover, try not to catch it on the
metal hook. A bent hook will not secure the battery properly.
BATTERY REPLACEMENT
CR2032
3V

2
© KIRAMEK, INC.
5
6
4 1
2
3
Insert a small tool in tiny
slot under center plate and
pull up on tool.
I
I
I
I
I
I
I
I
I
I
I
I
I
II
III
II
I
III
I
II
III
II
I
II
Take care not to scratch the plastic!
Center plate should easily
pop out.
Don’t pull your tool’s handle down-
ward because the sharp tip may
gash the center plate!
With center plate removed,
apply film sheet to remote.
Align film sheet on the
remote using the holes
as a guide.
With Film Sheet in place,
insert the top hooks of
the Center Plate into the
body of the remote as
shown.
Lastly, press down firmly on
the bottom hooks of the
Center Plate to secure it.
SHEET INSTALLATION (OPTIONAL)
Optional purchase. No sheets included. More info: https://visionsecurity.jp/en/remotes.html#tx-35p
Center Plate
“top hooks”
Film
sheet

3
VISION™ • SCIBORG®
NO CONFIRMATION CHIRP ARMING
This method is identical to “Normal Arm-
ing” except there is no siren chirping after
you Arm or Disarm. Ensure that all doors
are closed and then press Button-III on the
remote. After you press Button-III, the doors
will lock and hazard lights will ash once (if supported).
The Status LED will light solid for 5 seconds. (The siren
can’t be triggered while the LED is lit — See “Error Chirp”
on the next page.)
SILENT MODE ARMING
This method of Arming will completely dis-
able the siren (no conrmation chirps, no
warning chirps, no siren blast). Make a very
SHORT PRESS on Button-II then release. The
doors will lock and hazard lights will ash once (if sup-
ported). The Status LED will light for 5 seconds. (The
siren can’t be triggered while the LED is lit — See “Error
Chirp” on the next page.)
I
II
III
Push button
II
SYSTEM OPERATION
ARMING
NORMAL ARMING
This method is the typical way to Arm, with
the shock sensor enabled. Ensure that all
doors are closed and then press Button-I on the
remote. After you press Button-I, the doors
will lock and hazard lights will ash once (if supported).
The siren will chirp 1 time, and Status LED will light for
5 seconds. (The siren can’t be triggered while the LED is
lit — See “Error Chirp” on the next page.)
I
II
III
Push button
I
I
II
III
Push button
III

4
© KIRAMEK, INC.
VISION
IR SHOCK SENSOR
System Operation
SENSOR BYPASS ARMING
This method allows you to disable the
shock sensor and any other external sen-
sor while keeping all other triggers active
(door, trunk, hood, IG). Make a very SHORT
PRESS of Buttons I & II at the same time, then release.
The doors will lock and hazard lights will ash once (if
supported). The siren may chirp 2 times, and the Status
LED will light for 5 sec. When you Disarm, the system will
exit from Sensor Bypass mode.
I
II
III
Push buttons
&
DISARMING
NOTE: To Disarm without a remote, see pg.5 in the 1480/1460 Owner’s Guide.
NORMAL DISARMING
This is the typical way to Disarm, with conrmation
chirps ON. Press Button-I while Armed. Doors will then
unlock and hazards will ash 3 times (if supported). The
siren will chirp 3 times. You may now enter the vehicle.
NOTE: When you Arm with the factory remote’s Lock button
and then Disarm with the alarm remote, if the doors don’t
Unlock, just Unlock by the factory remote to x the problem.
I
II
III
Push button
I
NO-CHIRP DISARMING
This method is identical to “Normal Dis-
arming” except there are no siren chirps
emitted when you Disarm. Press Button-
II (SHORT) or Button-III then release. The
doors will then unlock and hazard lights will ash 3
times (if supported). The system is now Disarmed, and
you may enter the vehicle without triggering the siren.
I
II
III
Push buttons
or
If a door, trunk or hood is open during the 5s after Arming, the siren will
sound 2 Error Chirps, and that trigger will be bypassed. If the bypassed
door, hood or trunk is later closed, it will be re-enabled 5s later. Error
Chirps are heard even when Arming with Button-II or III.
Error Chirp

5
VISION™ • SCIBORG®
Where to connect the Antenna Unit Harness on the Control Unit var-
ies by whether you are using the 2460 or 1460/1480, as shown below.
We recommend mounting the Antenna
Unit in open view on the outside of the
driver’s side A-pillar as shown at right.
Remove the plastic pillar cover so you
can hide the wires inside. Then use the
included 2-sided tape to afx it to the
outside of the pillar. Alternatively, you
can use velcro (not included) and afx it to the ceiling, just above the top of
the A-pillar, as most car ceilings are of a fuzzy material that velcro sticks to.
Keep the Antenna Unit out of constant contact with sunlight (heat
negatively affects RF communication), and mount it as far as pos-
sible from metal parts!
Antenna Unit
Antenna Unit
Harness
1460 or 1480 ONLY! Connect Antenna Unit Harness here.
2460 ONLY! Connect Antenna Unit Harness here. (Back Side)
Control Unit
Panic Mode
Panic Mode allows you to trigger the full 30 second siren blast from
your remote, whether the system is Armed or Disarmed. Press But-
ton-I or Button-III for 3 seconds. When you release, v ehicle hazard lights
will ash (if supported), the Status LED will ash rapidly, and the siren will
blast for 30s. (Long-pressing Button-II will only ash the Hazard lights for 30
seconds, if supported, but the siren will not trigger.)
To stop Panic Mode and silence the siren, simply press Button I, II or
III for a short duration (1 sec. or less) and release. Note that you must wait
approximately 4 seconds after you initiate Panic Mode before you press Button
I, II or III, otherwise your button press will be ignored and the siren will keep
sounding.
SYSTEM OPERATION
I N S TA L L AT I O N
“A” Pillar
Antenna Unit

6
© KIRAMEK, INC.
LEARN MODE
Before you can use your remote(s), you must perform a one-time
learn procedure, shown below. The security system can learn up
to 4 remotes total.
1. Disarm, and turn on the Ignition. (1480: LED will ash if a door is open.)
2. Press-and-hold the Program Switch. The Status LED will light. Release
the switch only when the LED turns off and you hear 3 siren chirps (af-
ter about 6 seconds of pressing). All remotes are erased from memory.
3. Press button . You should then hear 1 chirp.
4. If you have a second remote, learn it now by pressing button . You
will then hear 2 siren chirps. If you then program a 3rd remote, you
will hear 3 siren chips; and for a 4th remote you will hear 4 siren chirps.
5. Switch off the Ignition. The Status LED will light for 6 seconds and
then turn off. The LED will then ash the same number of times as your
Manual Disarm Code (default = 6). Learning is nished.
If you delay more than 6 seconds after Steps 2 or 3 above, a timeout will
occur and you will need to start over from Step 1.
If at any time you mess up, perform Step 5, then start over from Step 1.
All previously learned remotes will be deleted from memory. If you have
more than one remote, you must re-learn all of them.
IMPORTANT
Transmitter memory is erased whenever you change your Manual Disarm
Code. See “Manual Disarming” in your 1460/1480 Owner’s Guide.
MANUAL DISARM CODE
If you learn a remote today but then buy a new remote a year from now,
you will need to learn your new and old remotes together.
ADDING A NEW REMOTE LATER

7
VISION™ • SCIBORG®
TROUBLESHOOTING
MY REMOTE ORIGINALLY WORKED FINE BUT NOW IT DOESN’T.
If you had maintenance done and/or the battery was disconnected, or if
substantial noise was present on the 12-volt line in the vehicle, it is possi-
ble that transmitter memory could be erased. Please disconnect the main
wire harness of the 1480/1460 BEFORE disconnecting the car battery.
• If the 1480/1460 is Armed, please use your factory remote to Disarm, or
you can your Manual Disarm Code to Disarm. Then relearn your trans-
mitters as described on page 6 in this manual.
I LOST MY REMOTE AND I’M WORRIED ABOUT SECURITY.
Simply relearn the remote(s) you have according to the steps given on
page 6. Learning always erases previously learned remotes from memo-
ry, preventing stolen remotes from Disarming your car.
I SOMETIMES CAN’T LOCK or UNLOCK or START THE ENGINE.
You probably have your VISION remote on the same keychain as your
factory keyless remote. If so, RF interference between the two remotes is
preventing the factory remote from working. It is possible you won’t be
able to start the engine (on Push Start cars) or use the Smart Key features
to Lock/Unlock the car doors. SOLUTION: Separate the remote from the
factory remote by 10cm (i.e., don’t put them on the same keychain).
I CAN’T TRIGGER THE SIREN WHILE ARMED.
• Is it really Armed? (Is Status LED ashing?) You cannot Arm while the
Ignition is ON in “IG Protect Mode.” See 1460/1480 Owner’s Guide.
• Did you Arm with Button-II (Silent Mode)? (See page 3.)
• Did you use Sensor Bypass Arming? (See page 4.)
REMOTE NOT RESPONSIVE WHEN THE SIREN IS BLASTING.
You may not be able to effectively control your vehicle with the remote
for the rst few seconds after the full siren goes off. Simply wait a few
seconds after the siren triggers before pushing buttons on the remote.
TRANSMITTER BATTERY DIED.
To Disarm when your remote is not working, simply press Unlock on your
factory remote, or use Manual Disarming (see 1480/1460 Owner’s Guide).
FULL SIREN GOES OFF WITH ONLY LIGHT IMPACT TO THE VEHICLE.
Try adjusting sensitivity of your shock sensor or mounting it in another
location. If that doesn’t work, you will need to snap open the housing of
the shock sensor and verify if the suspended reector has been jolted out
of position (see page 17 in the 1480/1460 Installation Guide).

8
© KIRAMEK, INC.
The TR365 Remote & Antenna Kit is backed by a limited one (1) year
warranty against defective components and/or improper product assem-
bly to the original purchaser for as long the vehicle is owned by that
same purchaser, contingent upon installation by an Authorized VISION
Dealer*. This warranty becomes void if the Kit was not sold and in-
stalled by an Authorized VISION Dealer* or the system is moved to
another vehicle.
During the warranty period, Kiramek Inc. will repair or replace, at its
sole discretion, any system component that is found defective in mate-
rial or assembly during the warranty period, provided that the product
is returned to Kiramek Inc. by an Authorized VISION Dealer* and is ac-
companied by a clear and legible copy of the original purchaser’s receipt.
Any damage to your TR365 Kit that results from normal wear-and-tear,
accidents, drops, strong impact, water damage, leaked battery damage,
improper use, neglect, faulty wiring, incorrect installation, modication,
removal or defacement of the product serial number, alteration or repair
outside Kiramek Inc or its Authorized VISION Dealers* immediately
voids this warranty.
This warranty is limited to defective parts only and does not provide any
compensation whatsoever for damages associated with the TR365 Kit.
This warranty does not cover installation labor, product removal and/
or reinstallation fees. This warranty does not cover the elimination of
externally generated RF noise, or weak reception. This warranty also
does not cover any damage to the Remote(s) that may occur if the re-
quired CR2032 battery leaks inside and causes corrosion to the contacts
or causes other related malfunction or damage.
This warranty is valid for the original purchaser only and may not be
transferred to another party. Kiramek Inc makes no warranty against
theft or vandalism of the vehicle in which the TR365 Kit was installed.
This warranty shall not be interpreted as an insurance policy against
loss, nor shall Kiramek Inc be liable any in way for such loss, nancial
or otherwise.
LIMITED ONE YEAR Warranty
* KIRAMEK may opt to validate the above Warranty, in writing, for shipments outside
Japan, in cases where there is no local VISION Dealer available to perform the install.

9-183-1 Itayama-cho, Handa-shi, Aichi-Ken 475-0936 JAPAN
TEL: [phone] • FAX: [phone] • EMAIL: [email protected]
VISION products are engineered in Japan and manufactured in
strict accordance with Japanese QC standards at an ISO9000/
QS9000 certified factory.
hps://kiramek.com
