Kirby Morgan 200-120 User manual

Balanced SCUBA Regulator
User Guide
Document P/N 100-141
Kirby Morgan Dive Systems, Inc.
1430 Jason Way
Santa Maria, CA 93455, USA
Telephone [phone]
FAX [phone]
E-Mail: [email protected]
Web Site: www.kirbymorgan.com
Kirby Morgan, SuperLite, BandMask, Band Mask, KMB, KMB-Band Mask,
DSI, Diving Systems International, EXO, REX, SuperFlow and DECA are all
registered trademarks of Kirby Morgan Dive Systems, Inc. Use of these terms
to describe products that are not manufactured by KMDSI is illegal.
The two dimensional images (such as photographs and illustrations) of our
products are © copyrighted and trademarks of Kirby Morgan Dive Systems,
Inc. The three dimensional forms of our products are trademark, trade design
and trade dress protected.
© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. This manual
is made available for the express use of the owner of this Kirby Morgan product.
No part of this manual may be reproduced, stored in any retrieval system, or
transmitted, or used in any form or by any means, whether graphic, electronic,
mechanical, photocopy, or otherwise by technology known or unknown, without
the prior written permission of Kirby Morgan Dive Systems, Inc.
Document #170814005

Warranty Information
2© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005
Warranty Information
NOTE: Be sure to complete the
enclosed warranty card and return
it immediately, or you may register
your purchase online at www.kir-
bymorgan.com—go to Support.
KMDSI warrants every new Mask,
Helmet, SCUBA Regulator, Manifold
Block or Kirby Morgan Air Control
System 5 (KMACS 5) (each, a Product) to be free from de-
fects in workmanship for a period of three hundred sixty
ve (365) days from the date of purchase from a KMDSI
authorized dealer. This warranty covers all metal and
plastic parts, but does NOT cover rubber parts, communi-
cations components, or head and chin cushions. In addi-
tion, due to the electrolytic nature of underwater cutting
and welding, chrome plating cannot be warranted when
the diver engages in these activities.
Any defect of the product in workmanship or material
covered by this warranty discovered within three hundred
sixty ve (365) days from the date of purchase must be
promptly communicated in writing to the nearest autho-
rized KMDSI dealer or (if no such dealer in the buyer’s
country) contact KMDSI directly at [phone]. No
Product returns will be accepted by KMDSI with-
out a returned merchandise authorization (RMA)
number from KMDSI. Upon receipt of the RMA from
KMDSI, the buyer should return the defective Product or
part, freight prepaid, to an authorized KMDSI dealer or
the KMDSI plant, as directed by the RMA. KMDSI will
repair or replace the Product at no charge, within a rea-
sonable time, as it deems necessary.

Warranty Information
© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005 3
This warranty is null and void if:
1) The Product is not registered with KMDSI within ten
(10) days of purchase, or
2) The Product has not been properly serviced and main-
tained according to KMDSI factory recommended proce-
dures described in the manual and/or Product updates
have not been performed as recommended by KMDSI,
or
3) Unauthorized attachments or modications have been
made to the Product, or
4) The Product has been used for purposes other than
those for which it was designed, or otherwise has been
abused, misused, or subjected to unusual conditions, or
the Product’s intended service has been exceeded.
EXCEPT AS SPECIFICALLY PROVIDED HEREIN,
THERE ARE NO OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
ANY IMPLIED WARRANTIES FOR MERCHANT-
ABILITY OR FITNESS FOR A PARTICULAR PUR-
POSE. THE PRODUCT COVERED BY THIS WAR-
RANTY IS MARKETED AND SOLD BY KMDSI
SOLELY FOR COMMERCIAL OR INDUSTRIAL
USE AND IS NOT A CONSUMER PRODUCT IN-
TENDED FOR PERSONAL, FAMILY, OR HOUSE-
HOLD USE.
In purchasing any Product subject to this warranty, the
buyer agrees that its sole and exclusive remedy and KMD-
SI’s entire obligation in contract, tort, or otherwise under
this contract will be repair or replacement at KMDSI’s
option of the Product or any parts which KMDSI deter-
mines during the applicable warranty period are defective
in workmanship or material covered by this warranty. All
exchanged parts are the property of KMDSI. The buyer’s

Warranty Information
4© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005
exclusive remedy and the KMDSI’s entire liability in
contract, tort, or otherwise is the payment by KMDSI of
the buyer’s actual damages up to but not to exceed the
amount paid by the buyer for the Product.
In no event shall KMDSI be liable to the buyer for indi-
rect, special, incidental or consequential damages (includ-
ing, but not limited to, damages for lost prots, lost sales,
loss of business opportunity, or for injury to persons or
property arising out of the use of the Product). Any claim
or action for breach of warranty must be commenced with-
in one year following delivery of the Product to the buyer.
Buyer acknowledges that this warranty is the sole and
exclusive warranty of the Product and that it supersedes
any and all oral or written representations and undertak-
ings between KMDSI, its dealers, and the buyer relat-
ing to the Products. This warranty allocates the risks of
product failure between KMDSI and the buyer, which
allocation is recognized by both parties and is reected in
the price of the goods. The buyer acknowledges that it has
read this agreement, understands it, and is bound by its
terms.
BWARNING
Diving with compressed breathing gas is a hazardous
activity. Even if you do everything in the proper manner
there is always the potential for serious injury or death.
No one piece of diving equipment can prevent the possi-
bility that you may be injured or killed any time you enter
the water. The information in this manual is intended for
users of Kirby Morgan helmets and persons that maintain
or service Kirby Morgan helmets.

Table of Contents
© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005 5
Table of Contents
2 Warranty Information
7 Denitions of Signal Words Used in this Guide
7 Product Changes
10 Cold Water Diving
11 CR Marking
11 CE Certication
12 Notied Body
12 2nd Stage Regulator Serial Number Location
13 1st Stage SCUBA Regulator and 2nd Stage
Regulator Maximum Work Pressure
13 Divers Work Rate Expressed as Respiratory Minute
Volume (RMV)*
13 Regulator Transport and Storage
15 References to EN250 - Object, Denitions, Limits
15 SCUBA-Minimum equipment (EN 250):
16 Denitions (EN 250)
16 Kirby Morgan Balanced SCUBA Regulator
Assembly
17 General Precautions and Warnings

Table of Contents
6© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005
18 Preparation and Setup
18 Mounting the First Stage Onto the Cylinder Valve
(Yoke Connector)
19 Balance Purge Tube and Regulator Installation
24 Pull Test After Initial Assembly
25 Pre-Dive Checkout
25 Inspection Checklist
26 During the Dive
27 After the Dive
27 Removal of the Regulator Assembly from the
Cylinder Valve
28 Safety Precautions
28 Specications
29 Routine Maintenance
29 Daily Pre-Dive Maintenance
30 Post Dive Maintenance
31 Scheduled Maintenance
33 SuperFlow®First Stage Regulator
P/N 305-161
34 Balanced SCUBA Regulator Assembly

Denitions of Signal Words Used in this Guide
© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005 7
Denitions of Signal Words Used in this Guide
The original language of the Kirby Morgan Manuals is English.
Translation into other languages will be provided upon request.
KMDSI may charge a fee for these services.
BCAUTION
This word indicates a potentially hazardous situ-
ation, which if not avoided, may result in minor or
moderate injury. It may also be used to alert against
unsafe practices.
BWARNING
This word indicates a potentially hazardous situation,
which, if not avoided, could result in death or serious in-
jury.
REMARKS: Operating or descriptive information which
will help you make the best use of your regulator.
This user guide contains important safety information and should
always be available to those personnel using this equipment.
Read, understand, and retain all instructions before using this
equipment to prevent injury or equipment damage.
If you sell or loan this equipment to another person, be sure that
this manual accompanies the gear when you transfer possession
to them.
Product Changes
Following publication of this booklet, certain changes in standard
equipment, options, prices and the like may have occurred which
would not be included in these pages. Your Authorized KMDSI
dealer is your best source for up-to-date information on any of
these products. Kirby Morgan Dive Systems Inc. reserves the
right to change product specications at any time without incur-
ring obligations.

Product Changes
8© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005
In order to use this regulator assembly, it is essential to complete
a training course and receive certication, issued by a recognized
national SCUBA training organization, conrming your ability
to dive.
BCAUTION
By using this equipment the diver acknowledges
that he has read and completely understands the
instruction manual provided with it, and hereby
agrees to hold harmless Kirby Morgan Dive Sys-
tems, inc. from any accident, malfunction, or other
event arising from the misuse of the equipment, or
from any lack of, or incomplete understanding of its
operation and function.
BCAUTION
This regulator assembly should be used only with
breathing air meeting requirements of the EN12021
BCAUTION
When the regulator is used in a European Union
member country, it should be used only with equip-
ment and accessories that are CE approved, ac-
cording to EN250.
BWARNING
•
The rst stage SCUBA regulator has not been
designed or tested for use with breathing gas
mixtures containing greater than 23% oxygen.
Do not use the rst stage or the regulator as-
sembly with second stage with breathing gases
containing more than 23% oxygen. Use with gas
mixtures containing in excess of 23% oxygen
could lead to res or explosions.

Product Changes
© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005 9
BWARNING
•
The second stage SCUBA regulator has not
been designed or tested for use with breathing
gas mixtures containing greater than 50% oxy-
gen.
Do not use the second stage with breathing
gases containing more than 50% oxygen. Use
with gas mixtures containing in excess of 50%
oxygen could lead to res or explosions.
BWARNING
In accordance with the EN250 Standard, the maximum
approved depth for the use of this equipment is 50 meters
(164 FSW) @ 62.5 RMV (heavy work load). Do not exceed
this limit. The use of open circuit SCUBA at depths below
164 FSW poses extreme risks including out-of-air emer-
gencies and decompression sickness, which can lead to
serious personal injury or death.
BWARNING
Never use solvents or aerosol sprays on our
around the regulator assembly. Certain solvents
and propulsion agents attack and damage rub-
ber and certain plastics. This could lead to regu-
lator failure. Drowning could result.
This user guide gives basic daily operational information for the
Kirby Morgan Balanced SCUBA Regulator assembly.
Before each use the regulator assembly should be carefully
checked and submitted to the operational tests. Never dive with
a regulator showing any signs of deterioration or a below normal
performance.
The hoses tted to the regulator assembly, and supplied by
KMDSI meet the requirements of the EN250 standard concerning
the connection of components. Only original Kirby Morgan hoses
should be used as replacements.

Cold Water Diving
10 © MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005
- HP thread 7/16" - 20 UNF
- LP thread ⅜" - 24 UNF
BCAUTION
Always allow pressure to build up slowly in the
regulator by turning on the cylinder valve slowly.
Use only Christo-Lube®on the rubber components. Never grease
the parts of your regulator with a lubricant containing hydrocar-
bons, household oil, or motor oil.
Cold Water Diving
Before diving in cold water (water temperature below 10 °C/50 °F),
the diver should be trained and have mastered the techniques of
cold water diving, learning techniques and all precautions neces-
sary to avoid freezing of the regulator. All of this is included in the
training programs of organizations offering courses in diving in
cold water or under ice. You should also use equipment intended
for this purpose. This regulator is CE approved for waters colder
than 10°C /50 degrees F.
In order to reduce the risks of regulator freezing when diving in
cold water (below 10°C), consider doing the following:
1. Protect your regulators from any water entering the rst or
second stages.
2. Protect your equipment from cold before the dive. Keep your
regulator and all its accessories in a warm dry place.
3. Carry out all pre-dive checks of your equipment in a warm dry
place if necessary, before even going to the dive site.
4. Avoid breathing through the regulator or pressing the purge
button in very cold air before entering the water.
5. Check that the air used to ll your cylinder is dry. The water
vapor contained in this air should have a condensation point
below -54°C. Excess water vapor can freeze, causing a free
ow, or blocking the air ow completely.

Cr Marking
© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005 11
CR Marking
The 1st Stage SCUBA Regulator and 2nd Stage Regulator meets
or exceeds all standards established by Dive Lab of Panama City,
Florida, and is CR (Commercially Rated) marked.
C
O
M
M
E
R
C
I
A
L
L
Y
R
A
T
E
D
-
P
R
O
F
E
S
S
I
O
N
A
L
D
I
V
I
N
G
G
E
A
R
-
D
I
V
E
L
A
B
T
E
S
T
E
D
-
TM
TM
CE Certication
The balanced SCUBA regulator (P/N 200-120) has been tested and
conforms to the performance requirements as set forth in Annex
II of Directive 89/686/EEC and, as far as applicable, the EN250.
Category of PPE: III
BWARNING
The 1st Stage SCUBA Regulator and 2nd Stage Regulator
have been tested with air and CE certicates for use with
air up to 50 meters. Compressed air must be compliant
with the EN 12021. All the tables reporting the technical
data and the pressure of use are relative to compressed
air.
On the frame of the Balanced SCUBA Regulator 2nd Stage regu-
lator the CE mark is afxed.

Notied Body
12 © MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005
BALANCED SCUBA REGULATOR
EN250
KIRBY MORGAN®
DIVE SYSTEMS, INC.
1430 Jason Way,
Santa Maria, CA 93455
<10 °C
0477

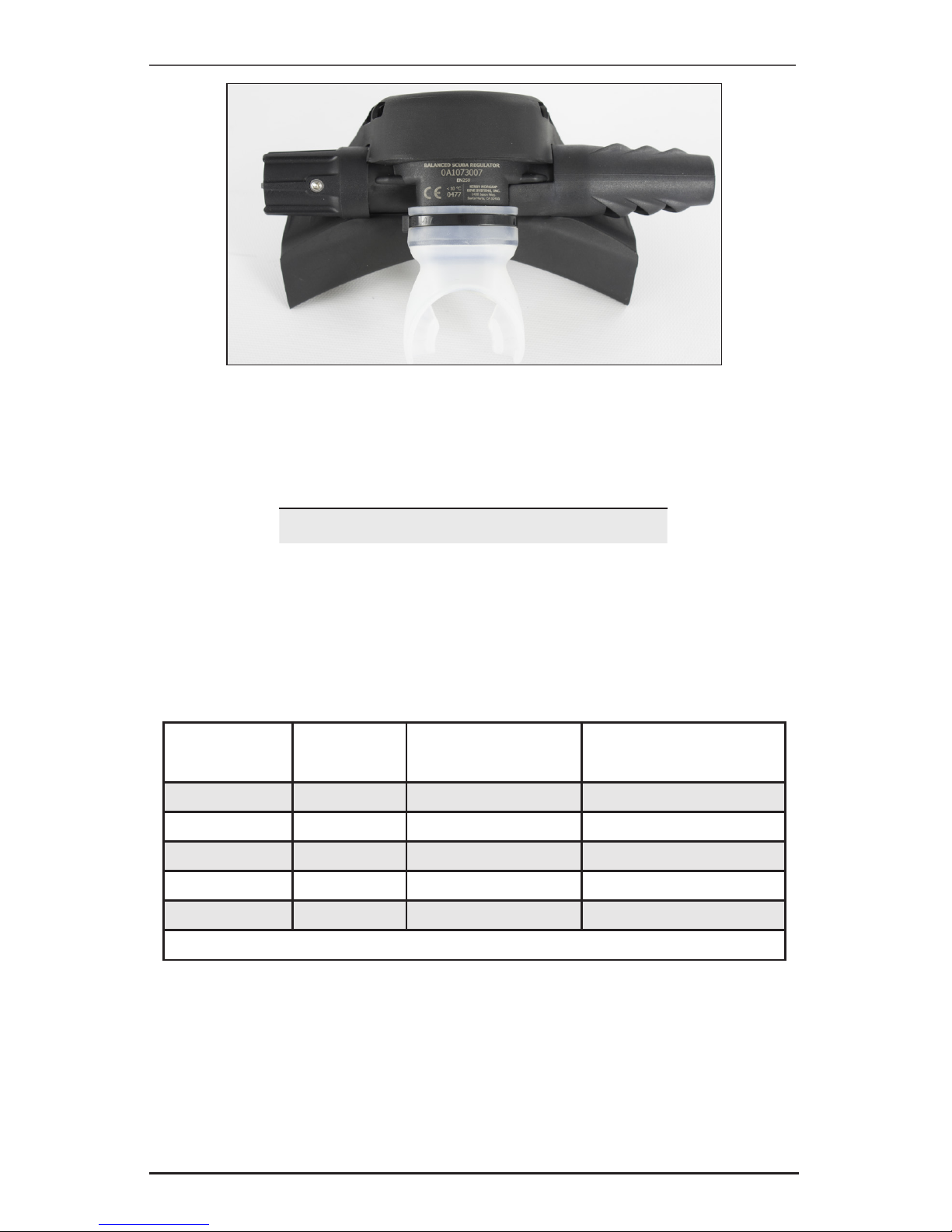

Sample of marking on Balanced SCUBA Regulator 2nd stage housing
BCAUTION
The user cannot:
• Remove the mark from the frame/label of the
Balanced SCUBA Regulator.
• Modify or counterfeit the data reported on the
frame/label.
BCAUTION
The data shall be visible and legible throughout the
life of the Balanced SCUBA Regulator. If the data
deteriorates or is not legible the user shall contact
the manufacturer.
Notied Body
The Notifying Body is Eurons Product Testing Italy Srl
Address: Via Courgnè, 21
10156 - Torino - ITALY
Identication number: 0477
2nd Stage Regulator Serial Number Location
The serial number is printed on the top part, near the mouth
piece, on the 2nd stage regulator.

1st Stage Scuba Regulator and 2nd Stage Regulator Maximum Work Pressure
© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005 13
1st Stage SCUBA Regulator and 2nd Stage
Regulator Maximum Work Pressure
Regulators PSI BAR
1st Stage 145 9.99
2nd Stage 150 10.34
Divers Work Rate Expressed as Respiratory
Minute Volume (RMV)*
Work Load RMV Cubic Feet/Min-
ute (CFM)
Equivalent Land
Based Exercise
Rest 7-10 RMV 0.2 - 0.35 CFM
Light Work 10-20 RMV 0.35 - 0.7 CFM Walking 2 miles per hour
Moderate Work 20-37 RMV 0.7 - 1.3 CFM Walking 4 miles per hour
Heavy Work 37-54 RMV 1.3 - 1.9 CFM Running 8 miles per hour
Severe Work 55-100 RMV 1.94 - 3.5 CFM
* source: U.S. Navy Diving Manual
Regulator Transport and Storage
2nd Stage:
• The kind of package is a plastic bag that is sealed;
• The weight of the bag is usually 0.75 pounds (0.35 Kg);

Regulator Transport and Storage
14 © MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005
• The package dimension is 8 × 10 inches (203.2 × 254 mm);
• One regulator and hose protector is packed per bag;
• The regulators are sent to dealers by air or truck, depending
on dealer request.
1st and 2nd Stage Regulators when purchased together:
• The kind of package is a cardboard box with cardboard inserts
to stabilize the regulators;
• The weight of the box is usually 3.7 pound (1.67 Kg);
• The package dimension is 13 × 9 ½× 4 1/4 inches (330.2 ×
241.3 × 107.95 mm);
• One 1st Stage and one 2nd Stage regulator is packed per box;
• The regulators are sent to dealers by airfreight or truck. De-
pending on how the dealer wants it sent.
Packaging Step 1 Packaging Step 2
Packaging Step 3 Packaging Step 4

References to EN250 - Object, Denitions, Limits
© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005 15
Packaging Step 5
References to EN250 - Object, Denitions,
Limits
OBJECT: The requirements and tests provided for in EN 250
are aimed at providing a minimum safety level for the operation
of diving breathing apparatuses at a maximum depth of 50 m /
164 feet.
SCUBA: Denition (EN 1 32): Self-contained, open-circuit com-
pressed air underwater breathing apparatus is an apparatus
which has a portable supply of compressed air carried by the
diver, allowing him to breathe underwater.
SCUBA-Minimum equipment (EN 250):
a) Air cylinder/ cylinders
b) Demand regulator
c) Safety device, e.g. pressure gauge / computer or reserve or
alarm.
d) Carrying frame or holding device for air cylinder(s) to mount
the harness or carrying system, e.g. backpack and/or straps.
e) Face piece: mouth piece assembly or full face mask or diving
helmet.
f) Operating instructions.
SCUBA - Component Units (EN 250): The Kirby Morgan Super-

Denitions (en 250)
16 © MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005
Flow SCUBA Regulator Assembly described in this guide may
be combined with other SCUBA components such as cylinders
and pressure gauges certied in compliance with EC directive
89/686 and EN 250. The air contained in the cylinders must
comply with the requirements for breathable air set forth in EN
1 32 - Appendix A.
Denitions (EN 250)
COLD WATER DIVING - water temperature below +10 °C (50°f)
WARM WATER DIVING - water temperature over +10 °C (50°f)
MAXIMUM DEPTH: 50 m / 164 feet.
STORAGE TEMPERATURES: +70°c / -30°c (max/min)

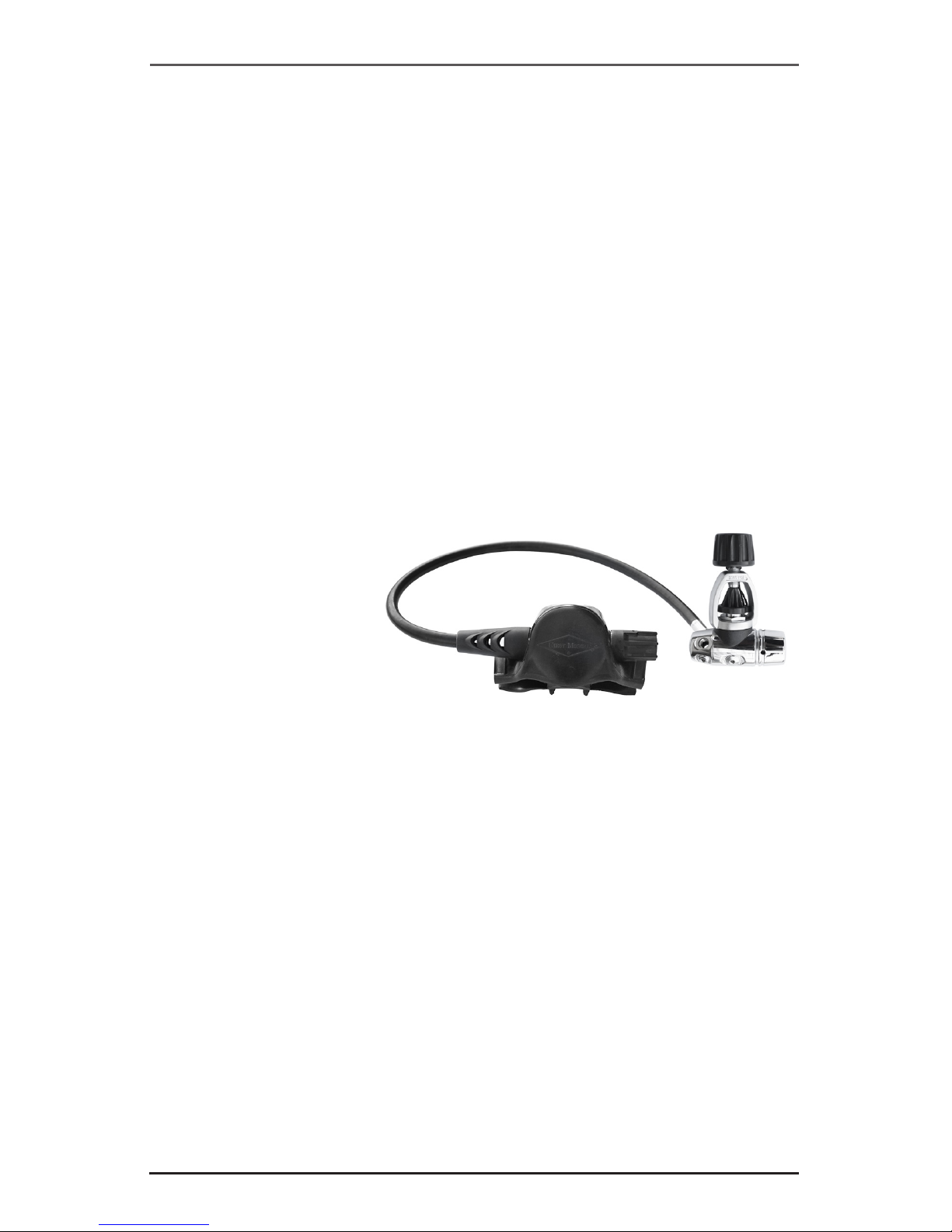

Kirby Morgan Balanced SCUBA Regulator
Assembly
Thank you for choos-
ing a Kirby Morgan
regulator.
Your new regulator
assembly has been
designed and manu-
factured with pride,
according to Kirby Morgan's world renowned exacting standards
for quality and performance. The Kirby Morgan Balanced SCUBA
Regulator is a high performance regulator which was designed
for the professional SCUBA diver. The second stage is a modi-
ed version of the same regulator used on the Kirby Morgan 97
helmet and stand alone SuperFlow®455 regulator. Many of the
parts used in this SuperFlow®are identical to those used on the
KM 97 helmet and SuperFlow®455 regulator. This is helpful to
dealers in stocking parts for service and repair.
The rst stage used on the SuperFlow regulator is known as our
HiVent rst stage. This regulator was developed from the tech-
nology used in our Kirby Morgan Air Control Systems. It offers
an exceptionally high ow of air with a minimum pressure drop.
Provided it has been purchased new from an Authorized KMDSI

General Precautions and Warnings
© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005 17
Dealer, your regulator assembly is covered by KMDSI's Limited
Warranty. Be sure to read and ll out the warranty card com-
pletely and return the bottom portion within ten (10) days of
purchase. Also save your sales receipt. A copy of your receipt must
be presented whenever obtaining warranty service.
Perhaps more than any other piece of diving equipment, your
regulator's function and performance relies greatly on the care
and maintenance it will receive, in addition to regularly scheduled
dealer service. Before you dive with your new Kirby Morgan regu-
lator, it is important to read this guide in its entirety; to become
familiar with its features, as well as the correct procedures for
setup, pre-dive inspection, and post-dive maintenance.
General Precautions and Warnings
Before using this regulator assembly, you must have successfully
received training and certication in the technique of SCUBA
diving from a recognized certication agency (or any Military or
government operated diving school).
Use of this equipment by a person who is not certied by a recog-
nized agency shall render all warranties, express or implied, null
and void. Use of SCUBA equipment by uncertied, or untrained
persons, is dangerous and can result in serious injury or death.
BWARNING
Never lubricate any part of the regulator or cylinder valve
with any lubricant. Lubrication must only be performed by
a KMDSI factory trained technician. Improper lubrication
can lead to regulator malfunction. Drowning can result.
BCAUTION
Do not use the regulator rst stage as a carrying
handle when lifting or transporting the cylinder.
Always lift the cylinder by the cylinder valve handle
without the regulator attached. The regulator can
be damaged if you use it to lift the cylinder.

Preparation and Setup
18 © MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005
BCAUTION
Factory prescribed service for this regulator as-
sembly must be performed at least once each year
by a factory trained technician who is employed by
an Authorized KMDSI Dealer. Repair, service, disas-
sembly, or rst stage adjustment must not be at-
tempted by persons who are not factory trained and
authorized by KMDSI.
BCAUTION
Do not leave a cylinder standing unsecured with
the regulator attached to the valve. Doing so may
cause permanent damage to the regulator and cyl-
inder valve if the cylinder falls over against the rst
stage.
Preparation and Setup
KMDSI recommends that you bring your regulator assembly to
your Authorized KMDSI Dealer for the installation of any acces-
sory items, including instrumentation, LP quick disconnect hoses,
and alternate air sources. Your dealer can also answer any ques-
tions you may have pertaining to the information in this guide.
1. If the adjustment knob has been turned "out" (counter-clock-
wise), turn it "in" (clockwise) until a clicking noise can be
heard. This indicates full spring pressure has been acheived.
2. If you are using a standard cylinder with a yoke connector
valve, inspect the cylinder valve O-ring for any wear or dam-
age.
Mounting the First Stage Onto the Cylinder
Valve (Yoke Connector)
1. Partially unscrew the yoke screw of the rst stage regulator so
that the dust cap can be removed from the lter and air inlet.
2. With the cylinder valve facing away from you, release a small
amount of air from the cylinder. When air is heard exiting,

Balance Purge Tube and Regulator Installation
© MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005 19
immediately close the valve. This will clear any moisture or
debris that may be inside the cylinder valve outlet opening.
3. Place the rst stage regulator over the cylinder valve so that
the inlet tting aligns with the O-ring of the cylinder valve,
and the LP hose of the primary second-stage will be routed
over the right shoulder. While holding the rst stage in place,
turn the yoke screw clockwise. Ensure that the yoke screw
mates into the small dimple on the backside of the cylinder
valve, and tighten nger tight only.
4. If a submersible pressure gauge is attached to the rst stage,
ensure that the gauge is facing away from you. Pressurize
the regulator by slowly turning the cylinder valve handwheel
counter-clockwise. Continue turning the cylinder valve hand
wheel counter-clockwise until it is fully open, and then turn
back clockwise ¼ - ½ turn.
5. Listen near the rst stage to check for any leakage. If leakage
is detected, immerse the rst stage and cylinder valve while
pressurized to determine the source.
6. If leakage has been detected, follow the procedure for remov-
ing the regulator from the cylinder valve. If air was leaking
between the rst stage and cylinder valve, replace or reseat
the cylinder valve O-ring as needed and repeat the above
procedure. If leakage persists, do not dive with the regulator!
Return the regulator to a KMDSI Dealer.
Balance Purge Tube and Regulator Installation
Tools and Components required:
• Pliers or Tie Wrap Gun rated at 50 pounds/22.6 kg
• Side Cutter Pliers
• Thin Nylon Rope (e.g., Paracord) or equivalent (for Pull
Test)
• 25 pound (11 kg) weight or a lled 50 cu. ft. aluminum
scuba tank (for Pull Test)

Balance Purge Tube and Regulator Installation
20 © MMXVII Kirby Morgan Dive Systems, Inc. All rights reserved. Document # 170814005
This regulator was specically designed to work with the M-48
SCUBA pod assembly as well as being a standalone scuba regu-
lator.
The Sleeve P/N 220-057, Purge Tube P/N 220-087, and Tie Wrap
P/N 520-038 will be used to replace the original Tilt to Purge
valve. Using the new parts will eliminate the need to manually
purge any accumulated water from inside the pod. This will now
become an automatic function.
1. After removing the regulator from the POD, clean and care-
fully inspect the pod assembly for damages such as cuts in
the rubber, cracked or broken parts. Replace as necessary.
Remove the tie wrap from around the tilt to purge valve and
remove the plastic tilt valve assembly P/N 805-047, as well as
the small internal valve body insert and its exhaust valve as
a unit. Inspect the valve and valve body for damages, Clean
and replace as necessary. Also make sure the sealing surfaces
of the pod, where the valve will insert, have been thouroughly
cleared.
2. Reinstall ONLY the valve
body insert with its valve,
back into the water dump
tube on the POD. Push it
in all the way. YOU WILL
NO LONGER NEED THE
TILT TO PURGE VALVE
ASSEMBLY.
BWARNING
Only the KMDSI mouthpiece, P/N 810-022L, will function
correctly in your SCUBA POD. Do not attempt to use any
other manufacturer’s mouthpiece. Doing so could result
in death by drowning
