Kisan Telecom STR250R01C User manual

STR250R01C Operating Manual
2011. 6.
Kisan Telecom

2 / 56
Content
1. Introduction....................................................................................................................................................................5
1.1. General Introduction.....................................................................................................................................5
2. System Network Configuration............................................................................................................................5
2.1. Network configuration.................................................................................................................................5
3. System Specifications ................................................................................................................................................6
3.1. General Specifications..................................................................................................................................6
3.2. System specifications....................................................................................................................................7
3.2.1. Frequency allocation........................................................................................................................7
3.2.2. System Specifications......................................................................................................................7
4. Mechanical Specifications .......................................................................................................................................9
4.1. STR250R01C RHU...........................................................................................................................................9
4.1.1. Mechanical Design............................................................................................................................9
4.1.2. Dimension ..........................................................................................................................................11
4.1.3. Mechanical Specification............................................................................................................11
4.1.4. Description of STR250R01C RHU...........................................................................................12
4.1.5. Port Configuration.........................................................................................................................12
4.1.8. Module Composition of RHU...................................................................................................13
4.1.9. Function of Modules ....................................................................................................................14
4.2. STR250R01C RU............................................................................................................................................18
4.2.1. Mechanical Design.........................................................................................................................18
4.2.3. Mechanical Specification............................................................................................................20
4.2.4. Description of STR250R01C RU ..............................................................................................21
4.2.5. Port Configuration.........................................................................................................................22
4.2.6. Module Composition of RU......................................................................................................23
4.2.7. Function of Modules ....................................................................................................................25
5. Block Diagram............................................................................................................................................................28
6. Administration Program (RptMan-STR250D01C) ....................................................................................29
6.1. System Requirement ..................................................................................................................................29
6.2. Bluetooth interface.....................................................................................................................................29
6.3. Main Window.................................................................................................................................................32
6.4. Status Display ................................................................................................................................................33
6.5. Control Policy.................................................................................................................................................34
6.6. Menu ..................................................................................................................................................................34

3 / 56
6.7. Toolbar...............................................................................................................................................................35
6.8. Program operation......................................................................................................................................36
6.8.1. Initiating communication...........................................................................................................36
6.8.2. Disconnect..........................................................................................................................................36
6.8.3. STR250R01C Brief System Status (Block Diagram View)........................................... 37
6.8.4. STR250R01C RHU Status Window.........................................................................................40
6.8.5. STR250R01C RU Status Window ............................................................................................43
6.8.6. Firmware download ......................................................................................................................46
6.9. Additional features .....................................................................................................................................48
6.9.1. ASD (Auto Shutdown) Function .............................................................................................48
6.9.2. ALC (Auto Level Control) Function........................................................................................48
6.9.3. Center Channel Selection...........................................................................................................49
Appendix A Factory setting value for each equipment .................................................................................51
Appendix B Cellular CDMA Frequency Map ........................................................................................................52
Appendix C PCS CDMA Frequency Map ................................................................................................................53

4 / 56
IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF
radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with a minimum distance of 20 centimeters between the radiator and your body.This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

5 / 56
1. Introduction
1.1. General Introduction
As an equipment to clear RF shadows inevitably generated between the adjacent cells of
CDMA, STR250R01C supports CDMA and effectively repeats the signals between mobile
terminals in weak coverage area and BTS.
This equipment is Dual Band Optical DAS that support 850MHz and 1900MHz bands
simultaneously, and it is designed to support CDMA for each band.
This equipment provides the effective and flexible solution to service providers to
improve quality of service for their subscribers.
The main objectives of STR250R01C are as follows:
-Expansion of coverage
-Enhancement of service quality in areas such as tunnels or in-building
-Improvement in signal strength at places where the signal level is less than desired.
-Support dual bands of 850MHz and 1900MHz.
-Support single mode of CDMA for each band.
-RU power consumption and RU size optimization by built-in Crest Factor Reduction
(CFR) technology for the CDMA signal.
2. System Network Configuration
2.1. Network configuration
STR250R01C repeater is equipment to clear RF shadows, to fill coverage gaps existing
among the adjacent cells and to enhance the quality of service by extending coverage of
CDMA.
The following network configuration is for a case where the 1 RHU is connected with 1
RU by optical cables. The coverage antennas are connected to RU, and the link
antennas are connected to RHU.
The following network configuration is for a case where the RHU co-located with BTS
(CDMA) is connected with 6 RU’s by optical cables. The coverage antennas are
connected to each RU.
System configuration
RHU Capacity: 1 Optical Branch/DOU (1 Optical Branch/RHU)
System Connection: Optical cable between RHU and RU
Optic Wavelength: 1310nm for FWD, 1550nm for RVS

Max loss of optic cable (between RHU and RU): 2 ~ 10dBo
2 coverage ANT ports on RU. (Separate Ant. Ports for 850MHz and 1900MHz)
2 link ANT ports on RHU. (Separate Ant. Ports for 850MHz and 1900MHz)
[Network Configuration of Dual Band Optical DAS]
3. System Specifications
3.1. General Specifications
Item RHU RU
Enclosure Type Cabinet Cabinet
W  H  D 471.7(H) X 263.4(W) X 304.8(D)mm 471.7(H) X 263.4(W) X 304.8(D)mmDimension
(mm) Weight 26.5 Kg 26.5 Kg
Power Supply 110-120Vac (Tolerance ±10%), 60Hz 110-120Vac (Tolerance ±10%),
60Hz
Power Connector MS Connecter MS Connecter
RF In/Out Port N Type Female, bottom side N Type Female, bottom side
Optic Connector Type FC, bottom side FC, bottom side
Optic Wavelength FWD: 1310nm / RVS: 1550nm
Operating Temperature -5℃ ~ 50℃ -5℃ ~ 50℃
Environmental requirement
The repeater RHU & RU shall be operated in the temperature range of -5¡É ~ +50¡É.
6 / 56

3.2. System specifications
3.2.1. Frequency allocation
1900MHz Band
850MHz Band
3.2.2. System Specifications
7 / 56
Item Specification Remarks
Tx Frequency Range Contiguous 25MHz Bandwidth in 1930 ~ 1990MHz
Contiguous 25MHz Bandwidth of 869 ~ 894MHz
Rx Frequency Range Contiguous 25MHz Bandwidth in 1850 ~ 1910MHz
Contiguous 25MHz Bandwidth in 824 ~ 849MHz
Frequency Stability 0.02PPM
No of Carriers
Supported 20CH(PCS) and 17 CH(Cellular) CDMA Carriers
System Delay DL: 10usec max. UL: 5usec max.
Tx-Rx Isolation 110dB min. @Between RU Tx Output and RHU Rx Output
Impedance 50 Ohm
Pass-Band Ripple 3dB max. 25MHz BW

8 / 56
FWD Input Power -55 dBm/total Each Band
FWD Output Power 40dBm /total for 1900MHz RU ANT Port
40dBm /total for 850MHz RU ANT Port
RVS Input Power -68 dBm/total max. at RU each ANT Port
RVS Output Power 27dBm/total max. at RHU each Rx ANT Port
System Gain FWD: 95dB max. RVS: 95dB max.
FWD Spurious Comply to 3GPP2, FCC regulation
RVS Noise Figure 10dB max. @ 95dB Gain Max. Gain
Gain Control Range FWD: 20dB by 1dB Step RVS: 20dB by 1dB Step RU OLC Gain
VSWR 1.5 : 1 max. @ All input/output ports
Optical Wavelength FWD: 1310nm RVS: 1550nm
RF I/O Connector RHU: N-type Female RU: N-type Female

4. Mechanical Specifications
4.1. STR250R01C RHU
4.1.1. Mechanical Design
RF SIDE
PSU SIDE
9 / 56

10 / 56

4.1.2. Dimension
RHU System picture and Size  471.7(H) X 263.4(W) X 304.8(D) mm
[Side] [Inner Side] [Front/Rear Side]
4.1.3. Mechanical Specification
No Item Description
1 Dimension & Weight
1. Dimension: 471.7(H) X 263.4(W) X 304.8(D) mm
(plinth included)
2. Weight: 26.5 Kg
2 Method of Cooling Natural convection (Heat-sink)
3 Door Locking Type 10 on each side using bolt lock
4 Optic Connector
1. Position: Cabinet inside
2. Connector type: FC/TBD
* Optic cable tray is provided inside of cabinet.
5 ANT PORT 1. located at the bottom side of cabinet
2. Connector Type: N Type Female
6 Power Input
1. Power: 110-120Vac, 60Hz
2. Position: bottom side of cabinet
3. Connector: MS connecter
7 Ground TBD
8 Waterproof condition TBD
9 Misc. Features
1. Easy to maintain
2. Pole mountable (i.e., telegraph pole)
3. Torque hinge used
11 / 56

4.1.4. Description of STR250R01C RHU
[Forward Path]
The signal from CDMA BTS is fed to the RF link antenna port of RHU. First, RHU
Filter rejects the unwanted signal. Then LNA and Up-down converter make gain for
transmitting. Combiner combines the signal with the modem signal (360MHz). The
combined signal gets transmitted to RU via optical cable.
[Reverse Path]
The CDMA RVS signal input from RU through the optic module is separated into RF
and modem signal, and then RF RVS module performs optic AGC and RVS HPA
makes large signal level for transmitting. Finally RHU Filter rejects the unwanted
signal and RHU link antenna outputs RVS RF signal. The RF signal then is fed to the
BTS.
4.1.5. Port Configuration
12 / 56
No Item Description
1 AC INLET 110V AC Power Cable Connection Port / MS Connector
2 1900MHz ANT Port 1900MHz Band ANT RF Cable Connection Port / N-type Connector
3 850MHz ANT Port 850MHz Band ANT RF Cable Connection Port / N-type Connector
4 Optical Cable INLET Optic cable connection Inlet
5 Goretex

4.1.8. Module Composition of RHU

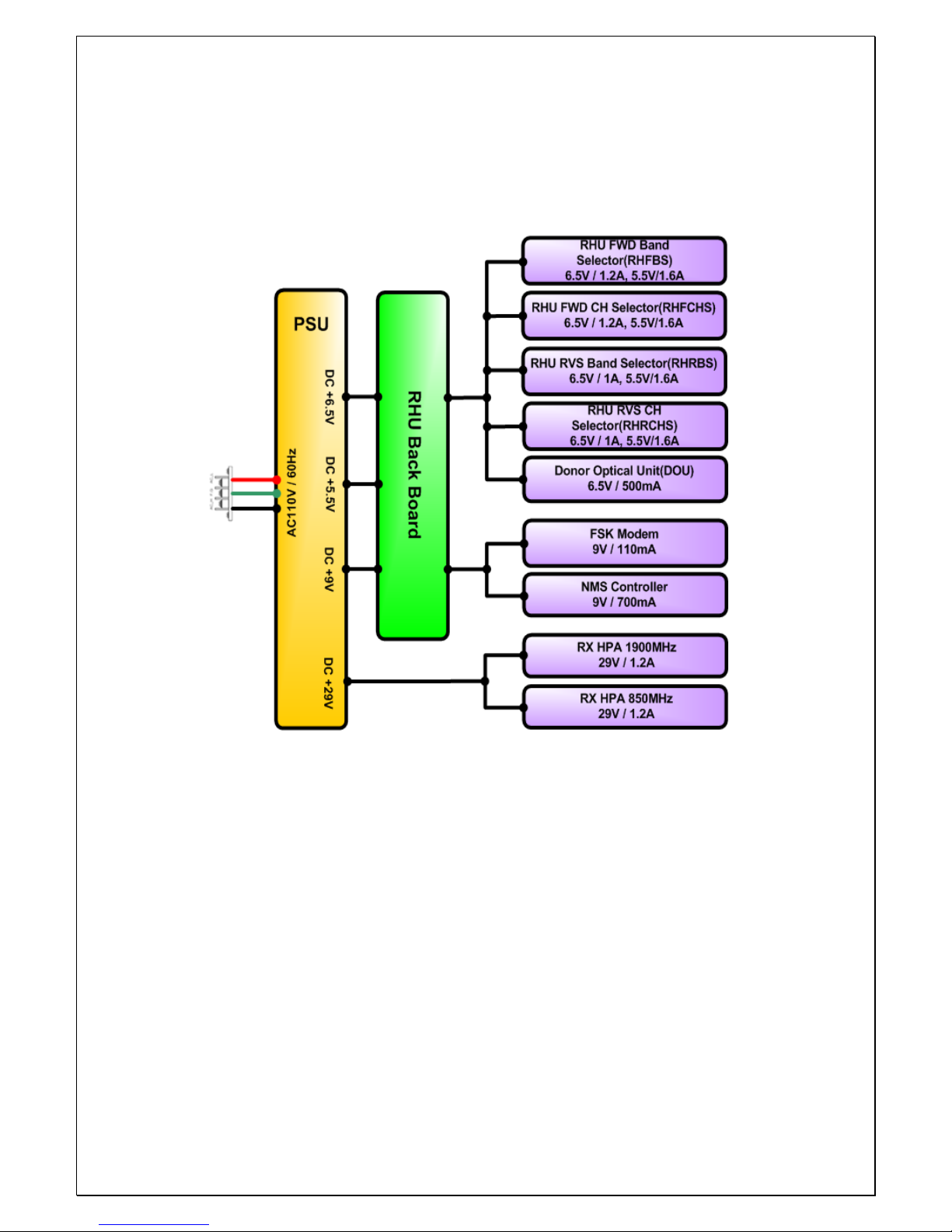

Module operational voltage table
No Module Voltage Used Remarks
1 3-Way Combiner
2 RHU FWD Band Selector for 1900MHz (RHFBS) 5.5Vdc /6.5Vdc
3 RHU FWD Channel Selector for 850MHz (RHFCHS) 5.5Vdc /6.5Vdc
4 Doner Optical Transceiver Unit (DOU) 6.5Vdc
5 RF Modem (FSK Modem) 9Vdc
6 RHU RVS COM for Signal combing (RRCOM)
7 RHU RVS Band Selector for 1900MHz (RHRBS) 6.5Vdc
8 RHU RVS Band Selector for 850MHz (RHRCHS) 6.5Vdc
9 RX HPA for 1900MHz 29Vdc
10 RX HPA for 850MHz 29Vdc
11 FE-Duplexer(Front-End Filter Unit) for 1900MHz
12 FE-Duplexer(Front-End Filter Unit) for 850MHz
13 PSU (AC-DC) AC 110V INPUT
14 NMS Controller 9Vdc

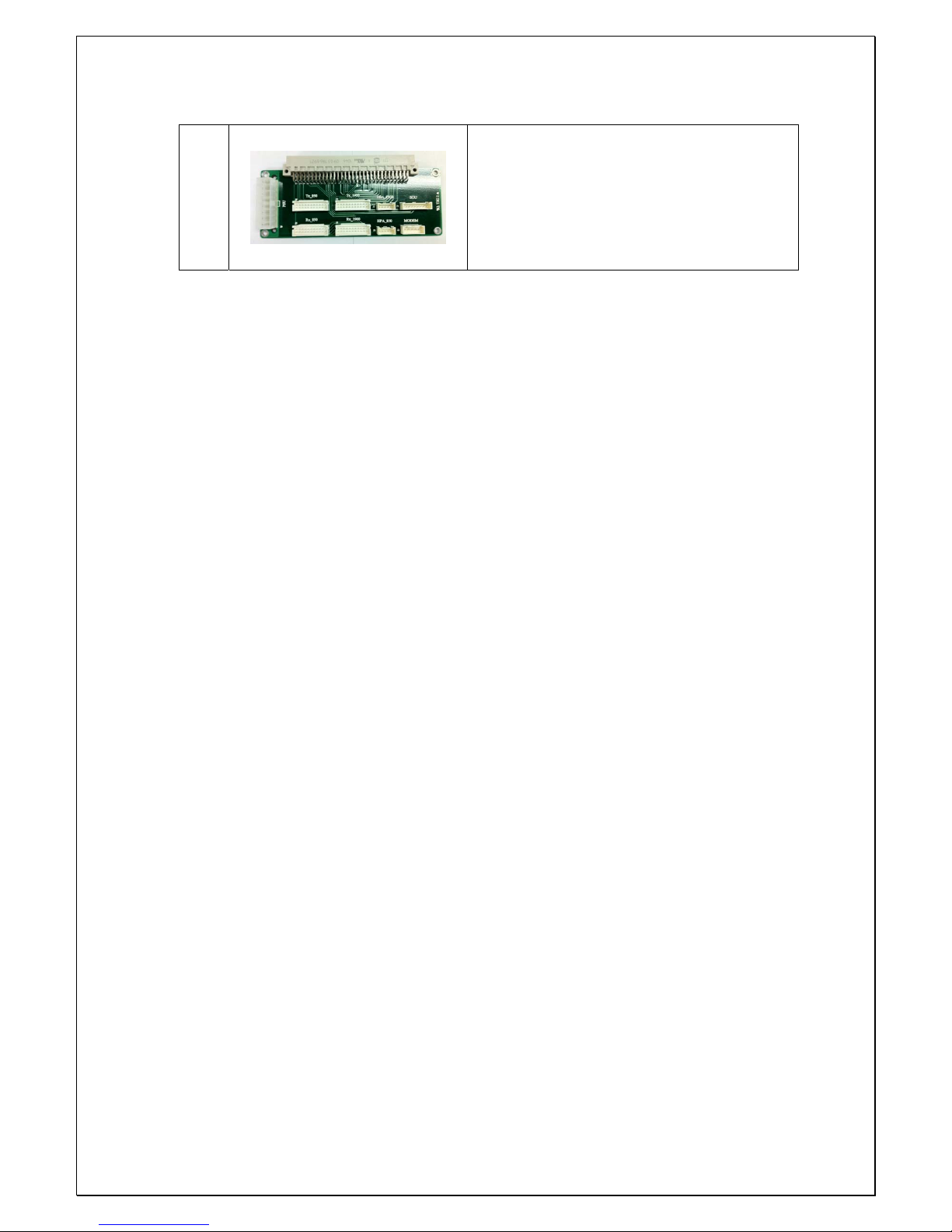

15 Interface Board Ass’y 5.5Vdc /6.5Vdc /9Vdc
13 / 56

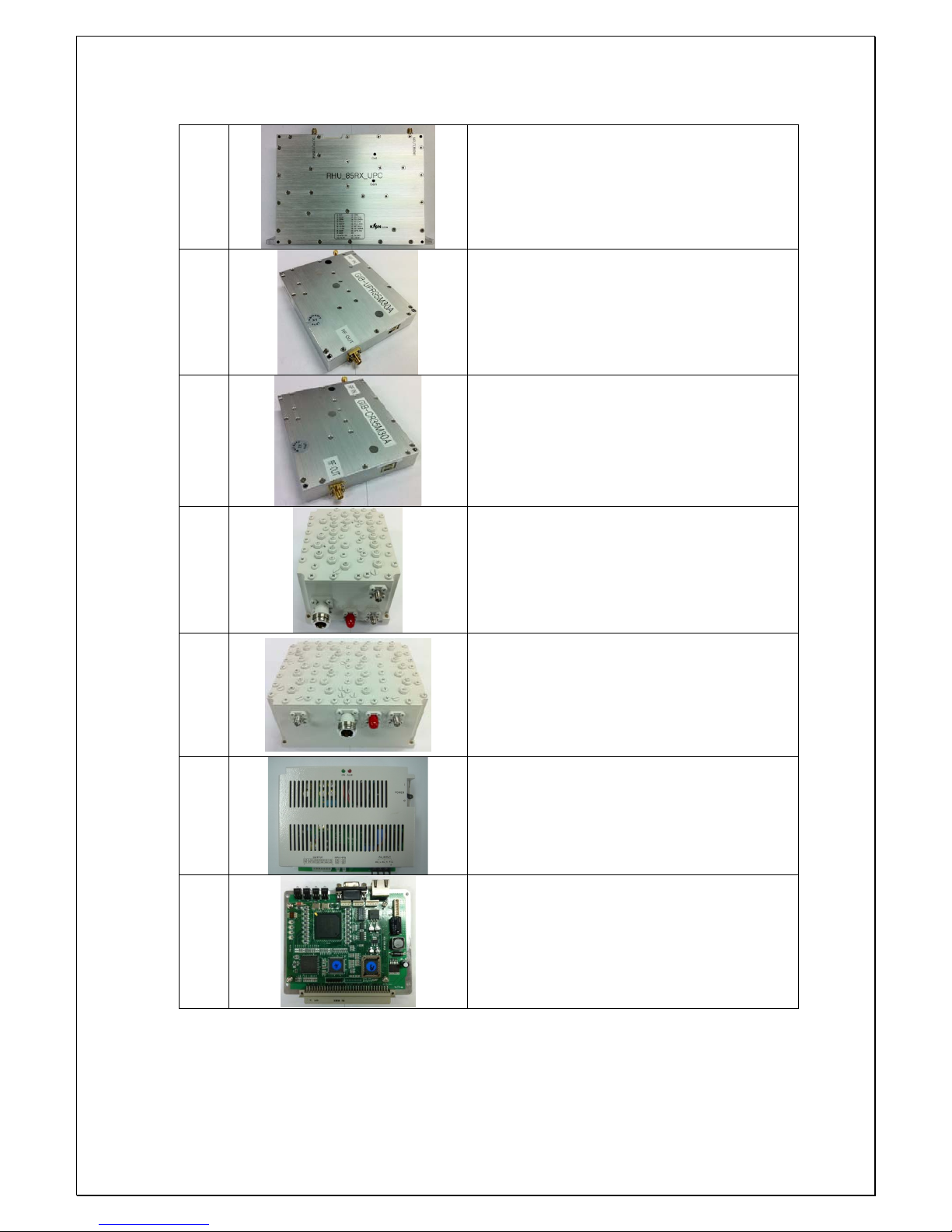

4.1.9. Function of Modules
14 / 56
No Module Description
1
[3-Way Combiner]
Combine signals into RF and modem signals and
sends to DOU.
2
[RHFBS]
Controls the gain of 1900MHz FWD path, filters
FWD band, and performs the ALC function.
Output of the module is sent to 3-Way Combiner.
3
[RHFCHS]
Controls the gain of 850MHz FWD path, filters
FWD band, and performs the ALC function.
Output of the module is sent to 3-Way Combiner.
4
[DOU]
Performs E/O (or O/E) conversion for FWD and
RVS signals.
Wavelength: RX 1550[nm], TX 1310[nm]
5
[FSK Modem]
Data modem for RU and RHU communication
RU → RHU frequency: 340MHz
RHU → RU frequency: 360MHz
6
[RRCOM]
Divide RVS 850MHz, 1900MHz and Modem
signals
7
[RHRBS]
Amplifies RVS 1900MHz signal, filters for the
desirable band and controls the RVS path gain of
RHU.

15 / 56
8
[RHRCHS]
Amplifies RVS 850MHz signal, filters for the
desirable band and controls the RVS path gain of
RHU.
9
[RX HPA 1900]
27dBm High power amplifier that amplifies the
RHU 1900MHz signal by linearizer and sends to
RHU ANT through the 1900MHz FE-Duplexer.
10
[RX HPA 850]
27dBm High power amplifier that amplifies the
RHU 850MHz signal by linearizer and sends to
RHU ANT through the 1900MHz FE-Duplexer.
11
[Duplexer 1900]
Front end duplexer that passes through 1900MHz
desired FWD and RVS frequency bands.
12
[Duplexer 850]
Front end duplexer that passes through 850MHz
desired FWD and RVS frequency bands.
13
[PSU]
Converts AC 110V to DC 29V/9V/6.5V/5.5V, and
distributes the necessary power to each modules.
14
[NMS Controller]
Monitors the status of modules in RHU and
controls the configurable parameters of the RHU
modules.

16 / 56
15
[Interface BD]
Provides operating voltage and monitors/controls
signal to modules connected to interface B’D.
Also provides a connection port to communicate
with NMS B’D.

Power Distribution Diagram
17 / 56

4.2. STR250R01C RU
4.2.1. Mechanical Design
18 / 56

19 / 56

4.2.2. Dimension
RU System picture and Size  471.7(H) X 263.4(W) X 304.8(D) mm
[Side] [Inner Side] [Front/Rear Side]
4.2.3. Mechanical Specification
No Item Description
1 Dimension & Weight
3. Dimension: 471.7(H) X 263.4(W) X 304.8(D) mm
(plinth included)
4. Weight: 26.5 Kg
2 Method of Cooling Natural convection (Heat-sink)
3 Door Locking Type 10 on each side using bolt lock
4 Optic Connector
3. Position: Cabinet inside
4. Connector type: FC/TBD
* Optic cable tray is provided inside of cabinet.
5 ANT PORT 3. located at the bottom side of cabinet
4. Connector Type: N Type Female
6 Power Input
4. Power: 110-120Vac, 60Hz
5. Position: bottom side of cabinet
6. Connector: MS connecter
7 Ground TBD
8 Waterproof condition TBD
9 Misc. Features
4. Easy to maintain
5. Pole mountable (i.e., telegraph pole)
6. Torque hinge used
20 / 56
