KiSS ORCA SPIRIT User manual

MSL 72.161 Jetsam/Orca Spirit manual R.5
KISSREBREATHERS
ORCASPIRIT‐SPIRITLTE‐SPIRITSIDEWINDERMANUAL

2 MSL 72.161 Jetsam/Orca Spirit manual R.5
READTHEMANUAL!!!!
INORDERTOFULLYUNDERSTANDYOURNEWREBREATHER,THECOMPO‐
NENTS,HOWTHEYWORK,HOWTOHANDLEANDTREATTHEM,YOUMUST
READTHEMANUALINFULL,FORYOURREBREATHER.
ORCASPIRITOWNERSSHOULDREADTHEOSMANUAL;SPORTKISSOWNERS
SHOULDREADTHESPORTKISSMANUAL;KISSCLASSIC,&KISSCLASSICEX‐
PLOREROWNERSSHOULDREADTHEKISSCLASSICEXPLORERMANUAL;HOLLIS
EXPLOREROWNERSSHOULDREADTHEHOLLISMCCRCONVERSIONMANUAL,
ANDUSEITINCONJUNCTIONWITHTHEIRHOLLISMANUALS.ANYDIVERWHO
HASUPGRADEDCOMPONENTSTOTHEIRREBREATHERSHOULDBECOMEFA‐
MILIARWITHTHOSECOMPONENTS,ANDRECEIVETRAINING.
THISSHOULDBEDONEPRIORTODIVINGORSERVICINGTHISUNIT!!!SPECIAL
ATTENTIONSHOULDBEPAIDTOALLNOTES&/ORWARNINGS;THEYMUSTBE
READANDUNDERSTOOD!!!!FAILURETODOSO,MAYCAUSESERIOUSINJURY
ORDEATH!!!!
YOUMUSTBEALEGALADULTINTHEAREAINWHICH
YOULIVEINORDERTOPURCHASEANDDIVEAKISSRE‐
BREATHER.
Aswithallscubadivingequipment,your KISS rebreathercomponents should
beservicedannuallybyatrainedtechnician.Forthosedivingfrequently,ser‐
vicingmayberequiredmoreoen.
ALLINFORMATIONINTHISMANUALISSUBJECTTOCHANGE.
Pleasevisitourwebsite,www.kissrebreathers.com
forupdatedmanuals.

3 MSL 72.161 Jetsam/Orca Spirit manual R.5
THISISNOTAJOKE!!
Parcipaoninrebreatherdivingcanresultinseriousinjuryor
deathtoyou,thediver!
ThewarningontheKISSOrcaSpiritrebreatherisnotajoke.Beforebeginningyourdive,
youmustconsidertherisksinvolved.TheKISSOSconsistsofmanyparts.Allofthesecom‐
ponentswilleventuallyfail.Carefulmaintenance,assembly,andtesngwillnotprevent
thisfromhappening.Atbest,itwilldelaythefailure.TheKISSOSisnotautomacinany
way.Itrequiresconstantmonitoring,acompleteawarenessofthepotenalproblemslikely
tobeencountered,andfullknowledgeofhowtodealwithwhateverproblemsmayoccur.If
youdonothaveadequatetraining,equipment,physicalcondioning,andapropermind‐
set,donotgetinthewater.
Thediver,YOU,hasthefinalresponsibilityforhisorherownsafetyandaconswhileusing
this rebreather.  All components of the KISS OS must be in good working order and be
properlyassembledandtestedtoreducetheriskoffailure.Regardlessofthetrainingand
experienceofthediverandthereliabilityoftherebreathertheriskofseriousinjuryand/or
deathcanneverbereducedtozero.
ThismanualisnotacompletetextonthemaintenanceandoperaonoftheKISSOS.The
divermustcompleteapropertrainingcoursecoveringthemaintenance,tesngandopera‐
onoftherebreatherbeforedivingthisequipment.Therebreathercanmalfunconwhile
diving even when properly assembled and having passed all pre‐dive tests. Only carrying
adequatebailoutgasandhavingthetrainingandskillsnecessarytoulizethebailoutsys‐
temcanreduce,butnevereliminate,theriskofequipmentfailure.

4 MSL 72.161 Jetsam/Orca Spirit manual R.5
Photo’s by Jim Abernethy and Doug Ebersole

5 MSL 72.161 Jetsam/Orca Spirit manual R.5
TABLEOFCONTENTS
Specificaons Page6
PartsList P age7
KISSOS“BASIC”Informaon&Instrucons p age8
Unpacking&Disassembly P age11
Assembly P age12
Manifold P age12
Canister’s P
age12
Counterlung’s P
age13
Crossbar P
age14
Cylinder‐Wing/harness P age15
Loophoseballast&BOVorientaon P age16
Counterlungsizing P age16
Automacdiluentvalve‐ADV P age17
QuickDisconnects P age18
MAVplacement P age19
Diluentcylinderandtheoff‐boardgasaccessorywhip Page19
FillingtheScrubber&duraon P
age22
Posive/NegaveTesng P
age23
SensorInstallaon,thesensorheadanddisplayopons Page26
SensorInformaon P
age29
Calibraon&DisplayWarning P age30
KISSPPO2display‐CrystalMonitor1 P age31
CareforFischerConnectors&Cables P age32
Shearwatercomputers P age33
ShearwaterHUD P age35
ManualAddValve/MeteringOrifice P age38
AdjusngtheOxygenFlowRate P
age40
ManualAddValveTroubleShoong P age42
ExhaustValve/ADV/WorkofBreathing P age43
MouthpieceDisassembly(DiveRite&Apeks2ndstage) Page46
Mouthpiecepartslist(DiveRite&Apeks2ndstage)  Page47
MouthpieceReassembly(DiveRite&Apeks2ndstage) Page48
MouthpieceTesng P age49
MouthpieceServicing&Troubleshoong P
age50
Pre‐diveChecklist’s P
age52
Warranty P
age56
InformaonSheet P age57
SpiritLTEaddendum P age59
SpiritSidewinderaddendum P age65
KISSMinimumTrainingStandards P age70
KISSEvaluaonForms P age95
HOLLISMouthpieceManual P age108
RESARecommends P age126

6 MSL 72.161 Jetsam/Orca Spirit manual R.5
SPECIFICATIONS:KISSORCASPIRIT
 Weightoftheunitcompletelyassembledwithwing&harness,andfullscrubbercanister’sis42lb/19g.Thetravelweight(no
absorbentdeduct5.3pounds/2.4g)isabout37lb/16.7g.
 Theweightoftheunitwithoutthecylinderandnoabsorbentis28lb/12.7g.Thiswouldbetheweightofthesystemforflying
withoutthecylinder.
 Theheightoftheunitreadytodiveis23inches/58.4cm.Ifthecrossbarwasremovedfortravel,thentheheightmeasures
20inches/50.8cm.
 Thewidestpartoftheunitisthecylinderwhichis13.4inches/34cm.Thewidthoftheunitwiththecylinderremovedis10
inches/25.4cm.Thisisthewidthofthetopplatewhichisthewidestpoint.
 Thedepthoftheunitwiththescrubbercanisterssecuredtotheframeis5.5inches/14cm.Ifthecylinderisincludedinmeas‐
uringthedepth,thenthedepthis6inches/15.25cm.Thosethatwishtoknowthepackingdepth,add3to4inches(7.6to
10.16cm)forthewingandharness.
 PLEASESEEOURPARTSLISTONTHENEXTPAGEFORAFULLLISTOFWHATISINCLUDEDANDWHATISNOT.
 ItisamechanicalrebreatherwhichaddsO2connuouslybyafeedorificeandmanuallyasneeded.
 CompablewithTrimix.
 Scrubberholds6.2lb(2.8kg)ofSofnolime408gradeabsorbent(differentbrandsmayhavedifferentweights)
 Thecylinderis14cuandholds3000PSIofpressure.
 TheKISSOrcaSpiritisaclosedcircuitrebreatherdesignedforrecreaonalandtechnicalsportdivingtothedepthof300feet
(91meters).Propertraining,outsidethebasicKISSrebreathercourseisrequiredforanydeeportechnicaldiving.Forsome
typesofdiving,extragearmustbecarriedoralternategearconfiguraonswillberequired.Ensureyouhavethepropertrain‐
ing,gasesandgeartoconductyourplanneddive.
 Abailoutsystemisrequiredforalldives.Thebailoutsystemshouldbeappropriateforthedivethatisplanned.KISSRe‐
breathersstronglyrecommendsthatasecondstageregulatorisaachedtothebailoutfirststages,usingaLPhose.KISSdoes
notrecommendusingquickconnectsonregulatorhoses,whichhavearegulatoraached.

7 MSL 72.161 Jetsam/Orca Spirit manual R.5
PartsList
1KISSOrcaSpirit‐BASICincludes:
 1stainlesssteelstandwhichincludes:3Fastexclamps,2wingaachmentbolts,2Fenderwasherswithnuts,manifoldwith
adjustmentsetscrew,1offboardaccessorywhiprebreatherside,1ADVLPhosewithelbow,1winginflaonLPhose.
 1cylindersideoffboardaccessoryforthediluentcylinder.
 1gasaddionscrubberheadwhichincludes:1scrubberheadelbow,1automacdiluentvalve(ADV),1hoseaachmentquick
connecttower,1indexingmark,1threadedring,4springs.
 1sensorscrubberheadwhichincludes:1portforthemaindisplay,1portforasecondarydisplay,1hoseaachmentquick
connecttower,1indexingmark,1threadedring,4springs,1sensoraachmentplate,1bronzenut,1exhaustvalve,3display
wiresetswithmolexpinsandplug.
 2scrubbercanisterswhichincludeforeachcanister:Basewithaachedscreen,topscreen.
2 loop hoses
 1ManualAddValve(MAV)setwhichincludes:1MAV&filter,2oxygenratedLPhoses.
 1KISSOScylinderandvalve.
 1KISSOScover‐oponsavailablearetheskeleton(SSframe),blackABS,orthe1/2sizeindustrialcover(SS).
 1Wing&harnesssystem
Counterlung
 1delrinplugfortheoxygenfirststage.
 2quickconnecthosestubswith2hoseclamps(tosecureloophosestotowers)
1 thumb drive with manuals and information
DISPLAYOPTIONS
 Nodisplay,nodisplaycable,noFischercable.
 Fischercableonly.ThisishardwiredtotheSensorhead.
 FischercableandShearwaterPPO2onlydisplay.(Cableishardwiredtothescrubberheadanddisplayisfiedtocableviaa
Fischerconnector.
 FischercableandShearwatercomputer
 ShearwaterHWPPO2displayandcable.(Allhardwired;noFischer’s)
 SecondarydisplayoponsmayincludePPO2display,computerorHUD.
Notincluded:
 Displaysystemandcable.Seeaboveforopons.
 Mouthpiece(BOV),LPregulatorhose,2quickconnecthosestubs,and2hoseclamps
 Stainlesssteelballastringsfortheloophoses.Ourringsare.13lbeachforatotalof1.04lb’swhenusingourrecommended8
rings.
 OxygenfirststageandOPV
 Sensors
 Swivelelbows,HP&LP
 SparepartssuchasO‐ringkits.Seethebackofthemanualforalistofrecommendedspareparts.
 Diluent/bailoutregulatorset
 Diluent/bailoutcylinder
 Pressuregauges

8 MSL 72.161 Jetsam/Orca Spirit manual R.5
KISSOrcaSpiritBASICRebreatherKit
INFORMATION&INSTRUCTIONSFORKEYUPGRADECOMPONENTS.
Asrebreather’sarebecomingmoreandmoremainstreaminthediveindustry,weareseeingmanynewdealersand
diversinterestedinourproducts.Oneofthepopularrequeststhatwegetis‐canIbuyaKISSrebreatherwithoutthe
mouthpiece?Anotheroneis‐canIbuyaKISSrebreatherwithoutthefirststage?Well,theanswerisYES!!
BasedoncustomercommentsandrequestswehavesetuptheKISSOSpricingstructuresothatdealersanddiversmay
personalizetheirunits!TheKISSOSBASIC,isabarebonessystem.DealersanddiverscannowaddontheKISScompo‐
nentstheywishtobuy,andsupplythebalanceofthekitthemselves!
Thismeansthatdealerscannowpersonalizetheunitsfortheircustomersandprovidetheirownfirststages,LP&HP
hose’s,&BOV’s(rebreathermouthpiece).
Shoulddealersanddiverswishtopurchasesomeofthecomponentsfromus,theycanpickandchoosewhatthey
wouldlike.SeetheKISSOSpricesheetsforacompletelist.
*NOTE:Theupgradepricesarepricesthatarediscountedfromtheregularpartspricing.Thispricingisonlyvalidat
themetherebreatherisordered,andmustbeincludedontheoriginalinvoicefortherebreather.
*NOTE:TheDealer’sKISSinstructormustbeauthorizedtoassembletheKISSOSBASICkit.IftheshophasaKISS
Instructoronstaff,theSalesAgentmayauthorizethisinstructor.
IftheshopdoesnothaveaKISSinstructoronstaff,thentheshopmusthaveaKISSRebreatherInstructorwhoisau‐
thorizedtoassembletheKISSOSBASICkitorSalesAgentonretainerinordertoproperlyassembletheunitbefore
use.
REQUIREDREADING
*WARNING:ItisextremelyimportantthatdealersanddiverswhoopttopurchaseaKISSOSBASICrebreatherkit,
understandtheimportanceofthevariouscomponentsthattheymustaddontotheirsysteminordertomakeit
complete.Failuretodoso,maycauseinjuryordeath.
TheseconscoveredinthefollowingtwopagesarefortheBOV(rebreathermouthpiece),theloophoseballast
rings,andtheoxygenfirststageregulator.ThesepagesarerequiredreadingforallKISSOSBASICrebreatherpur‐
chasers.

9 MSL 72.161 Jetsam/Orca Spirit manual R.5
BOV‐BAILOUTVALVE

TheBOV,orrebreathermouthpiece,isakeycomponentontheKISSOSdivingsystem.Shoulddiverschoosetosource
theirownBOV,itisextremelyimportantthattheychooseaproductfromareputablecompanyandthatitcomesfied
withabailout2ndstageregulator.Theintegrated2ndstageregulatorisakeysafetycomponentforthediver.

Shouldthedealerordiverchoosenottouseabailouttyperebreathermouthpiece,thewarrantyonthatdivingsystem
willberevoked.Wecan’tstressenoughtheimportanceofthisfeature.

RequiredParts:

TheKISSOSBASICwillshipwiththeloophoses,aswellasthepartstoaachthesehosestothescrubberhead’s.The
customerwillneedtopurchaseaBOV&partswithwhichtosecurethemouthpiecetothesehoses.

ItisimportantthatwhenchoosingamethodtosecuretheloophosestotheBOV,thattheBOVcanberemovedeasily.
ThisisimportantastheBOVmushroomvalves(valvedisks)mustbeinspectedpriortoeverydive.

LOOPHOSEBALLASTRINGS

Theballastringsmayseemlikeaninsignificantpartoftherebreatherbutinrealitytheyareanimportantpartofthe
divingsystem.Havingeithertoomuchortoolileweightontheloophoseswillcausemuchdiscomfortandstressto
divers.

WhentheballastissuppliedbyKISSRebreathers,8rings,4perside,areused.Thetotalweightofourballastringsare
1.04lb;or.13lbeach.ThisisimportantinformaonasotherSSringsonthemarket,whilelookingverysimilar,areac‐
tuallyalighterweight.Ifyouchoosetousetheserings,ensurethatyouknowwhatthetotalweightwillbeandthat
youpurchaseenoughofthem.

Therearealsootherballastsystemsonthemarket.Again,becertainthatyouknowwhatthetotalweightofthose
systemswillbe.

Goodfeaturestowatchforinaballastsystemistheabilitytomovetheweightupordownthehoses,whileunderwa‐
ter.ThisiswhySSringsworksowell;theyareeasilymovedduringthedive.Itisimportanttobeabletomovethem
duringthediveasthisistheonlymethediverwilltrulyknowiftheweightisproperlyposioned.Movingtherings
upordownslightlycanmakeadifferenceinthecomfortofthediver.

OXYGENFIRSTSTAGEREGULATOR

Theoxygenfirststageregulatorislocatedontheboomoftherebreatherandissecuredtotheonboardcylinder.

Dealersanddiversthatchoosetousetheirownfirststagesmustchooseafirststagefromtheapprovedlistbelow.

Priortofinalassemblyoftherebreathertheoxygenfirststagemustbemodified.Thetopringofthefirststagemust
beremoved,theenvironmentalplugandsealremovedandtheKISSdelrinplugwithO‐ringinserted.Todothis:

 Loosenthetopringofthefirststage.
 Tipthefirststageoverandtheenvironmentalplugwillfallout.
 Thetopringhasasealinsertedintoit;useyourfingerstopushitoutandremoveit.
 LubricatetheO‐ringwithoxygencompablegrease,andensureitissecuredtothedelrinplug.

10 MSL 72.161 Jetsam/Orca Spirit manual R.5
 Pushthedelrinplugfirmlyintoposion.
 Securethetopringtothefirststagebody.Whileturningthetopringin,youwillneedtopushthecentreofthe
delrinplugtoholditfirmlyinposion.Ifyoudon’tdothis,thedelrinplugwillwanttopushupandoutmakingit
difficulttosecurethering.
 Ensurethattheringisproperlysecured.

Oncethedelrinplughasbeeninstalled,anOPVwillneedtobeinsertedintooneofthelowpressureports.TheOPVis
animportantpartofthefirststageregulatoranddiversshouldnotdivetheKISSOSwithoutonepresent.

ItisimportantthatboththedelrinplugandtheOPVbeproperlyinstalledontheoxygenfirststage.Ifthedelrinplugis
notinstalledtheoxygendeliverysystemontheOSKISSwillnotworkproperly!

Approvedfirststageregulator’s:

 DiveRite‐RG1208ICEwithenvironmentalkit
 Apeks‐DS4withenvironmentalkit








*WARNING:ITISVERYIMPORTANTTHATTHESEINSTRUCTIONSARECAREFULLY
FOLLOWED.THEPROPERBOVMUSTBESELECTEDFROMAREPUTABLECOMPA‐
NYWHICHHASANINTEGRATED2NDSTAGEFORBAILOUT.ASWELL,THEAP‐
PROPRIATEAMOUNTOFBALLASTFORTHELOOPHOSESMUSTBESECURED.
THEDELRINPLUGMUSTBEPROPERLYINSERTEDINTOTHEOXYGENFIRSTSTAGE.
OPV’SMUSTBESECUREDTOTHEOXYGENFIRSTSTAGE.FAILURETODOANYOF
THESE,MAYCAUSEINJURYORDEATH!

11 MSL 72.161 Jetsam/Orca Spirit manual R.5
Unpacking&Disassembly
Congratulaons!YouhavejustreceivedyourKISSOrcaSpirit;thefirstthingtodoisen‐
surethatallthepartsyouordered,areincludedinthebox.Asyouknow,theKISSOScan
beshippedeitherastheBASICunitorwithvariouscomponentsadded.Pleaseseethe
previouspartspageforalistofwhatisincludedwiththeBASICkit,andwhattheoponal
extrasare.Gothroughtheboxandensurethateverythingthatyouorderedhasarrived.
Smallitemscanbelostinbubblewrapsoensurethatyoulookcarefullyinthepackingma‐
terialalso.

TheOSshipswithalltheO‐ringsinstalledandtheunitisassembled.Thefollowinginstruc‐
onsarefordisassemblingtheOS.

 Removethebackcover.Removethewing/harnessfromthefrontoftheunit,byloos‐
eningthefing’s,andsengthemaside.Thecounterlung’swillslidethroughthe
slotsandstayaachedtotheunit.

 YouwillseethattheSensorHeadissecuredtotheScrubberCanisterusingathreaded
ring.LoosentheSensorHeadbyturningtheringle.Oncetheringhasbeendisen‐
gaged,pulltheheaduptofreeitfromthescrubbercanister.Theringwillspinfreely
onceclearofthethreads.

 OntheGasAddionHeadyouwillseethatthereisaLPhoseaachedtoanelbow
securedtotheAutomacDiluentValve‐ADV.Loosen&removetheelbowfromthe
ADV,andthenloosentheringfromtheScrubberCanisterandpulltheheaduptoremoveit.

 InsidetheScrubbercanisteryouwillseethesecuringscreens.Pullthemoutandlaythemaside.

 Loosen&removethefirststageregulatorfromthecylinder.(ifordered)

 LoosentheFastexclampwhichissecuringthecylinderandremovethecylinder.

 Youwillseethat2blackcircclipsaresecuredtothecrossbar,andaachedtoeachotherbyalengthoftwine.
Pullthecircclipsoutoftheirslotsandsetaside.

 Thecrossbarcannowbepulledfreefromtheboomofthescrubbercanister.Whileholdingthecanisterfirmly,
pullthebarstraightdown.

 Thecounterlung’saresecuredtothecrossbar.TurntheCLringstoloosenthelungsandpullthemoffthebar.Set
aside.

 LaytheOSdown,scrubbersideup.LoosentheFastexclampssecuringthecanistersandremovethem.

 TheBOVwillbepackagedseparately(ifordered),alongwiththeloophoses.

 Thedisplaywillbepackagedseparately(ifordered),howeverifthecableisordered,itwillbesecuredtothe
scrubberhead.
Theunitisnowdisassembled.Furtherseconsofthismanualwilldiscuss,assembly,scrubberpacking,sensorinstalla‐
on&displays,andtroubleshoong.

12 MSL 72.161 Jetsam/Orca Spirit manual R.5
Assembly
ThisseconwilldiscussthefullassemblyofyourKISSOS;Itassumesyourscrubbercanisterhasbeenfilledandisready
todive.Thenextseconwilldiscussscrubberpacking.
O‐RingInstallaon:
Asmenonedearlierinthemanual,alltheO‐ringsfortheKISSOShavebeeninstalled.Aseachseconisdiscussed,O‐
ringplacementwillbemenonedwhenrequired.Atthebackofthismanualyouwillfindarecommendedspareparts
sheet.ThereyouwillfindalistoftheO‐ringnamesandwhatkitconfiguraonsareavailable.
Aswithanypieceofscubadivingequipment,thevariouscomponentsandO‐ringsshouldbecheckedannually,and
servicedasrequired.Forthosedoingextensivediving,thevariouscomponentsandO‐ringsshouldbecheckedmore
frequently.ServicingofyourKISSOScanbedonebyyou,yourdealer,orthepartscanbereturnedtous.
*NOTE:ALLO‐RINGSSHOULDBELIGHTLYLUBRICATED!!DONOTUSEEXCESSAMOUNTSOFLUBRICANT;THEO‐
RINGSSHOULDONLYBESLIGHTLYSHINY.
Inspect:
Withtheunitstripped,firstinspectallLPhoses,fings,themanifold,andcomponentsaachedto
theframeoftheunit.Ensurethattheyareinproperworkingorder,thattheLPhosesarenotdam‐
aged,allconneconsareght,threadedrodsarestraightandcleanandnothingisdamaged.

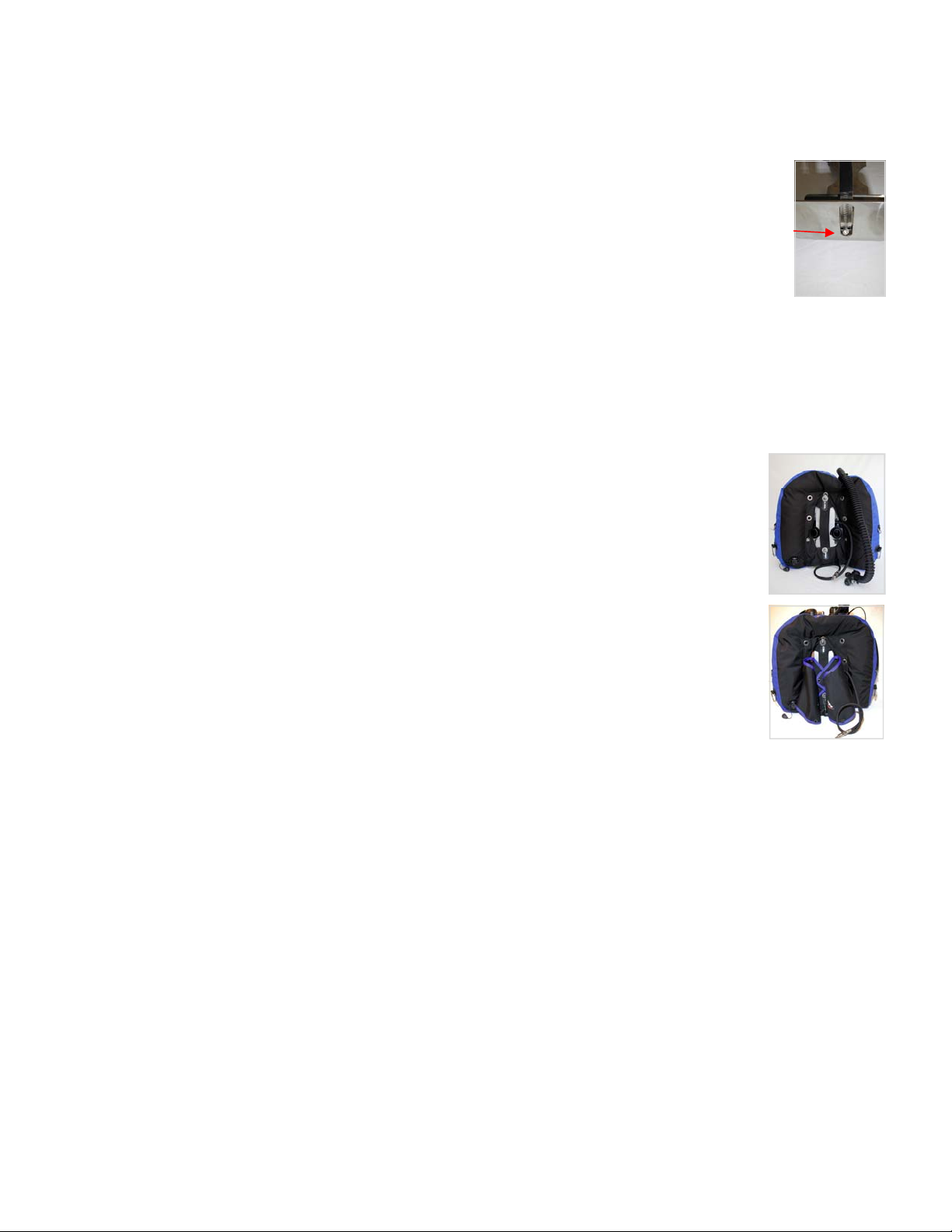

Manifold:
Youwillseethemanifoldlocatedinbetweenthe2scrubbercanister’sonthebackoftheunit.During
assemblythemanifoldandLPhosesneedonlytobeinspectedpriortodiving.
IfyouarerequiredtochangeoneoftheLPhoses,thescrubbercanister’swillneedtoberemoved
fromtheunitsothattheareaisaccessible.Inordertomakeiteasiertoworkwiththesehosesaset
screwhasbeenplacedwhichlocksthemanifoldinplace.Youcanseethesetscrewonthefrontof
theplatewhenthewing/harnessisremoved.Seephoto.
Simplyloosenthesetscrewslightlyandthemanifoldcanbemoved.Becertaintoslidethemanifold
backtoitsoriginalposion,andtoghtenproperlywhenfinished.
TheLPhosessecuredtothemanifoldareasfollows:
 Boom:ThisistheOff‐BoardAccessorywhichisconnectedtothesidemounteddiluent(bailout)cylinder.ThisLP
hoseis30inch.
 Topofmanifold,backright:ADV,9inch
 Topofmanifold,backle:Winginflaon,30inch
 Topofmanifold,frontcentre:BOV,32inch(includedwhenBOVisorderedfromKISS)
Canisters:
 Atthispoint,yourscrubbercanistersarefull,withtheheadssecured.(seethe
scrubberfillingseconforfilling&headplacementinstrucons)

13 MSL 72.161 Jetsam/Orca Spirit manual R.5
 SlidetheGasAddionhead&canisterthroughtherightFastexclamp;thiswillbeonthediversrightsidewhen
wearingtheunit.ThisistheExhaleside.NotewheretheIndexingMarkislocated.Turnthecan‐
isterunlthismarkislinedupfacingtheothercanister.Placecanisterafewincheshigherthan
whereitwilllikelysit.TightentheFastexclamptosecurethecanisterinthisposion;itwillbe
properlyposionedaerthecrossbarissecured.

*NOTE:ThetwoIndexingmarksshouldfaceeachother.Thiswillensurethatthetowersonthescrubberheadare
properlysituatedforloophoseplacement.

*NOTE:TherightsideGasAddionHeadistheExhaleside;thelesideSensorHeadistheInhaleside.

 SlidetheSensorhead&canisterthroughtheleFastexclamp;thiswillbeonthediverslesidewhenwearingthe
unit.Thisistheinhaleside.NotewheretheIndexingMarkislocated.Turnthecanisterunlthismarkislinedup
facingtheothercanister.Again,placethecanisterhigherthenwhereyoufeelitshouldsit.;itwillbeproperly
placedoncethecrossbarisinplace.TightentheFastexclamptosecurethecanisterinthisposion.Ensurethat
theexhaustvalveisghtenedalltheway.

Counterlung’s:

 Inspectthecounterlung’s.Mostdivers(veryfewwilluseadifferentsize)willbeusinga4&4litercounterlung.En‐
surethattheyhavebeenproperlycleanedandarereadytouse.
 Firstwipeandcleanthesealingareaontheinsideofthelung.Thenapplyavery
lightamountoflubricanttothisarea.
 Nextwipeandcleanthecounterlungaachmentwhichissecuredtothecrossbar.
Whileyouhaveinspectedthecrossbarintheaboveprocedure,youshouldinspect
theO‐ringsareasagainpriortoinstallaonofthelungs.ApplylubricanttotheO‐
ring’s.Whileapplyingthelubricant,doublecheck
 thattheO‐ringsarenotdamagedorindented.Ifyoufeelanindentorother
 damagewhileapplyingthelubricant,changetheO‐ringforanewone.

*NOTE:FOREASEOFATTACHMENT,AVERYSMALLAMOUNTOFLUBRICANTCANBEAPPLIEDTO
THEINSIDEOFTHECOUNTERLUNGOPENING.

3. Pushthecounterlungontothecounterlungaachment;youwillneedtopushfirmly.
Asyoupushthelunginplace,youwillfeelacircularflangewhichisattheperimeter
ofthelungopening.Pushfirmlyonthisflange.Itisimportantthattheyarepushed
allthewayonandarestraight.Whenthisisdonecorrectly,theretainingringwilleas‐
ilyengagethethreadsonthelung.Ensurethatthelung’sarefacingthecorrectdirec‐
on;visualizethebaraachedtotheunit;thelungsshouldwraptowardstheout‐
side/frontoftheunit.Theaachmentring’sshouldspinfreelytosecurethelung’sin
place.Whenthering’saresecurethereshouldbean1/8inchgapinbetweenthering
andfaceofthecounterlung,andthegapshouldbeevenlyspaced.
4. Forthosediversusing2&4litercounterlung’s,thelargerlungshouldbeontherightside
andthesmallerlungontheleside.Donotapplyexcessforcewhenghteningthering.
Itisnotrequiredandtheringwillbreak.Usingatooltoghtenthisringusuallyresultsindamageor
breakagetothering.
5. Placethecrossbar&counterlungassemblyonthebackoftheunit,whereitwillsit,andfeedthecounter‐
lung’sthroughtheslotsonthewingassembly.Atthispointthecrossbarisnotyetsecuredtotheunit;
youareonlyposioningitandensuringthecounterlung’sareproperlyplacedandposioned.Following
thisprocedurewillensurethatnofabriciscaughtwhensecuringthelungstothecrossbar.Thiscould
happenifthecrossbarwasfirstsecuredtothecanister’sandthenthelungsaached.

14 MSL 72.161 Jetsam/Orca Spirit manual R.5
**NOTE:KISSOSdiverswhoarefamiliarwiththeKISSClassicdivingsystemshouldbeawarethatthecounterlungsizes
usedontheClassicwillnotbethesameasontheOS.
□Diversthatuseda2&4litersetontheClassicwillusea4&4litersetontheOS.
□Mostdiversthatused2&2literontheClassicwillusea4&4literset;withasmallminorityrequiring
  2&4litersetontheOS.
□Mostdiversthatuseda4&4litersetontheClassicwilllikelysllbeabletousea4&4literset,
 howeverthosewhohaveanexceponallylargelungvolumemayneeda4&6litersetontheOS.

DiversneedtounderstandthattheribwraplungsystemontheOSisdifferentfrombackorshouldermountedlung’s
onotherunits.Diver’sareeasilyabletopersonalizethesizeoftheir4&4ltrlungssimplybylooseningorghteningthe
strapsystemandshouldbepreparedtomakeadjustments.Theyshouldneverbetooghtsoastorestrictbreathing.

Diver’smayrequirethesmallerlungsetof2&4literduetothesizeofthelungswrappingaroundthediverstorso.A
verysmallpersonmaynotbeabletoproperlyfastenthe4&4literlungs.Thisiswhytheywouldusea2&4literconfig‐
uraon.Ifthe4&4counterlungsetcanbeproperlysecuredtothediver,andthelungvolumeisnottosmall,thenthis
iswhatwerecommend.

*WARNING:ITISIMPORTANTTHATTHELUNGSAREPROPERLYSECURED
TOTHECROSSBAR&THENPROPERLYTHREADEDTHROUGHTHEWING.
THEYMUSTALSOBEPROPERLYSECUREDUSINGTHECLIPATTHEDIVERS
WAIST.IFTHELUNGSARENOTSECURED,THEYWILLFLOATUPAND
BREATHINGWILLBEDIFFICULT.ENSURETHATTHELUNGSAREPUSHEDONSTRAIGHTAND
THATTHERINGSARENOTOVER‐TIGHTENEDASTHEYWILLSPLIT!!

Crossbar:

 Thecrossbarmaybeinstalledeitherbeforethecylinderissecuredoraer.Notethatitis
easiertoinstallthecrossbarAFTERthecylinderissecuredasitwillgiveyouareference
pointandaidintheinstallaon.

 Inspectthecrossbartoensurethatitisnotdamaged.Also,ensurethatitiscleanandready
toinstallontheunit.ThereisadoubleO‐ringsealwherethebarsecurestotheboomofthecanister.

1. Firstwipeandcleanthesealingareaontheboomofthescrubbercanisters.Thenlubricantthesealing
areawell.
2. NextwipeandcleantheO‐ringareasonthecrossbar.ThenlubricatetheO‐ringswell.Whileapplyingthe
lubricant,doublecheckthattheO‐ringsarenotdamagedorindented.Ifyoufeelanindentorotherdam‐
agewhileapplyingthelubricant,changetheO‐ringforanewone.
3. Insertthecrossbarintotheboomofthescrubbercanister’s.Thepropertechniqueistopushuponthe
crossbar,pushingitintotheboomofthecanisters,andwhiledoingthisinsertthecircclips.
4. Ifyousecuredthecylinderfirst,thenitiseasiertoaachthecrossbar.Theprocedureforthisisthataer
youinsertthecrossbarintotheboomofthecanister’s,youmaypushdownonthecanister’swhichwill
causethecrossbartopushagainstthecylinderenablingyoutoeasilyinsertthecircclips.Todothis,en‐
surethattheFastexclampsareloose.
5. Oncethecrossbarhasbeensecuredtothecanister’sandthelungsaresingcor‐
rectly,thecanistersmaymovedtotheirfinalposion.LoosentheFastexclamp’s,
iftheyarenotalready,andposionthecanister’sproperly.Ifthecylinderisnot
alreadyinplace,youmaywishtowait;Itwillbemucheasiertoproperlyplacethe
assembly.Re‐aachtheADVLPhosetothegasaddionhead.Thismaybefinger
ghtormaybelightlysecuredwithawrench.

15 MSL 72.161 Jetsam/Orca Spirit manual R.5
Cylinder:
 Thisstepoutlineshowtosecuretheoxygencylindertotheunit.Priortothisthedivershouldensurethatthecyl‐
inderhasbeenfilled,andthatthegashasbeenanalyzedandconfirmedtobeoxygen.Diver’sshouldalwaysana‐
lyzetheirowngassotheyarecertaintheyknowwhattheyarediving.
 Thecylinderplacementareaisattheboomofthestainlesssteelstand.Itisdesignedtoworkwith
aSSFastexclamp.TheFastexclampissimilartoahoseclampbutismucheasiertouse.Thesizeof
theclampispre‐setatthewarehouse.Toopenandclosetheclamp,simplyusethelever.Ifforany
reasonyouneedtoadjustthesizeoftheclamp,useeitheranutdriverorscrewdrivertomakethe
adjustment;seephoto.
 SlidethefilledcylinderintotheFastexclampattheboomoftheunit,withthecylindervalvefacingthe
right.
 Turnthecylindersothatthevalveopeningisfacingthediversback.Thisensuresthatthefirststagewill
sitproperlyandthehosesarecorrectlyaligned.
 Securethefirststagetothecylinder.
 Opencylinderanddoublecheckthepressureonthepressuregauge.Closecylinder.
 Doublecheckthatthescrubbercanister’sandcrossbarareproperlyposioned,andad‐
justasnecessary.Alsodoublecheckthatthecounterlung’saresllproperlysituated
andnotbuncheduportwistedinanyway.DoublecheckthattheADVLPhosehasbeen
securedtothegasaddionhead.
Wing&Harness:
 Thefinalstepistosecurethewing&harnesssystem.DuetothedesignoftheKISSOSRibWrap
counterlung's,wehighlyrecommendtheuseoftheKISSOSwing&harnesssystem.Itisim‐
portantthatthewrappedcounterlung'sarecorrectlyposionedandnotconstrictedinanyway.
 Firstnotewherethe2threadedrodsarelocatedonthefrontofthestand.Youwillsee
thatthereareseveralholesinwhichtherodmaybesecured.Ifthisisthefirstmeyou
aredivingtheKISSOSyoumayneedtosecurethewing&harnessandthentrytherigon
todetermineiftheunitneedstobemovedupordown.Ideallythetopoftheunit
shouldbejustatoraboveyourshoulders.
 Ifyouneedtomovethethreadedrod,thismustbedonepriortoassemblingtheunitasboththecanisters
andcylindermustberemovedtodothis.YouloosentherodbyusinganAllenkey,accessedonthescrub‐
bersideoftheunit.Placetherod’swhereyouwishthemtobeandthenghtensecurely.
 Slidethewing&harnessoverthethreadedrod,pullingthecounterlung’sandtheoffboardgasaccessory
whipthroughtheslotsandensuringtheyareproperlysituated.Youwillseethatthewingcanbeslidupor
down;placeitwhereitsuitsyouandthenplaceafenderwasherovertherodandfinallysecurewiththe
nut.Tightensecurely.Notethosethatareusingasobackplatewillneedtosecurethestabilizingplate
ontopoftheharness.Itisrequiredtomaketheharnessfitfirmlytotherebreather.
 Oncethewing&harnesshavebeenaached,ensurethatthelungsareflatandsmooth,wheretheyslide
throughtheslot.Alsoensurethattheyarenottangledintheharness.Seephoto.
 Ensurethatthethreadedrodisnotdamagedinanyway.Ifitis,thewingandharnessmaynotbesecure,
causingafailure.Becertaintoinspectthesepartspriortodiving,andreplaceasrequired.
*WARNING:ITISIMPORTANTTHATALLKISSOSO‐RINGSAREINGOODCONDITION,THAT
THECOMPONENTSDISCUSSEDPRIORANDAFTERTHISWARNING,ARENOTDAMAGEDAND
THATTHESEALINGAREASARECLEAN.IFTHEYAREN’T,THEO‐RINGSMAYLEAKCAUSING
THEREBREATHERTOFLOOD.THISMAYLEADTOSERIOUSINJURYORDEATH!!!

16 MSL 72.161 Jetsam/Orca Spirit manual R.5
LoopHoseBallast&MouthpiecePlacement:

Whilethepurchaseoftheloophoseballastsystemisoponalwhenpurchasingyourrebreather,theyarerequiredto
divetheKISSOS.TheyareavailableforpurchasefromKISS.TheKISSsystemuses8SSrings;4perloophose.Our
ringsare.13lbseachwhichmakesatotalweightof1.04lbs.Ifyouchoosetosourceyourballastringsfromanother
company,becertainthatyouknowtheweightoftheirrings.Theyarenotallthesame,andmanyringsfromother
companiescanbeupto50%lessinweight,whichwouldrequireyoutopurchaseamanymorethenifusingtheKISS
ballast.

IfyouhavepurchasedyourballastringsfromKISS,theywillbeinstalledonyourhosespriorto
shipping.

Thetypethatweusecanbemovedupanddownthehosesunderwaterforproperplacement.
Withtheloophosesproperlyadjustedwithnotwists,andtheballastproperlyplaced,theBOV
willbeweightlessunderwater

Theballastringsshouldbeplacedfairlyclosetothemouthpiece.Aachthemouthpiecetothehoses,andthenliit
sothatitislevelwiththetopoftheunit.Lookattheloophoses;theyshouldhaveagentlecurve.Iftheyaretwisted,
adjustthembyturningtheendofthehosebythemouthpiece.Thesestepsareimportant.Ifthisisn’tdone,thenthe
mouthpiecewillbeuncomfortable.

Theballastringswillneedtobeadjustedagain,onceinthewater.Posioningwillbedifferentforeverydiver.While
inthepool,yourinstructorwilldemonstrateneutralmouthpiecebuoyancy.Ideallythemouthpiecewillfloatneutrally
infrontofthediversface,iftheringsareplacedproperlyandtheloophosesarenottwisted.Ifwhendoingthisskill,
themouthpieceisnotfloanginthedesiredarea,ensurethatyourhosesarenottwistedandadjustyourballastrings.
Toadjustthehosesunderwater,simplyholdthemouthpiecewithonehand,andgentlyturnthehosewiththeother.
Again,oncetheringsareproperlyplaced,theydonotneedadjusngagain.

Thesestepsareimportant.Ifthisisn’tdone,thenthemouthpiecewillbeuncomfortable.

Ifyoufeelthatthemouthpieceisexcessivelybuoyantevenwithproperlyplacedballastweightontheloophoses,you
maysecurealoopofbungeetoyourshoulderstrapsandslidetheloophosethroughthiswhensecuringtoyourtow‐
ers.Thebungeeloopwillassistinholdingtheloophosesinplace.AstheBOVhasanexcellentworkofbreathing,it
alsohasalargeairspacewhichmakesthemouthpiecemorebuoyantthenothermodels.

*NOTE:Forthemouthpiecetobecomfortable,theaboveinstruconsmustbefollowed.If
youfeelthemouthpieceeitherpullingupordownwhilediving,adjustitbyholdingonto
themouthpieceandgentlyturningthehosebyholdingtheendwithyourotherhand.

DETERMININGTHECORRECTCOUNTERLUNGSIZE:

Todetermineifthecounterlung'sareasuitablesize,youmustfirstputtheunitonandsecurethelungs.Theamount
ofgasthatthelungsholdcanbeadjustedbysimplyghteningorlooseningthelungwaiststrap.Ifwhendoingthetest
below,thelungsaretoosmall,loosenthestrapandtryagain.Iftheyaretoolarge,thenyoucanghtendownthe
straptoadjust.

First,putthemouthpieceintoyourmouth,opentheloopandinhalethegasintoyourlungsandthenoutofyournose
unltheloopiscompletelyempty.Whentheloopisempty,closetheBOVwithoutallowinganyairtoenter.Then,
takealargebreath,asmuchasyoucanhold,puttheBOVintoyourmouth,opentheloopandexhaleallyouraircom‐
pletelyintotheloopandthenclosetheBOV.

17 MSL 72.161 Jetsam/Orca Spirit manual R.5
Ideally,thelungsizeshouldbeasevenlymatchedtoyourownlungsaspossible.Ifyoufindthatwhendoingthistest
youcangetmorethanonefullbreathintotheloopbeforeitisfull,thencinchdownthestraps.Neverusecounter‐
lung'swherethevolumeissmallerthanyourown!Verysmallpeoplemayrequirea2&4litertoensureproperplace‐
ment,whilemostpeoplewilluse4&4literlungs.Thosewithverylargelungvolumesmayrequire4&6literlungs.

Inmatchingyourdalvolumetothecounterlungvolume,youwillfindthatyourbuoyancyinshallowwatercanbeex‐
ceponal.OnlyKISSdiverscanholdtheirposioninwaterthatisonly3to4feetdeep.Ifyouarefindingbuoyancy
difficultinwaterthisshallow,thisisduetoeitherbeingnewontherebreatherorthecounterlung’saretoolarge.

Whiledoingthistestatthesurface,rememberthatunderwateryourrequiredvolumewon’tchange.Ifyoufindthat
yoursurfacetestwentwell,butitfeelslikethelungsaretoosmallunderwater,youprobablyhavetoomuchgasinthe
loop.Tocorrectthis,exhalesomeofthegasoutofyournose.Or,youfailedensurethatthelungsweren’ttwisted
whenthreadedthroughthewing,thenthiswillcauseeitheradecreaseinlungvolume&/orwillincreasetheworkof
breathing.Seetheworkofbreathingpagesformoreinformaon.

*NOTE:Thecloseryoucanmatchthecounterlungvolumewithyourown,thebeeryour
buoyancywillbe.DivingtheKISSOSwithcounterlungwiththestrapsFULLYopenwillre‐
sultingreaterbuoyancychanges.Thiscancausetheusertolosecontroloftheirbuoyancy
whichcanleadtoinjuryordeath!!

AUTOMATICDILUENTVALVE(ADV):

TheADVislocatedonthetopofthegasaddionscrubberhead.TheADVwilladddiluentgasto
yourbreathingloopaertheloopvolumehasbeenreducedbyeitherdescendingor“breathing
down”thevolumeofoxygen.Thediverwillgetthefeelingthatthereisnomoreairintheloopto
breath.AllthediverneedstodoissuckhardtotriggertheADVanditwillfeedhimmoregas.This
ishowasecondstageregulatorworks.

TheADVhasbeensetup“ght”enoughthatitdoesn’tadddiluentwithoutthediverbeingaware.Butitaddsenough
gassothatareasonabledescentratecanbemaintained.Asyoucansee,thereisanadjustmentknobontheADVreg‐
ulator.Itisveryimportantthatthisknobisalwaysght,andturnedallthewayin.TheADVontheKISSOShasbeen
designedtobeeasiertoacvatethenpastADVdesigns.Assuch,diver’smustbeawareofbodyposionatallmes
andunderstandthatahead‐downposionwillcausetheADVtoacvatemorerapidlythenusual.Ifthediverisinthis
posion,thenhemustbepreparedtoventtheloopandchangetoahorizontalposion.Thiswillaidinprevennga
buoyancyissue,whichismaycauseanunwantedascent.

*WARNING:THEADJUSTMENTKNOBONTHEADVREGULATORMUSTALWAYSBETIGHT
ANDTURNEDALLTHEWAYIN.ALSO,THEDIVERSHOULDBEAWARETHATINAHEAD‐
DOWNPOSITIONTHEADVMAYTRIGGERMORERAPIDLY,CAUSINGARAPIDADDITIONOF
GAS.THISWILLCAUSEBUOYANCYISSUESWHICHMAYCAUSETHEDIVERTOHAVEANUN‐
CONTROLLEDASCENT,WHICHMAYLEADTOINJURYORDEATH!

AnymetheADVtriggersyouneedtocheckyourPPO2.youhaveeitherdescendedandcompressedthegasinthe
looporyouhaveconsumedenoughoxygentoreducethePPO2significantly.Thismayalsohavecausedyoutolose
buoyancyanddescend.

TheposionofthediverwilleffecttheADV.Ifthediverishorizontalorfacedown,theADVwilltriggereasily.Ifthe
diverisvercal,thenitismoredifficulttotrigger.(Awellfingharnessisimportant;thiswillgreatlyreducethediffi‐
culesofbeingvercalinthewater).

18 MSL 72.161 Jetsam/Orca Spirit manual R.5
Diluentcanalsobeaddedtothebreathingloopviathemouthpiece.Simplygotoopencircuitmode,takeabreathand
thenopentheloopagainandexhalethegasintothebreathingloop.

Anotherwaytoaddgastotheloopviathemouthpieceistoclosethelooponlya1/4inch,forasecond.Youmayneed
tolightlypushthepurgebuononthefrontofthe2ndstage.Asmallamountofgaswillblowdirectlyintothebreath‐
ingloop.

QuickDisconnects:
TheKISSOSisshippedwithaquickconnectsystemfortheloophoses.
Youwillseethatthetowersonthescrubberheadshavealipinwhichthe
quickdisconnecthosestubsaresecured.Theunitisshippedstandard
with2hosestubswhichwillbefiedtoyourloophoseswithhose
clamps,priortoshipping.

IfyouchoosetoorderyourunitwiththeBOV,then4hosestubswillbe
includedwithyourkit.Theseextra2hosestubs/hoseclampsareforse‐
curingtheloophosestotheBOVwhichalsousesourquickdisconnect
system.

IfyouchoosetosourceyourownBOV,thenyouwillneedtoalsosourceanaachmentmethodforthatBOV.

*NOTE:THETOWERSARETHREADEDINTOTHESCRUBBERHEADSANDSEALWITHANO‐
RING.WHILETHETOWERSAREDESIGNEDTOBEDIFFICULTTOTURN,ITISSTILLIM‐
PORTANTTHATTHEYARENOTACCIDENTLYUNSCREWEDWHILEREMOVINGORINSTALLING
THEBREATHINGHOSE.ALOOSETOWERWILLLEAK!!!CHECKTHETOWERSPRIORTODIV‐
INGTOENSURETHEYARETIGHT.

Theproceduretoinstallthehosesstubstotheloophosesareasfollows:

 Firstsoaktheendsoftheloophosesinhottapwater,forseveralminutes.Thiswillsoentherubberon
thehosesmakingiteasiertoinstallthehosestubs.Somedivesmayfindthattheyneedtosoakthe
hoseendsinwaterthathasbeenboiled.Thiswillcertainlymakeiteasier.
 Shakethewaterfromthehose,andthenapplysiliconegreasetotheinsideoftheloophose.Itisbest
touseathickerlubricantforthis,ratherthenathinoxygentypelubricant.Applylubricanttotheoutsideof
thehosestub.
 Workingquicklysothehoseremainsso,pushthehosestubontotheloophose.Pushitonasfarasit
willgo,butleaveafewmillimetersofspacesoitdoesn’ttouchthesideofthestubandrestrictthe 
movementofthering.
 Securethehosestubusingahoseclamp;ensurethatthehoseclampisproperlyghtened.
 EnsurethattheO‐ringareaonthehosestubsarecleanandthenapplylubricant.
 Pushthehosestubontothetower/BOV,lininguptheliponthetower/BOVwiththespaceonthehose
stub.
 Turntheringtosecure.
 InspecttheareatoensurethatalltheO‐ringsareproperlyseatedandnotpinched.
 Toremovethehosestub,pushinonthestub,andthenturnthering.Thisisasimilarmethodto 
openingandclosingachildproofmedicinebole.


19 MSL 72.161 Jetsam/Orca Spirit manual R.5
*SERVICE:THEO‐RINGSONTHEHOSESTUBSANDTHECORRESPONDINGSURFACESONTHE
BOVADAPTERSANDHOSEATTACHMENTSSHOULDBELUBRICATEDONAREGULARBASIS.
PRIORTODIVING,ENSURETHATHOSESHAVEBEENPROPERLYATTACHEDTOTHETOWERS
ANDTOTHEBOV!!!FAILURETODOSOCOULDCAUSEINJURYORDEATH!!!

ManualAddValve‐MAV:

TheMAVisthecomponentthatwilladdoxygentoyourunitconnuouslyandwillalsoallowyoutopushabuonto
addgasasrequired.

FurtheroninthismanualyouwillfindaMAVtroubleshoong&servicesecon.Forthepurposeofgearassembly,the
valveisreadytogo.Oncetheunitisassembledandthewing/harnesssysteminplace,bringtheMAVovertheright
shoulderoftheharnessandthreaditthroughtheD‐ring.Alternavely,youmayuseasmallbungeeloopwhichised
totheD‐ringandslidetheMAVthroughthat.SecuringtheMAVinthismannerwillkeepthevalveintheproperposi‐
onallowingthedivertofinditeasily.

AnalternatedmethodofplacingyourMAVistohaveitcomearoundtherightsideofyourwaist,andthensecurethe
MAVtoaringonyourwaiststrapusingbungeeandaclip.ThedivermustbecertainthattheMAVisproperlysecured
andiseasilyaccessibleduringanypartofthedive.Thismethodisforthosewhodonotwishthehosestocomeover
theshoulder.

ForthosethatwishtoruntheMAVaroundthewaist,simplyswaptheposionofthe2oxygenhoses.Todothis,first
removetheshortestLPhosefromtheMAVandfilter.LeavethefiltersecuredtotheMAV.Itisveryimportantthat
onewrenchisplacedonthenutclosesttotheplaschousingtoholditinplace;itmustnotmove!Thenputanother
wrenchontheendoftheLPhoseyouwishtoremove.Turnthiswrenchwhileholdingthefirstwrenchsecure.Thenut
youareholdingsecuremustnotspin.Ifitdoesthethreadsontheplaschousingwillbestripped.Oncethisisdone,
theshorthosewillsllbesecuredtothescrubberhead,buttheMAVwillnolongerbeaachedtoit.RemovethisLP
hosefromthehead.

RemovethelongerLPhosefromtheMAV,followingtheaboveinstrucons.Thenremoveitfromthefirststage.

SwaptheposionoftheLPhoses;thelongeroneshouldnowbesecuredtothescrubberhead(turntheelbowsoitis
facingdown),andtheshorterLPhoseshouldbesecuredtothefirststage.

TheshorterLPhosefromthefirststageshouldnowbeaachedtothefilterontheMAV.Becertaintosecureittothis
port,asitisimportantthattheincominggasisfiltered.TheLongerLPhosefromthescrubberheadshouldnowbe
aachedtotheotherportontheMAV,(nofilterport).Followthesameinstruconsasabovetoproperlyghtenthe
hoses.Awrenchmustbeplacedonthenutclosesttotheplaschousingtoholditsecurewhileyoughtenthehose
fing.PleaseseetheMAVtroubleshoongandserviceseconforphotosandmoreinstrucons.Ifindoubt,please
callKISSforadvice.

DiluentCylinderandtheOff‐BoardGasAccessory:

ThediluentcylinderontheKISSOSissidemountedanddoublesasthediver’sbailoutgas.Inthisconfigurationthe
diluentcylinderisreferredtoasoffboarddiluentgasasthecylinderisnotsecuredtothemainrebreather.Thead‐
vantagesofthisarethatdiver’smaycustomizethesystemtosuittheirdivingneeds.Italsokeepsthemainrebreather
small,light,flexible,andeasytotravelwith.

KISSrecommendsthataminimumof40cuftshouldbeusedasthediluent/bailoutcylinderwhendivingrecreationally.
Diver’smustbecertainthatthecylindertheychoosehastheproperamountofgasfordiluent,wing&drysuitinflation,

20 MSL 72.161 Jetsam/Orca Spirit manual R.5

andalsoforbailout.Thosedoinganysortoftechnicaland/ordecompressiondivingmustcarryalargercylinder(s)and
ensurethatitisappropriateforthedivethattheyareplanning.

TheKISSOSBASICincludesonefullsetoftheoff‐boardaccessory.Thisaccessoryisusedtoplumbthediluent/bailout
gasintotherebreatherviathemanifold.Thekitincludestherebreathersidewhipandthediluentcylindersidewhip.

Theoff‐boardaccessoryrebreathersideincludes,130inchLPhose,1checkvalvewithquickdisconnectmale.Theoff‐
boardaccessorycylindersideincludes,16inchLPhose,1quickdisconnectfemale.

Thecylindersidewhipshouldbesecuredtothediver’sfirststageonthediluent/bailoutcylinder.

Thosediversthatwishtocarrymorethenonediluent/bailoutcylindermaypurchaseasecondcylindersidewhip.This
wouldallowbothdiluentcylinder’stobeopenthroughoutthedive.Whenthediverswapsthemainoff‐boardwhip
fromthefirstcylindertothesecond,thecheckvalvewillpreventanywaterfromenteringthesystem.

ASWITHANYNEWDIVINGEQUIPMENT,USINGTHISACCESSORYWILLREQUIRETHEDIVER
TOLEARNNEWSKILLSANDCREATENEWMUSCLEMEMORY.
