2
1Cool down surface for Oven Rack
2Chrome-plated Steel Broiling Rack
3Enamel Multipurpose Pan
4Chrome-plated Steel Oven Rack
5Stainless Steel Door Handle
6Toughened Glass Window
7Removable Crumb Tray
8Toast Knob
9Time Knob
10 Temperature Knob
11 Function Knob
12 Power On Indicator Light
PARTS AND FEATURES
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
Keep Warm
TEMP
Toast 450
400
350
300
250
200
Warm
1
2
3
4
5
6
7
8
9
10
11
12
W11348851A.indb 2 25/07/2019 11:12:02

ENGLISH
3

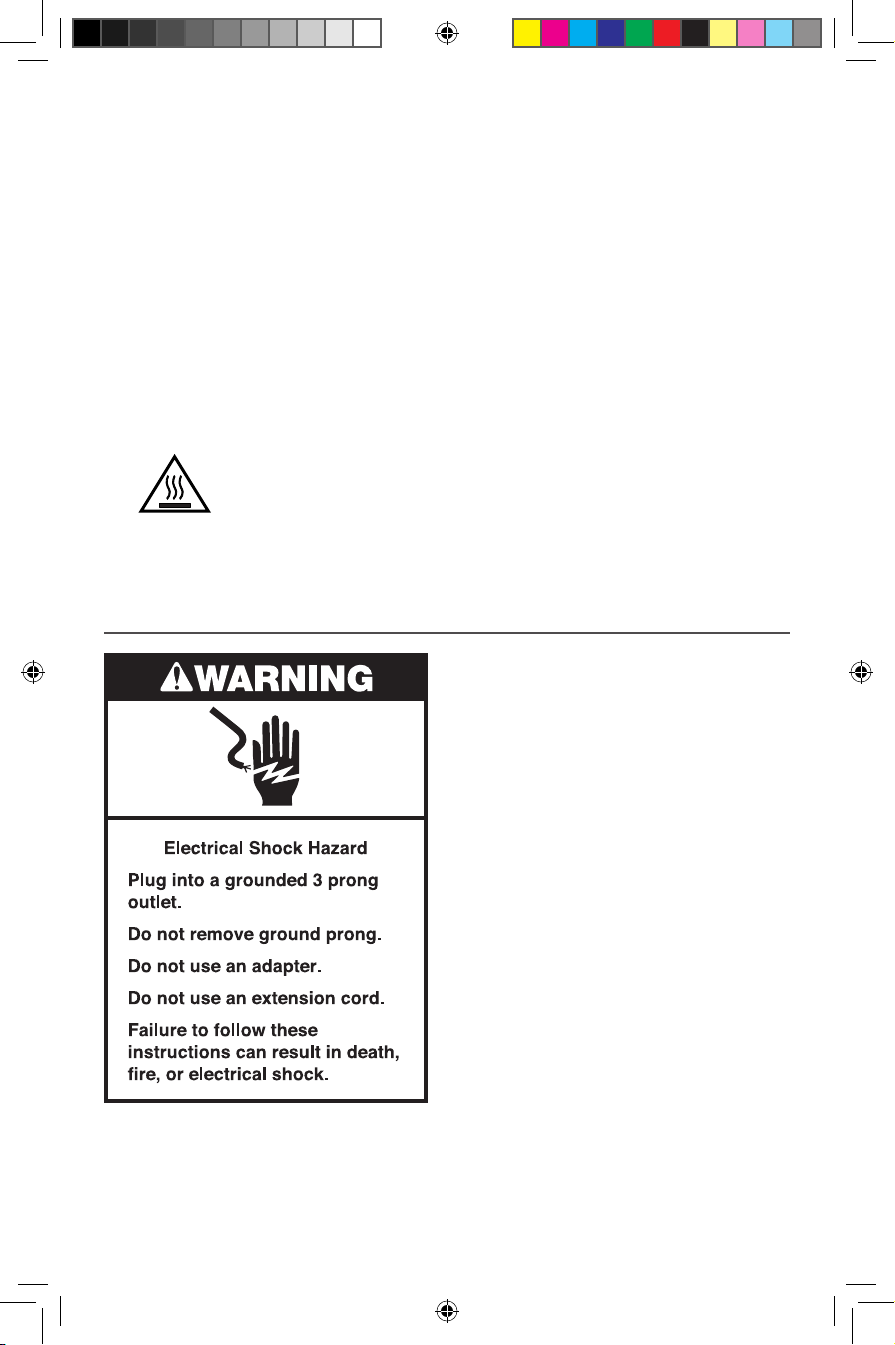

PRODUCT SAFETY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plugs, or any parts of
the oven in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before
putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug, or after the
appliance malfunctions, or is dropped or damaged in any manner. Return
appliance to the nearest Authorized Service Facility for examination, repair, or
adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.
8. Do not let cord hang over edge of table or counter, or touch hot surfaces.
9. Do not place on or near a hot gas or electric burner, or in a heated oven.
10. Extreme caution must be used when moving an appliance containing hot oil or
other hot liquids.
11. Use extreme caution when removing broiler pan tray or disposing of hot grease.
12. Oversize foods or metal utensils must not be inserted in a Countertop Oven as
they may create a re or risk of electric shock.
13. A re may occur if the toaster-oven is covered or touching ammable material,
including curtains, draperies, walls, and the like, when in operation. Do not store
any item on top of the appliance when in operation.
14. Do not clean with metal scouring pads. Pieces can break off the pad and touch
electrical parts, creating a risk of electric shock.
W11348851A.indb 3 25/07/2019 11:12:11

4
PRODUCT SAFETY
ELECTRICAL REQUIREMENTS
Voltage: 120 VAC
Frequency: 60 Hz
Wattage: 1440 Watts
NOTE: If the plug does not fit in the
outlet, contact a qualified electrician.
Do not modify the plug in any way.
Do not use an adapter.
Do not use an extension cord. If the power
supply cord is too short, have a qualified
electrician to install an outlet near the
appliance.
The cord should be arranged so that it will
not drape over the countertop or tabletop
where it can be pulled on by children or
tripped over unintentionally.
A short power-supply cord is provided to
reduce the risk resulting from becoming
entangled in or tripping over a longer
cord.
SAVE THESE INSTRUCTIONS
This product is designed for household use only.
15. Extreme caution should be exercised when using containers constructed of
materials other than metal or glass.
16. Do not store any materials, other than manufacturer’s recommended
accessories, in this oven when not in use.
17. Do not place any of the following materials in the oven: paper, cardboard, plastic,
or anything similar.
18. Do not cover crumb drawer or any part of the oven with metal foil. This will
cause overheating of the oven. Foil is permitted in the multipurpose pan to catch
grease.
19. To disconnect, turn Oven “Off” by turning the Timer Knob to “0” or Toast Knob
“Off”, then remove plug from wall outlet.
20. Do not use outdoors.
21. Do not use appliance for other than intended use.
CAUTION: Hot surface.
(This alert symbol is required to comply with Mexican regulations.)
W11348851A.indb 4 25/07/2019 11:12:19

ENGLISH
5

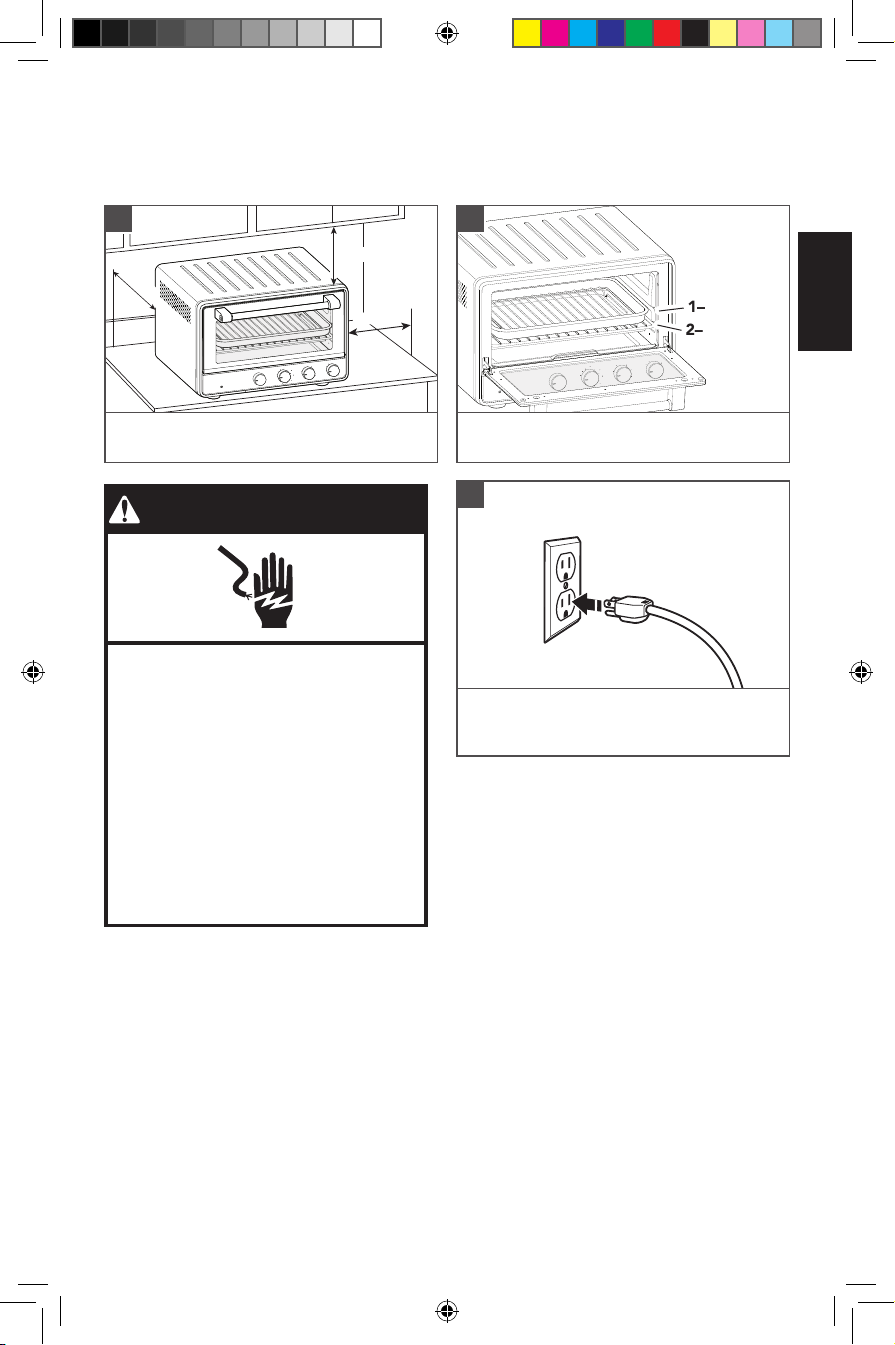

GETTING STARTED
Before first use, clean all parts and accessories (see “Care and Cleaning” section).
Place the Countertop Oven on a dry and flat level surface.
4" (10 cm)
4" (10 cm)
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
4" (10 cm)
Make sure all sides are positioned with
at least 4” (10 cm) distance.
1
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
2
1- Top
2- Bottom
Open and align the oven rack with the
grooves for desired positions.
2
NOTE: Upon first use, the oven may
produce light smoke. This is normal.
Plug into a grounded 3 prong outlet.
Your oven is now ready to use.
3
W11348851A.indb 5 25/07/2019 11:12:39

6

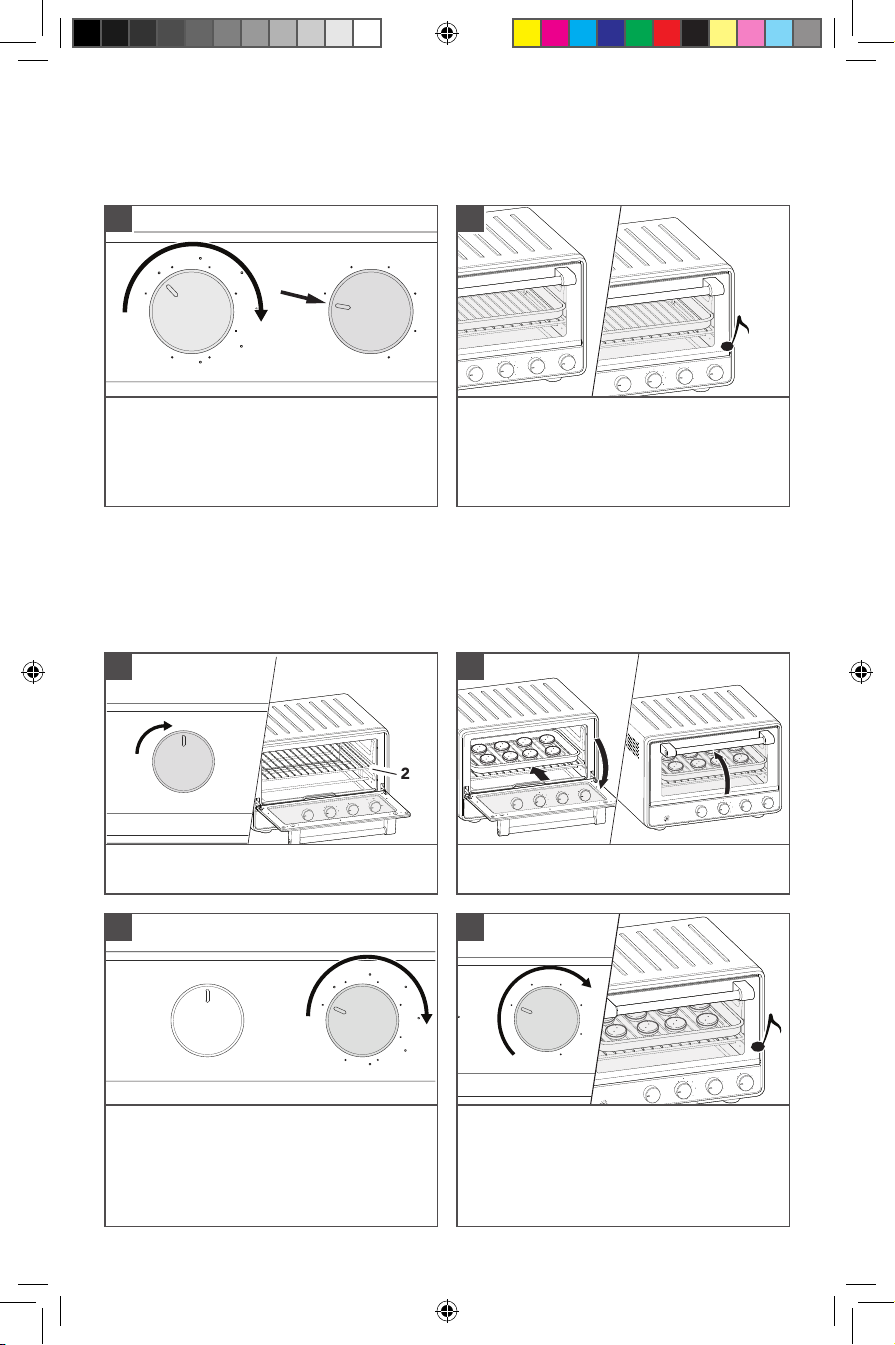

Preheating allows your oven to saturate the walls and cooking racks to remove cold spots that
draw heat away from the food.
PREHEATING THE OVEN
TEMP
Toast 450
400
350
300
250
200
Warm
TIME
80
100
120
60
40
20
0
Rotate the Temperature knob to the
desired Preheating temperature.
Rotate the Time knob past the 10-minute
position, then rotate it back to 5-minute
position.
1
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
The Power On indicator light will turn on.
After 5 minutes, the end signal will sound
and the oven will shut off automatically.
2
USING THE BAKE FUNCTION
Both the top and bottom cooking elements cycle on and off while baking. Recipes will vary
and cooking time should be monitored for desired results. For better cooking results, select
the correct cooking pan to allow for proper air circulation.
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
400
350
300
TIME TOAST
Dark
Med
Light
80
100
120
60
40
20
0Off
Rotate the Time knob to the desired time.
When the time has elapsed, the end signal
will sound and the Compact Oven will shut
off automatically. Turn the Time knob to
“0” (Off) if removing food before the time
has elapsed.
4
FUNCTION
Toast
Bake
Broil
Keep Warm
TEMP
Toast 450
400
350
250
200
Warm
300
Rotate the Temperature knob to the
desired temperature. Bake according to
package or recipe instructions.
Preheat if desired.
3
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
Open and place food in the center of the
rack and close the door.
2
FUNCTION
Toast
Bake
Broil
Keep Warm
TEMP
Toast 450
400
350
300
250
200
Warm
TIME
20
0
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
Recommended rack position: 2- Bottom.
Rotate the Function knob to BAKE.
1
2
W11348851A.indb 6 25/07/2019 11:12:57

ENGLISH
7
USING THE BROIL FUNCTION
Only the top cooking elements heat when the Broil function is selected. Use the included broil
pan and grill directly on the oven rack for even browning and easy cleanup. The broil pan and
grill may also be used for the Bake and Warm settings.
FUNCTION
Toast
Bake
Broil
Keep Warm
TEMP
Toast 450
400
350
300
250
200
Warm
Rotate the Function knob to BROIL.
Rotate the Temperature knob to 450°.
2
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
400
350
300
TIME TOAST
Dark
Med
Light
80
100
120
60
40
20
0Off
Rotate the Time knob to the desired time
for broiling or browning the food on one
side. The Power On indicator light will
turn on. Be sure to monitor the broiling
progress through front glass.
3
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
If broiling or browning the other side of
the food, open the door and pull the rack
and pan about halfway out of the oven.
Flip the food, slide the rack and pan back
into place, and close the door.
4
Broil
TEMP
Toast 450
400
350
300
250
200
Warm
TIME
80
100
120
60
40
20
0
Rotate the Time control knob to the
desired time for broiling or browning the
food on the other side. When the time
elapses, the end signal will sound and your
countertop oven will automatically shut off.
5
IMPORTANT: Always use oven mitts when
removing pans or racks.
IMPORTANT: The food to be broiled should
be at least 1" (2.5 cm) from the top cooking
elements in your oven.
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
Recommended rack position: 1- Top.
Place the food on the broil pan with grill.
Then, close the door.
1
W11348851A.indb 7 25/07/2019 11:13:13

8
USING THE TOAST FUNCTION
Up to 6 slices of bread may be placed directly on the rack for toasting. Both the top and
bottom cooking elements heat when in Toast function.
TIP: Frozen, dark, or whole-grain breads require a longer time. Fresh, soft, or white breads
require a shorter time. We encourage you to experiment to find the best toasting time for
various kinds of bread.
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
When finished, the end signal will sound
and your countertop oven will shut off
automatically. Rotate the Toast control
knob to the Off position if removing toast
before the end signal sounds.
4
TIME TOAST
Dark
Med
Light
80
100
120
60
40
20
0Off
Rotate the Toast knob to your desired
setting: Dark, Medium, Light, or on any
of the dot icons in between to choose a
customized toast setting. The Power On
indicator light will turn on.
3
IMPORTANT: For the Toast setting, the Toast control knob works as a timer instead of the
Time knob. The Toast setting will not function properly if the Time control knob is used.
NOTE: It is normal for condensation to form on the door when toasting moist or fresh breads.
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
Recommended rack position: 1- Top
Place bread in the center of the oven
rack and Bread slices do not need to be
flipped. Close the door.
1
FUNCTION
Toast
Bake
Broil
Keep Warm
TEMP
Toast 450
400
350
300
250
200
Warm
Rotate the Function knob to the TOAST.
Rotate the Temperature knob to “Toast”.
2
1
W11348851A.indb 8 25/07/2019 11:13:24

ENGLISH
9
USING THE WARM FUNCTION
Only the lower cooking elements heat when the Warm function is selected.
TIP: Turn the Temperature knob to WARM, or minimum setting, when Your countertop oven
is not in use.
FUNCTION
Toast
Bake
Broil
Keep Warm
TEMP
Toast 450
400
350
300
250
200
Warm
TIME
20
0
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
Recommended rack position: 2- Bottom.
Rotate the Function knob to Keep Warm.
1
TIME
80
100
120
60
40
20
0
TOAST
Dark
Med
Light
Off
FUNCTION
Toast
Bake
Broil
KeepWarm
TEMP
Toast 450
400
350
300
250
200
Warm
TEMP
Toast 450
400
350
300
250
200
Warm
TIME
80
100
120
60
40
20
0
Rotate the Temperature knob to lowest
setting (150°). For faster heating, increase
temperature as desired.
2
If removing food before the end signal
sounds, rotate the Time knob to “0” (Off)
to shut off your countertop oven. Then,
remove the food.
4
Rotate the Time knob to the desired
setting. The Power On indicator light will
turn on. When the time elapses, the end
signal will sound and your countertop oven
will automatically shut off.
3
TIP: When setting for 10 minutes or less, rotate the Time knob past the 20-minute mark;
then, rotate back to the desired time.
FOR DETAILED INFORMATION ON THE COUNTERTOP OVEN
Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes,
cleaning tips and tips on how to use your Countertop Oven.
2
W11348851A.indb 9 25/07/2019 11:13:37

10
CARE AND CLEANING
Turn the Oven “Off”, by turning Timer
Knob to “0” or Toast Knob to “Off”
position. Unplug the Oven.
To remove the crumb tray, open the door,
grasp the crumb tray handle and slide
straight out.
1
Empty and wash in warm, sudsy water, if
needed. Dry with a soft cloth. Open the
door and slide it back into place.
2
NOTE: Allow Compact Oven and accessories to cool completely before cleaning.
IMPORTANT: Do not use cleaning agents,
abrasive cleansers, or metal scouring pads
on the inner or outer surfaces of the oven.
They could scratch the surface.
INTERIOR: The inside walls of the oven
feature a nonstick coating. Remove heavy
spatter with a nylon or polyester mesh pad,
sponge, or cloth dampened with warm water.
Dry thoroughly.
IMPORTANT: Ensure all parts and surfaces are completely dry before re-use.
EXTERIOR: Wipe the outside of the
Countertop Oven with a clean, damp cloth
and dry thoroughly.
The following parts are dish-washer safe,
but hand washing is recommended: Oven
rack, Multipurpose pan, and Broiling rack.
3
W11348851A.indb 10 25/07/2019 11:13:46
