KitchenAid KESC300H WH User manual

TECHNICAL EDUCATION
JOB AID 4317335
KAC-34
SELF-CLEANING
SLIDE-IN ELECTRIC
RANGE
Models KESC300H, KESC307H, KESH307H

- ii -
WHIRLPOOL CORPORATION assumes no responsibility for any repairs made
on our products by anyone other than Authorized ervice Technicians.
FORWARD
This KitchenAid Job Aid, “ elf-Cleaning lide-In Electric Range,” (Part No. 4317335), provides the
technician with information on the installation, operation, and service of the elf-Cleaning lide-
In Electric Range. It is to be used as a training Job Aid and ervice Manual. For specific information
on the model being serviced, refer to the “Use and Care Guide,” or “Wiring Diagram” provided with
the electric range.
The Wiring Diagram and trip Circuits used in this Job Aid are typical and should be used for
training purposes only. Always use the Wiring Diagram supplied with the product when servicing
the unit.
GOALS AND OBJECTIVES
The goal of this Job Aid is to provide detailed information that will enable the service technician to
properly diagnose malfunctions and repair the KitchenAid elf-Cleaning lide-In Electric Range.
The objectives of this Job Aid are to:
• Understand and follow proper safety precautions.
• uccessfully troubleshoot and diagnose malfunctions.
• uccessfully perform necessary repairs.
• uccessfully return the range to its proper operational status.
Copyright © 2002, Whirlpool Corporation, Benton Harbor, MI 49022

- iii -
TABLE OF CONTENTS Page
GENERAL............................................................................................................................... 1-1
afety First......................................................................................................................... 1-1
KitchenAid Model & erial Number Designations.............................................................. 1-3
Model & erial Number Label Location ............................................................................. 1-4
pecifications..................................................................................................................... 1-5
KitchenAid Electric Range Warranty.................................................................................. 1-7
INSTALLATION INFORMATION ........................................................................................... 2-1
Electrical upply Requirements ......................................................................................... 2-1
Moving The Range ............................................................................................................ 2-8
THEORY OF OPERATION ..................................................................................................... 3-1
Air Flow—Rear Panel ........................................................................................................ 3-1
Cooling Fan Air Flow ......................................................................................................... 3-2
The Bimetal witches ........................................................................................................ 3-3
The urface Element Limiter ............................................................................................. 3-4
The Door Lock olenoid & Door Latch witch................................................................... 3-5
How The elf-Clean Cycle Works ..................................................................................... 3-6
COMPONENT ACCESS ......................................................................................................... 4-1
Component Locations ........................................................................................................ 4-1
Removing The Control Panel, An Infinite witch & Bimetal witch ................................... 4-2
Removing The Electronic Oven Control And An Indicator Light ........................................ 4-4
Removing An Element & Limiter And The Hot urface Indicator Assembly ...................... 4-5
Removing The Cooktop Glass ........................................................................................... 4-7
Removing The Door Latch Assembly & The Door witch ............................................... 4-10
Removing The Dual Broil Element And The Hidden Bake Element ................................ 4-12
Removing The Convection Bake Element & Fan Motor .................................................. 4-14
Removing An Oven Light ocket Assembly .................................................................... 4-16
Removing The Meat Probe Jack ..................................................................................... 4-17
Removing The Oven Temperature ensor ...................................................................... 4-18
Removing A ide Panel ................................................................................................... 4-19
Removing The Double Line Break (DLB) Relay And The Cooling Fan Motor ................ 4-20
Removing The Oven Door ............................................................................................... 4-22
Removing The Decorative Glass, The Oven Door Handle, The Hinges,
And The Oven Door Glass........................................................................................... 4-23
Removing The Oven Door Gasket................................................................................... 4-25

- iv -
Page
COMPONENT TESTING ........................................................................................................ 5-1
Bimetal witch ................................................................................................................... 5-1
ingle Element Infinite witches........................................................................................ 5-2
Dual Element Infinite witch (Optional) ............................................................................. 5-3
urface Elements & Limiters ............................................................................................. 5-4
Door witch ....................................................................................................................... 5-6
Door Latch Assembly......................................................................................................... 5-6
Hidden Bake Element ........................................................................................................ 5-7
Dual Broil Element ............................................................................................................. 5-7
Convection Bake Element ................................................................................................. 5-8
Convection Fan Motor ....................................................................................................... 5-8
Oven Temperature ensor ................................................................................................ 5-9
Cooling Fan Motor ............................................................................................................. 5-9
Double Line Break (DLB) Relay....................................................................................... 5-10
DIAGNOSIS & TROUBLESHOOTING ................................................................................... 6-1
Diagnosis ........................................................................................................................... 6-1
Failure / Error Display Codes—Tech heet #9753028, Rev. B ..................................... 6-1
Fault Error Code Charts................................................................................................ 6-2
Troubleshooting Charts ..................................................................................................... 6-3
Oven Temperature Calibration .......................................................................................... 6-6
WIRING DIAGRAM & STRIP CIRCUITS ............................................................................... 7-1
Wiring Diagram— #9753028, Rev. B................................................................................. 7-1
trip Circuits ...................................................................................................................... 7-3

1-1
Electrical Shock Hazard
Plug into a grounded 3-prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to ollow these instructions can
result in death, ire, or electrical shock.
Electrical Shock Hazard
Disconnect power be ore servicing.
Replace all parts and panels be ore
operating.
Failure to do so can result in death or
electrical shock.
GENERAL
SAFETY FIRST
Your sa ety and the sa ety o others is very important.
We have provided many important safety messages in this Job Aid and on the appliance. Always
read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word
“DA GER” or “WAR I G.” These words mean:
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance
of injury, and tell you what can happen if the instructions are not followed.
You can be killed or seriously injured i you don’t
immediately ollow instructions.
You can be killed or seriously injured i you don’t
ollow instructions.
WARNING
WARNING

1-2
IMPORTANT
Electrostatic Discharge (ESD)
Sensitive Electronics
ESD problems are present everywhere.
ESD may damage or weaken the elec-
tronic control assembly. The new control
assembly may appear to work well a ter
repair is inished, but ailure may occur at
a later date due to ESD stress.
• Use an antistatic wrist strap. Connect the
wrist strap to the green ground connec-
tion point, or to an unpainted metal sur-
face in the appliance.
- OR -
• Touch your finger repeatedly to a green
ground connection point, or to an un-
painted metal surface in the appliance.
• Before removing the part from its pack-
age, touch the antistatic bag to a green
ground connection point, or to an un-
painted metal surface in the appliance.
• Avoid touching electronic parts, or termi-
nal contacts. Handle the electronic con-
trol assembly by the edges only.
• When repackaging the failed electronic
control assembly in an antistatic bag,
observe the previous instructions.
Electrical Shock Hazard
Electrically ground range.
Failure to do so can result in death, ire, or
electrical shock.
WARNING
Tip-Over Hazard
A child or adult can tip the range
and be killed.
Connect anti-tip bracket to rear
range oot.
Reconnect the anti-tip bracket, i the
range is moved.
Failure to ollow these instructions
can result in death or serious burns
to children and adults.
WARNING

1-3
KITCHENAID MODEL & SERIAL NUMBER DESIGNATIONS
MODEL NUMBER
SERIAL NUMBER
MODEL NUMBER K ES C 30 0 H BL 4
I TER ATIO AL SALES I D.
OR MARKETI G CHA EL
IF PRESE T
PRODUCT GROUP
K = KITCHE AID
PRODUCT IDENTIFICATION
DD = DUAL FUEL DROP-I / SLIDE-I
DR = DUAL FUEL RA GE
ED = ELECTRIC DROP-I RA GE
EE = ELECTRIC EYE-LEVEL RA GE
ER = ELECTRIC STA DARD RA GE
ES = ELECTRIC SLIDE-I RA GE
GD = GAS DROP-I RA GE
GE = GAS EYE-LEVEL RA GE
GR = GAS STA DARD RA GE
GS = GAS SLIDE-I RA GE
MERCHANDISING SCHEME
C = CERAMIC GLASS TOP
H = CERAMIC W/HALOGE
I = IMPERIAL
P = PROFESSIO AL / COMMERCIAL
S = STA DARD
T = TEMPERED GLASS TOP
CAPACITY / SIZE / SERIES / CONFIGURATION
1ST POSITIO 2 D POSITIO
1 = DROP-I 0 = 30″ WIDE
2 = DROP-I / SLIDE-I COMBO 6 = 36″ WIDE
3 = SLIDE-I
4 = COMMERCIAL
5 = STA DARD
7 = EYE-LEVEL
8 = 48″
9 = 60″
FEATURES
0 = STA DARD FEATURES
2 = PLUS FEATURES OR SEALED BUR ERS
W / GRILL / CO VECTIO OVE
3 = SEALED BUR ERS W / GRIDDLE / CO VECTIO OVE
4 = SEALED BUR ERS W / GRILL & GRIDDLE / CO VECTIO OVE
5 = DELUXE FEATURES
7 = DELUXE FEATURES / CO VECTIO OR
SEALED BUR ERS / CO VECTIO OVE
YEAR OF INTRODUCTION
H = 1999, J = 2000, K= 2001, L - 2002
COLOR CODE
BL = BLACK, WH = WHITE, BT = BISCUIT
BS = BLACK O STAI LESS
ENGINEERING CHANGE (NUMERIC)
SERIAL NUMBER IM K 31 73981
MANUFACTURING SITE
IM = MO TMAG Y
YEAR OF PRODUCTION
K = 2000, L = 2001, M = 2002
WEEK OF PRODUCTION
31 = 31ST WEEK
PRODUCT SEQUENCE NUMBER

1-4
MODEL & SERIAL NUMBER LABEL LOCATION
The Model/Serial umber label location is shown below.
Model & Serial Number Location
(Located Behind Storage Drawer)

1-5
SPECIFICATIONS
Model KESC300H WH/BL/BT KESC307H WH/BT/BS KESH307H WH/BL/BS
Model Description Slide-In Slide-In Slide-In Radiant/Halogen
Dimensions/Specifications
Exterior Dimensions
Height To Maintop (in) 36" 36" 36"
Overall Depth Inc Hrdwr/Hndl (in) 26.75" 26.75" 26.75"
Depth Without Handle (in) 24.5" 24.5" 24.5"
Door Swing (in) 21.75" 21.75" 21.75"
Shipping Weight (lbs) 160 160 160
Exterior
Cabinet Finish Painted Painted Painted
Front Frame Porcelain Porcelain Porcelain
Leveling Legs Yes Yes Yes
Oven Window Size and Type Large/Glass Large/Glass Large/Glass
Removable Door and Hinges Yes Yes Yes
Door Liner Finish Porcelain Porcelain Porcelain
Door Type Glass Glass Glass
Control Panel Location Front Front Front
Control Panel Color White White White
Control Panel Construction Glass Glass Glass
Control Knob Type, #, Fcn Infinite Switch Single Blade Infinite Switch Single Blade Infinite Switch Single Blade
Simmer Specialty Switch Yes Yes Yes
Keep Warm Switch Yes Yes Yes
Cooktop Features
Cooktop Material Ceran Top Ceran Top Ceran Top
Hot Surface Indicator 4 Neon Cluster 4 Neon Cluster 4 Neon Cluster
Burner Box Finish Galvanized Galvanized Galvanized
Cooktop Support Rods No No No
Electric Cooktop Element Yes Yes Yes
Electric Element Configuration 6", 7", 8", 9.5" 6", 7", 8", 9.5" 6", 7", 8", 9.5"
Electric Element Type Radiant Radiant Radiant
Electric Right Front Size 7" 7" 7"
Electric RF Output (w@240/208v) 1800W 1800W 1800W/Halogen
Electric Left Front Size 9.5" 9.5" 9.5"
Electric LF Output (w@240/208v) 2500W/1500W 2500W/1500W 2500W/1500W
Electric Right Rear Size 8" 8" 8"
Electric RR Output (w@240/208v) 2200W 2200W 2200W
Electric Left Rear Size 6" 6" 6"
Electric LR Output (w@240/208v) 1500" 1500" 1500"
Oven Controls EOC EOC EOC
Oven Control Type Glass Capacitive Glass Capacitive Glass Capacitive
Oven Control Location Front Front Front
Control Lock Out Yes Yes Yes
Delayed Cooking Option Yes Yes Yes
Timer in EOC in EOC in EOC

1-6
Model KESC300H WH/BL/BT KESC307H WH/BT/BS KESH307H WH/BL/BS
Interior
Main Oven
Cooking System Conventional Fan Convection Fan Convection
Cleaning System Self Cleaning Self Cleaning Self Cleaning
Auto Self Clean Latch Yes Yes Yes
Oven Liner Finish Porcelain Porcelain Porcelain
Oven Volume (cu ft) 3.62 cu ft 3.28 3.28
Oven Height (in) 15.75" 15.75" 15.75"
Oven Width (in) 23 1/16" 23 1/16" 23 1/16"
Oven Depth (in) 18.25" 16 5/16" 16 5/16"
Rack Guides # 55 5
Oven Racks # 23 3
Oven Rack Type & # Each 2 Flat
Oven Rack Yes Yes Yes
Broiler Pan Yes Yes Yes
Broiler Pan Finish Porcelain Porcelain Porcelain
Broiler Pan Grid Finish Porcelain Porcelain Porcelain
Oven Light Number 1 Incandescent 2 Incandescent 2 Incandescent
Main Electric Oven Yes Yes Yes
Hidden Bake Element No Yes Yes
Bake (W@240/208v) 2500W
Broil Inner Elem (W@240/208v) 1665W 1665W 1665W
Broil Outer Elem (W@240/208v) 1000W 1000W 1000W
Oven Lower Panel/ Door Yes Yes Yes
Drawer/Panel Front Painted Painted Painted
Storage Drawer Liner Yes Yes Yes
Drawer/Panel Height (in) 5.1" 5.1" 5.1"
Drawer/Panel Width (in) 23.3" 23.3" 23.3"
Drawer/Panel Depth (in) 20" 20" 20"
Glides Nylon Rollers Nylon Rollers Nylon Rollers
Lower Drawer Handle Type/Material Formed at Top Formed at Top Formed at Top
Lower Drawer Handle Color White White White
Product Literature
Cookbook No Yes Yes
Installation Instructions 9752043 B 9752043 B 9752043 B
Tech Sheet 9753027 9753027 9753027
Use & Care Guide Yes Yes Yes
Other Ceran Polish Incl Ceran Polish Incl Ceran Polish Incl
Agency Approvals UL,CSA UL,CSA UL,CSA
Anti-tip Device With Unit Floor Floor Floor

1-7
LENGTH OF WARRANTY
FULL ONE YEAR WARRANTY
From Date of Purchase.
KITCHENAID ELECTRIC RANGE WARRANTY
KITCHENAID WILL NOT PAY FOR:
A. Service calls to:
1. Correct the installation of the range.
2. Instruct you how to use the range.
3. Replace house fuses or correct house wiring.
B. Repairs when range is used in other than normal, single family household use.
C. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, or
installation not in accordance with local electrical codes.
D. Any labor costs during the limited warranties.
E. Replacement parts or repair labor costs for units operated outside the United States and Canada.
F. Pickup and delivery. Your range is designed to be repaired in the home.
G. Repairs to ceramic glass cooktop if it has not been cared for as recommended in the Use and Care Guide.
H. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
I. In Canada, travel or transportation expenses to customers who reside in remote areas.
KITCHENAID OR KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states or provinces do not allow the exclusion or limitation of incidental or
consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you special legal
rights, and you may also have other rights which vary from state-to-state or province-to-province.
Outside the United States and Canada, a di erent warranty may apply. For details, please contact your
authorized KitchenAid dealer.
If you need service first see the “Troubleshooting” section of the Use and Care Guide. After checking ”Trouble-
shooting,” additional help can be found by checking the “Requesting Assistance or Service” section, or by calling
our Customer Interaction Center telephone numbers, listed below, from anywhere in the U.S.A. or Canada.
KitchenAid: 1-800-422-1230
Canadian Residents call: 1-800-807-6777
SECOND THROUGH FIFTH YEAR
LIMITED WARRANTY
From Date of Purchase.
SECOND THROUGH TENTH
YEAR LIMITED WARRANTY
From Date of Purchase.
KITCHENAID WILL PAY FOR:
Replacement parts and repair labor costs to correct defects in materials
or workmanship. Service must be provided by a KitchenAid designated
servicing outlet.
Replacement parts for any electric element to correct defects in materi-
als or workmanship. Replacement ceramic glass if breakage is due to
defects in materials or workmanship. Replacement parts for solid state
touch control system to correct defects in materials or workmanship.
Replacement parts for the porcelain oven cavity / inner door if the part
rusts through due to defects in materials or workmanship.

1-8
— NOTES —

2-1
GENERAL
If codes permit, and a separate grounding wire
is used, it is recommended that a qualified
electrician determine that the grounding path is
adequate.
Do not ground to a gas pipe.
Check with a qualified electrician if you are not
sure that the range is grounded.
Do not have a fuse in the neutral or ground
circuit.
1. When a 4 wire or 3 wire, single phase,
120/240 volt, 60 Hz, AC only electrical
supply is available, a 50 ampere maxi
mum circuit protection is required, (or, if
specified on the model/serial plate, when
a 4 wire, or 3 wire, single phase, 120/
208 volt, 60 Hz, AC only electrical supply
is available, a 40 ampere maximum circuit
protection is required), fused on both sides
of the line. A time delay fuse, or circuit
breaker is recommended. The model/se
rial rating plate is located behind the stor
age drawer (see page 1 4).
INSTALLATION INFORMATION
ELECTRICAL SUPPLY REQUIREMENTS
Electrical Shock azard
Electrically ground range.
Failure to do so can result in death, fire, or
electrical shock.
2. Wire sizes and connections must conform
to the requirements of the National Electri
cal Code, ANSI/NFPA 70—latest edition*,
or CSA Standard C22.1, Canadian Elec
trical Code, Part 1—latest edition**, and
all local codes and ordinances for the
kilowatt rating of the range.
Copies of the standards listed may be obtained
from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
** CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
3. This range can be connected directly to
the fused disconnect, or circuit breaker
box, through flexible, armored, or nonme
tallic sheathed, copper cable (with ground
wire). Locate the junction box to allow two
to three feet of slack in the line so that the
range can be moved, if servicing is ever
necessary. Do not cut the conduit.
A U.L. listed conduit connector must be
provided at each end of the power supply
cable, at the range, and at the junction
box. Wire sizes, (copper wire only), and
connections, must conform with the rating
of the range.
WARNING

2-2
4-Wire Electrical System
This range is manufactured with the ground
connected to the cabinet. The ground must be
revised so that the green grounding wire of the
4 wire power supply cord is connected to the
cabinet (refer to the “4 wire Electrical Connec
tion” section).
ELECTRICAL CONNECTIONS
(Not used for Canadian
Installations)
This range can be connected directly to the
fused disconnect, or circuit breaker box, through
flexible, armored, or nonmetallic sheathed,
copper cable with a grounding wire. Allow two
to three feet of slack in the line so that it can be
moved if servicing is ever necessary.
A U.L. listed conduit connector must be pro
vided at each end of the power supply cable at
the range, and at the junction box.
Depending on the electrical supply, make the
4 wire or the 3 wire connection to the range,
following the instructions under the “Power
Supply Cord Connection,” (page 2 3), or the
“Direct Wire Connection” (page 2 5).

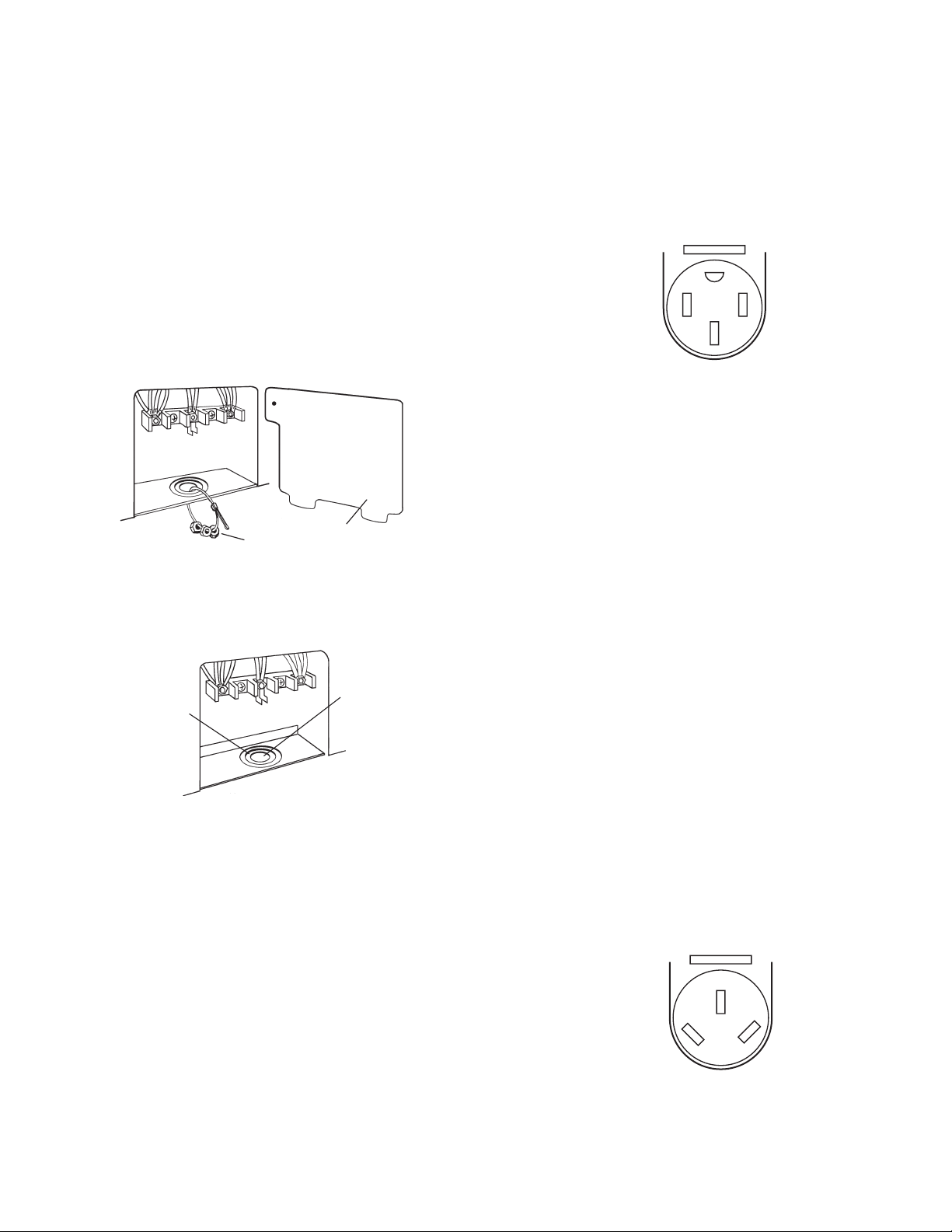

Remove the terminal block cover located on
the back of the range.
When a 4 wire receptacle of NEMA type 14
50R is used, a matching U.L. listed, 4 wire,
250 volt, 40 ampere range power supply cord
(pigtail) must be used.
This cord contains four copper conductors with
ring terminals at the appliance end, terminated
in a NEMA type 14 50P plug on the supply end.
The fourth (grounding) conductor must be iden
tified by a green or green/yellow cover, and the
neutral conductor by a white cover. The cord
should be type SRD, or SRDT, with a U.L.
listed strain relief, and be at least four
feet long.
The minimum conductor sizes for the copper
4 wire power cord are:
(2) #8 conductors
(1) #10 white neutral
(1) #8 green grounding
3-Wire Electrical System
Local codes may permit the use of a U.L.
listed, 250 volt, 40 ampere range power sup
ply cord (pigtail). This cord contains three # 10
copper wires, and matches a three wire recep
tacle of NEMA Type 10 50R.
Connectors on the appliance end must be
provided at the point the power supply cord
enters the appliance.
G
W
XY
W
XY
3 Wire
Receptacle
10 50R
4 Wire
Receptacle
14 50R
brass
terminal
nuts
terminal
block cover
knockout
opening for
40-ampere
power supply
cord
knockout
opening for
power
supply cable

2-3
Warning: Improper connection of the equip-
ment-grounding conductor can result in a
risk of electric shock.
Check with a qualified electrician, or ser-
viceman, if you are in doubt as to whether
the appliance is properly grounded.
Do not modify the power supply cord plug.
If it will not fit the outlet, have a proper out-
let installed by a qualified electrician.
1. Disconnect the power supply.
2. Remove the screws from the terminal block
cover.
3. Remove the 3/8″ brass nuts that are at
tached to the knockout opening and set
them aside. Use these brass nuts to se
cure the ring type terminals on the power
supply cord to the terminal block screws.
NOTE: Use only ring type terminals to connect
the power supply cord.
4. Remove the knockout for the 40 ampere
power supply cord.
5. Mount a U.L. listed strain relief in the knock
out opening.
6. Insert the power supply cord through
the strain relief, and allow enough
slack so you can easily attach the wiring to
the terminal block.

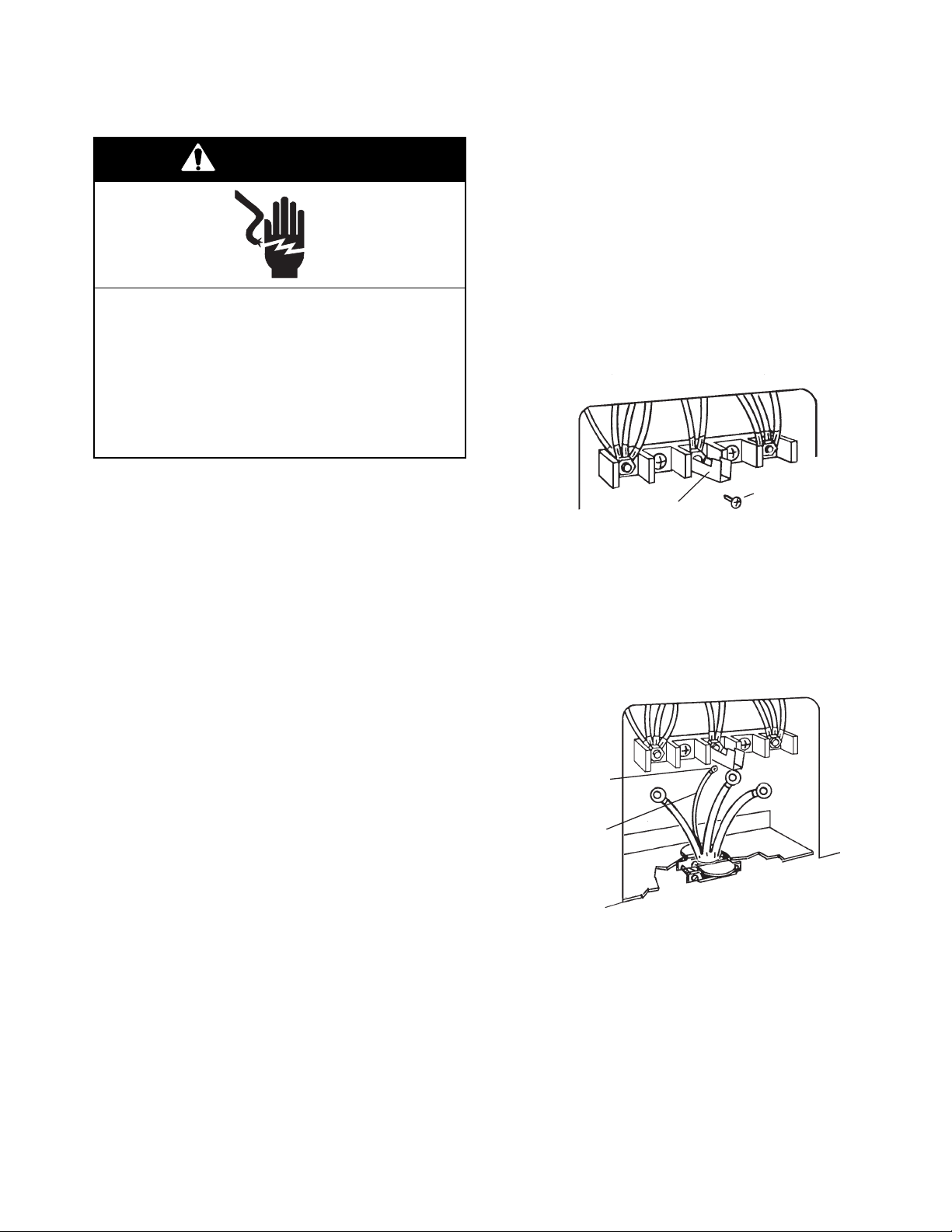

POWER SUPPLY CORD
CONNECTION

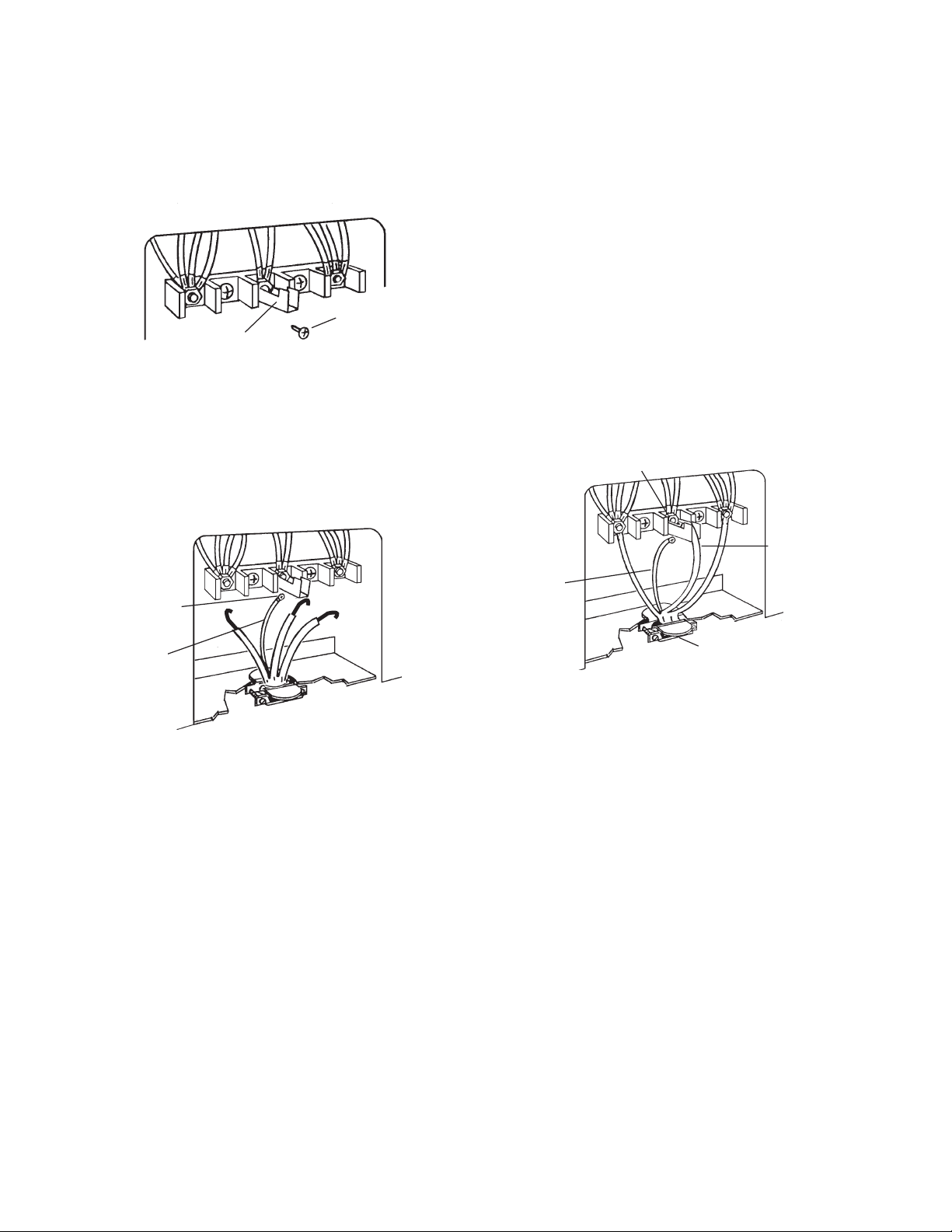

4-Wire Electrical Connection
Use this method for mobile homes, and when
ever 4 wire installation is required.
1. Remove the ground link screw from the
range frame and set the screw aside.
2. Bend the ground link up so that it does not
contact the range.
3. Connect the green ground wire on the
power supply cord to the ground link screw
hole in the range with the ground link
screw you removed earlier. Make sure
that the bare ground wire does not contact
the adjacent terminal block connections.
Turn power supply off before connecting
wires.
Electrically ground range.
Failure to do so can result in death, fire, or
electrical shock.
Electrical Shock azard
WARNING
7. Depending on the type of electrical sys
tem, proceed to “4 Wire Electrical Con
nection,” or “3 Wire Electrical Connec
tion,” (on page 2 4), and complete the
wiring.
ground link ground-link
screw
ground-link
screw
green
ground
wire

2-4

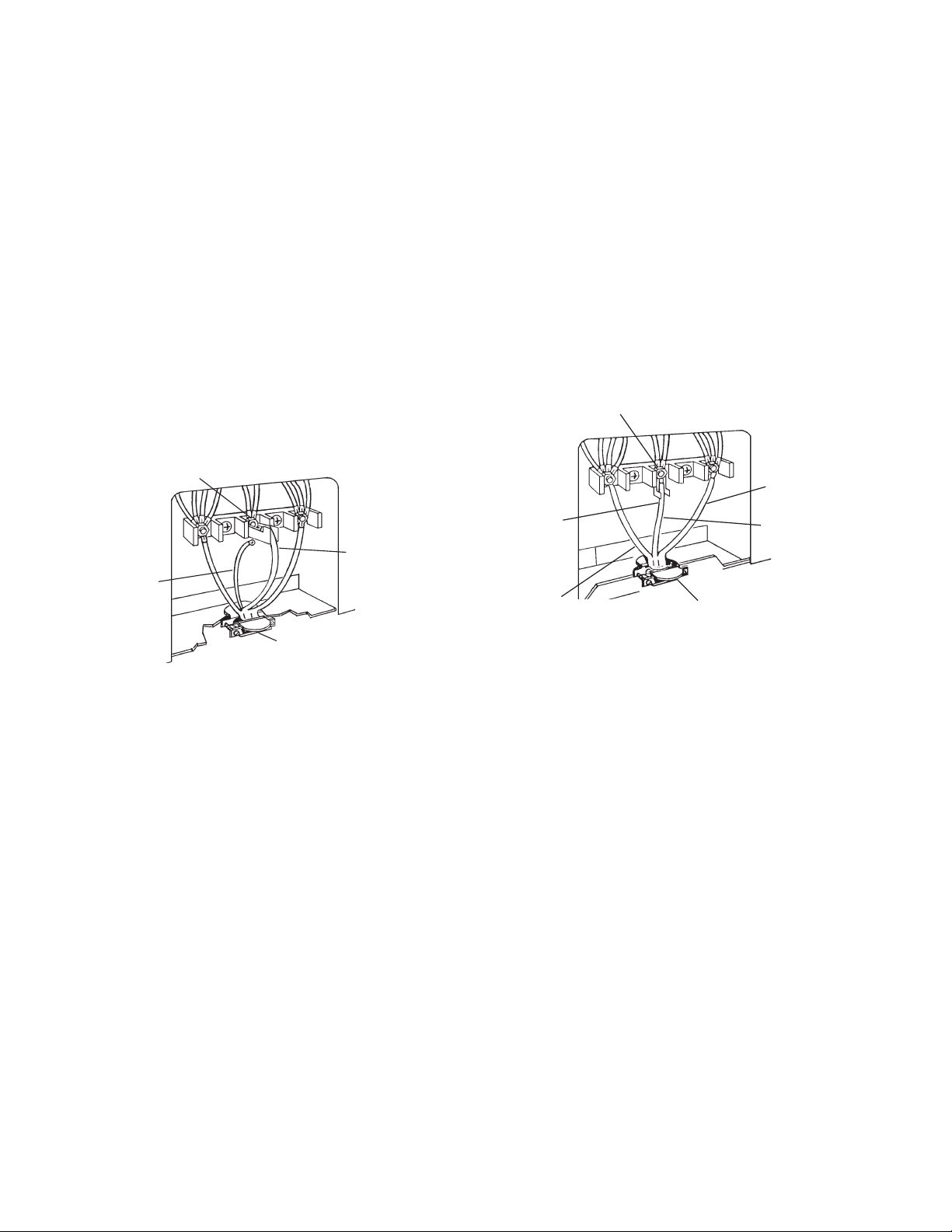

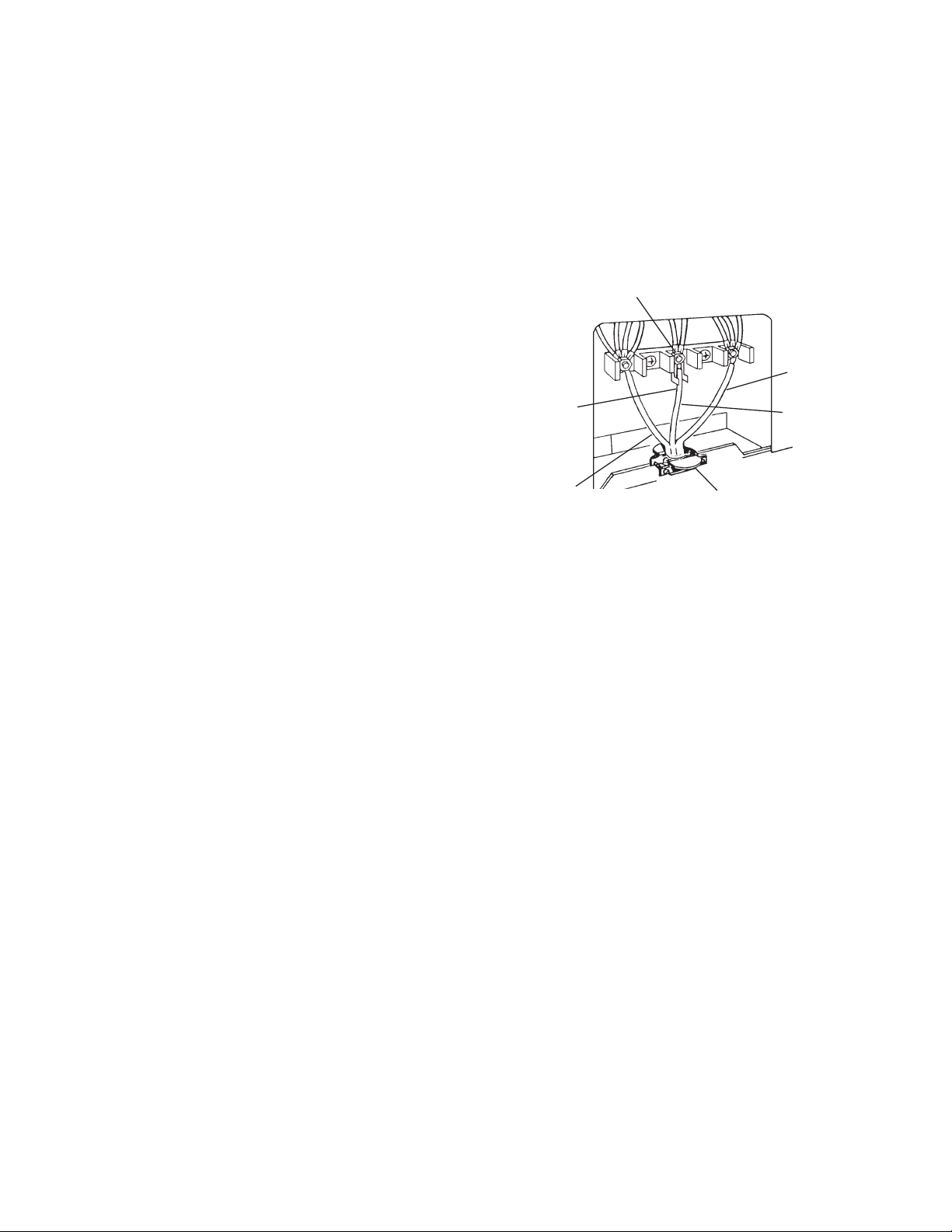

3-Wire Electrical Connection
Use this method only if local codes permit con
necting a cabinet grounded conductor to the
neutral wire of the power supply cord.
NOTE: Do not loosen the factory installed nuts
on the terminal block when you perform the
following steps.
NOTE: Do not loosen the factory installed
nuts on the terminal block when you perform
the following steps.
4. Connect the neutral (white) wire of the
power supply cord to the center, silver
colored terminal screw on the terminal
block, and secure it with one of the 3/8″
brass nuts that you set aside earlier.
5. Connect the remaining two power supply
cord wires to the outer terminals of the
terminal block, and secure them with 3/8″
brass nuts.
6. Tighten the strain relief screws to secure
the power supply cord.
7. Install the terminal block cover.
U.L. listed strain relief
and 40-ampere range
power supply cord
neutral wire
(center wire)
green
ground
wire
silver-colored terminal
block screw
1. Connect the neutral (white) wire of the
power supply cord to the center, silver
colored terminal screw on the terminal
block, and secure it with one of the 3/8″
brass nuts that you set aside earlier.
2. Connect the remaining two power supply
cord wires to the outer terminals of the
terminal block, and secure them with 3/8″
brass nuts.
3. Tighten the strain relief screws to secure
the power supply cord.
4. Install the terminal block cover.
U.L.-listed strain relief
and 40-ampere range
power supply cord
ground
link neutral
(center wire)
line 2
line 1
silver-colored terminal
block screw

2-5
If the house has aluminum wiring, perform
steps 1 through 3, otherwise skip those steps.
1. Connect a section of 8 gauge, solid cop
per wire to the terminal block.
2. Connect the aluminum wiring to the added
section of copper wire using special con
nectors that were designed by Underwrit
ers Laboratories for joining copper to alu
minum. Follow the procedure recom
mended by the manufacturer to connect
the wires.
3. The aluminum to copper connections must
conform with local codes and industry
accepted wiring practice.

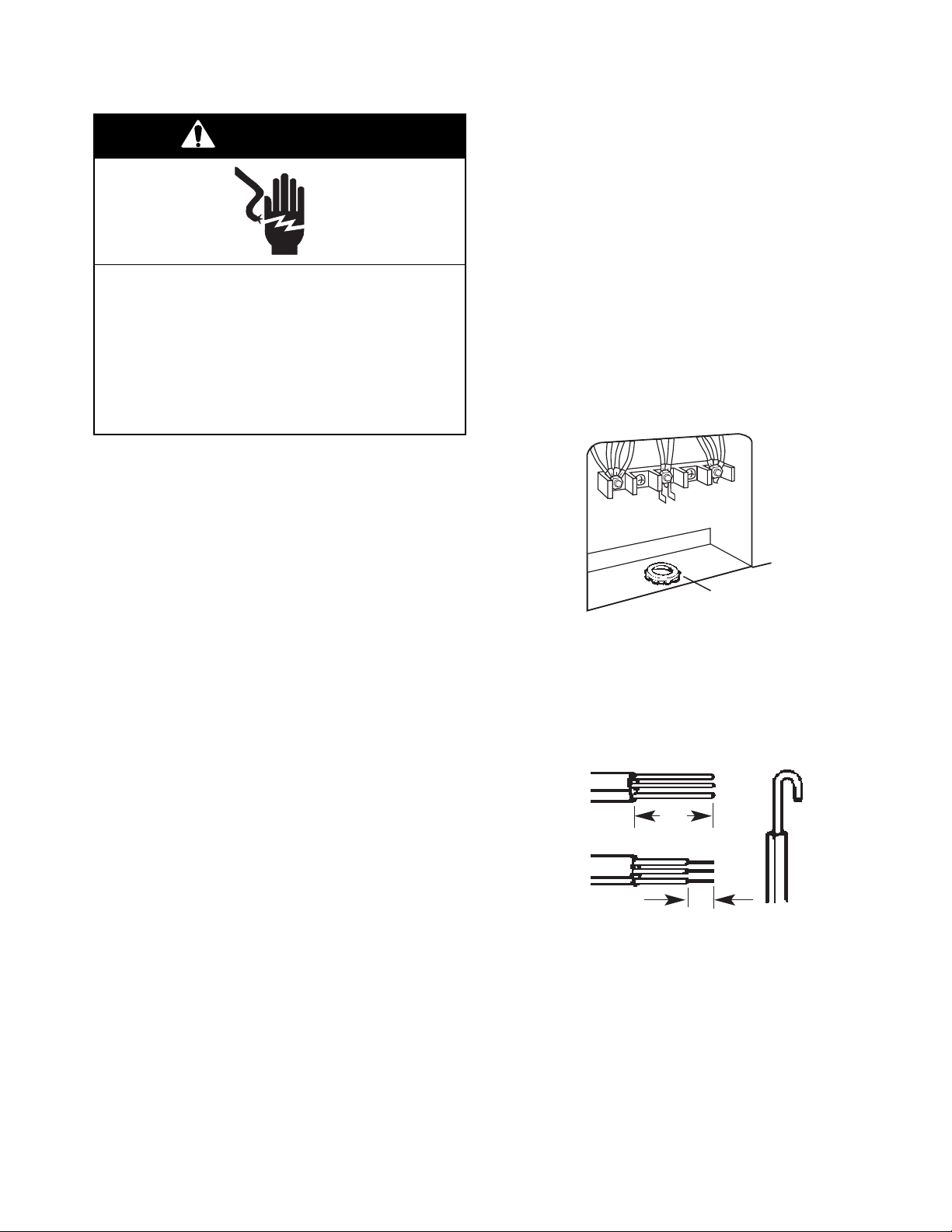

DIRECT WIRE CONNECTION
WARNING
Turn power supply off before connecting
wires.
Electrically ground range.
Failure to do so can result in death, fire, or
electrical shock.
This range must be connected to a ground-
ed, metallic, permanent wiring system, or a
ground connector should be connected to
the ground terminal, or to the ground wire
lead on the range.
The conductors at the terminal block must
be copper wire only.
Electrical Shock azard
4. Disconnect the power supply.
5. Remove the screws from the terminal block
cover.
6. Remove the 3/8″ brass nuts that are at
tached to the knockout opening and set
them aside. Use these brass nuts to se
cure the ring type terminals on the power
supply cord to the terminal block screws.
NOTE: Use only ring type terminals to connect
the power supply cord.
7. Remove the knockout for the 40 ampere
power supply cord.
8. Mount a U.L. listed strain relief in the knock
out opening.
U .L.-listed
conduit
connector
9. Strip 3″ of outer covering from the end of
each wire on the power supply cord.
10. Form a hook in the bare wire ends of the
power supply cord.
3"
1"
11. Insert the power supply cord through the
strain relief, and allow enough slack so
you can easily attach the wiring to the
terminal block.
12. Depending on the type of electrical sys
tem, proceed to “4 Wire Electrical Con
nection,” (on page 2 6), or “3 Wire Electri
cal Connection,” (on page 2 7), and com
plete the wiring.

2-6
4-Wire Electrical Connection
1. Remove the ground link screw from the
range frame and set the screw aside.
2. Bend the ground link up so that it does not
contact the range.
3. Connect the green ground wire on the
power supply cord to the ground link screw
hole in the range with the ground link
screw you removed earlier. Make sure
that the bare ground wire does not contact
the adjacent terminal block connections.
NOTE: Do not loosen the factory installed nuts
on the terminal block when you perform the
following steps.
4. Connect the neutral (white) wire of the
power supply cord to the center, silver
colored terminal screw on the terminal
block, and secure it with one of the 3/8″
brass nuts that you set aside earlier.
5. Connect the remaining two power supply
cord wires to the outer terminals of the
terminal block, and secure them with 3/8″
brass nuts.
6. Tighten the strain relief screws to secure
the power supply cord.
7. Install the terminal block cover.
ground link
ground-link
screw
ground-link
screw
bare wire
from power
supply cable
U.L. listed conduit
connector and power
supply cable
neutral wire
(white wire)
bare wire
from power
supply cable
silver-colored terminal
block screw

2-7
3-Wire Electrical Connection
Use this method only if local codes permit con
necting a cabinet grounded conductor to the
neutral wire of the power supply cord.
NOTE: Do not loosen the factory installed nuts
on the terminal block when you perform the
following steps.
1. Connect the neutral (white) wire of the
power supply cord to the center, silver
colored terminal screw on the terminal
block, and secure it with one of the 3/8″
brass nuts that you set aside earlier.
2. Connect the remaining two power supply
cord wires to the outer terminals of the
terminal block, and secure them with 3/8″
brass nuts.
3. Tighten the strain relief screws to secure
the power supply cord.
4. Install the terminal block cover.
U.L. listed conduit
connector and power
supply cable
ground
link neutral wire
(white wire)
line 2
line 1
silver-colored terminal
block screw

2-8
Tip-Over azard
A child or adult can tip the range and
be killed.
Connect anti-tip bracket to rear range
foot.
Reconnect the anti-tip bracket, if the
range is moved.
Failure to follow these instructions can
result in death or serious burns to chil-
dren and adults.
Before moving the range, slide it onto a piece
of cardboard, or hardboard, to prevent dam
aging the floor covering, and perform the fol
lowing steps:
1. Unplug range or disconnect power.
2. Slide the range forward and disengage
the foot with the anti tip bracket. IMPOR-
TANT: Make sure the anti tip bracket is
securely attached to floor.
3. Slide range back so the rear foot engages
in the anti tip bracket.
4. Check to see that the range is level.
5. Reconnect the electrical supply cord.
MOVING T E RANGE
WARNING
