KitchenAid KESC307 User manual

ruse and Care Guide
KitchenAid*
Table of Contents
(complete) ................. 2
A Note to You ............... 3
Range Safety ............. 4-6
Getting to Know
Your Range .................. 7
Using and Caring for
Your Cooktop ............. 11
Using and Caring for
Your Oven .................. 18
Using EASY
CONVECT*
Conversion .............. 36
Using the
Self-Cleaning Cycle ... 51
Troubleshooting ........ 55
Requesting Assistance
or Service .................... 57
Index ........................... 62
Warranty ..................... 64
In the U.S.A. for assistance or service,
call the Consumer Assistance Center:
1-800-422-1230
In Canada for assistance or service,
see page 58.
KITCHENAID*THERMAL-CONVECTION*
Electric Ranges
Models: KESC307 KESH307 KERC607
PART NO. 9751685 Rev. E YKESC307 YKESH307 YKERC607

-able of Contents
A Note to You ............................................ 3
Range Safety ......................................... 4-6
Getting to Know Your Range ................... 7
Feature locations ................................. 7
The oven vent ....................................... 9
The storage drawer ............................... 9

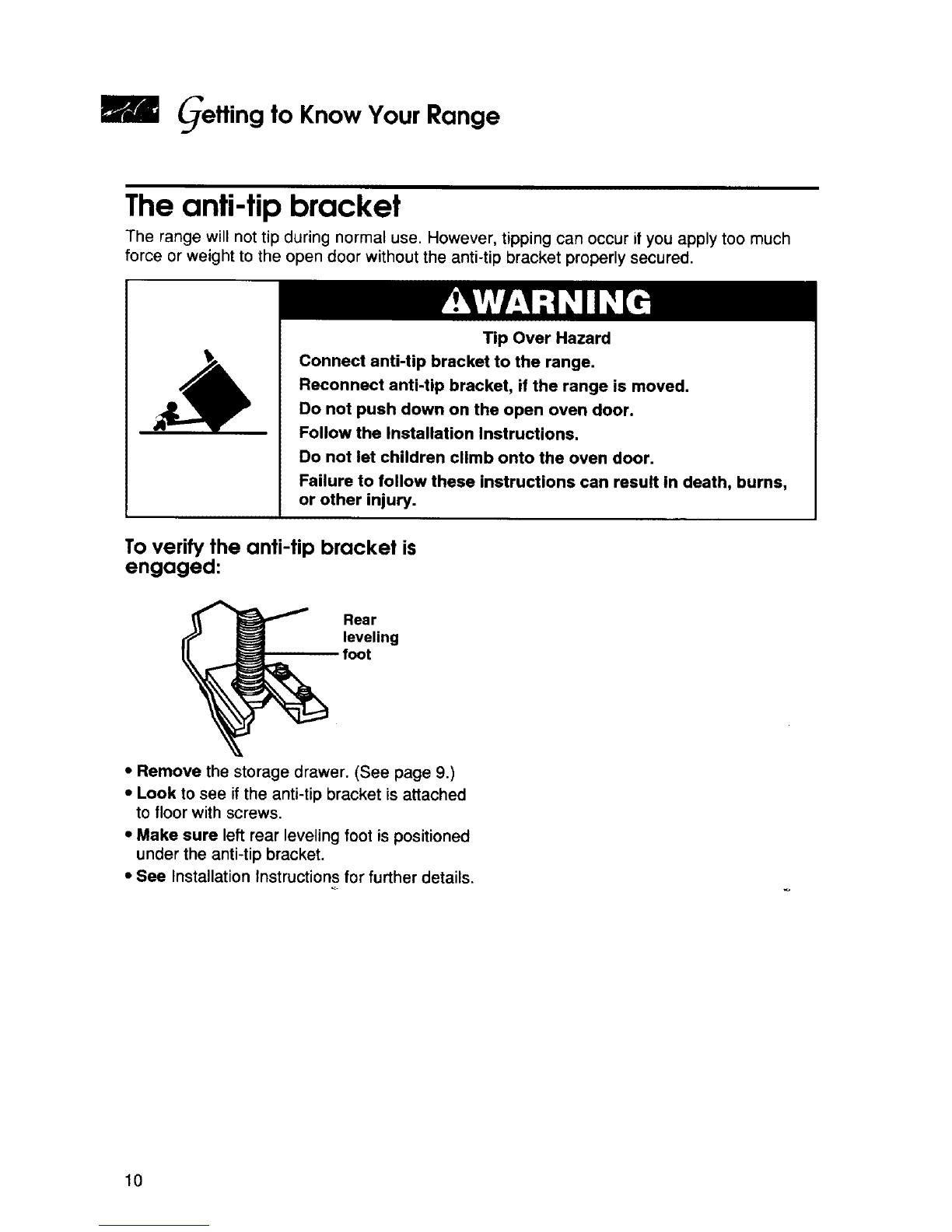

The anti-tip bracket ............................. 10
Using and Caring for Your Cooktop ...... 11

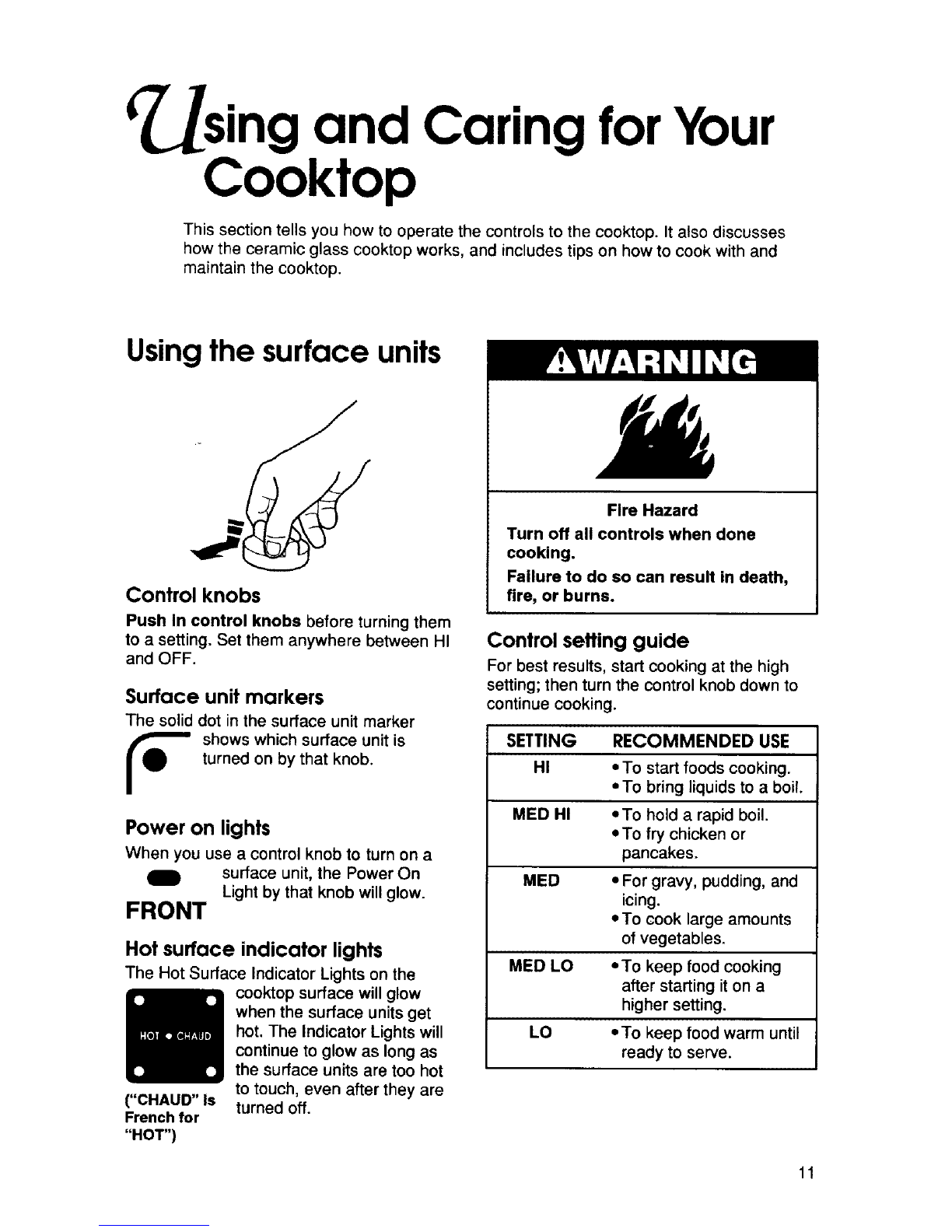

Using the surface units ....................... 11
Cookware tips ..................................... 13

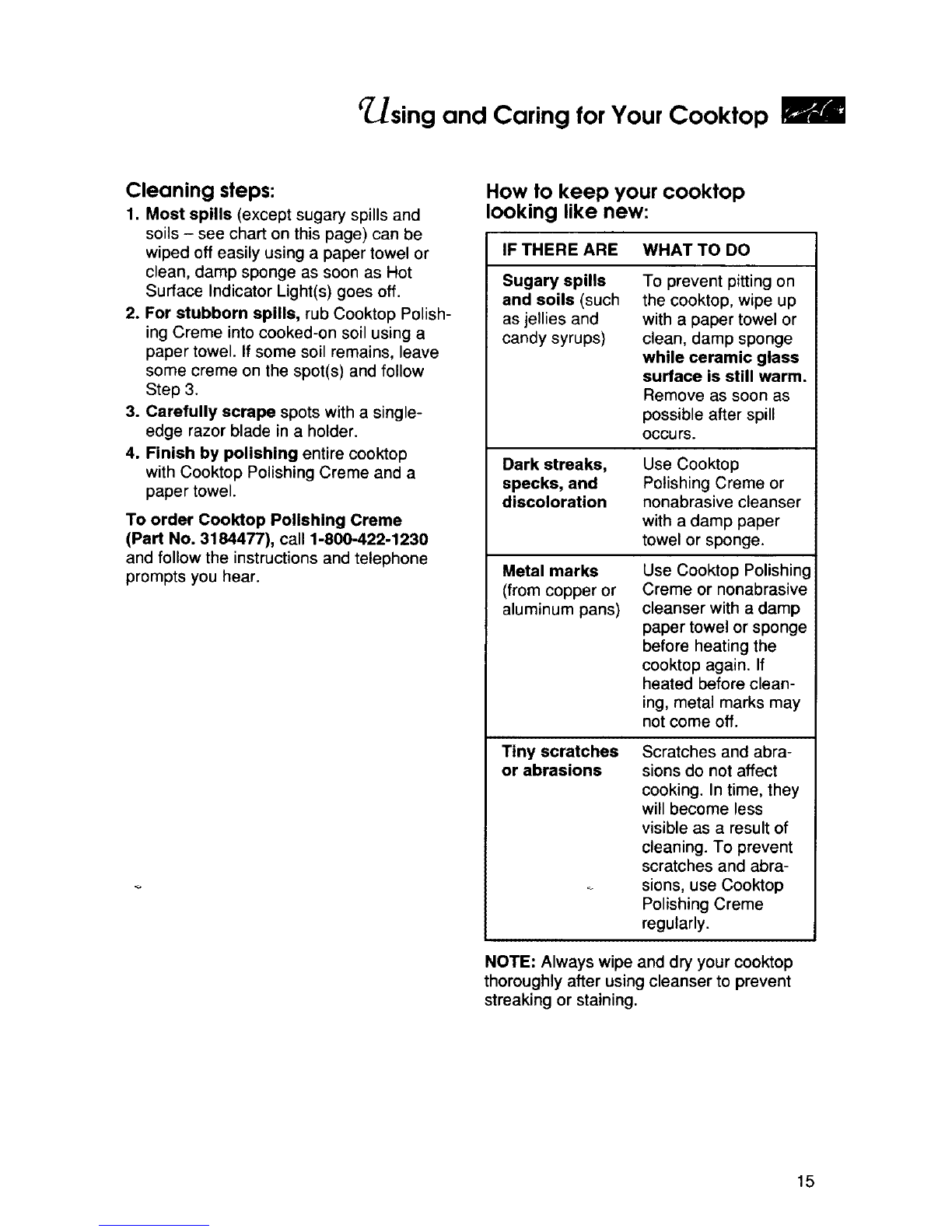

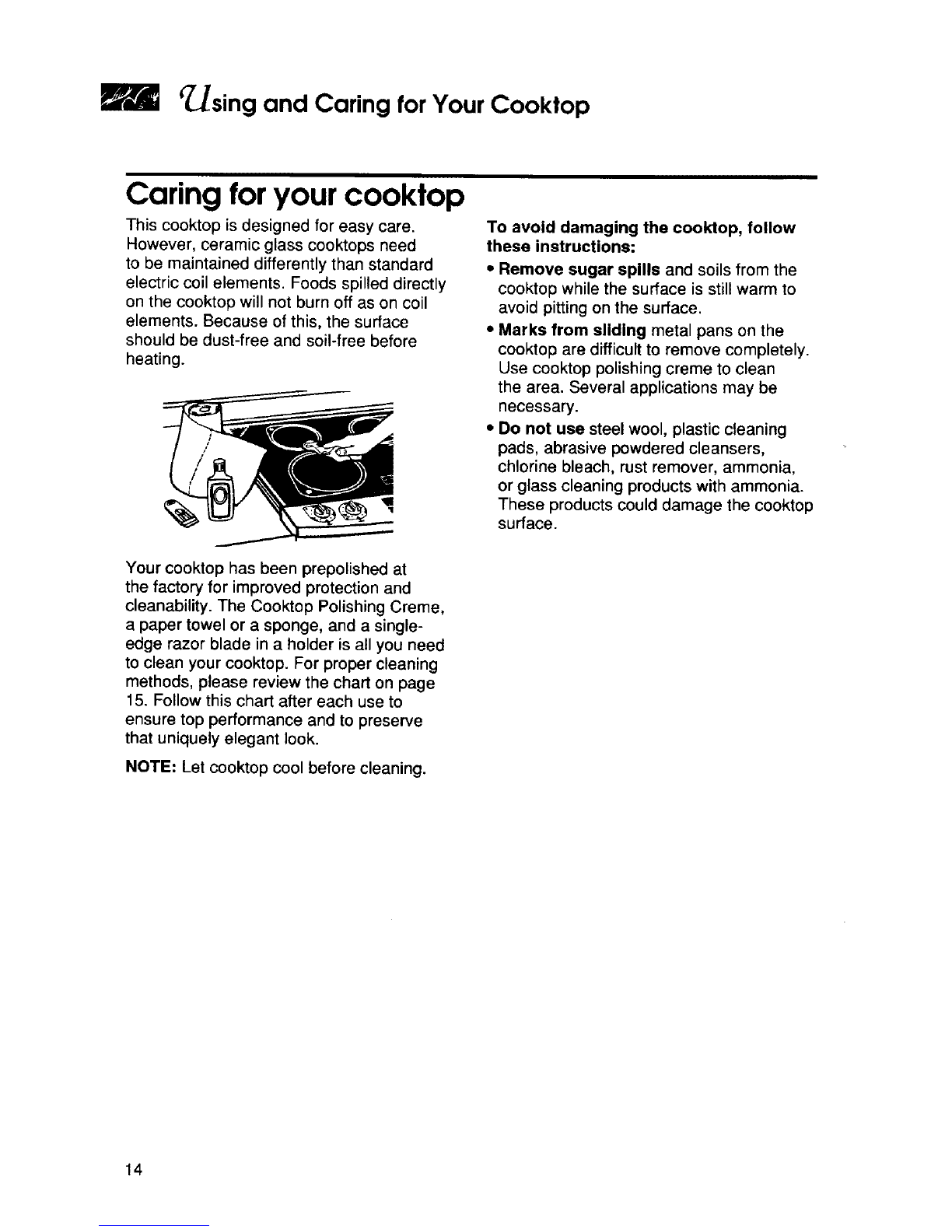

Caring for your cooktop ....................... 14

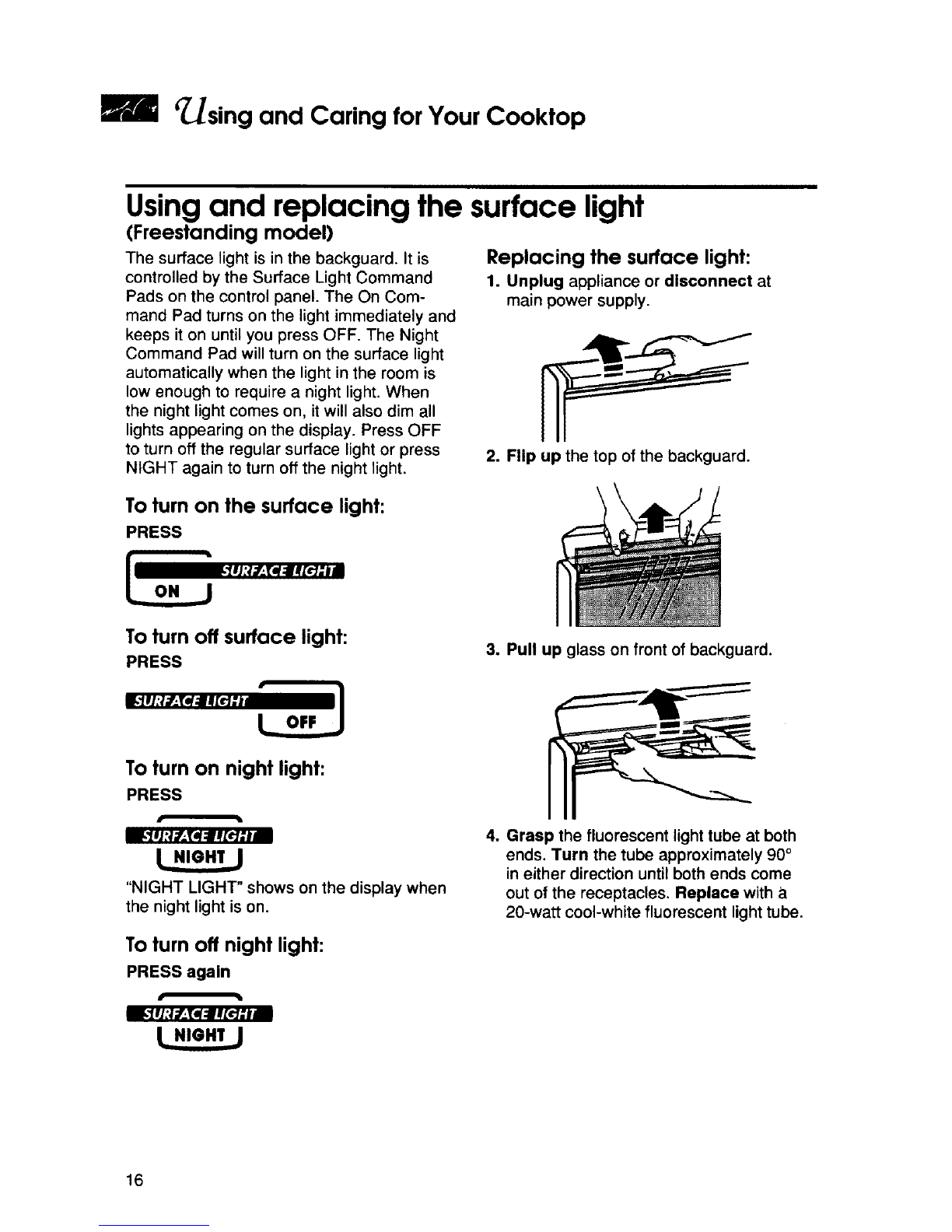

Using and replacing the surface light ... 16
Using and Caring for Your Oven ............ 18

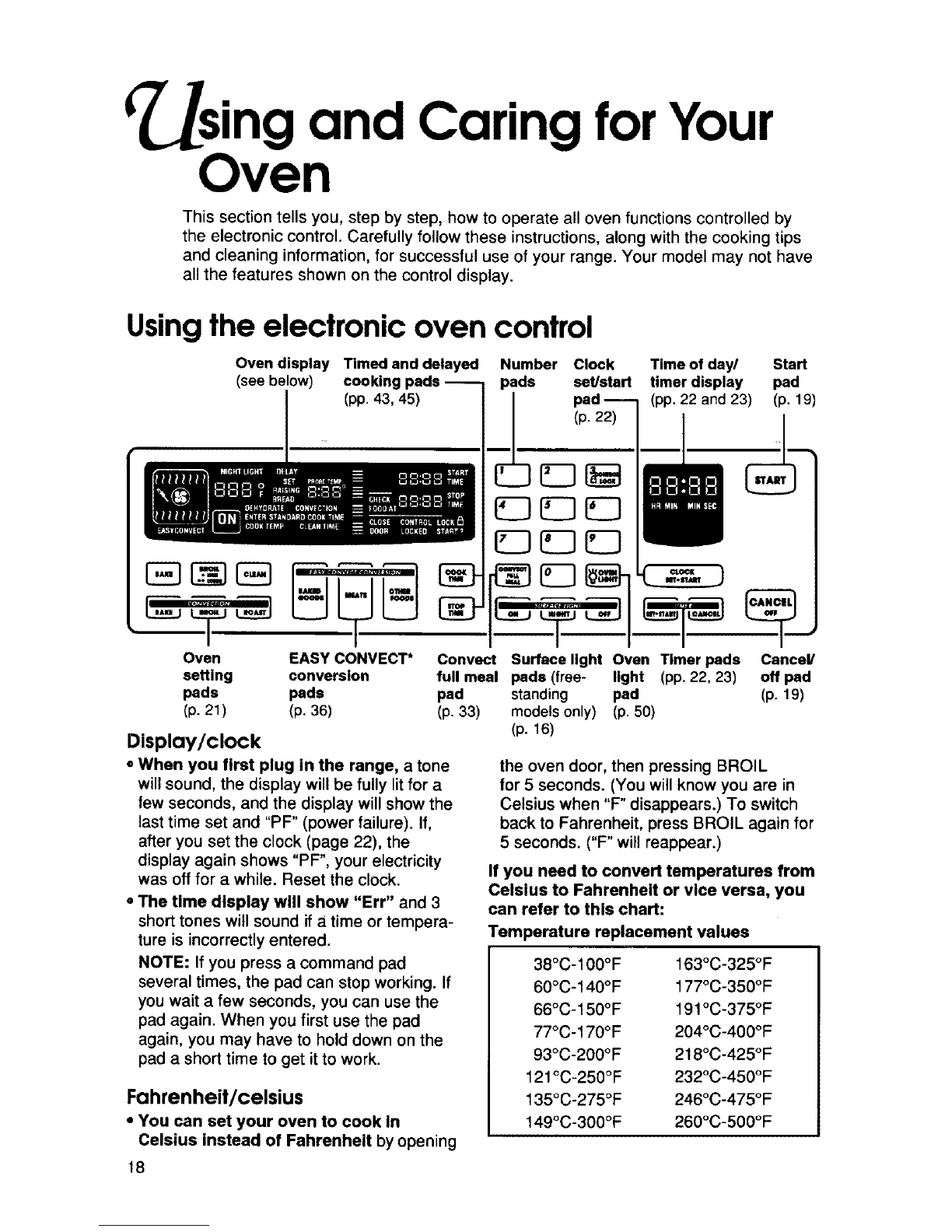

Using the electronicoven control ........ 18
Oven settings ..................................... 21
Setting the clock ................................. 22
Using the timer ................................... 22
Baking or convection baking ............... 24
Roasting ............................................. 25
Cooking tips ........................................ 27
Adjusting oven temperature ................ 30
Using the temperature probe ............... 31
Using Convect Full Meal ..................... 33
Using EASY CONVECT*
Conversion ......................................... 36
Broiling ............................................... 38
Convection broiling ............................. 40
Timed cooking .................................... 43
Dehydrating ........................................ 46
Raising (proofing) bread ...................... 47
Cleaning your oven and controls ......... 48
Using and replacing the oven light(s)... 50
Using the Self-Cleaning Cycle ............... 51
Before you start .................................. 51
Before setting the controls................... 52
Setting the controls ............................. 52
For best cleaning results..................... 54
How the cycle works ........................... 54
Troubleshooting ...................................... 55
Requesting Assistance or Service ......... 57
Index ........................................................ 62
Warranty .................................................. 64

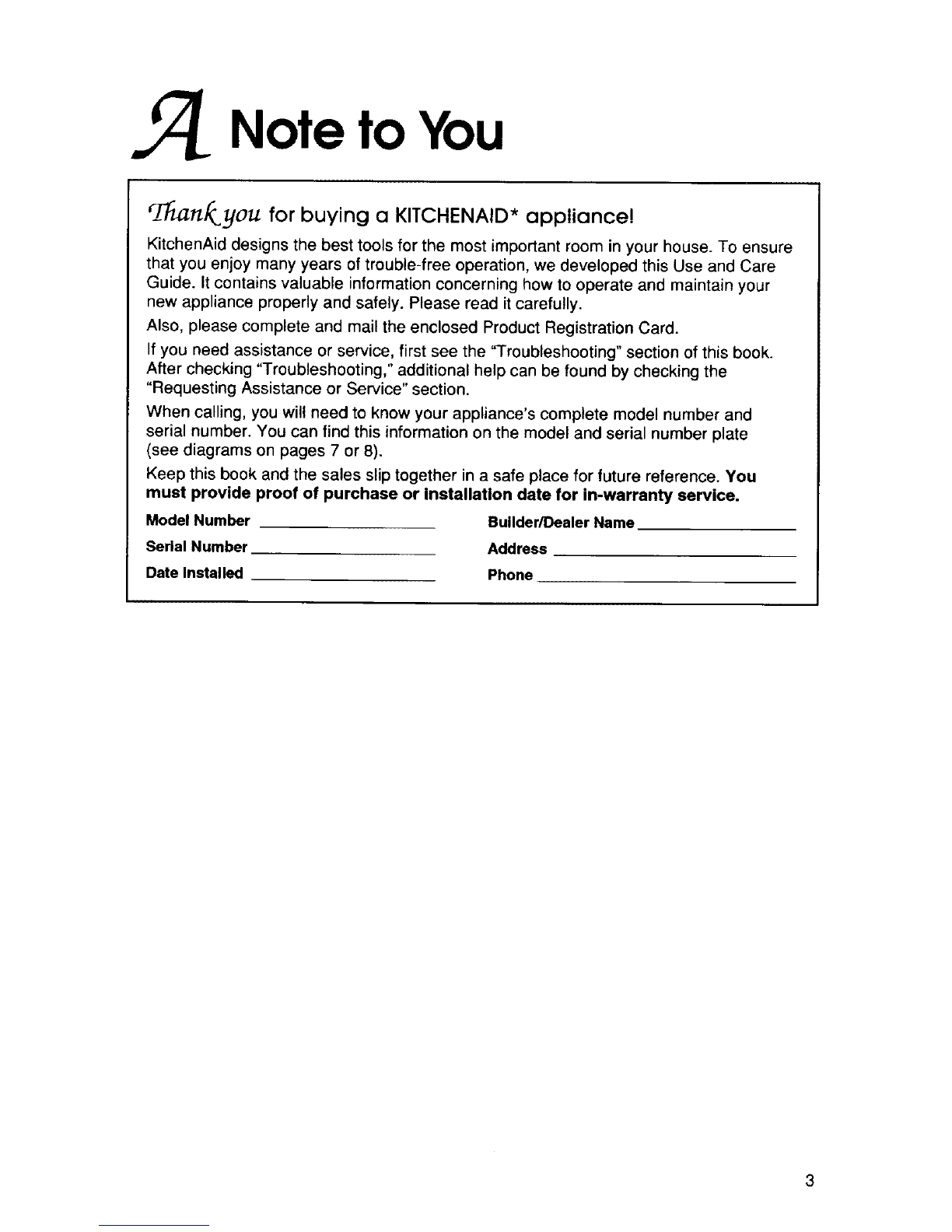

mNote to You
_nkyou for buying a KITCHENAID* appliance!
KitchenAid designs the best tools for the most important room in your house. To ensure
that you enjoy many years of trouble-free operation, we developed this Use and Care
Guide. It contains valuable information concerning how to operate and maintain your
new appliance properly and safely. Please read it carefully.
Also, please complete and mail the enclosed Product Registration Card.
If you need assistance or service, first see the "Troubleshooting" section of this book.
After checking "Troubleshooting," additional help can be found by checking the
"Requesting Assistance or Service" section.
When calling, you will need to know your appliance's complete model number and
serial number. You can find this information on the model and serial number plate
(see diagrams on pages 7 or 8).
Keep this book and the sales slip together in a safe place for future reference. You
must provide proof of purchase or Installation date for in-warranty service.
Model Number Builder/Dealer Name
Serial Number Address
Date Installed Phone

nge Safety
IMPORTANTSAFETYINSTRUCTIONS
Your safety is important to us.
This guide contains safety symbols and
statements. Please pay special attention to
these symbols and follow any instructions
given. Here is a brief explanation of the use
of the symbol.
General
This symbol alerts you to
hazards such as fire,
electrical shock, or
other injuries.
To reduce the risk of fire, electrical
shock, injury to persons, or damage
when using the range, follow basic
precautions, including the following:
• Read all instructions before using
the range.
• Install or locate the range only
in accordance with the provided
Installation Instructions. The
range must be installed by a
qualified installer. The range must
be properly connected to electri-
cal supply and grounded.
•WARNING: To reduce the risk
of tipping the appliance, the
appliance must be secured by a
properly installed anti-tip bracket.
To check if the bracket is installed
properly, see "The anti-tip bracket"
on page 10.
• CAUTION: Do not siore things
children might want above the
range. Children could be burned
or injured while climbing on it.
• Do not leave children alone or
unattended in area where the
range is in use. They should
never be allowed to sit or stand
on any part of the range. They
could be burned or injured.
•Do not use the range for warming
or heating the room. Persons could
be burned or injured, or a fire could
start.
• Use the range only for its intended
use as described in this manual.
• Do not touch surface units, areas
near units, heating elements, or
interior surfaces of oven. Surface
units and heating elements may
be hot even though they are dark
in color. Areas near surface units
and interior surfaces of an oven be-
come hot enough to cause burns.
During and after use, do not touch,
or let clothing or other flammable
materials contact surface units,
areas near units, heating elements,
or interior surfaces of oven until
they have had sufficient time to
cool. Other surfaces of the range,
such as the oven vent opening, the
surface near the vent opening, the
cooktop, and the oven door and
window, could also become hot
enough to cause burns.

nge Safety
*Do not operate the range if it is
damaged or not working properly.
oDo not wear loose or hanging
garments when using the range.
They could ignite if they touch a
hot surface unit and you could
be burned.
*Use only dry pot holders. Moist or
damp pot holders on hot surfaces
could result in burns from steam.
Do not let pot holder touch hot
heating elements. Do not use a
towel or bulky cloth for a pot
holder. It could catch on fire.
*Keep range vents unobstructed.
*Do not heat unopened containers.
They could explode. The hot
contents could cause burns and
container particles could cause
injury.
.Use only cookware approved for
oven use. Follow cookware manu-
facturer's instructions, especially
when using glass or plastic
cookware.
.Do not store flammable materials
on or near the range. The fumes
could create an explosion and/or
fire hazard.
*Do not repair or replace any part
of the range unless specifically
recommended in this manual. All
other servicing should be referred
to a qualified technician.
oDisconnect the electrical supply
before servicing the range.
When using the cooktop
.Do not cook on a broken ceramic
glass cooktop. If cooktop should
break, cleaning solutions and
spillovers could penetrate the
broken cooktop and create a risk
of electrical shock. Contact a
qualified technician immediately.
*Select a pan with a flat bottom
that is about the same size as the
surface unit. If pan is smaller than
the surface unit, some of the
heating element will be exposed
and could result in the igniting of
clothing or pot holders. Correct
pan size also improves cooking
efficiency.
*Check to be sure glass cookware
is safe for use on the range. Only
certain types of glass, glass-
ceramic, ceramic, earthenware,
or other glazed cookware are
suitable for cooktops without
breaking due to the sudden
change in temperature.
*Never leave surface units un-
attended at high heat settings.
A boilover could result and cause
smoking and greasy spillovers
that could ignite.
oTurn pan handles inward, but not
over other surface units. This will
help reduce the chance of burns,
igniting of flammable materials,
and spills due to bumping of
the pan.
continued on next page
5

_ange Safety
*Grease is flammable. Do not
allow grease to collect around
cooktop or in vents. Wipe spill-
overs immediately.
*Do not use water on grease fires.
Never pick up a flaming pan.
Smother flaming pan on range
by covering with a well-fitting lid,
cookie sheet, or flat tray. Flaming
grease outside of pan can be
extinguished with baking soda
or, if available, a multipurpose
dry chemical or foam-type
extinguisher.
*Clean ceramic glass cooktop
with care. Some cleaners could
produce noxious fumes if applied
to a hot surface. If a wet paper
towel is used to wipe spills on a
hot cooking area, be careful to
avoid steam burns.
When using the oven
•Always position oven rack(s) in
desired location while oven is
cool. If a rack must be removed
while oven is hot, do not let pot
holder contact hot heating ele-
ments in oven.
• Use care when opening oven door.
Let hot air or steam escape before
removing or replacing food.
*Small amounts of formaldehyde
and carbon monoxide are given
off in the Self-Cleaning cycle from
fiberglass insulation and food
decomposition. Significant expo-
sure to these substances could
cause cancer or reproductive
harm. Exposure can be minimized
by venting with a hood or open
window and wiping out excess
food spills prior to self-cleaning.
• Do not use oven cleaners. No
commercial oven cleaner or oven
liner protective coating of any kind
should be used in or around any
part of the oven.
*Before self-cleaning the oven,
remove broiler pan, broiler grid,
oven racks, and other cookware.
Do not use your oven to clean
miscellaneous parts unless you
are instructed to do so in this Use
and Care Guide.
• Do not clean door gasket. It is
essential for a good seal. Care
should be taken not to rub, dam-
age, or move the gasket. Clean
only parts recommended in this
Use and Care Guide.
-SAVE THESEINSTRUCTIONS-

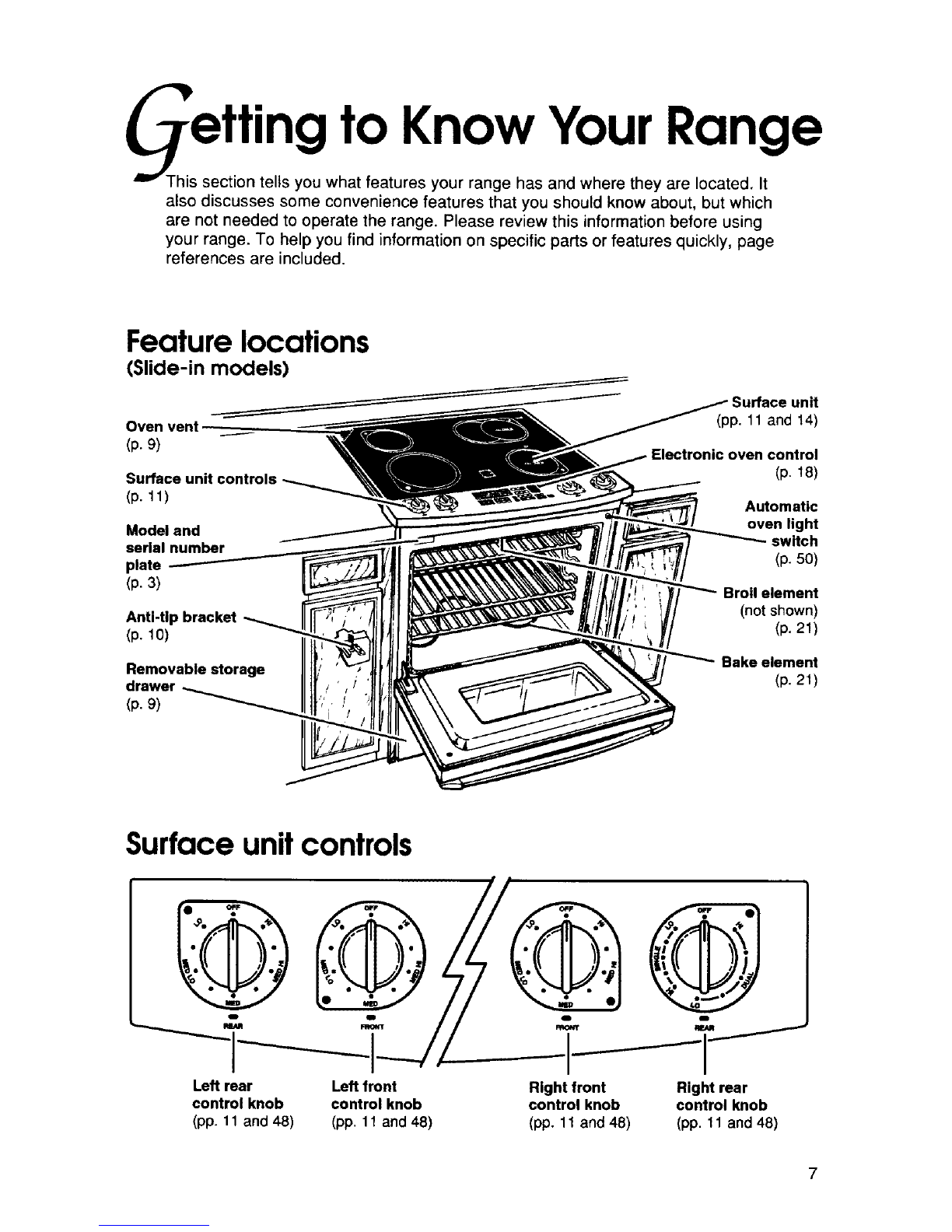

etting to Know Your Range
This section tells you what features your range has and where they are located. It
also discusses some convenience features that you should know about, but which
are not needed to operate the range. Please review this information before using
your range. To help you find information on specific parts or features quickly, page
references are included.
Feature locations
(Slide-in models)
Oven vent
(p. 9)
Surface unit controls
(p. 11)
(pp. 11 and 14)
(p. 18)
Automatic
Model and oven light
aerial number switch
plate (p. 50)
(p. 3) Broil element
Anti-tip bracket (not shown)
(p. 10) (p. 21)
Removable storage Bake element
drawer (p. 21)
(p. 9)
Surface unit controls
Left rear Left front Right front Right rear
control knob control knob control knob control knob
(pp. 11 and 48) (pp, 11 and 48) (pp. 11 and 48) (pp. 11 and 48)

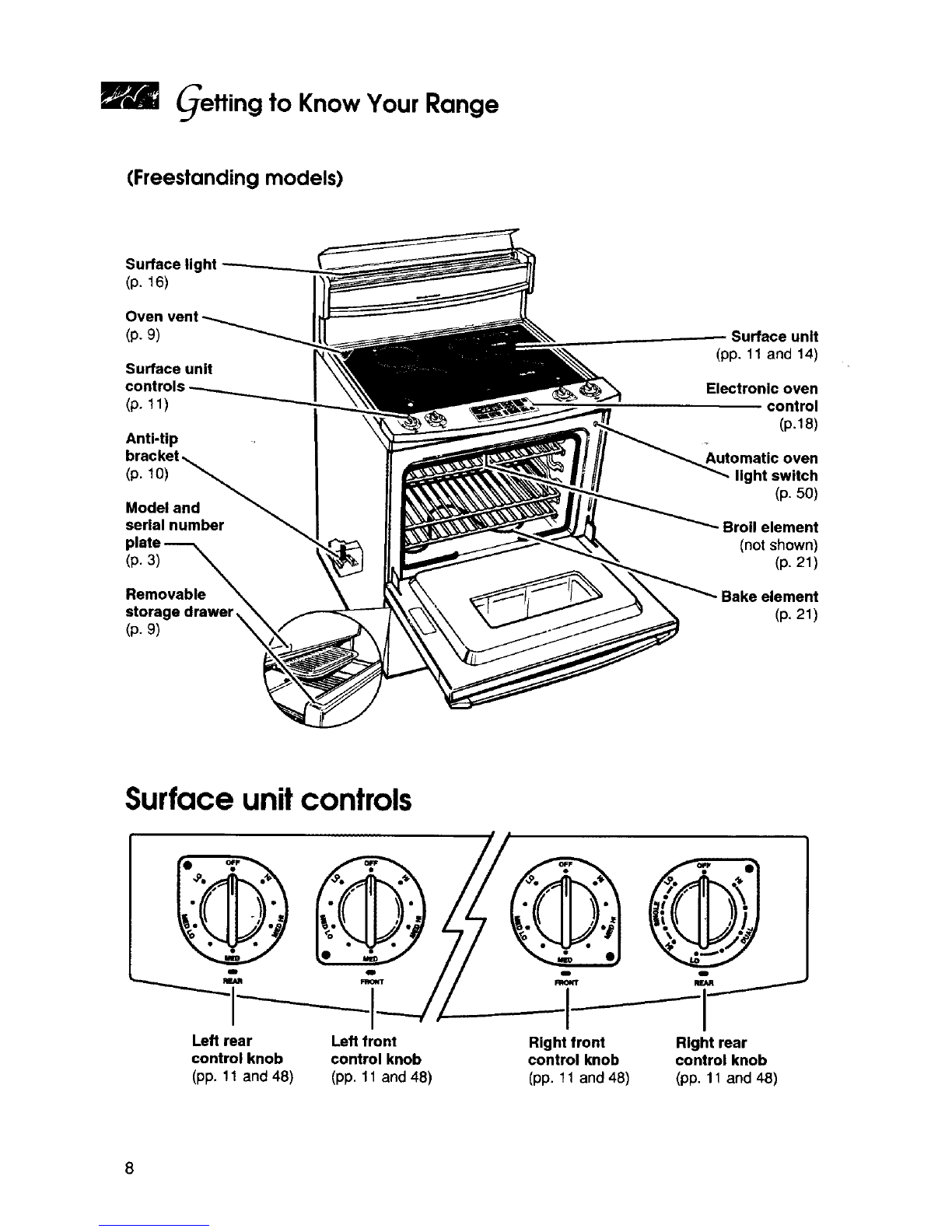

Getting to Know Your Range
(Freestanding models)
Surface Iigl
(p. 16)
Oven ven
(p. 9)
Surface unit
controls
(p. 11)
Anti-tip •
brac ket
(p. 10)
Model and
serial number
(p. 3)
Removable
storage drawer,
(p. 9)
Surface unit
(pp. 11 and 14)
Electronic oven
control
(p.18)
Automatic oven
light switch
(p. 50)
Broil element
(not shown)
(p. 21)
element
(p. 21)
Surface unit controls
Left rear Left front
control knob control knob
(pp. ! 1 and 48) (pp. 11 and 48)
Right front
control knob
(pp. 11 and 48)
Right rear
control knob
(pp. 11 and 48)

Getting to Know Your Range
The oven vent
Oven vent
Hot air and moisture escape from the oven
through a vent in the left rear corner of the
cooktop. Do not block the vent by using
large pans or covers. Poor baking/roasting _
can result.
NOTE: Plastic utensils left over the vent
can melt.
The storage drawer
You can remove the storage drawer to make
it easier to clean under the range and to
check for installation of the anti-tip bracket.
Use care when handling the drawer.
Removing the storage drawer:
1. Empty drawer of any pots and pans
before removing drawer. Use recessed
area on top edge of drawer to pull drawer
straight out to the first stop. Lift front and
pull out to the second stop.
2. Lift back slightly and slide drawer all the
way out.
Burn Hazard
Use pot holders when touching Items
left near oven vent.
Failure to do so can result in burns.
Replacing the storage drawer:
Drawer slide
rail
1. Fit ends of drawer slide rails into the
drawer guides on both sides of opening.
2. Lift drawer front and press in until metal
stops on drawer slide rails clear white
stops on drawer guides. Lift drawer front
again to clear second stop and slide
drawer closed.

Getting to Know Your Range
The anti-tip bracket
The range will not tip during normal use. However, tipping can occur if you apply too much
force or weight to the open door without the anti-tip bracket properly secured.
Tip Over Hazard
Connect anti-tip bracket to the range.
Reconnect anti-tip bracket, if the range is moved.
Do not push down on the open oven door.
Follow the Installation Instructions.
Do not let children climb onto the oven door.
Failure to follow these instructions can result in death, burns,
or other injury.
To verify the anti-tip bracket is
engaged:
Rear
leveling
foot
•Remove the storage drawer. (See page 9.)
• Look to see if the anti-tip bracket is attached
to floor with screws.
•Make sure left rear leveling foot is positioned
under the anti-tip bracket.
•See Installation Instructions for further details.
10
