KitchenAid KSC24C8EYW00 User manual

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING,
please visit our website at www.kitchenaid.com for additional information. Ifyou still need assistance, call us at 1-800-422-1230.
In Canada, visit our website at www.kitchenaid.ca or call us at 1-800-807-6777.
You will need your model and serial number, located on the inside wall of the refrigerator compartment.
Para obtener acceso a "lnstrucciones para el usuario del refrigerador" en espa_ol, o para obtener informaci6n adicional acerca de
su producto, visite: www.kitchenaid.com.
Necesitara su nQmerode modelo y de serie, ubicado en el interior del compartimiento del refrigerador.
Table of Contents /Table des mati res
REFRIGERATOR SAFETY ..................................................................... 1
REFRIGERATOR USE ........................................................................... 2
REFRIGERATOR CARE ......................................................................... 8
TROUBLESHOOTING ............................................................................ 9
ACCESSORIES .................................................................................... 11
WATER FILTER CERTIFICATIONS .................................................... 11
PERFORMANCE DATA SHEET .......................................................... 12
WARRANTY .......................................................................................... 13
SI_CURITI_ DU RI_FRIGI_RATEUR ..................................................... 16
UTILISATION DU RI_FRIGI_RATEUR ................................................. 17
ENTRETIEN DU RI_FRIGI_RATEUR ................................................... 25
DI_PANNAGE ........................................................................................ 26
ACCESSOIRES .................................................................................... 28
FEUlLLE DE DONNI_ES SUR LA PERFORMANCE .......................... 29
GARANTIE ............................................................................................ 30
REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10168321A

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Remove doors from your old refrigerator.
• Use nonflammable cleaner.
• Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
• Use two or more people to move and install refrigerator.
• Disconnect power before installing ice maker (on ice maker
kit ready models only).
• Use a sturdy glass when dispensing ice (on some models).
• Do not hit the refrigerator glass doors (on some models).
SAVE THESE INSTRUCTIONS
Proper Disposal of Your Old Refrigerator
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
- even if they will sit for "just a few days." If you are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.
Before You Throw Away Your Old Refrigerator or Freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easily
climb inside.
.___J
REFRIGERATOR USE
• , _ _, ................. ,
On some models, your refrigerator's accessory packet includes
an air filter, which must be installed prior to use. On some models,
the air filter is already installed at the factory. Installing the Air Filter (on some models)
The filter should be installed behind the vented door, which is
located (depending on your model) along either the rear or left
interior wall near the top of the refrigerator compartment.
1. Remove the air filter from its packaging.
2. Lift open the vented door.
3. Snap the filter into place.
Installing the Filter Status Indicator (on some models)
The filter comes with a status indicator, which should be activated
and installed at the same time the air filter is installed.
The air filter reduces the buildup of odors. This helps to maintain a
cleaner environment inside the refrigerator.
2
1. Place the indicator face-down on a firm, flat surface.
2. Apply pressure to the bubble on the back of the indicator, until
the bubble pops to activate the indicator.
3. Lift open the vented air filter door. On some models, there are
notches behind the door.

4. On models with notches:
• Slide the indicator down into the notches, facing outward.
NOTE: The indicator will not easily slide into the notches
if the rear bubble has not been popped.
• Close the air filter door, and check that the indicator is
visible through the rectangular hole in the door.
On models without notches:
• Store the indicator in a visible place you will easily
remember - either inside the refrigerator, or elsewhere in
your kitchen or home.
Replacing the Air Filter
The disposable air filter should be replaced every 6 months, when
the status indicator has completely changed from white to red.
To order a replacement air filter, contact us using the
assistance/service information following the warranty.
1. Remove the old air filter by squeezing in on the side tabs.
2. Remove the old status indicator.
3. Install the new air filter and status indicator using the
instructions in the previous sections.
On some models, your refrigerator's accessory packet includes a
Produce Preserver, which should be installed prior to use. On
some models, the Produce Preserver is already installed at the
factory.
The Produce Preserver absorbs ethylene, allowing the ripening
process of many produce items to slow down. As a result, certain
produce items will stay fresh longer.
Installing the Produce Preserver (on some models)
1. Remove the Produce Preserver pouch from its packaging.
irFreshFlow
produce preserver
CAUTION ATTENTION
IRRITANT IRRITANT
Read cautions on back, Life les mises en garde au dos,
....... w_i_!p_ _i_n _n_,_ N_ N!_ _ ....
2. Lift up on the housing in order to remove it from its mounting
tab along the wall.
3. Open the housing by pulling up and out on the back of the top
of the housing.
4. Place the pouch inside the housing, then snap the housing
back together.
5. Place the housing back on the mounting tab along the wall.
Installing the Status Indicator (on some models)
The Produce Preserver comes with a status indicator, which
should be activated and installed at the same time the pouch is
installed.
CAUTION: IRRITANT
MAY IRRITATE EYES AND SKIN. DANGEROUS FUMES
FORM WHEN MIXED WITH OTHER PRODUCTS.
Do not mix with cleaning products containing ammonia,
bleach or acids. Do not get in eyes, on skin or clothing. Do
not breathe dust. Keep out of reach of children.
FIRST AID TREATMENT: Contains potassium
permanganate. If swallowed, call a Poison Control Center or
doctor immediately. Do not induce vomiting. If in eyes, rinse
with water for 15 minutes. If on skin, rinse with water.
The Produce Preserver pouch should be installed in its housing,
which is located along an interior side wall of the crisper or
convertible drawer.
1. Place the indicator face-down on a firm, flat surface.
2. Apply pressure to the bubble on the back of the indicator, until
the bubble pops to activate the indicator.
3. Slide open the cap on the Produce Preserver housing.
4. Place the indicator in the top of the housing, facing outward.
5. Slide the cap closed, and check that the indicator is visible
through the rectangular hole in the cap.
NOTE: The cap will not easily close if the indicator's rear
bubble has not been popped.
Replacing the Produce Preserver
The disposable pouch should be replaced every 6 months, when
the status indicator has completely changed from white to red.
To order a replacement, contact us using the assistance/service
information following the warranty.
1. Remove the old pouch from the Produce Preserver housing.
2. Remove the old status indicator.
3. Install the new pouch and status indicator using the
instructions in the previous sections.

Therefrigeratorandfreezercontrolsarelocatedonthedispenser
panel.
IMPORTANT:Thedisplayscreenonthedispensercontrolpanel
willturnoffautomaticallyandenter"sleep"modewhenthe
controlbuttonsanddispenserlevershavenotbeenusedfor
2minutesormore.Whilein"sleep"mode,thefirstpressofa
controlbuttonwillonlyreactivatethedisplayscreen,without
changinganysettings.Afterreactivation,changestoanysettings
canthenbemade.Ifnochangesaremadewithin2minutes,the
displaywillre-enter"sleep"mode.
• Touchanycontrolbuttononthedispenserpaneltoactivate
thedisplayscreen.Thehomescreenwillappearasshown.
Adjusting the Controls
For your convenience, your refrigerator and freezer controls are
preset at the factory. When you first install your refrigerator, make
sure that the controls are still set to the "mid-settings." The factory
recommended set points are 37°F (3°C) for the refrigerator and
0°F (-18°C) for the freezer.
IMPO RTANT:
• Wait 24 hours before you put food into the refrigerator. If you
add food before the refrigerator has cooled completely, your
food may spoil.
NOTE: Adjusting the set points to a colder than
recommended setting will not cool the compartments any
faster.
If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not
blocked before adjusting the controls.
The preset settings should be correct for normal household
usage. The controls are set correctly when milk or juice is as
cold as you like and when ice cream is firm.
Wait at least 24 hours between adjustments. Recheck the
temperatures before other adjustments are made.
To view and adjust the set points, press and hold the
TEMPERATURE button for 3 seconds. When adjust mode is
activated, adjusting information will appear on the display screen.
NOTE: To view Celsius temperatures, press the LIGHT button
when adjust mode is activated. To return the display setting to
Fahrenheit, press LIGHT again.
When adjust mode is activated, the display screen shows the
refrigerator set point and "REFRIGERATOR" appears.
Press LOCK to raise the set point, or press OPTIONS to lower
the set point.
When you have finished viewing (and adjusting if desired) the
refrigerator set point, press TEMPERATURE to change the
display to show the freezer set point. When the zone has been
changed, "FREEZER" appears on the display screen.
Press LOCK to raise the set point, or press OPTIONS to lower
the set point.
When you have finished viewing (and adjusting if desired) both
the refrigerator and freezer set points, press MEASURED FILL
to save the settings.
NOTE: To exit without saving changes, press ICE MODE at
any time while in adjust mode, or allow about 60 seconds of
inactivity and adjust mode will turn off automatically.
When adjusting temperature set points, use the following chart as
a guide.
CONDITION: TEMPERATURE
ADJUSTMENT:
REFRIGERATOR too cold REFRIGERATOR Setting
1o higher
REFRIGERATOR too warm REFRIGERATOR Setting
1o lower
FREEZER too cold FREEZER Setting
1o higher
FREEZER too warm /FREEZER Setting
Too little ice 1o lower
The set point range for the refrigerator is 33°F to 45°F (0°C to
7°C). The set point range for the freezer is -5°F to 5°F (-21°C to
-15°C).
Cooling On/Off
Your refrigerator and freezer will not cool when cooling is
turned off.
• Toturn cooling off, press and hold the LOCK and MEASURED
FILL buttons at the same time for 3 seconds.
IMPORTANT: To avoid unintentionally mockingthe dispenser
or changing other settings, be sure to press both buttons at
exactly the same time.
When cooling is off, "REFRIGERATION COOLING IS OFF" will
appear on the display screen.
Press and hold LOCK and MEASURED FILL for 3 seconds
again to turn cooling back on.
Additional Features
Max Cool and Max Ice
The Max Cool feature assists with periods of heavy ice usage, full
grocery loads, or temporarily warm room temperatures.
The Max Ice feature assists with temporary periods of heavy ice
use by increasing ice production over a 24-hour period.
• Toturn on the Max Cool feature, press the OPTIONS button to
enter Options mode, then press OPTIONS again to activate
the feature. The Max Cool icon will appear on the dispenser
display. G
The Max Cool feature will remain on for 24 hours unless
manually turned off. To manually turn it off, press the
OPTIONS button to enter Options mode (unless you are
already in Options mode), then press OPTIONS again. When
the feature has been turned off, the Max Cool icon will
disappear on the dispenser display.

ToturnontheMaxIcefeature,presstheOPTIONSbuttonto
enterOptionsmode,thenpresstheTEMPERATUREbuttonto
activatethefeature.TheMaxIceiconwillappearonthe
dispenserdisplay. @
The Max Ice feature will remain on for 24 hours unless
manually turned off. To manually turn it off, press the
OPTIONS button to enter Options mode (unless you are
already in Options mode), then press TEMPERATURE. When
the feature has been turned off, the Max Ice icon will
disappear on the dispenser display.
When Max Cool and/or Max Ice are active, the temperature
display will not change. After 24 hours, the refrigerator returns to
the previous temperature set points.
NOTE: If increased ice production is desired at all times, change
the freezer control to a lower setting. Setting the freezer to a
colder temperature may make some foods, such as ice cream,
harder.
Sabbath Mode
Sabbath Mode is designed for those whose religious observances
require turning off the lights and dispensers.
In Sabbath Mode, the temperature set points remain unchanged,
but the interior and dispenser lights turn off, all sounds and alarms
are disabled, the dispenser display screen backlight turns off, and
the dispenser levers are disabled.
• To turn on Sabbath Mode, press and hold LIGHT and
OPTIONS at the same time for 3 seconds. When the feature
turns on, "Sabbath Mode" will appear on the dispenser
display.
• To turn off Sabbath Mode, press and hold LIGHT and
OPTIONS at the same time for 3 seconds again.
Power Outage Indicator
The power outage indicator lets you know if the power supply to
the refrigerator has been cut off and the freezer temperature has
risen to 18°F (-8°C) or higher.
When power has been restored, "PC" repeatedly flashes on the
display screen and the red Power Outage icon appears.
When the indicator is on, all other control and dispenser functions
are disabled until you confirm that you are aware of the power
outage.
• To enable other functions, press MEASURED FILL to reset the
display screen to its normal status.
Door Ajar Alarm
The Door Ajar Alarm feature sounds an alarm when the refrigerator
or freezer door is open for 5 minutes and the product cooling is
turned on. The alarm will repeat every 2 minutes. Close both
doors to turn it off. The feature then resets and will reactivate
when either door is left open again for 5 minutes.
NOTE: To mute the audible alarm while keeping the doors open,
such as while cleaning the inside of the refrigerator, press any
button on the control panel. The alarm sound will be temporarily
turned off, but the Door Ajar icon will still be displayed on the
dispenser control panel.
Disabling Sounds
• To turn off all control and dispenser sounds, press and hold
ICE and MEASURED FILL at the same time for 3 seconds.
• To turn all sounds back on, press and hold ICE and
MEASURED FILL at the same time for 3 seconds again.
Dual Evaporator (on some models)
Some models come equipped with a dual sequential evaporation
system, which includes two separate evaporators for the
refrigerator and freezer compartments.
Dual evaporation results in higher humidity, which helps keep
foods in the refrigerator from spoiling as quickly and improves
food quality and freshness in the freezer due to decreased freezer
burn. In addition, the dual evaporation system helps keep food
smells in the refrigerator from transferring to ice in the freezer.
NOTE: The dual evaporation system is always activated when
your refrigerator is operating. You do not need to press any
buttons to turn it on.
The control can be adjusted to properly chill meats or vegetables.
The air inside the pan is cooled to avoid "spot" freezing and can
be set to keep meats at the National Livestock and Meat Board
recommended storage temperatures of 28° to 32°F (-2° to 0°C).
To store meat:
Set the control to one of the three MEAT settings to store meat at
its optimal storage temperature.
To store vegetables:
Set the control to VEG to store vegetables at their optimal storage
temperatures.
NOTE: If food starts to freeze, move the control to the right (less
cold), toward the VEG setting. Remember to wait 24 hours
between adjustments.
i/
You can control the amount of humidity in the moisture-sealed
crisper. Adjust the control to any setting between LOW and HIGH.
LOW (open) for best storage of fruits and vegetables with skins.
HIGH (closed) for best storage of fresh, leafy vegetables.
Cool air from the freezer is directed to the refrigerator door bin
directly beneath the vents.
NOTE: The dairy compartment and can rack are not associated
with the Chilled Door Bin feature.
Chilled Door Bin Control
The chilled door bin control is located on the left-hand side of the
refrigerator compartment.
A--
A. Chilleddoor bin control
Slide the door chill control to the left to reduce the flow of cold
air to the bin and make it less cold.
Slide the door chill control to the right to increase the flow of
cold air to the bin and make it colder.

W_ _ ¸'a:_:__ _ _; _ _ <_oc
IMPORTANT: After connecting the refrigerator to a water source
or replacing the water filter, flush the water system. Use a sturdy
container to depress and hold the water dispenser lever for
5 seconds, then release it for 5 seconds. Repeat until water
begins to flow. Once water begins to flow, continue depressing
and releasing the dispenser lever (5 seconds on, 5 seconds off)
until a total of 3 gal. (12 L) has been dispensed. This will flush air
from the filter and water dispensing system, and prepare the
water filter for use. Additional flushing may be required in some
households. As air is cleared from the system, water may spurt
out of the dispenser.
NOTES:
• The dispensing system will not operate when the freezer door
is open.
• Allow 24 hours for the refrigerator to cool down and chill
water.
Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
The display screen on the dispenser control panel will turn off
automatically and enter "sleep" mode when the control
buttons and dispenser levers have not been used for
2 minutes or more. While in "sleep" mode, the first press of a
control button will only reactivate the display screen, without
changing any settings. After reactivation, changes to any
settings can then be made. If no changes are made within
2 minutes, the display will re-enter "sleep" mode.
The Water Dispenser
IMPORTANT: Dispense at least 1 qt (1 L) of water every week to
maintain a fresh supply.
To Dispense Water (Standard):
1. Press a sturdy glass against the water dispenser lever.
NOTE: While dispensing water and for 3 seconds after
dispensing has stopped, the digital display will show how
much water has been dispensed.
2. Remove the glass to stop dispensing.
To Dispense Water (Measured Fill):
Measured Fill allows you to dispense a specified amount of water
with the touch of a few buttons.
NOTE: The amount of water you select will be dispensed. Be sure
that the container is empty and can hold the entire volume. If ice is
in the container, you may need to adjust your selection.
IMPORTANT: Low water pressure may affect the accuracy of this
feature.
1. Press MEASURED FILL to turn the feature on. When the
feature is on, the Measured Fill screen appears on the display.
I-I
O
o_nce
Press ICE MODE to manually turn off the Measured Fill
feature.
NOTE: The dispenser will automatically turn off Measured Fill
after 1 minute of inactivity. When Measured Fill is turned off,
any changes you have made will be lost and all defaults will be
restored.
2.
3.
4=
5.
You can dispense water by the ounce, cup, or liter. The default
unit is ounces. To switch to cups or liters, press the LIGHT
button.
Default, minimum, and maximum volumes are listed below.
Units Default Minimum Maximum
Ounces 8 1 128
Cups 1 V4 16
Liters 0.25 0.05 4.00
Press the LOCK and OPTIONS buttons to adjust the volume
as desired. The LOCK button increases the volume, and the
OPTIONS button lowers the volume.
NOTE: Most coffee cups (commonly 4 to 6 oz [118 to 177 mL]
per cup) are not the same size as a measuring cup (8 oz
[237 mL]). You may need to adjust the volume to avoid
unintentionally overfilling coffee cups.
To dispense water, press a sturdy glass against the water
dispenser lever OR place the glass below the water dispenser
and press the MEASURED FILL button.
NOTE: While dispensing water, the digital display will count
down how much water remains to be dispensed, according to
the volume you selected. The flow of water will automatically
stop once the desired volume has been dispensed.
To stop dispensing before the selected volume has been
dispensed, remove the glass from the dispenser lever OR
press the MEASURED FILL button a second time.
NOTE: If you stop dispensing before the desired volume has
been dispensed, the digital display will continue to show how
much water remains to be dispensed. The display will turn off
after 1 minute of inactivity.
To select a new volume or start dispensing the same volume
again, you must first finish dispensing the selected volume, or
turn off the Measured Fill feature (either by waiting 1 minute so
it will automatically turn off or by pressing ICE MODE to
manually turn it off) and then turn it back on.
The Ice Dispenser
Ice dispenses from the ice maker storage bin in the freezer when
the dispenser lever is pressed. To turn off the ice maker, see "Ice
Maker and Storage Bin."
Your ice maker can produce both crushed and cubed ice. Before
dispensing ice, select which type of ice you prefer by pressing the
ICE MODE button.
The display screen indicates which type of ice is selected.
_D
CRUSHED CUBED
For crushed ice, cubes are crushed before being dispensed. This
may cause a slight delay when dispensing crushed ice. Noise
from the ice crusher is normal, and pieces of ice may vary in size.
When changing from crushed to cubed, a few ounces of crushed
ice will be dispensed along with the first cubes.
6

To Dispense Ice:
1. Make sure the desired type of ice is selected. To switch
between cubed and crushed, press ICE MODE.
Cut Hazard
Use asturdy glass when dispensing ice.
Failure to do so can result in cuts.
2=
3=
Press a sturdy glass against the ice dispenser lever. Hold the
glass close to the dispenser opening so ice does not fall
outside of the glass.
IMPORTANT: You do not need to apply a lot of pressure to the
lever in order to activate the ice dispenser. Pressing hard will
not make the ice dispense faster or in greater quantities.
Remove the glass to stop dispensing.
NOTE: Ice may continue to dispense for several seconds after
removing the glass from the lever. The dispenser may
continue to make noise for a few seconds after dispensing.
The Dispenser Light
When you use the dispenser, the light will automatically turn on.
If you want the light to be on continuously, you may choose either
ON or DIM. The display screen indicates which mode is selected.
ON
DIM
ON DIM OFF
ON: Press LIGHT to turn the dispenser light on.
DIM: Press LIGHT a second time to select DIM mode. The
dispenser light will remain on, but at a lower intensity.
OFF: Press LIGHT a third time to turn the dispenser light off.
The dispenser lights are LEDs that cannot be changed. If it
appears that your dispenser lights are not working, see
"Troubleshooting" for more information.
The DispenserLock
The dispenser can be turned off for easy cleaning or to avoid
unintentional dispensing by small children and pets.
NOTE: The lock feature does not shut off power to the refrigerator,
to the ice maker, or to the dispenser light. It simply deactivates the
controls and dispenser levers. To turn off the ice maker, see "Ice
Maker and Storage Bin."
• Press and hold LOCK for 3 seconds to lock the dispenser.
• Press and hold LOCK a second time to unlock the dispenser.
The display screen indicates when the dispenser is locked.
LOCKED UNLOCKED
Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
The quality of your ice will be only as good as the quality of the
water supplied to your ice maker. Avoid connecting the ice
maker to a softened water supply. Water softener chemicals
(such as salt) can damage parts of the ice maker and lead to
poor quality ice. If a softened water supply cannot be avoided,
make sure the water softener is operating properly and is well
maintained.
Do not use anything sharp to break up the ice in the storage
bin. This can cause damage to the ice container and the
dispenser mechanism.
Do not store anything on top of or in the ice maker or storage
bin.
Style I
Turning the Ice Maker On/Off:
The On/Off switch can only be accessed when the ice storage bin
has been removed. The switch is located on the freezer door, on
the left side of the wall that surrounds the ice storage bin. See the
following section for bin removal instructions.
• To turn on the ice maker, slide the control to the ON (left)
position.
• To manually turn off the ice maker, slide the control to the OFF
(right) position.
NOTE: The ice maker has an automatic shutoff to keep the
storage bin from overfilling during normal operation. The ice
maker sensors will automatically stop ice production, but the
control will remain in the ON (left) position.
Removing and Replacing Ice Storage Bin:
1. Press down the release lever and tilt the bucket outward. Use
both hands to hold the base of the storage bin, then lift it up
and out.
A
A. Release lever

NOTE: It is not necessary to turn the ice maker control to the
OFF (right) position when removing the storage bin. The
sensor cover ("flipper door"), located on the right wall of the
freezer door, stops the ice maker from producing ice if the
door is open or the storage bin is removed.
2. Replace the bin by sliding it onto the door, then tilting it back
into an upright position. The release lever will click when the
bin is securely in place.
Style 2
Turning the Ice Maker On/Off:
• Toturn ONthe ice maker,simply lowerthe wire shutoff arm.
• To manually turn off the ice maker, lift the wire shutoff arm to
the OFF (arm up) position and listen for the click. Ice can still
be dispensed, but no more can be made.
NOTE: The ice maker has an automatic shutoff to keep the
storage bin from overfilling during normal operation. As ice is
made, the ice cubes will fill the ice storage bin, and the ice cubes
will raise the wire shutoff arm to the OFF (arm up) position. Do not
force the wire shutoff arm up or down.
Removing and Replacing Ice Storage Bin:
1. Pull the covering panel up from the bottom.
2. Lift the wire shutoff arm so it clicks into the OFF (up) position.
3. Lift up the front of the storage bin and pull it out.
Changing the Water Filter
1. Locate the water filter in the top-right corner of the refrigerator
compartment.
2. Lift open the filter cover door. The filter will be released and
then eject as the door is opened.
3. When the door is completely open, pull the filter straight out.
NOTE: There may be some water in the filter. Some spilling
may occur. Use a towel to wipe up any spills.
4= Take the new filter out of its packaging and remove the covers
from the O-rings. Be sure the O-rings are still in place after the
covers are removed.
5. With the arrow pointing up, align the new filter with the filter
housing and slide it into place. The filter cover door will
automatically begin to close as the new filter is inserted.
6. Close the filter cover door completely in order to snap the filter
into place. You may need to press hard.
7. Flush the water system. See "Water and Ice Dispensers."
REFRIGERATOR CARE
4=
5.
Replace the bin by pushing it in all the way or the dispenser
will not work.
To restart ice production, push the wire shutoff arm down to
the ON position. Make sure the door is closed tightly.
Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction
may be used on disinfected waters that may contain
filterable cysts.
Water Filter Status Light
The water filter status light will help you know when to change
your water filter.
• When the dispenser control panel's water filter status display
changes to "ORDER," this tells you that it is almost time to
change the water filter cartridge.
• Replace the water filter cartridge when the water filter status
display changes to "REPLACE."
If water flow to your water dispenser or ice maker decreases
noticeably, change the filter sooner. The filter should be replaced
at least every 6 months, depending on your water quality and
usage.
• After changing the water filter, reset the status light. Press the
OPTIONS button to enter Options mode, then press LOCK to
initiate the reset, then press MEASURED FILL to confirm that
you want to reset the status light. When the system is reset,
the "ORDER" and "REPLACE" icons will disappear from the
display screen.
8
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to avoid
buildup of odors. Wipe up spills immediately.
IMPORTANT: Because air circulates between both sections, any
odors formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors. To avoid odor
transfer and drying out of food, wrap or cover foods tightly.
To Clean Your Refrigerator:
NOTE: Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning waxes,
concentrated detergents, bleaches or cleansers containing
petroleum products on plastic parts, interior and door liners or
gaskets. Do not use paper towels, scouring pads, or other harsh
cleaning tools.
1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mild detergent in warm water.

3.
4.
5.
Wash stainless steel and painted metal exteriors with a clean
sponge or soft cloth and a mild detergent in warm water.
There is no need for routine condenser cleaning in normal
home operating environments. If the environment is
particularly greasy or dusty, or there is significant pet traffic in
the home, the condenser should be cleaned every 2 to
3 months to ensure maximum efficiency.
If you need to clean the condenser:
• Remove the base grille. See the "Door Removal"
instructions, either in the User Instructions or the separate
instruction sheet provided with your refrigerator.
• Use a vacuum cleaner with a soft brush to clean the grille,
the open areas behind the grille and the front surface area
of the condenser.
• Replace the base grille when finished.
Plug in refrigerator or reconnect power.
NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the
bulb with one of the same size, shape and wattage.
• The dispenser lights are LEDs that cannot be changed.
• On some models, the interior lights are LEDs that cannot
be changed.
• On some models, the interior lights require a 40-watt bulb.
1. Unplug refrigerator or disconnect power.
2. Remove light shield when applicable.
NOTE: To clean the light shield, wash it with warm water and
liquid detergent. Rinse and dry the shield well.
3. Remove light bulb and replace with one of the same size,
shape and wattage.
4. Replace light shield when applicable.
5. Plug in refrigerator or reconnect power.
TROUBLESHOOTING
First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)
to possibly avoid the cost of a service call.
In the U.S.A., www.kitchenaid.com In Canada, www.kitchenaid.ca
The refrigerator will not operate
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Power cord unplugged? Plug into a grounded 3 prong outlet.
Is outlet working? Plug in a lamp to see if the outlet is
working.
Household fuse blown or circuit breaker tripped? Replace
the fuse or reset the circuit breaker. If the problem continues,
call an electrician.
Are controls on? Make sure the refrigerator controls are on.
See "Using the Controls."
New installation? Allow 24 hours following installation for the
refrigerator to cool completely.
NOTE: Adjusting the temperature controls to coldest setting
will not cool either compartment more quickly.
The motor seems to run too much
Your new refrigerator may run longer than your old one due to its
high-efficiency compressor and fans. The refrigerator may run
even longer if the room is warm, a large food load is added, doors
are opened often, or if the doors have been left open.
The refrigerator is noisy
Refrigerator noise has been reduced over the years. Due to this
reduction, you may hear intermittent noises from your new
refrigerator that you did not notice from your old model. Below are
listed some normal sounds with an explanation.
•Buzzing - heard when the water valve opens to fill the ice
maker
•Clicking/Snapping - valves opening or closing
•Pulsating - fans/compressor adjusting to optimize
performance
• Rattling - flow of refrigerant, water line, or from items placed
on top of the refrigerator
•Sizzling/Gurgling - water dripping on the heater during
defrost cycle
•Popping - contraction/expansion of inside walls, especially
during initial cool-down
•Water running - may be heard when ice melts during the
defrost cycle and water runs into the drain pan
• Creaking/Cracking - occurs as ice is being ejected from the
ice maker mold.
The doors will not close completely
•Door blocked open? Move food packages away from door.
• Bin or shelf in the way? Push bin or shelf back in the correct
position.

The doors are difficult to open
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
•Are the gaskets dirty or sticky? Clean gaskets with mild
soap and warm water.
The refrigerator rocks and is not stable
What do I do if the refrigerator rocks and is not stable?
To stabilize the refrigerator, remove the base grille and lower
the leveling feet until they touch the floor. See the "Door
Removal" instructions, either in the User Instructions or the
separate instruction sheet provided with your refrigerator.
The lights do not work
•Is alight bulb loose in the socket or burned out? See
"Changing the Light Bulbs."
Is the dispenser light set to OFF? On some models, the
dispenser light will operate only when a dispenser lever/pad is
pressed. If you want the dispenser light to stay on
continuously, set the dispenser light to ON, or (on some
models) NIGHT LIGHT or AUTO or HALF or DIM. See "Water
and Ice Dispensers."
Is the dispenser light set to NIGHT LIGHT or AUTO? On
some models, if the dispenser is set to the NIGHT LIGHT or
AUTO mode, be sure the dispenser light sensor is not
blocked. See "Water and Ice Dispensers."
Temperature is too warm
• New installation? Allow 24 hours following installation for the
refrigerator to cool completely.
•Door(s) opened often or left open? Allows warm air to enter
refrigerator. Minimize door openings and keep doors fully
closed.
Large load of food added? Allow several hours for
refrigerator to return to normal temperature.
Controls set correctly for the surrounding conditions?
Adjust the controls a setting colder. Check temperature in
24 hours. See "Using the Controls."
There is interior moisture buildup
NOTE: Some moisture buildup is normal.
• Humid room? Contributes to moisture buildup.
•Door(s) opened often or left open? Allows humid air to enter
refrigerator. Minimize door openings and keep doors fully
closed.
The ice maker is not producing ice or not enough ice
•Refrigerator connected to a water supply and the supply
shutoff valve turned on? Connect refrigerator to water
supply and turn water shutoff valve fully open.
Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line.
Ice maker turned on? Make sure wire shutoff arm or switch
(depending on model) is in the ON position.
New installation? Wait 24 hours after ice maker installation
for ice production to begin. Wait 72 hours for full ice
production.
Large amount of ice recently removed? Allow 24 hours for
ice maker to produce more ice.
Ice cube jammed in the ice maker ejector arm?
Remove ice from the ejector arm with a plastic utensil. (This
does not apply to models with the ice maker mounted at the
top of the freezer door.)
Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure.
See "Water Supply Requirements."
The ice cubes are hollow or small
NOTE: This is an indication of low water pressure.
• Water shutoff valve not fully open? Turn the water shutoff
valve fully open.
•Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line.
•Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure.
See "Water Supply Requirements."
•Questions remain regarding water pressure? Call a
licensed, qualified plumber.
Off-taste, odor or gray color in the ice
New plumbing connections? New plumbing connections
can cause discolored or off-flavored ice.
Ice stored too long? Discard ice. Wash ice bin. Allow
24 hours for ice maker to make new ice.
Odor transfer from food? Use airtight, moisture-proof
packaging to store food.
Are there minerals (such as sulfur) in the water? A water
filter may need to be installed to remove the minerals.
Is there awater filter installed on the refrigerator? Gray or
dark discoloration in ice indicates that the water filtration
system needs additional flushing.
The ice dispenser will not operate properly
•Freezer door closed completely? Close the door firmly. If it
does not close completely, see "The doors will not close
completely."
Ice bin installed correctly? Be sure the ice bin is firmly in
position.
New installation? Wait 24 hours after ice maker installation
for ice production to begin. Wait 72 hours for full ice
production.
10

Ice clogged in the ice storage bin or delivery chute?
Remove clogged ice, using a plastic utensil if necessary.
Clean chute and bottom of storage bin using a warm moist
cloth, and dry both thoroughly. To avoid clogging and maintain
a fresh supply of ice, empty the storage bin and clean both the
bin and delivery chute every two weeks.
Has the wrong ice been added to the bin? Use only cubes
produced by the current ice maker.
Has the ice melted around the auger (metal spiral) in the
ice bin? Empty the ice container. Use warm water to melt the
ice if necessary.
Cut Hazard
Use a sturdy glass when dispensing ice.
Failure to do so can result in cuts.
Is the ice dispenser stalling while dispensing "crushed"
ice? Change the ice button from "crushed" to "cubed." If
cubed ice dispenses correctly, depress the button for
"crushed" ice and begin dispensing again.
Has the dispenser arm been held in too long? Ice will stop
dispensing when the arm is held in too long. Wait 3 minutes
for dispenser motor to reset before using again.
The water dispenser will not operate properly
•Freezer door closed completely? Close the door firmly. If it
does not close completely, see "The doors will not close
completely."
Refrigerator connected to a water supply and the supply
shutoff valve turned on? Connect refrigerator to water
supply and turn water shutoff valve fully open.
Is the water pressure at least 30 psi (207 kPa)? The water
pressure to the home determines the flow from the dispenser.
See "Water Supply Requirements."
Kink in the home water source line? Straighten the water
source line.
•New installation? Flush and fill the water system.
• Water filter installed on the refrigerator? The filter may be
clogged or incorrectly installed.
• Is a reverse osmosis water filtration system connected to
your cold water supply? See "Water Supply Requirements."
Water is leaking from the dispenser
NOTE: One or two drops of water after dispensing is normal.
•Glass not being held under the dispenser long enough?
Hold the glass under the dispenser for 2 to 3 seconds after
releasing the dispenser lever/pad.
New installation? Flush the water system. See "Prepare the
Water System" or "Water and Ice Dispensers."
Recently changed water filter? Flush the water system. See
"Prepare the Water System" or "Water and Ice Dispensers."
The dispenser water is not cool enough
(on some models)
NOTE: Water from the dispenser is chilled to only 50°F (10°C).
• New installation? Allow 24 hours after installation for the
water supply to cool completely.
Recently dispensed large amount of water? Allow 24 hours
for water supply to cool completely.
Water not been recently dispensed? The first glass of water
may not be cool. Discard the first glass of water.
Refrigerator connected to a cold water pipe? Make sure
the refrigerator is connected to a cold water pipe. See "Water
Supply Requirements."
ACCESSORIES
To order replacement filters, call 1-800-442-9991 and ask for the
part number listed below or contact your authorized KitchenAid
dealer. In Canada, call 1-800-807-6777.
Stainless Steel Cleaner and Polish:
Order Part #4396095
Water Filter:
Order Part #W10291030 (P4RFWB)
Air Filter:
Order Part #W10311524
Produce Preserver:
Order Part #W10346771A
WATER FILTER
CERTIFICATIONS
State of California
Department of Public Health
WaterTreatmentDevice
CertificateNumber
/0- 2030
[)ate Issued: February 26, 2010
Reolacemenl Elements
P4RFWII
Cyst_
Organic Contal_inants
AtroPine
Llndane
Toxaphene
2.4-1)
Rated Service Capacity: 200 gal _llated Service Flow: 5 gpm
Conditions of Certification:
Do not use where water is microbiologically unsafe or with water of unknown _uaiity, except that systems certified
for cyst reduction may be used on dismtbcted waters that may conlain filterable cysls.
11

PERFORMANCE DATA SHEET
Water Filtration System
Model P5WB2L/P4RFWB Capacity 200 Gallons (757 Liters)
System tested and certified by NSF International against NSF/ANSI
Standard 42 for the reduction of Chlorine Taste and Odor, and Particulate
Class I*; and against NSF/ANSI Standard 53 for the reduction of Live
Cysts, Asbestos, Lead, Lindane, Toxaphene, Atrazine, and 2,4 - D.
This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The
concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the
permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.
Substance Reduction NSF Reduction Average Influent Challenge Maximum Minimum %Average %
Aesthetic Effects Requirements Influent Concentration Effluent Reduction Reduction
Chlorine Taste/Odor 50% reduction 2.0 mg/L 2.0 mg/L + 10% 0.20 mg/L ** 97 97.2
Particulate Class I* 85% reduction 7,300,000 #/mL At least 10,000 particles/mL 75,000 #/mL 99 99.4
Contaminant NSF Reduction Average Influent Challenge Maximum Minimum %Average %
Reduction Requirements Influent Concentration Effluent Reduction Reduction
Live Cysts t 99.95% 160,000/L 50,000/L min. 54/U 99.97 99.99
Asbestos 99% 87 MFL 107to 108fibers/U t 0.17 MFL 99 99
Lead: @ pH 6.5 0.010 mg/L 0.160 mg/L 0.15 mg/L + 10% 0.001 mg/L 99.4 99.4
Lead: @ pH 8.5 0.010 mg/L 0.140 mg/L 0.15 mg/L _+10% 0.005 mg/L 98.6 98.6
Lindane 0.0002 mg/L 0.0019 mg/L 0.002 mg/L _+10% 0.00002 mg/L 98.9 99
Toxaphene 0.003 mg/L 0.014 mg/L 0.015 mg/L _+10% 0.001 mg/L 93 93
Atrazine 0.003 mg/L 0.0094 mg/L 0.009 mg/L _+10% 0.0005 mg/L 94.5 94.7
2,4 - D 0.07 mg/L 0.220 mg/L 0.210 mg/L _+10% 0.028 mg/L 87.5 96.1
Test Parameters: pH = 7.5 _+0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa).
Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).
• It is essential that operational, maintenance, and filter
replacement requirements be carried out for the product to
perform as advertised.
• Use replacement filter P4RFWB, part #W10291030.
2011 suggested retail price of $49.99 U.S.A./S59.99 Canada.
Prices are subject to change without notice.
Style 1 - When the water filter status display changes from
"GOOD" to "ORDER," order a new filter. When the filter indicator
reads "REPLACE," it is recommended that you replace the filter.
Style 2 - When the filter indicator changes from green to yellow,
order a new filter. When the indicator changes from yellow to red,
it is recommended that you replace the filter.
Style 3 - When the filter indicator reads 10%, order a new filter.
When the indicator reads 0%, it is recommended that you
replace the filter.
Style 4 - Press FILTER to check the status of your water filter. If
the filter indicator light is yellow, order a new filter. If the filter
indicator light is red, it is recommended that you replace the filter.
• After changing the water filter, flush the water system. See
"Water and Ice Dispensers."
• These contaminants are not necessarily in your water supply.
While testing was performed under standard laboratory
conditions, actual performance may vary.
• The product is for cold water use only.
• The water system must be installed in compliance with state and
local laws and regulations.
• Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the
system. Systems certified for cyst reduction may be used on
disinfected waters that may contain filterable cysts.
• Refer to the "Warranty" section for the Manufacturer's name,
address and telephone number.
• Refer to the "Warranty" section for the Manufacturer's limited
warranty.
Application Guidelines/Water Supply Parameters
Water Supply City or Well
Water Pressure 30 - 120 psi (207 - 827 kPa)
Water Temperature 33° - 100°F (0.6° - 37.8°C)
Service Flow Rate 0.5 gpm (1.9 Lpm) @60 psi
%
*Class I particle size: >0.5 to <1 um
**Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.
tBased on the use of Cryptosporidium parvum oocysts
ttFibers greater than 10 um in length
® NSF is a registered trademark of NSF International.
12

KITCHENAID ®REFRIGERATOR WARRANTY
LIMITED WARRANTY
For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or
furnished with the product, KitchenAid brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter "KitchenAid") will pay for factory
specified parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased.
Service must be provided by a KitchenAid designated service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED
WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This limited warranty is valid only in the United States or Canada and
applies only when the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain
service under this limited warranty.
On models with a water filter: 30 day limited warranty on water filter. For 30 days from the date of purchase, when this filter is operated and
maintained according to instructions attached to or furnished with the product, KitchenAid will pay for a replacement water filter to correct
defects in materials and workmanship.
SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON CAVITY LINER AND SEALED REFRIGERATION SYSTEM
In the second through fifth year from the date of purchase, when this major appliance is operated and maintained according to instructions
attached to or furnished with the product, KitchenAid will pay for replacement or repair of the refrigerator/freezer cavity liner (including labor
costs) if the part cracks due to defective materials or workmanship that existed when this major appliance was purchased. Also, in the
second through fifth year from the date of purchase, when this major appliance is operated and maintained according to instructions
attached to or furnished with the product, KitchenAid will pay for factory specified parts and repair labor for the following components to
correct defects in materials or workmanship in the sealed refrigeration system that existed when this major appliance was purchased:
compressor, evaporator, condenser, dryer, and connecting tubing.
SIXTH THROUGH TENTH YEAR LIMITED WARRANTY ON SEALED REFRIGERATION SYSTEM
In the sixth through tenth year from the date of purchase, when this major appliance is operated and maintained according to instructions
attached to or furnished with the product, KitchenAid will pay for factory specified parts for the following components to correct defects in
materials or workmanship in the sealed refrigeration system that existed when this major appliance was purchased: compressor, evaporator,
condenser, dwer, and connecting tubing.
LIFETIME LIMITED WARRANTY ON DOOR BINS AND CAN RACKS
For the lifetime of the product from the date of purchase, when this major appliance is operated and maintained according to instructions
attached to or furnished with the product, KitchenAid will pay for replacement of all SLIDE N LOCK TM Door Bins and SLIDE N LOCK TM Can
Racks due to defective materials or workmanship that existed when this major appliance was purchased.
ITEMS EXCLUDED FROM WARRANTY
This limited warranty does not cover:
1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in
a manner that is inconsistent to published user or operator instructions and/or installation instructions.
2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair
house fuses, or to correct house wiring or plumbing.
3. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty
coverage.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance
with electrical or plumbing codes, or use of products not approved by KitchenAid.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results
from defects in materials or workmanship and is reported to KitchenAid within 30 days from the date of purchase.
6. Any food or medicine loss due to refrigerator or freezer product failures.
7. Pickup and delivery. This major appliance is intended to be repaired in your home.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an
authorized KitchenAid servicer is not available.
10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with
KitchenAid's published installation instructions.
11. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or cannot
be easily determined.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not
allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives
you specific legal rights, and you also may have other rights that vary from state to state or province to province.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the
exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives
you specific legal rights, and you also may have other rights that vary from state to state or province to province.
If outside the 50 United States and Canada, contact your authorized KitchenAid dealer to determine if another warranty applies. 6/08
13

For additional product information, in the U.S.A., visit www.kitchenaid.com
In Canada, visit www.kitchenaid.ca
If you do not have access to the Internet and you need assistance using your product or you would like to schedule service, you may
contact KitchenAid at the number below.
Have your complete model number ready. You can flnd your model number and serial number on the label, located on the inside wall of
the refrigerator compartment.
For assistance or service in the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777.
If you need further assistance, you can write to KitchenAid with any questions or concerns at the address below:
In the U.S.A.: In Canada:
KitchenAid Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
KitchenAid Brand Home Appliances
Customer eXperience Centre
200 - 6750 Century Ave.
Mississauga, Ontario L5N 0B7
Please keep these User Instructions and the model number information for future reference.
14

15

Nous vous REMERCIONS d'avoir achete ce produit de haute qualit& Si vous rencontrez un probleme non mentionne dans la
section DI_PANNAGE, veuillez visiter notre site Web www.kitchenaid.com pour des informations supplementaires. Si vous avez
toujours besoin d'assistance, veuillez nous tel6phoner au 1-800-422-1230. Au Canada, visitez notre site Web www.kitchenaid.ca
ou tel6phonez-nous au 1-800-807-6777.
Vous aurez besoin de vos num@os de modele et de s@ie situes sur la paroi interne du compartiment de refrig6ration.
P P P P
SECURITE DU REFRIGERATEUR
Votre securite et celle des autres est tres importante.
Nous donnons de nombreux messages de s_curit_ importants dans ce manuel et sur votre appareil m_nager. Assurez-vous de
toujours lire tousles messages de s_curit_ et de vous y conformer.
Voici le symbole d'alerte de s_curit&
Ce symbole d'alerte de s_curit_ vous signale les dangers potentiels de d_c_s et de blessures graves & vous
eta d'autres.
Tous les messages de s_curit_ suivront le symbole d'alerte de s_curit_ et le mot "DANGER" ou
"AVERTISSEMENT". Ces mots signifient •
Risque possible de d4cbs ou de blessure grave si vous ne
suivez pas imm4diatement les instructions.
Risque possible de d4cbs ou de blessure grave si vous
ne suivez pas les instructions.
Tousles messages de s_curit_ vous diront quel est le danger potentiel et vous disent comment r_duire le risque de blessure et
ce qui peut se produire en cas de non-respect des instructions.
IMPORTANTES INSTRUCTIONS DE SI_CURITI_
AVERTISSEMENT :Pour reduire les risques d'incendie, de choc electrique ou des blessures Iors de I'utilisation du
refrig6rateur, prendre quelques precautions fondamentales, y compris les suivantes •
• Brancher I'appareil sur une prise a 3 alveoles reliee a la terre. • Garder les materiaux et les vapeurs inflammables, telle
• Ne pas enlever la broche de liaison & la terre.
• Ne pas utiliser un adaptateur.
• Ne pas utiliser un c&ble de rallonge.
• Debrancher la source de courant electrique avant I'entretien.
• Replacer pieces et panneaux avant de faire la remise en marche.
• Enlever les portes de votre vieux r6frigerateur.
• Utiliser un produit de nettoyage ininflammable.
que I'essence, loin du r6frigerateur.
• Utiliser deux ou plus de personnes pour deplacer et
installer le refrig6rateur.
• Debrancher le refrig6rateur avant I'installation de la
machine a glagons (seulement pour modeles pr_ts
recevoir une machine a glagons).
• Utiliser un verre robuste pour prendre des glagons (sur
certains modeles).
• Ne pas heurter les portes en verre du r6frigerateur (sur
certains modeles).
CONSERVEZ CES INSTRUCTIONS
16

Mise au rebut appropri6e
de votre vieux r6frig6rateur
Risque de suffoquer
Eniever Jes portes de votre vieux r_frig_rateur.
Le non-respect de cette instruction peut causer
un d_c_s ou des I_sions c_r_brales.
IMPORTANT : L'emprisonnement et I'etouffement des enfants ne
sont pas un probleme du passe. Les refrigerateurs jetes ou
abandonnes sont encore dangereux, m_me s'ils sont laisses
abandonnes pendant "quelques jours seulement". Si vous vous
debarrassez de votre vieux refrigerateur, veuillez suivre les
instructions suivantes pour aider &eviter les accidents.
Avant de jeter votre vieux r_frig6rateur ou cong61ateur :
• Enlever les portes.
• Laisser les tablettes en place de sorte que les enfants ne
puissent pas y penetrer facilement.
p p
UTILISATION DU REFRIGERATEUR
iI ..... ...........
8ur certains modeles, le sachet d'accessoires du refrigerateur
comprend un filtre a air qui doit atre installe avant d'utiliser le Installation du t_moin de statut de filtre
refrigerateur. Sur certains modeles, le filtre a air est preinstalle a (sur certains modules)
I'usine. Le filtre comporte un temoin de statut qui doit _tre active et
installe en m_me temps que le filtre & air.
Le filtre &air reduit I'accumulation d'odeurs. Ceci aide & maintenir
un environnement plus propre & I'interieur du refrigerateur.
Installation du filtre _ air (sur certains modules)
Le filtre doit _tre installe derriere la porte a aerations, situee (selon
le modele) le long de la paroi interieure gauche ou arriere, &
proximite du sommet du compartiment de refrigeration.
1. Retirer le filtre a air de son emballage.
2. Ouvrir la porte avec aerations en la soulevant.
3. Emboiter le filtre pour le mettre en place.
1. Placer le temoin oriente vers le bas sur une surface ferme et
plane.
2. Appliquer une pression sur la bulle situee & I'arriere du temoin
jusqu'& ce que la bulle eclate - ceci active le temoin.
3. Ouvrir la porte du filtre & air avec aerations en la soulevant.
Sur certains modeles, I'arriere de la porte comporte des
encoches.
4. ModUles avec encoches:
• Faire glisser le temoin vers le bas, dans les encoches, en
I'orientant vers I'exterieur.
REMARQUE : Le temoin ne glissera pas facilement dans
les encoches si la bulle arriere n'a pas eclat&
Fermer la porte du filtre & air et verifier que le temoin est
visible &travers le trou rectangulaire de la porte.
ModUles sans encoches :
Conserver le temoin dans un endroit visible dont
I'utilisateur se souviendra facilement - soit & I'interieur du
refrigerateur, soit dans un autre endroit de la cuisine ou du
domicile.
17

Remplacement du filtre _air
Le filtre & air jetable doit _tre remplace tousles 6 mois, Iorsque le
temoin de statut est entierement passe du blanc au rouge.
Pour commander un filtre a air de rechange, contactez-nous &
I'aide des renseignements pour aide/entretien/reparation qui
suivent la garantie.
1. Retirer I'ancien filtre &air en serrant les onglets lateraux.
2. Retirer I'ancien temoin de statut.
3. Installer le filtre & air et le temoin de statut neufs a I'aide des
instructions des sections precedentes.
t s slte le sacheI de co serva(fo .
Sur certains modeles, le sachet d'accessoires du refrigerateur
comprend un sachet de conservation pour produits frais, qui doit
atre installe avant d'utiliser le refrigerateur. Sur certains modeles,
le sachet de conservation pour produits frais est preinstalle &
I'usine.
Le sachet de conservation pour produits frais absorbe I'ethylene,
permettant ainsi un ralentissement du processus de maturation
de nombreux produits frais. Ainsi, la frafcheur de certains produits
frais est prolongee.
Installation du sachet de conservation
pour produits frais (sur certains modules)
ATTENTION :IRRITANT
PEUT IRRITER LES YEUX ET LA PEAU. DI_GAGE DES
12MANATIONS DANGEREUSES LORSQUE MI2LANGI 2
AVEC D'AUTRES PRODUITS.
Ne pas m_langer avec d'autres agents de nettoyage tels
I'ammoniaque, I'eau de javel, les nettoyants pour les
cuvettes de WC, les produits qui enlevent la rouille ou des
acides. 12vitertout contact avec les yeux, la peau ou les
v6tements. Ne pas respirer les poussiere. Tenir hors de la
port_e des enfants.
PREMIERS SOINS : Contient du permanganate de
potassium. En cas d'ingestion, appeler imm_diatement un
centre antipoison ou un m_decin. Ne pas provoquer le
vomissement. En cas de contact avec les yeu, rincer avec
de I'eau pendant 15 minutes. En cas de contact avec la
peau, bien rincer avec de I'eau.
Le sachet de conservation pour produits frais doit _tre installe
dans son Iogement, situe le long d'une paroi laterale interne du
bac & legumes ou du tiroir convertible.
1= Retirer le sachet de conservation pour produits frais de son
emballage.
FreshF]ow"
produce preserver
CAUTION ATTENTION
IRRITANT IRRITANT
Read cautions on back, Lire les raises en garde au dos
..... _bi_! _g_ti_ _n_ H_b M!@o2
2. Soulever le Iogement pour I'extraire de la languette de
montage le long de la paroi.
3. Ouvrir le Iogement en soulevant I'arriere du sommet du
Iogement pour I'extraire.
4. Placer le sachet & I'interieur du Iogement puis emboiter les
deux parties du Iogement pour le refermer.
5. Reinstaller le Iogement sur la languette de montage le long de
la paroi.
Installation du t_moin lumineux de statut
(sur certains modules)
Le sachet de conservation pour produits frais comporte un temoin
lumineux qui doit _tre active et installe en m_me temps que le
sachet.
1. Orienter le temoin vers le bas en le pla£_antsur une surface
ferme et plane.
2. Appliquer une pression sur la bulle situee & I'arriere du temoin
jusqu'& ce que la bulle eclate - ceci active le temoin.
3. Ouvrir le couvercle du Iogement du sachet de conservation
pour produits frais.
4. Placer le temoin sur le sommet du Iogement en I'orientant vers
I'exterieur.
5. Fermer le couvercle en le faisant coulisser et verifier que le
temoin est visible & travers le trou rectangulaire du couvercle.
REMARQUE : Le couvercle ne se fermera pas facilement si la
bulle arriere du temoin lumineux n'a pas eclat&
Remplacement du sachet de conservation
pour produits frais
Le sachet jetable doit _tre remplace tousles 6 mois, Iorsque le
temoin est entierement passe du blanc au rouge.
Pour commander un sachet de rechange, contactez-nous & I'aide
des renseignements pour aide/depannage qui suivent la garantie.
1. Retirer I'ancien sachet de conservation pour produits frais de
son Iogement.
2. Retirer I'ancien temoin.
3. Installer le sachet de conservation pour produits frais et le
temoin neufs & I'aide des instructions des sections
precedentes.
18

Les commandes du refrig6rateur et du congelateur se trouvent sur
le tableau de distribution.
IMPORTANT : Uecran d'affichage sur le tableau de commande
du distributeur s'eteint automatiquement et entre au mode "veille"
Iorsque les boutons de commande et les leviers de distribution
n'ont pas 6te utilises pendant au moins 2 minutes. Le fait
d'appuyer une fois sur un bouton de commande au mode "veille"
reactive uniquement I'ecran d'affichage, sans modifier les
reglages. Apres reactivation, n'importe quel reglage peut alors
_tre modifi& Si aucune modification n'est apportee dans les
2 minutes qui suivent, I'affichage passe de nouveau au mode
"veille".
Appuyer sur n'importe quel bouton de commande sur le
tableau de distribution pour activer I'ecran d'affichage.
Uecran d'accueil apparait tel qu'indiqu&
Ajustement des commandes
Pour votre confort, les commandes du r6frig6rateur et du
congelateur sont prer6gl6es & I'usine. Lors de I'installation initiale
du refrig6rateur, s'assurer que les commandes sont encore
prer6gl6es au "reglage moyen". Les points de reglage
recommandes par I'usine sont 37°F (3°C) pour le refrig6rateur et
0°F (-18°C) pour le congelateur.
IMPORTANT :
Attendre 24 heures avant d'ajouter des aliments dans le
refrig6rateur. Si on ajoute des aliments alors que le
refrig6rateur n'a pas completement refroidi, les aliments
risquent de s'abimer.
REMARQUE : Pour visualiser les temperatures en Celsius,
appuyer sur la touche LIGHT (eclairage) Iorsque le mode de
reglage est activ& Pour revenir au mode d'affichage en
Fahrenheit, appuyer de nouveau sur LIGHT.
• Lorsque le mode de reglage est active, I'ecran d'affichage
indique le point de reglage du refrigerateur et
"REFRIGERATOR" (refrigerateur) apparait.
• Appuyer sur LOCK (verrouillage) pour augmenter le point de
reglage, ou sur OPTIONS pour le reduire.
Apr_s avoir fini de visualiser (et d'ajuster, si desire) le point de
reglage du refrigerateur, appuyer sur TEMPERATURE
(temperature) pour modifier I'affichage et faire apparaitre le
point de reglage du congelateur. Une fois le changement de
zone effectu_, "FREEZER" (congelateur) appara_t sur I'ecran
d'affichage.
• Appuyer sur LOCK (verrouillage) pour augmenter le point de
reglage, ou sur OPTIONS pour le reduire.
Apr_s avoir fini de visualiser (et d'ajuster, si desire) les points
de reglage du refrigerateur et du congelateur, appuyer sur
MEASURED FILL (remplissage mesure) pour sauvegarder les
reglages.
REMARQUE : Pour sortir sans sauvegarder les modifications,
appuyer sur ICE MODE (mode gla£;ons) a tout moment &partir
du mode de reglage ou laisser 60 secondes d'inactivite
s'ecouler; le mode de reglage s'eteindra automatiquement.
Pour ajuster les points de reglage de temperature, utiliser le
tableau suivant comme guide.
REMARQUE : Ajuster la commande sur un reglage plus froid
que celui qui est recommande ne refroidira pas les
compartiments plus rapidement.
Si latemperature est trop tiede ou trop froide dans le
refrigerateur ou le congelateur, verifier d'abord les events pour
s'assurer qu'ils ne sont pas bloqu_s, avant de regler les
commandes.
Les reglages preregles devraient _tre corrects pour I'utilisation
domestique normale. Les reglages sont faits correctement
Iorsque le lait ou le jus sont aussi froids que vous I'aimez et
Iorsque la creme glacee est ferme.
Attendre au moins 24 heures entre les ajustements. Verifier de
nouveau les temperatures avant de proceder a d'autres
ajustements.
Pour visualiser et ajuster les points de reglage, appuyer pendant
3 secondes sur la touche TEMPERATURE (temperature). Lorsque
le mode de reglage est active, les donnees d'ajustement
apparaissent sur I'ecran d'affichage.
CONDITION : AJUSTEMENT DE LA
TEMPleRATURE :
RC:FRIGC:RATEURtrop froid Reglage du RC:FRIGC:RATEUR
1° plus haut
RC:FRIGC:RATEURtrop tiede Reglage du RC:FRIGC:RATEUR
1° plus bas
CONGC:LATEUR trop froid Reglage du CONGC:LATEUR
1° plus haut
CONGC:LATEUR trop tiede /Reglage du CONGC:LATEUR
Trop peu de gla£;ons 1° plus bas
La gamme de valeurs de reglage pour le refrigerateur va de 33°F &
45°F (0°C a 7°C). La gamme de valeurs de reglage pour le
congelateur va de -5°F & 5°F (-21°C a -15°C).
Refroidissement On/Off (marche/arr_t)
Nile refrigerateur, ni le congelateur ne refroidiront Iorsque le
refroidissement est desactiv&
• Pour desactiver le refroidissement, appuyer simultanement
sur les boutons LOCK (verrouillage) et MEASURED FILL
(remplissage mesure) pendant 3 secondes.
19

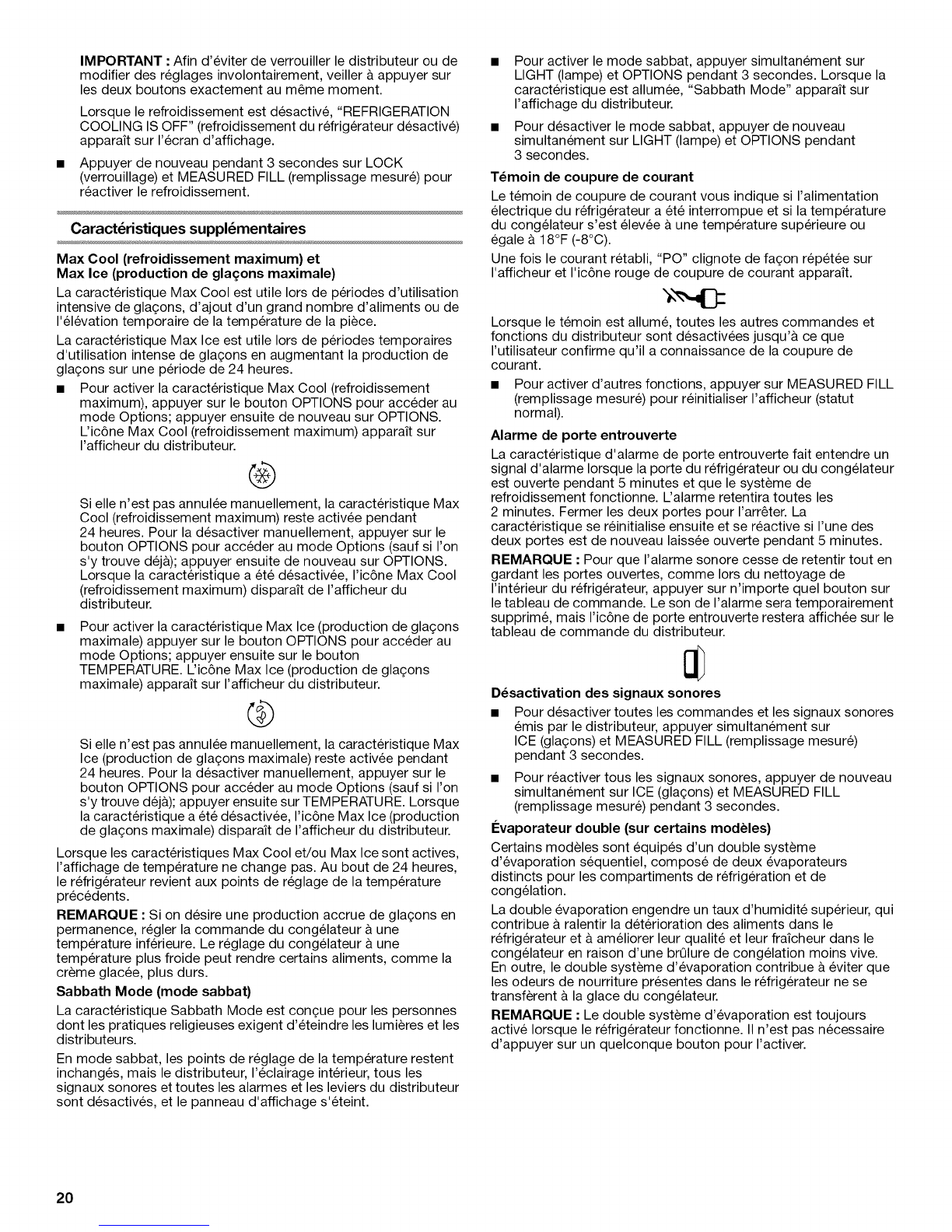

IMPORTANT : Afin d'eviter de verrouiller le distributeur ou de
modifier des reglages involontairement, veiller & appuyer sur
les deux boutons exactement au m_me moment.
Lorsque le refroidissement est desactiv6, "REFRIGERATION
COOLING IS OFF" (refroidissement du refrig6rateur desactiv6)
apparait sur I'ecran d'affichage.
Appuyer de nouveau pendant 3 secondes sur LOCK
(verrouillage) et MEASURED FILL (remplissage mesure) pour
reactiver le refroidissement.
Caract_ristiques suppl_mentaires
Max Cool (refroidissement maximum) et
Max Ice (production de glagons maximale)
La caracteristique Max Cool est utile Iors de periodes d'utilisation
intensive de glagons, d'ajout d'un grand nombre d'aliments ou de
I'el6vation temporaire de la temperature de la piece.
La caracteristique Max Ice est utile Iors de periodes temporaires
d'utilisation intense de glagons en augmentant la production de
glagons sur une periode de 24 heures.
• Pour activer la caracteristique Max Cool (refroidissement
maximum), appuyer sur le bouton OPTIONS pour acceder au
mode Options; appuyer ensuite de nouveau sur OPTIONS.
L'ic6ne Max Cool (refroidissement maximum) apparait sur
I'afficheur du distributeur. @
Si elle n'est pas annulee manuellement, la caracteristique Max
Cool (refroidissement maximum) reste activee pendant
24 heures. Pour la desactiver manuellement, appuyer sur le
bouton OPTIONS pour acceder au mode Options (sauf si I'on
s'y trouve dej&); appuyer ensuite de nouveau sur OPTIONS.
Lorsque la caracteristique a ete desactivee, I'ic6ne Max Cool
(refroidissement maximum) disparait de I'afficheur du
distributeur.
Pour activer la caracteristique Max Ice (production de glagons
maximale) appuyer sur le bouton OPTIONS pour acceder au
mode Options; appuyer ensuite sur le bouton
TEMPERATURE. Uic6ne Max Ice (production de glagons
maximale) apparait sur I'afficheur du distributeur.
@
Si elle n'est pas annulee manuellement, la caracteristique Max
Ice (production de glagons maximale) reste activee pendant
24 heures. Pour la desactiver manuellement, appuyer sur le
bouton OPTIONS pour acceder au mode Options (sauf si I'on
s'y trouve dej&); appuyer ensuite sur TEMPERATURE. Lorsque
la caracteristique a ete desactivee, I'ic6ne Max Ice (production
de glagons maximale) disparait de I'afficheur du distributeur.
Lorsque les caracteristiques Max Cool et/ou Max Ice sont actives,
I'affichage de temperature ne change pas. Au bout de 24 heures,
le refrigerateur revient aux points de reglage de la temperature
precedents.
REMARQUE : Si on desire une production accrue de glagons en
permanence, regler la commande du congelateur & une
temperature inferieure. Le reglage du congelateur & une
temperature plus froide peut rendre certains aliments, comme la
creme glacee, plus durs.
Sabbath Mode (mode sabbat)
La caracteristique Sabbath Mode est congue pour les personnes
dont les pratiques religieuses exigent d'eteindre les lumieres et les
distributeurs.
En mode sabbat, les points de reglage de la temperature restent
inchanges, mais le distributeur, I'eclairage interieur, tousles
signaux sonores et toutes les alarmes et les leviers du distributeur
sont desactives, et le panneau d'affichage s'eteint.
Pour activer le mode sabbat, appuyer simultanement sur
LIGHT (lampe) et OPTIONS pendant 3 secondes. Lorsque la
caracteristique est allumee, "Sabbath Mode" apparait sur
I'affichage du distributeur.
Pour desactiver le mode sabbat, appuyer de nouveau
simultanement sur LIGHT (lampe) et OPTIONS pendant
3 secondes.
T_moin de coupure de courant
Le temoin de coupure de courant vous indique si I'alimentation
electrique du refrigerateur a ete interrompue et si la temperature
du congelateur s'est elevee & une temperature superieure ou
egale &18°F (-8°C).
Une fois le courant retabli, "PO" clignote de fagon repetee sur
I'afficheur et I'ic6ne rouge de coupure de courant apparait.
Lorsque le temoin est allume, toutes les autres commandes et
fonctions du distributeur sont desactivees jusqu'& ce que
I'utilisateur confirme qu'il a connaissance de la coupure de
courant.
• Pour activer d'autres fonctions, appuyer sur MEASURED FILL
(remplissage mesure) pour reinitialiser I'afficheur (statut
normal).
Alarme de porte entrouverte
La caracteristique d'alarme de porte entrouverte fait entendre un
signal d'alarme Iorsque laporte du refrigerateur ou du congelateur
est ouverte pendant 5 minutes et que le systeme de
refroidissement fonctionne. L'alarme retentira toutes les
2 minutes. Fermer les deux portes pour I'arr_ter. La
caracteristique se reinitialise ensuite et se reactive si I'une des
deux portes est de nouveau laissee ouverte pendant 5 minutes.
REMARQUE : Pour que I'alarme sonore cesse de retentir tout en
gardant les portes ouvertes, comme Iors du nettoyage de
I'interieur du refrigerateur, appuyer sur n'importe quel bouton sur
le tableau de commande. Le son de I'alarme sera temporairement
supprime, mais I'ic6ne de porte entrouverte restera affichee sur le
tableau de commande du distributeur.
D_sactivation des signaux sonores
• Pour desactiver toutes les commandes et les signaux sonores
emis par le distributeur, appuyer simultanement sur
ICE (glagons) et MEASURED FILL (remplissage mesure)
pendant 3 secondes.
• Pour reactiver tousles signaux sonores, appuyer de nouveau
simultanement sur ICE (glagons) et MEASURED FILL
(remplissage mesure) pendant 3 secondes.
levaporateur double (sur certains modules)
Certains modeles sont equipes d'un double systeme
d'evaporation sequentiel, compose de deux evaporateurs
distincts pour les compartiments de refrigeration et de
congelation.
La double evaporation engendre un taux d'humidite superieur, qui
contribue & ralentir la deterioration des aliments dans le
refrigerateur et & ameliorer leur qualite et leur fraicheur dans le
congelateur en raison d'une brQlure de congelation moins vive.
En outre, le double systeme d'evaporation contribue & eviter que
les odeurs de nourriture presentes dans le refrigerateur ne se
transferent a la glace du congelateur.
REMARQUE : Le double systeme d'evaporation est toujours
active Iorsque le refrigerateur fonctionne. II n'est pas necessaire
d'appuyer sur un quelconque bouton pour I'activer.
2O
