KitchenAid KSRV22FVBL01 User manual

1
CABINET PARTS
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
5−09 Litho In U.S.A. (wam)(bay) Part No. W10246564 Rev. C
REFRIGERATOR

CABINET PARTS
2
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10167098 Use & Care Guide
W10205540 Service & Wiring
Sheet
W10139598 Energy Label
W10180407 Instruction Sheet,
Door Removal
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 2304249 Plate, Screw
8
W10121138 Housing, Water
Filter
9 2209697 Shim
10 489500 Screw (2)
11 4396841 Water Filter
12 2203770 Hinge Top (FC)
13 2203771 Hinge, Top (RC)
14 488500 Screw
15 Hinge Cover
W10138581 White
W10138583 Biscuit
W10138582 Black
W10138584 Apollo Grey
16 2217075 Bottom Hinge (RC)
17 Cap, Water
Filter
2260502W White
2260502T Biscuit
2260502B Black
2260502MG Midnight Grey
18 3400113 Screw (4)
19 2260519 Block, Housing
Support
20 3400858 Screw
21 Filler, Wrapper
2201014 White
2200926 Biscuit
2201017 Black
2254507 Apollo Grey
22 Grille
W10184869 White
W10184881 Biscuit
W10184880 Black
W10184882 Midnight Grey
23 489497 Screw
24 Button, Water
Filter
2260503W White
2260503T Biscuit
2260503B Black
2260503MG Midnight Grey
25 3400103 Screw (2)
26 489290 Screw
27 489464 Screw
28 2319867 Tube, Filter
Inlet
29 2255012 Tube, Filter
Outlet
30 2304888 Drain Fitting
31 2304937 Extension Tube
32 2188734 Cover, Unit
33 Cabinet (Not A
Serviceable Part)
34 Hinge Cover
W10138576 White
W10138578 Biscuit
W10138577 Black
W10138579 Apollo Grey
35 8281227 Screw
36 549193 Clamp, Service
Cord
37 489084 Screw
38 2155311 Door Closer (RC)
Lower Cam (2)
39 489483 Screw (2)
40 2323833 Bottom Hinge (FC)
41 2223751 Door Closer (FC)

REFRIGERATOR LINER PARTS
3
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967 Escutcheon, Meat
Pan Control
3 2182757 Slide, Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket, Dual
Crisper Light
6 489290 Screw
7 2311637 Wire Harness,
Crisper Light
8 2256085 Bracket, Retainer
9
W10151375 Air Diffuser
Assembly
10 2152019 Air Diffuser
Cover
11 2150331 Cover, Conduit
12 486298 Screw
13 2162085 Socket
14
W10204356 Reservoir
15
W10194422 Light Bulb
16 2209769 Light Lens
17 488280 Screw (2)

REFRIGERATOR SHELF PARTS
4
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION
1 2309560 Shelf, Snack Pan
2 2319720 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Slide (2)
5 2223357 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6 2309518 Snack Pan
7 2309519 Trim, Hamdle
8
W10160481 Glass Cover
9
W10160317 Cover, Crisper
(Includes 2, 3,
4, 11, 12, 13,
14 & 19)
10
W10160480 Glass Cover
11 2223361 Gasket, Front
12 2223362 Gasket, Rear
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16
W10142714 Crisper Pan
17
W10149982 Meat Pan
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2223286 Right Side
2223285 Left Side
22 2174362 Window, Meat Pan
23 2327180 Shelf & Roller
Assembly
24 2196485 Stud Assembly
25 3400894 Screw
26 2196483 Stud Assembly
27 8281158 Screw

5

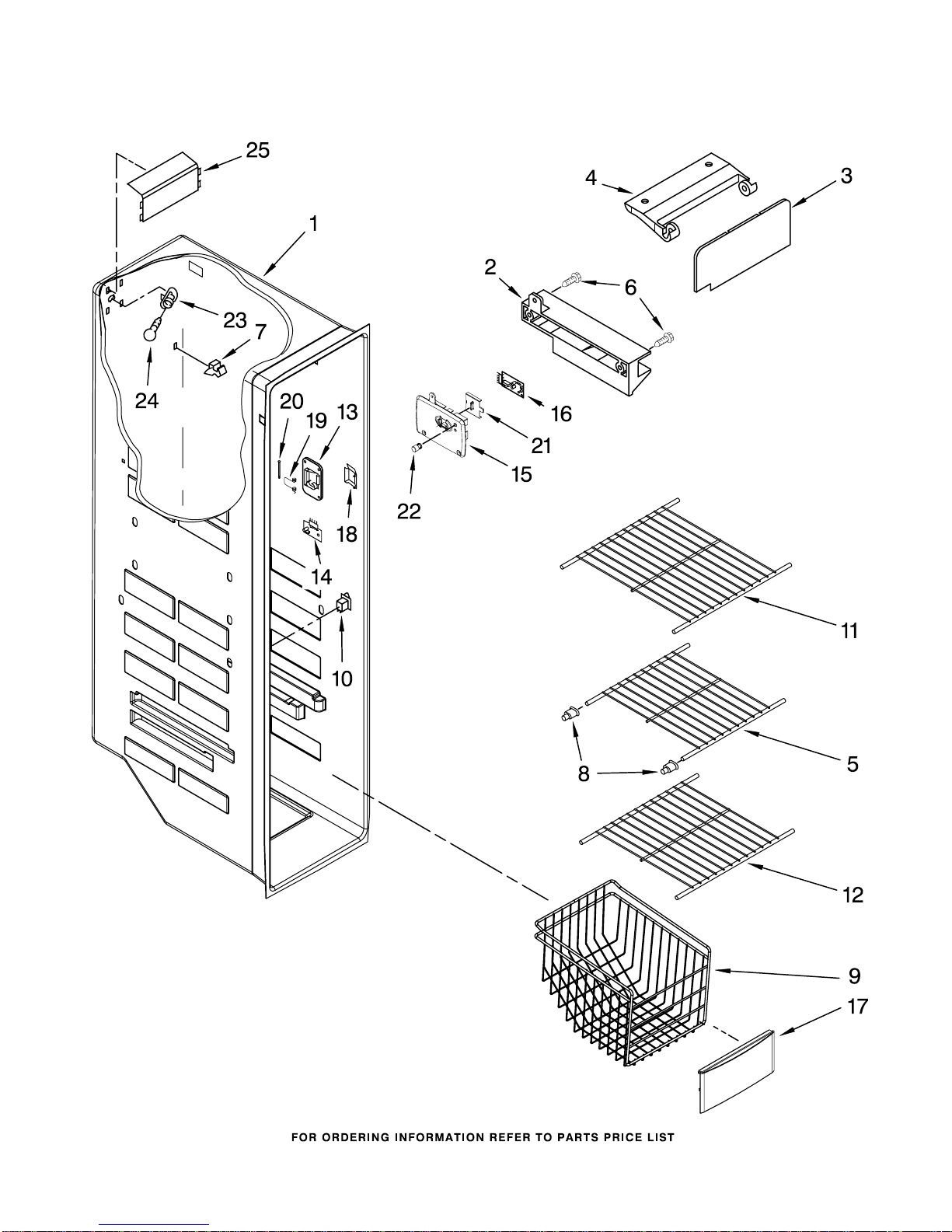

FREEZER LINER PARTS
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564

6
FREEZER LINER PARTS
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2212321 Slide, Ice Maker
3
W10180062 Cover, Ice Maker
4 2198641 Bracket, Cover
5 2309634 Shelf, Wire
6 489478 Screw
7 842534 Clip, Air Duct (2)
8
W10130299 Cup, Shelf Mount.
9 2312034 Wire Basket
10 1115373 Switch, Rocker Arm
11 2309633 Shelf, Wire
12 2312040 Shelf, Wire
13 2198587 Cover, Emitter
14 2220398 P.C. Board
Emitter
15
W10173569 Cover, Receiver
16
W10193666 P.C. Board
Receiver
17 2305582 Trim, Basket
18 2198633 Flipper
19 2198635 Spring
20 2198634 Pin
21 2315398 Slide, Ice Maker
Shut Off
22 2198643 Lens
23 2162085 Light Socket
24
W10194422 Light Bulb
25 2212376 Light Lens

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION
1 2317246 Ice Bin
2
W10176384 Crusher Bin
3 2317247 Auger
4 2258220 Washer
5 1119007 Spacer, Step (20
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
19 2317274 Latch, Bin
20 2198608 Spring, Latch
21 8281163 Screw
22 2188919 Holder
23 2317243 Wiper
24 2198628 Seal
25 2317250 Divider−Chamber
26 2188916 Drive Shaft
27 2322488 Enclosure, Motor
28 2322580 Dispenser, Motor
29 2212305 Cover
30 2315559 Sleeve, Coupling
100
W10204457 Ice Container
(Complete)

9

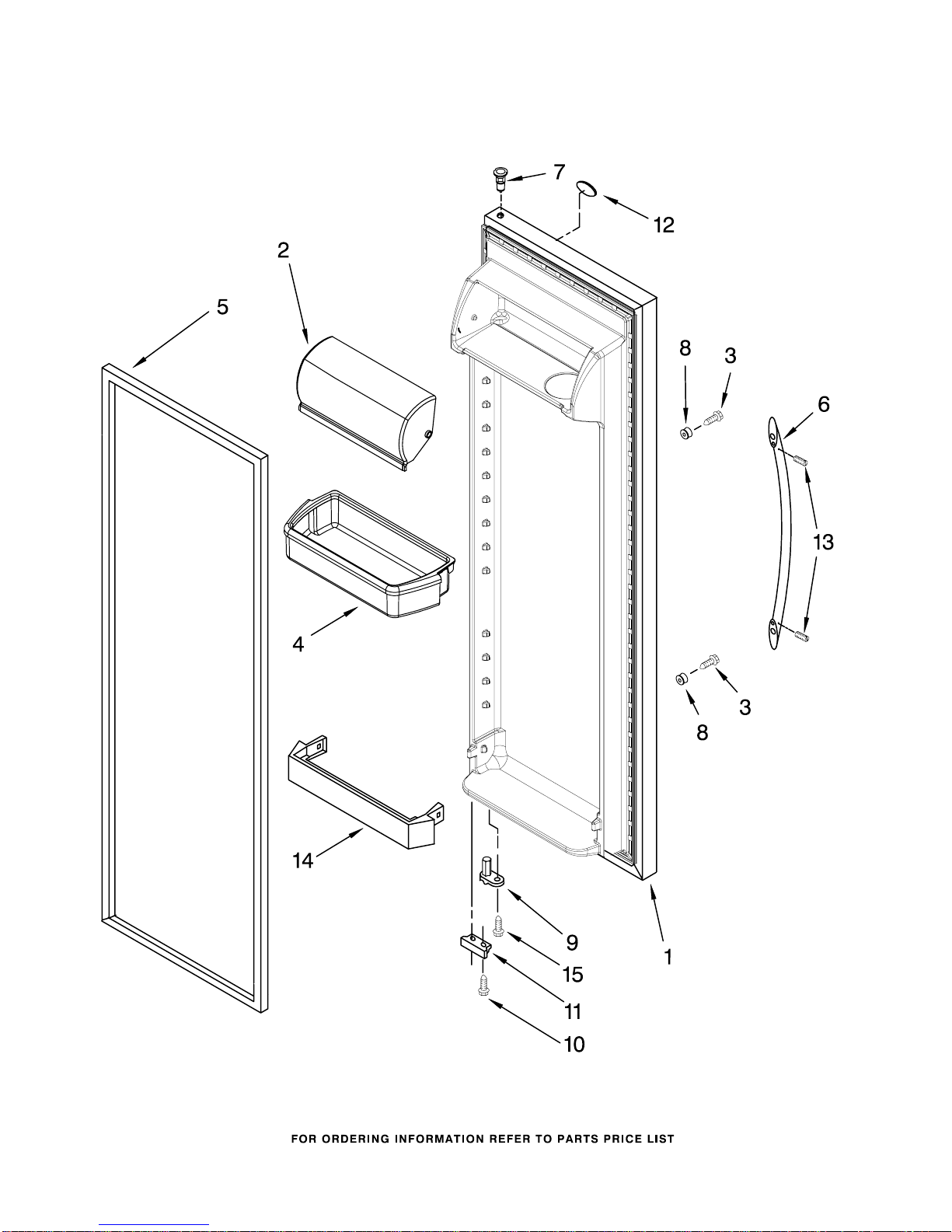

REFRIGERATOR DOOR PARTS
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564

REFRIGERATOR DOOR PARTS
10
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item 5)
2325248W White
2325248T Biscuit
2325248B Black
2323861S Stainless
W10191409 Monochromatic
2 2256101 Door, Compartment
3 488208 Screw
4 2304235 Door Bin (3)
5 Door Gasket,
Magnetic
2309600 Mist Beige
2309653 Black
2327161 Grey
6 Handle
(Includes #3)
2319727W White
2319727T Biscuit
2319727B Black
2319727S Stainless/Satina
7 2308091 Thimble−Top
8 2219698 Stud, Handle
9 2182178 Door Closer,
Upper Cam
10 489420 Screw
11 Bracket, Door Stop
2206629 Chrome
2206629B Black
12 Nameplate
W10046670 White
W10046700 Biscuit
W10046640 Black
W10046610 Grey
13 Set Screw
W10010140 Chrome
W10010150 Black
14 2309941 Trivet
15 3400012 Screw

11
FREEZER DOOR PARTS
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564

12
FREEZER DOOR PARTS
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes Item 8
And Dispenser
Front Parts)
W10214818 White
W10214815 Biscuit
W10214814 Black
W10214817 Stainless
W10214816 Monochromatic
2 Handle
(Includes #4)
2319727W White
2319727T Biscuit
2319727B Black
2319727S Stainless/Satina
3 2308091 Thimble−Top
4 488208 Screw
5 2219698 Stud, Handle
6 2156021 Trivet (3)
7 3400012 Screw
8 Door Gasket,
Magnetic
2309604 Mist Beige
2309654 Black
2327162 Grey
9 2212375 Trim, Door Shelf
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2323534 Chrome
2323534B Black
13 Set Screw
W10010140 Chrome
W10010150 Black

13
DISPENSER FRONT PARTS
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564

DISPENSER FRONT PARTS
14
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2304772 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206671W White
2206671T Biscuit
2206671B Black
W10171992 Nickel
10 2304317 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
W10152853 White
W10152855 Biscuit
W10152854 Black
W10155161 Apollo Grey
12 2180224 Guide, Ice
13 625834 Spacer, Switch (2)
14 2162361 Switch (2)
15
W10206322 Bracket, Control
16 Lever, Water
Dispenser
W10152858 White
W10152860 Biscuit
W10152859 Black
W10155162 Apollo Grey
17 2321704 Switch Assembly
18 Overlay, Front
Cover
(Not Available
Order #22)
19
W10167528 Wire Assembly
20 Front Cover,
Housing
(Not Available,
Order #22)
21 489000 Screw
22 Front Cover
Assembly
(Includes Items
17, 18, 19, & 20)
W10136782 White
W10139724 Biscuit
W10139723 Black
W10159780 Nickel
23 2195051 Strain Relief
24 2304673 Bracket, Dispenser

UNIT PARTS
15
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564

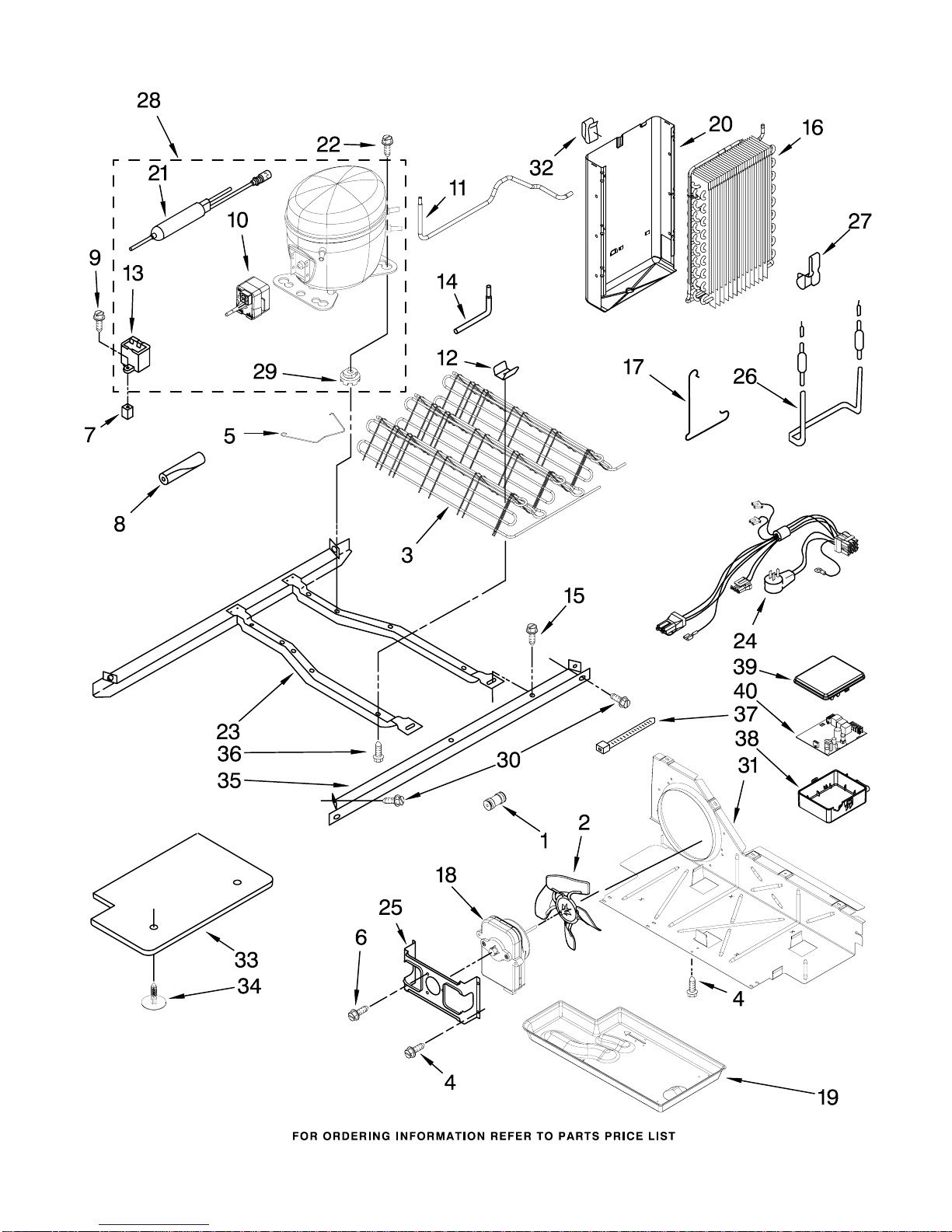

UNIT PARTS
16
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2320322 Union
2 12825802 Fan, Blade
3
W10211163 Condenser Assembly
4 489464 Screw
5
W10174384 Clip
6 8533993 Screw
7 509812 Grommet
8 2161302 Sleeve
9 488687 Screw
10 Start Device
Combination
Relay & Overload
W10189190 Production
W10197427 Service
11
W10210787 Tube Suction
12 2311725 Clip, Condenser(2)
13 Capacitor
2264017 Production
2264017 Service
14
W10171238 Tube, Condenser to
Heat Loop
15 489427 Screw
16 2188822 Evaporator
17 2161324 Clamp
18 2188874 Fan, Motor
19 1105523 Tray, Evaporator
20
W10194474 Heat Shield
21 Drier
W10177049 Production
W10143759 Service
22 489373 Screw
23 2304903 Unit Mounting
Frame
24 2310425 Unit, Harness
(Includes Power
Cord)
25 2188874 Fan, Motor Bracket
26 2188174 Heater, Defrost
27 2161324 Clip (2)
28
W10189229 Compressor
(Includes Items
10, 13, 21, & 29)
(Also Order
876765 Tube Kit)
29 Grommet (4)
1100826 Production
1100826 Service
30 489340 Screw (5)
31
W10163483 Air Baffle
32 2155547 Clip, Heat Shield
33 2304898 Unit Cover, Bottom
34 489396 Clip
35
W10196323 Unit Mounting
Rail
36 8281232 Screw
37 2263990 Strap
38 2326982 Control Box
39 2255624 Box Cover
40 2322572 Elec. Control
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)

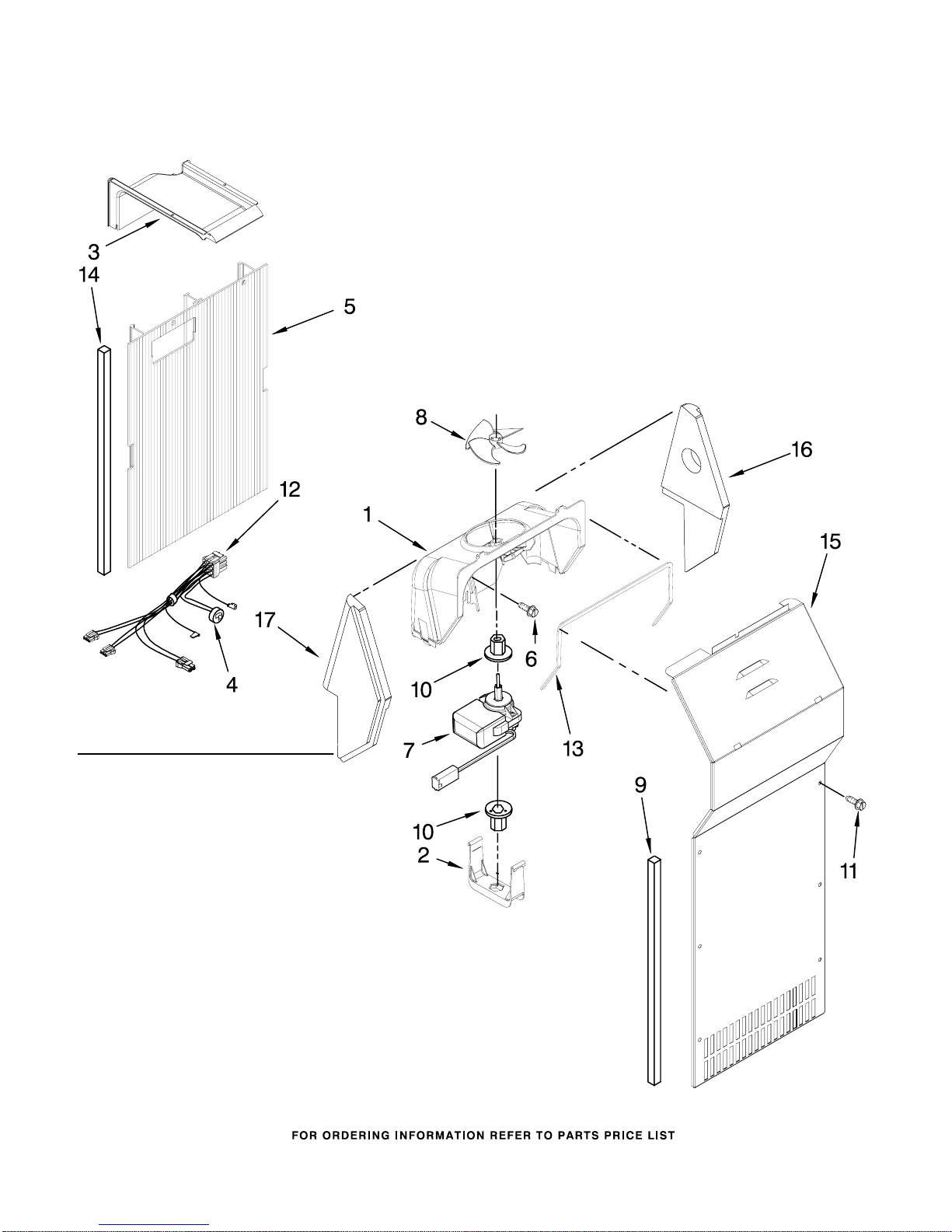

AIR FLOW PARTS
17
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION
1 2182119 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2313359 Diffuser, Air Duct
4 2319914 Bi−Metal, Defrost
5 2312009 Air Duct Freezer
6 489478 Screw
7 2315549 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2176759 Fan Grommet (2)
11 8281159 Screw
12 2310237 Harness, Fan
Evaporator
(Includes #4)
13 2155788 Gasket, Fan Scroll
14 2203875 Gasket
15
W10207507 Cover, Evaporator
(Includes #9)
16 2203595 Support, R.S
17 2203596 Support, L.S

CONTROL PARTS
18
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2181738 Control Box
2 2196001 Tube Barrier,
Thermostat
3 489214 Screw (2)
4 2149705 Light Switch
5 2315562 Thermostat
6 2303824 Electronic
Control
7 489398 Screw (2)
8 489203 Spring Washer
9 627068 Screw
10 2181741 Slide, Air Control
11 2172906 Grommet, Light Bar
12 2161466 Slide, Thermostat
13 2179920 Light Bar (RC)
14 2161306 Pivot Arm
15 2162085 Light Socket
16
W10194422 Light Bulb
17 2310533 Control Box
Harness
18 1115374 Clip, Wiring
19 1115375 Clip, Wiring
20 2161308 Connecting Rod
21 489391 Fastener, Push−On
22
W10176424 Front Cover,
Control Box
23 2179921 Light Bar (FC)
24 2175513 Window
25 2161307 Connecting Rod,
Short
26 2172931 Heat Shield
27 940014 Hole Plug

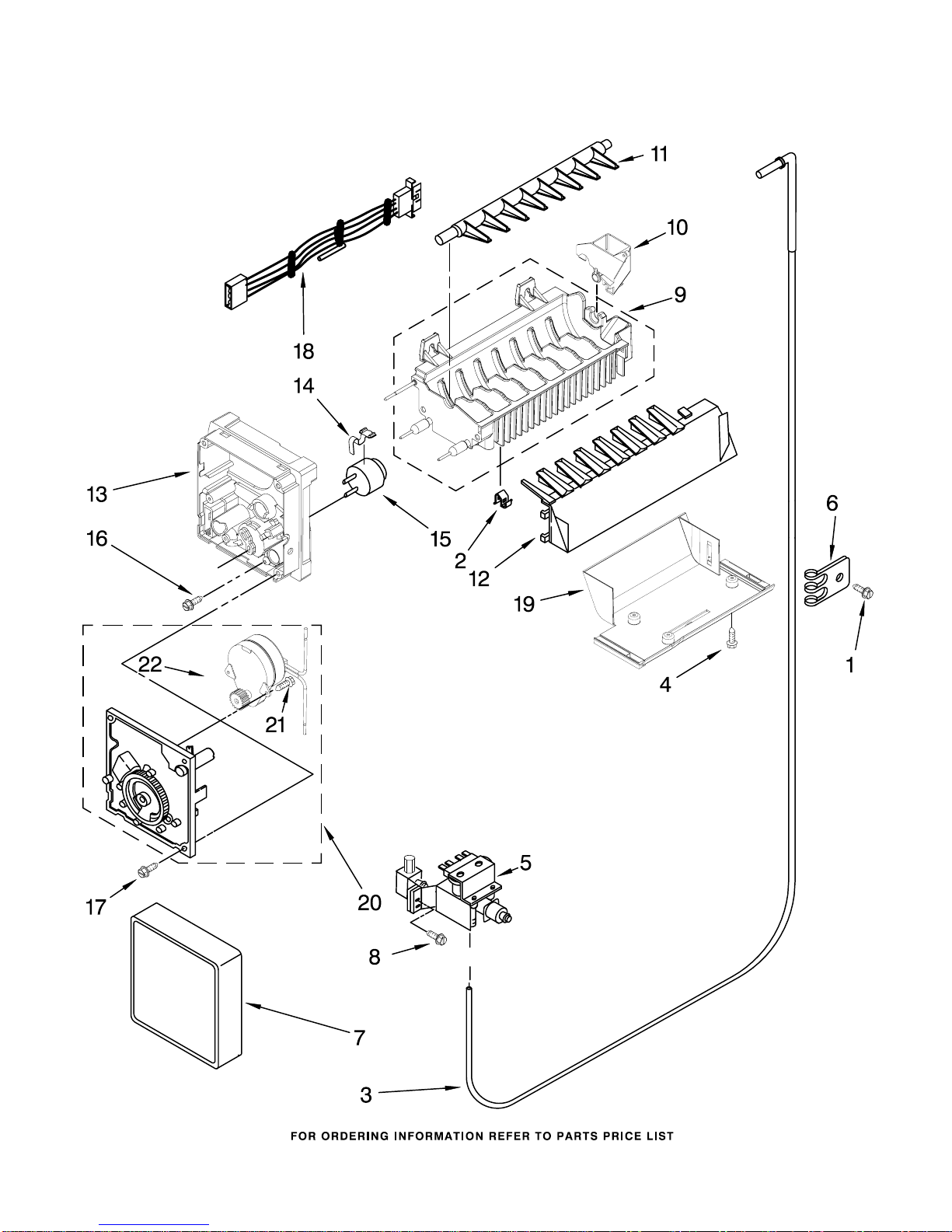

ICEMAKER PARTS
19
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564

ICEMAKER PARTS
20
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 628379 Clip, Fuse
3
W10140630 Fitting/Water Tube
4 489478 Screw
5 2188709 Filter Valve Asm
6 2208136 Tube Clip
7 2174358 Cover
8 488649 Screw (2)
9
W10122550 Mold & Heater
Assembly (Also
Order 542638
10 2304969 Cup, Water Fill
11 626753 Ejector
12 2212318 Ice Striper
13 2194712 Support
14 2315522 Retainer,
Thermostat
15 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
16 8533917 Screw
17 489276 Screw
18 2187484 Harness, Wiring
19
W10131253 Bracket, Mounting
20 626691 Module Assembly
21 489136 Screw
22 Motor
(Not Serviced,
Order #20)
100
W10190961 Complete Icemaker
Assembly
