KitchenAid KSCS23FVBL01 User manual

CABINET PARTS
1
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
06−08 Printed In U.S.A. (jdc)(mek) Part No. W10211572 Rev. A
REFRIGERATOR

CABINET PARTS
2
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10162436 Use & Care Guide
W10152832 Service & Wiring
Sheet
2318510 Installation
Instructions
W10194145 Energy Guide
2220407 Modular Icemaker
Service Sheet
2 Front Roller Asm
2306950 Left Side
2306951 Right Side
3 2223263 Strap, Roller
4 2306949 Roller, Rear (2)
5 2223388 Clip, Retainer (4)
6 2155013 Clip, Grille
7 488500 Screw
8 2223545 Shim
9 Hinge Top, RC
2307008W White
2307008B Black
2307008AP Apollo Gray
10 3400113 Screw
11 3400243 Screw
12 2307179 Hinge Assembly,
Bottom−RC
(Includes #20)
13 Filler, Wrapper
2223893W White
2223893B Black
2223893AP Apollo Gray
14 Grille
W10194047 White
W10194057 Black
W10194061 Midnight Grey
15 3400108 Screw
16 Hinge, Top FC
2307007W White
2307007B Black
2307007AP Apollo Gray
17 489464 Screw
18 2304888 Drain Fitting
19 2254566 Tube, Extension
20 2307049 Door Closer, RC
21 2223409 Cover, Unit
22 2223387 Pin, Roller (4)
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2307152 Hinge Assembly,
Bottom−FC
(Includes #29)
26 Button, Water
Filter
2260503W White
2260503B Black
2260503MG Midnight Grey
27
W10121140 Housing, Water
Filter
28 8212650 Water Filter
29 2307051 Door Closer, FC
30 Cap, Water
Filter
2260502W White
2260502B Black
2260518MG Midnight Grey
31 Cabinet (Not A
Serviceable Part)
32 489483 Screw
35 3400858 Screw
36 2224020 Tube, Filter
Outlet
37 2319867 Tube, Filter
Inlet

REFRIGERATOR LINER PARTS
3
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2223524 Escutcheon, Meat
Pan Control
3 2223339 Slide Meat
Pan Control
6 1118894 Switch, Rocker
Arm
7 2188820 Thermistor
8 3400893 Screw
9 2319866 Ladder, Shelf (2)
10 2301234 Housing, Door
Control
11 489084 Screw
12 2301235 Slide, Door
Control
13 2171846 Release Valve
14 2209204 Clip, Thermistor
15 2179404K Rack, Wine & Egg
16 1116793 Cover, Thermistor
17 489478 Screw
18 2304597 Gasket,
Air Baffle
19 2223403 Cover,
Air Baffle
20 2224076 Air Diffuser
Assembly
21
W10185224 Air Baffle
22 2162085 Socket
23 2307107 Reservoir
24 2205813 Strap
25 2255743 Light Bulb
26 2223663 Light Lens
27 488280 Screw

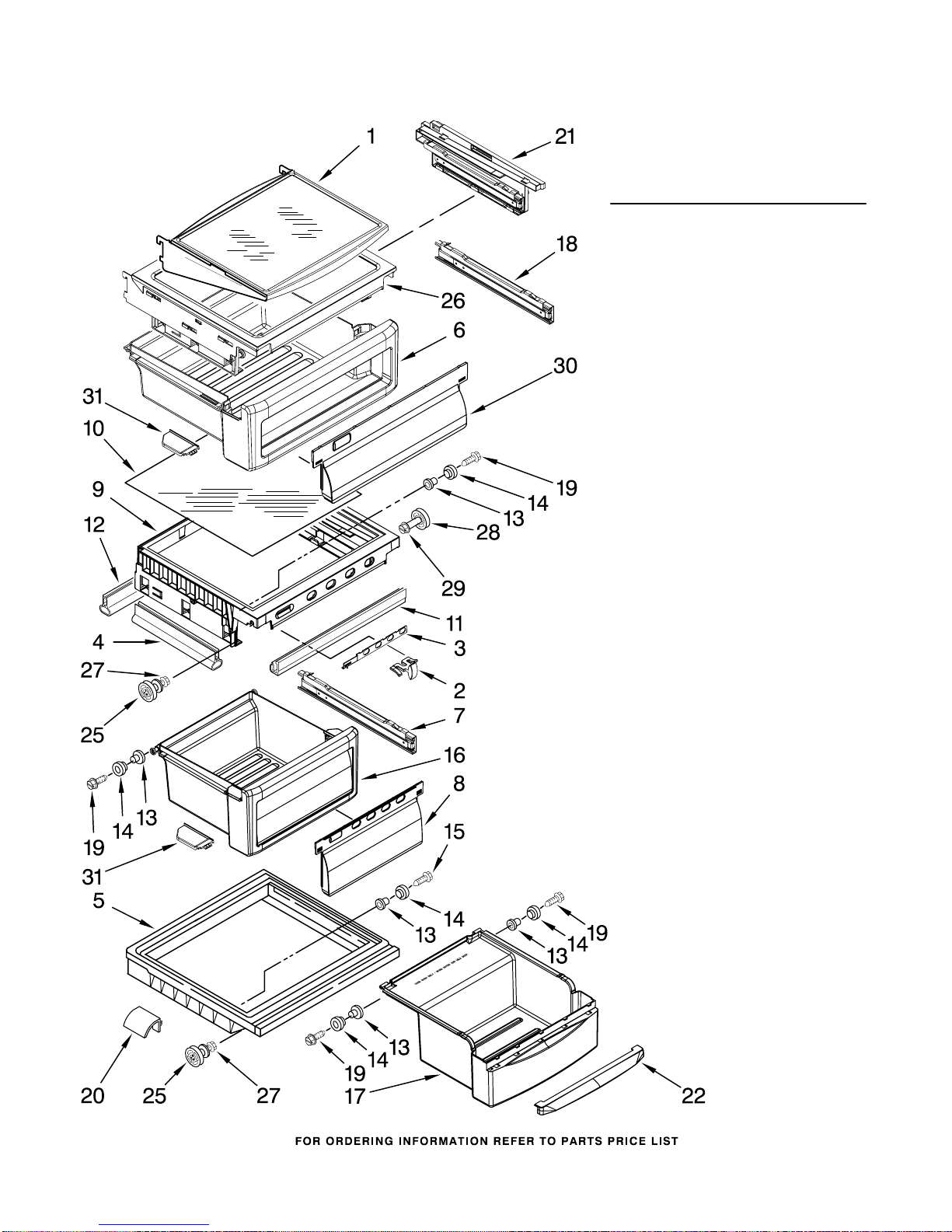

REFRIGERATOR SHELF PARTS
4
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572
Illus. Part
No. No. DESCRIPTION
1 2224061 Shelf Assembly,
Cantilever (2)
2 2301025 Button, Humidity
3 2301026 Slide, Humidity
4 2301117 Gasket, Side (2)
5 2203027 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6 2301023 Snack Pan
(Includes 30 & 31)
7 Glide Assembly,
Crisper Pan
2301548 Right Side
2301549 Left Side
8 2301001 Window,
Crisper Pan
9 2301028 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2301009 Glass, Cover
11 2301116 Gasket (Front)
12 2301115 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2301031 Crisper Pan
(Includes 8, 13
14, 19 & 31)
17 2223790 Meat Pan
(Includes 13,
14, 19 & 22)
18 Glide Assembly,
Snack Pan
2301550 Right Side
2301551 Left Side
19 489261 Screw
20 2223487 Deflector
21 Support Assembly
2301569 Right Side
2301570 Left Side
22 2203031 Handle
25 2196485 Stud Assembly
26 2301566 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
30 2301006 Window, Snack Pan
31 Cap, Snack Pan
2301016 Right Side
2301017 Left Side

FREEZER LINER PARTS
5
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572

FREEZER LINER PARTS
6
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2223777 Spacer, Slide (2)
3 2224051 Basket, Front
4 2196483 Stud Assembly
5 2223691 Basket, Deep (2)
6 8281158 Screw
7 2223500 Shelf Assembly,
Cantilever (2)
8 2224053 Front, Basket
9 Shelf Track
2223787 Right Side
2223788 Left Side
10 2254615 Shelf, Fixed
11 2223694 Basket, Lower
12 842534 Clip, Air Duct
13 Glide Assembly,
Basket (2)
2301544 Right Side
2301545 Left Side
14 2259487 Cover, Emitter
15 8534064 Screw
16 2198635 Spring
17 2198634 Pin
18 2198665 Tube, P.C. Board
19 1115373 Switch, Rocker Arm
20
W10193840 P.C. Board
Emitter
21
W10185438 Cover, Ice Maker
22 Slide, Ice Maker
Mounting
2212321 Right Side
2306900 Left Side
23 489478 Screw
24 489214 Screw
25 2162085 Light Socket
26 2255743 Light Bulb
27 8281185 Screw
28 2198633 Flipper
29
W10173569 Cover, Receiver
30 2315398 Slide, Ice Maker
Shut Off
31
W10193666 P.C. Board,
Receiver
32 2198643 Lens
33 2198589 Light Shield
34 2212340 Light Lens
35 2198641 Bracket, Ice Maker
Cover
36 2155597 Socket, Light
37 3400893 Screw
38 Ladder
2198609 Left Side
2198610 Right Side
39 2303378 Shield, Wiring

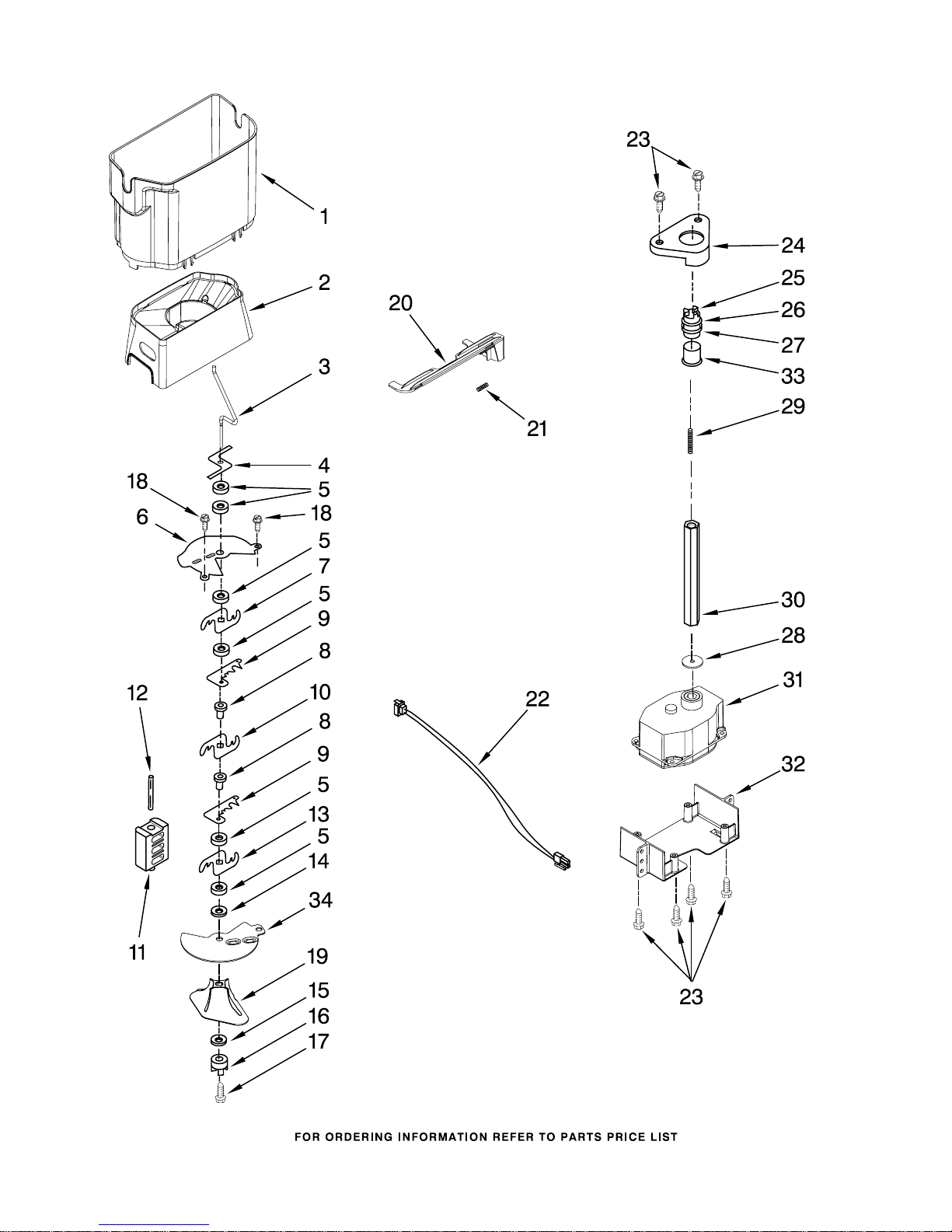

MOTOR AND ICE CONTAINER PARTS
7
W10211572
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572
Illus. Part
No. No. DESCRIPTION
1 W10139482 Ice Bin
2
W10140686 Crusher Bin
3
W10140642 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6
W10139321 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2317243 Wiper
20
W10140685 Latch, Bin
21 2198608 Spring, Latch
22 2187813 Wire Assembly,
IDI Motor
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
28 2305382 Rubber Boot
29 2198607 Spring
30 2305243 Drive Shaft
31 2252130 Dispenser, Motor
32 2305208 Bracket, Motor
33 2212365 Sleeve, Coupling
34 2317250 Divider−Chamber
100
W10140693 Ice Container
(Complete)

REFRIGERATOR DOOR PARTS
9
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572

REFRIGERATOR DOOR PARTS
10
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
W10128346 White
W10128348 Black
2307199SAP Monochromatic
Stainless
2307199S Stainless Steel
2 2203087K Trim, Shelf
3 2255421 Dairy Door
4 2223883 Caddy, Can
6 2219698 Stud, Handle
7 Door Gasket,
Magnetic
2223841 Mist Beige
2223911 Black
2326342 Apollo Grey
8 Handle
2319727W White
2319727B Black
2319727S Stainless Steel
9 Set Screw
W10010140 Chrome
W10010150 Black
10 2223879 Dairy Compartment
11 488208 Screw
12 2307048 Door Closer,
Upper Cam
13 2308091 Thimble, Top
14 489420 Screw
15 Bracket, Door Stop
2306940 Chrome
2306940B Black
16 2223860 Door Bin (3)
17 3400012 Screw
18 2224173 Door Bin,
Shallow
19 Nameplate
W10046670 White
W10046640 Black
W10046610 Gray
20 2156006K Plug, Trim

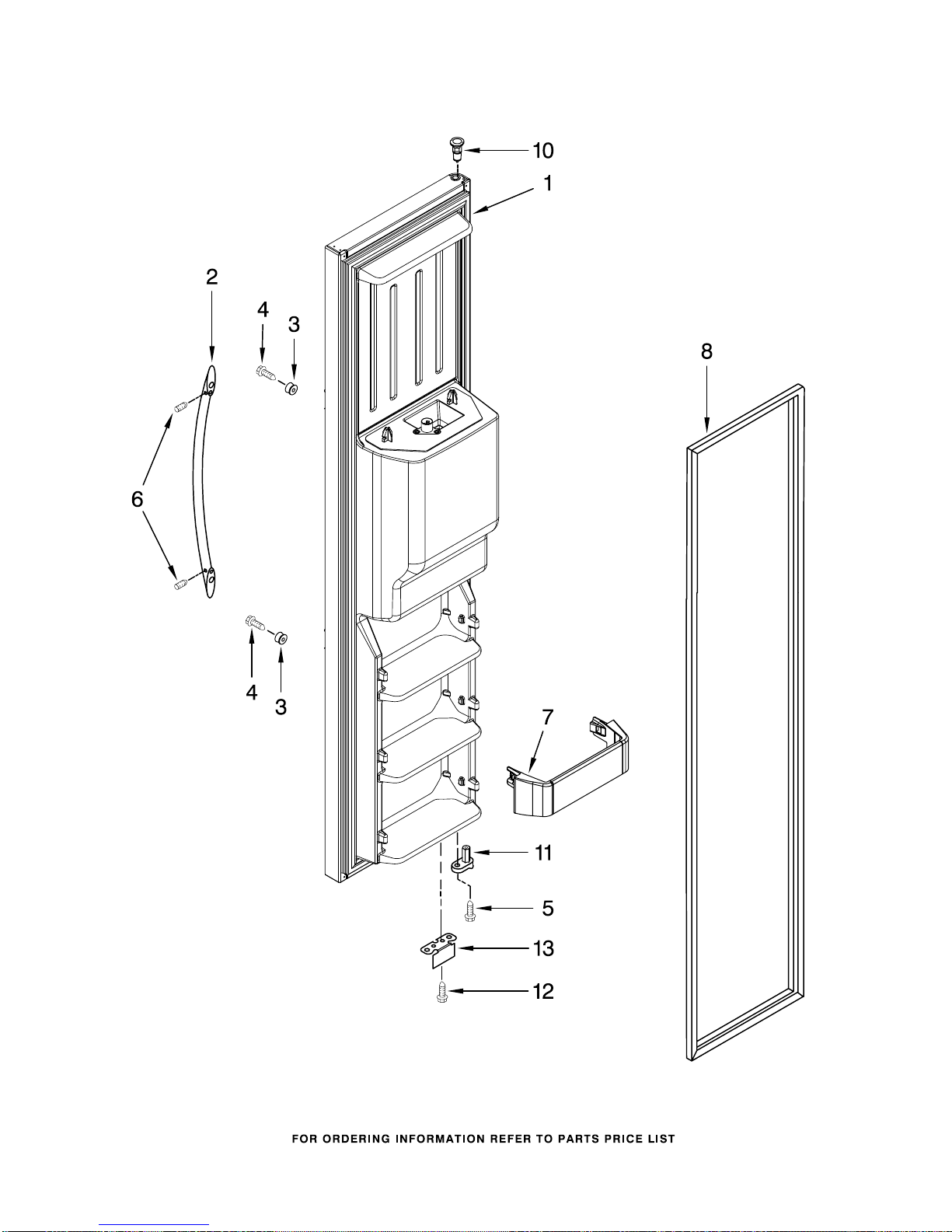

FREEZER DOOR PARTS
11
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572

FREEZER DOOR PARTS
12
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
W10149670 White
W10149671 Black
W10149875 Monochromatic
Stainless
W10149593 Stainless Steel
2 Handle
2319727W White
2319727B Black
2319727S Stainless Steel
3 2219698 Stud, Handle
4 488208 Screw
5 3400012 Screw
6 Set Screw
W10010140 Chrome
W10010150 Black
7 2223559K Shelf Bin (3)
8 Door Gasket,
Magnetic
2223850 Mist Beige
2223912 Black
2326343 Apollo Grey
10 2308091 Thimble, Top
11 2307050 Door Closer,
Upper Cam
12 489420 Screw
13 Bracket, Door Stop
2306940 Chrome
2306940B Black
FOLLOWING PARTS
NOT ILLUSTRATED
2310224 Wire Harness,
Freezer Door
2317707 Tube, Door

13
DISPENSER FRONT PARTS
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572

DISPENSER FRONT PARTS
14
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
3 2305202 Bracket, Motor
4 2305242 Connector, Door
Bracket
5 2305262 Motor, Ice Door
6 2305258 Door, Ice
7 2305204 Support, Ice
Door
8 4449745 Screw
9 Tray Assembly
2315109W White
2315109B Black
2315109NA Nickel Alloy
10
W10187441 Spigot
11 2305456 Separator Assembly
12 2303843 Electronic Control
(Core)
13 2305219 Cover, Electronic
Control
16 Pad, Water
2305307CE For White Model
2305307GE For Black Model
2305307AS For Monochromatic
Stainless Model
2305307GE For Stainless
Steel Model
17 Pad, Ice
2305306CE For White Model
2305306GE For Black Model
2305306AS For Monochromatic
Stainless Model
2305306GE For Stainless
Steel Model
18 2305287 Lens, Front Cover
20 2305342 LED Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
23 Front Cover
Assembly
(Includes Items
13, 16, 17, 18,
20 & 21)
2326256W White
2326256B Black
2326256NO Nickel One
24
W10178851 Wire Assembly,
User Interface
25 2305447 Clip, Wiring

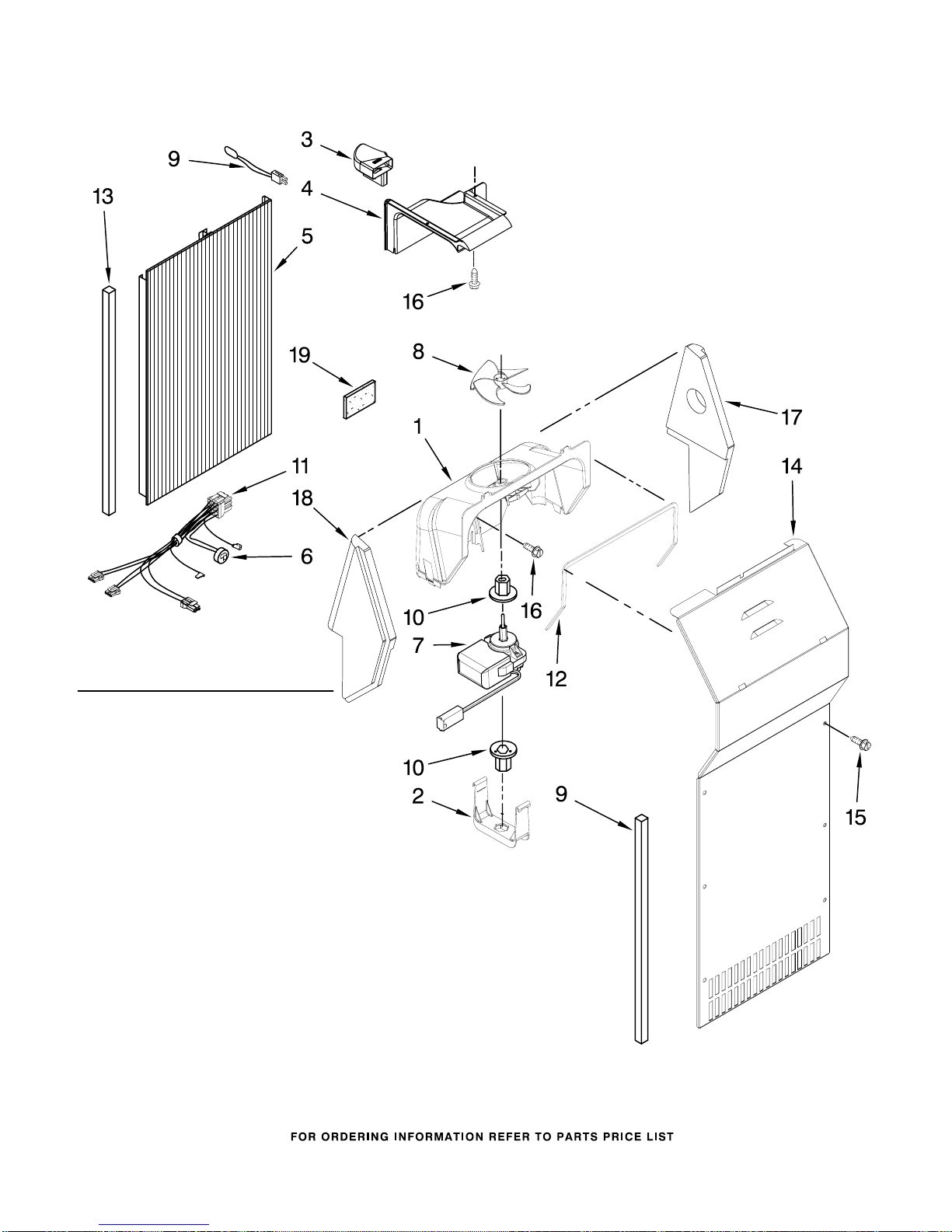

AIR FLOW PARTS
15
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2223733 Retainer,
Fan Motor
3 2223298 Air Scoop
4 2223303 Air Duct, Upper
5 2223771 Air Duct Freezer
6 2321799 Bi−Metal, Defrost
7 2259385 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2223986 Fan Grommet (2)
11
W10129813 Harness, Fan
Evaporator, And
Heater, Bi−Metal
12 2155789 Gasket, Fan Scroll
13 2203876 Gasket
14 2223413 Cover, Evaporator
(Includes #9)
15 8281159 Screw
16 489478 Screw
17 2223395 Support, R.S
18 2203596 Support, L.S
19
W10138980 Insulation,
Sound

CONTROL PARTS
16
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572
Illus. Part
No. No. DESCRIPTION
1 W10175591 Control Box
(Includes #3)
2 2223882 Heat Shield Asm
(Includes #5)
3 2307037 Control Board Asm
4 2223506 Light Lens,
Control Box
5 2223857 Light Socket
6 2326255 Light Bulb
7 489000 Screw

UNIT PARTS
17
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572

UNIT PARTS
18
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 777070 Screw
2
W10139483 Fan, Blade
3
W10131059 Condenser
Assembly
4 489427 Screw
5 3400524 Screw (6)
6 2223703 Housing,
Control Board
7 2223351 Tube Suction
8 2161302 Sleeve
9 2319835 Grommet,
Condenser (4)
11 8533859 Screw
12 2215676 Cover, Terminal
13 2169104 Insulation, Sound
14 2305373 Clamp, Cable
15 488649 Screw
19
W10185291 Electronic Control
20 2306932 Baseplate
22 2188823 Evaporator
23 2161324 Clamp
24 2188874 Fan, Motor
25 2223398 Tray, Evaporator
26 2224022 Heat Shield
27
W10177049 Drier
28
W10155907 Compressor
(Includes Items
12 & 39)
29 2223800 Spacer (5)
31 2310122 Harness,
Main Control
32 2224024 Fan, Motor Bracket
33 2323199 Heater, Defrost
34 2304287 Clip
36
W10154805 Inverter Box
37 489373 Screw
38
W10181542 Tube, Discharge
39 Grommet (4)
1100826 Production
2221003 Service
40 2223394 Extension,
Air Baffle
41 2155547 Clip, Heat Shield
42 2310121 Unit Harness
43 2300868 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
6.00 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572

ICEMAKER PARTS
20
For Models: KSCS23FVWH01, KSCS23FVBL01, KSCS23FVSS01, KSCS23FVMS01, KSCS23FVMK01
(White) (Black) (Stainless) (Monochromatic
Stainless) (Monochromatic Stainless)
W10211572
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2303216 Fitting, Water
Tube
3 628379 Clip, Fuse
4 2313394 Shield, Water
Valve
5 489478 Screw
6
W10159840 Smart Valve Asm
7 2208136 Tube Clip
8 2174358 Cover
9 488649 Screw
10
W10122527 Mold & Heater
Assembly (Also
Order 542638)
11 2304969 Cup, Water Fill
12 627843 Ejector
13 2198598 Ice Striper
14 2194712 Support
15 2315522 Retainer,
Thermostat
16 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
17 8533917 Screw
18 489276 Screw
19 2187467 Harness, Wiring
20 2303583 Bracket, Icemaker
Mounting
21 626691 Module Assembly
(Includes Items
22 & 23)
22 Motor
23 489136 Screw
100
W10122502 Icemaker Assembly
