KitchenAid KSRG25FTBL00 User manual

CABINET PARTS
1
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
09−06 Printed In U.S.A. (kdr) Part No. W10114880
REFRIGERATOR

CABINET PARTS
2
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
2318581 Use & Care Guide
2255385 Service & Wiring
Sheet
2318970 Energy Guide
2220407 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top, RC
10 3400113 Screw
11 Hinge Cover, FC
2203407W White
2203407B Black
2203407T Biscuit
12 2304322 Hinge Bottom
13 Filler, Wrapper
2304846 White
2304848 Black
2304849 Biscuit
14 Grille
2303292W White
2303292B Black
2303292T Biscuit
15 489497 Screw
16 2203770 Hinge, Top FC
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Tube, Extension
20 1108439 Clip, Drain Tube
21 2252035 Cover, Unit
22 Hinge Cover, RC
2203408W White
2203408B Black
2203408T Biscuit
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 2260507 Housing, Water
Filter
28 4396841 Water Filter
29 489500 Screw
30 Cap, Water
Filter
2260502W White
2260502B Black
2260502T Biscuit
31 Cabinet (Not A
Serviceable Part)
32 8281227 Screw
33 2260519 Block, Housing
Support
34 2255012 Tube, Filter
Outlet
35 2304697 Tube, Filter
Inlet
36 Button, Water
Filter
2260503W White
2260503B Black
2260503T Biscuit

REFRIGERATOR LINER PARTS
3
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2255612 Escutcheon, Meat
Pan Control
3 2301339 Slide Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket, Dual
Crisper Lights
7 2256037 Wire Harness,
Dual Crisper
Lights
9 2319866 Ladder, Shelf (2)
11
W10004810 Screw (2)
12 489478 Screw
16 2179404 Rack, Wine & Egg
22 1123919 Bracket Retainer
23 489290 Screw (2)
24 2209754 Air Diffuser
Assembly
25 2152019 Air Diffuser
Cover
26 2150331 Cover, Conduit
29 2162085 Socket
31 2217199 Reservoir
33 2255743 Light Bulb
34 2209769 Light Lens
37 488280 Screw

REFRIGERATOR SHELF PARTS
4
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880
Illus. Part
No. No. DESCRIPTION
1 2195975 Frame Assembly,
Slide Out (2)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2223357 Cover, Meat Pan
(Includes Items
13, 14 & 15)
6 2305595 Snack Pan
(Includes #7)
7 2179243 Trim, Handle
8 2255144 Glass, Cover
9 2301484 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2255143 Glass, Cover
11 2223361 Gasket (Front)
12 2223362 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2301481 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2301482 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2223286 Right Side
2223285 Left Side
22 2174362 Window, Meat Pan
24 2216102 Shelf Assembly,
Slide Out (2)
25 2196485 Stud Assembly
26 2206346 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw

FREEZER LINER PARTS
5
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880

FREEZER LINER PARTS
6
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 941839 Hole Plug
3 3400893 Screw
6 2301190 Basket, Tall
7 Track, Basket−Dual
2301293 Right Side
2301294 Left Side
9 2211746K Shelf, Slide Out
Upper
12 2305580K Basket, Front
13 Track, Basket
2301289 Right Side
2301290 Left Side
14 2205837K Shelf (2)
15 2301191 Basket, Sloped
16
W10004810 Screw
17 842534 Clip, Air Duct
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2255590 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 2255743 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2255561 Cover, Receiver
37 2301340 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
45 Ladder
2320024 Left Side
2320025 Right Side
46 2303234 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2255580 Crusher Bin
3 2258222 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6 2255460 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
19 2301345 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw
23 8281163 Screw
24 2188919 Holder
26 2198628 Seal
30 2188916 Drive Shaft
31 2256154 Enclosure, Motor
32 2315544 Motor, Dispenser
33 2212305 Cover
36 2315559 Sleeve, Coupling
100 2315954 Ice Container
(Complete)

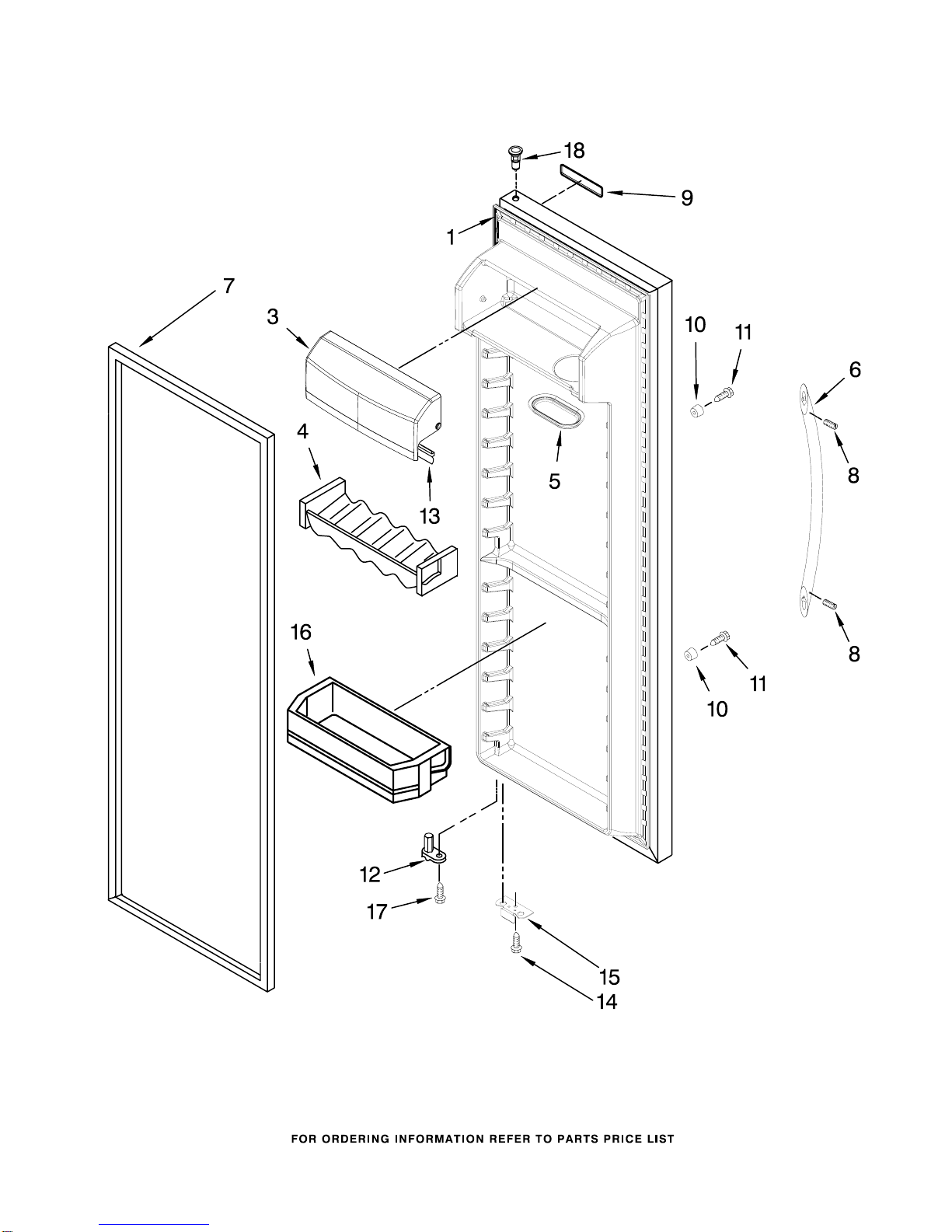

REFRIGERATOR DOOR PARTS
9
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880

REFRIGERATOR DOOR PARTS
10
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2301184W White
2301184B Black
2301184T Biscuit
2301184S Stainless Steel
2301184LG Stainless VCM
3 2301486 Door, Compartment
4 2193409K Beverage Holder(2)
5 2165792K Butter Dish
6 Handle
2319727W White
2319727B Black
2319727T Biscuit
2319727S Stainless Steel
7 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
8 Set Screw
W10010140 Chrome
W10010150 Black
9 Nameplate
W10046670 White
W10046640 Black
W10046700 Biscuit
W10046610 Grey
10 2219698 Stud
11 488208 Screw
12 2182178 Door Closer,
Upper Cam
13 2159124 Gasket
14 489420 Screw
15 Bracket, Door Stop
2206629 Chrome
2206629B Black
16 2171063K Door Bin (4)
17 3400012 Screw
18 Thimble, Top
2308091 For White, Black,
Biscuit and
Stainless VCM
Models
2308050 For Stainless
Steel Model

FREEZER DOOR PARTS
11
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880

FREEZER DOOR PARTS
12
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
2318964W White
2318964B Black
2318964T Biscuit
2318968SB Stainless Steel
2318964LG Stainless VCM
2 Handle
2319727W White
2319727B Black
2319727T Biscuit
2319727S Stainless Steel
3 Screw
W10010140 Chrome
W10010150 Black
4 2219698 Stud
5 3400012 Screw
6 488208 Screw
7 2171070K Shelf Bin (3)
8 Door Gasket,
Magnetic
2221303 Mist Beige
2221314 Black
9 2304895 Safety Barrier
10 2219982 Trim, Door Shelf
12 488500 Screw
13 2206178 Wire Harness
14 2182179 Door Closer,
Upper Cam
15 2154473 Connector
16 489420 Screw
17 Bracket, Door Stop
2206629 Chrome
2206629B Black
18 Thimble, Top
2182181 For White, Black,
Biscuit and
Stainless VCM
Models
2301049 For Stainless
Steel Model

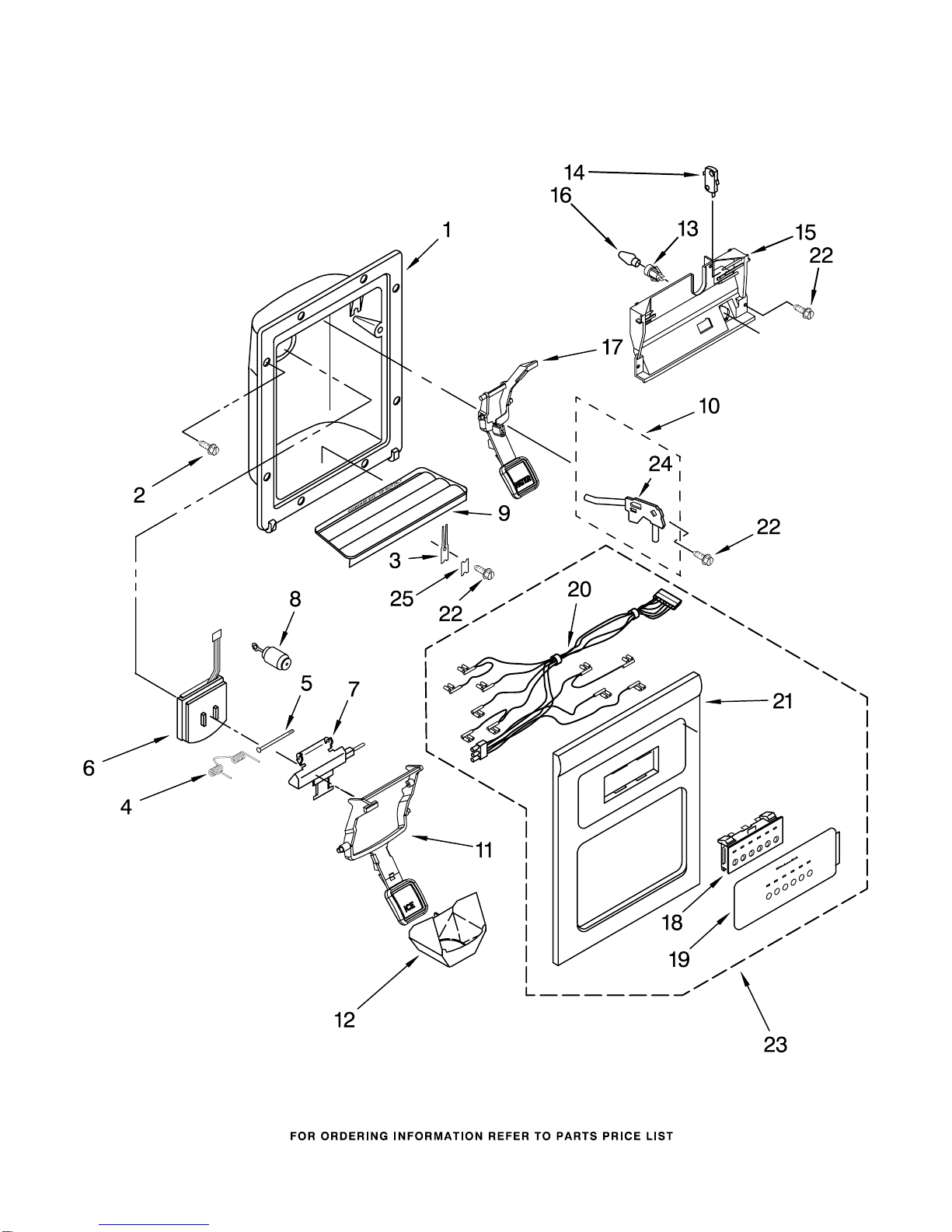

DISPENSER FRONT PARTS
13
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880

DISPENSER FRONT PARTS
14
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2304772 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206670W White
2206670B Black
2206670T Biscuit
10 2304317 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2180259 White
2180261 Black
2186850 Biscuit
12 2180224 Guide, Ice
13 2180200 Lamp Holder
14 2162361 Switch (4)
15 2183771 Bracket, Control
16 3406124 Bulb, Light
17 Lever, Water
Dispenser
2180268 White
2180270 Black
2186852 Biscuit
18 Switch Assembly
(Not Available
Order #23)
19 Overlay, Front
Cover
(Not Available,
Order #23)
20 2187406 Wire Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
18, 19, 20 & 21)
2318965W White
2318965B Black
2318965T Biscuit
24 2304673 Bracket, Dispenser
25 2195051 Strain Relief

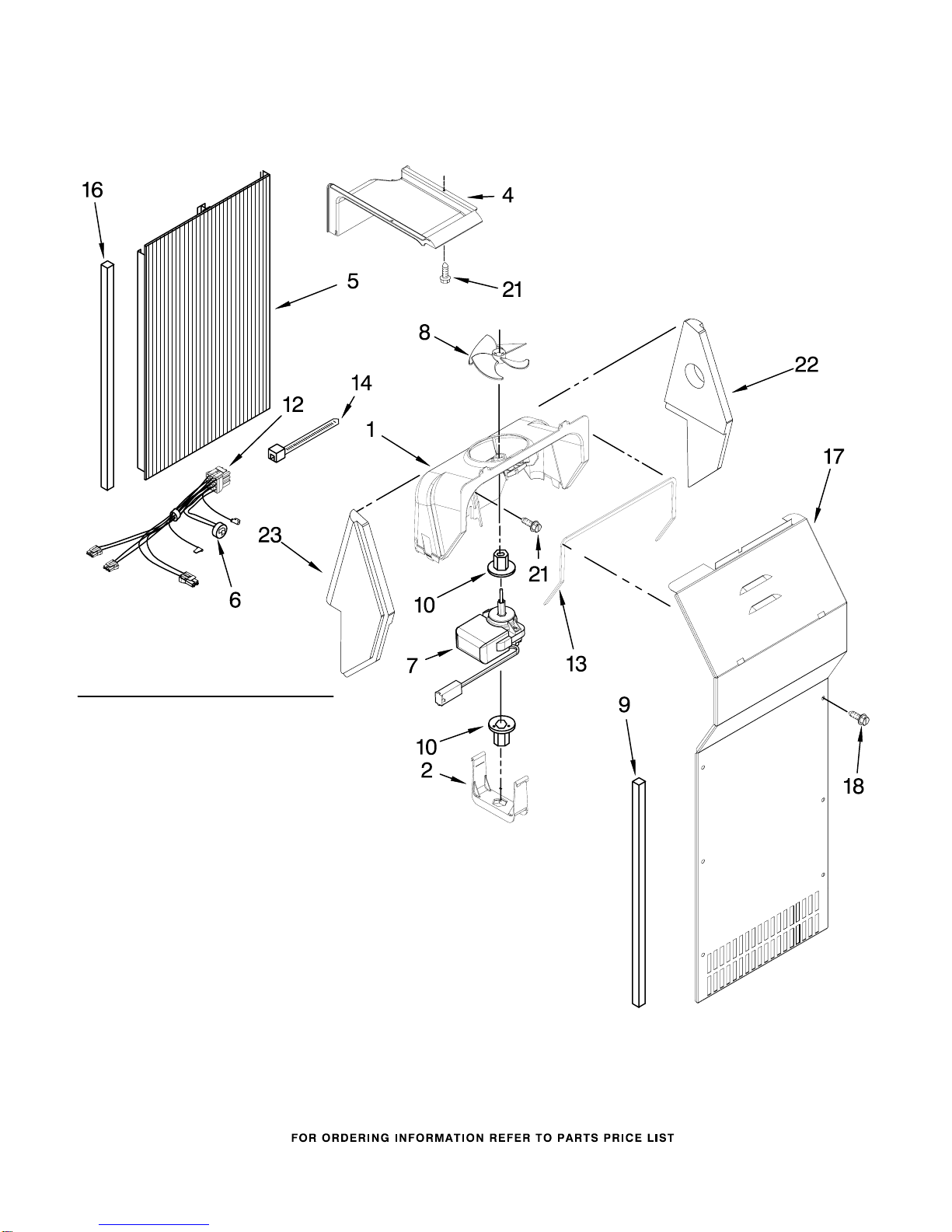

AIR FLOW PARTS
15
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
4 2313359 Air Duct, Upper
5 2198580 Air Duct Freezer
6 2319914 Bi−Metal, Defrost
7 2315549 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evap
Cover (2)
10 2176759 Fan Grommet (2)
12 2310237 Harness, Fan
Evaporator
(Includes #6)
13 2155789 Gasket,
Fan Scroll
14 2172840 Wire Tie
16 2203876 Gasket
17 2206314 Cover, Evaporator
(Includes #9)
18 8281159 Screw
21 489478 Screw
22 2203595 Support, R.S
23 2203596 Support, L.S

CONTROL PARTS
16
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 8201785 Control Box
2 2196001 Tube Barrier,
Thermostat
3 489214 Screw (3)
4 2149705 Light Switch
5 2315562 Thermostat
6 2303822 Electronic
Control
7 489398 Screw (2)
8 2200096 Cover, Light
Lens
9 627068 Screw
10 2181741 Slide, Air Control
11 2172906 Grommet, Light Bar
12 2161466 Slide, Thermostat
13 489084 Screw (2)
14 2179920 Light Bar (RC)
15 2161306 Arm, Pivot
16 489290 Screw (2)
17 2162085 Light Socket
18 2213462 Harness, Indicator
Light
19 2255743 Light Bulb
20 2212237 Control Box
Harness
21 1115374 Clip, Wiring
22 1115375 Clip, Wiring
23 2161308 Connecting Rod
24 489391 Fastner, Push−On
25 2318958 Escutcheon,
Control Box
26 2179921 Light Bar (FC)
27 2175513 Window
28 2172931 Heat Shield
Filter Indicator
29 489203 Spring, Washer
30 2161307 Connecting Rod
(Short)
31 940014 Hole Plug

UNIT PARTS
17
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880

UNIT PARTS
18
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
2 2225834 Fan, Blade
3 2304902 Condenser
Assembly
4 489464 Screw
5 2208280 Clip, Wire
7 2205765 Tube Suction
8 2161302 Sleeve
9 2183454 Relay
(Service Only)
11 8533993 Screw
12 4387731 Cover
(Service Only)
13 2154697 Overload
(Service Only)
14 2223314 Clip, Retaining
15 2304885 Start Device,
Combination
(Start Relay and
Overload) for
Production
Compressor
16 4387765 Wire, Capacitor
(Service Only)
17 Capacitor
2169373 Production
1118576 Service
18 2261599 Tube, Condenser
to Heat Loop
20 2216914 Clip, Condenser
22 2188823 Evaporator
23 2161324 Clamp
24 2188874 Fan, Motor
25 1105523 Tray, Evaporator
26 2304289 Heat Shield
27 2319825 Drier
28 2320138 Compressor
(Includes Items
9, 12, 13, 16,
17 & 27)
(Also Order
876765 Tube Kit)
30 2304904 Unit Mounting
Frame
31 2187783 Unit, Harness
32 2181929 Fan, Motor Bracket
33 2188175 Heater, Defrost
34 2304287 Clip
37 489373 Screw
39 Grommet (4)
1100826 Production
4387558 Service
40 489340 Screw
41 2196202 Air Baffle
42 2155547 Clip, Heat Shield
43 2304899 Unit Cover, Bottom
44 489396 Clip
48 2305374 Unit Mounting
Rail
49 8281232 Screw
50 2260517 Guard, Fan
52 2172840 Strap
53 489427 Screw
55 488649 Screw
63 2209709 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.00 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880

ICEMAKER PARTS
20
For Models: KSRG25FTWH00, KSRG25FTBL00, KSRG25FTBT00, KSRG25FTSS00, KSRG25FTST00
(White) (Black) (Biscuit) (Stainless Steel) (Stainless VCM)
W10114880
Illus. Part
No. No. DESCRIPTION
5 628379 Clip, Fuse
6 489084 Screw
7 2256096 Tube, Water
9 489478 Screw
10 2304757 Valve, Solenoid
14 489385 Tube Clip
18 2174358 Cover
19 488649 Screw
20 2255835 Mold & Heater
Assembly (Also
Order 542638
22 628356 Cup, Water Fill
23 627843 Ejector
24 2198598 Ice Striper
25 2194712 Support
26 2315522 Retainer,
Thermostat
27 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 8533917 Screw
30 489276 Screw
32 2187467 Harness, Wiring
33 2303583 Bracket, Icemaker
Mounting
35 626678 Module Assembly
(Includes Items
37 & 38)
37 626676 Motor
38 489136 Screw
100 626663 Icemaker Assembly
