KitchenAid KSRK25FVBL01 User manual

CABINET PARTS
1
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
10−08 Printed In U.S.A. (jdc) (eeb) Part No. W10233042 Rev. A
REFRIGERATOR

CABINET PARTS
2
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10162452 Use & Care Guide
W10181781 Service & Wiring
Sheet
W10194135 Energy Guide
2220407 Modular Icemaker
Service Sheet
W10206334 Instr Sheet,
Door Removal
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 488500 Screw
8 2203771 Hinge Top, RC
9 3400858 Screw
10 Hinge Cover, FC
W10138581 White
W10138582 Black
W10138583 Biscuit
W10138584 Apollo Gray
11
W10138965 Hinge Bottom
12 Filler, Wrapper
2304846 White
2304848 Black
2304849 Biscuit
W10143043 Apollo Gray
13 Grille
W10184886 White
W10184888 Black
W10184889 Biscuit
W10184890 Apollo Gray
14 489497 Screw
15 2203770 Hinge, Top FC
16 489464 Screw
17 2304888 Drain Fitting
18
W10153550 Tube, Extension
19 2188735 Cover, Unit
20 Hinge Cover, RC
W10138576 White
W10138577 Black
W10138578 Biscuit
W10138579 Apollo Gray
21 549193 Clamp, Service
Cord
22 489084 Screw
23 2155311 Door Closer,
Lower Cam (2)
24 489483 Screw
25 2260507 Housing, Water
Filter
26 4396841 Water Filter
27 489500 Screw
28 Cap, Water
Filter
2260502W White
2260502B Black
2260502T Biscuit
2260502MG Apollo Gray
29 Cabinet (Not A
Serviceable Part)
30 8281227 Screw
31 3400113 Screw
32 2255012 Tube, Filter
Outlet
33 2319867 Tube, Filter
Inlet
34 2260519 Block, Housing
Support
35 Button, Water
Filter
2260503W White
2260503B Black
2260503T Biscuit
2260503MG Apollo Gray

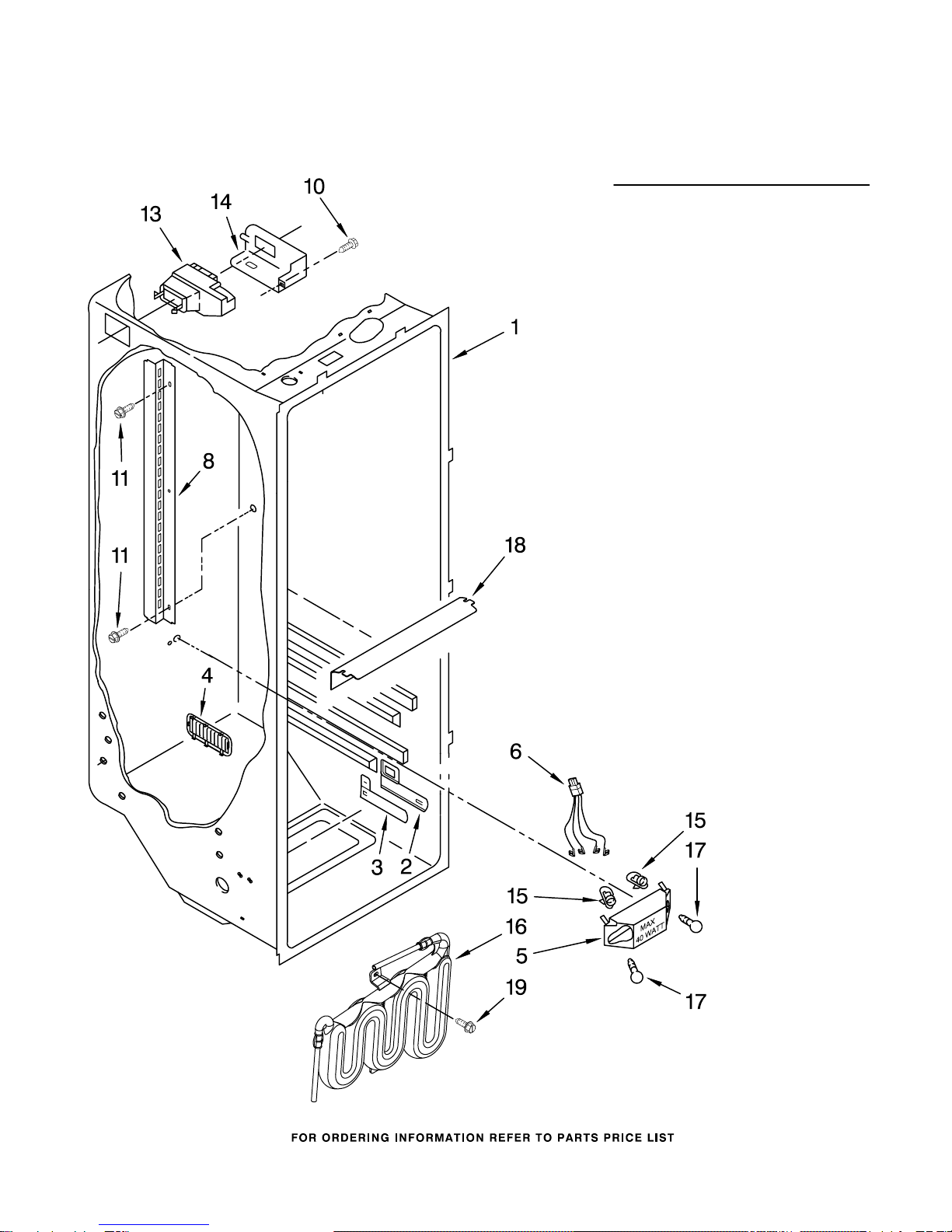

REFRIGERATOR LINER PARTS
3
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket, Dual
Crisper Lights
6 2311637 Wire Harness,
Dual Crisper
Lights
8 2319866 Ladder, Shelf (2)
10
W10004810 Screw (2)
11 489478 Screw
13
W10128734 Air Diffuser
Assembly
14
W10128735 Air Diffuser
Cover
15 2162085 Socket
16 2307107 Reservoir
17 2326255 Light Bulb
18 2209769 Light Lens
19 488280 Screw

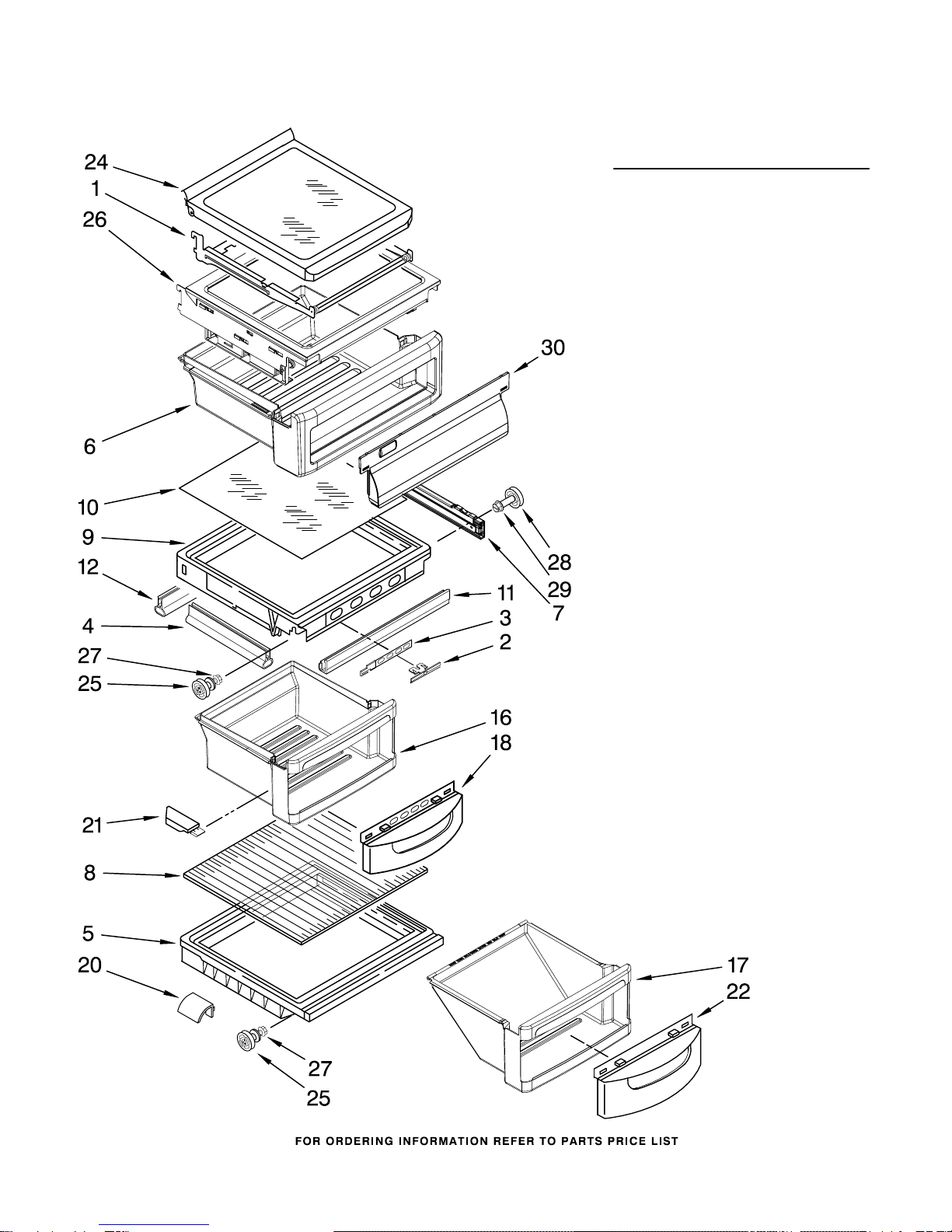

REFRIGERATOR SHELF PARTS
4
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION
1 2195975 Shelf Assembly,
Cantilever (3)
2 2301025 Button, Humidity
3 2301026 Slide, Humidity
4 2301117 Gasket, Side (2)
5 2301568 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6
W10142717 Snack Pan
(Includes 30)
7 Glide Assy
2301549 Left Side
2301548 Right Side
8 2301010 Glass, Cover
9 2301567 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2301009 Glass, Cover
11 2301116 Gasket (Front)
12 2301115 Gasket (Rear)
16
W10165598 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17
W10165656 Meat Pan
(Includes 13,
14, 19 & 22)
18 2301001 Window, Crisper
20 2301126 Deflector
21 Cap, Crisper Pan
2301016 Right Side
2301017 Left Side
22 2301227 Window, Meat Pan
24 2216102 Shelf & Roller
Assembly
25 2196485 Stud Assembly
26
W10141750 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
30 2179243 Trim, Snack Pan

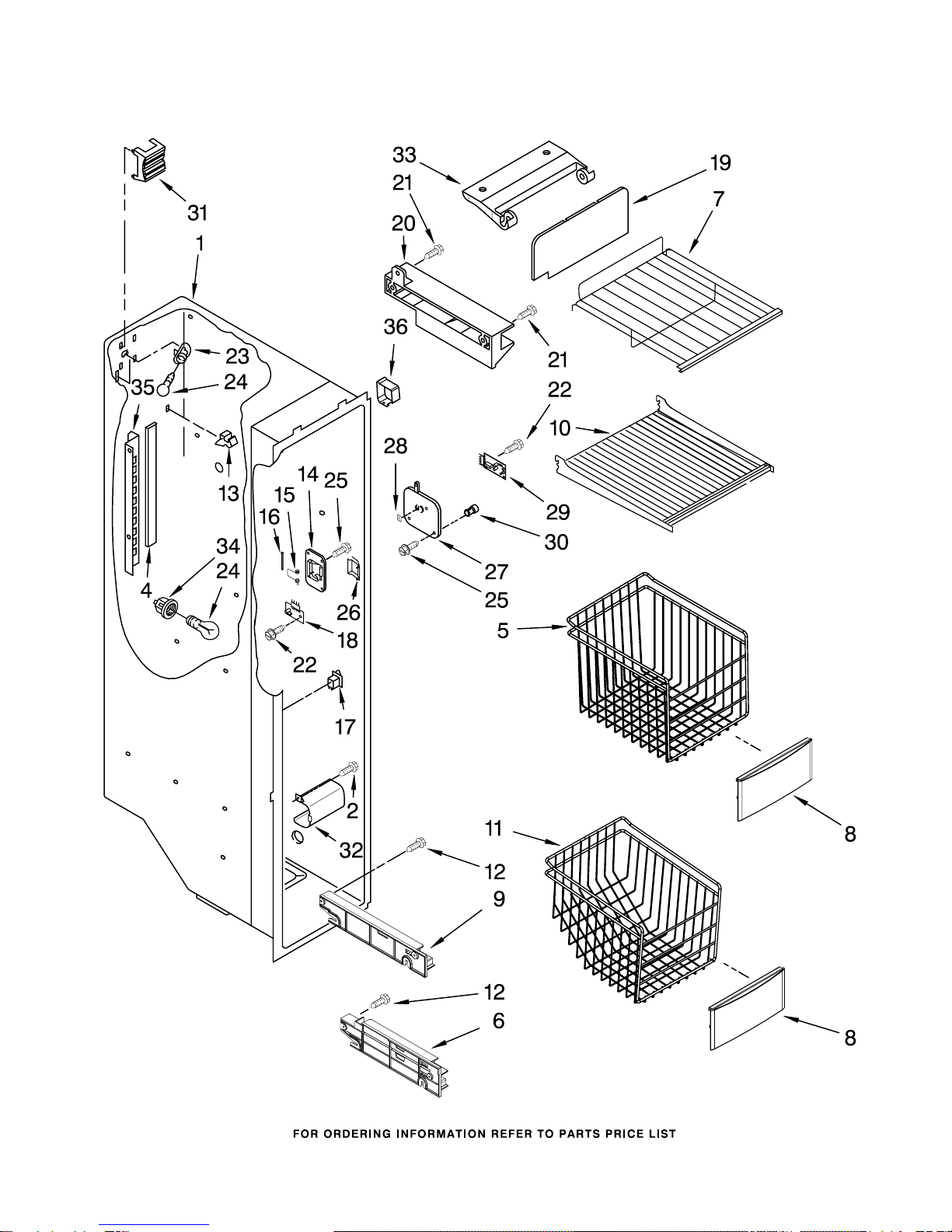

FREEZER LINER PARTS
5
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042

FREEZER LINER PARTS
6
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 3400893 Screw
4 2198697 Gasket
5 2301139 Basket, Tall
6 Track, Basket−Dual
2301293 Right Side
2301294 Left Side
7 2211746K Shelf, Slide Out
Upper
8 2301134K Basket, Front
9 Shelf Track
2301289 Right Side
2301290 Left Side
10 2205837K Shelf (2)
11 2301140 Basket, Sloped
12
W10004810 Screw
13 842534 Clip, Air Duct (2)
14 2198587 Cover, Emitter
15 2198635 Spring
16 2198634 Pin
17 1115373 Switch, Rocker Arm
18
W10193840 P.C. Board
Emitter
19 2255720 Cover, Ice Maker
20 2212321 Slide, Ice Maker
Mounting
21 489478 Screw
22 489214 Screw
23 2162085 Light Socket
24 2326255 Light Bulb
25 8281185 Screw
26 2198633 Flipper
27
W10173569 Cover, Receiver
28 2315398 Slide, Ice Maker
Shut Off
29
W10193666 P.C. Board,
Receiver
30 2198643 Lens
31 2198589 Light Shield
32 2212340 Light Lens
33 2198641 Bracket, Ice Maker
Cover
34 2155597 Socket, Light
35 Ladder
2198609 Left Side
2198610 Right Side
36 2303234 Shield, Wiring

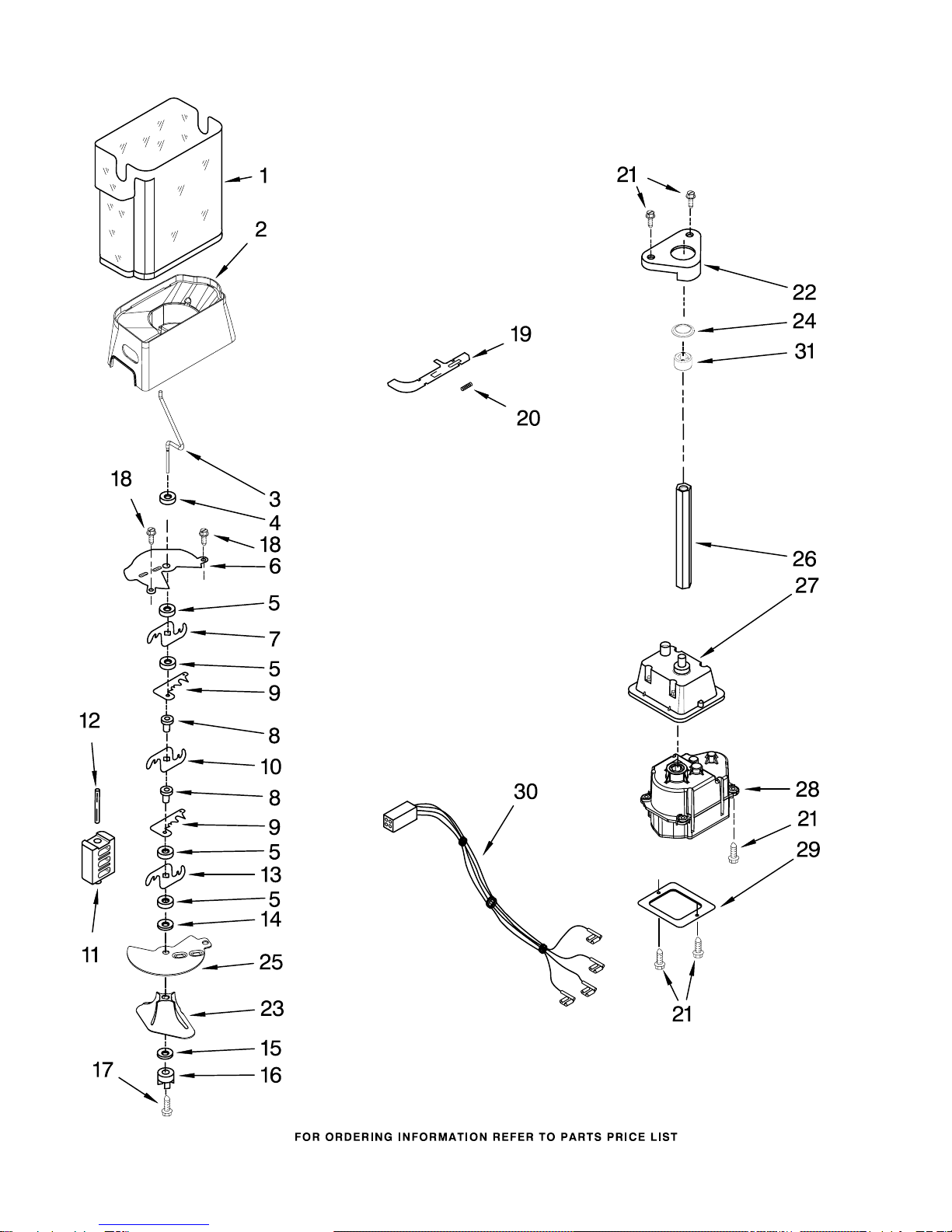

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2317256 Crusher Bin
3 2317240 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
19 2317277 Latch, Bin
20 2198608 Spring, Latch
21 8281163 Screw
22 2188919 Holder
23 2317243 Wiper
24 2198628 Seal
25 2317250 Divider−Chamber
26 2188916 Drive Shaft
27 2322488 Enclosure, Motor
28 2322580 Dispenser, Motor
29 2212305 Cover
30
W10209450 Wire Harness,
IDI Motor
31 2315559 Sleeve, Coupling
100 2317273 Ice Container
(Complete)

REFRIGERATOR DOOR PARTS
9
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042

REFRIGERATOR DOOR PARTS
10
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2313299W White
2313299B Black
2313299T Biscuit
2301184S Stainless Steel
2301184SAP Monochromatic
Satina
2 2301486 Door, Compartment
3 2193409K Beverage Holder(2)
4 Handle
2319727W White
2319727B Black
2319727T Biscuit
2319727S Stainless Steel
5 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
6 2219698 Stud
7 Set Screw
W10010140 Chrome
W10010150 Black
8 Nameplate
W10046670 White
W10046640 Black
W10046700 Biscuit
W10046610 Gray
9 488208 Screw
10 2182178 Door Closer,
Upper Cam
11 2159124 Gasket
12 489420 Screw
13 Bracket, Door Stop
2206629 Chrome
2206629B Black
14 2223434K Door Bin (4)
15 3400012 Screw
16 Thimble−Top
2308091 For White,Biscuit,
& Black Models
2308050 For Stainless
Steel and
Monochromatic
Satina Models

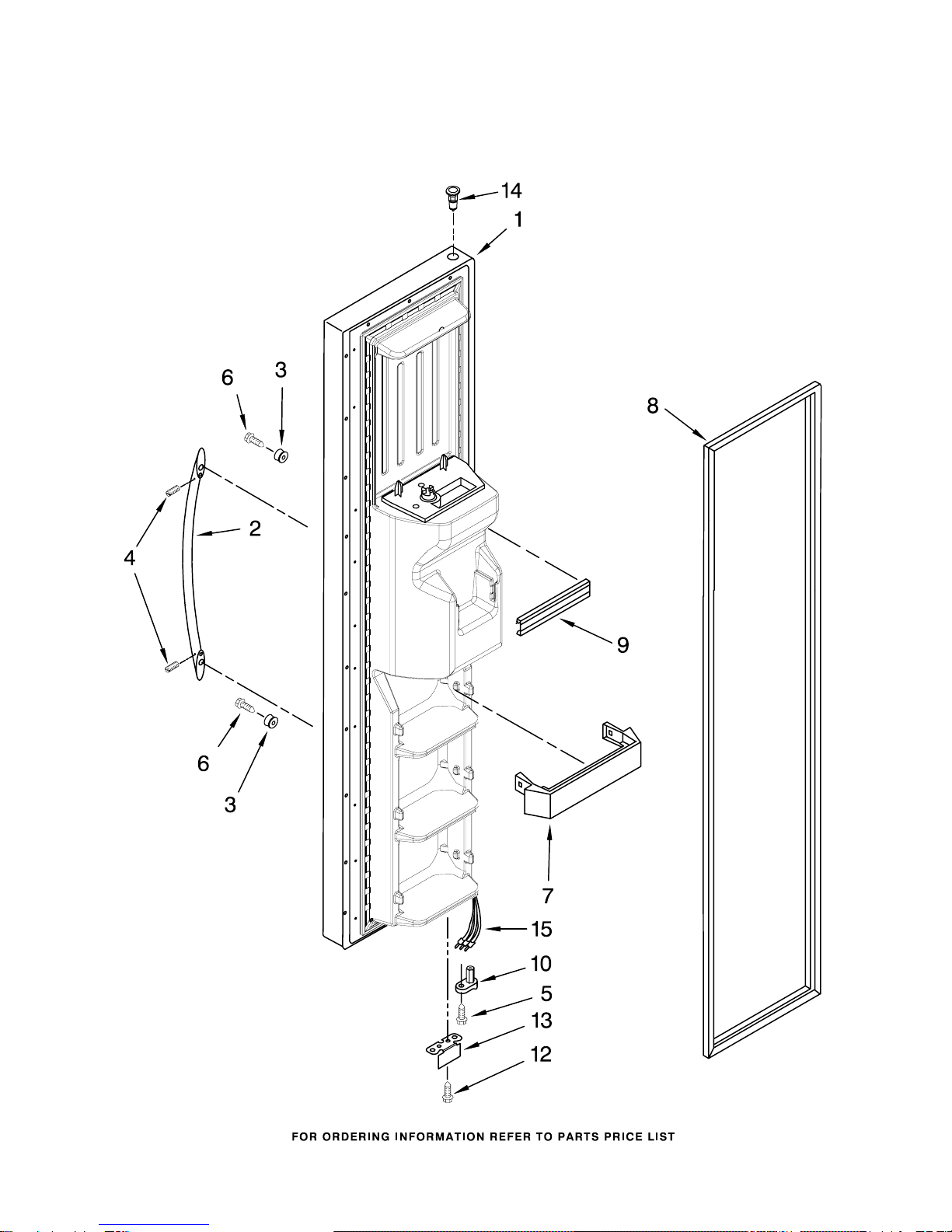

FREEZER DOOR PARTS
11
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042

FREEZER DOOR PARTS
12
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
W10149993 White
W10149994 Black
W10149995 Biscuit
W10166663 Stainless Steel
W10149996 Monochromatic
Satina
2 Handle
2319727W White
2319727B Black
2319727T Biscuit
2319727S Stainless Steel
3 2219698 Stud
4 Screw
W10010140 Chrome
W10010150 Black
5 3400012 Screw
6 488208 Screw
7 2223559K Shelf Bin (3)
8 Door Gasket,
Magnetic
2221303 Mist Beige
2221314 Black
9 2219982 Trim, Door Shelf
10 2323535 Door Closer,
Upper Cam
12 489420 Screw
13 Bracket, Door Stop
2323534 Chrome
2206629B Black
14 Thimble−Top
2308091 For White,Biscuit,
& Black Models
2301049 For Stainless
Steel and
Monochromatic
Satina Models
15
W10193330 Wire Assy, Door

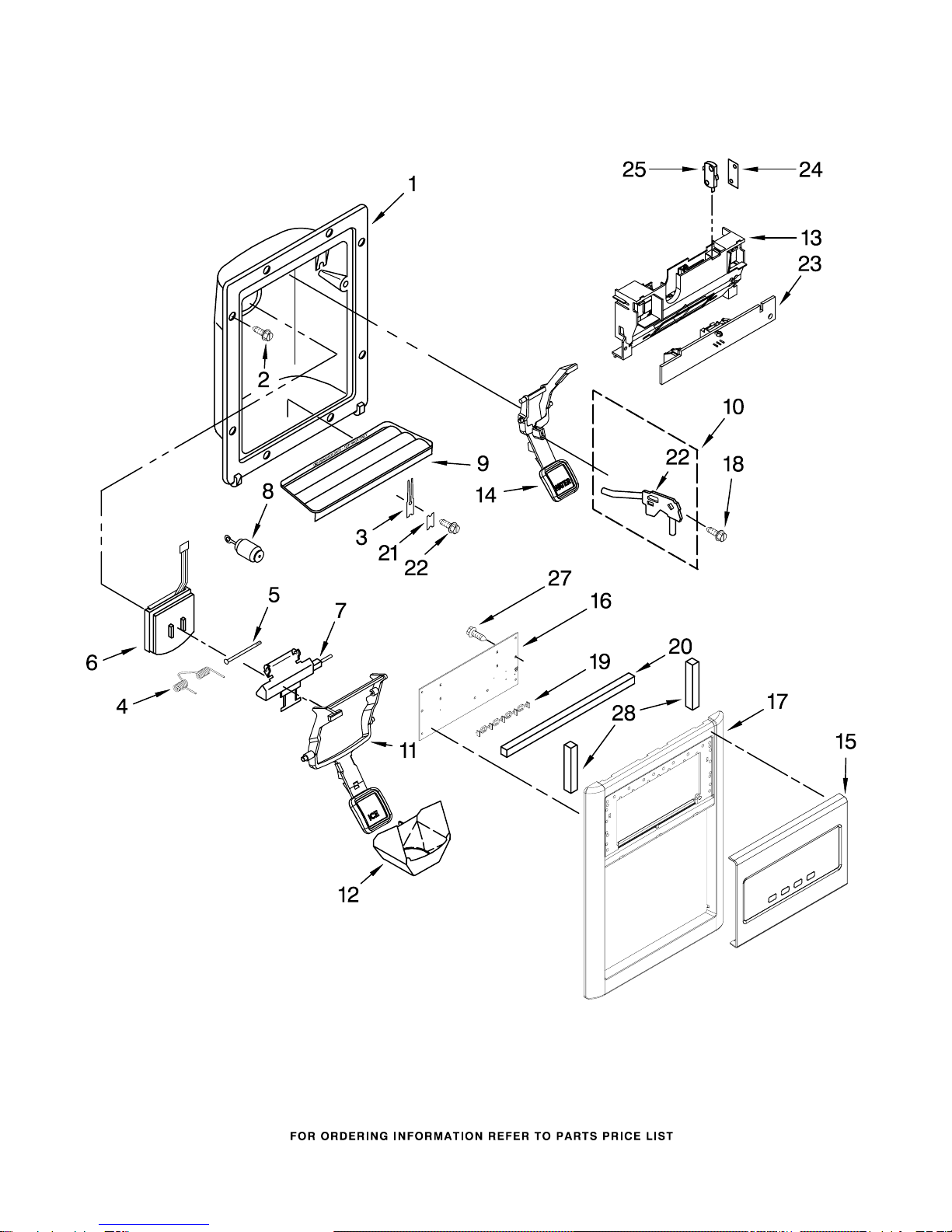

DISPENSER FRONT PARTS
13
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042

DISPENSER FRONT PARTS
14
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2304772 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8 2205686 Delay Mechanism
9 Grille, Overflow
2206670W White
2206670B Black
2206670T Biscuit
W10171993 Apollo Gray
10 2304317 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2180259 White
2180261 Black
2186850 Biscuit
2180261AP Apollo Gray
12 2180224 Guide, Ice
13
W10206221 Bracket, Control
14 Lever, Water
Dispenser
2180268 White
2180270 Black
2186852 Biscuit
2180270AP Apollo Gray
15 Fascia Assy
W10136810 White
W10144770 Black
W10144771 Biscuit
W10144818 Stainless
16 2321749 Control Board
17 Front Bezel−Disp
W10136850 White
W10136851 Black
W10136852 Biscuit
W10139842 Stainless
18 489000 Screw
19
W10170417 Support, Window
20 2305571 Gasket
21 2195051 Strain Relief
22 2304673 Bracket, Dispener
23 2321720 LED Assy
24 625834 Spacer, Switch
25 2162361 Switch, Bracket
27 489214 Screw
28
W10194025 Gasket (2)

AIR FLOW PARTS
15
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2313359 Air Duct, Upper
4 2198580 Air Duct Freezer
5 2321799 Bi−Metal Defrost
6
W10131845 Fan Motor
7 2169142 Fan Blade
8 2176759 Fan Grommet (2)
9 2304241 Gasket, Evaporator
Cover (2)
10
W10129821 Harness, Fan
Evaporator
(Includes #5)
11 2155789 Gasket Cover
12 2172840 Wire Tie
13 2203876 Gasket
14 2206314 Cover, Evaporator
15 8281159 Screw (6)
16 489478 Screw
17 2203595 Support, R.S
18 2203596 Support, L.S

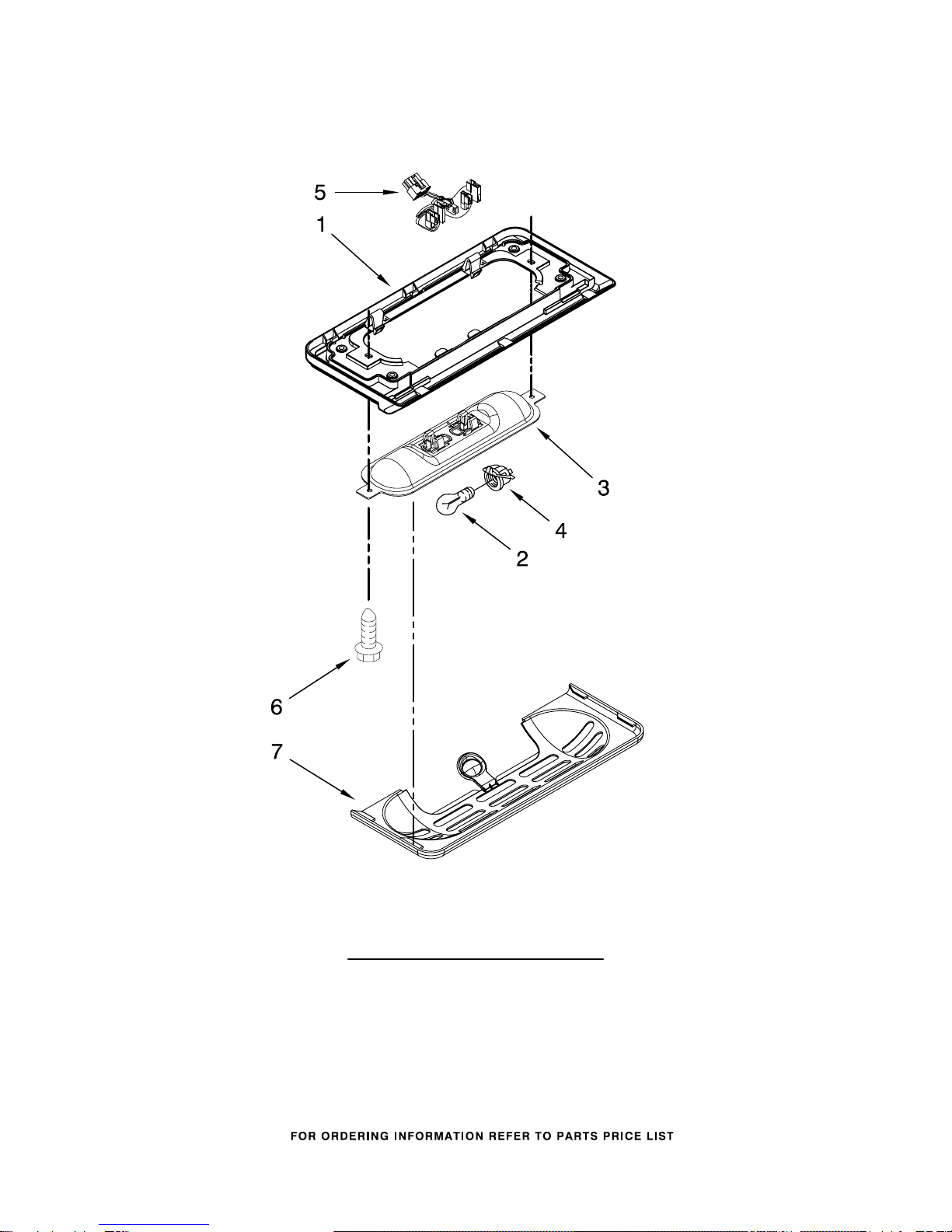

CONTROL PARTS
16
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION
1 2326209 Trim, Light
2 2326255 Bulb, Light
3 2223680 Shield, Heat
4 2223857 Socket, Light
5 2310527 Wire Assy, Light
6 489000 Screw (2)
7 2223506 Light Lens

UNIT PARTS
17
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042

UNIT PARTS
18
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
PARTS1
W10212584 Ctrl−Elek, Gemini
2 12825802 Fan, Blade
3
W10196260 Condenser
Assembly
4 489464 Screw
5
W10221712 Tube, Process
6 2169104 Insulation−Sound
7
W10177642 Tube Suction
8 2161302 Sleeve
9
W10210789 Ctrl−Elek, Main
10 2323186 Control, Box
11 8533993 Screw
12 2323188 Control, Cover
13 8533859 Screw
14
W10174384 Clip, Retaining
15
W10189190 Start Device,
Combination
(Start Relay and
Overload)
16 2264017 Capacitor
17 2216914 Clip, Condenser
18 2188823 Evaporator
19 2161324 Clamp
20 2188874 Fan, Motor
21 1105523 Tray, Evaporator
22 2217194 Heat Shield
23
W10177049 Drier
24
W10183575 Compressor
(Also Order
876765 Tube Kit)
25 2304904 Unit Mounting
Frame
26
W10178849 Unit, Harness
27 2181929 Fan, Motor Bracket
28 2323198 Heater, Defrost
29 2304287 Clip
30 489373 Screw
31 Grommet (4)
1100826 Production
4387558 Service
32 489340 Screw
33 2196202 Air Baffle
34 2155547 Clip, Heat Shield
35 2304899 Unit Cover, Bottom
36 489396 Clip
37 2305374 Unit Mounting
Rail
38 8281232 Screw
40 2172840 Strap
41 489427 Screw
43 2320322 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.00 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042

ICEMAKER PARTS
20
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION
1 628379 Clip, Fuse
2 489084 Screw
3 2303216 Tube, Water
4 489478 Screw
5 2188708 Valve, Solenoid
6 2208136 Tube Clip
7 2174358 Cover
8 488649 Screw
9
W10122527 Mold & Heater
Assembly (Also
Order 542638
10 2304969 Cup, Water Fill
11 627843 Ejector
12 2198598 Ice Striper
13 2194712 Support
14 2315522 Retainer,
Thermostat
15 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
16 8533917 Screw
17 489276 Screw
18 2187467 Harness, Wiring
19 2303583 Bracket, Icemaker
Mounting
20 626691 Module Assembly
(Includes Items
21 & 22)
21 626683 Motor
22 489136 Screw
100
W10190960 Icemaker Assembly
