KitchenAid KSRS25CNBL00 User manual

CABINET PARTS
1
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
4−04 Printed In U.S.A. (kdj) Part No. 8199023
REFRIGERATOR

CABINET PARTS
2
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
LITERATURE PARTS
1 2305642 Energy Guide
2305802 Use & Care Guide
2301270 Service & Wiring
Sheet
2220407 Modular Icemaker
Service Sheet
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
787316 Icemaker
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
10 3400103 Screw
11 8281227 Screw
12 Hinge Cover
2203407W White
2203407T Biscuit
2203407B Black
2203407ES European Silver
13 2217075 Hinge Bottom (2)
14 Filler, Wrapper
2196094 White
2196150 Biscuit
2196097 Black
2301252 European Silver
15 Grille
2198468W White
2198468T Biscuit
2198468B Black
2198468ES European Silver
16 489497 Screw
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Extension Tube
20 1108439 Clip, Drain Tube
21 2188739 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover
2203408W White
2203408T Biscuit
2203408B Black
2203408ES European Silver
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer,
Lower Cam (2)
27 489483 Screw
28 2186443 Housing, Water
Filter
29 2255519 Water Filter
30 Cap, Water
Filter
2186494W White
2186494T Biscuit
2186494B Black
2186494ES European Silver
31 489500 Screw
32 2203098 Plate, Screw
33 3400113 Screw
34 2255012 Tube, Filter
Outlet
35 2305536 Tube, Filter
Inlet
36 2203770 Hinge Top (FC)

REFRIGERATOR LINER PARTS
3
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2255612 Escutcheon, Meat
Pan Control
3 2301339 Slide Meat
Pan Control
4 2257741 Louver
5 2301234 Housing, Door
Control
6 2301235 Slide, Door
Control
7 2256037 Wire Harness,
Dual Crisper
Lights
9 2206273 Shelf Ladder
10 487539 Screw
11 486298 Screw (2)
13 2188819 Thermistor
14 2256035 Bracket, Dual
Crisper Lights
15 2216112 Air Diffuser
Assembly
16 2212240 Air Diffuser
Cover
17 2150331 Cover, Wiring
18 2162085 Socket
19 2217199 Reservoir
20 2255743 Light Bulb
21 2209769 Light Lens
22 488280 Screw
23 2179404 Rack, Wine & Egg

REFRIGERATOR SHELF PARTS
4
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023
Illus. Part
No. No. DESCRIPTION
1 2301072 Shelf Assembly,
Cantilever (2)
2 2301025 Knob, Humidity
3 2301026 Slide, Humidity
4 2301117 Gasket, Side (2)
5 2301568 Cover, Meat Pan
(Includes 20 & 28)
6 2301028 Glass, Meat Pan
Cover
7 2196485 Stud Assembly
8 2301027 Glass, Crisper
Cover
9 2301567 Cover, Crisper
(Includes 2, 3,
4, 11, 12 & 28)
10 3400894 Screw
11 2301116 Gasket, Front
12 2301115 Gasket, Rear
13 2174478 Eyelet, Roller
14 2188212 Roller
15 Support Assembly
2301569 Right Side
2301570 Left Side
16 2301031 Crisper Pan
(Includes #21)
17 2301022 Meat Pan
18 Glide Assembly,
Snack Pan
2301550 Right Side
2301551 Left Side
20 2301126 Deflector
21 Cap, Pan
2301016 Right Side
2301017 Left Side
23 2216624 Egg Bin
24 2301084 Shelf & Roller
Assembly (2)
25 489439 Screw
26 2196483 Stud Assembly
27 8281158 Screw
28 Glide Asm, Pan
2301548 Right Side
2301549 Left Side
32 2301023 Snack, Pan
(Includes 21 & 33)
33 2301006 Window, Snack Pan
34 2301566 Shelf, Snack Pan
(Includes #15)

FREEZER LINER PARTS
5
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023

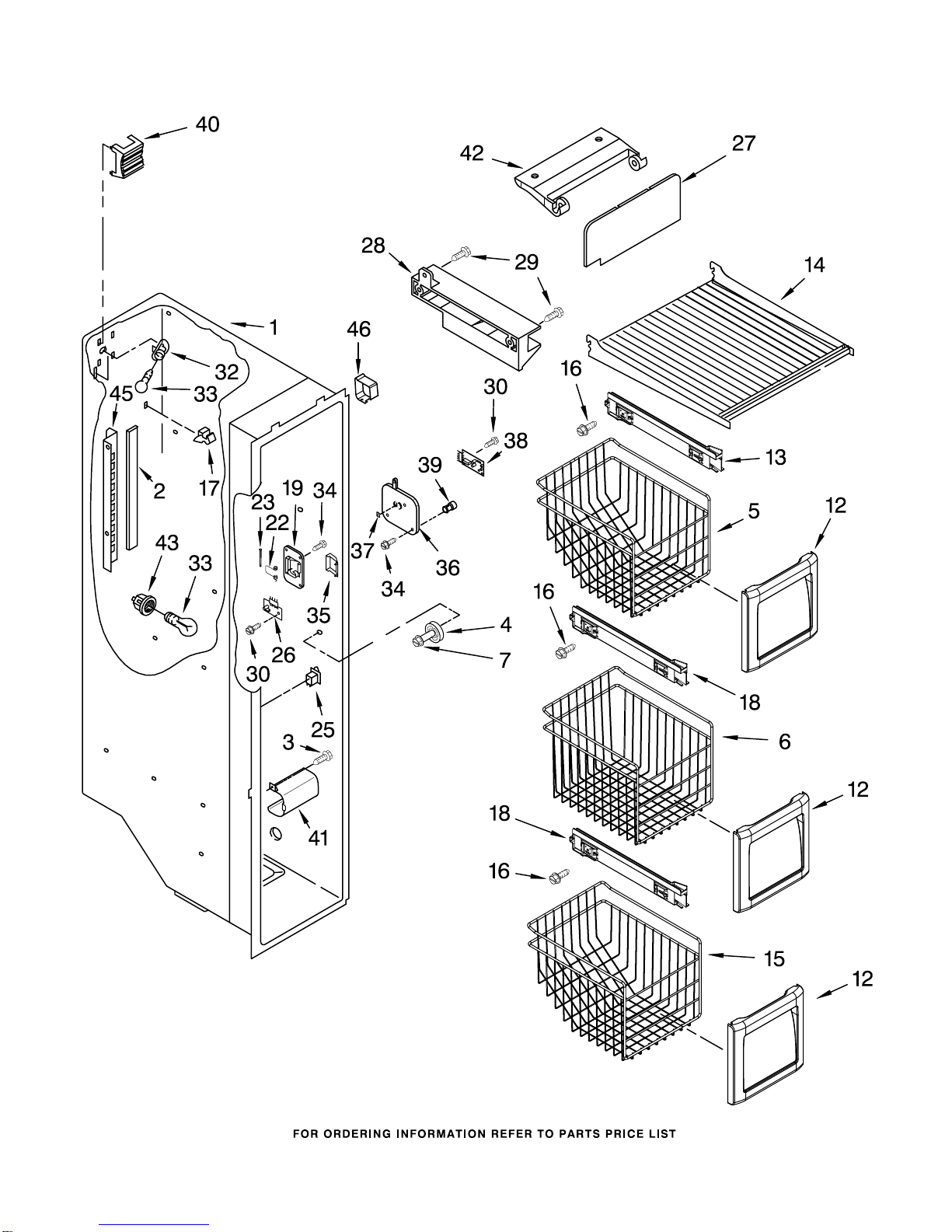

FREEZER LINER PARTS
6
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2198697 Gasket
3 3400893 Screw
4 2196483 Stud Assembly
5 2301143 Basket, Top
(Includes #12)
6 2301144 Basket, Deep
(Includes #12)
7 8281158 Screw
12 2301134 Front, Assembly
Basket
13 Glide Assy, Basket
Top
2301540 Right Side
2301541 Left Side
14 2205837 Shelf
15 2301145 Basket, Sloped
(Includes #12)
16 8533982 Screw (12)
17 842534 Clip, Air Duct (2)
18 Glide Assy, Basket
Middle/Bottom
2301542 Right Side
2301543 Left Side
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2255590 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 2255743 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2255561 Cover, Receiver
37 2301340 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
45 Ladder
2198609 Left Side
2198610 Right Side
46 2219878 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023

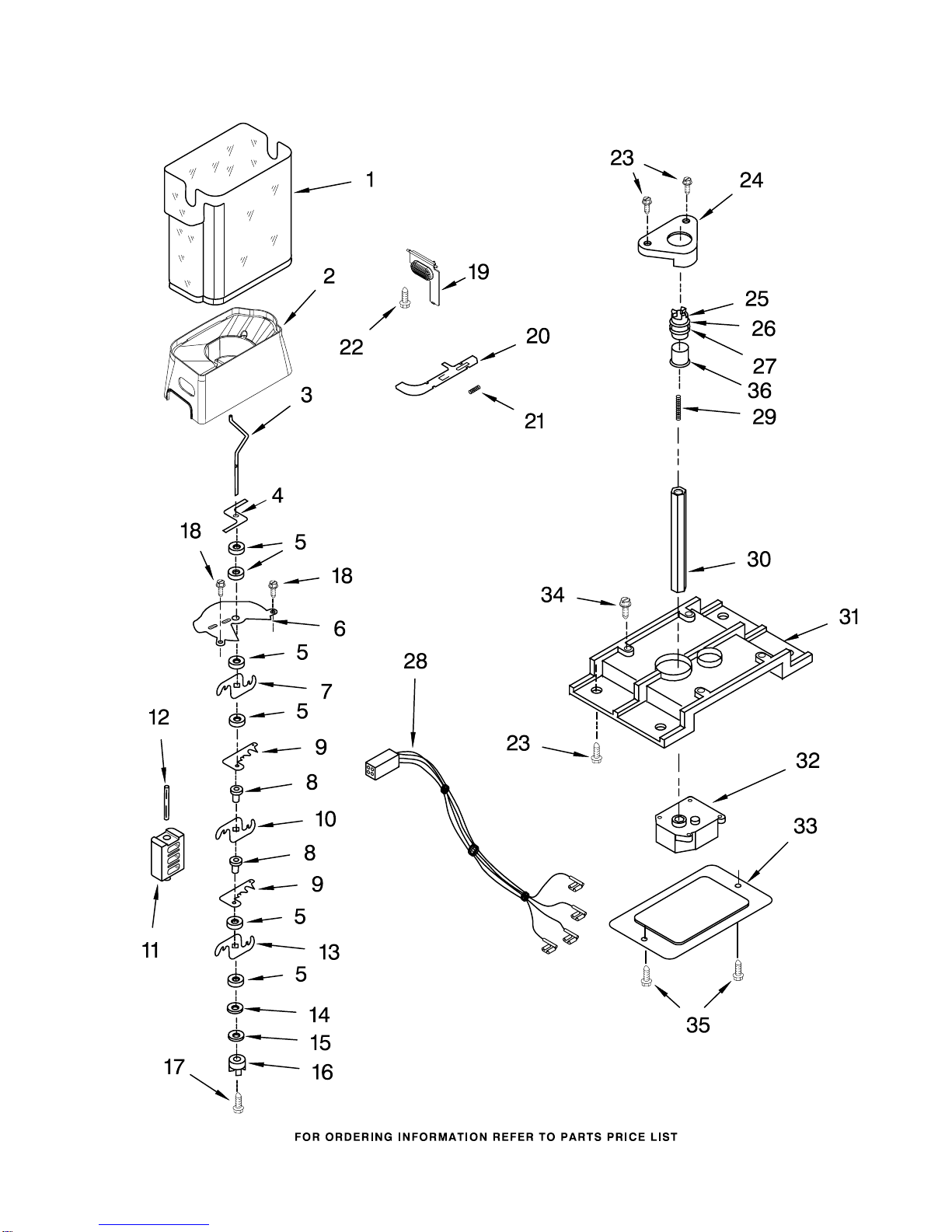

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2255580 Crusher Bin
3 2211590 Auger
4 2257021 Blade, Stirring
5 1119007 Spacer, Flat (6)
6 2255460 Cover, Crusher
7 1119013 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 1119012 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 1119006 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2301345 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw (2)
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
28 2187725 Wire Harness,
IDI Motor
29 2198607 Spring
30 999536 Drive Shaft
31 2198655 Bracket, Motor
32 2252129 Dispenser, Motor
33 2198626 Cover
34 8281162 Screw
35 489478 Screw
36 2212365 Sleeve, Coupling

REFRIGERATOR DOOR PARTS
9
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023

REFRIGERATOR DOOR PARTS
10
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
2207183W White
2207183T Biscuit
2207183B Black
2207183S Stainless
2207183LK Lake Blue
2 2301486 Compartment Door
3 2223434 Door Bin (4)
4 3400012 Screw
5 Screw
3400898 White
8281135 Biscuit
3400899 Black
3400897 Chrome
6 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
7 2165792 Butter Dish
8 Handle
2220238W White
2220238T Biscuit
2220238B Black
2220238S Stainless
2220238ES European Silver
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2200082 Chrome
2200082B Black
13 Endcap, Bottom
2207111W White
2207111T Biscuit
2207111B Black
2207111ES European Silver
14 2159124 Gasket
15 2193409 Beverage Holder

FREEZER DOOR PARTS
11
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023

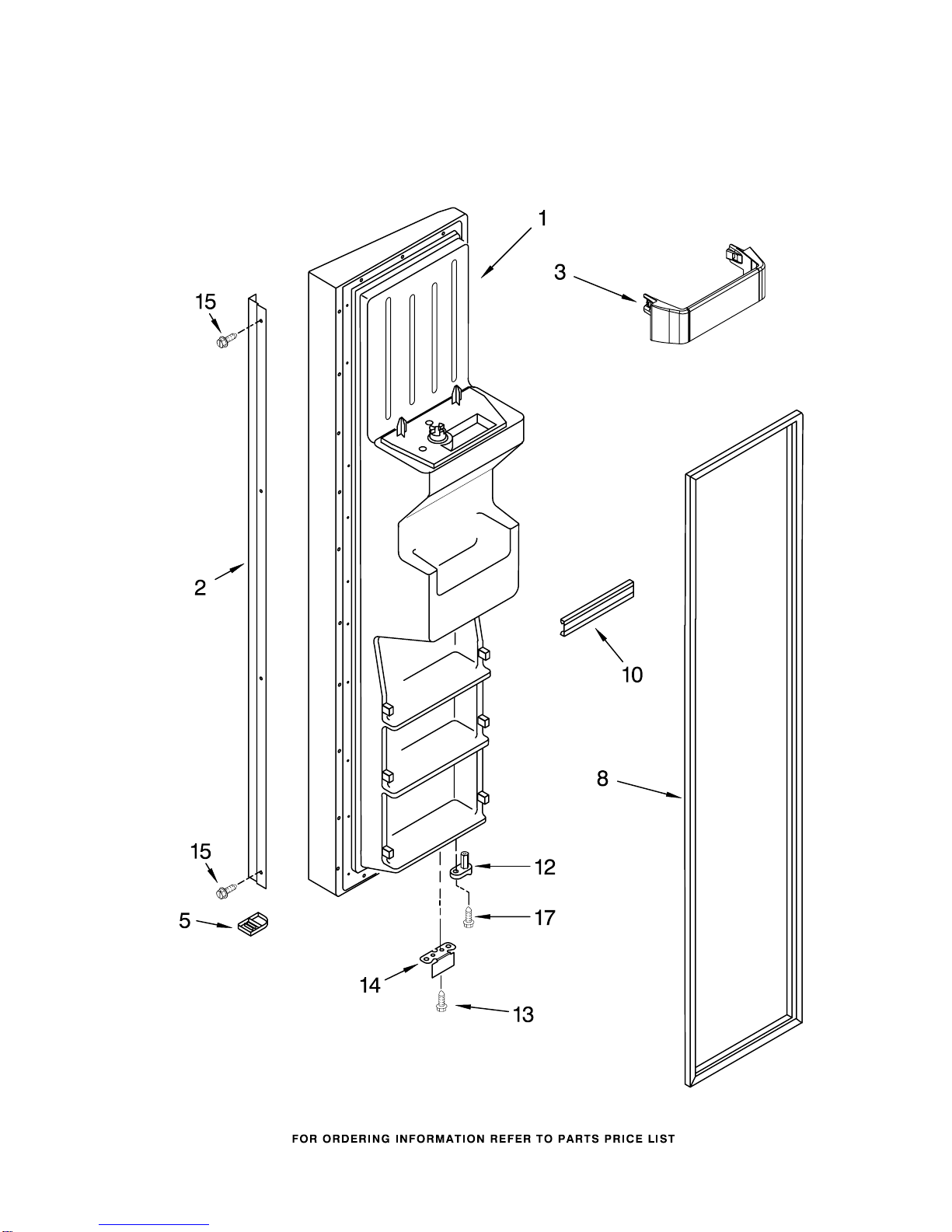

FREEZER DOOR PARTS
12
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
2301201W White
2301201T Biscuit
2301201B Black
2301201SB Stainless
2301201LK Lake Blue
2 Handle
2220238W White
2220238T Biscuit
2220238B Black
2220238S Stainless
2220238ES European Silver
3 2223559 Trivet (4)
5 Endcap, Bottom
2207110W White
2207110T Biscuit
2207110B Black
2207110ES European Silver
8 Door Gasket,
Magnetic
2221303 Mist Beige
2221314 Black
10 2219982 Trim, Door Shelf
12 2182179 Door Closer,
Upper Cam
13 489420 Screw
14 Bracket, Door Stop
2200082 Chrome
2200082B Black
15 Screw
3400898 White
8281135 Biscuit
3400899 Black
3400897 Chrome
17 3400012 Screw

DISPENSER FRONT PARTS
13
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023

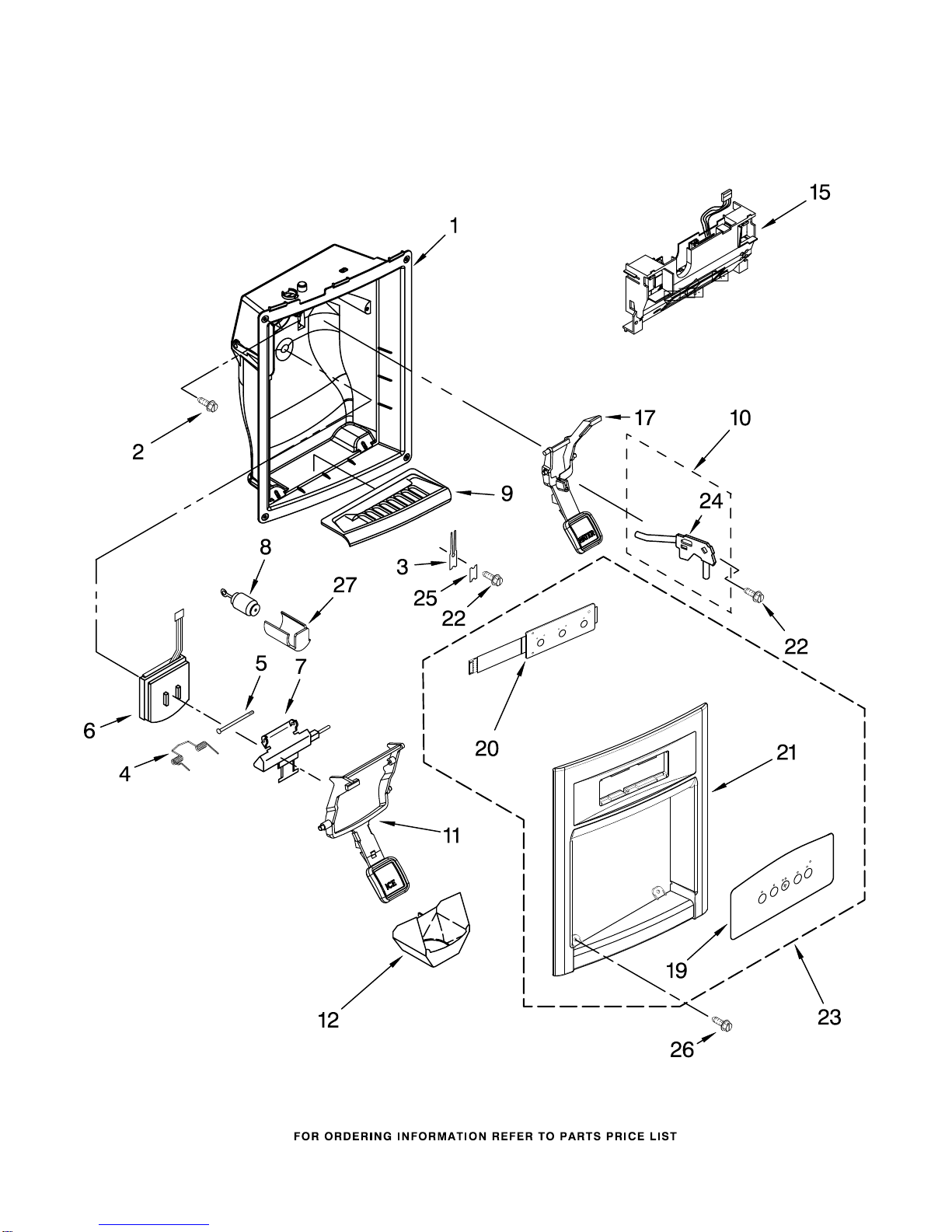

DISPENSER FRONT PARTS
14
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 489000 Screw
3 2194719 Retainer, Levers
4 2256199 Spring, Torsion
5 2196195 Pin
6 2252076 Door, Ice
7 2206423 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2207109W White
2207109T Biscuit
2207109B Black
2301573ES European Silver
10 2209718 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2259396W White (Cody
Grey Pad)
2259396T Biscuit (Biscuit
Pad)
2259396SB Black (Black
Pad)
12 2180224 Guide, Ice
15 2252163 Bracket, Control
17 Lever, Water
Dispenser
2259395W White (Cody
Grey Pad)
2259395T Biscuit (Biscuit
Pad)
2259395SB Black (Black
Pad)
19 Overlay, Front
Cover
(Not Available,
Order #23)
20 LED Display with
Auto Night Light
(Not Available
Order #23)
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
19, 20 & 21)
2252085W White
2252085T Biscuit
2252085B Black
2252085ES European Silver
24 2188355 Bracket, Dispenser
25 2195051 Strain Relief
26 3400065 Screw (2)
27 2252127 Sleeve, Mechanism

AIR FLOW PARTS
15
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
3 2198595 Air Scoop
4 2212377 Air Duct, Upper
5 2198580 Air Duct Freezer
6 2188824 Bi−Metal, Defrost
7 2162404 Fan Motor
8 2169142 Fan Blade
10 2176759 Fan Grommet (2)
12 2187825 Harness, Fan
Evaporator
(Includes #6)
13 2155789 Gasket,
Evaporator Cover
14 2172840 Strap
16 2203876 Gasket
17 2206314 Cover, Evaporator
18 489355 Screw (6)
21 489478 Screw
22 2203595 Support, R.S.
23 2203596 Support, L.S.

CONTROL PARTS
16
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023
Illus. Part
No. No. DESCRIPTION
1 2212005 Control Box
2 2216879 Cover
3 3196537 Screw
4 2219875 Switch, Light
6 2252195 Control Board Asm
(Includes #9)
7 489290 Screw (4)
8 940014 Hole Plug
9 Insert, Control
Board (Not
Available
Order #6)
17 2162085 Light Socket
19 2255743 Light Bulb
20 2216115 Control Box
Harness
21 1115374 Clip, Wiring
25 2255619 Overlay,
Control Box

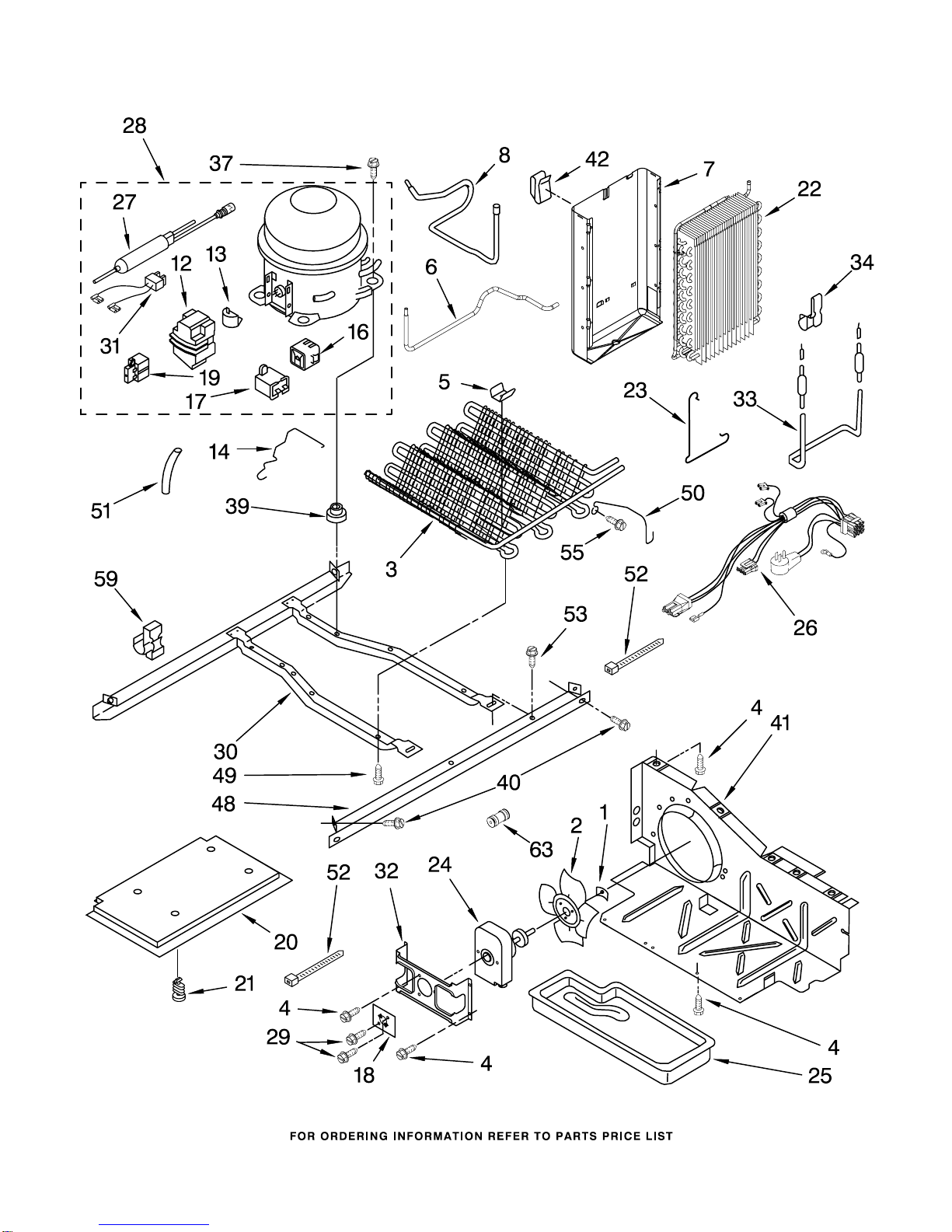

UNIT PARTS
17
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023

UNIT PARTS
18
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 486692 Speed Nut
2 2225834 Blade, Condenser
Fan
3 2223953 Condenser Assembly
4 489464 Screw
5 2216914 Clip, Condenser
6 2261599 Tube, Condenser
to Heat Loop
7 2256150 Heat Shield
And Drain Pan
8 2205765 Tube Suction
12 4387731 Cover (Service
Compressor Only)
13 2154697 Overload (Service
Compressor Only)
14 2255199 Clip, Retaining
16 2255198 Start−Device,
Combination
(Start Relay and
Overload) for
Production
Compressor Only
17 Capacitor
999532 Production
1118576 Service
18 2216997 Insert, Bracket
19 2183454 Relay
(Service Only)
20 2206281 Unit Cover, Bottom
21 489396 Clip
22 2188823 Evaporator
23 2161324 Clip
24 2188729 Motor, Fan
25 1105523 Tray, Evaporator
26 2187783 Harness, Unit
27 Drier
2199167 Production
4387019 Service
28 2255197 Compressor
(Includes Items
12, 13, 17, 19,
27, 31 & 39)
(Also Order
876765 Tube Kit)
29 8281160 Screw
30 2157397 Unit Mounting
Frame
31 4387765 Wire, Capacitor
(Service Only)
32 2181929 Bracket, Fan Motor
33 2188175 Heater, Defrost
34 2161330 Clip, Heater
37 489373 Screw
39 Grommet (4)
1100826 Production
4387558 Service
40 489340 Screw
41 2196202 Air Baffle
42 2155547 Clip, Heat
48 1127911 Unit Mounting
Rail
49 8281232 Screw
50 2186495 Guard, Fan
51 2161302 Sleeve
52 2172840 Wire Tie
53 489427 Screw
55 489478 Screw
59 2208280 Clip, Wire & Tube
63 2209709 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.00 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023

ICEMAKER PARTS
20
For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00
(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)
8199023
Illus. Part
No. No. DESCRIPTION
2 2256096 Fitting, Water
Tube
5 628379 Clip, Fuse
8 489084 Screw
9 489478 Screw
10 2188746 Valve, Solenoid
16 2208136 Clip, Tube
18 2174358 Cover
19 488649 Screw
20 2255835 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
22 628356 Bearing & Inlet
23 627843 Ejector
24 2198598 Ice Stripper
25 2194712 Support
26 627796 Retainer,
Thermostat
27 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 8533917 Screw
29 2212322 Bracket, Ice Maker
Mounting
30 489276 Screw
32 2187467 Harness, Wiring
35 626653 Module Assembly
(Includes Items
37 & 38)
37 627811 Motor
38 489136 Screw
100 2198597 Icemaker Assembly
