KitchenAid KSRS25CSBL02 User manual

CABINET PARTS
1
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
03−07 Printed In U.S.A. (mat) Part No. W10132055 Rev A
REFRIGERATOR
Stainless) Stainless)

CABINET PARTS
2
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
2318940 Energy Guide
2318586 Owner’s Manual
2303925 Service Sheet
2303929 Wiring Sheet
2220407 Modular Icemaker
Service Sheet
2308395 Instruction Sheet,
Door Removal
2 2254628 Front Roller (2)
3
W10079910 Screw
4 2254625 Rear Roller (2)
5 489427 Screw
6 2155013 Clip, Grille
7 488500 Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
11 8281227 Screw
12 Hinge Cover
2203407W White
2203407T Biscuit
2203407B Black
2203407AP Apollo Gray
13 2304322 Bottom Hinge (RC)
14 Filler, Wrapper
2304846 White
2304849 Biscuit
2304848 Black
2315169 Apollo Gray
15 Grille
2303292W White
2303292T Biscuit
2303292B Black
2303292AP Apollo Gray
16 489497 Screw
17 489464 Screw
18 2304888 Drain Fitting
19 2304937 Extension Tube
20 2305373 Clamp, Cord
21 2188735 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover
2203408W White
2203408T Biscuit
2203408B Black
2203408AP Apollo Gray
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer, RC
27 489483 Screw
28 2260507 Housing, Water
Filter
29 4396841 Water Filter
30 Cap, Water
Filter
2260502W White
2260502T Biscuit
2260502B Black
2260502AP Apollo Gray
31 489500 Screw
32 3400113 Screw
33 2303141 Bottom Hinge (FC)
34 2260519 Block, Housing
Support
35 2304708 Tube, Filter
Outlet
36 2203770 Hinge Top (FC)
37 2319867 Tube, Filter
Inlet
38 Button, Water
Filter
2260503W White
2260503T Biscuit
2260503B Black
2260503AP Apollo Gray
39 2223751 Door Closer, FC
Stainless) Stainless)

REFRIGERATOR LINER PARTS
3
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2255612 Escutcheon, Meat
Pan Control
3 2301339 Slide Meat
Pan Control
4 2257741 Louver
5 2179404 Wine Rack Asm
6 2319866 Shelf Ladder
7 489478 Screw
8 2212240 Cover, Air
Diffuser
9 2301234 Door Control Asm
10 2150331 Cover, Conduit
11 2301235 Slide, Door
Control
12 2216112 Air Diffuser
Assembly
13
W10004810 Screw
14 2162085 Socket
15 2305226 Reservoir
16 2255743 Light Bulb
17 2209769 Light Lens
18 488280 Screw
19 2256035 Bracket,
Dual Crisper
20 2311637 Wire Harness,
Dual Crisper
Stainless) Stainless)

REFRIGERATOR SHELF PARTS
4
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Illus. Part
No. No. DESCRIPTION
1 2301072 Frame Assembly (2)
2 2301023 Snack Pan Asm
3 2301567 Cover, Crisper
4 2196485 Stud Assembly
5 3400894 Screw
6 2301028 Glass, Meat Cover
7 2301027 Glass, Cover
8 2301568 Cover, Meat Pan
9 2196483 Stud Assembly
10 2301031 Crisper Pan Asm
(Includes 24 & 25)
11 2301026 Slide, Humidity
Control
12 2301025 Knob, Humidity
Control
13 2301084 Shelf and Roller
Assembly (2)
14 2301022 Meat Pan Asm
(Includes 25 & 26)
15 8281158 Screw
16 Glide Assembly
2301548 Right Side
2301549 Left Side
17 2301115 Gasket, Rear
18 2301126 Deflector
19 2301116 Gasket, Front
20 2301117 Gasket, Side (2)
21 2188212 Roller (2)
22 2301566 Shelf Assembly
23 Glide Assembly
(Snack Pan)
2301550 Right Side
2301551 Left Side
24 2301001 Window, Crisper
25 Cap, Corner
2301016 Right Side
2301017 Left Side
26 2301227 Window, Meat Pan
27 2301006 Window, Snack Pan
29 Support Assembly
2301569 Right Side
2301570 Left Side
30 489439 Screw (2)
Stainless) Stainless)

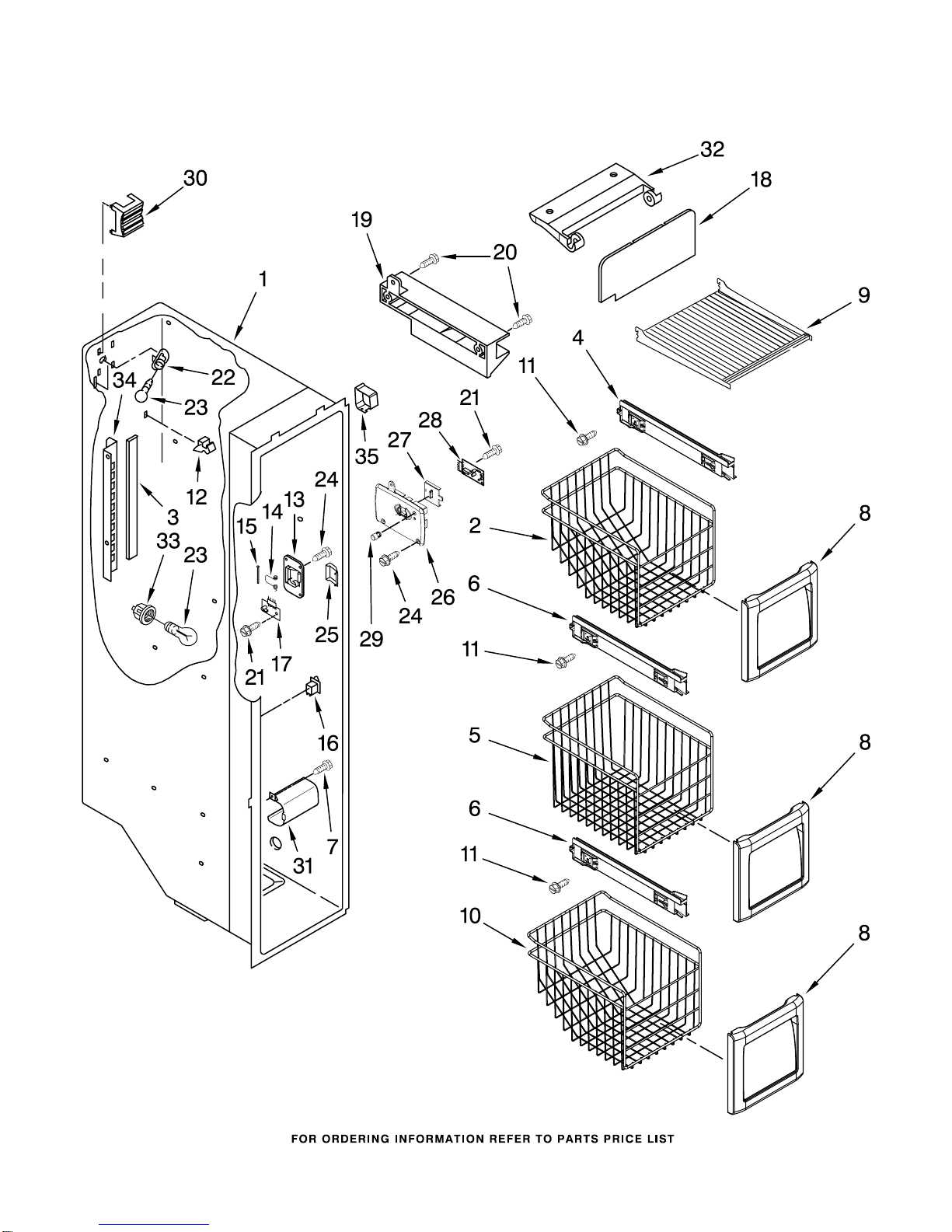

FREEZER LINER PARTS
5
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Stainless) Stainless)

FREEZER LINER PARTS
6
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2301138 Top Basket
3 2198697 Gasket
4 Glide Assembly,
Top Basket
2301540 Right Side
2301541 Left Side
5 2301139 Basket, Tall
6 Glide Assembly,
Middle/Bottom
Basket
2301542 Right Side
2301543 Left Side
7 3400893 Screw
8 2301134K Front, Basket
9 2205837K Shelf (2)
10 2301140 Basket, Sloped
11 8534064 Screw (12)
12 842534 Clip, Air Duct (2)
13 2198587 Cover, Emitter
14 2198635 Spring
15 2198634 Pin
16 1115373 Switch, Rocker Arm
17 2220398 P.C. Board
Emitter
18 2255590 Cover, Ice Maker
19 2212321 Slide, Ice Maker
Mounting
20 489478 Screw
21 489214 Screw
22 2162085 Light Socket
23 2255743 Light Bulb
24 8281185 Screw
25 2198633 Flipper
26 2255561 Cover, Receiver
27 2301340 Slide, Ice Maker
Shut Off
28 2255114 P.C. Board,
Receiver
29 2198643 Lens
30 2198589 Light Shield
31 2212340 Light Lens
32 2198641 Bracket, Ice Maker
Cover
33 2155597 Socket, Light
34 Ladder
2320024 Left Side
2320025 Right Side
35 2303234 Shield, Wiring
Stainless) Stainless)

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Stainless) Stainless)

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Illus. Part
No. No. DESCRIPTION
1 2305336 Ice Bin
2 2305294 Crusher Bin
3 2320327 Auger
4 2258220 Washer, Auger
5 1119007 Spacer, Flat (4)
6 2305244 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2305382 Rubber Boot
20 2305441 Latch, Bin
21 2198608 Spring, Latch
22 2187813 Wire Assembly,
IDI Motor
23 2212369 Holder
24 2220458 Coupling, Bottom
25 2198628 Seal
26 2212370 Washer
27 2198607 Spring
28 2305243 Drive Shaft
29 2252130 Dispenser, Motor
30 2305208 Bracket, Motor
31 8281163 Screw
32 2212365 Sleeve, Coupling
100
W10127741 Ice Container
(Complete)
Stainless) Stainless)

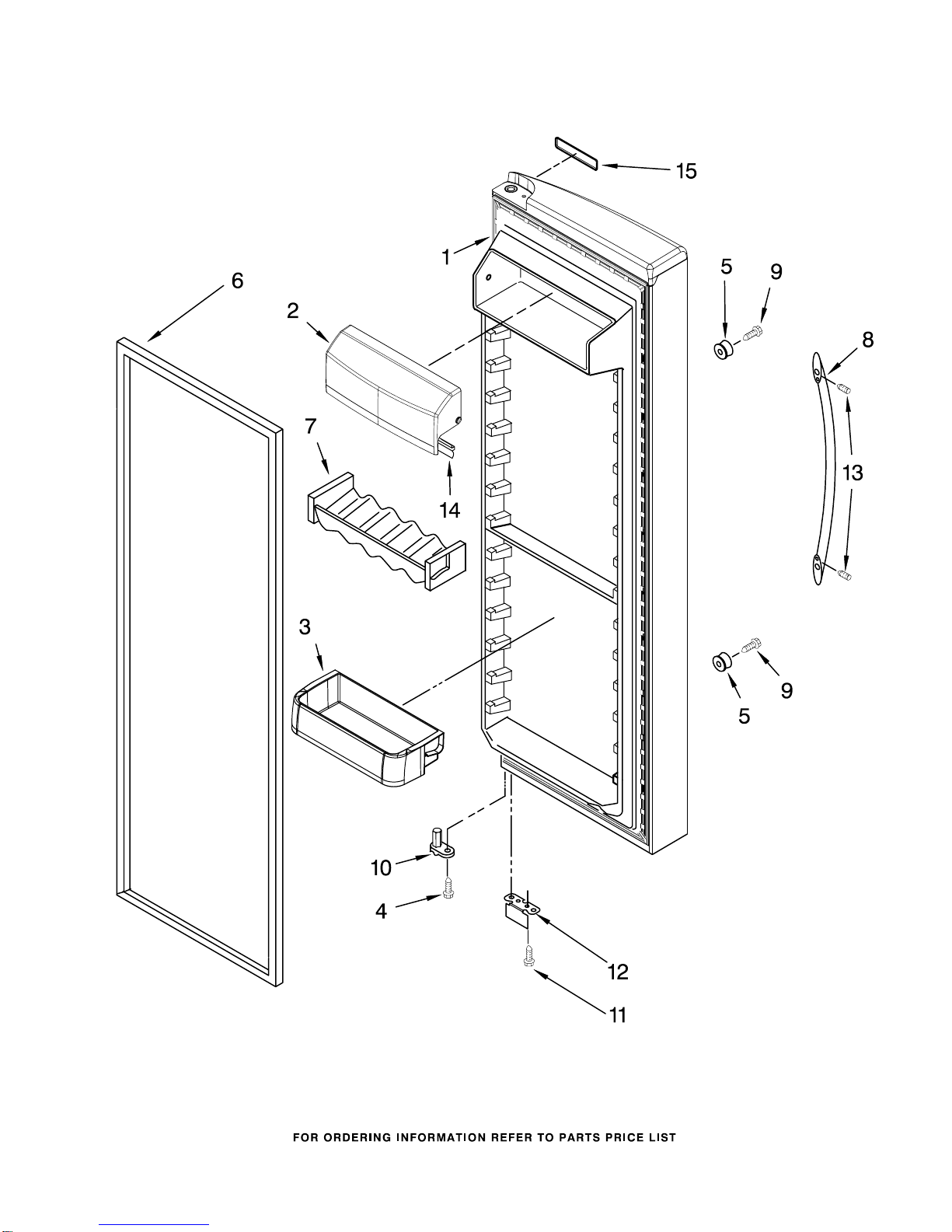

REFRIGERATOR DOOR PARTS
9
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Stainless) Stainless)

REFRIGERATOR DOOR PARTS
10
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
2301168W White
2301168T Biscuit
2301168B Black
2301168SB Stainless Steel
2301168SAP Monochromatic
Stainless
2 2301486 Door Compartment
(Includes #14)
3 2223434K Door Bin (4)
4 3400012 Screw
5 2219698 Stud, Handle
6 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
2326338 Apollo Grey
7 2193409K Beverage Holder
8 Handle
2319727W White
2319727T Biscuit
2319727B Black
2319727S Stainless Steel
9 488208 Screw
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2200082 Chrome
2200082B Black
13 Screw
W10010140 Chrome
W10010150 Black
14 2159124 Gasket
15 Nameplate
2318942W White
2318942T Biscuit
2318942B Black
2318942S Stainless Steel
Stainless) Stainless)

FREEZER DOOR PARTS
11
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Stainless) Stainless)

FREEZER DOOR PARTS
12
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #7
And Dispenser
Front Parts)
2318905W White
2318905T Biscuit
2318905B Black
2318905SB Stainless Steel
2318905SAP Monochromatic
Stainless
2 Handle
2319727W White
2319727T Biscuit
2319727B Black
2319727S Stainless Steel
3 2304925K Trivet (3)
4 2219698 Stud, Handle
5 2154472 Connector
6 488208 Screw
7 Door Gasket,
Magnetic
2221303 Mist Beige
2221314 Black
2326339 Apollo Grey
8 2304895 Safety Barrier
9 2223752 Door Closer,
Upper Cam
10 489420 Screw
11 Bracket, Door Stop
2303113 Chrome
2303113B Black
12 Screw
W10010140 Chrome
W10010150 Black
13 3400012 Screw
Following Parts Not Illustrated
2310084 Wire Assembly,
Freezer Door
2305405 Tube,
Water Dispenser
Stainless) Stainless)

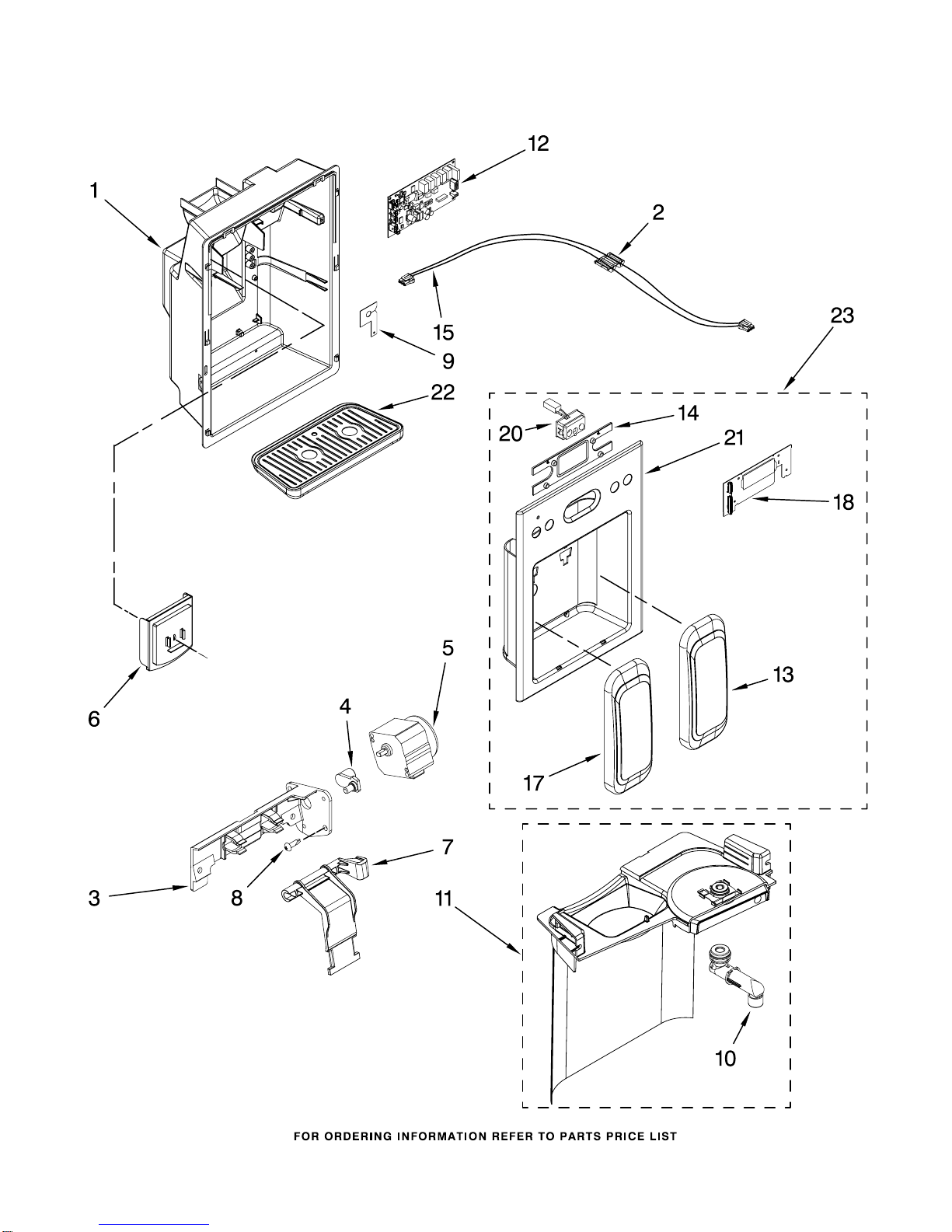

DISPENSER FRONT PARTS
13
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Stainless) Stainless)

DISPENSER FRONT PARTS
14
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 2308165 Ferrite Bead
3 2305202 Bracket, Motor
4 2305242 Connector, Door
Bracket
5 2305262 Motor, Ice Door
6 2305258 Door, Ice
7 2305204 Support, Ice Door
8 4449745 Screw (2)
9 2305447 Clip, Wiring
10 2305236 Spigot
11 2305461 Seperator Assembly
12 2303843 Electronic
Cover (2)
Control (Core)
13 Pad, Water
2305307CE For White Model
2305307MN For Biscuit Model
2305307GE For Black and
Stainless Model
2305307AS For Monochromatic
Stainless Model
14 2305343 Lens, Front
Cover
15 2187814 Wire Assembly
User Interface
(Includes #2)
17 Pad, Ice
2305306CE For White Model
2305306MN For Biscuit Model
2305306GE For Black and
Stainless Model
2305306AS For Monochromatic
Stainless Model
18 2304140 Cover, Electronic
Control
20 2303841 LED Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 Drip Tray
Assembly
2315110W White
2315110T Biscuit
2315110B Black
2315110US Universal Silver
23 Front Cover
Assembly
(Includes Items
14, 17, 18,
20, & 21)
2318906W White
2318906T Biscuit
2318906B Black
2318906US Universal Silver
Stainless) Stainless)

AIR FLOW PARTS
15
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
3 2313359 Air Duct, Upper
4 2198580 Air Duct Freezer
5 2319914 Bi−metal, Defrost
6 2315549 Fan Motor
7 2169142 Fan Blade
8 2188819 Thermister
9 2176759 Fan Grommet (2)
10 2304241 Gasket, Evaporator
11 2310238 Harness, Fan
Evaporator
(Includes #5)
12 2155789 Gasket, Fan Scroll
13 2172840 Strap
14 2203876 Gasket
15 2206314 Cover, Evaporator
(Includes #10)
16 8281159 Screw (6)
17 489478 Screw
18 2203595 Support, R.S.
19 2203596 Support, L.S.
Stainless) Stainless)

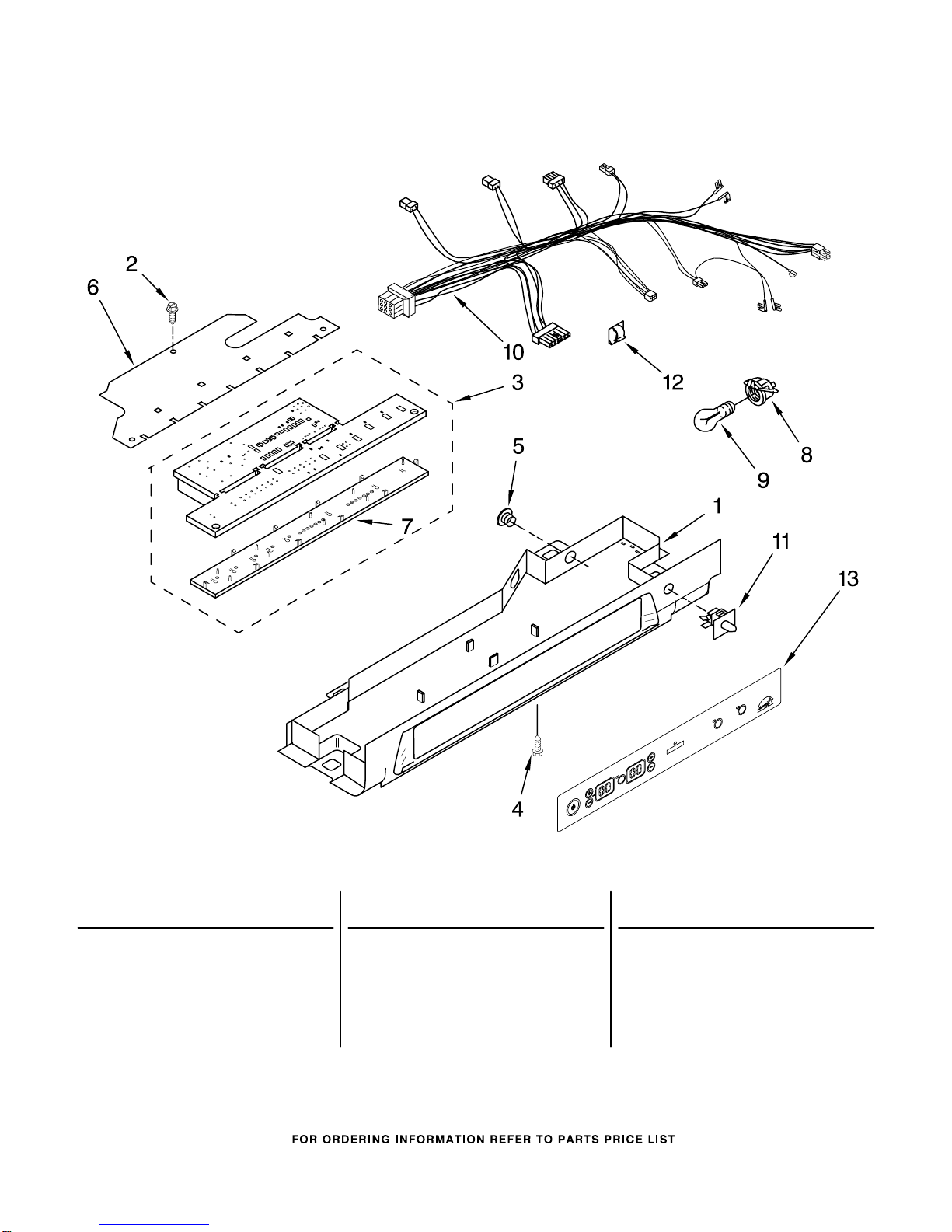

CONTROL PARTS
16
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2212005 Control Box
2 3196537 Screw (4)
3 2321728 Electronic
Control
4 8281244 Screw (4)
5 940014 Hole Plug
6 2216879 Cover, Control
Box
7 Insert, Control
Board (Not
Available,
Order #3)
8 2162085 Light Socket
9 2255743 Light Bulb
10 2216115 Control Box
Harness
11 2219875 Switch
12 1115374 Clip, Wiring
13 2318773 Overlay,
Control Box
Stainless) Stainless)

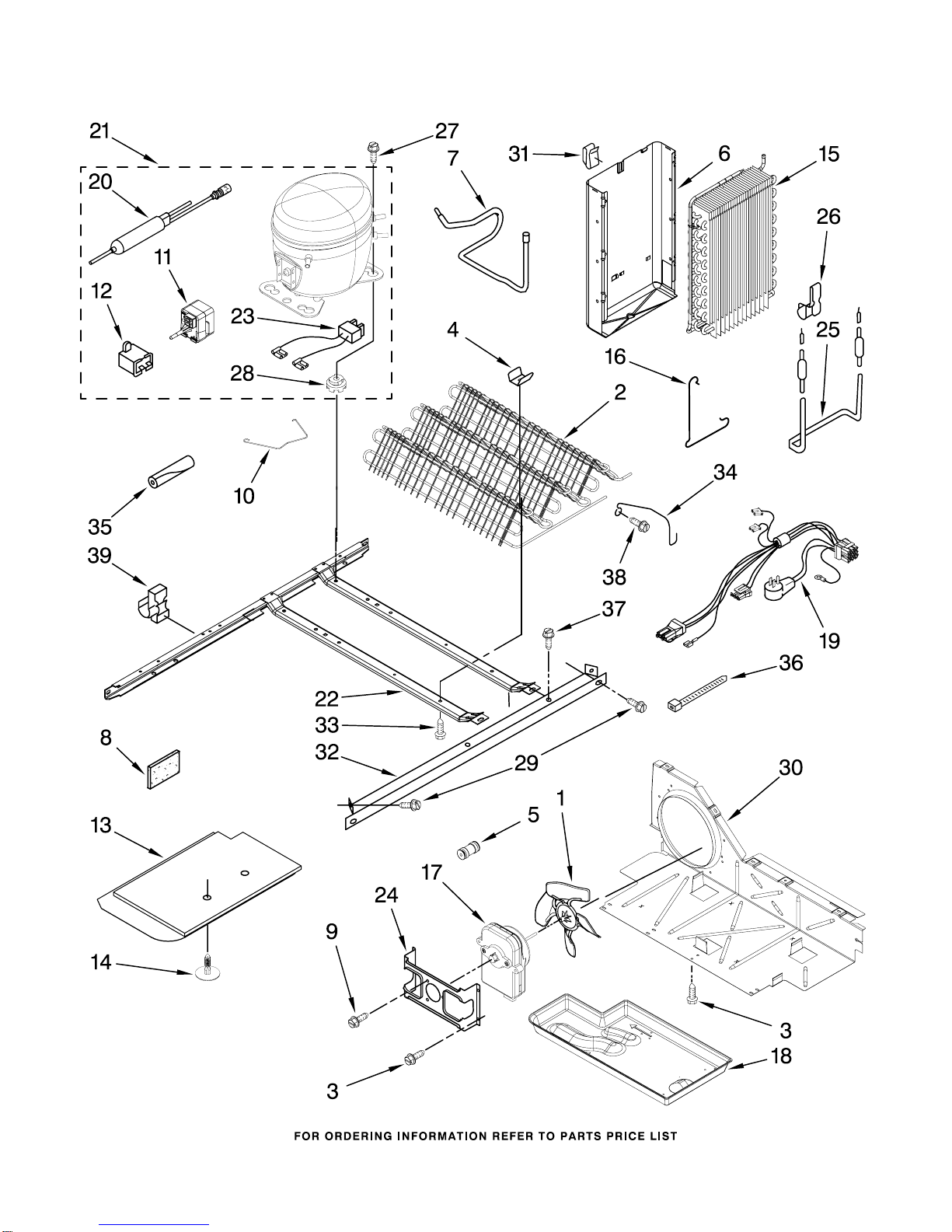

UNIT PARTS
17
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Stainless) Stainless)

UNIT PARTS
18
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2225834 Fan, Blade
2
W10121484 Condenser Assembly
3 489464 Screw
4 2216914 Clip, Condenser
5 2305227 Union
6 2217194 Heat Shield
And Drain Pan
7 2205765 Tube Suction
8 2169104 Insulation, Sound
9 8533993 Screw
10 2255199 Clip, Retaining
11 2319792 Start−Device,
Combination
(Start Relay and
Overload) for
Production
Compressor Only
Relay Combo
2255198 (Service Only)
12 Capacitor
2169373 Production
1118576 Service
13 2304899 Unit Cover, Bottom
14 489396 Clip
15 2188823 Evaporator
16 2161324 Clip
17 2188874 Motor, Fan
18 1105523 Tray, Evaporator
19 2310229 Harness, Unit
20 Drier
2319825 Production
2317845 Service
21
W10120456 Compressor
(Includes Items
12, 20, 23, 28)
(Also Order
876765 Tube Kit)
22 2304904 Unit Mounting
Frame
23 4387765 Wire, Capacitor
(Service Only)
24 2181929 Bracket, Fan Motor
25 2188175 Heater, Defrost
26 2304287 Clip, Heater
27 489373 Screw
28 Grommet (4)
1100826 Production
4387558 Service
29 489340 Screw
30 2196202 Air Baffle
31 2155547 Clip, Heat
32 2305374 Unit Mounting
Rail
33 8281232 Screw
34 2260517 Guard, Fan
35 2161302 Sleeve
36 2172840 Wire Tie
37 489427 Screw
38 489478 Screw
39 2208280 Clip, Wire & Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)
Stainless) Stainless)

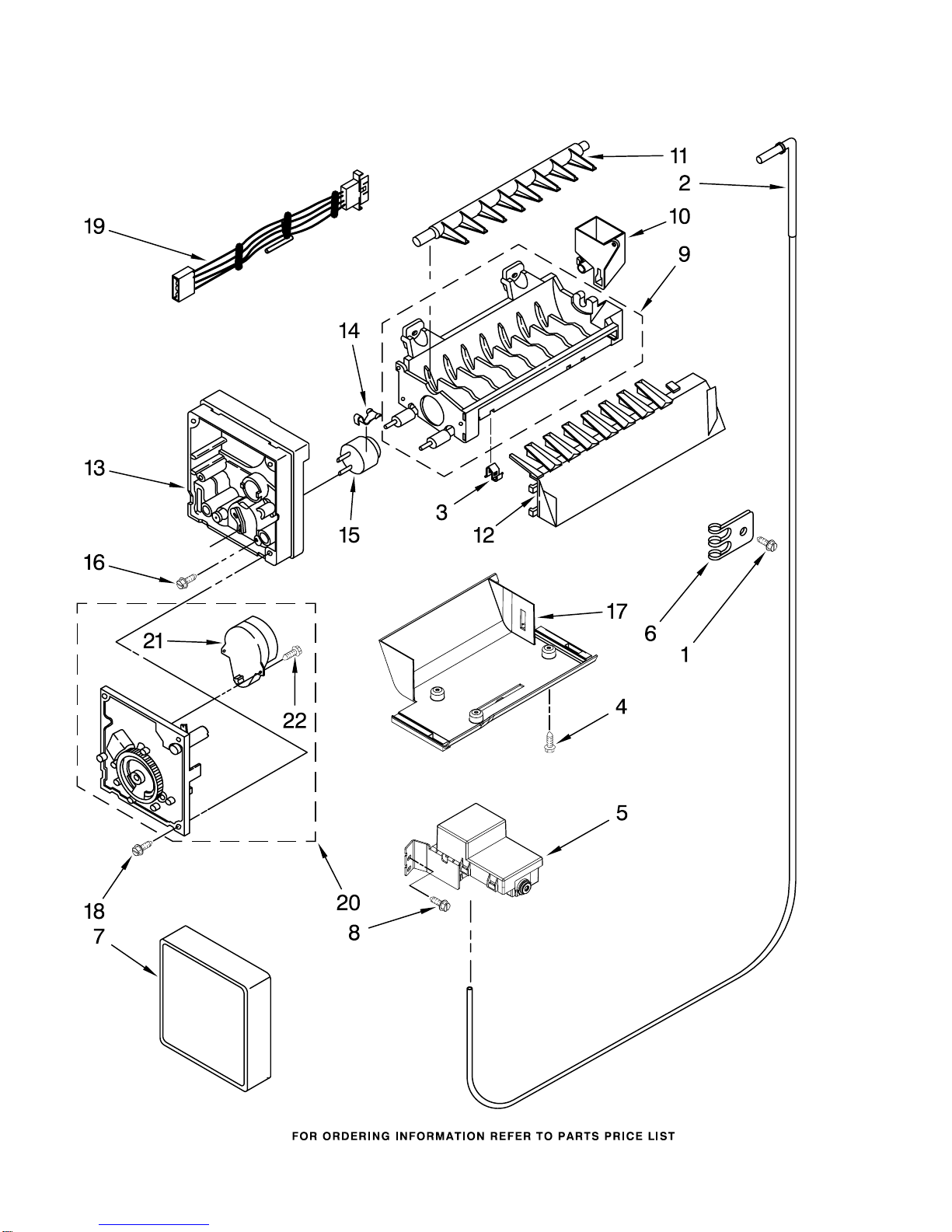

ICEMAKER PARTS
19
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Stainless) Stainless)

ICEMAKER PARTS
20
For Models: KSRS25CSWH02, KSRS25CSBT02, KSRS25CSBL02, KSRS25CSSS02, KSRS25CSMK02, KSRS25CSMS02
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic
W10132055
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2256096 Fitting and
Water Tube
3 628379 Clip, Fuse
4 489478 Screw (3)
5 2305225 Smart Valve
6 2208136 Clip, Tube
7 2174358 Cover
8 488649 Screw
9 2255835 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
10 628356 Bearing & Inlet
11 627843 Ejector
12 2198598 Ice Stripper
13 2194712 Support
14 2315522 Retainer,
Thermostat
15 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
16 8533917 Screw
17 2303583 Bracket, Ice Maker
Mounting
18 489276 Screw
19 2187467 Harness, Wiring
20 626691 Module Assembly
(Includes Items
21 & 22)
21 626683 Motor
22 489136 Screw
100 626663 Icemaker Assembly
Stainless) Stainless)
