KitchenAid KSRS25FTBL03 User manual

CABINET PARTS
1
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
04−08 Printed In U.S.A. (jdc)(bay) Part No. W10203951 Rev.A
REFRIGERATOR

CABINET PARTS
2
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10194344 Energy Guide
W10162438 Owner’s Manual
2303925 Service Sheet
W10142183 Wiring Sheet
2220407 Modular Icemaker
Service Sheet
2308395 Instruction Sheet,
Door Removal
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
11 8281227 Screw
12 Hinge Cover (FC)
2203407W White
2203407B Black
2203407T Biscuit
2203407AP Apollo Grey
13
W10138965 Bottom Hinge (RC)
14 Filler, Wrapper
2304846 White
2304848 Black
2304849 Biscuit
2315169 Apollo Grey
15 Grille
2303292W White
2303292B Black
2303292T Biscuit
2303292MG Midnight Grey
16 489497 Screw
17 489464 Screw
18 2304888 Drain Fitting
19 2304937 Extension Tube
21 2188735 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover
2203408W White
2203408B Black
2203408T Biscuit
2203408AP Apollo Grey
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer, RC
27 489483 Screw
28 2260507 Housing, Water Filter
29 4396841 Water Filter
30 Cap, Water Filter
2260502W White
2260502B Black
2260502T Biscuit
2260502MG Midnight Grey
31 489500 Screw
32 3400113 Screw
33 2303141 Bottom Hinge (FC)
34 2260519 Block, Housing
Support
35 2255012 Tube, Filter
Outlet
36 2203770 Hinge Top (FC)
37 2319867 Tube, FilterInlet
38 Button, Water Filter
2260503W White
2260503B Black
2260503T Biscuit
2260503MG Midnight Grey
39 2223751 Door Closer, FC
40 2305373 Clamp, Cord

REFRIGERATOR LINER PARTS
3
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 2301235 Slide, Door
Control
6 2179375 Wine Rack
7 2319866 Shelf Ladder
8 489478 Screw
9
W10004810 Screw
10 2301234 Housing, Door
Control
11 2150331 Cover, Conduit
12
W10151376 Air Diffuser
Assembly
13 2212240 Cover, Air
Diffuser
14 2162085 Socket
15 2307107 Reservoir
16 2255743 Light Bulb
17 2209769 Light Lens
18 488280 Screw
19 2256035 Bracket,
Dual Crisper
20 2311637 Wire Harness,
Dual Crisper

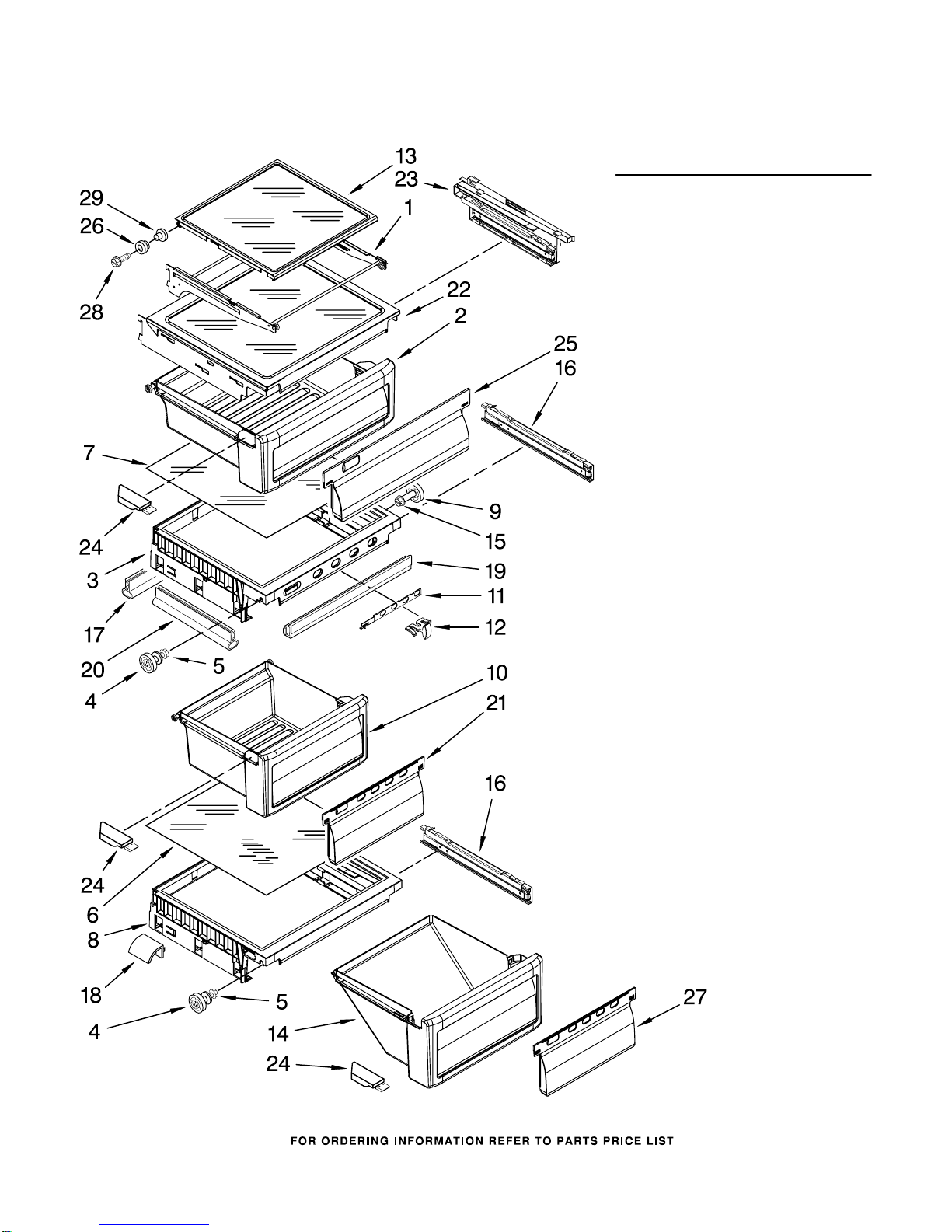

REFRIGERATOR SHELF PARTS
4
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951
Illus. Part
No. No. DESCRIPTION
1 2301072 Frame Assembly (2)
2 2301023 Snack Bin Asm
(Includes 24 & 25)
3 2301567 Cover, Crisper
(Includes 11, 12,
16, 17, 19 & 20)
4 2196485 Stud Assembly
5 3400894 Screw
6 2301028 Glass, Meat Cover
7
W10141754 Glass, Cover
8 2301568 Cover, Meat Pan
(Includes 16 & 18)
9 2196483 Stud Assembly
10 2301031 Crisper Pan Asm
(Includes 21 & 24)
11 2301026 Slide, Humidity
Control
12 2301025 Knob, Humidity
Control
13 2301084 Shelf & Roller
Assembly (2)
14 2301022 Meat Pan Asm
(Includes 24 & 27)
15 8281158 Screw
16 Glide Assembly
2301550 Right Side
2301551 Left Side
17 2301115 Gasket, Rear
18 2301126 Deflector
19 2301116 Gasket, Front
20 2301117 Gasket, Side (2)
21 2301001 Window, Crisper
Pan
22 2301566 Shelf, Snack
Pan
23 Support Assembly
2301569 Right Side
2301570 Left Side
24 Cap, Corner
2301016 Right Side
2301017 Left Side
25 2301006 Window, Snack Pan
26 2188212 Roller (2)
27 2301227 Window, Meat Pan
28 489439 Screw (2)
29 2174478 Eyelet−Roller

FREEZER LINER PARTS
5
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951

FREEZER LINER PARTS
6
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2301139 Basket, Tall
3 3400893 Screw
4 2301134K Front, Basket
5 2205837K Shelf (2)
6 2301140 Basket, Sloped
7 8534064 Screw (12)
8 842534 Clip, Air Duct
9 2301138 Basket, Top
10 2198587 Cover, Emitter
11 2198697 Gasket, Ladder
12 2198635 Spring
13 2198634 Pin
14 Glide Assembly,
Top Basket
2301540 Right Side
2301541 Left Side
15 1115373 Switch, Rocker Arm
16 2220398 P.C. Board
Emitter
17 2255720 Cover, Ice Maker
18 2315398 Slide, Ice Maker
Mounting
19 489478 Screw
20 489214 Screw
21 Glide Assembly,
Middle/Bottom
Basket
2301542 Right Side
2301543 Left Side
22 2162085 Light Socket
23 2255743 Light Bulb
24 8281185 Screw
25 2198633 Flipper
26
W10173569 Cover, Receiver
27 2301340 Slide, Ice Maker
Shut Off
28 2255114 P.C. Board,
Receiver
29 2198643 Lens
30 2198589 Light Shield
31 2212340 Light Lens
32 2198641 Bracket, Ice Maker
Cover
33 2155597 Socket, Light
34 Ladder
2198609 Left Side
2198610 Right Side
35 2303234 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951
Illus. Part
No. No. DESCRIPTION
1 W10139383 Ice Bin
2
W10140686 Crusher Bin
3
W10140642 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6
W10139321 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2305382 Rubber Boot
20
W10140685 Latch, Bin
21 2198608 Spring, Latch
22 2187813 Wire Assembly,
IDI Motor
23 2317243 Wiper
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
29 2198607 Spring
30 2305243 Drive Shaft
31 2317250 Divider −
Chamber
32 2252130 Dispenser, Motor
33 2305208 Bracket, Motor
35 8281163 Screw
36 2212365 Sleeve, Coupling
100
W10140692 Ice Container
(Complete)

REFRIGERATOR DOOR PARTS
9
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951

REFRIGERATOR DOOR PARTS
10
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
2313299W White
2313299B Black
2301089S Stainless Steel
2313299T Biscuit
2301089SAP Monochromatic
Stainless
2 2301486 Door Compartment
(Includes #14)
3 2223434K Door Bin (4)
4 3400012 Screw
5 2219698 Stud, Handle
6 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
2326338 Apollo Grey
7 Handle
2319727W White
2319727B Black
2319727S Stainless Steel
2319727T Biscuit
8 488208 Screw
9 2182178 Door Closer,
Upper Cam
10 489420 Screw
11 Bracket, Door Stop
2206629 Chrome
2206629B Black
12 Set Screw
W10010140 Chrome
W10010150 Black
13 Thimble, Top
2308091 For White & Black
Models Only
2308050 For Stainless
Steel Model Only
14 2159124 Gasket
15 Nameplate
W10046670 White
W10046700 Biscuit
W10046640 Black
W10046610 Gray
16 2193409K Beverage Holder(2)

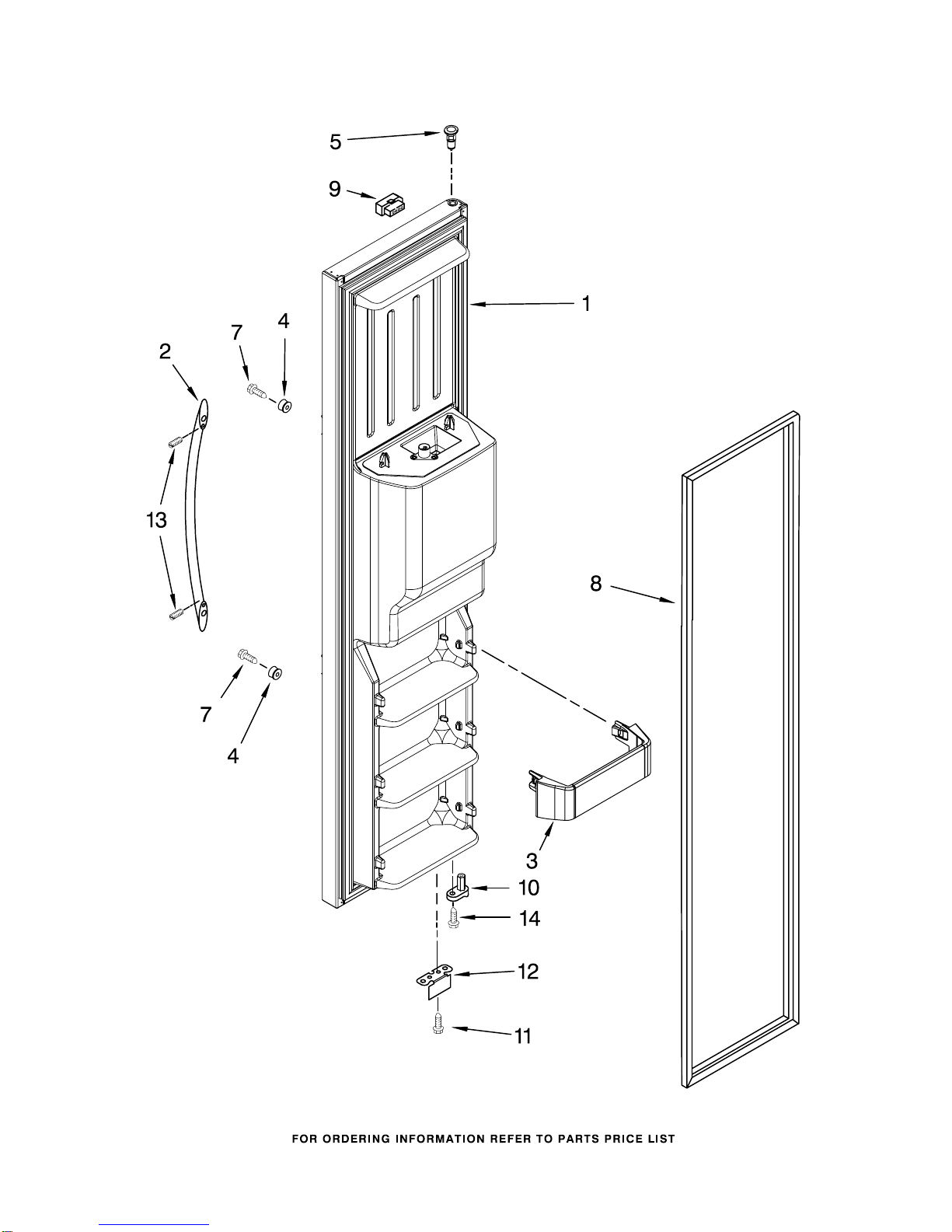

FREEZER DOOR PARTS
11
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951

FREEZER DOOR PARTS
12
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
W10149582 White
W10149583 Black
W10149587 Stainless Steel
W10149584 Biscuit
W10149635 Monochromatic
Stainless
2 Handle
2319727W White
2319727B Black
2319727T Biscuit
2319727S Stainless Steel
3 2223559K Trivet (3)
4 2219698 Stud, Handle
5 Thimble, Top
2308091 For White & Black
Models Only
2308050 For Stainless
Steel Model Only
7 488208 Screw
8 Door Gasket,
Magnetic
2221303 Mist Beige
2221314 Black
2326339 Apollo Grey
9 2169477 Connector
10 2223752 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2303113 Chrome
2303113B Black
13 Screw
W10010140 Chrome
W10010150 Black
14 3400012 Screw
FOLLOWING PARTS
NOT ILLUSTRATED
2305405 Tube,
Water Dispenser
2310084 Wire Assembly,
Freezer Door

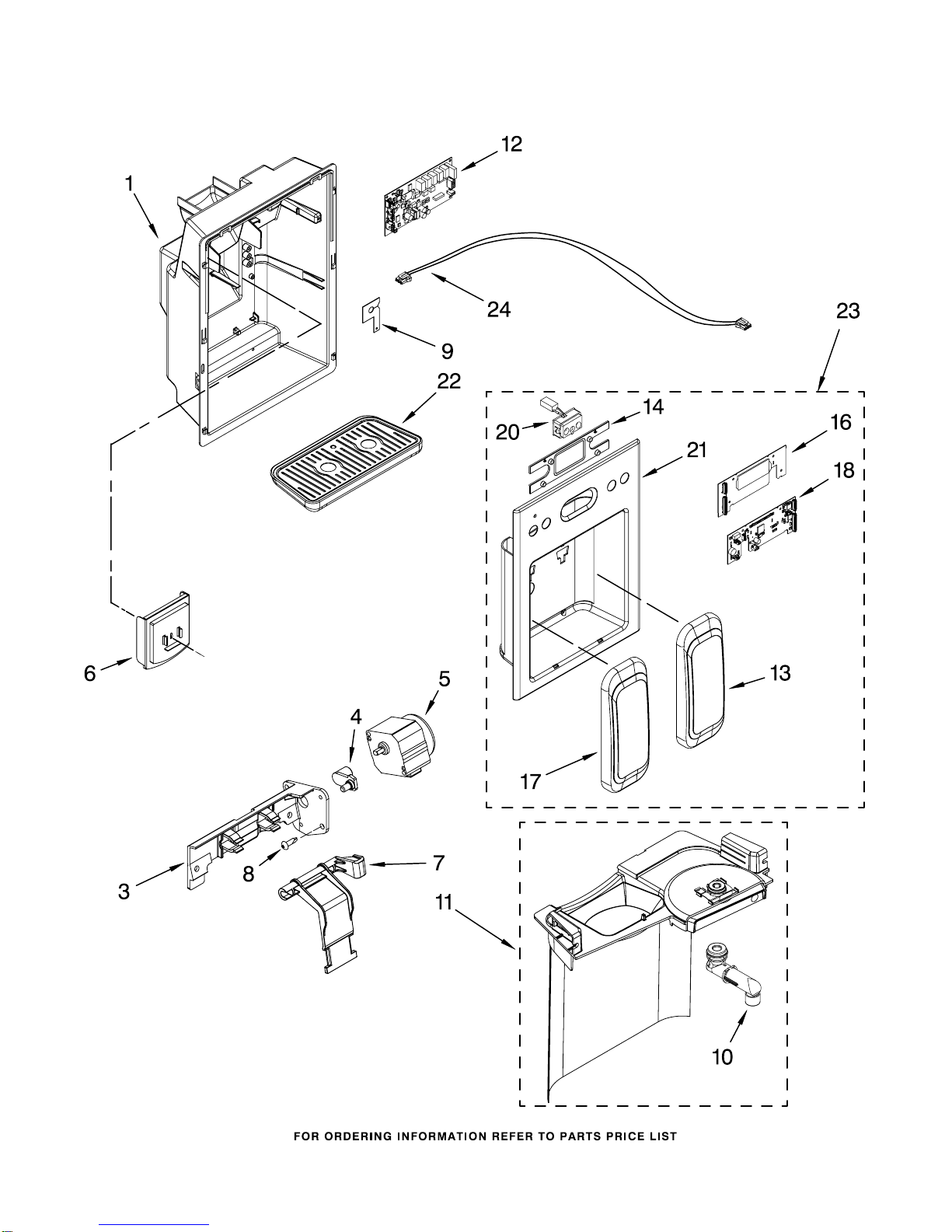

DISPENSER FRONT PARTS
13
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951

DISPENSER FRONT PARTS
14
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
3 2305202 Bracket, Motor
4 2305242 Connector, Door
Bracket
5 2305262 Motor, Ice Door
6 2305258 Door, Ice
7 2305204 Support, Ice Door
8 4449745 Screw (4)
9 2305447 Clip, Wiring
10 2305236 Spigot
11 2305456 Separator Assembly
12 2303843 Electronic
Control (Core)
13 Pad, Water
2305307CE For White Model
2305307GE For Black and
Stainless Models
2305307AS For Monochromatic
Stainless Model
14 2305287 Lens, Front
Cover
16 2321746 Electronic
Control
(User Interface)
17 Pad, Ice
2305306CE For White Model
2305306GE For Black and
Stainless Models
2305306AS For Monochromatic
Stainless Model
18 2305219 Cover, PC Board
20 2305342 LED Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 Tray, Housing
2315109W White
2315109B Black
2315109T Biscuit
2315109US Universal Silver
23 Front Cover
Assembly
(Includes Items
13, 14, 16, 17,
20 & 21)
2318911W White
2318911B Black
2318911T Biscuit
2318911US Universal Silver
24
W10178851 Wire Assembly,
User Interface

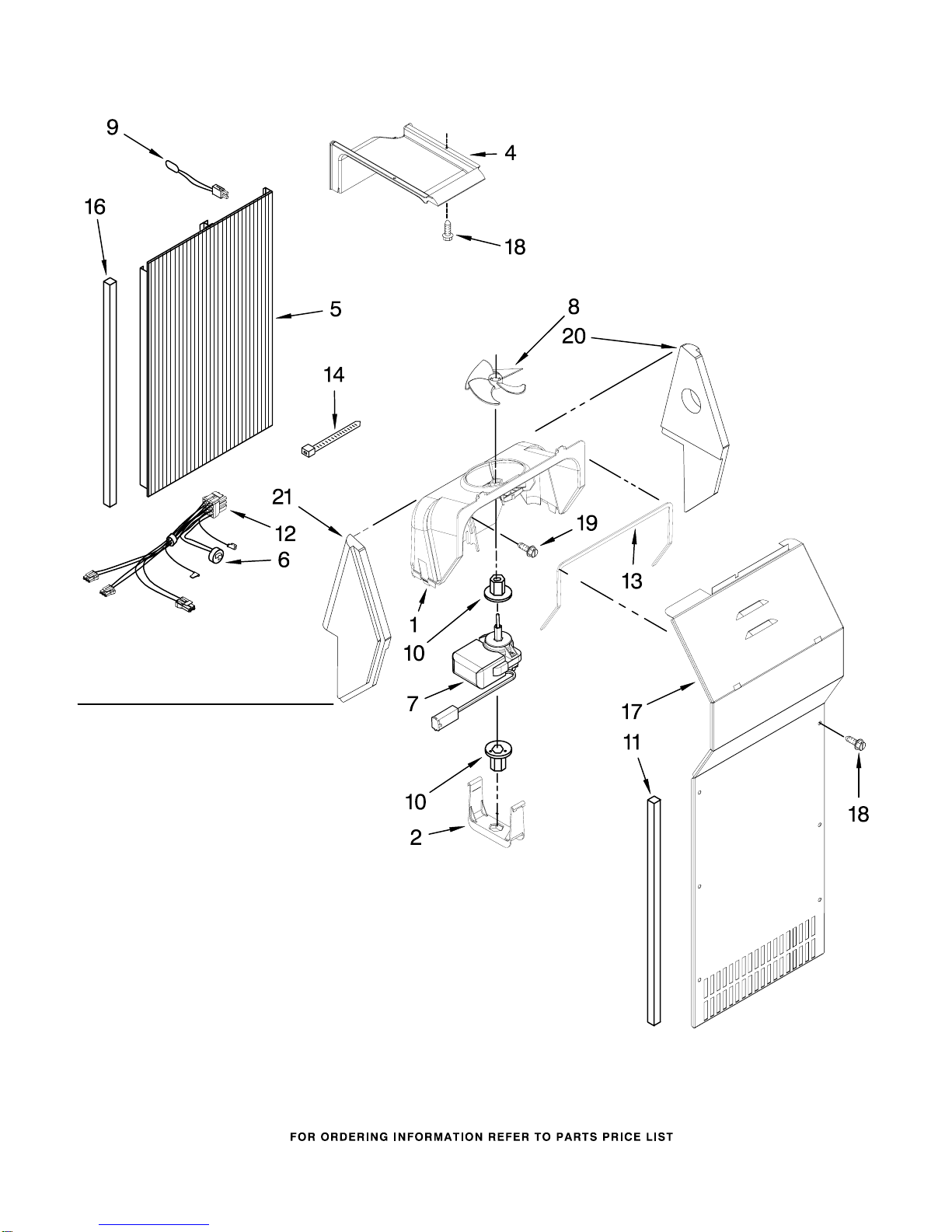

AIR FLOW PARTS
15
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
4 2313359 Air Duct, Upper
5 2198580 Air Duct Freezer
6 2321799 Bi−metal, Defrost
7 2315549 Fan Motor
8 2169142 Fan Blade
9 2188819 Thermister
10 2176759 Fan Grommet (2)
11 2304241 Gasket, Evaporator
Cover (2)
12
W10129817 Harness, Fan
Evaporator
(Includes #6)
13 2155789 Gasket, Fan Scroll
14 2172840 Strap
16 2203876 Gasket
17 2206314 Cover, Evaporator
(Includes #11)
18 8281159 Screw (6)
19 489478 Screw
20 2203595 Support, R.S.
21 2203596 Support, L.S.

CONTROL PARTS
16
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 W10134300 Control Box
2 2219875 Switch
3 3196537 Screw (4)
4 2216879 Cover, Control Box
6 2321728 Electronic
Control
7 8281244 Screw (4)
8 940014 Hole Plug
9 1115374 Clip, Wiring
10 Insert, Control
Board (Not
Available,
Order #6)
11 2162085 Light Socket
12 2255743 Light Bulb
13 2216115 Control Box
Harness
14 2318773 Overlay,
Control Box

UNIT PARTS
17
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951

UNIT PARTS
18
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2225834 Fan, Blade
2
W10121484 Condenser Assembly
3 489464 Screw
4 2216914 Clip, Condenser
5 2217194 Heat Shield
And Drain Pan
6 2205765 Tube Suction
7 2169104 Insulation, Sound
8 8533993 Screw
9 2255199 Clip, Retaining
10 2255198 Start−Device,
Combination
(Start Relay and
Overload)
11 Capacitor
2264017 Production
1118576 Service
12 2304899 Unit Cover, Bottom
13 489396 Clip
14 2188823 Evaporator
15 2161324 Clip
16 2188874 Motor, Fan
17 1105523 Tray, Evaporator
18 2310229 Harness, Unit
19 Drier
W10177049 Production
2317845 Service
20
W10120456 Compressor
(Includes Items
10, 11, 19, 22, & 27)
(Also Order
876765 Tube Kit)
21 2304904 Unit Mounting
Frame
22 4387765 Wire, Capacitor
(Service Only)
23 2181929 Bracket, Fan Motor
24 2323198 Heater, Defrost
25 2304287 Clip, Heater
26 489373 Screw
27 Grommet (4)
1100826 Production
4387558 Service
28 489340 Screw
29 2196202 Air Baffle
30 2155547 Clip, Heat
31 2305374 Unit Mounting Rail
32 8281232 Screw
33 2260517 Guard, Fan
34 2161302 Sleeve
35 2172840 Wire Tie
36 489427 Screw
37 489478 Screw
38 2208280 Clip, Wire & Tube
39 2320323 Union
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951

ICEMAKER PARTS
20
For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03
(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)
W10203951
Illus. Part
No. No. DESCRIPTION
1 2303216 Fitting and
Water Tube
2 628379 Clip, Fuse
3 489478 Screw (3)
4
W10159839 Smart Valve
5 2174358 Cover
6 488649 Screw
7
W10122527 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
8 2304969 Cup−Water Fill
9 627843 Ejector
10 2198598 Ice Stripper
11 2194712 Support
12 2315522 Retainer,
Thermostat
13 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
14 8533917 Screw
15 2303583 Bracket, Ice Maker
Mounting
16 489276 Screw
17 2187467 Harness, Wiring
18 626691 Module Assembly
(Includes Items
19 & 20)
19 626683 Motor
20 489136 Screw
100
W10122502 Icemaker Assembly
