KITMA FCB23F User manual

In order to provide best service, KITMA
requests that please register your
warranty online at www.kitma.com
For any service issues,please kindly
contact us at Toll Free:1-888-757-8989
Please clean the filter frequently!
Please do not overload the unit!
�r--
--飞
一飞一－一一－ ｀
义
l 、

TERMS AND CONDITIONS:
Refrigeration
1 YEAR WARRANTY
All claims for parts or labor must be made directly through Kitma.AII claims must include: model number of the
unit, the serial number, proof of purchase, date of installation, and all pertinent information supporting the
alleged defect.In case of compressor replacement under warranty, either compressor or compressor tag must
be returned to Kitma along with above listed information.Failure to comply with warranty policies will
result in voiding claims.
One Year Parts &Labor Warranty
Kitma warrants all new refrigerated components, such as the cabinet and all parts, to be free from defects in
materials or workmanship. Kitma's obligation under this warranty is limited to a period of one(1) years from
the date of original installation or 12 months after shipment date from Kitma, whichever occurs first.All parts
covered under this warranty that are defective within one(1) years of original installation or twelve (12) months
after shipment date from manufacturer, whichever occurs first, are limited to repair or replacement (including
labor charges, of defective parts or assemblies). The labor warranty shall include standard straight time labor
charges only and reasonable travel time, as determined by Kitma.
Additional One Year Compressor Warranty
In addition to the one (1) year warranty stated above, Kitma warrants its sealed compressor to be free from
defects in both material and workmanship under normal and proper use and maintenance service for a period
of one(1) additional years from the date of original installation, but not to exceed one(1) years. Compressors
that have been determined to be defective from Kitma within this extended period will be either repaired or
replaced with a compressor or compressor parts of similar design and capacity according to Kitma's
discretion.The one(1) year extended compressor warranty applies only to sealed parts of the compressor and
does not apply to any other parts or components. This includes, the cabinet, paint finish, temperature
control, refrigerant, metering device, motor starting equipment, fan assembly, and other electrical components,
etc.
404A / 134a Compressor Warranty
The one-year compressor warranty detailed above will be void if the following procedure is not carefully
adhered to:
1. This system contains R404A or R290 refrigerant and lubricant. The lubricant has rapid moisture absorbing
qualities.
2. Drier replacement is very important and must be changed when a system is opened for servicing.
3. Micron level vacuums must be achieved to insure low moisture levels in the system.
4. Compressor must be obtained through Kitma, unless otherwise specified in writing, through Kitma's
warranty department.

What is Not Covered by This Warranty
Kitma's sole obligation under this warranty is limited to either repair or replacement of parts, subject to the
additional limitations below. This warranty neither assumes nor authorizes any person to assume
obligations other than those expressly covered by this warranty.
NO CONSEQUENTIAL DAMAGES: Kitma IS NOT RESPONSIBLE FOR ECONOMIC LOSS; PROFIT LOSS;
OR SPECIAL,INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOSSES,
OR DAMAGES ARISING FROMFOOD OR PRODUCT SPOILAGE, REGARDLESS OF WHETHER OR NOT
THEY RESULT FROM REFRIGERATION FAILURE.
WARRANTY IS NOT TRANSFERABLE: This warranty is not assignable and applies only in favor of the original
purchaser/user to whom delivered. ANY SUCH ASSIGNMENT OR TRANSFER SHALL VOID THE
WARRANNTIES HEREIN AND SHALL VOID ALLWARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
WARRANTY OF MERCHANTABILITY OR LABOR COVERAGE FORCOMPONENT FAILURE OR OTHER
THE WARRANTY PACKET PROVIDED WITH THE UNIT.
ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION,
FIRE FOOD OR ACTSOF GOD:Kitma is not responsible for the repair or replacement of any parts that are
determined to have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident,
damage during transit or installation, fire, flood, or act of God.
IMPROPER ELECTRICAL CONNECTIONS: Kitma IS NOT RESPONSIBLE FOR THE REPAIR OR
REPLACEMENT OF FAILED OR DAMAGED COMPONENTS RESULTING FROM ELECTRICAL POWER
FAILURE, THE USE OF EXTENSION CORDS, LOW VOLTAGE, OR VOLTAGE DROPS TO THE UNIT.
THE TWO (2) YEAR PARTS
&
LABOR WARRANTY AND THE ADDITIONAL THREE (3) YEAR COM-
PRESSOR WARRANTY ARE AS DESCRIBED ABOVE. THESE WARRANTIES ARE EXCLUSIVE AND
IN LIEU OF ALL OTHER WARRANTIES, INCLUDING IMPLIED WARRANTY AND MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND
THE DESCRIPTION ON THE FACE HEREOF.
Outside U.S. and Canada: This warranty does not apply to areas outside the continent of the United States.
Kitma is not responsible for any warranty claims made on products sold or used in such areas.
*In some cases, a 25% restocking fee may be charged to a buyer for returned items.*Kitma may at any
time modify our equipment in order to provide and insure a superior product. Change is sometimes
necessary to keep up with today's high standards in our industry. Kitma reserves the final interpretation
of all public materials.

Content:
1. Preface
........................................................................
2
2. Use of the equipment. .............................................. 3
3. Technical features .................................................... 3
4. 0peration................................................................. 3
5. Control unit. ................................................................ 4
6. Handling ...................................................................... 4
7.Installation procedure
...............................................
5
8.Connecting to the main power supply
...................
5
9. Maintenance instructions ........................................ 6
Cleaning ................................................................... 6
Cleaning the refrigerator surface
........................
6
Cleaning the inside of the refrigerator
................
7
Cleaning the condenser ........................................ 7
10. Troubleshooting ...................................................... 7
11 .Technical service..............................................7
12.Configuration Sketch Map .................................... 8
Operating Instruction
...................................................
8
Electrical Control Circuit Diagram
..........................
11
Technical Parameters ............................................... 13
Official Approval And Rules ..................................... 14

1. Preface
This instruction manual provides all the necessary information regarding:
_. use of the refrigerator
_. technical specifications
_. installation and handling
_. operator procedures and instructions
_. maintenance operation
The manual is to be considered an integral part of the refrigerator and
should be stored in a safe place for father consult to permit a good
working life of the refrigerator.
ATTENTION
The manufacturer cannot be held liable in the following
cases:
■improper installation (not in accordance with the guidelines indicated
herein)
■misuse of the refrigerator
■power supply defects
■improper or inadequate maintenance
■unauthorised modification or tampering
■use of non-original spare parts
■partial or total failure to comply with the instructions
All electrical equipment can be hazardous to health. Current standards
and legal requirements must be complied with during the installation and
use of any equipment.

2. Use of the equipment
The refrigerator are for preserving fresh perishable foodstuffs, with an
in-built refrigerated unit.
The operating temperature for refrigeration is:
■ between 33°F and 38°F at room temperature of 109°F an 60%RD.
The operating temperature for frozen food maintenance is:
■between 0°F and 8°F at room temperature of 109°F an
60% RD.
3. Technical features
The refrigerator is a ventilated system, the evaporator is in a separate
insulated box on the top. All the materials used in the manufacture of
this unit are guaranteed to be suitable for use with foodstuffs. The
gases used in refrigerator is R134a; in the refrigerator for frozen food
maintenance is R404a.
The refrigerating circuit are in compliance with the current normative.
4. Operation
The gas in the refrigerating circuit is in the first time compressed,
liquefied and then evaporated in the ventilated evaporator, situated on
the top of the container.
This cycle involves the absorption of heath from the air in the
refrigerator compartment and the reason is cooled. The heat produced
is then dissipated to the outside environment by a condenser unit
located on the top of the refrigerator.

5. Control unit
The refrigerator is command from a "digital control unit" and a "main
switch pilot light" in the top panel of the refrigerator.
The "main switch pilot light" is for turning on the power supply.
The green pilot light comes on to indicate that the unit is connected
to the main electricity and to start work.
The green pilot light comes off to indicate that the unit is disconnected
and don't work. The "digital control unit" is for the regulation of all
parameters to provide the correct working of the refrigerator. Please
consult all parameters in the attachment manual of the "digital control
unit".
This manual is part of the instruction manual and is very important in
case of service.
6. Handling
The refrigerator arrive in PET film and packed in cardboard box on a
wood pallet.
The refrigerator must be transported and handled with care to
avoid posing a hazard to persons or property.
Never place a refrigerator with an in-built
refrigerated unit on its side or turn it upside
down as this may damage or impair operation of the refrigerated unit.
We can not held liable for any damage or defects arising directly or
indirectly from improper handling of the equipment or non-compliance
with the safeguards illustrated above.

。

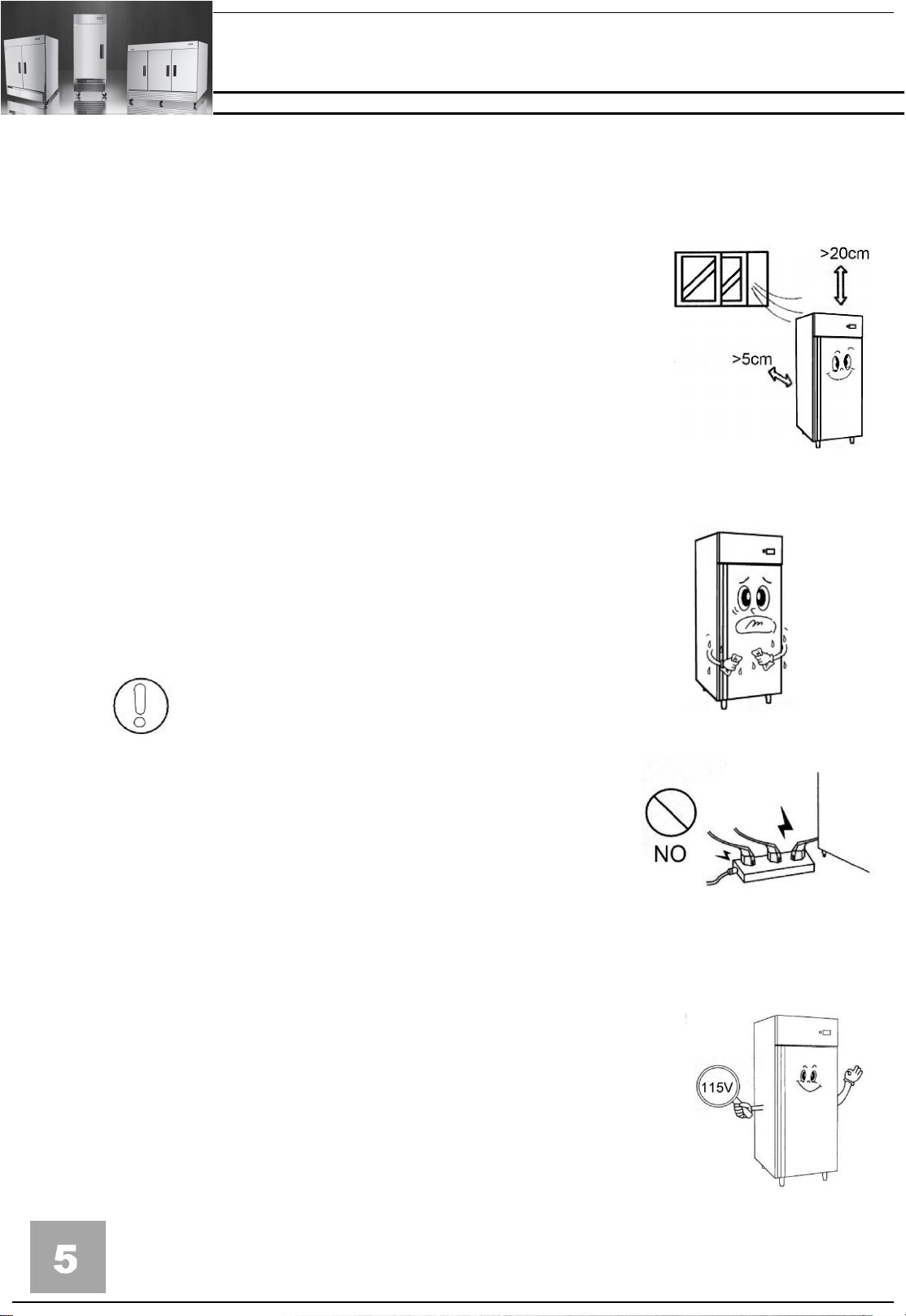

7. Installation procedure
• Place the refrigerator in the coolest and
best ventilated part of the room. Don't install
the refrigerator in the near of heat and direct
sunlight sources.
• Remove the straps securing the cardboard packing
Remove the cardboard. Covering
Remove the PET protection film
• Clean the refrigerator with mild detergent
and then dry it with a soft cloth.
8. Connecting to the main powersupply
This operation must be carried out by
professionally and qualified persons.
The refrigerator are supplied complete with a
power supply cable for the connection to the
main power supply. A thermomagnetic circuit
breaker (not supplied) must be installed
between the mains power point and the power
supply cable of the refrigerator.
Before proceeding make sure that:
• the mains voltage corresponds to the voltage on
the refrigerator 115V/60Hz/1Ph; to ensure proper
operation it is essential for the
power supply voltage to come within a
range of+/- 10% of the unit's rated voltage

• the electric system to which the refrigerator is sized to cater for the
rated electric output of the buffet unit being installed
• the electronic system to which the refrigerator is connected is made
in compliance with current standard requirements
• the electric connections and the installation of the thermomagnetic
circuit breaker have been done by qualified person.
Connecting steps :
• Install a thermomagnetic circuit breaker suited to the rated output of
the unit being installed
• Connect the refrigerator unit to the thermomagnetic circuit breaker
outlet
• Check that the refrigerator is in order as demonstrated by the pilot
light incorporated in the main switch coming on
9. Maintenance instructions
The smooth operation and life of the equipment are mainly determined
by correct and regular maintenance
Cleaning:
Regular cleaning of the refrigerator unit is strongly recommended
each month. Please follow the instructions below.
Disconnect the refrigerator power supply cable from the
mains prior to carrying out any type of cleaning operation.
Cleaning the refrigerator
surface :
Clean the refrigerator with mild
detergent and then dry it with a soft
cloth.
Do not use abrasive detergents!

Cleaning the inside of the refrigerator:
Clean the inside area min. each month with a detergent suitable for
use with foodstuffs.
Cleaning the condenser:
For an efficient operation of the refrigerator
it is advisable to clean the condenser
regularly approx. every 4 months with a
dry brush or vacuum cleaner.
1O. Troubleshooting
Refrigerator stops working (light off):
Power supply failure
Remedies:
Check that the plug is inserted properly in the socket
Check that the switch on/off
Check that the mains voltage powers the plug
Refrigerator temperature go up:
Unit to near to aheat source
Condenser dirty or close
Remedies:
Move the counter or the heat source further away
Clean the condenser
11. Technical service
For technical service please contact the dealer technical department
and give him the serial n°, and the date of buy.
P

12. Configuration Sketch Map
1. Power switch
4. Evaporator
7. Condenser
10. Lamp
2.
Microcomputer controller
5. Evaporator fanmotor
8. Drain case
11. Caster
3. Compressor
6. Condenser fan motor
9. Shelf
1. New upright air-cooling refrigerator should be
opened and ventilate it before it is in use. After
that, users should use warm water clean its inside.
2. After connecting the power supply, press the
"POWER" switch on the controller keyboard (Green Indicator Light ON),
the fridge will come to work. The microcomputer controller, installed in
the controller keyboard, could automatically adjust the temperature
ranges. This intelligent digital controller works as: if the temperature
increases and reaches set point plus differential the compressor is
started and then turned off when the temperature reaches the set point
value again.

3. Microcomputer Controller Operation Instruction:
4. Microcomputer panel sketch map,
meanings of running indicator light
and LED showing.
5. SET To display target set point, in
programming mode it selects a parameter
or confirm an operation.
To start a manual defrost 。
:
(Mod. XR06CX)
In programming mode it browses the parameter codes or
increases the displayed value.
In programming mode it browses the parameter codes or
decreases the displayed value .
To lock or unlock the keyboard
To enter in programming mode
return to room temperature
display.
6. How to see the point .
Push and immediately release the SET key, the set point will be showed;
Push and immediately release the SET key or wait about 5s to return
to normal visualisation.
7. How to change the setpoint .
Push the SET key for more than 2 seconds to change the Set point value;
The value of the set point will be displayed and the "°C" or "°F" LED starts
blinking;
To change the Set value push the or arrows.
To memorise the new set point value push the SET key again or wait 10s.
8. How to start a manual defrost.
Push the DEF key for more than 2 seconds and a manual
defrost will start.
一，

9. How to change a parameter value
To change the parameter's value operate as follows:
Enter the Programming mode by pressing the keys for 3s
("°C" or "°F" LED starts blinking).
Select the required parameter. Press the "SET" key to display its value
Use or t o change its value.
Press "SET" to store the new value and move to the following parameter.
To exit: Press
or wait 15s without pressing a key.
NOTE: the set value is stored even when the procedure is exited by
waiting the time-out to expire.
10. To lock the keyboard.
Keep pressed for more than 3s the keys.
The "OF" message will be displayed and the keyboard will be locked.
If a key is pressed more than 3s the "OF" message will be displayed.
11. To unlock the keyboard .
Keep pressed together for more than 3s the
keys till the
"on" message will be displayed .
12. Alarm signalling .
Mess.
Cause
Outputs
"P1"
Room probe failure
Comprseeor output according to "Cy" e "Cn"
"P2"
Evaporator probe failure
Defrost end is timed
"HA"
Maximum temperature alarm
Outputs unchanged
"LA"
Minimum temperature alarm
Outputs unchanged
"EA"
External alarm
Outputs unchanged
"CA"
Serious external alarm
All outputs OFF
"dA"
Door Open
Compressor and fans restarts

Fan cooling chill series product
J1-A
M
左
H3

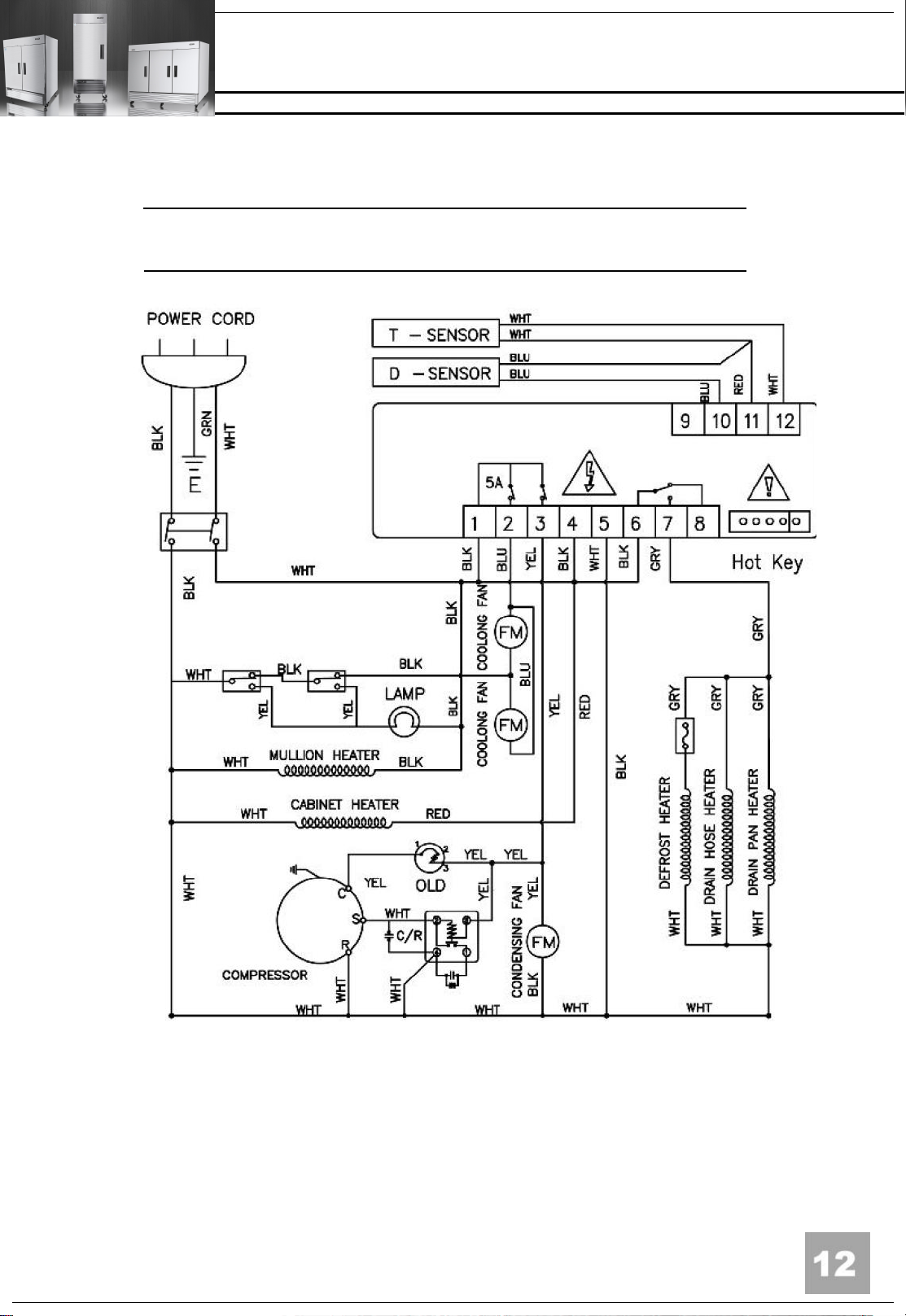

Fan cooling freeze series product
』
H
士
丘
l33.Hf
S ' l 0U
比
0
X-3
」
HN-
POWER CORD
WHT
WHT
CABINET HEATER
WH
T

Single-door
freezer
FCB23F
I
115/60/1
6.3
0-8
R290
26.97x31.5x84.06
297.62
Two-door
freezer
FCB49F
I
115/60/1
8.6
0-8
R290
54.41X31.5X84.06
465.18
Three--door
freezer
FCB72F
I
230/60/1
5.5
0-8
R404a
81.85x31.5x83.16
637.56
Single-door
refngerator
FCB23R
I
115/60/1
2.1
+33-+38
R290
26.97x31.5x84.06
282.19
Two-door
refrigerator
FCB49R
I
115/60/1
3.2
+33-+38
R290
54.41x31.5 x84.06
451.95
Three-door
refrigerator
FCB72R
I
115/60/1
4.2
+33-+38
R290
81.85x31.5x84.06
615.09
Single-glass
door freezer
FCB23FG
I
115/60/1
6.3
0-8
R290
26.97x31.5x84.06
341.72
Two-glass
door freeze
FCB49FG
I
115/60/1
8.6
0-8
R290
54.41x31.5x84.06
553.36
Single-glass
door refrigerator
FCB23RG
I
115/60/1
2.1
+33-+38
R290
26.97x31.5x84.06
326.28
Two-glass
door refrigerator
FCB49FG
I
115/60/1
3.2
+33-+38
R290
54.41x31.5x84.06
540.13
Two-glass
door refrigerator
FCB48RGW
I
115/60/1
4.2
+33-+38
R290
54.41x29.13x84.06
511.47
NOTES:
If the technical data has any changes, we will not notify you any longer.

CONFORMS TO UL STD.471
CERTIFIED TO CSA STD.C22.2 N0.120
lntertek
4003935
CONFORMS TO UL STD.471
CERTIFIED TO CSA STD.C22.2 N0.120
lntertek
4003935
CONFORMS TO NSF/ANSI STD.7
