Kiturami eco condensing - 16D User guide

Gas fired wall hung combination boilers
┃┃┃┃┃
Technical information and Installation Servicing Instructions
Model
eco condensing - 16D (18.6 kW)
eco condensing - 20D (23.2 kW)
eco condensing - 25D (29.1 kW)
eco condensing - 30D (34.9 kW)
eco-condensing Gas Boiler.................. …
…...………....
󶠿󵰛󵹧

CONTENTS
1) overall view
1-1 Genearal information  
2) Product description
2-1 Specification  
3) Installation
3-1 Standard installation  
3-2 Body installation  
3-3 Connecting Flue  
3-4 Piping for upper floor  
4) Connecting Electric works
4-1 connecting wires  
5) Test warking
5-1 Check list befor  
5-2 First ignition operation  
5-3 Water circuit Diagram  
5-4 Checking the CO2  
5-5 Adjustment and gas conversion  
6) Direction for assembly
6-1 Disassembly  
6-2 Part list  
7) Maintenance guide
7-1 Main heat exchanger  
7-2 Burner unit  
7-3 Fan unit  
7-4 controller unit  
7-5 Temperature sensor  
7-6 Over heating sensor  
7-7 Gas valve  
7-8 Circulation pump  
7-9 3Way valve  
7-10 Others  
8) Function of the controller
8-1 Main controller  
8-2 Function  
9) Function of the controller
9-1 Room controller panel  
9-2 LED Panel  
10) Troubleshooting guide (error code)
10-1 Finding failure  
11) Technical Data Table  
12) Memo  
13) Warranty  
󶠿󵰛󵹧

1. World-best level of thermal efficiency at over 90.8% of domestic heating and over 92% of hot water supply,
equipped with 4 pass main heat exchanger in world-first.
2. Consideration on Eco-Environment
(Low Nox burner controls the Nox emissions under 20ppm.)
3. Equipped with condensate neutralization device
(Durable condensate neutralization device works the strong acidity(PH3~4)
of condensate down the normal water(PH6).
4. Safety low voltage and powerful TURBO-FAN
(Powerful turbo fan offer the steady combustion system without interruption from the changeable wind. )
4. Durable condensing heat exchanger
- Aluminum and Stainless steel material of main heat exchanger extends its life cycle.
- And double collecting condensate design makes to work longer than others
* eco-condensing gas boiler Features of Product
󶠿󵰛󵹧

7. Lasting Stainless steel heat exchanger for hot water
8. Quick and abundant hot water
- Precise hot water control
※ Hot water can be controlled by 1℃ in the range from 35 to 50℃.
9. Double protection against instantaneous high pressure of water
device and water pressure releaser of inlet pipe
10. Interruption Free operation from any condition of outside
-. With powerful turbo fan and wide proportional control on combustion, it operates efficiently and silently even
on the low pressured gas supply.
11. Thoughtful consideration on safety and convenience.
- It is equipped with gas leakage detector, water hammer protector, and water over-pressure reducer as special
safety devices.
- Additionally there are test operation function, precise water temperature setting function and reservation function
as useful and convenient features.
-. Stainless steel of heat exchanger provide the hot water without rust and block, with the constant efficiency
of hot water exchange.
-. It is designed to protect appliance against water hammer and thermal expansion with water hammer protection
󶠿󵰛󵹧

1-1 Specification
Model : WORLD5000
사진
Room Control
34 (74.9) 34 (74.9)
133
B33-C13-C33-C43-C53-C63-C83
eco condensing-30Deco condensing-16D eco condensing-20D eco condensing-25D
199
LNG, 13A, G20, G30
106
WEIGHT (kg)
166
39 (85.9)
Fixing bolt BEND
39 (85.9)
1. Product description
Flue
MODEL
POWER SOURCE
507 x 310 x 788
220 - 240 V, 50Hz
DIMENSION (Wx Dx H)
INSTALLATION TYPE
FUEL TYPE
HEATING AREA (㎡)
AL 1st Heat Exchanger
AL 2nd Heat Exchanger
CU Heat Exchanger
Air Pressure Switch
Turbo Fan
PCB
Syphon
Gas Valve
Circulation Pump
DHW Heat Exchanger
Pressure Gauge
Auto Air-Vent
3 Way Valve
Igniter
Expansion Tank
Temperature sensor
󶠿󵰛󵹧

2. Installation
2-1 Appliance dimension and required specification
󶠿󵰛󵹧

ㅣ
Installing Boiler
ㅣ
1. The boiler has to be fixed horizontally to the wall with some space for cleaning and maintenance.
2. The wall should support enough to hang 35 ~ 45kg of Boiler and be incombustible surface
3. Before installing the boiler, check the pipes and valves for central heating water in & out-let, domestic hot water in
& out-let, and gas.
ㅣ
Selecting Location
ㅣ
1. Please select the location and position, considering some space for cleaning and maintenance.
2. The wall should support enough to hang the boiler of 35 ~45kg. If need, reinforce the wall before installing.
3. Corrosive gas [ex. Ammonia gas, Chloric gas, Sulfur, Acids, etc] can destroy or rust the boiler, flues, and pipes by a
chemical reaction. And it may reduce the efficiency of heater or igniter. Please avoid this location or clean up the place
before installing Boiler.
4. he boiler should be installed onto the incombustible surface.
5. Please avoid the wet place and hermetically sealed location.
The boiler can be installed on any suitable internal wall (suitable sound proofing may be required when installing onto a stud partition wall).
Provision must be made to allow for the correct routing of the flue and setting of the terminal to allow the safe and efficient removal of the flue
products.
Where a room sealed appliance is installed in a room containing a bath or shower, the appliance and any electrical switch or appliance control,
utilizing mains electricity should be situated specifically in accordance with current IEE Wiring Regulation.
[Installing Boiler]
1. The boiler has to be installed horizontally to the wall with some space for cleaning and maintenance.
2. The boiler has to be fixed firmly with special bolt for its weight and tightly against any vibration.
It is recommended to stick the rubber against vibration.
2-2 Body installation
󶠿󵰛󵹧

Warning
The exhaust gas duct must not be contact with or close to inflammable material and must not pass through building
structures or walls made of inflammable material. When replacing an old appliance, the flue system must be changed.
MAX Length
MIN 150 Assemble with
packing without
100
150
󶠿󵰛󵹧

2-3-1 FLUE
The provision for satisfactory flue termination must be installed in accordance with local regulations.
The appliance must be installed so that the flue terminal is exposed to outdoor air.
The terminal must not discharge into another room or space such as an outhouse or lean-to. It is important that the
position of the terminal allows a free passage of air across it at all times. The terminal should be located with due
regard for the damage or discoloration that might occur on buildings in the vicinity,
it must also be located in a place not likely to cause nuisance. In cold or humidity weather water vapor may condense
on leaving the flue terminal The effect of such “steaming” must be considered. If the terminal is less than 1 meter
above a balcony, above ground or above a flat roof to which people has access, then a suitable stainless steel terminal
guard must be fitted. The minimum acceptable spacing from the terminal to obstructions and ventilation openings
are specified in Fig. X.
2-3-2 Installing flue (Connecting)
COAXIAL FLUE Connecting
ASSEMBLING the socket of inlet and outlet flue.
1. Join the flue socket on flue outlet.
2. After sealing the top of boiler and socket with gasket,
fix the socket to the boiler body with screw.
JOINING FLUE WITH BOILER
1. Fix the socket, boiler adapter and flue elbow with sealing
tape after adjusting all.
2. After sealing well, join and screw the flue duct adapter.
3. Join and fix the flue elbow to main flue with careful check
of exhaust flue and inlet flue.
4. Seal the joint completely with tape and screw the Flue
duct adapter.
5. Slope down the flue outlet by 3 ~ 5˚ in order to drop the
condensation down.
Flue Air Duct
Flue Duct Adapter
Gasket
Flue Elbow
Flue Duct Adapter
Boiler Adapter
Gasket
Socket
Exhaust Flue
󶠿󵰛󵹧

2-3-3 Installing flue (For Roof Terminals)
①
For Roof Terminals
1. In the case of a pitched roof 25-50 degrees, position the lest
tile to replace/flash over existing roof tilling. Make an aperture
in the roof suitable for the lower tube of the roof terminal and
ensure the integrity of the roof cover is maintained. The
adjustable plastic collar can either be positioned. on the lead
tile or the lower tube of the roof terminal prior to the final
positioning of the vertical flue through the tile Check the collar
is correctly located to suit required roof pitch (either 25˚ to 38˚ or
37˚ to 50˚) From inside the roof adjust the to vertical position and
secure to the roof structure with the clamp supplied.
2. For flat roof installations the aluminum flashing must be
incorporated into the roof covering and the appropriate aperture
aperture made in the roof decking. The vertical flue is lowered
onto the flashing. (A mastic seal may be necessary). From inside
the roof, structure with the clamp supplied
IMPORTANT : If the boiler is not fitted immediately after the flue
System, temporary precautions must be taken to prevent rain entry
into the room of installation, Any precautionary measures must
be removed prior to commissioning the boiler.
② Flue Dimensions

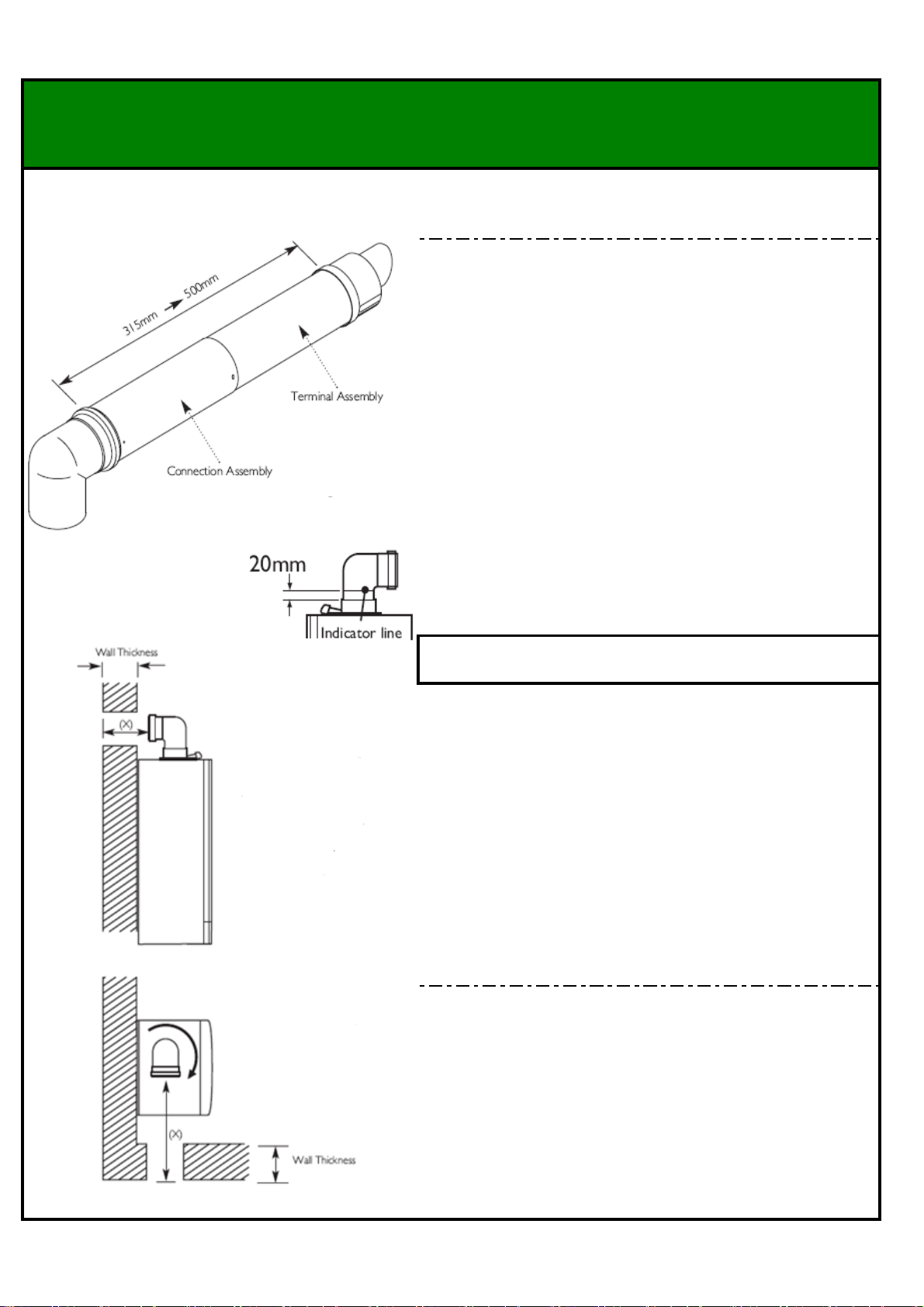

The standard horizontal telescopic flue kit allows for lengths between
315mm and 500mm from elbow to terminal (Fig 13)
The maximum permissible equivalent flue length is :
10 meters (60/100 system)
20 meters (80/125 system)
③ Flue Trim
1. The rubber flue trim supplied may be fitted to either the outside
wall or on the inner wall of installation.
④ Terminal Guard (Fig. 14)
1. When codes of practice dictate the use of terminal guards, they
can be obtained from most Plumber' and Builders' Merchants.
2. There must be a clearance of at least 50mm between and part
of the terminal and the guide.
3. When ordering a terminal guide quote the appliance name and
model number.
4. The flue terminal guide should be positioned centrally over the
terminal and fixed as illustrated.
⑤ Flue Deflector
1. If required push the flue deflector over the terminal end and
rotate to the optimum angle for deflecting plume. Secure the deflection
to the terminal with screws provided
󶠿󵰛󵹧

2-3-4 Installing flue (Plume Displacement)
Content of kit
1 0.9m 60/100 Concentric Flue
1 1m 60 Dia-meter Exhaust Flue Pipe
1 Adaptor
2 60Dia Support Brackets
1 93˚ Elbow/Plume Outlet Assembly
1 Flexible Flue Time
3 "O" Rings
1 Jubilee Clip
1 Elbow
1. This kit is recommended for installations where the condensate
plume emitted from the flue may cause a nuisance or affect the
surroundings.
2. The terminal must be positioned outside the building with the air
inlet facing downward and outlet connection upwards.
3. The plume outlet must always be at least 45˚ to the wall with
the '' uppermost to prevent rain entry (Fig. 15 & 16)
and be at least 2 meters above ground level. It must be at least
500mm from the air inlet in any direction (Fig. 16)
NOTE : The outlet must be positioned so that any condensate
plume is directed away from adjacent surfaces. There must be a
constant fall along the entire of the flue system from the back to
boiler
4. It is possible to reduce or increase (with the addition of
extensions) the length of either or both 60/100 concentric and 60Φ
exhaust.
5. Standard concentric flue extension kits may be added between
the boiler elbow the terminal assembly
6. The minimum length of the concentric flue is 100mm when measured
from the edge of the flue elbow
IMPORTANT : The maximum equivalent length of concentric
flue is : 8 meters
Additional bends may be fitted in the concentric flue, but the equivalent
length must be reduced I meter (93 elbow) or 0.5 metric
(45 elbow)
7. 60Φ I meter extensions (including support bracket), and additional
93˚ & 45˚ elbows are available. Any additional 93˚ & 45˚ elbows
must be accounted for when calculating flue lengths
󶠿󵰛󵹧

2-3-5 Installing flue (Fitting The Flue)
Fitting The Flue
HORIZONTAL TELESCOPIC FLUE
1. There are tow telescopic sections. The Terminal
Assembly and the Connection Assembly, a roll of sealing
tape and two tapping screws . A 93˚ elbow is also
supplied. The outer duct of the Connection Assembly is painted
white On the Terminal Assembly The outer duct is unpainted.
2. The two sections can be adjusted to provide a length between
315mm and 500mm (Fig. 39) when measured from the flue elbow
(there is 50mm engagement into the elbow)
3. Locate the flue elbow on the adaptor at the top of the boiler
Set the elbow to required orientation (Fig. 41)
NOTE : The flue elbow is angled at 93 degrees to ensure a fall
back the boiler
4. Measure the distance from the outside wall face to the elbow.
This dimension will be known as 'X'
5. If the distance from the flue elbow to the outside face of the wall
('X' in ) is less than 250mm the Connection Assembly can
discarded and the Terminal Assembly fitted directly into the elbow.
6. In instances where the dimension ' X' is between 250mm
and 315mm it will be necessary to shorten the Terminal Assembly
by careful cutting to accommodate wills of these thickness.
7. To dimension 'X' add 50mm. This dimension to be known as 'Y'.
󶠿󵰛󵹧

2-3-6 Installing flue (Fitting The Flue (Cont) )
Fitting The Flue (Cont)
8. Adjust the tow telescopic sections to dimension 'Y'
Ensure that the rivets and holes in the Connection Assembly
are aligned horizontally
9. Using a 2mm bit, drill through the holes at the end of the Connection
Assembly into the Terminal Assembly and secure together
using he screws supplied
Seal the joint with the tape provided
10. Remove the flue elbow and insert the flue through the hole in
the wall. Refit the elbow to the boiler adaptor, ensuring that it is
pushed fully in
11. Draw the flue back through the wall and engage it in the elbow
It may be necessary to use soap solution or similar to ease assembly
of the elbow adaptor and flue
12. Ensure that the terminal is positioned with the slots to the bottom
IMPORTANT : It is essential that the flue terminal is fitted as
shown to ensure correct boiler operation and prevent water
entering the flue
13. Make good between the wall and air duct outside the building
14. Fit the flue trim inquired, and if necessary fit a terminal guard
(see Section 8.8 ~ 8.9)
CONCENTRIC VERTICAL FLUE
15. Once the length of the vertical concentric extension has been
determined mark and carefully cut off the excess
material. The cut end MUST be square and free of burrs to ensure
correct insertion into the boiler adaptor.
16. Measure 25mm from the end of the flue extension and apply a
length of tape around the boiler duct
17. Engage the extension into the adaptor up to this position
Once the installation of the flue is complete and all support brackets
securely in place remove the tape
󶠿󵰛󵹧

2-3-7 Installing flue (Fitting The Flue (Cont) )
A Directly below an opening, air brick, opening widow, etc.
B Above an opening, air brick, opening window etc
C Horizontally to an opening, air brick, opening window etc
D Below gutters, soil pipes or drain pipes
E Below eaves
F Below balconies or car port roof
G From a vertical drain pipe or soil pipe
H From an internal or external corner
I Above ground, roof or balcony level
J From a surface or boundary line facing a terminal
K From a terminal facing a terminal (Horizontal flue).
From a terminal facing a terminal (Vertical flue).
L From an opening in carport (e.g. door, window) into the dwelling
M Vertically from a terminal on the same wall
N Horizontally from a terminal on the same wall
R From adjacent wall to flue (vertical only).
S From an adjacent opening window (vertical only).
T Adjacent to windows or openings on pitched and flat roofs
U Below windows or openings on pitched roofs
300mm
300mm
1000mm
600mm
1200mm
1200mm
1500mm
25mm
25mm
300mm
300mm
300mm
25mm
600mm
2000mm
25mm
25mm
300mm
󶠿󵰛󵹧

2-3-8 Installing flue (Flue Options - Horizontal Flue Systems)
Twin & Vertical Flue Systems
1. Maximum permissible equivalent flue lengths are:-
2. Any additional " in line" bends in the flue system must be taken into consideration
Their equivalent lengths are:-
Concentric Pipes: Twin Flue Pipe
130 bend 0.5 meters 135 bend 0.25 meters
93 bend 1.0 meters 91.5 bend 0.50 meters
The elbow supplied with the standard horizontal telescopic flue kit is not included any equivalent length
calculations
20 meters Vertical Concentric
Vertical Twin Pipe 15 meters
10 meters
󶠿󵰛󵹧

2-3-9 Flue options
The total equivalent length for this
example is = 6.5 meters
2 1.0 m
1 m 5
sub total
fittings/pipesLength Value
0.5 m
1.0 m
2
Equivalent N of
AIR DUCT
fittings/pipes
0.5 m
FLUE DUCT
0.25 m
0.5 m
5 5.0 m
5.0 m
2
Equivalent Length Air Duct = 6.5 m
Equivalent N of sub total
Length Value
1 m
0.25 m
Equivalent Length Air Duct = 6.5 m
2 0.5 m
󶠿󵰛󵹧

2-3-10 Flue Options
Flue Accessories
Key Accessory Size code No
FLUE GROUP A
Concentric Flue System 100mm diamter
A3 Telescopic intermal Fuel Kit 315~500mm 5119654
A2 Telescopic Flue (incl elbow) 5118069
A Horizontal Fule Terminal (incl elbow) 5118489
B Flue Extension 1000mm 5111074
C Flue Bend 93˚5111075
D Flue Bend (pair) 135˚5111085
U Pipe Support (Painted) 100mmΦ5111080
R Vertrical Flue Adaptor 5111070
P Wall Liner 5111067
S Flue Terminal Deflector 5111068
FLUE GROUP N
Twin Flue System 100mm diamter
E Flue Extension (pair) 1000mm 5111087
F Flue Bend (pair) 90˚5111072
G Flue Bend (2 pair) 135˚5111086
J Vertrical Flue Boiler Adaptor Kit 5111079
H Vertrical Flue Adaptor 5111084
W Pipe Support (pair) 80mm 5111081
Y Flue TERMINATION Kit
(horixontal termination) 80mm 5130172
Z Single Terminal 80mm 5131791
Q Adaptor 60/80 5121792
T Pitched Roof Terminal 25˚/45˚5106164
FLUE GROUP G
Flue System 80/125mm diamter
A4 Horizontal Flue Kit 5118580
B Straight Extension Kit 1000mm 5118584
D Bend Kit (pair) 135˚5118597
C Bend Kit (pair) 91.5˚5118588
FLUE GROUP A,N,G
Vertical Flue Kits
K VERTICAL Flue Terminal (use with 5111070) 5111078
KI VERTICAL Flue Terminal 5118576
L Pitch Roof FLASHING 25˚/50˚5122151
M Roof Cover Plate 246143
N Flat Roof Flashing 246144
󶠿󵰛󵹧

2-4-1 Standard piping
※
Caution on piping
This boiler is equipped with the pressure controller of water-inlet to protect
the body and each valves from the instantaneous high-water-pressure
when or closing the water valves.
This pressure controller of water-inlet works under 2.5kgf/㎠ of inlet water
pipe pressure. Therefore, if over it, should install the pressure reducing
valve for inlet water pipe additionally.
If over pressure of inlet water, it may cause bursting pipes of house or
boiler inside and stopping hot water from boiler.
2-4 Piping
Boiler
Cool water
INLET
Pressure reducing valve
Cool water
valve join
Nitrogen tank
Heating pipe
Distributor
Cold water inlet pipe
Hot water supply pipe
Bath
FCU or Radiator
Cold water valve
Pressure redncing valve Gas inlet pipe
Gas filter
strainer
󶠿󵰛󵹧

2-4-2 Gas / Water connection
1. Gas connection
1). Make sure, using the labels on the packaging and the data plate on the appliance itself, that the boiler is in the correct
country and that the gas category for which the boiler was designed corresponds to one of the categories available in the
country where it will be used.
2). The gas supply piping must be created and measured out in compliance with specific legal requirements and in accordance
with the maximum power of the boiler; you should also make sure that the shut-off valve is the right size and that it is
connected correctly.
3). Check that the supplied gas corresponds to the type of gas for which the boiler was designed
(see the data plate located on the appliance itself).
It is also important to check that the pressure of the gas (methane or LPG) you will be using to feed the boiler is suitable,
because if it is insufficient the power may be reduced, causing inconvenience for the user.
2. Water connection
1). The illustration shows the connections for the water and gas attachments of the boiler. See valves configuration
2). Check that the maximum water mains pressure does not exceed 3bar; if it does, a pressure reducing valve must be
installed.
3). For measuring of the pipes and of the heating bodies in the heating system, the residual head value should be calculated
as a function of the requested flow rate, in accordance with the valves shown in the circulation pump graph
3. Drain connection
1). Extend the hose from the safety valve and connect the drain hole.
※ Caution ; Do not store any wettable things under the boiler or near the drain hole.
Name
Central Heating Return
Water Refill Valve
H
G
condensed water outlet
others
D
E
F
Gas Inlet
Safety Valve Discharge
& Drain Valve
Central Heating Flow
C
mark
A
B Domestic Hot Water Inlet
Domestic Hot Water Outlet
E
D
G
CB
A
F
H
󶠿󵰛󵹧

4. Installing neutralization device of condensate
1) 1Check the connection of the neutralization box and the hose from main heat exchanger.
2) Check the connection of the Air pressure s/w and make-up water hose.
3) Check the level of neutralizer whether it is enough or not. If need, fill it in the tank.
4) Connect the drain hose to the drain hole on the bottom of neutralization tank.
-. Caution!: Link the drain hose to the sewer of house which is made up with PVC or Stainless steel.
4) Check the water level and fill the water to safety level of neutralization tank by opening make-up water valve.
-. Caution !: Before the start of operation after installation or long stop, open and close the air pulling valve
on the top of main heat exchanger and keep the safety water level of the neutralization tank.
※ Warning! : When shortage of water in tank, it may cause the danger due to the return of the exhaust gas.
-. Keep and install the appliance horizontally in order to drain well the condensate.
Air pressure
s/w
Air outlet
Hose
Drain
safety
water level
condensed water inlet
condensed
water inlet
case
bottom
condensed water outlet
neutralizer
󶠿󵰛󵹧
