Kiturami KF-35B User manual

SU 120417

•Common KF - 35B
Make sure to keep the user's manual in the vicinity
of the boiler, after reading it.
The user’s manual describes the features of the product and the safety
requirements. Please read and make sure you fully understand the user’s manual
before using the products to ensure an extended lifecycle.
User's Manual
Kiturami
Firewood Boiler

Thank you for purchasing a KITURAMI boiler. Please carefully read and make sure you
fully understand the user’s manual to ensure correct operation and maintenance of the product,
and keep the manual safe. If the boiler operates abnormally or you have any questions about its
functions, etc., please refer to the manual.
Structure and Name
How to Operate
Precautions for Operation
How to Clean
How to Install
Test Operation and Installation of the Indoor Thermometer

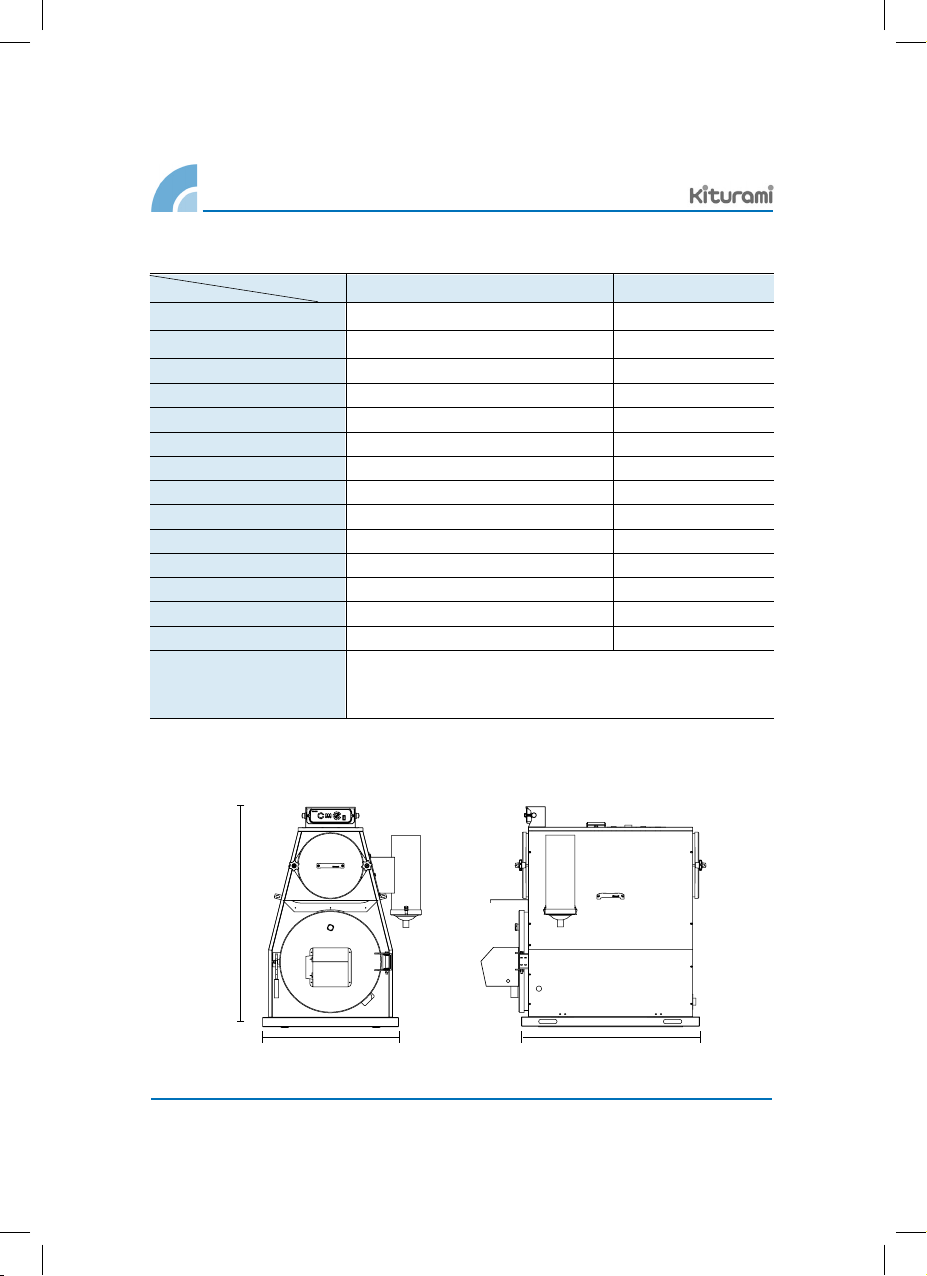

Specifications for the Boiler
Troubleshooting

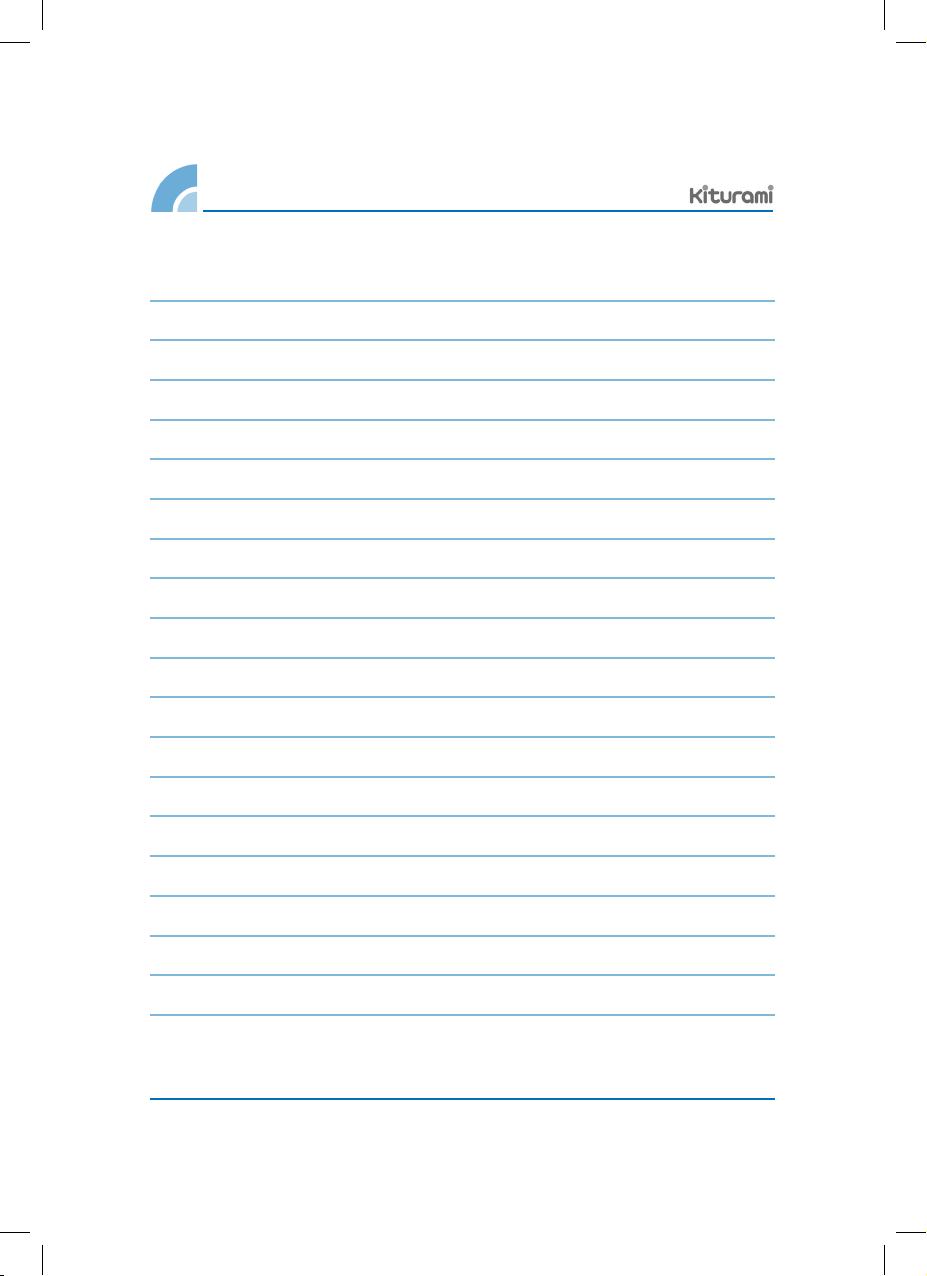

Memo
03
04
07
09
09
14
15
16
18
Hazard or unsafe practices that may result in severe personal injury or death.
Hazard or unsafe practices that may result in severe personal injury or death.
To reduse the risk of fire, explosion, electric shock, or personal injury when using boiler, please
refer to the manual carefully.
▲Precautions for Safety
※The user’s manual uses symbols to indicate that caution should be exercised to prevent accidents caused by
incorrect operation, or damage to the users and their properties. Please carefully read and make sure you fully
understand the symbols and their meanings to ensure correct operation of the product.
※The precautions are classified into three categories:
DANGER
WARNING
CAUTION

3
Structure and name
KF-35B
Flue
Flue
Frame monitoring
window
Firewood feeding
door handle
Blower
cover
Handle
movement
Controller
Automatic air control
Hot water inlet
Heating water outlet
Hot water outlet
Controller
cover
Back of flue
cleaning port
Heating water
collection
Controller cover
<Front>
<Right>
Included accessories: The KF-35B User s Manual, cleaning tools, and corrugated drain pipe.

How to Operate
4

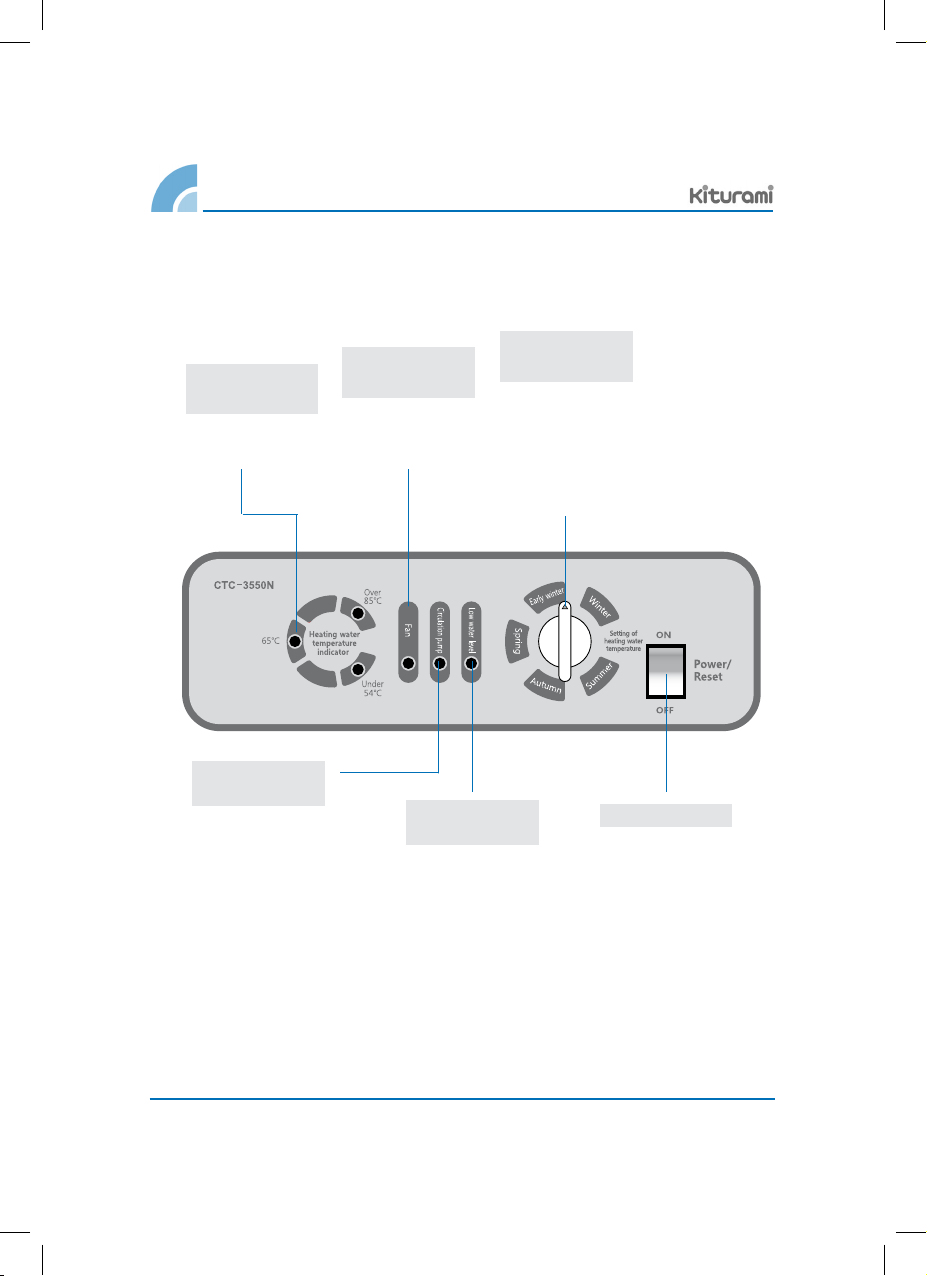

Name of Each Component (CTC-3550N)
Boiler water
temperature
Water temperature
in the boiler.
Exhaust function
lamp
This lamp is turned
on when the boiler
exhaust fan works.
Circulation pump
lamp
The water is being
circulated.
Low water-level
lamp
The water is
insufficient in the
boiler.
Season selection
button
You can set the
heating water
temperature. You
can set the
preferred
temperature.
Power S/N
Boiler operation
switch (ON/OFF)

5
How to Operate

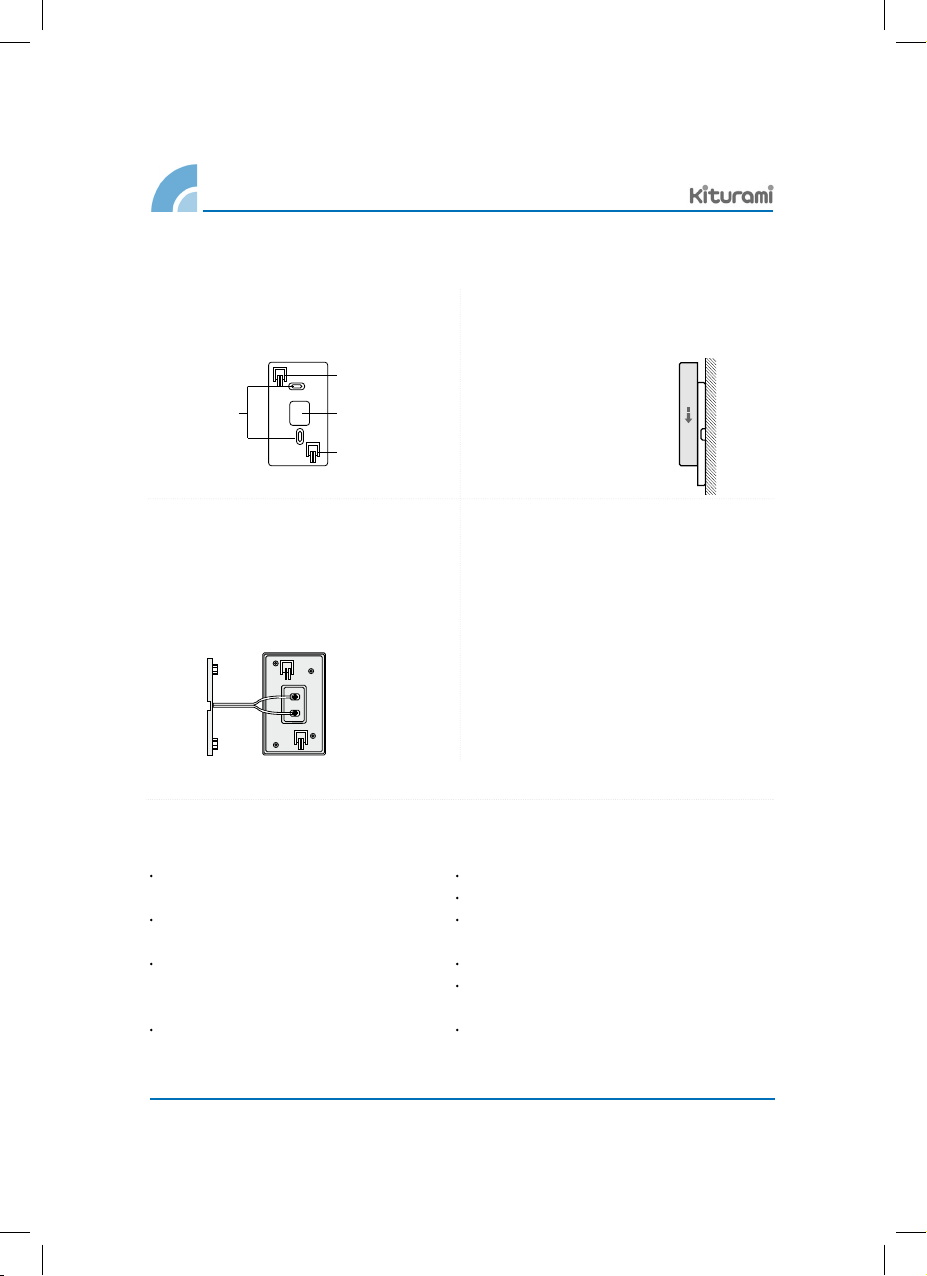

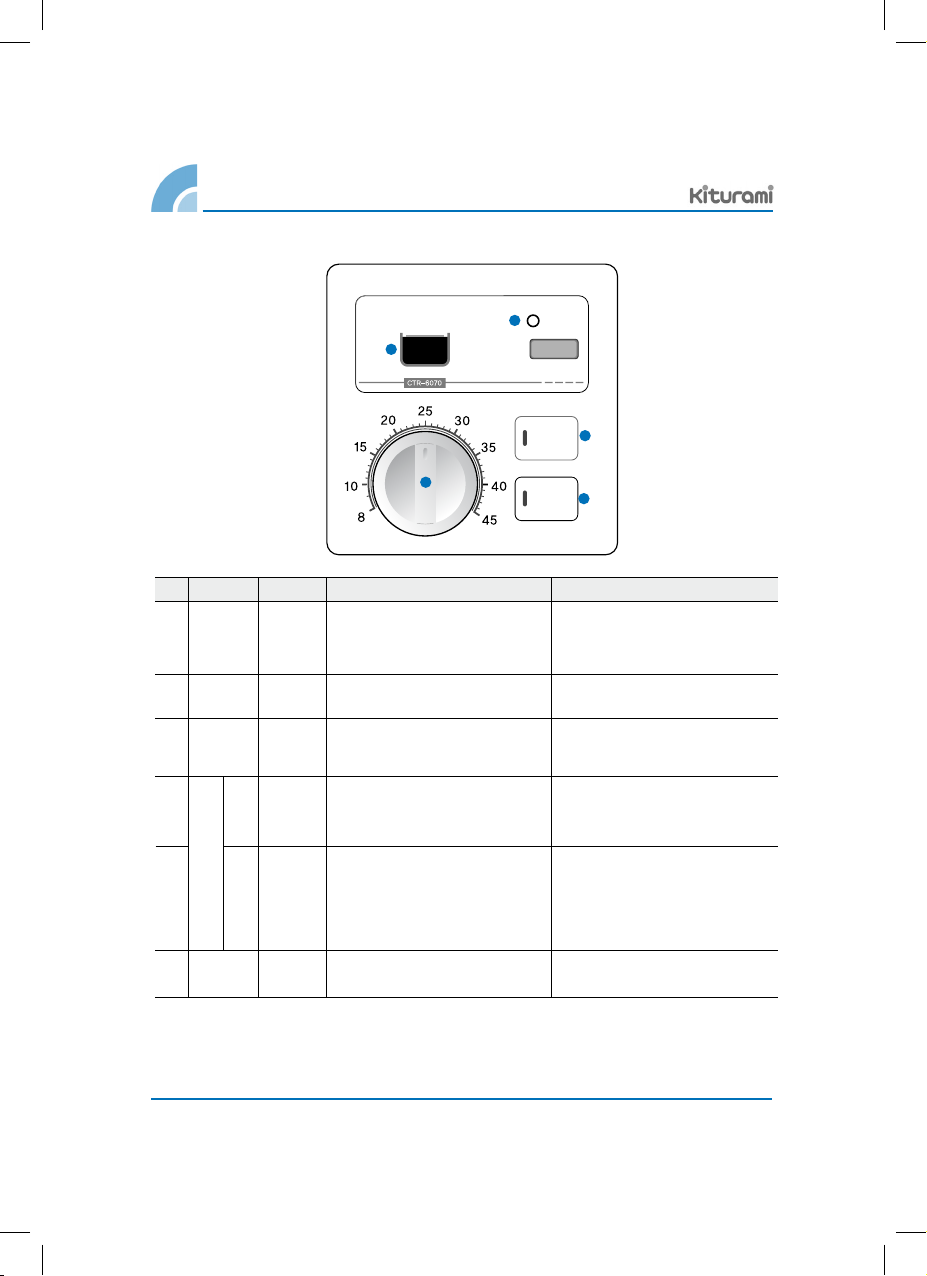

Name of Each Part of the Room Thermostat (CTR-6070)
LED
DISPLAY
LED
VOLUME
S/W+LED
S/W+LED
SWITCH
• Display of current temperature in
numbers.
•
LED is lit if the room controller works.
• Room temperature setting volume
•
Setting and display for the room function
• Setting and display for the bath function
• his switch is used to turn the power of
the boiler on/off. After turning off and on,
manual return is done.
•
 In case of am abnormality in the boiler,
the LED flashes.
•  If the Option function works, display of
the operation.
• Flash of LED in case of a boiler
abnormality (check)
• Operation at set temperature
• Initial mode
• Option function: Heating water
temperature setting function
• Water temperature is maintained at
83°C(adjustable).
• Automatic return to heating function
after 2.5 hours.
• Option function: Hot water temperature
setting function
• Manual return (restart) is possible up to 3
times. (Clear after 5 minutes)
No.
1
2
3
4
5
6
Name Component Function. Remarks
Operation
/check
Room
temperature
setting switch
Function
selection
ROOM
BATH
Power
/Restart
button
Current
temperature
Hot Water
Temp.
Operation
POWER
ROOM
BATH
5
4
3
1
2

How to Operate
6
How to Ignite the Firewood
1) Ignition throgh using tinder
2) Ignition Through Using the Wood
3) Insert wood in a good size enough to close the wood hatch completely.
Ex) The burning time may be differ with the kind of wood and, in general, 20kg of firewood may
be burnt for 4-5 hours.
Stack completely dried wood (thin wood) in the firebox in a zigzag pattern and light the firewood
using paper or cardboard box scraps.
-> Continuous combustion is possible through adding more firewood as soon as wood is lit
<When inserting the firewood>.
Insert wood in a good size enough to close the wood hatch completely
Put the "Tinder" in the central part of the firebox, add the firewood, and light the Beongaetan
using papers, etc. Keep the ashtray hole open until the firewood is ignited to a certain level.
When the firewood is completely lit close the hole.
·ON/OFF Set point of fan and circulation pump
Fan
ON OFF ON OFF
Heating water temp. Setting
Summer (45)
Autumn (55)
Spring (65)
Early winter (75)
Winter (85)
Circulation pump
45
48
56
64
64
50
55
65
75
75
48
50
58
67
74
43
45
46
53
55

7

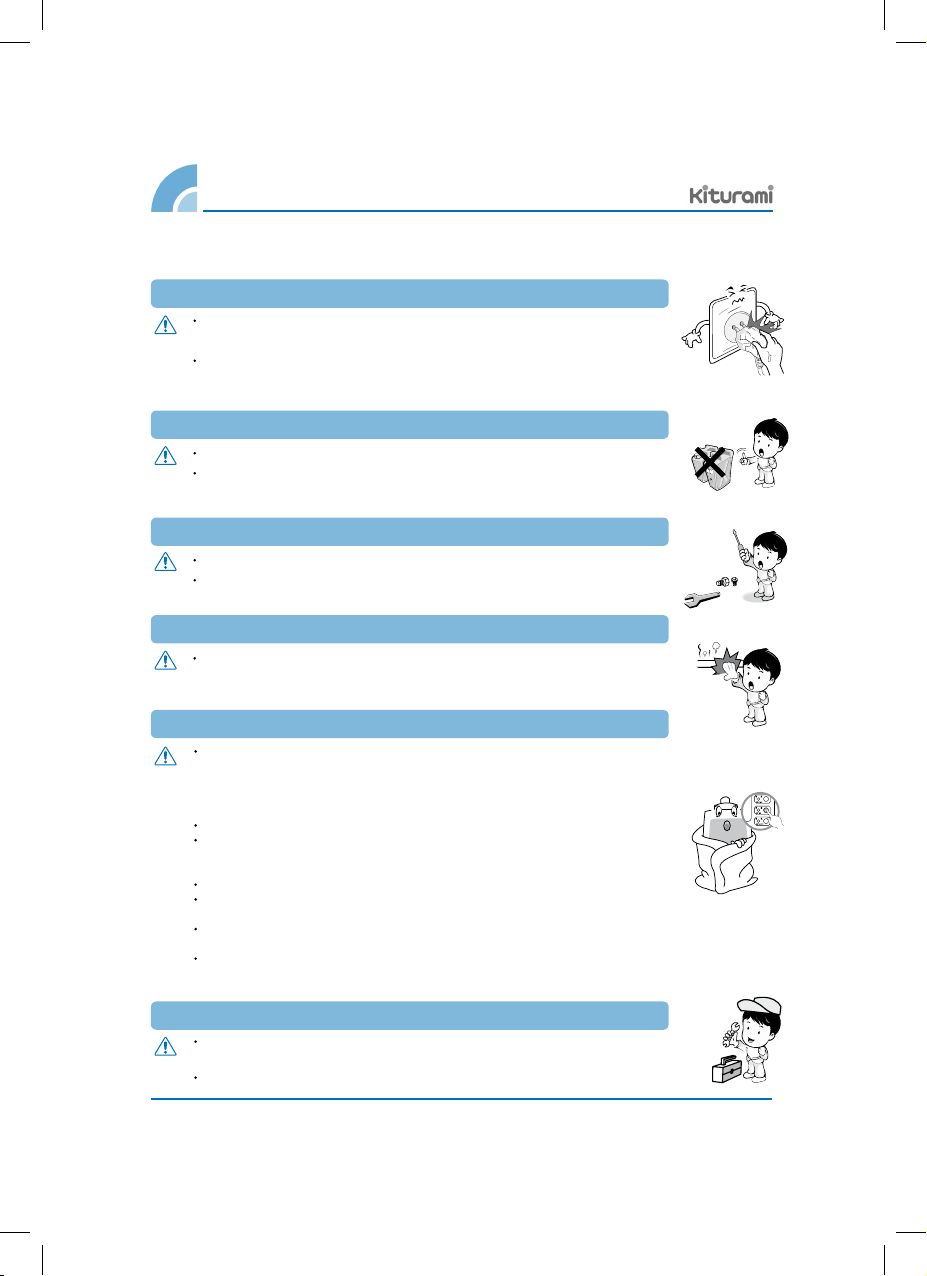

Precautions
Precautions

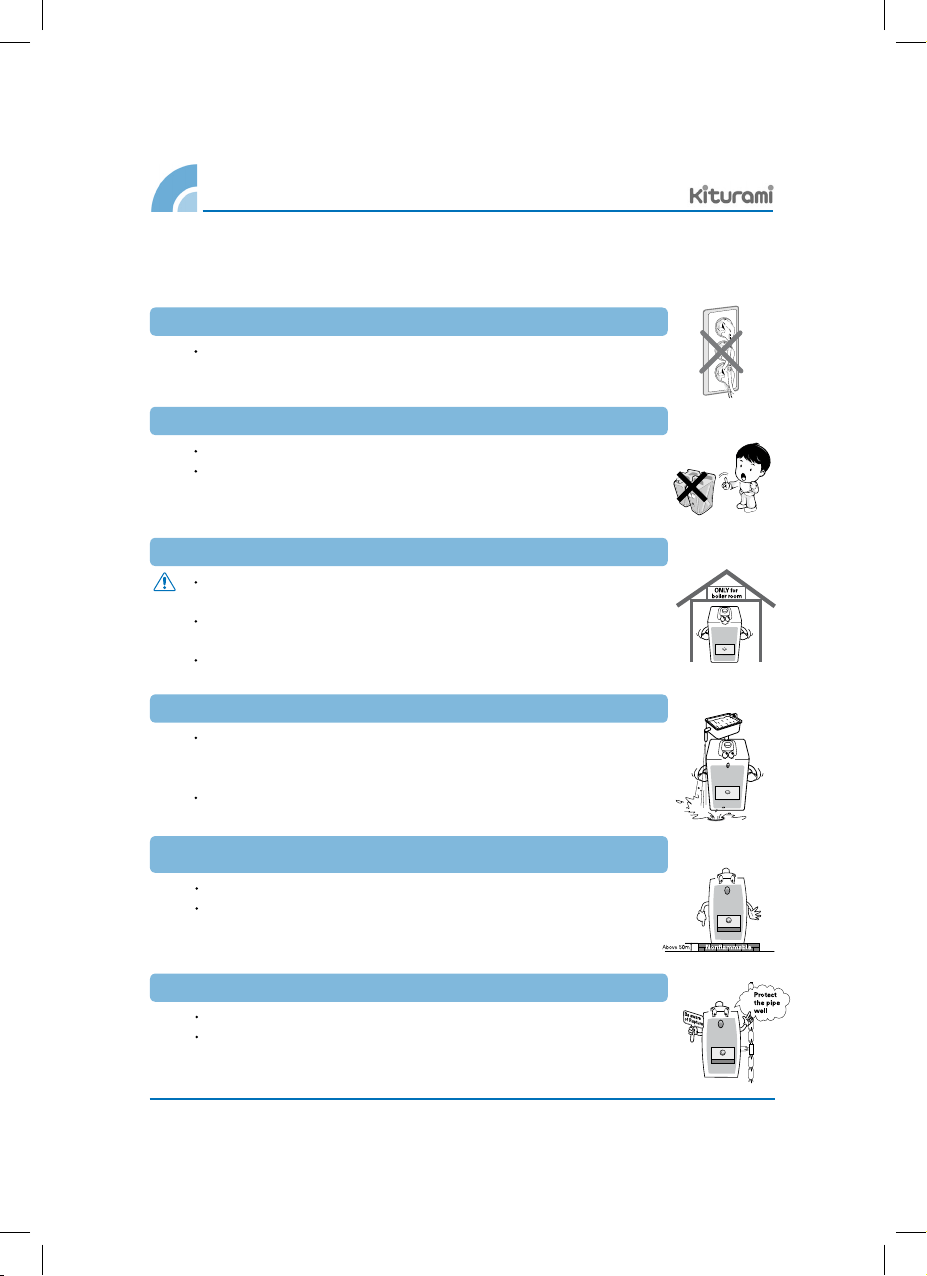

The boiler shall be inspected once a year.
Request your distributor to conduct periodic inspections of the boiler
(i.e., once or twice a year).
You can operate the boiler safely only when the boiler has been properly inspected.
Prevent frozen rupture during winter season.
If the product is connected to the pipes, and the pipes are fully filled with water,
connect the power cable to the outlet. If there is insufficient water in the pipes, then
supply water to the pipes in accordance with the water makeup method. Operating
the rupture prevention circuit when the pipes are filled with insufficient water may
cause the pump to run idle or cause overheating or failure of the pump.
Fully insulate the pipes.
Take the appropriate actions to prevent a frozen rupture by, for example, winding
heating coils around the exposed pipes in the cold area.
(It is also desirable to install the pipes adjacent to the heating pipes for insulation.)
Do not wrap the water drain valve with an insulator.
When you do not use the boiler for an extended period, drain the water from the
boiler to prevent a frozen rupture, and disconnect the power cable from the outlet.
The exposed pipes should be wrapped with an insulator 25mm thick or more to
prevent the pipes from freezing (50 mm or more in cold areas)
f you leave your home for a number of hours, open the hot water tap in the kitchen
slightly to allow a small volume of water to flow into the hot water pipe to prevent a
frozen rupture of the tap water pipe.
Use the power outlet exclusive for the boiler, and be cautious for leakage.
The operating power is AC 230 and 50 Hz. Operate the boiler only after checking
the voltage.
Do not touch the power cable or operate the boiler with wet hands to avoid
electric shock. Never clean the boiler with water as a leak, shock or failure of
the boiler may result.
Do not place combustible or inflammable materials in the vicinity of the boiler.
Put a fire extinguisher in the boiler room
Do not stack wooden materials or place inflammable or combustible materials
in the vicinity of the boiler, and keep the area surrounding the boiler clea
Never touch the stovepipe while you operate boiler.
You may get burnt.
Never disassemble, repair or modify without approval of the manufacturer.
Shock or fire may result.
Contact the local distributor when the boiler needs repairing.
DANGER
WARNING
WARNING
WARNING
CAUTION
WARNING

Precautions
8
Install the boiler in a structure where cleaning is easy.
The use of wet wood requires frequent cleaning due to resin; use dry
firewood if possible.
If you use wet wood, you should clean the boiler every 3-4 days.
In a power failure, be careful about overheating.
If electric power is not supplied, the blower and circulation pump do
not work and the risk of overheating and fire is increased.
Do not add an excessive quantity of fuel at anytime.
If an excessive large quantity of fuel is added, the hot water or steam
can burn you, as overheating is likely to occur.
When opening/closing the wood hatch, be careful to not burn your self.
When opening the wood hatch, open the door in a lateral direction in
order to avoid possible heat burns.
After adding firewood, tightly close the inlet.
The sparks may cause a fire in the surroundings area.
As sparks may be dispersed resulting in a fire during the time to treat
the ash, clean the product after the complete removal of embers.
Cautions in using wood fuel
Use the designated fuel only.
Firewood can only be used in this boiler. Use of other fuel (brown coals,
briquettes, or household waste may reduce the lifetime of the product
and should be prohibited.
※ Our product DO NOT gurantee any flaw occurred by using material EXCEPT wooden fuel like oval
briquets, brown coals, etc,.
WARNING
WARNING
CAUTION
WARNING
WARNING
WARNING

9

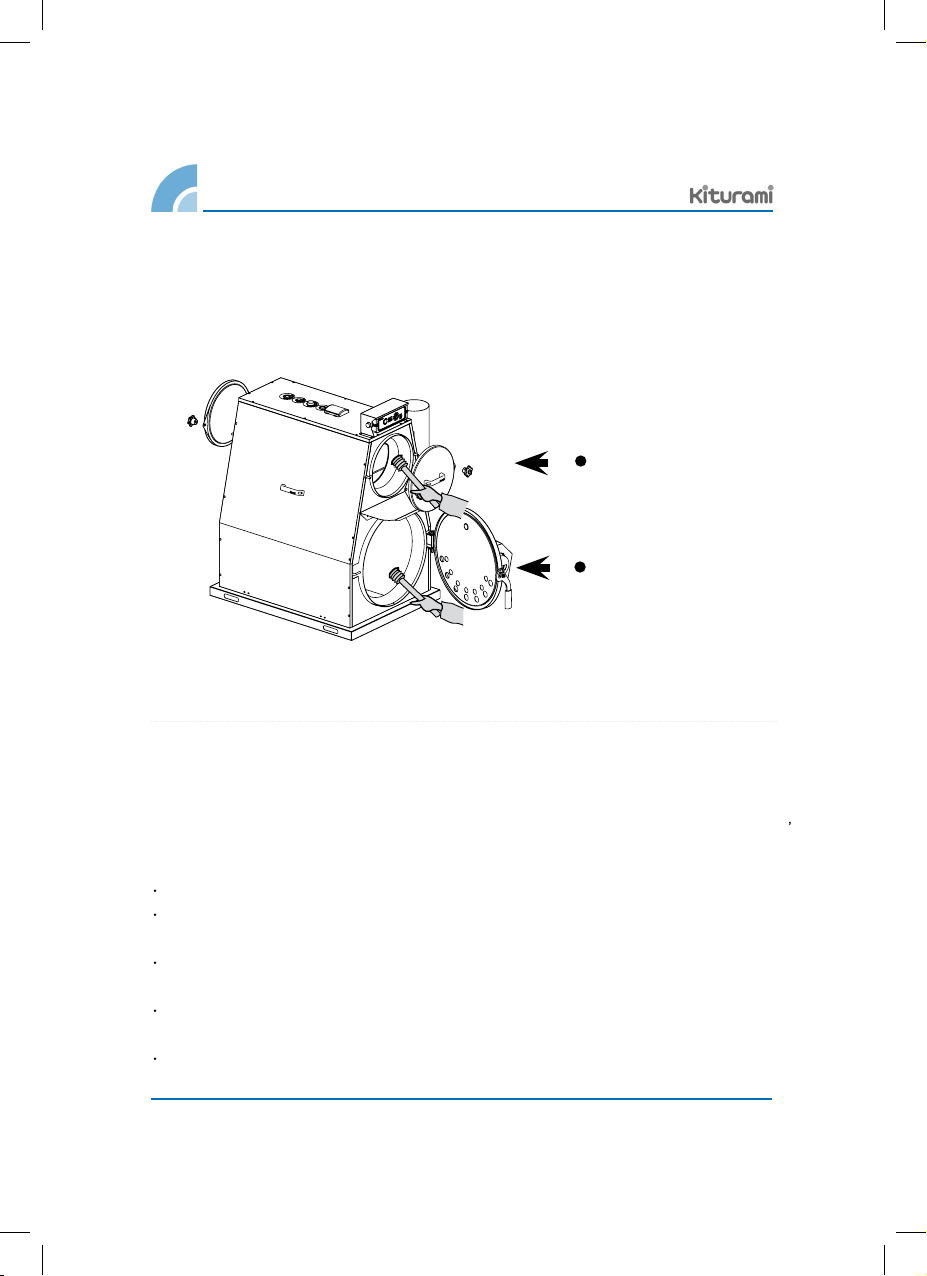

How to clean
How to clean the firewood combustion chamber
Especially, if firewood is used, the boiler should be cleaned at least once a week in
order to save on fuel costs.
※Note: When cleaning the cleaning port, fire chamber, or flue, disconnect
the exhaust fan and open the door.
How to install
▶Conditions to be checked prior to installation
The product shall be installed by authorized engineer pursuant to the methods stipulated in the users
manual.
Install a boiler suitable for the purpose of use and the CH area.
Install the boiler in a location such that exhaust gas or noise from the boiler does not cause
inconvenience to the users or to residents in the vicinity of the boiler’s location.
Do not install the boiler in a location adjacent to areas frequently accessed by people, such as a
staircase or emergency exit.
Secure sufficient space for the operation, inspection and repair of the boiler (1 m or more at the
front,rear, and left- and right-hand sides of the boiler).
The use of water (for CH) containing a large quantity of lime or salinity causes corrosion of the
product. Always use tap water if possible.
1Cleaning upper part
2Cleaning lower part
push out the ash using an ash cleaning tool

How to install
10
Make sure thoroughly for keeping pipe warmth of the Boiler.
The pipe may be exposed to the risk of a rupture due to freezing.
The exposed pipe should be wrapped with an insulator thicker than 25
mm to prevent the pipe from freezing (50mm or more in a cold area).
Keep the floor level by making use of incombustible materials such as cement blocks
prior to installing the boiler.
Install the boiler at a location 50 mm above the floor.
When installing the boiler directly on the floor, the support of the boiler
may be corroded, thereby reducing the lifecycle of the boiler.
Use the outlet exclusion for the boiler.
Otherwise, fire may breakout.
Prevent the stovepipe from contact with combustible materials.
Otherwise, fire may breakout.
Finish the contact points with an incombustible insulation material
when installing the flue to prevent fire.

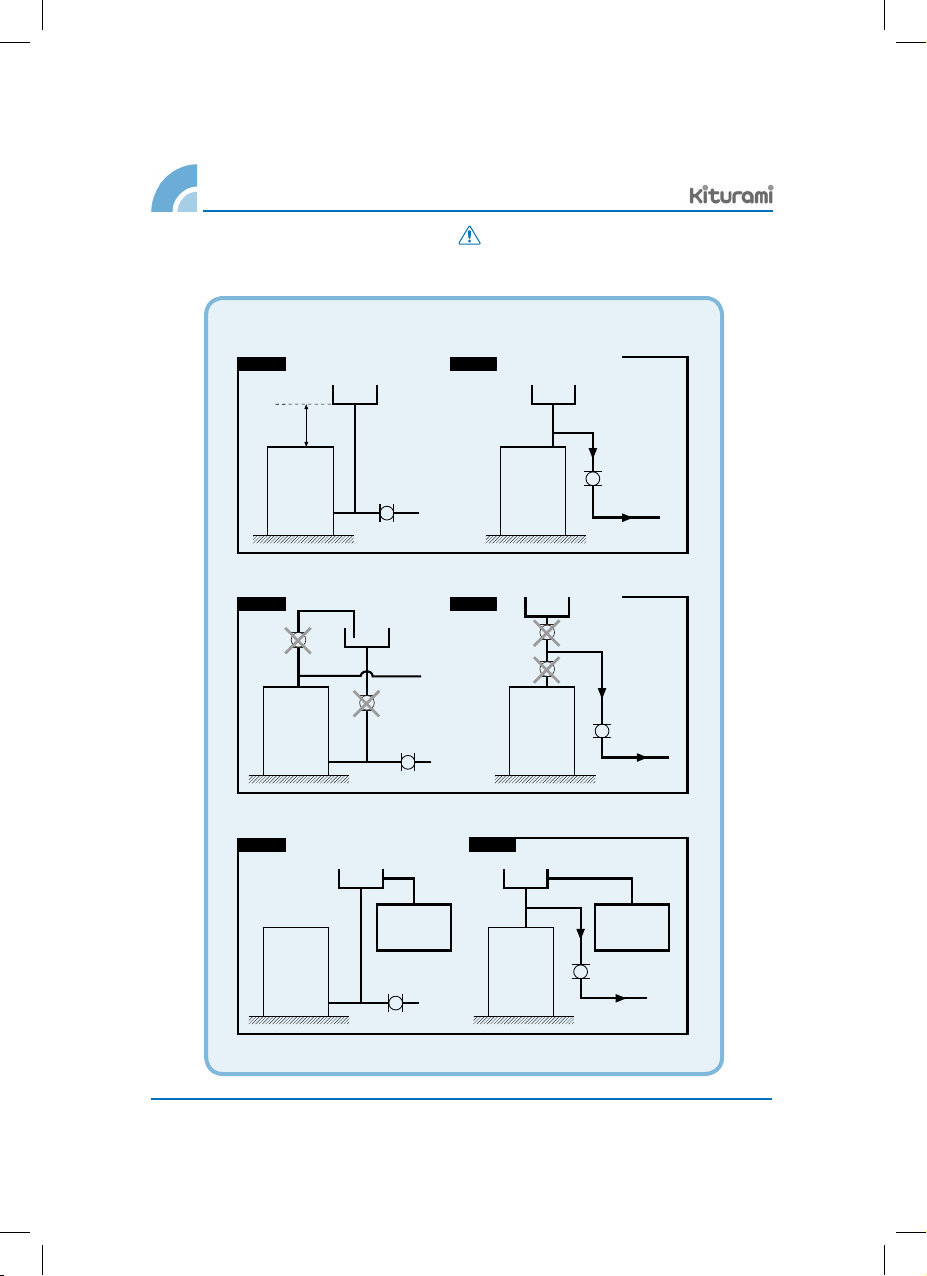

Drainage of boiler
If the capacity of the boiler is deficient for the heating area, the safety
valve may open often. Install a nitrogen tank suitable for the capacity.
(Overflow)
Connect hoses from the safety valve and the air vent to the sewage
pipe on the floor to drain water.
Install the boiler in a boiler room, if any.
Install the boiler in a boiler room if possible to prevent exhaust gas from
being introduced into the living room.
Do not install the boiler in a bathroom or a space without a vent. Lack of
oxygen causes incomplete combustion.
Never install the boiler in an outdoor environment so as to prevent a
rupture due to freezing.
АьїлєёАП·ЇЅЗ
WARNING

11
How to install
Installation of flue
▶Install the flue 3m above the boiler
along with a T unit at the end of
the flue in order to prevent
incomplete combustion caused by
damaging winds.
Cautions for Installation
Install the flue in such a way that the flue is free from the
wind pressure zone, rain or wind.
If there is a tall building or an obstacle within 1 m of the
flue, install the flue 1 meter higher than the roof of the
building.
Install the flue at a location 3 meters or higher than the
top of the boiler
The height of the installed flue should be greater than
three times the horizontal length.
If the flue is installed in a wind pressure zone, excessive soot
resulting from incomplete combustion may result, thus
reducing operational efficiency, safety shutdown may be
triggered, causing abnormal operation of the boiler To
prevent this, the flue should be installed in a position outside
the wind pressure zone.
Especially, when you use wood or coal fuel, you should
avoid the wind pressure band.
FLUE
Drainage device
Install the device with
inclination of 5 degrees
3M
1M
T pipe
Drainage device
1M or longer
1M or longer
Shorter
than 1M
Drainage
device
1M or longer
3M or longer
Wind pressure
zone
Distance
FLUE
Distance
Distance
Distance
The distance length
between rafter and celing
Warning: Installation of additional flue
1.Clearance greater than 30 cm should be ensured
from the flue to prevent contact with combustible
materials, and the flue should be finished with
incombustible materials.
2.Sudden heat may be emitted by the flue when
supplying the fuel. Do not store inflammable or
combustible materials in the vicinity of the stove
pipe. Install the flue, taking care to ensure
sufficient clearance from the flue.

How to install
12
Standard Piping Diagram
<Upward Piping System>
<Down Piping System>
Ø150
Ø150
Return water distribution
Return water distribution
CH (Central
Heat) Return
CH (Central
Heat) Return
Water
supply
Water
supply
<Back side of the product>
<Back side of the product>
<Back side of
the product>
<Back side of
the product>
Water supply pipe
Water supply pipe Expansion tank
Heating exit
Safety valve
Heating exit
Air vent
Nitrogen tank
(Above 20L)
Circulation pump
Circulation pump
Hotwater inlet
Hotwater inlet
Hot water outlet
Hot water outlet
Pressure gauge
Distributor
Distributor
Above 3M
Above 3M

13
How to install
Requirements when piping
BOILER
1M
EXPANSION
TANK
CIRCULATION
PUMP BOILER
EXPANSION
TANK
CIRCULATION
PUMP
ex. 1 ex. 2
BOILER BOILER
ex. 1 ex. 2
VALVE VALVE
VALVE
VALVE
BOILER BOILER
ex. 1 ex. 2
SUPPLEMENT
WATER
SUPPLEMENT
WATER
WARNING
①Please install the expansion tank 1m higher than from the top of the boiler
②DO NOT use valve at the fall pipe or expansion tank pipe
③Supply water pipe should be directly connected with expansion tank.

Test Operation and How to Install
The Room Thermometer
14
How to Connect the Room Thermometer
1) Install the attachment plate at 1.5M from the
bottom having small thermal change.
2) Connect the cable with the terminal on the
back of the room thermometer (CTR-6070).
※When wiring the room thermometer connect
the signal cables to meet the polarity and do
not connect them with 110V or 220V power
cables.
3) Attach the room thermometer (CTR-6070) by
pushing against the wall so that the hanging
part matches with the attachment loop and
by pulling it downward.
4) The cable of the room thermostat should be
independently installed with exposure.
※Do not bury the cable in the bottom or in the same
pipe. Otherwise, the sending/receiving signals
may become unstable resulting in operation
trouble. Also, if the cable coating is aged due to
the passage of time, electric leakage or a short
may be caused.
Attaching loop(UP)
Canle outlet
Scew in the
anchoring
parts Attaching
loop(DOWN)
+
: Red
－
: White
Wall
Checkpoints after Installation
Do the pipe parts not show any signs of
leaking?
Is the boiler installed horizontally and
parallel with the bottom?
Is there any ignitable or combustible
material, such as gasoline, gas cylinders,
and thinner, etc., near the boiler?
Is the flue properly installed?
Is the oil pipe deaerated?
Is the heating pipe deaerated?
Are the hot water pipe and cold water pipe
installed with isolation?
Is the water supply pipe properly connected?
Are the boiler pipes and flues covered with thermal
insulator?
Is the power AC 220V/50Hz?
※If there is any problem with the above-stated matters, contact the distributor in
order to get the required measures.

15
Boiler specifications
※Temperature of exhaust gas : ≥300℃
※The outer design and specifications are subject to change for improving the performance of the product.
■Product drawings
KF-35B (Front/Side)
W
H D
Rated capacity(firewood)(kcal/h)
25,000
83~99
40~50/1회
85%
85%
When 40Kg is combusted
Based on dry wood
Based on dry wood
0.1(1)
32
103
3.7
15
150
780x1,300x1,150mm
250
AC230Vx50Hz
RemarksKF-35B
Item Model
Fuel feeding quantity (kg)
Heating area (m2)
Heating efficiency (%)
Hot water efficiency (%)
Max. service pressure (kg/cm2)
Heating inlet/outlet (A)
Irrigation capacity (liter)
Safety function
·Overheating shutdown function and
overheating prevention function
·Low level function
·Freeze-rupture prevention function
·Air processing function for initial test
operation
·Constant temperature function for firewood
(Blower and circulation pump control)
Heating area (m2)
Hot water inlet/outlet (A)
Flue hole (A)
External dimensions (WxDxH)
Weight (kg)
Electric power (V)

Troubleshooting
16
※If any abnormality if found during the operation of the boiler, do not take measures at your own
discretion. Refer to the below-stated matters. If any disorder is generated in the boiler, the
check lamp on the room thermostat flashes and the corresponding lamp is turned on to meet
the state on the controller. If the abnormal state continues, contact a local distributor.
The controller is turned on
but no power is supplied.
Failure Troubleshooting
Check whether the controller is plugged into the outlet and, after
unplugging the controller, plug in other home appliances such as an
electric iron, etc.
If other home appliances work, contact a local distributor or A/S center.
Power is supplied but the
boiler does not work.
The boiler works properly
but the room is cold.
Check that the blower and circulation pump are properly connected.
In many cases, the driving part of the boiler circulation pump has a
problem.
Check the heating pipes for the existence of air and deaerate the pipes if
required.
The combustion sound
is loud.
The flue is not adequately installed or is not thermally insulated. Correct
the installation of the flue or thermally insulate the flue.
If the abnormality continues, contact a local distributor or A/S center.
Black dirt is suddenly
generated during operation
without any disorder actuating
the safety valve, or smoke is
generated.
Foreign substances are precipitated in the flue and cleaning port.
Open the cleaning port, remove the flue, and remove the foreign
substances using a cleaning tool. For cleaning method, refer to Page 7.
"96" flashes.
The heating water temperature in the boiler is excessively high and the
operation of the boiler is suspended. In this case, the circulation pump is
actuated and reduces the heating water temperature in the boiler.
If the abnormality continues, contact a local distributor or A/S center.

17
Troubleshooting
Failure Troubleshooting
"95" flashes and the
controller's "Low Level
Lamp" is on.
The water is insufficient in the boiler. Turn the tap on in order to check for a
suspension in the water supply. if the water supply is suspended, take
measures for a proper supply of water.
If release is not continuously done and makeup water is not supplied,
contact a local distributor or A/S center.
Blowing/Exhaust fans do
not work.
Check the connector for wrong contact.
Contact a local distributor or A/S center.
Water flows out of the fire
chamber or combustion
pipe.
This is a natural phenomenon where the water is condensed (due to the
difference in temperatures) if you light the firewood in the state where the
heating temperature is low and this condensation phenomenon
disappears when the temperature rises.
Water may gather with condensation if the boiler in front of the cleaning
port is not horizontally balanced and rain water may flow in through the
flue when it rains.
"04" flashes. The temperature sensor is disconnected.
Contact a local distributor or A/S center.

MEMO
18

19
MEMO
