KJ KJ39E User manual

KJ39E
Digital Multimeter
Operation Manual

1
Overview
This Operating Manual covers information on safety
and cautions. Please read the relevant information
carefully and observe all the Warnings and Notes strictly.
Warning
To avoid electric shock or personal injury, read the
“Safety Information” and rules for safe operation
carefully before using the Meter.
Digital Multimeter Model KJ39E(hereafter referred to as “the
Meter”) is 3 1/2 digits with steady operations, pocket size,
fashionable structure and highly reliable hand-held
measuring instrument. The Meter uses large scale of
integrated circuit with double integrated A/D converter as its
core and has full range overload protection.
The Meter can measure AC/DC Voltage, DC Current,
Resistance, Diodes, Continuity and so on. It is ideal tool for
users.
Unpacking Inspection
Open the package case and take out the Meter. Check the
following items carefully to see any missing or damaged part:
zOperating Manual 1 piece
zTest Lead 1 pair
z9V Battery (6F22 or equivalent) 1 piece
In the event you find any missing or damage, please
contact your dealer immediately.

2
Safety Information
In this manual, a “ Warning” identifies conditions and
actions that pose hazards to the user, or may damage
the Meter or the equipment under test.
A “Note” identifies the information that user should pay
attention to.
This Meter complies with the standards IEC 61010-1: in
pollution degree 2, overvoltage category (CAT.III 600V) and
double insulation.
CAT.III: Distribution level, fixed installation, with smaller
transient overvoltages than CAT.IV
Use the Meter only as specified in this operating manual,
otherwise the protection provided by the Meter may be
impaired.
Warning
To avoid possible electric shock or personal injury,
and to avoid possible damage to the Meter or to the
equipment under test, adhere to the following rules:
zBefore using the Meter inspect the case. Do not use
the Meter if it is damaged or the case (or part of the
case) is removed. Look for cracks or missing plastic.
Pay attention to the insulation around the connectors.
zInspect the test leads for damaged insulation or exposed
metal. Check the test leads for continuity. Replace
damaged test leads with identical model number or

3
electrical specifications before using the Meter.
zDo not apply more than the rated voltage, as marked on
the Meter, between the terminals or between any terminal
and grounding. If the value to be measured is unknown,
use the maximum measurement position and reduce the
range step by step until a satisfactory reading is obtained.
zWhen measurement has been completed, disconnect the
connection between the test leads and the circuit under
test, remove the testing leads away from the input
terminals of the Meter and turn the Meter power off.
zThe rotary switch should be placed in the right
position and no any changeover of range shall be made
during measurement is conducted to prevent damage of
the Meter.
zDo not carry out the measurement when the
Meter’s cover is not closed to avoid electric shock.
zDo not input higher than 600V between the Meter’s
terminals and the grounding to avoid electric shock and
damages to the Meter.
zWhen the Meter working at an effective voltage
over 60V in DC or 30V rms in AC, special care
should be taken for there is danger of electric
shock.
zUse the proper terminals, function, and range for your
measurements.
zDo not use or store the Meter in an environment of high
temperature, humidity, explosive, inflammable and strong
magnetic field. The performance of the Meter may
deteriorate after dampened.

4
zWhen using the test leads, keep your fingers behind the
finger guards.
zDisconnect circuit power and discharge all high-voltage
capacitors before testing resistance, continuity and diode.
zReplace the battery as soon as the low battery indicator
“”appears. With a low battery, the Meter might produce
false readings that can lead to electric shock and personal
injury.
zWhen servicing the Meter, use only the same model
number or identical electrical specifications
replacement parts.
zThe internal circuit of the Meter shall not be altered at will
to avoid damage of the Meter and any accident.
zSoft cloth and mild detergent should be used to clean the
surface of the Meter when servicing. No abrasive and
solvent should be used to prevent the surface of the Meter
from corrosion, damage and accident.
zThe Meter is suitable for indoor use.
zTurn the Meter off when it is not in use and take out the
battery when not using for a long time.
zConstantly check the battery as it may leak when it has
been using for some time, replace the battery as soon as
leaking appears. A leaking battery will damage the Meter.
International electrical symbols
Double Insulated. Grounding.
Low battery indicator Diode.

5
DC(Direct Current).
Continuity Test.
AC (Alternating
Current).
Warning. Refer to the Operating Manual.
Conforms to Standards of European Union.

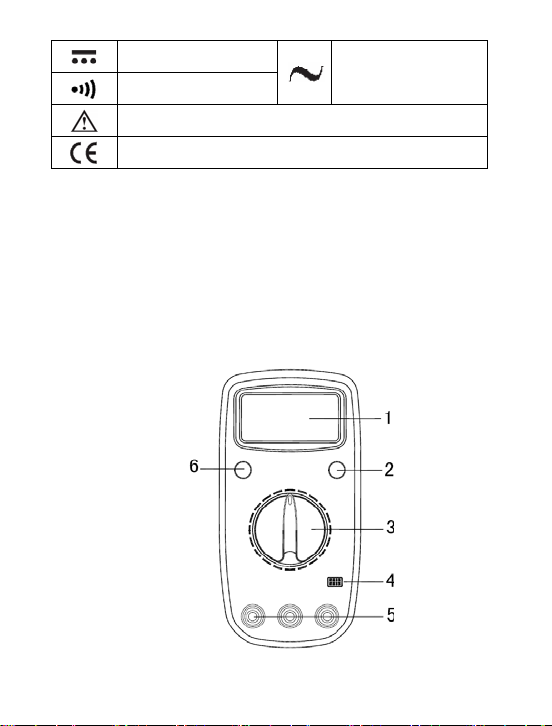

The Meter Structure (see figure 1)
1. LCD Display
2. Backlight button
3. Rotary Switch
4. Transistor hFE test socket
5. Input Terminals
6. Data HOLD button
Figure 1

6
Function description
Rotary switch position Description
DC voltage measurement
V～AC voltage measurement
ΩResistance measurement
Diode test
Continuity test
DC current measurement
hFE Transistor hFE test
Buttons
Data hold button
Backlight button
Measurement Operation
DC/AC Voltage Measurement
To measure DC/AC voltage, connect the Meter as follows:
·Set the rotary switch to desired or V～ range.
·Connect the RED test lead into “VΩmA” input terminal and
BLACK test lead into “COM” input terminal.
·Connect the test leads across with the object being
measured.
·Read the value from display. AC voltage reading is effective
value of sine wave (mean value response).
·Press HOLD button if need.

7
Warning
a) To avoid harms to you or damages to the Meter from
electrical shock, do not attempt to measure voltages
higher than DC /AC 600V rms, although readings may be
obtained.
b) When the Meter working at an effective voltage over
60V in DC or 30V rms in AC, special care should be taken
for there is danger of electric shock.
c) When the measurement has been completed,
disconnect the connection between the testing leads and
the circuit under test and remove testing leads from the
input terminals.
DC current Measurement
To measure DC current, connect the Meter as follows:
·Set the rotary switch to desired range.
·Connect the RED test lead into “VΩmA” or “10A” input
terminal and BLACK test lead into “COM” input terminal.
·Connect the test leads in series with the circuit being
measured.
·Read the value from display.
·Press HOLD button if need.
Warning
a) If magnitude of the current is unknown, always
start with the highest range and reduce until satisfactory

8
reading is obtained.
b) If “1” or “-1” is shown on the LCD, it means the Meter is
overloaded, then set the measuring range to higher.
c) The protection of mA input terminal : Self-Healing Fuse,
and 10A /250V Fast.
d) When the measured current is more than or equal to
10A, the continuous measurement time is 10 seconds
maximum and interval time between 2 measurements
greater than 15 minutes.
e) Remember to cut off the power supply of the circuit be
measured before connect it.
f) Do not apply any voltage to the input when the Meter is
working in current measuring mode.
g) When the measurement has been completed,
disconnect the connection between the testing leads
and the circuit under test and remove testing leads from
the input terminals.
Resistance Measurement
Warning
To avoid damages to the Meter or to the devices
under test, disconnect circuit power and discharge

9
all the high-voltage capacitors before measuring
resistance.
To measure resistance, connect the Meter as follows:
·Set the rotary switch to desired Ωrange.
·Connect the RED test lead into “VΩmA” input terminal and
BLACK test lead into “COM” input terminal.
·Connect the test leads across with the object being
measured.
·Read the value from display.
·Press HOLD button if need.
Warning
a) Do not apply any voltage to the input when the Meter is
working in resistance measuring mode.
b) If resistance of the circuit or resistor be measured is
open or higher than the range be selected the display
will show “1”.
c) For low resistance measurement, it maybe make
some additional error due to the resistance of the test
leads, at this case, as a tip you can short the test leads
firstly and record down the resistance, then subtract it
from the measuring value to obtain the more accurate
result. If the short resistance of the test leads is up to
0.5Ω, it is need to double check if the test leads are
loosened or other troubles exist.
d) It is normal for taking a couple of seconds to get the

10
steady reading when you do the resistance
measurement greater than 1MΩ.
e) When the measurement has been completed,
disconnect the connection between the testing leads
and the circuit under test and remove testing leads from
the input terminals.
Diode Test
Warning
To avoid damages to the Meter or to the devices
under test, disconnect circuit power and discharge
all the high-voltage capacitors before testing
the diode in circuit.
To do diode test, connect the Meter as follows:
·Set the rotary switch to “ “ range.
·Connect the RED test lead into “VΩmA” input terminal and
BLACK test lead into “COM” input terminal.
·Connect the RED test lead to the anode and BLACK test
lead to cathode of the diode be tested.
·Read the approx. forward voltage of the diode from the
display. For Si diode this voltage is normal of 0.5～0.8V.
·Press HOLD button if need.
Warning
a) Do not apply any voltage to the input when the Meter is

11
working in diode test mode.
b) If diode is open or connected by reverse the display will
show “1”.
c) In a circuit, a good diode should still produce a forward
voltage drop reading of 0.5V to 0.8V; however, the
reverse voltage drop reading can vary depending on the
resistance of other pathways between the probe tips.
d) When the measurement has been completed,
disconnect the connection between the testing leads
and the circuit under test and remove testing leads from
the input terminals.
Continuity Test
Warning
To avoid damages to the Meter or to the devices
under test, disconnect circuit power and discharge
all the high-voltage capacitors before doing
continuity test in circuit.
To do continuity test, connect the Meter as follows:
·Set the rotary switch to range.
·Connect the RED test lead into “VΩmA” input terminal and
BLACK test lead into “COM” input terminal.
·Connect the test leads across with the object being tested.
·Read the value from the display.
·The buzzer sounds if the resistance of a circuit under test is
less than or equal to 50Ω. The buzzer may or may not
sounds if the resistance of a circuit under test is between

12
50Ωto 100Ω. The buzzer does not sound if the resistance
of a circuit under test is higher than 100Ω.
·Press HOLD button if need.
Warning
a) Do not apply any voltage to the input when the Meter is
working in contonuity test mode.
b) The open voltage of input terminal is approx. 3V.
c) When the measurement has been completed,
disconnect the connection between the testing leads
and the circuit under test and remove testing leads from
the input terminals.
hFE Measurement
Warning
To avoid damages to the Meter or to the devices
under test, do not input any voltage over 60V DC or 30V
AC.
To measure hFE, connect the Meter as follows:
·Check that the transistor is PNP or NPN type..
·Connect the transistor to be measured to the corresponding
jacks.
·Read the hFE reference value from the display.
·Press HOLD button if need.
HOLD button（Data Hold）

13
· Press HOLD button to enter and exit the Hold mode in any
measuring mode. When it is active, the display value will
be freezed on display until it be released.
Backlight
When moment press the Backlight button, the backlight
will turn on and last about 15 seconds than auto turn off.
Specifications
General Specifications
· Display: 3 1/2 digits LCD display, Maximum display
1999
· Polarity: Auto Polarity
· Overloading: Display “1” or “–1”
· Low battery indicator: display
· Sampling rate: 2～3 times/second
· Range mode : Manual range
· Power: 9V Battery (6F22 or equivalent) 1 pieces
·Operating temperature: 0～40℃（32℉～104℉）
·Storage temperature:（-10～50℃）（14℉～122℉）
·Humidity: 0℃～30℃≤75%RH
30℃～40℃≤50%RH
·Dimensions (L x W x D) : xx mm X xx mm X xxmm
·Weight: Approx. xxxg (battery included)
·Safety standards: IEC 61010-1 in pollution degree2,
overvoltage category (CAT.III 600V) and double
insulation.

14
·Safety certificate：
·mA input protection: Self-Healing Fuse
·EMC consider: the accuracy is need to add 5% of full
scale as the final accuracy when the strength of RF
field less than1V/m and not specified when it more
than 1V/m.
Accurate Specifications
Accuracy：±（a%reading+b digits），guarantee for 1 year.
Operating temperature: 23℃± 5℃
Relative humidity: ≤75%R.H.
Temperature coefficient: 0.1x(specified accuracy)/1℃
DC Voltage
Range Resolution Accuracy
200mV 0.1mV
2V 1mV
20V 10mV
200V 100mV
±(0.5%+5)
600V 1V ±(0.8%+5)
Input impedance：1MΩapprox.
Overload protection:：600V rms (except 200mV range, it is
250V rms)

15
AC Voltage
Range Resolution Accuracy
200V 100mV
600V 1V
±(1.2%+5)
Input impedance：450KΩapprox.
Overload protection:：600V rms
Frequency response ：40Hz ～400Hz （not specified for
≥400Hz）
Display：effective value of sine wave (mean value response)
DC Current
Range Resolution Accuracy
200μA 0.1μA
2mA 1μA
20mA 10μA
200mA 0.1mA
±(1.8%+3)
10A 10mA ±(2%+5)
Overload protection：
mA range：Self-healing fuse
10A range: 10A / 250V Fast.
Drop voltage：200mV for full scale approx.
Warning
When the measured current is more than or equal to 10A,
the continuous measurement time is 10 seconds
maximum and interval time between 2 measurements

16
greater than 15 minutes.
Resistance
Range Resolution Accuracy
200Ω0.1Ω
2KΩ1Ω
20KΩ10Ω
200KΩ100Ω
±(1.0%+5)
2MΩ1KΩ±(2.0%+5)
Overload protection：250Vrms
Note:
At 200Ωrange, as a tip you can short the test leads firstly
and record down the resistance, then subtract it from the
measuring value to obtain the more accurate result.
Diode test
Range Resolution Description
1mV
Open voltage is 3V approx.
The normal forward voltage of
PN junction is 500 ～800mV
approx.
Overload protection: 250Vrms
Continuity test

17
Range Resolution Description
1Ω
open voltage is approx. 3V. The buzzer
sounds if the resistance of a circuit under
test is less than or equal to 50Ω. The
buzzer may or may not sound if the
resistance of a circuit under test is
between 50Ωto 100Ω. The buzzer does
not sound if the resistance of a circuit
under test is higher than 70Ω.
Transistor hFE
Range Test condition Description
hFE Ibo is about 10uA,
Vce about 3.0V.
Can test NPN or PNP
type transistor, display
range: 0 - 1000
Maintenance
Warning
To avoid electrical shock or damage to the Meter,
please disconnect the test leads before open the case.
General Service
·Please have the Meter repaired to the reparing department
be specified by the manufacture or a qualified person to

18
get service.
·Periodically wipe the case with a damp cloth and mild
detergent. Do not use abrasives or solvents.
The Meter use the self-healing fuse for uA / mA current
measurement protecting component, so it not need to
replace it. If it shows no input for mA or uA as a trouble,
you’d to check if the input is too great and out of the
range, if that, you can try again after some time.
Replacing/installing the Battery
Warning
To avoid false readings, which could lead to possible
electric shock or personal injury, replace the battery as
soon as the battery indicator “ ” appears.
Make sure the test leads are disconnected from the
circuit being tested before opening the bottom case.
Follow below process to replace the battery:.
· Turn the Meter off and remove all the connections
from the input terminals.
· Turn the Meter’s front cover face down.
· Remove the screw from the back cover, and separate the
back cover from the front cover.
· Remove the old battery.
· Replace the battery with 1pcs of new 9V (6F22 or
equivalent)

19
· Rejoin the back cover and the front cover, and reinstall the
screw.
- End -
*** This operating manual subject to change without notice. ***
