Klanghelm VUMT Deluxe User manual

!
^ÄtÇz{xÄÅ
VUMT deluxe

Klanghelm VUMT deluxe - Manual
Table of Contents
Main Features 3
Installation 4
Top Bar/Preset System 5
Meters 6
Main Controls Dual Mode 7
Main Controls Single Mode 8
Meters Only Option 9
Bottom Panel 10
Meter Settings 11
RMS & K-Meter 12
Global Settings 13
Standalone Application 14
Appendix: Meter Scales 15
Appendix: Weighting Curves 16
Credits 17!
2
Page 5
Page 7
Page 10
Page 6

Klanghelm VUMT deluxe - Manual
Main Features!
•painstakingly modeled behavior of classic analog VU and PPM
meters
•available meter types:
•VU
•RMS
•incl. option to compensate the RMS scale (+3dB) according to
AES-17, so a sine wave at 0dBFS equals 0dBFS RMS
•K-12, K-14, K-20 scales
•integrated peak bar-graph

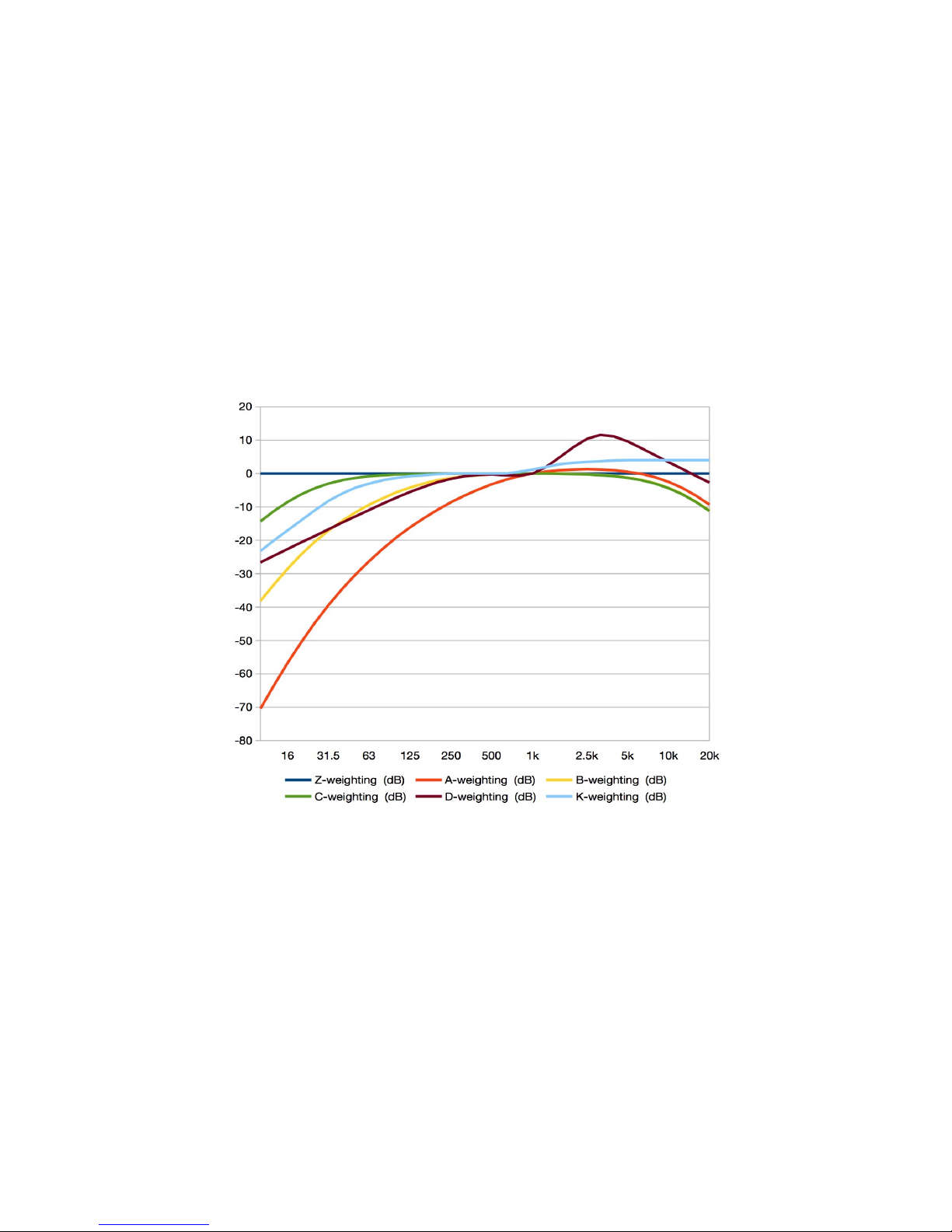

•optional frequency weighting (A, B, C, D and K curves - see
page 15 for details)
•PPM:
•DIN (Type I)
•Nordic (Type I)
•BBC (Type#IIa)
•EBU (Type#IIb)
•highly customizable needle ballistics incl. adjustable needle
overshoot for the VU
•customizable hold needle
•customizable peak/clip LED
•single or dual needle display
•8 different skins to choose from
•GUI resizing
•lots of options to show/hide various elements, including the option to
show only the meters and hide all controls from the GUI
•global settings incl. customizable knob behavior and adjustable
needle refresh rate
•preset menu incl. easy copy/paste presets from from instance to
another and save as default!
•gain staging made easy with separate trim controls for left/right
channel
•mid-side (sum-diff) matrix with separate trim controls for mid and
side
•monitor section
•polarity reverse
•individual mute controls per channel
•some useful track-utilities, such as:
•high-pass and low-pass filters (can be set individually to 6, 12, 18
or 24 dB steepness)
•a single dynamic EQ band (HPF, LPF or BPF), which can be used
to remove resonances, simple de-essing, to control the low end of
a signal …
•a mono maker which reduces the stereo width of a signal below a
certain frequency
•dedicated standalone app, which..
•automatically saves its settings on close and restores them on
relaunch
•can load/save states
•can be set always-on-top!
3

Klanghelm VUMT deluxe - Manual
Installation
4
Windows:
Plugins - VST and AAX (32- and 64-bit)!
•download and unzip the installer from the user area!
•run VUMTdeluxe-installer.exe and follow the instructions!
Troubleshooting:
If you get an error message before or during the installation process, it
is very likely due to a false positive from your active virus scanner. In
this case either add VUMTdeluxe-installer.exe to your whitelist or
temporarily disable the scanning during the install process.!
Standalone Version
•download and unzip the VUMT-Standalone-win.zip from the user
area!
•copy VUMTdeluxe.exe from the „Standalone“ folder of the
unpacked zip into your desired location on your system!
Apple OS X:
Plugins - AU, VST and AAX (32- and 64-bit)!
•download and unzip the installer from the user area!
•open the VUMTdeluxe.dmg and run the installer!
Troubleshooting:
•in case you’re getting a message, that the installer can’t be
executed, because it is from an „unidentified developer“ or „not
downloaded from the App store“, do the following:!
•Go to System Preferences -> Security & Privacy!
•In the General Tab of the Security & Privacy window click on the lock
icon in the bottom left to be able to make changes.!
•select "Anywhere" in the section "Allow applications downloaded
from:“!
•Now try to install VUMTdeluxe again.!
Standalone Version
•download and unzip the VUMTdeluxe-Standalone-mac.zip from the
user area!
•copy VUMT.app from the unpacked zip into your /Applications folder!

Klanghelm VUMT deluxe - Manual

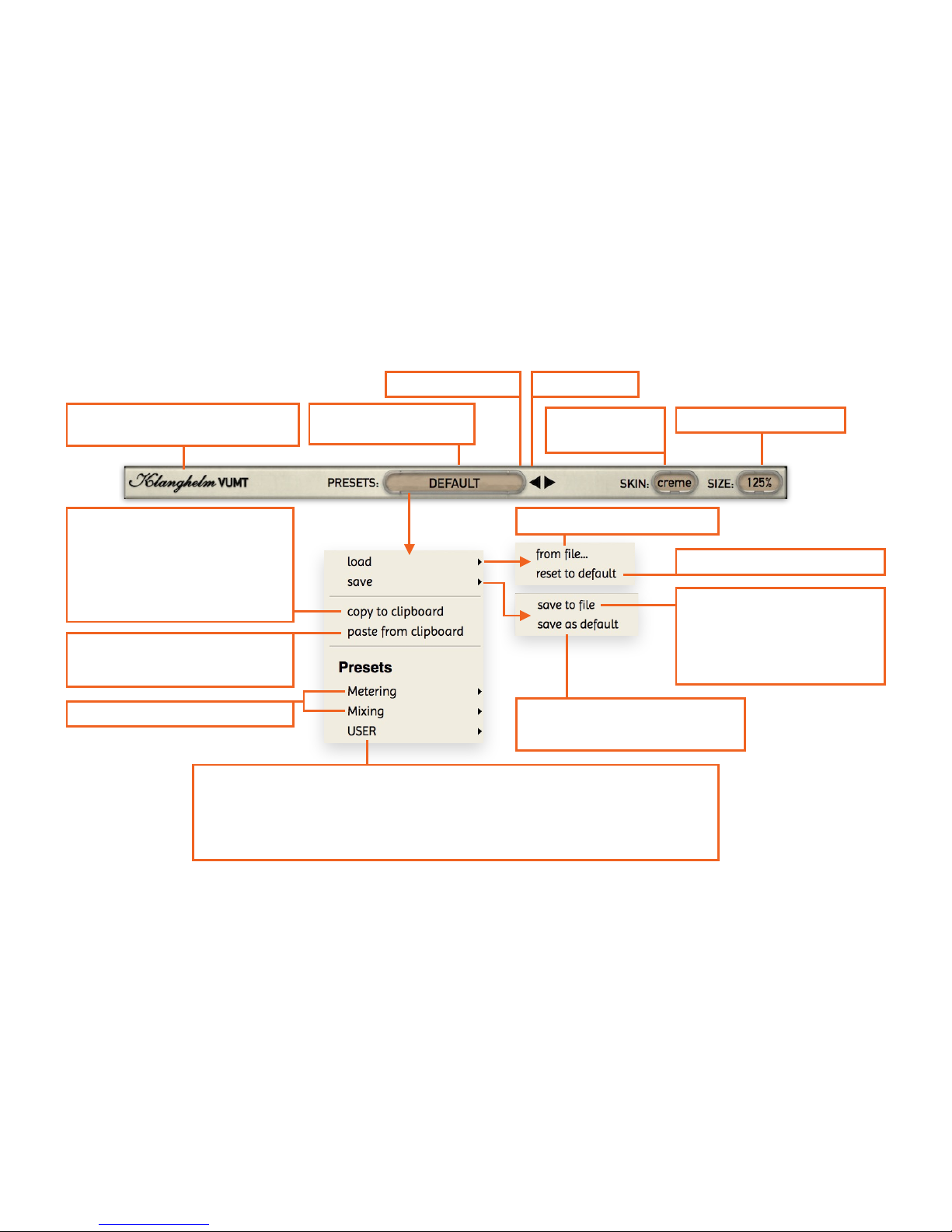

Top Bar & Preset System
!
5
your own presets can be recalled from here.!
In case you want to delete (some of) them, they are located here:!
OSX: /Users/<username>/Library/Klanghelm/VUMTdeluxe/UserPresets/!
Windows: C:/Users/<username>/AppData/Roaming/Klanghelm/VUMTdeluxe/UserPresets/!
copies the current plugin state to
clipboard. You can use „paste from
clipboard“ in another instance of the
plugin to apply these settings to that
instance or you can paste that into a
text document to share it with other
users.!
click on „paste from clipboard“ to
apply a copied state to the current
plugin instance.!
saves the current state as a preset
onto your hd. Please make sure,
that the preset is saved into your
UserPresets-folder in order to
make it visible in the USER
category!
saves the current state as the default
state, that is recalled whenever you
load a new instance of the plugin
click to load a preset file from disk
resets the plugin to its default state
factory preset categories!
click to
enter the preset menu.
go to previous preset
go to next preset

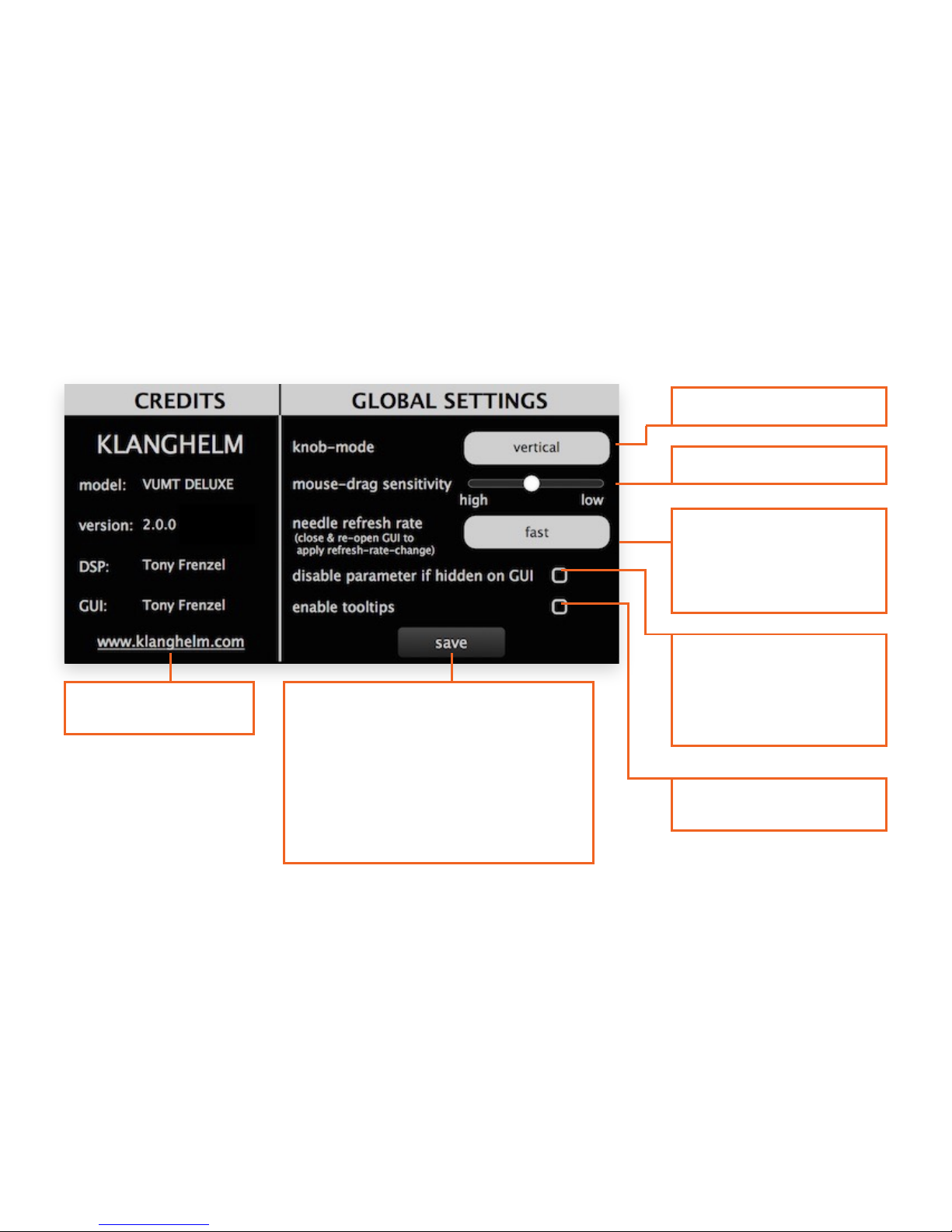

click on the Klanghelm logo to enter the
global settings (see page 13)
click to select from
8 different skins
click to select the GUI size
When loading one of the factory presets, only the parameters, that are necessary for each preset are affected. Parameters such as
SKIN and SIZE are excluded. The user presets on the other hand include ALL parameters including SKIN and SIZE.

Klanghelm VUMT deluxe - Manual
Meters
!
6
if the hold needle is
enabled in the
visibility settings,
you can click on
the meter to reset
the hold needle

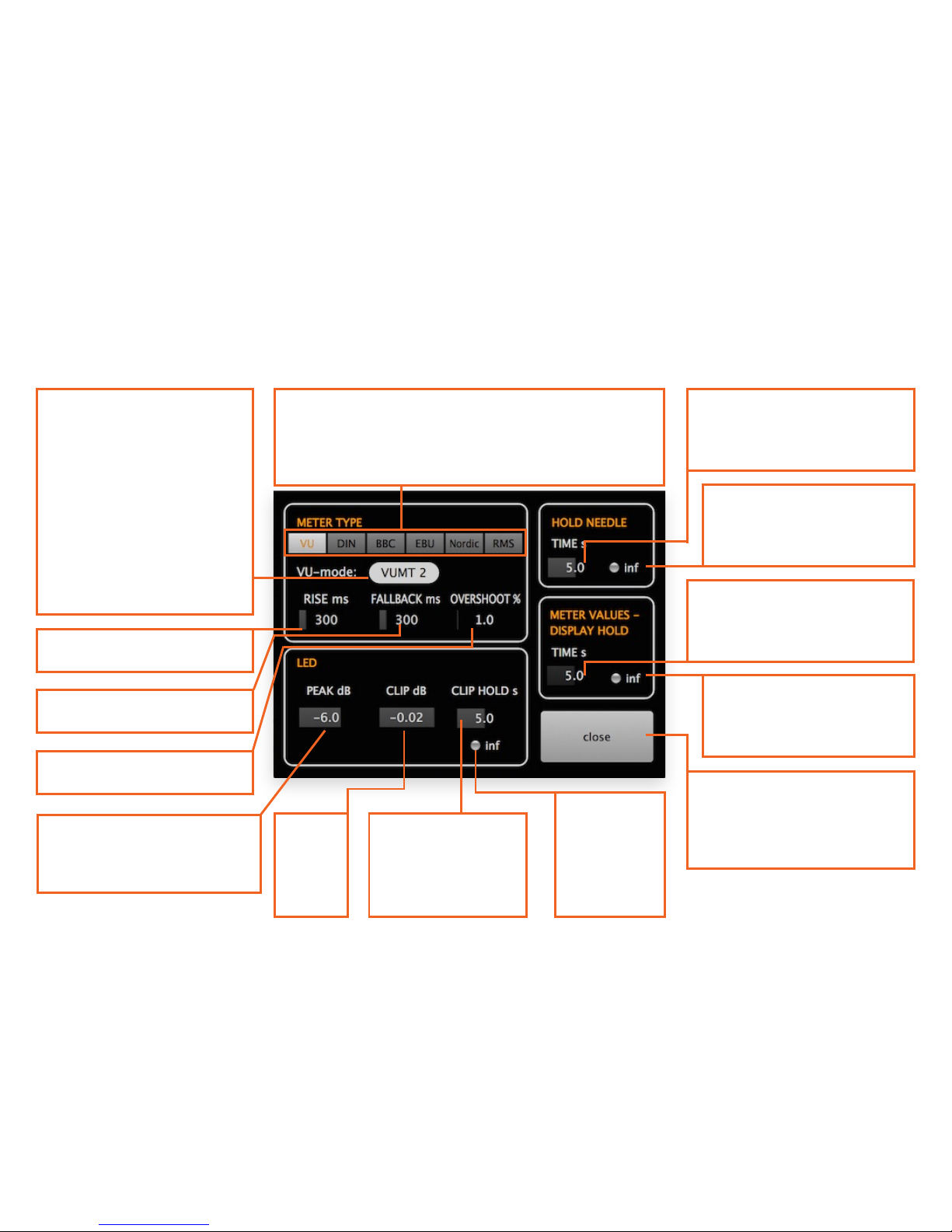

click to enter the
meter settings (see
page 11)
if meter values are
enabled in the visibility
settings, this is a
readout for the current
peak (dBFS) value.
Click to reset the
meter readouts.
Peak/Clip-LED as
defined in the meter
settings.!
if the LED is lit red,
you can click at the
LED to manually
reset the LED.
single or dual
meter display
use this option on
mono signals in
hosts that don’t
differentiate
between mono and
stereo tracks
click to switch to a
contrasting meter
view
show readouts of the
current meter values.!
left side of each
meter: needle value
(depends on the
selected metering
type),!
enable a
secondary (orange)
hold-needle to
show the current
show Polarity Reverse, Mute
and Monitor controls
show the instance label at
the bottom of the GUI
if meter values are
enabled in the visibility
settings, this is a
readout for the current
max. meter value.$ !
Click to reset the meter
readouts.

Klanghelm VUMT deluxe - Manual

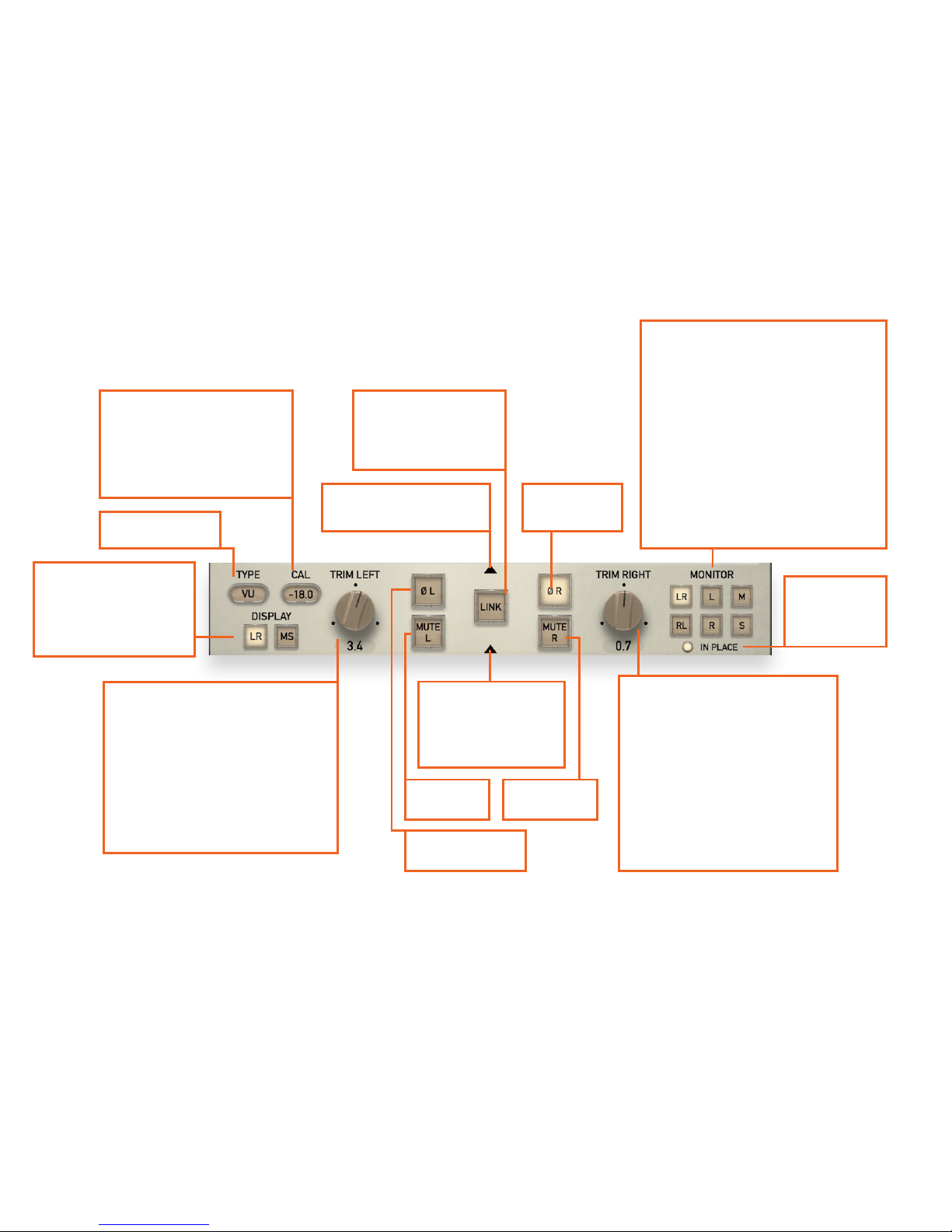

Main GUI - Dual Meters Display!
7
drag or click to set the
calibration level of the currently
selected metering type.!
When the meter is set to RMS,
you can adjust the frequency
weighting curve instead (see
page 16).
select the meter
type
when lit, the left TRIM
knob controls the volume
for both channels, the
right TRIM control is
disabled in this case
polarity reverse
left channel
mutes the
right channel
depending on the DISPLAY mode, it
controls the volume of either the left or
the mid channel.!
Note: If you’re in LR mode, and you’ve
adjusted the mid gain before switching
back to LR, a little green indicator is
shown around the left Trim, showing the
position of the underlying mid Trim. !
This indicator is also shown for the
opposite case, that you’ve adjusted the
left gain and then switch back to MS
mutes the
left channel
polarity reverse
right channel
show meters only and hide
all controls from the GUI
show bottom panel with
additional tools:!
high pass and low pass
filters, dynamic EQ and
mono maker!
selects the output signal:!
LR: stereo!
RL: stereo reverse!
L: left channel only!
R: right channel only!
M: mid (mono) channel!
S: side channel only !
If you click on an already lit button, the
monitor selection switches back to „LR“
for quick compare.!
Note: the selected output signal is
independent from the selected metering
channel mode (Stereo or MidSide)
determines, if the meters
show either left / right or
mid / side information,
also sets the functionality
of the Trim knobs
accordingly
depending on the DISPLAY mode, it
controls the volume of either the
right or the side channel!
Note: If you’re in LR mode, and
you’ve adjusted the side gain before
switching back to LR, a little green
indicator is shown around the left
Trim, showing the position of the
underlying side Trim. !
This indicator is also shown for the
opposite case, that you’ve adjusted
the right gain and then switch back
to MS
monitor L and R
channel options
either in place
or centered

Klanghelm VUMT deluxe - Manual
Main GUI - Single Meter Display
!
8
polarity reverse left channel
polarity reverse right channel
when lit, the main needle
represents the left channel, while a
secondary (red) needle displays
the right channel information
when lit, the main needle represents
the mid channel, while a secondary
red needle displays the side
channel information
controls the
volume (in dB)!
for both left
and right
channel
mutes the signal
selects the output signal:!
LR: stereo!
RL: stereo reverse!
L: left channel only (in place)!
R: right channel only (in place)!
L (c): left channel only (centered)!
R (c): right channel only (centered)!
M: mid (mono) channel!
S: side channel only !
select the meter type
drag or click to set the
calibration level of the currently
selected metering type.!
When the meter is set to RMS,
you can adjust the weighting
instead (see page 16).
needle represents the mono signal
(or stereo sum on stereo channels)

Klanghelm VUMT deluxe - Manual

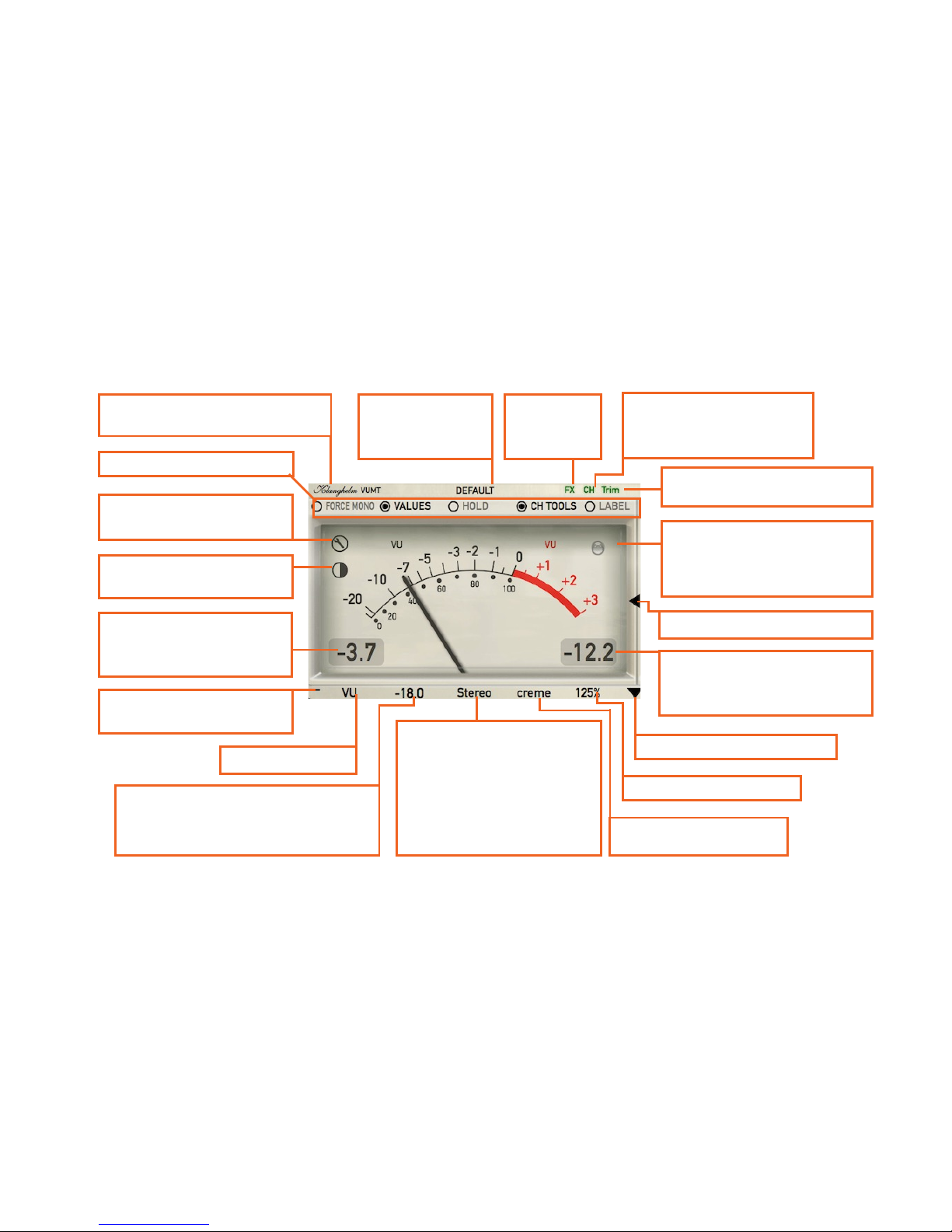

Main GUI - Meters Only Display Mode!
9
click to enter the meter settings
(see page 11)
click to hide all labels and
comboboxes from the frame
if meter values are enabled in
the visibility settings, this is a
readout for the current meter
value.
select the meter type
drag or click to set the calibration level of the
currently selected metering type.!
When the meter is set to RMS, you can
adjust the weighting instead (see page 16).
select, wether the VU represents
the!
•mono sum (single meter only)!
•stereo (main needle: left, red
needle: right)!
OR!
•mid-side (main needle: mid, red
needle side)
click to select from 8 different
skins
click to select the GUI size
click to switch to a contrasting
meter view
click to make the controls visible
single or dual meter display
click on the Klanghelm logo to enter the
global settings (see page 13)
see page 6 for details
click to enter the
preset menu.!
(see page 5)
is lit if one of
the bottom
panel tools is
active
is lit if one of the channel tools
(mute, polarity reverse, monitor
section) is in use
is lit if one of the trim controls is not
at unity
if meter values are enabled in the
visibility settings, this is a readout
for the current peak (dBFS) value.
Peak/Clip-LED as defined in the
meter settings.!
if the LED is lit red, you can click at
the LED to manually reset the LED.

Klanghelm VUMT deluxe - Manual

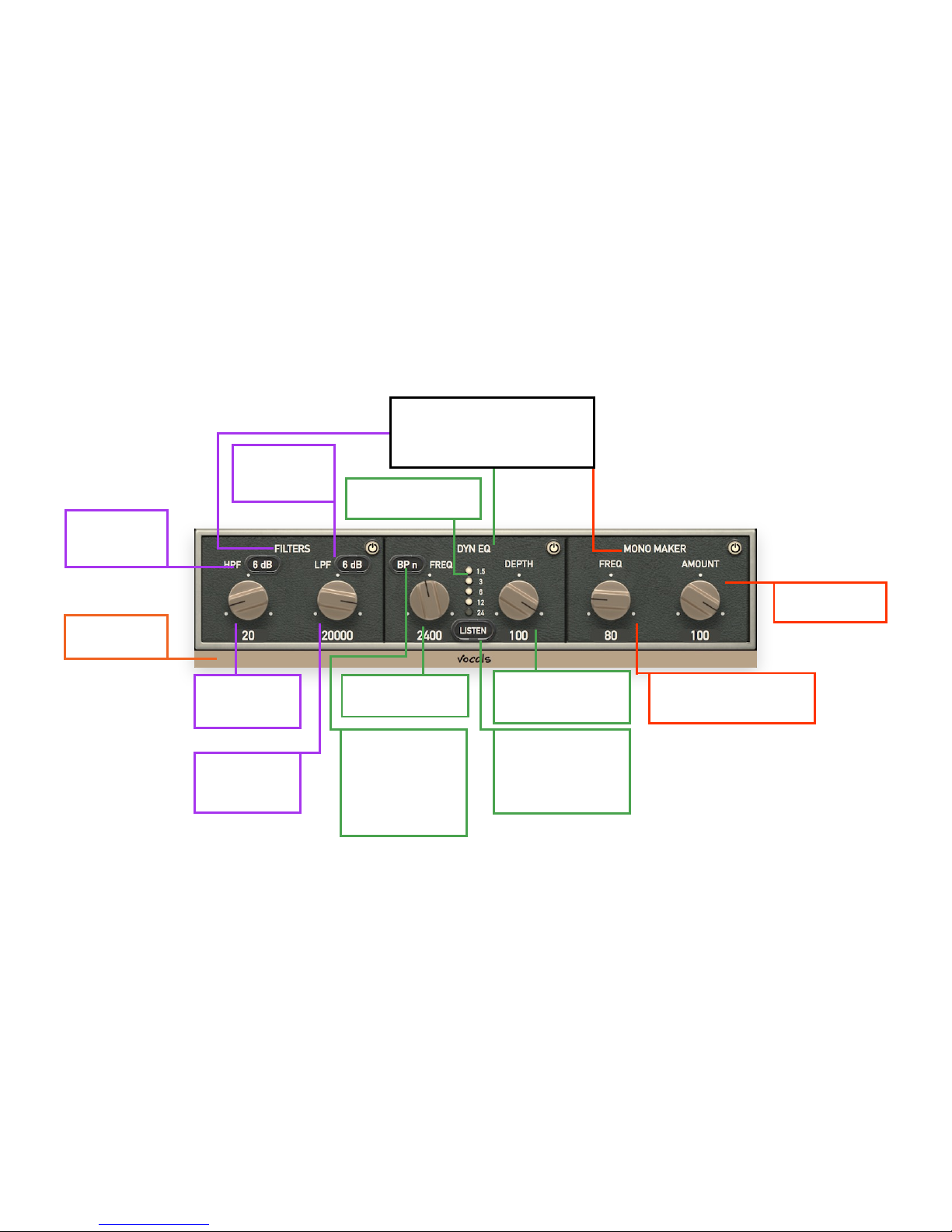

Bottom Panel!
10
click to select the
steepness of the
HPF or turn it off
cutoff
frequency selected
click to select the
steepness of the
LPF or turn it off
gain reduction amount
of the dynamic
amount of the effect
in %
cutoff frequency
of the lowpass
filter in Hz
all frequency content below
the selected frequency is set
to mono
click on the header or on/off switches
to enable/disable each section. When
disabled, the respective controls are
grayed out.
determines the strength
(depth) of the reduction
use this switch when
sweeping through the
frequencies to find the
frequency range you
want to reduce
click to select the filter
type of the dynamic
EQ.
BPF1: bandpass with
narrow Q
BPF2: bandpass with
wide Q
cutoff frequency
of the high-pass
filter in Hz
click to edit the
instance label
