Kleenmaid DW6020X Installation guide

kitchen collection
Instructions for use and warranty details
Dishwasher
Model No.: DW6020X
To register your warranty or make a
warranty claim, scan this QR code:

Dear Customer,
Thank you and congratulations for choosing
Kleenmaid.
Your new appliance has been designed
and meticulously tested to ensure that it
meets all your culinary requirements, and
has been carefully manufactured using top
quality materials to give you years of reliable
performance.
For best results, carefully read the instructions
on how your new appliance is to be installed.
Correct installation will avoid delays and
unnecessary service call costs.
Once installation is complete, please read this
instruction manual carefully and get to know
the controls and the features of your new
Kleenmaid appliance. These simple instructions
will enable you to achieve excellent results from
the very first time you use it.
Again, congratulations and thank you for
choosing The Best You Can Own.
KLEENMAID
Please read this manual carefully before using the dishwasher and
keep this manual for future reference. The latest version of this
manual is available on our website. (See back cover for details.)
2

QUICK USER GUIDE
SAFETY INFORMATION
PRODUCT OVERVIEW
11
12
12
14
14
14
17
18
18
19
20
21
22
USING YOUR DISHWASHER
Basket Use Tips
MAINTENANCE AND CLEANING
External Care
Internal Care
Caring For The Dishwasher
INSTALLATION INSTRUCTION
About Power Connection

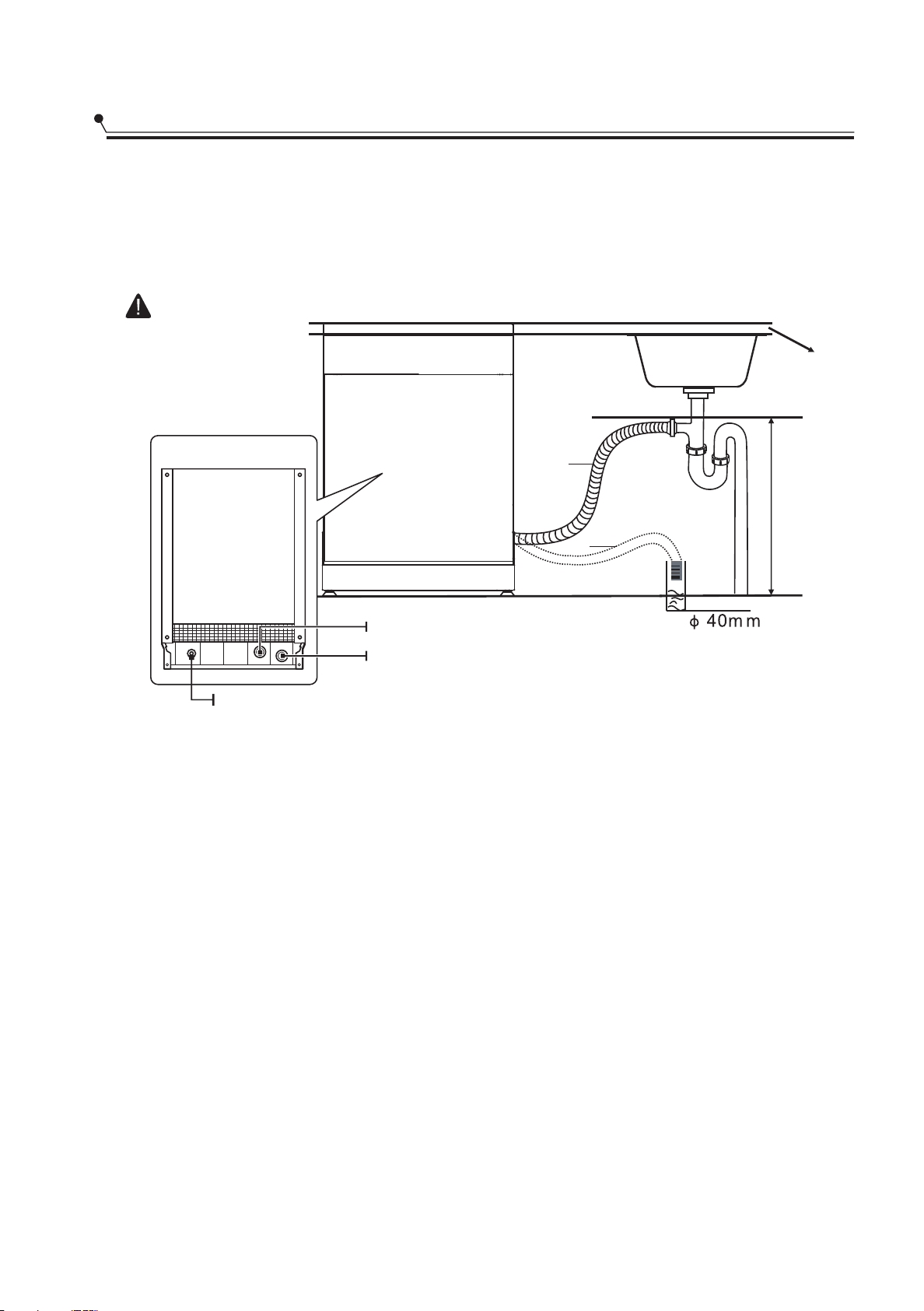

Water Supply And Drain
Connection Of Drain Hoses
Position The Appliance
Free Standing Installation
Under Work Top Installation
TROUBLESHOOTING TIPS
223
27 LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1
23
6
CONTENTS
This manual is in two parts:-
Part 1 General Care and Installation
Part 2 Detailed Operating Instructions
PART 1 General Care and Installation
5
3

USING YOUR DISHWASHER
Control Panel
Preparing And Loading Dishes
Function Of The Rinse Aid And Detergent
Filling The Rinse Aid Reservoir
Filling The Detergent Dispenser
PROGRAMMING THE DISHWASHER
Wash Cycle Table
Starting A Cycle Wash
Changing The Program Mid-cycle
Forget To Add A Dish?
ERROR CODES
2
2
10
5
8
9
11
11
12
12
13
TECHNICAL INFORMATION
15
14
PART 2 Detailed Operating Instructions
NOTE:
Reviewing the section on Troubleshooting Tips will help you solve some
common problems by yourself.
If you cannot solve the problems by yourself, please ask for help from a
professional technician.
The manufacturer, following a policy of constant development and updating of
the product, may make modifications without giving prior notice. The current
user manual is available from the manufacturer's website.
4

5

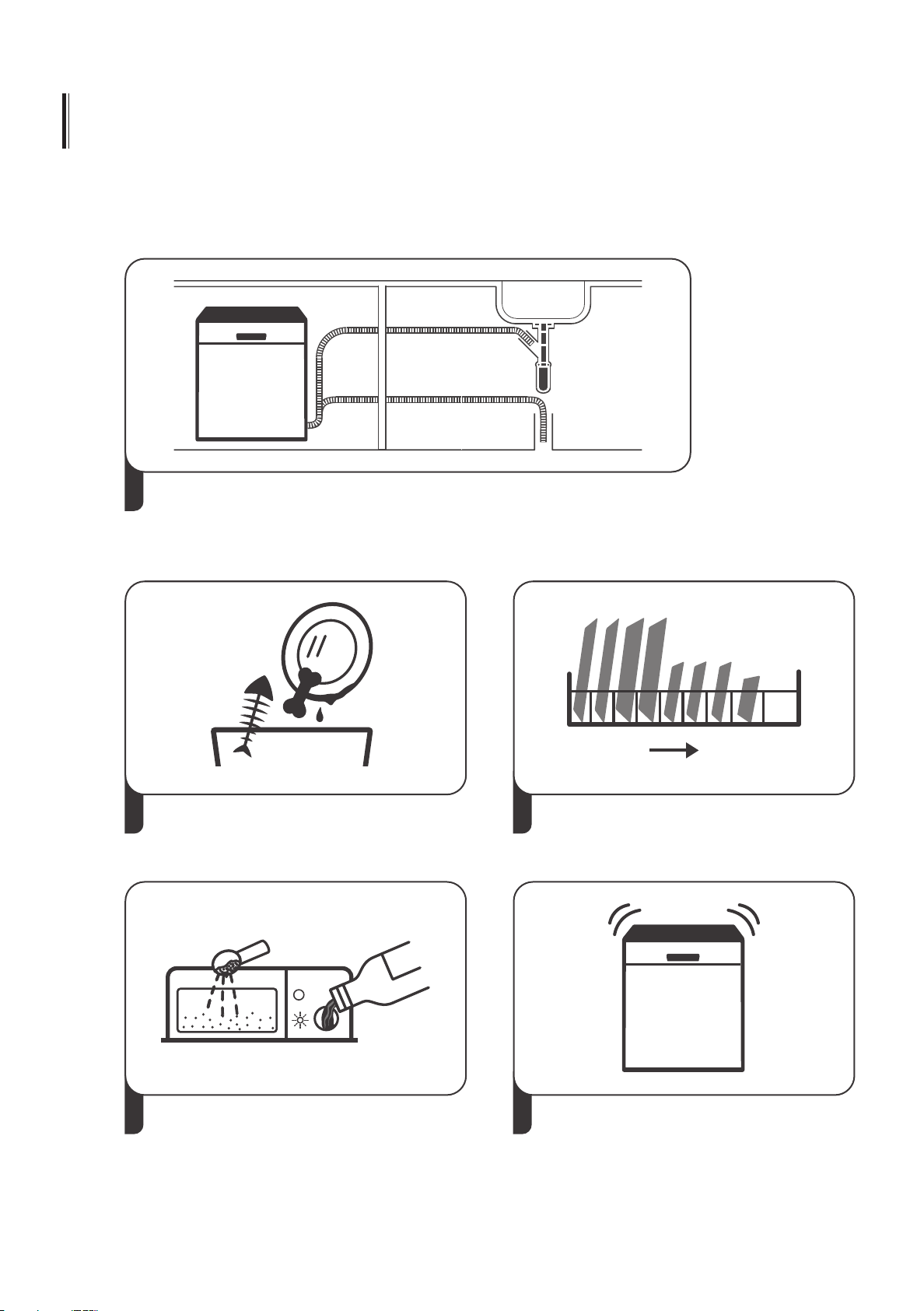

01 QUICK USER GUIDE
Please see the corresponding sections of the instruction manual for operating
details.
2Removing the larger residue on the
dishes and cutlery
3Loading the baskets
4Filling the dispenser Selecting a program and
running the dishwasher
Inside Outside
5
1Install the dishwasher
Please check PART 1 section 05 “INSTALLATION INSTRUCTIONS ”

SAFETY INFORMATION
WARNING
When using your dishwasher, observe the
precautions listed below:
This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other
working environments;
-farm houses;
-by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments.
This appliance is not intended for use by
persons (including children ) with reduced physical,
sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should not play with the appliance. Cleaning
and user maintenance should not be done by children
without supervision.
6

Packaging material could be dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and performing
maintenance on the appliance.
Use a soft cloth moistened with mild soap, and then
use a dry cloth to wipe it again.
Installation and repair should only be carried out by
a qualified technician.
Earthing Instructions
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance for electric current. This appliance is
equipped with an earthing conductor plug.
The plug must be plugged into an appropriate outlet
that i s i nstalled and earthed in accordance with all
local codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded.
7

Do not modify the plug provided with the appliance.
If it does not fit the outlet have a proper outlet
installed by a qualified electrician.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating as there is a risk of water squirting out.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points facing down or placed in a horizontal
position.
Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door
is open.
Check that the detergent powder dispenserris
empty after completion of the wash cycle.
8

9
Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent.
For unmarked plastic items not so marked, check the
manufacturer's recommendations.
Use only detergent and rinse agents recommended for
use in an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
The door should not be left open, since this could
increase the risk of tripping.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
During installation, the power supply cord must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance needs to be connected to the main
water valve using new hose sets. Old sets should not
be reused.
To save energy, in stand by mode , the appliance will
switch off automatically when there is no operation
after 30 minutes.

Disposal
To dispose of packaging and the
appliance please go to a recycling centre.
For safety, cut off the appliance power
supply cable and disable the door closing
device.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for
the environment and human health, which could
otherwise be caused by inappropriate waste handling
of this product.
For more detailed information about recycling of this
product, please contact your local council office and
your household waste disposal service.
DISPOSAL: Do not dispose this product as
unsorted municipal waste. Collection of such
waste separately for special treatment is
necessary.
10

02 PRODUCT OVERVIEW
To get the best performance from your dishwasher, read all operating instructions
(Part 1 and Part 2) before using it for the first time.
IMPORTANT:
NOTE:
Pictures are only for reference. Please check Part 2 for information
specific to DW6020X.
11

03 USING YOUR DISHWASHER
1. Loading the basket
2. Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version)
3. Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version)
1. Loading the basket
2. Fill the rinse aid dispenser (Please check Part 2 Section 1)
3. Fill detergent dispenser (Please check Part 2 Section 1)
12
Adjusting the upper basket
The height of the upper basket can be easily adjusted to accommodate taller dishes
in either the upper or lower basket.
To adjust the height of the upper rack, follow these steps:
Basket Use Tips
Before using your dishwasher :
Inside Outside
1To raise the rack to the upper position,
lift rack until both sides are at the same
height. The rack will click into place.
2To lower the rack, push down on the
handle and release.

13

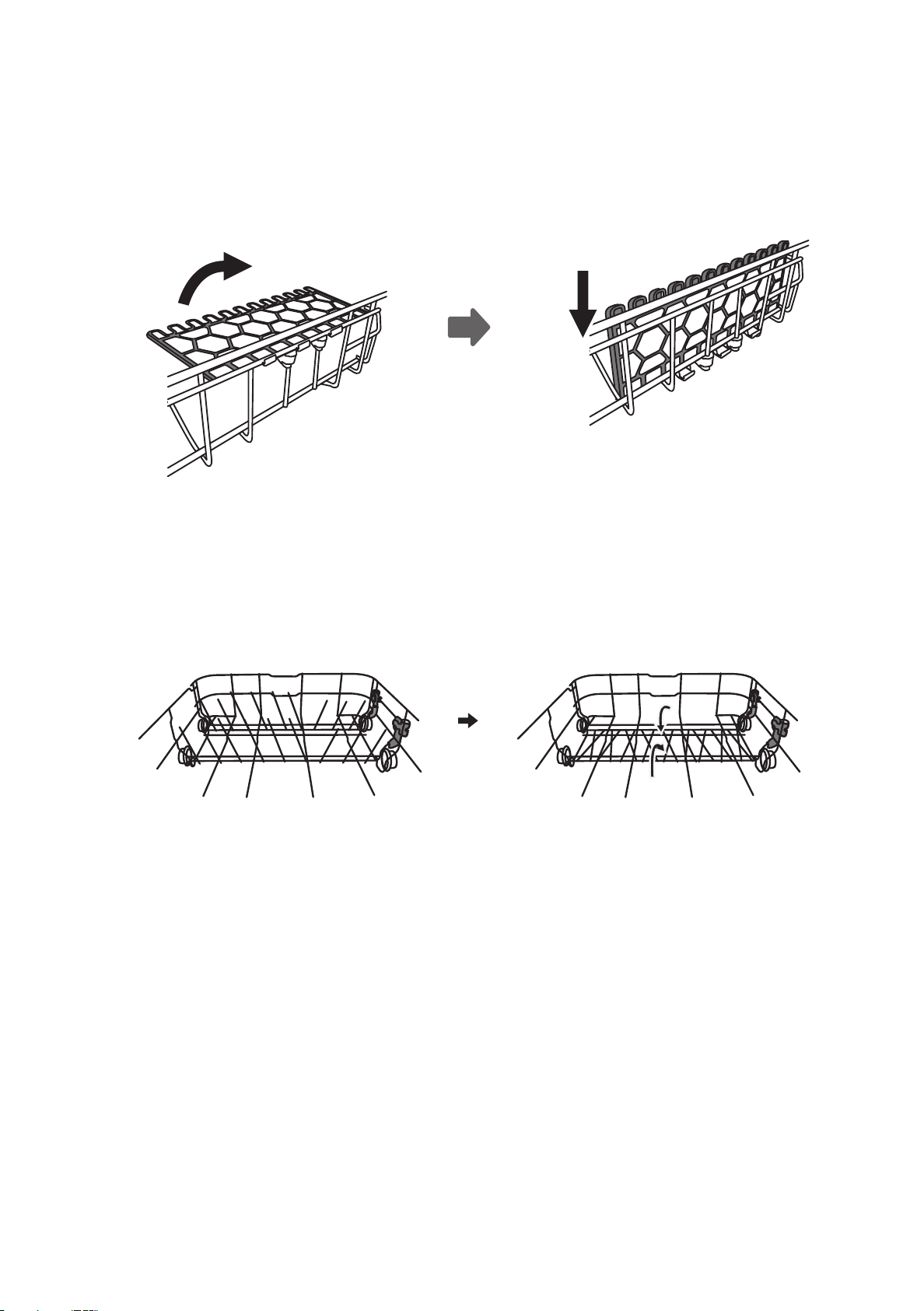

Folding back the cup shelves
To make room for taller items in the dishwasher basket, raise the cup rack upwards.
You can then lean the tall glasses against it. You can also remove it when it is not
required for use.
Folding back the rack shelves
The spikes are used for holding plates. They can be lowered to make more room
for large items.
raise upwards fold backwards

04 MAINTENANCE AND CLEANING
External Care
The door and the door seal
Clean the door seals regularly with a soft damp cloth to remove food deposits.
When the dishwasher is being loaded, food and drink residues may drip onto the
sides of the dishwasher door.These surfaces are outside the wash cabinet and are not
accessed by water from the spray arms. Any deposits should be wiped off before the
door is closed.
The control panel
If cleaning is required, the control panel should be wiped with a soft damp cloth ONLY.
To avoid penetration of water into the door lock and electrical components,
do not use a spray cleaner of any kind.
Never use abrasive cleaners or scouring pads on the outer surfaces because
they may scratch the finish. Some paper towels may also scratch or leave
marks on the surface.
WARNING
Internal Care
Filtering system
The filtering system in the base of the wash cabinet retains coarse debris from the
washing cycle. The collected coarse debris may cause the filters to clog. Check the
condition of the filters regularly and clean them if necessary under running water.
Follow the steps below to clean the filters in the wash cabinet.
14

1 2
Hold the coarse filter and rotate it
anticlockwise to unlock the filter.
Lift the filter upwards and out of
the dishwasher.
The fine filter can be pulled off the
bottom of the filter assembly.
The coarse filter can be detached
from the main filter by gently
squeezing the tabs at the top and
pulling it away.
3 4
Larger food remnants can be
cleaned by rinsing the filter under
running water.
For a more thorough clean, use a
soft cleaning brush.
Reassemble the filters in the reverse
order of disassembly, replace the
filter insert, and rotate clockwise to
the close arrow.
Do not over tighten the filters. Put the filters back in sequence securely,
otherwise coarse debris could get into the system and cause a blockage.
NEVER use the dishwasher without filters in place. Improper replacement of
the filter may reduce the performance level of the appliance and damage
dishes and utensils.
WARNING
Main filterMain filter
Coarse filterCoarse filter
Fine filter
15
OpenOpen

Spray arms
Wash the arms in soapy and warm
water and use a soft brush to clean
the jets. Replace them after rinsing
them thoroughly.
It is necessary to clean the spray arms regularly for hard water chemicals will clog the
spray arm jets and bearings.
To clean the spray arms, follow the instructions below:
2
3
To remove the lower spray arm, pull
out the spray arm upward.
16
1To remove the upper spray arm,
hold the nut in the centre still and
rotate the spray arm counterclockwise
to remove it.

Caring For The Dishwasher
Frost precaution
Please take frost protection precautions for the dishwasher in winter, especially if the
ambient temperature is likely to be below 0'C. After every washing cycle, please
operate as follows:
1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the
water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in
the sump.
After every wash
After every wash, turn off the water supply to the appliance and leave the door
slightly open so that moisture and odours are not trapped inside.
Remove the plug
Before cleaning or performing maintenance, always remove the plug from the socket.
No solvents or abrasive cleaning
To clean the exterior and rubber parts of the dishwasher, do not use solvents or
abrasive cleaning products. Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with
water and a little vinegar, or a cleaning product made specifically for dishwashers.
When not in use for an extended period
It is recommended that you run a wash cycle with the dishwasher empty and then
remove the plug from the socket, turn off the water supply and leave the door of the
appliance slightly open. This will help the door seals to last longer and prevent odours
from forming within the appliance.
Seals
One of the factors that cause odours to form in the dishwasher is food that remains
trapped in the seals. Periodic cleaning with a damp sponge will prevent this from
occurring.
Moving the appliance
If the appliance must be moved, try to keep it in the vertical position. If absolutely
necessary, it can be positioned on its back.
17

Before use ensure the appliance is correctly earthed.
WARNING
For personal safety:
Do not use an extension cord or an adapter
plug with this appliance.
Do not, under any circumstances, cut or remove
the earthing connection from the power cord.
The installation of the pipes and electrical
equipment should be done by professionals.
About Power Connection
Attention
WARNING
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so could result in death or
electrical shock.
18
Electrical requirements
Please look at the rating label to know the rating voltage and connect the
dishwasher to the appropriate power supply. Use the required fuse (10A/13A/16A),
time delay fuse or circuit breaker recommended and provide a separate circuit.
Electrical connection
Ensure the voltage and frequency of the power supply corresponds to those on the
rating plate. Only insert the plug into an electrical socket which is earthed properly. If
the electrical socket to which the appliance must be connected is not appropriate for
the plug , replace the socket, rather than using adaptors or the like as they could
cause overheating and burns.
05 INSTALLATION INSTRUCTION
NOTE: Before making preparations for commencing installation, the installer
should refer to the current online version of the User Manual, which is available
on the Kleenmaid website (see back cover for details).

Water Supply And Drain
Cold water connection
Connect the cold water supply hose to a
threaded 3/4 (inch) connector and make sure
that it is fastened tightly in place.
If the water pipes are new or have not been
used for an extended period of time, let the
water run to make sure that the water is clear.
This precaution is needed to avoid the risk of
the water inlet becoming blocked and
damaging the appliance.
safety supply hose
About the safety supply hose
The safety supply hose has double walls. The hose's system guarantees its
intervention to block the flow of water in case of the supply hose breaking and
when the air space between the supply hose itself and the outer corrugated hose
is full of water.
NOTE: Supply hose length is 1.97m.
How to connect the safety supply hose
1. Pull the safety supply hose completely out from storage compartment located at
rear of dishwasher.
2. Tightly screw the safety supply hose to a tap with 3/4 inch thread.
3. Turn water fully on before starting the dishwasher.
WARNING
A hose that attaches to a sink spray can burst if it is installed on the same
water line as the dishwasher. If your sink has one, it is recommended that
the hose be disconnected and the hole plugged.
How to disconnect the safety supply hose
1. Turn off the water.
2. Unscrew the safety supply hose from the tap.
19

Connection Of Drain Hoses
Please securely fix the drain hose in either position A or position B
B
A
MAX 1000mm
Counter
Drain hose
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it
run into the sink, making sure to avoid bending or crimping it. The height of the
drain pipe must be less than 1000mm. The free end of the hose must not be
immersed in water to avoid back flow.
NOTE: The drain hose length is 1.874m.
How to drain excess water from hoses
If the sink is higher than 1000mm from the floor, the excess water in hoses cannot
be drained directly into the sink. It will be necessary to drain excess water from hoses
into a bowl or suitable container that is held outside and lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water
leaks. Ensure that the water drain hose is not kinked or squashed.
Extension hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4000mm; otherwise the cleaning effect of the dishwasher
could be reduced.
Syphon connection
The waste connection must be at a height less than 1000mm (maximum) from the
bottom of the dishwasher. The water drain hose should be fixed .
20
Back of dishwasher
Water Inlet
Drain Pipe
Mains Cable
