Kleenmaid CRZ25511 User manual

kitchen collection
Instructions for use and warranty details
Built In Refrigerator
Model No.: CRZ25511
To register your warranty or make a
warranty claim, scan this QR code:

Dear Customer,
Thank you and congratulations for choosing Kleenmaid.
Your new appliance has been designed and meticulously tested
to ensure that it meets all your culinary requirements, and has
been carefully manufactured using top quality materials to give
you years of reliable performance.
For best results, carefully read the instructions on how your new
appliance is to be installed. Correct installation will avoid delays
and unnecessary service call costs.
Once installation is complete, please read this instruction
manual carefully and get to know the controls and the features
of your new Kleenmaid appliance. These simple instructions will
enable you to achieve excellent results from the very first time
you use it.
Again, congratulations and thank you for choosing The Best
You Can Own.
KLEENMAID
2

4
5
5
6
7
7
8
8
9
10
11
12
15
15
15
16
17
19
19
19
20
21
WůĞĂƐĞŬĞĞƉƚŚĞƐĞŝŶƐƚƌƵĐƚŝŽŶƐŝŶĂƐĂĨĞƉůĂĐĞĂŶĚƌĞĂĚƚŚĞŵďĞĨŽƌĞŝŶƐƚĂůůŝŶŐŽƌƵƐŝŶŐƚŚŝƐĂƉƉůŝĂŶĐĞ
ŶƐƵƌĞƚŚĂƚƚŚĞLJĂƌĞƉĂƐƐĞĚŽŶƚŽĂŶLJĨƵƚƵƌĞŽǁŶĞƌThe current online version of the User
Manual is available on the Kleenmaid website (see back cover for details).
6DIHW\ZDUQLQJV
1.1 Warning
1.2 Meanings of safety warning symbols
1.3 Electricity related warnings
1.4 Refrigerant related warnings
1.5 Warnings for use
1.6 Warnings for placement
1.7 Warnings for storage
1.8 Warnings for disposal
 3URSH UXVHRIWKHUHIULJHUDWRU
2.1 Placement
2.2 Installation Guide ± Cabinetry and cutouts
2.3 Installation Guide ± Instructions

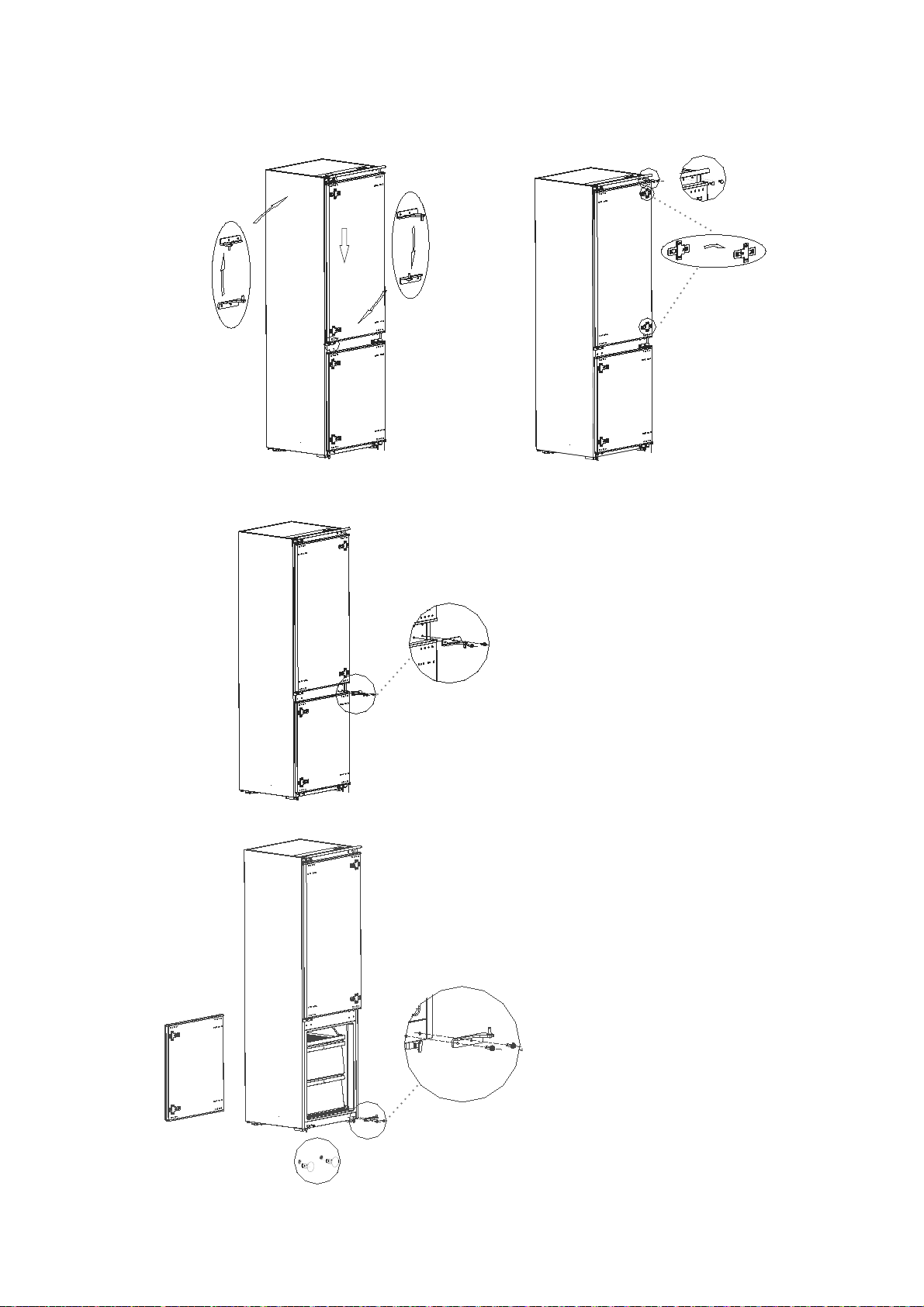

2.4 Installation Guide ± Right-left hinge reversal
2.5 Changing the Light
2.6 Starting the refrigerator
2.7 Energy saving tips
6WUXFWXUHDQGIXQFWLRQV
3.1 Key components

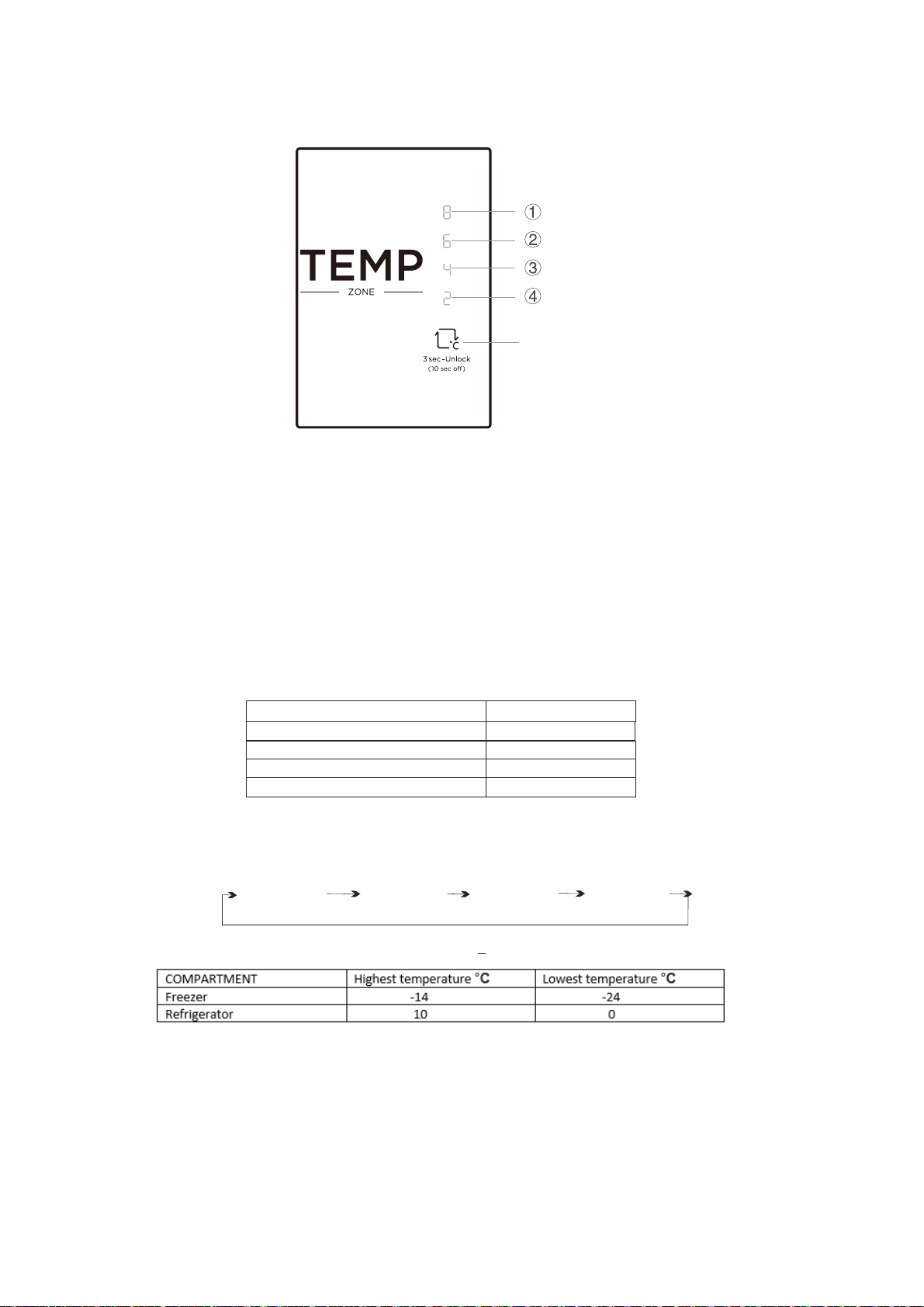

3.2 Functions
0DLQWHQDQFHDQGFDUHRIWKHUHIULJHUDWRU
4.1 Overall cleaning
4.2 Defrosting
4.3 Out of service
7URXEOHVKRRWLQJ
5.1 Trouble shooting
3DUDPHWHUV
6.1 Technical Parameters
.OHHQPDLGZDUUDQW\

22

1 Safety warnings
1.1 Warning
RECOMMENDATIONSḬ
This appliance is intended to be used in household and similar applications such as
vstaff kitchen areas in shops, offices and other working environments;
vfarm houses and by clients in hotels, motels and other residential type environments;
vbed and breakfast type environments;
vcatering and similar non-retail applications.
: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
: Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
: Do not damage the refrigerant circuit.
: Do not use electrical appliances inside the food storage compartments of the appliance,
unless they areof the type recommended by the manufacturer.
: Please dispose of the refrigerator according to local regulations for appliances using refrigerant.
Refrigerant and cyclopentane foaming materials used for the refrigerator are flammable. It should be
kept away from any fire source and be recovered by a special recovery company to prevent damage to
the environment or any other harm. Contact your local community waste collection / recycling centre
for advice.
Do not locate multiple portable socket-outlets or portable power supplies at the
rear of the appliance.
DO not use extension cords or ungrounded two prong adapters.
When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING Riskofchildentrapment Before you throw away your old refrigerator or freezer
Take off the doors
Leave the shelves in place so that children may not easily climb inside
The SFfrigerator must be disconnected from the source of electrical supply before attempting the installation
of an accessory.
Before making preparations for or commencing installation, the installer should refer to the current
online version of the User Manual, which is available on the Kleenmaid website (see back cover for
details).
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

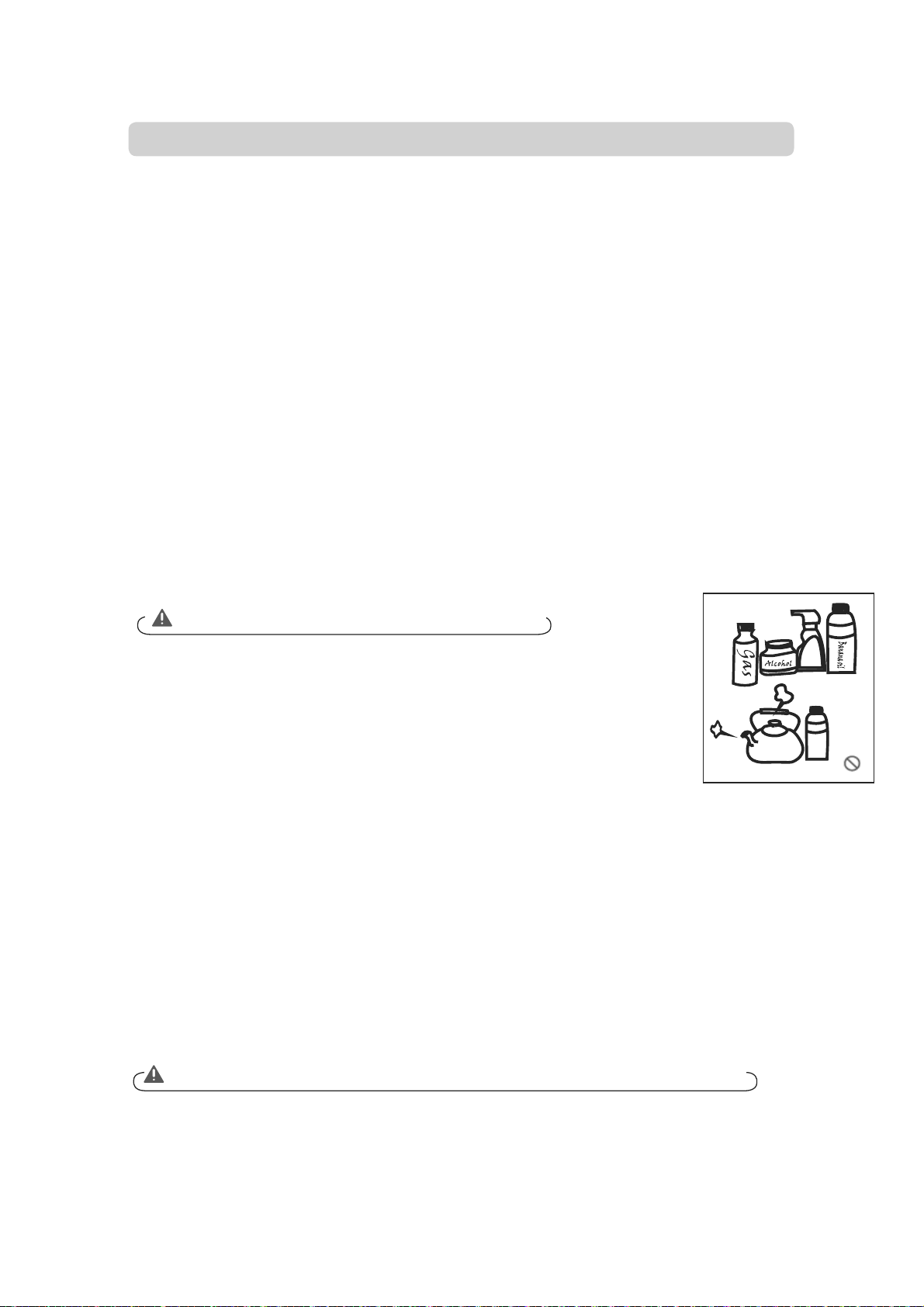

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
The appliance should be unplugged after use and before carrying out user maintenance on the appliance.
WARNINGRisk of fire / flammable materials.
WARNING
WARNING
WARNING
WARNING
WARNING
8BSOJOH:SJTLPGGJSFGMBNNBCMFNBUFSJBMT
4
WARNING
WARNING
WARNING

This manual contains lots of important safety
information which should be observed by the users.
12Meaning of safety warning symbols
Prohibition symbol
Warning symbol
Note symbol
This is a prohibition symbol.
Any incompliance with instructions marked with
this symbol may result in damage to the product
or endanger the personal safety of the user.
This is a warning symbol.
It is required to operate in strict observance of
instructions marked with this symbol; or otherwise
damage to the product or personal injury may be caused.
This is a cautioning symbol.
Instructions marked with this symbol require special caution.
Insufficient caution may result in slight or moderate injury,
or damage to the product.
13Electricity related warnings

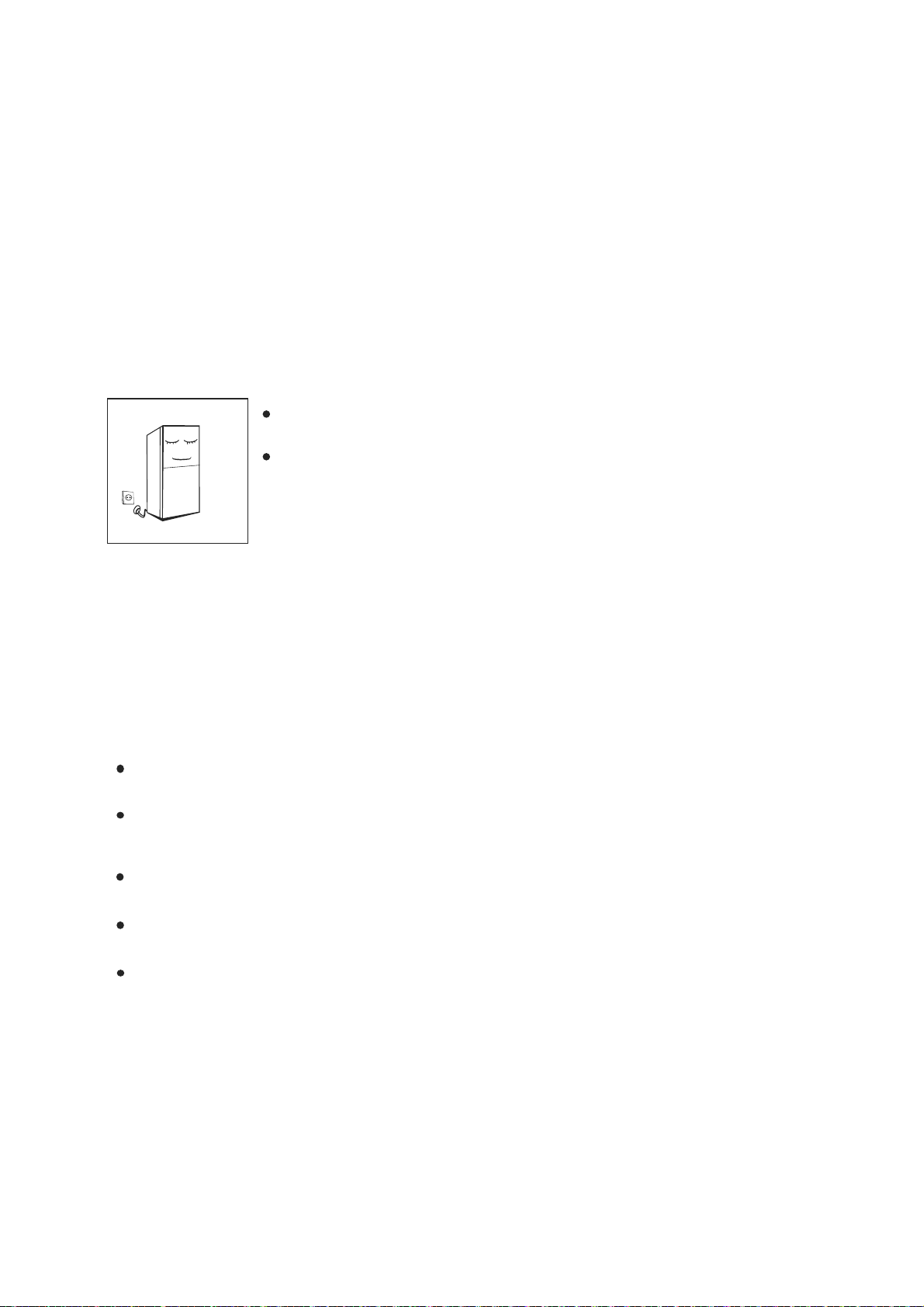

Do not pull the power cord when pulling the power plug of the
refrigerator. Please firmly grasp the plug and pull out it from
the socket directly.
To ensure safe use, do not damage the power cord or use the power cord
when it is damaged or worn.
Please use a dedicated power socket. The power socket should
not be shared with other electrical appliances. The power plug should be
in firm contact with the socket or else it may cause a fire.
Please ensure that the grounding electrode of the power socket is
equipped with a reliable grounding line.
In case of leakage of gas, including flammable gas, please turn off the
valve to prevent further leakage and then open the doors and windows to
ventilate the area. Do not unplug the refrigerator and other electrical
appliances as a spark may cause a fire.
Do not use electrical appliances on the top of the appliance, unless
they are of the type recommended by the manufacturer.
5

5HIULJHUDQWUHODWHGZDUQLQJV
ʇThis appliance contains the coolant Isobutane (R600a), a natural gas which is environmentally friendly. Although it
is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this
coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the
compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not
have any adverse effect on the performance of the appliance.
Care must be taken during the transportation and installation of the appliance that no parts of the
cooling system are damaged.
It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland - the
authorised Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants to carry out servicing
or repairs where the gas system is being opened or charged.
Splashes of coolant can injure the eyes.
In the event of any damage:
–avoid any open flames or anything which creates a spark
–disconnect the appliance from the electricity supply
– ventilate the room where the appliance is located for several minutes
–contact our support service or a qualified technician
►The more coolant there is in an appliance, the larger the room it should be installed in. In the event of a leakage, if
the appliance is in a small room, there is the danger of combustible gases building up. For every 8 g of coolant at
least 1 m3 of room space is required. The amount of coolant in the appliance is stated on the rating plate.
►To avoid the risk of damage to the appliance, make sure that the connection data (fuse rating, frequency and
voltage) on the rating plate corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult a qualified electrician if in any doubt.
6

1.Warnings for placement
1Warnings for XVH

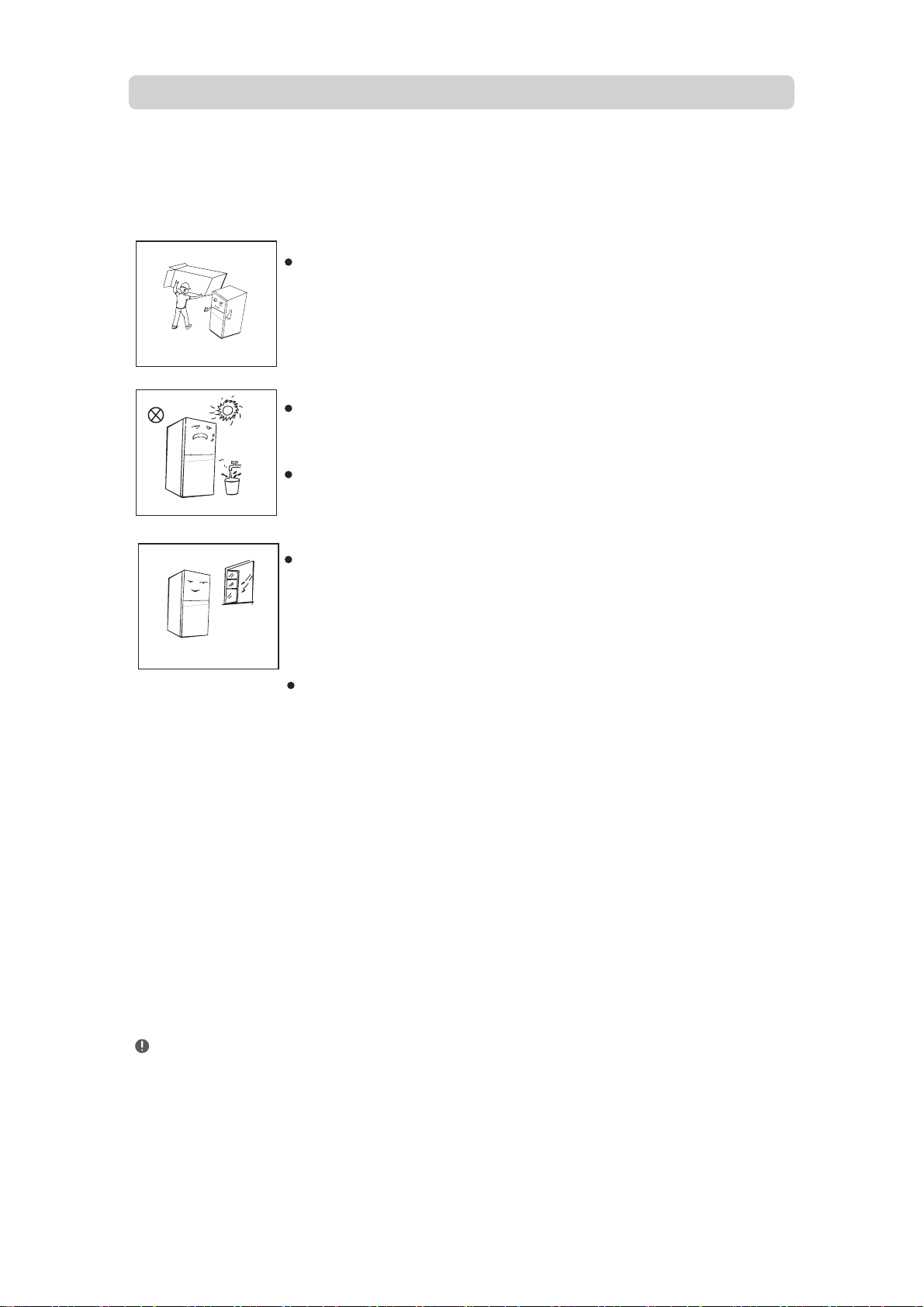

Do not put flammable, explosive, volatile or highly corrosive items in the
refrigerator in order to prevent damage to the appliance or accidental fires.
Do not place flammable items near the refrigerator to avoid fires.
The refrigerator is intended for household use, such as storage of foods. It
should not be used forother purposes, such as storage of blood, drugs or
biological products, etc.
Do not arbitrarily disassemble or reconstruct the refrigerator,
nor damage the refrigerant circuit. Maintenance of the appliance
must be conducted by a suitably qualified specialist.
A damaged power cord must be replaced by the manufacturer, its
maintenance department or related professionals, in order to avoid
danger.
The gaps between refrigerator doors and between doors and refrigerator
body are small. Do not to put hands in these areas to avoid injury to fingers.
Close the refrigerator door gently to avoid falling articles.

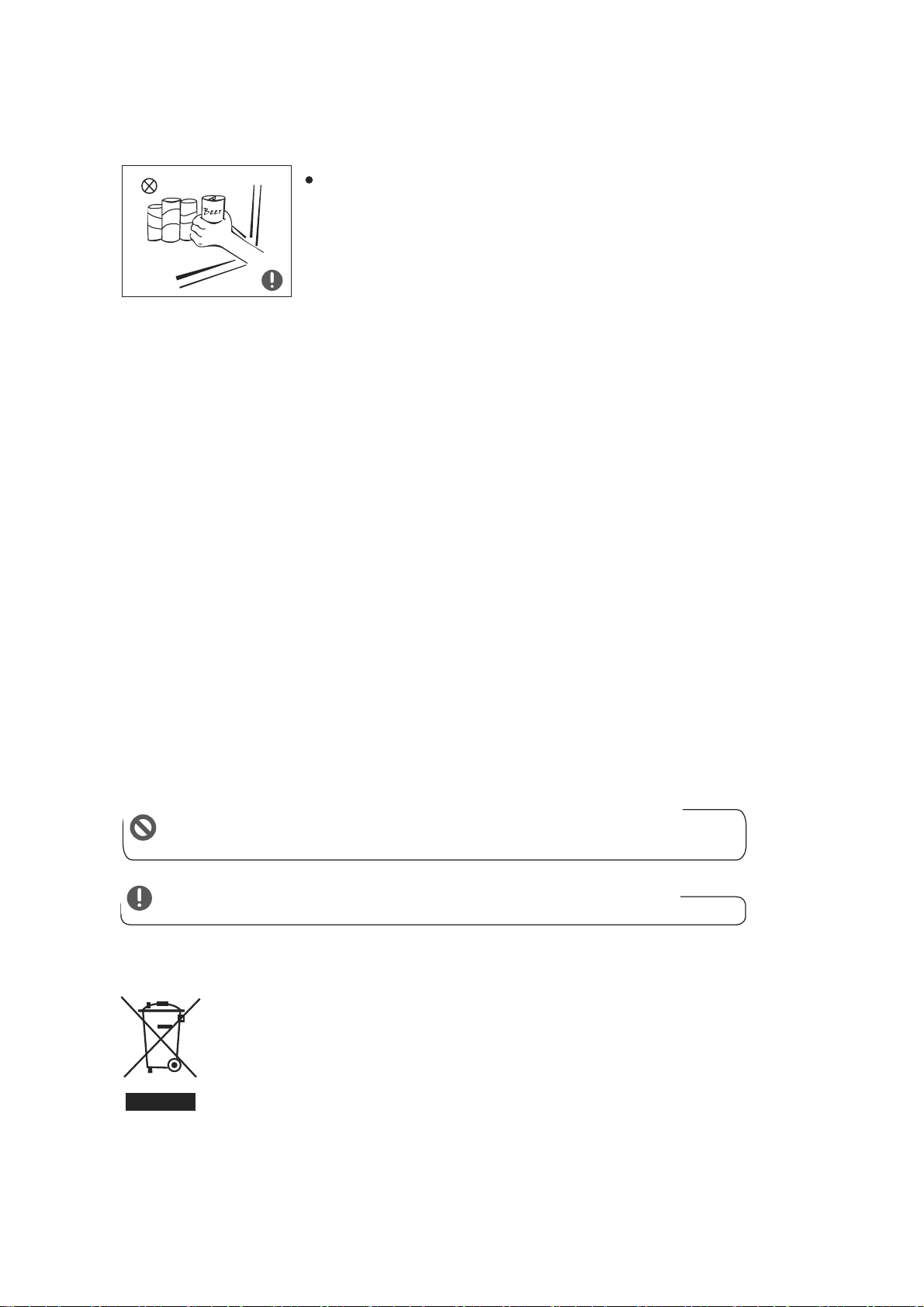

Do not use wet hands to remove food or containers, especially metal containers,
from the freezer compartment when the refrigerator is running, in order to avoid
frostbite.
Do not allow any child to get into or climb the refrigerator to prevent suffocation
or a falling injury to the child.
If doors or lids are fitted with locks and keys, the keys should be kept out of
the reach of children and not in the vicinity of the refrigerator, in order to
prevent children from being locked inside.
Do not place heavy objects on the top of the refrigerator as objects may
fall when the door is opened or closed and accidental injuries may occur.
Please pullout the plug in case of power failure or when cleaning. Wait 5
minutes before re-connecting the freezer to the power supply to prevent damage to
the compressor due to successive starts.
7

Do not store beer, beverage or other fluid contained in bottles or
enclosed containers in the freezer compartment of the
refrigerator; otherwise the bottles or enclosed containers may
crack and cause damage due to freezing.
1.Warnings for VWRUDJH
1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or
temperature becoming too warm in the frozen food compartment) when sited for an extended period of
time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2) Effervescent drinks should not be stored in food freezer compartments or cabinets or in low-
temperature compartments or cabinets. Products such as water ices should not be consumed too cold.
3) Do not exceed the storage time(s) recommended by the food manufacturers for any kind of food, and
particularly for commercially quick-frozen food, in food-freezer and frozen-food storage compartments or
cabinets.
4) Take necessary precautions to prevent an undue rise in the temperature of frozen food while
defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5) A rise in temperature of frozen food during manual defrosting, maintenance or cleaning could shorten
the storage life of the food.
When the refrigerator is to be disposed of, disassemble the doors, and remove
gasket of door and shelves. Put the doors and shelves in a safe place, so as to
prevent trapping of any child.
1.Warnings for disposal
Correct Disposal of this productḬ
This marking indicates that this product should not be disposed of with other household
wastes throughout the EU. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse
of material resources. Contact your local community waste collection / recycling centre
for advice about council whitegoods collections or waste transfer stations.
Freezer compartment
Please dispose of the refrigerator according to local regulations for appliances using
refrigerant. Refrigerant and cyclopentane foaming materials used for the refrigerator
are flammable. It should be kept away from any fire source and be recovered by a
special recovery company to prevent damage to the environment or any other harm.
Contact your local community waste collection / recycling centre for advice.
8

21Placement
3URSHUXVHRIUHIULJHUDWRUV
Precautions before installation:
Information in the User Manual is only for reference.
Before installationand adjustingof accessories, it should be ensured that the refrigerator is
disconnectedfrom power.
Before use, remove all packing materials, including bottom cushions,
foam pads and tapes inside the refrigerator; tear off the protective
film on the doors and the refrigerator body.
Keep away from heat and avoid direct sunlight. Do not
place the appliance in moist or watery places to prevent rust
or reduction of insulating effect.

Do not spray or wash the refrigerator. Do not use the refrigerator in
a damp or wet environment so as not to affect the electrical insulation
properties of the refrigerator or cause a short circuit.
The refrigerator should be placed in a well-ventilated indoor place,
on a stable, level floor.
Cabinet dimensions, please refer to 2.2 “INSTALLATION GUIDE -
Cabinetry & Cutouts” on page 10.
9
NOTE: Before making preparations for or commencing installation, the installer should refer to
the current online version of the User Manual, which is available on the Kleenmaid website (see
back cover for details).

80,1,17(51$/:,'7+
0,1,17(51$/'(37+



3/$1 723%27720
(/(9$7,21
0,1,17(51$/+(,*+7

%27720'225+(,*+7
0,10$;
723'225+(,*+7
0,10$;
'225(/(9$7,21 6(&7,21


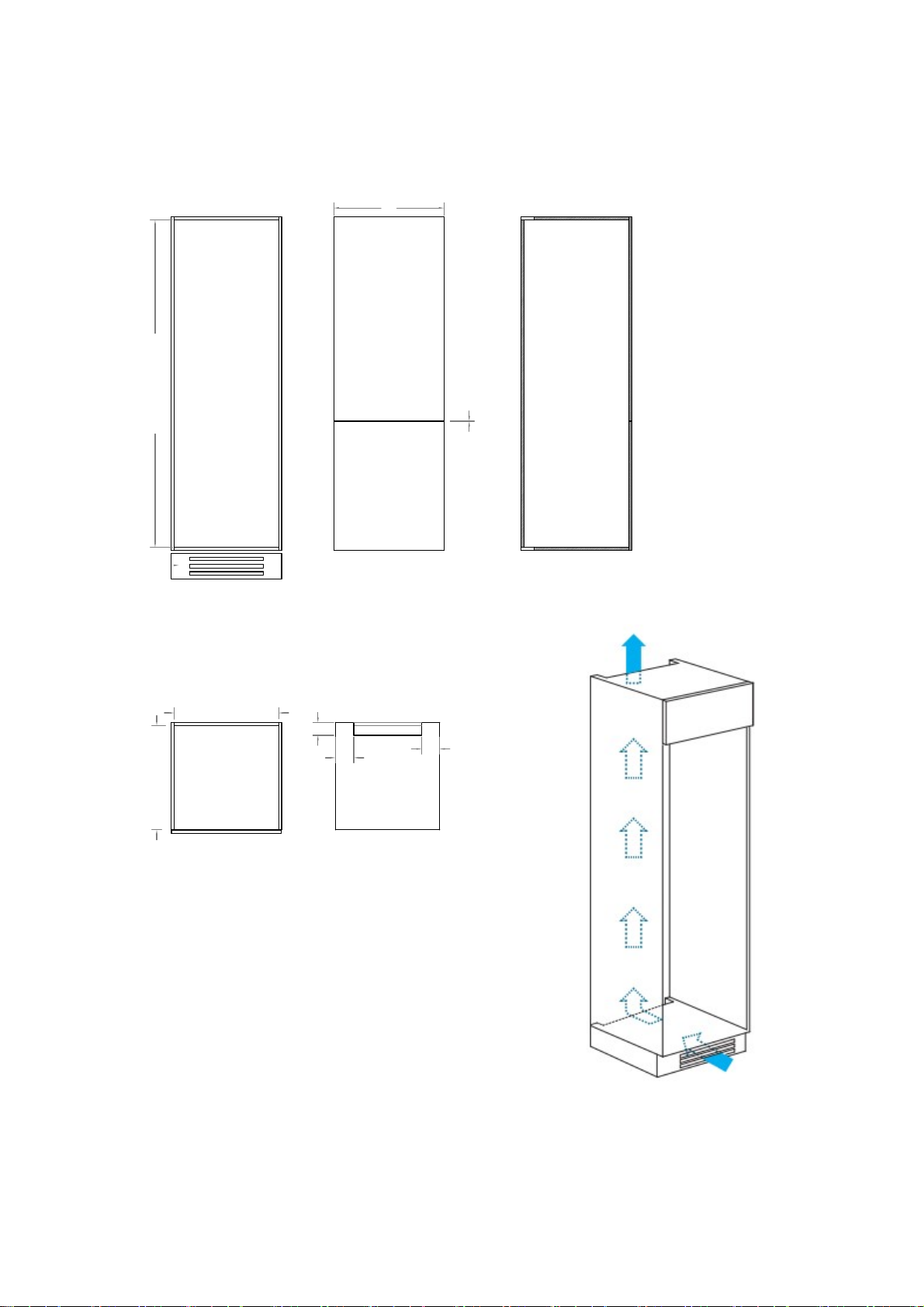

,QVWDOODWLRQ*XLGH&DELQHWU\DQGFXWRXWV
IMPORTANT NOTE: A minimum of 200cm2 cross
sectional area for the ventilation inlet is required.
The ventilation inlet of 200cm2 cannot be covered
by a decorative grill of a smaller dimension that
restricts or reduces the air path. The air path must
be as per the diagram (right) allowing for a
minimum uninterrupted air flow path of 200cm2
net cross-sectional area, flowing from lower front
to lower back, then from lower rear up over the
rear-mounted condenser coil to the top of the
cabinet, and back out to ambient air.
Airflow out back to ambient air with
no reduction in required 200cm2
air flow.
Airflow in, unrestricted to airflow out.
Three slot cuts of 400mm x 200mm equally
spaced or another grill to provide minimum
of 200cm2 of unrestricted air flow.
10
