USER'S MANUAL
18,000 to 48,000 Btu/h
Cooling Only & Heat Pump
KFTC Series
®

● Read this operating instructions carefully and keep it for future reference ●
OPERATING
INSTRUCTIONS
CEILING CASSETTE TYPE INDOOR UNIT
MODELKFTC018 / 024 SERIES
KFTC036 / 048 SERIES
COOLING ONLY OR HEAT PUMP SYSTEM

3
1. Part names and their functions ................................................................................. 4
2. How to use the remote control to operate the unit ................................................. 5
3. Maintenance .............................................................................................................. 11
4. Operating guide ........................................................................................................ 13
5. Precautions ................................................................................................................ 14
6. Checking before contact the service man .............................................................. 15
CONTENTS
Thank you for selecting our products
One of the benefits awaiting you with our room air conditioner is not only comfort of life but
also good health. This operation instruction brings you the many comfort and technological
features your unit has to offer. In addition, it provides you vital information about maintenance,
service and economical operating. Take the next few minutes to discover how to get your
comfort and economy of the operation from your new room air conditioner.

4
Front Panel
Drain Pipe
To drain water
produced while the
unit is functioning
Refrigerant Tube
Air Outlet
Air Inlet
Located on the back and side.
Remote Control
To operate the air conditioner function.
Connecting Wire between Indoor Unit & Outdoor Unit
Remote Control Holder
Air Filter (Inside)
Drain Pipe
OUTDOOR UNIT
INDOOR UNIT
Air Outlet
Return Air
Display Lights
1
PART NAMES AND THEIR FUNCTIONS

5
2.1 LCD WIRELESS REMOTE CONTROL OPERATING
CAUTIONS REGARDING THE BATTERIES
● The batteries can be used for approximately one year.
● Do not use rechargeable (Ni-Cd) batteries, because such batteries differ from standard dry cell batteries in
shape, dimensions and performance.
● Be sure to replace the batteries with two new batteries of the same type as each other.
● Remove the batteries if the air conditioner is not going to be used for an extended period of time.
Real Time Clock Button
Operation Mode Selection Button
Room Temperature Setting Button
Airflow Volume Selection Button
Signal Transmitter Button
Operation Display
Off/On Button
Sleep Mode Auto Operation Button
Airflow Direction Manual Control Button
Timer Button
Signal Transmitter Button
Airflow Direction Auto Control Button
Hours Setting Button
Minutes Setting Button
■ INSTALLATION OF BATTERIES
How to use the remote control to operate the unit
2
●Remove the cover from the back of the
remote control.
●Insert the two batteries into the slot.
(be sure that the (+) and (-) directions
are correct)
●Fix the cover to the back of the remote
control.

6
❏ BUTTON
Use this button to select the desired operation mode cool, fan, dry, heat, auto temperature control.
■HOW TO USE THE REMOTE CONTROL
To prevent any damage that may occur to the compressor, when turning off the air conditioner and turning it on again
immediately, the compressor will not operate until 3-4 minutes have passed and then it will automatically be restarted.
If the compressor is turned off more than 3-4 minutes, it will operate immediately if it is turned on again.
CLOCK HR MN
SEND
POWER
MODE
MODE
In dehumidifying, the temperature will be reduced.
An indoor unit will operate intermittently in the cool mode
and an outdoor unit will stop operating intermittently.
The temperature will be lowered.
Start of Operation
Cool Air
MODE
How to use the remote control to operate the unit
❏ SETTING THE CLOCK.
Press button and press or button on the operation display window to set the
real time then press button.
❏ BUTTON .
Push this button to turn on or turn off the air conditioner. Whenever the air conditioner is turned on
or turned off, the short "BEEP" tone can be heard and power lamp on the unit will be illuminated.
●When the unit correctly receives the signal from the wireless remote control, the "beep" sound will be
heard.
●If the signal from the remote control is blocked by obstacles, there will be no response.
●Press each button for any function once at a time, if press two buttons at a time, there may be
malfunctioning.
MODE
1. Cool Mode : Press button to select a COOL position on the LCD display window,
the unit will operate according to the set temperature.
2. Fan Mode : Press button to select a FAN position on the LCD display window, the
unit will operate as an electrical fan without cool air.
3. Dry Mode : Press button to select a DRY position on the LCD display window, the
unit will operate with dehumidifying function.

7

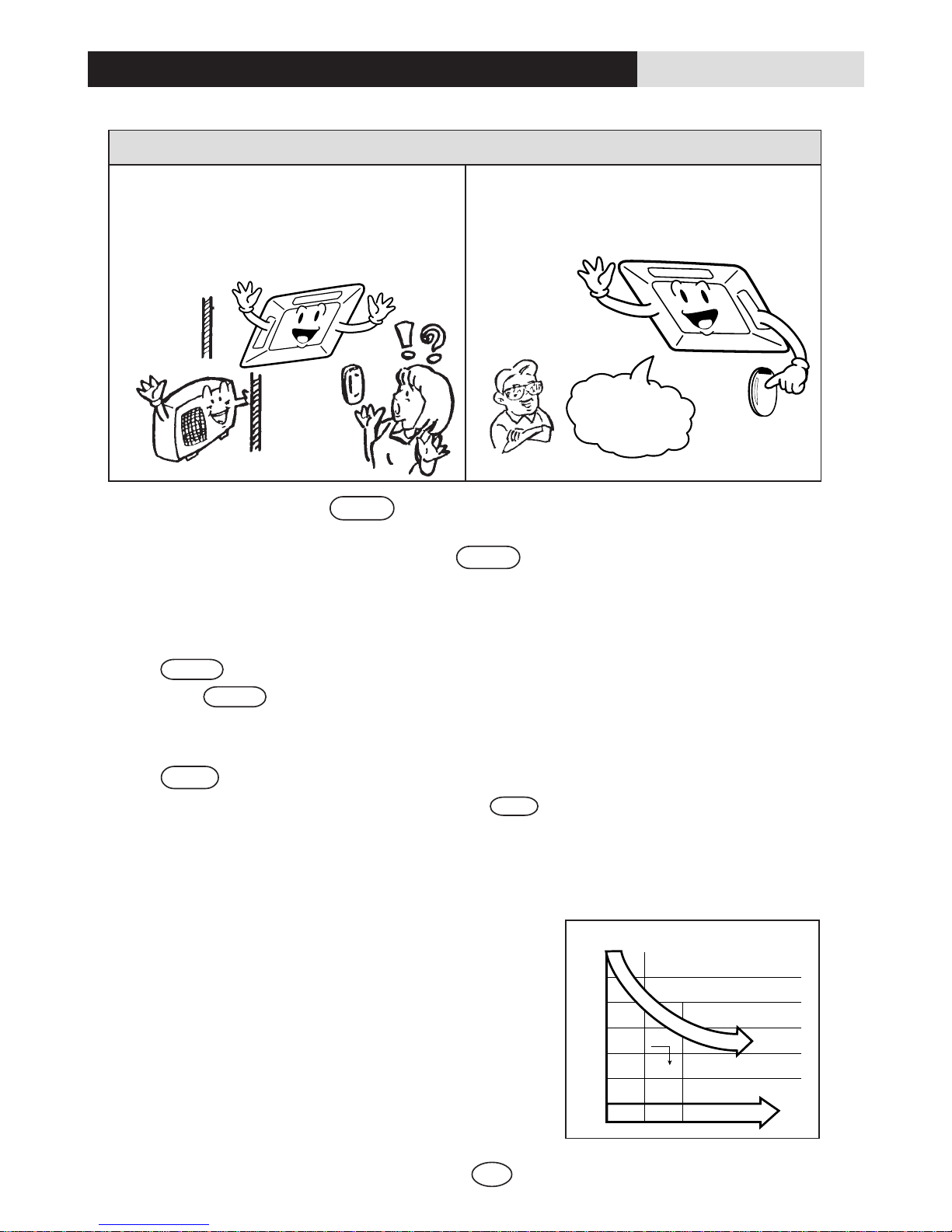

Microprocessor is functioning
Both the temperature and the fan speed will be
automatically controlled by the microprocessor.
Both the indoor unit and the outdoor unit will stop
operating. In dehumidifying, the fan will stop
operating to eliminate the humidity. This opera-
tion is controlled by the microprocessor.
Automatic System: When the Auto position of fan function
is chosen, the fan will automatically operate according to
the difference between the room temperature and the set
temperature. If the difference is great, the fan will run at
high speed. If the difference is small, the fan will run at the
low speed as shown in the diagram.
How to use the remote control to operate the unit
AUTOMATIC FAN SPEED CONTROL
RoomTemperature
Set Temp.
Fan Speed
HI MED LOW
25o C
24o C
23o C
22o C
21o C
4. Heat Mode : Press MODE button to select a HEAT position on the LCD display window, the
unit will operate according to the set temperature.
5. Auto Temperature Control Mode : Press MODE button to select an Auto Changeover function,
then the unit will operate in either Cool mode or Heat mode automatically
depending upon the room temp and set temp. At this mode, sign "Cool" and
"Heat" will appear simuteneously on the display screen.
TEMP
TEMP
❏ BUTTON
Press button to select the desired temperature (The desired temperature can be adjusted
from 18oc to 30oc)
❏ FAN BUTTON
To adjust the fan speed of the air conditioner press FAN button to select the desired airflow volume.
● When the HIGH sign illuminates, the fan is in the fastest speed mode.
● When the MED sign illuminates, the fan is in the medium speed mode.
● When the LOW sign illuminates, the fan is in the slow speed mode.
Leave it to the
microprocessor!

8
Example :
To stop the air conditioner at 23:00
(1) Press button
(2) Press or button to set the display at 23:00.
(3) Press button.
SLEEP
OFF timer
(Operation Stop)
The OFF timer feature is useful when you go to sleep.
The air conditioner will stop automatically at the time set.
→
STOP
MN
HR
SEND
Cooling Mode
Temperature
Hours
Heating Mode
26
o
C
25.5
o
C
25
o
C
24.5
o
C
24
o
C
0 1/2 1
How to use the remote control to operate the unit
The ON timer feature is useful when you wake up in the
morning or when you return home. The air conditioner will
automatically start operating at the time set.
→
ON timer
(Stop Operation)
Example :
To start the air conditioner at 6:00.
(1) Press button.
(2) Press or button to set the display at 6:00.
(3) Press button.
START
MN
HR
SEND
❏ BUTTON
While sleeping, human metabolism will be reduced. To
adjust appropriate temperature, press SLEEP in the cooling
mode. The room temperature will be raised as shown in
diagram every 30 minutes up to 1 hour. Then the sleep
light will turn off automatically (for heating mode the
temperature will decrease as shown in the diagram).
❏ TIMER BUTTON
The air conditioner can be programmed in 4 different choices
● OFF TIMER (OPERATION STOP)
● ON TIMER (STOP OPERATION)
● OFF TIMER ON TIMER (OPERATION STOP OPERATION)
● ON TIMER OFF TIMER (STOP OPERATION STOP)
→→→
→
→→→
→

9
OFF timer ON timer
(Operation Stop Operation)
This feature is useful when you want to stop the air conditioner
after you go to sleep, and start it again in the morning when
you wake up or you return home.
→→
→
(1) Press button then press or
to set the display at 23:00.
(2) Press button then press or
to set the display at 6:00.
(3) Press button.
Example :
To stop the air conditioner at 23:00 and start it again next
morning at 6:00.
→
→→
ON timer OFF timer
(Stop Operation Stop)
(1) Press button then press or
to set the display at 6:00.
(2) Press button then press or
to set the display at 8:00.
(3) Press button.
●The timer function (ON or OFF) whichever mode is closest to the actual time will be activated first.
●If the same time is set for both ON and OFF timers, no timer operation is performed. Also,
the air conditioner may stop operating.
STOP MN
HR
START MN HR
SEND
STOP
MN
HR
START
MN
HR
SEND
How to use the remote control to operate the unit
Example :
To start the air conditioner at 6:00 next morning, and stop it
at 8:00.
You can use this setting to start the air conditioner when you
wake up and stop it when you leave the house.

10
EMERGENCY
OFF
COOL
HEAT
■Press button for automatic airflow
direction operation. To stop the function
press button again.
■Press button for manual airflow
direction. The louver will move up and
down. Release the button when the louver
is at the desired position.
EMERGENCY
OFF
COOL
HEAT

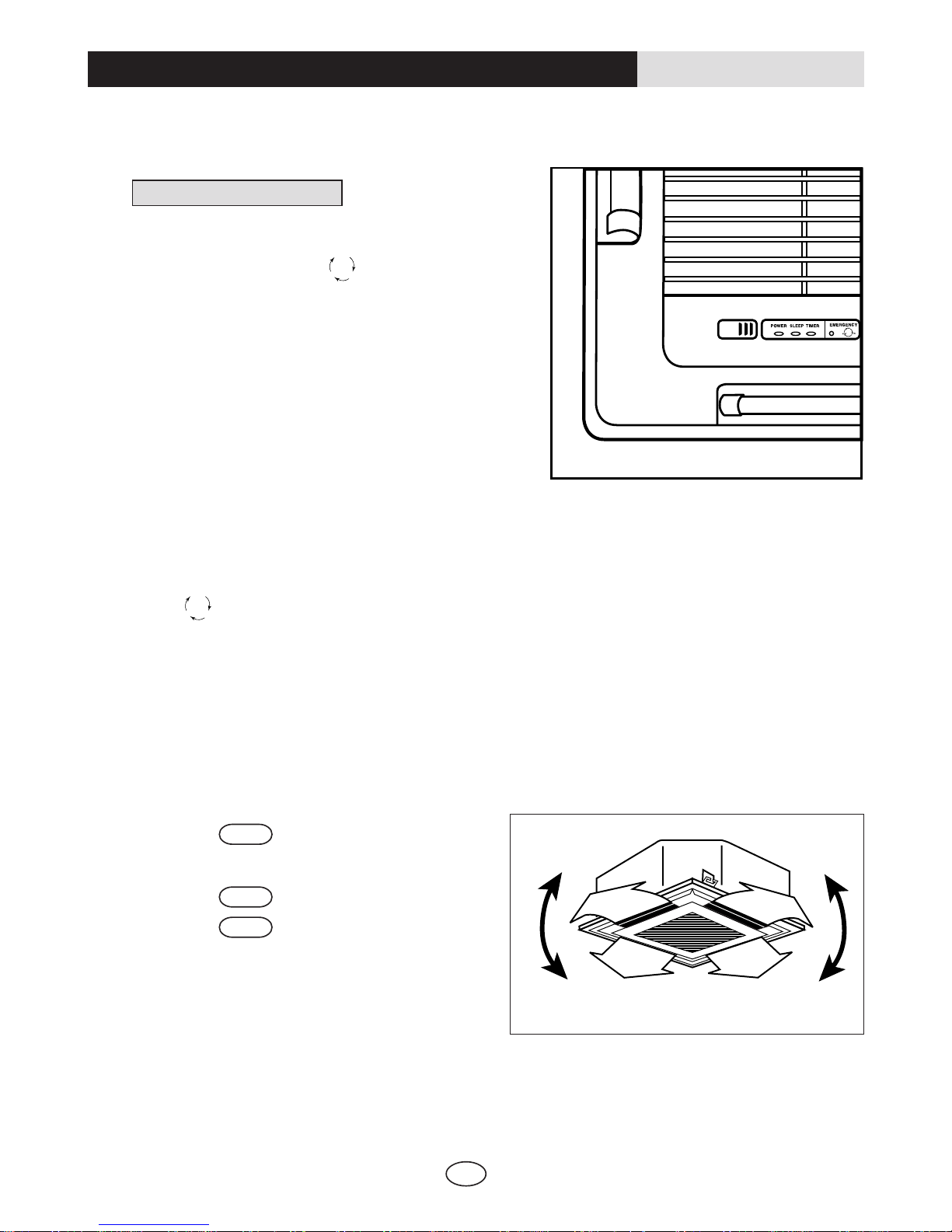

EMERGENCY OPERATION
How to use the remote control to operate the unit
In the following cases, use button for emergency
operation instead of the remote control.
●When batteries of the remote control are exhausted.
●When the remote control is lost.
●When the remote control is out of order.
●To test the unit during installation.
❏ HOW TO USE THE EMERGENCY BUTTON
Press button under the front panel to turn on or turn off the air conditioner.
(For heat pump air conditioner : cool mode will be operated for the first press, heat mode will be operated
for the second press)
2.2 AIRFLOW DIRECTION ADJUSTMENT
Airflow direction can be adjusted to 4 directions.
SW
SW
LV

11
3
MAINTENANCE

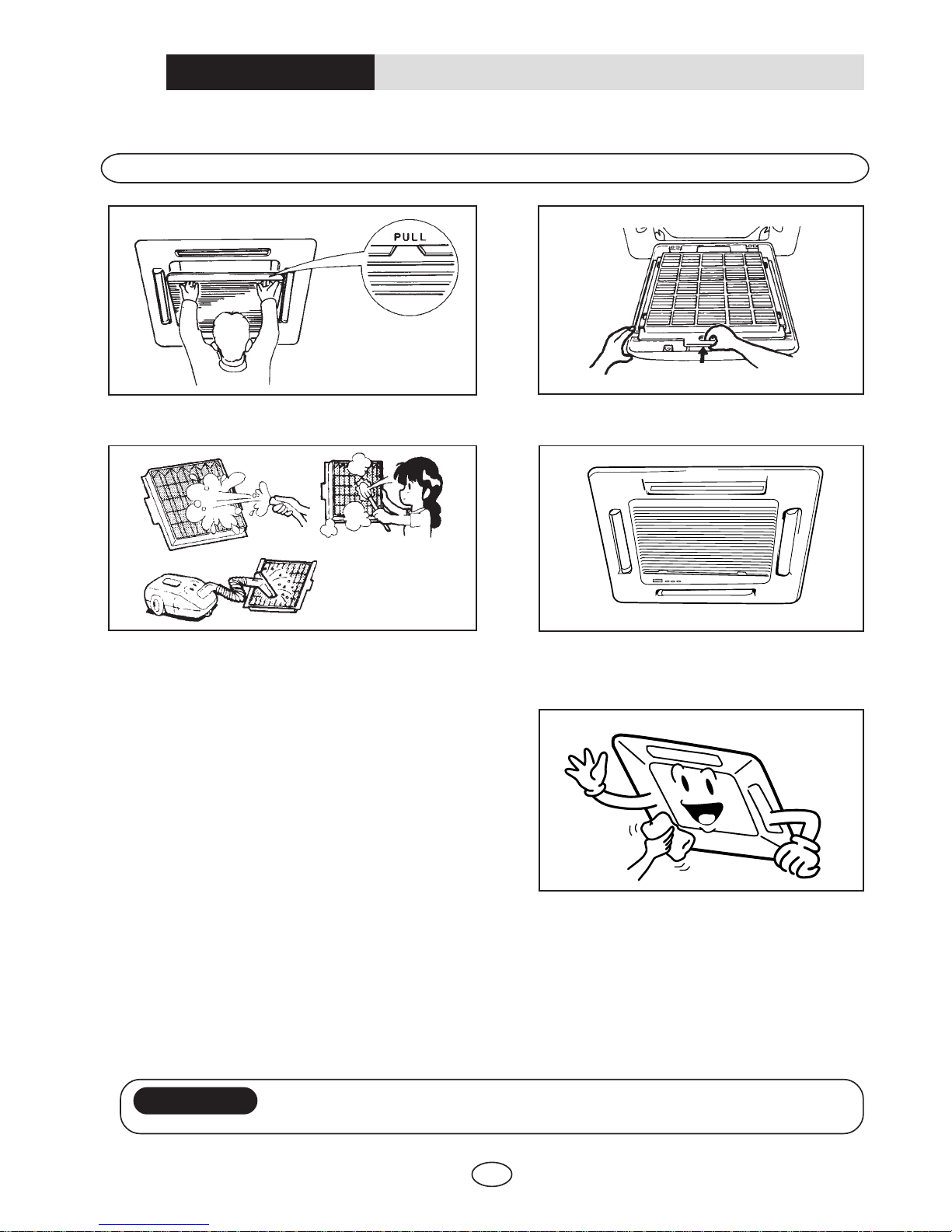

●Unclip the grille from the front frame by pull the
latches from the front frame.
SUGGESTION :
3.1 CLEANING THE AIR FILTERS
● If the air filter is dirty, it will cause the reduction of airflow, the unit is overload and consume
6% more of electricity. So regular cleaning is necessary.
3.2 CLEANING THE UNIT
3.4 AT THE START OF THE SEASON
●Check that nothing blocks the air inlet and outlet of
indoor and outdoor units.
●Running the unit without an air filter can cause mal-
functions due to dirt or dust. Always install an air
filter at all times.
●Check that a drainage hose does not bend or clog.
●Check that the units are properly installed.
Clean the air conditioner and the remote control with
dry cloth or a vacuum cleaner. If damp cloth is used,
remove moisture by using dry cloth afterward.
3.5 DURING THE OFF SEASON
●Cut off the power supply main switch.
●Clean the air filter and other parts.
●Leave the circulation fan running for 2-3
hours to dry out the inside of the unit.
●Swing the grille open and remove the air filter
out off the grille.
●Remove the air filter and clean by vacuum cleaner or
if it is very dirty, wash it with soap water then wipe
off until it is completely dry before reinstallation.
●Swing up the grille until the latches click into
the positions.
Before inspection and maintenance of the unit, always set the main power switch to "OFF" to cut off power supply.

12
MAINTENANCE
Replacement of air purifying filters. (recommend once every three months)
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,,,,,,,
,,,,,,,,,,,,,
,,,,,,,,,,,,,
,,,,,,,,,,,,,
,,,,,,,,,,,,,
●Open the grille by pulling the latches from the
front frame.
●Swing the grille open and remove the air filter
out off the grille.
●Unscrew the filter frame and remove the air
purifying filter from the filter frame.
●Re-insert the air filter to the grille, swing up the
grille until the lacthes click into the positions.
REPLACING AIR PURIFYING FILTER (OPTION)
Filter Frame
Air Purifying Filter
Air Filter
INFORMATION
●Airflow volume is reduced when an air purifying filter have been installed.

13

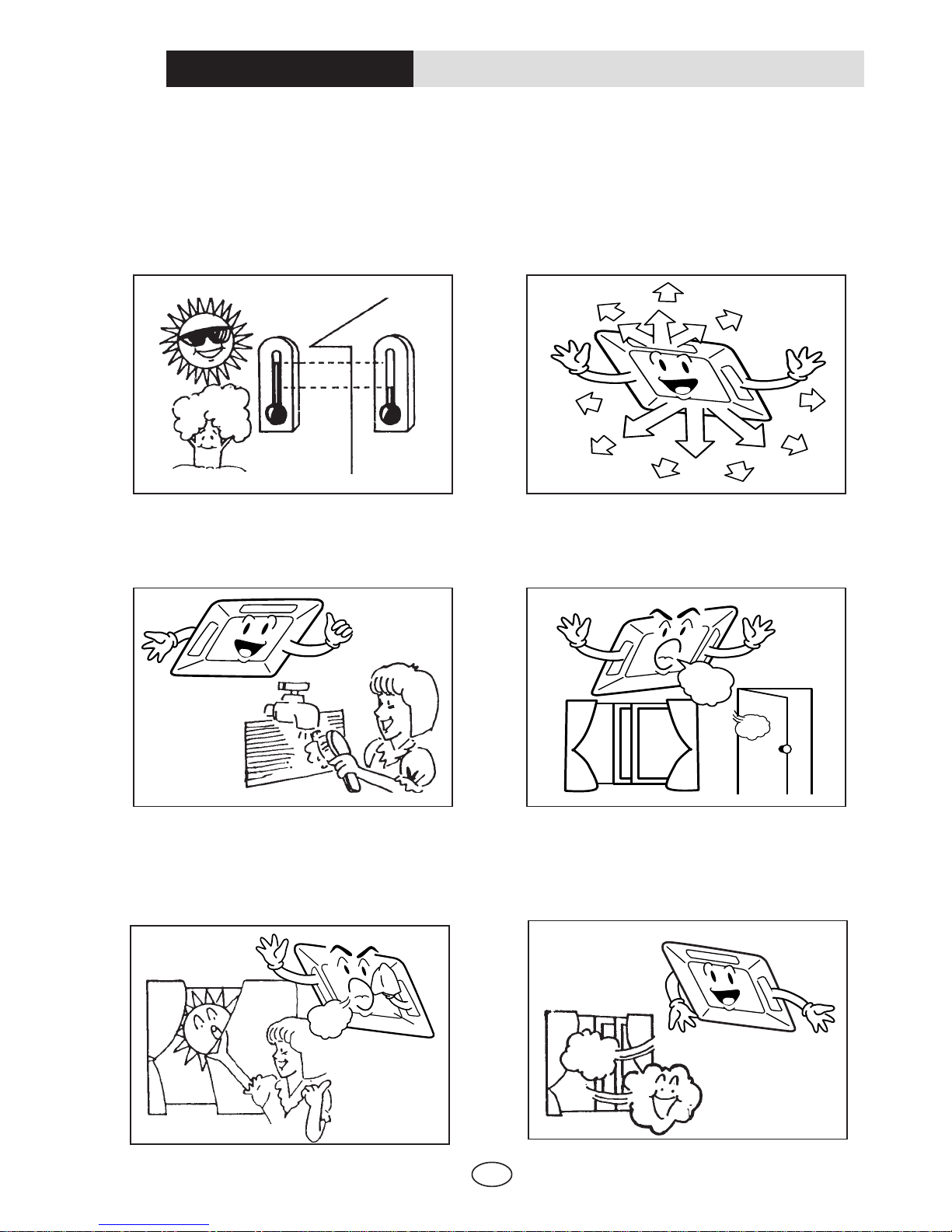

●Clean the air filter every week for higher
efficiency.
●Close windows and doors while operating the
unit to prevent leakage of cooled air to save
energy.
●Draw close curtains or close glass windows
when cooling to prevent heat load from sun
light which may cause more electricity cost.
●In case of ineffective ventilation, open the
window to ventilate the room air once in a
while but not too long since cooled air will be
uselessly drained out.
●The temperature should not be set lower than
what you need. This would result to increase
energy cost.
●To distribute cool air through out the room,
adjust air flow direction as shown by the
arrows (see picture) to diffuse cool air.
OPERATING GUIDE
4

14
PRECAUTIONS
5
●Do not locate any obstacles against the air
flow direction of indoor and outdoor units.
Inefficient performance or malfunction may
result.
●Turn off the air conditioner if, while running,
electricity interference occurs. If the unit is not
to be used for a long time, cut off the power
supply main switch.
●Check electrical system (voltage and frequency).
Use the proper power supply indicated on the
unit to operate the air conditioner and only
fuses with specified capacity. Do not use pieces
of wire instead of fuse.
●Do not insert objects into the air inlet or outlet
when the air conditioner is running as it may
cause damage or personal injury. Also pay
special attention when children are around.
●Do not locate a heater or any other heat sources
close to the unit. The heat may deform the
plastic parts.
●Do not channel the air flow directly at people,
especially infants, aged persons, or patients.

15
Checking before contact the service man
6
PROBLEM CAUSES
No operation ●Check if electrical wire is damaged & check if
breaker switch is still on.
●Check if the power supply is in order.
●Check if the timer switch is on or not.
The air conditioner runs but ●Check if the preset temperature is too high.
does not cool enough. ●Check if the sunlight shines directly into the room.
●Check if the door and window are opened.
●Check if there is anything obstructing the air discharge.
●Check if the exhaust fan still operates.
●Check if the air filter is dirty or clogged.
Vapor or mist fume coming ●Hot air in the room mixes with cool air. This causes smoke
out of the unit while running. fume.
Inoperative ●Loosened or disconnected wire between the unit and the
remote control. remote control.
●Check if the batteries are inserted in correct directions
●Check if the batteries are exhausted or not.
Check the following before contact the service man. You may find the solution to your problems.
After checking, if it still does not operate, please contact your local dealer.

Klimaire Products, Inc.
7909 N.W. 54th Street
Miami, 33166 U.S.A.
Tel : [phone]
Fax : [phone]
e-mail : [email protected]
NOTE: SPECIFICATIONS AND PERFORMANCE DATA LISTED HEREIN ARE SUBJECT TO CHANGE WITHOUT NOTICE
®
U2TC2002
