Klimaire KSW012-C113 User manual

CONTENTS
Safety Precautions .................................................. 1
Name Of Each Part .................................................. 2
Operation ............................................................... 3
Notices ................................................................... 4
Care and Maintenance ............................................. 6
Troubleshooting ...................................................... 6
Installation Guide .................................................... 8
Technical Specifications .......................................... 9
Remote controller operation ................................ 3
Manual operation ............................................... 3
Checking before operation .................................. 4
Cleaning ............................................................ 6
Maintenance ...................................................... 6
Guide for customer ............................................. 8
Notices ............................................................. 8
Safety tips ......................................................... 4
Working condition .............................................. 4

WARNING

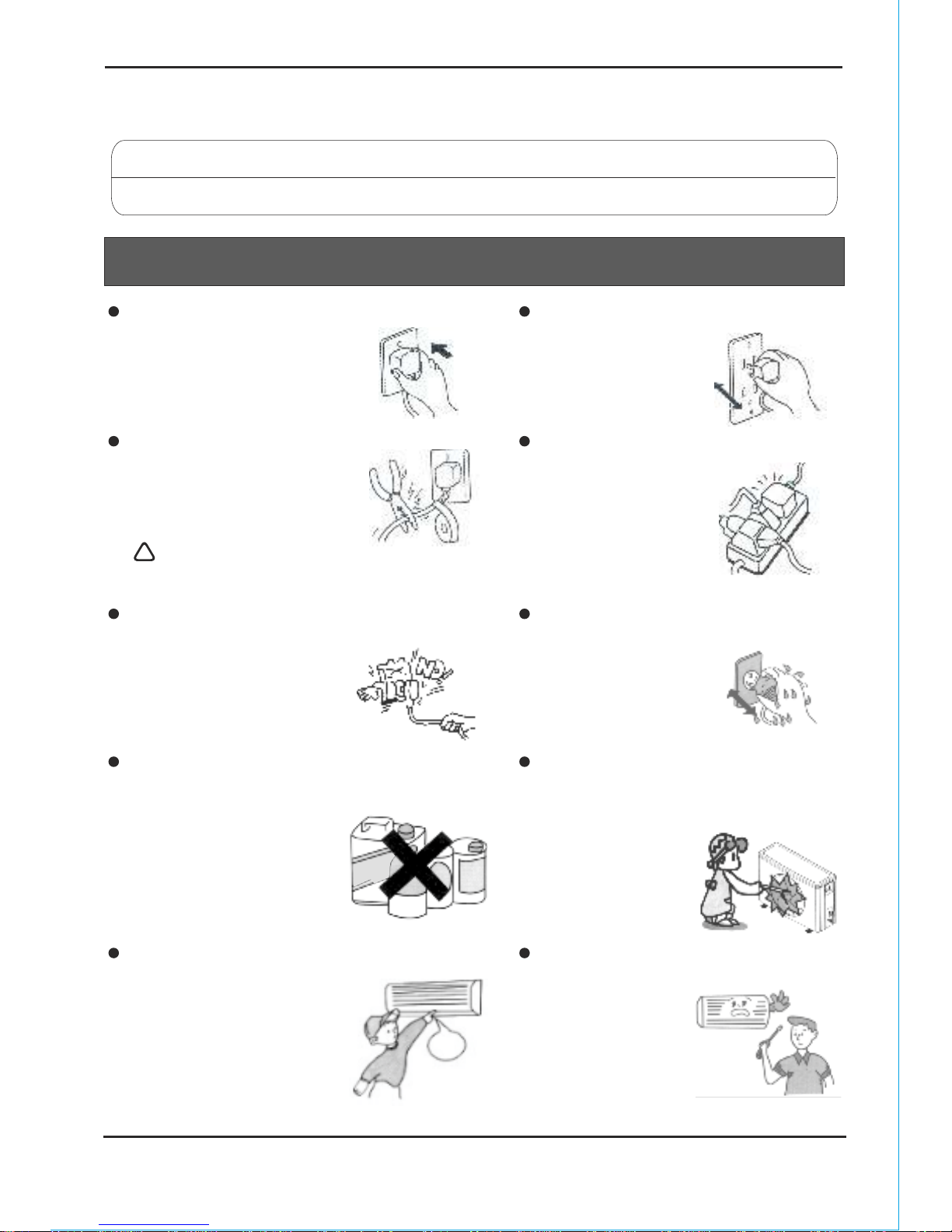

Safety Precautions
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
The power plug must be inserted tightly.
Otherwise, it can cause
electric shock or overheating,
even fire.
It can cause electric
shock or fire.
Don t pull out the power plug
during operating.
,
Don t destroy the or use an
unspecified one.
power cord
,
Don t pull the power plug to pull out the
power cord.
,
The damage of power cord
will cause serious electric
shock.
Don t operate the air conditioner
with wet hands.
,
It will cause electric
shock.
Don t install air conditioner in a place
where there is flammable gas or liquid.
,Don t put a finger, a rod or other
object into the air outlet or inlet.
,
Don t use longer power lines and
don t share the socket with
other appliance.
,
It can cause overheating
or fire.
The power cord must be replaced and
changed by specialists.
£
,
It may cause fire. As a fan is rotating at a high speed,
it will cause injury.
It may clamp your finger
and damage the driving
parts of the wind vanes.
,
Don t touch the swinging wind vanes. Don t attempt to repair the air
conditioner by yourself.
,
You may be hurt or
cause further
malfunctions.
1
Klimaire Products Inc. All rights Reserved
Operation Manual - Ductless Systems KSWX012-H113, KSWX018-H213, KSWX024-H213,

Indoor Unit
Name of Each Part
2
Indoor Unit
Outdoor Unit
Installation board
Middle frame
Indication light and signal receiver
Front panel
Horizontal airflow direction vane
Vertical airflow direction vane(inner)
Air filter
Drain pipe
Pipe and Drain pipe
Cut-off valve
Outlet cover
11
12
Outdoor Unit
Fig.1
Pipe protection ring
Note:
All picture in this manual are for explanation
purpose only. They may be slightly different
from the air conditioner you purchased (depend
on model)
10
2
3
1
8
9
7
5
6
4
Klimaire Products Inc. All rights Reserved
Operation Manual - Ductless Systems KSWX012-H113, KSWX018-H213, KSWX024-H213,

3
Operation
Manual operation
¡
Manual operation
¢
¢
¡
When the remote controller does not work or can not be found, please follow these steps:
As the unit is operating, you can press the ¡Auto button¡
to stop operating.
As the unit is stopping, you can press the ¡Auto button¡
to start operating.
¡
Use your hands to move the vertical airflow vane
and change the horizontal wind direction.
£Note:
Adjust the horizontal air flow direction before
the air-conditioner starts. Don t insert your finger
into air intake or outlet vents when the air-conditioner is operating.
¡
Adjusting air flow direction
1. orizontal air flow manually. Adjusting h
Remote controller operation
¡
See ¡air conditioner remote controller instruction ¡
2. Adjusting vertical air flow direction(up-down)
Refer to¡air conditioner remote controller instruction ¡for how to adjust vertical
airflow direction through adjusting the horizontal airflow vane by remote controller.
Note:
Adjust the vertical air flow direction by remote controller. When you adjust the
horizontal airflow vane by hand, the machine may cause problem.
When the air-conditioner stops, the horizontal wind vane will close the wind outlet of
air conditioner.
Manual operation can be used temporarily in case you can not use remote controller or
its batteries are exhausted.
£
8
-3-
Klimaire Products Inc. All rights Reserved
Operation Manual - Ductless Systems KSWX012-H113, KSWX018-H213, KSWX024-H213,

¡
Installation should always be carried out by specialist. The customers should not install
the air-conditioner by themselves. Otherwise, it may cause damage or injury.
Safety tips
Set the suitable temperature, especially there are old people, children and patients in the
room. Generally, keep the temperature difference for 5¡ between the inside and outside.
In case that the unit occurs closing down due to the severe interference from outer
environments such as mobile phone, please cut off the plug and plug in to restart the
air conditioner after several seconds .
Never expose animals or plants to direct air flow, and adjust the air flow to avoid air
blowing directly at people.
¡
¡
Notices
Make sure that air outlet and inlet are not blocked.
Make sure that the earth wire is connected safely and reliably.
Make sure the filter net is properly fixed.
Please clean the filter before starting the air-conditioner referring to page to 6
¡Cleaning¡for how to operate.
Checking before operation
To prevent injury and property damage, Please pay attention to these following before
operating the air conditioner.
Working condition
When outdoor temperature is more than 43¡ or lower than 18 ¡(dry temperature ),
the air conditioner can not operate Cooling mode.
When outdoor temperature is more than 24¡ or lower than -7¡(dry temperature ),
the air conditioner can not operate Heating mode.
-4-
Klimaire Products Inc. All rights Reserved
Operation Manual - Ductless Systems KSWX012-H113, KSWX018-H213, KSWX024-H213,

The main power switch should be placed
where is unavailable for child to prevent
the child from the danger of electric shock.
£
£
WARNING
Stop operation and close the windows in
storm or hurricane. Operation with
windows opened may
cause electric shock.
Cut off the main power switch when not
using the unit for a long time. Otherwise,
it may cause product failure or fire.
Don t use liquid or corrosive detergent clean
the appliance and don t splash water or other
liquid onto it , otherwise,
it may damage the plastic
components, even cause
electric shock.
Cut off the
power supply
switch
If the air filter is very dirty, the cooling
or heating capacity will be weakened.
Please clean the air filter regularly .
Close the windows and doors, otherwise,
cooling or heating capacity will be weakened.
the
Don t install the indoor unit under sunshine
directly.
,
Don t block air inlet or air outlet, otherwise,
the cooling or heating capacity will be
weakened, even cause system stop
operating.
,
,
,
CAUTION
5
Lightning
Children should be supervised to ensure that
they do not play with the appliance.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning
use of the appliance
by a person responsible
for their safety.
It was prohibited to stand or put things onto
the top of the outdoor,
to avoid drop or damage
Klimaire Products Inc. All rights Reserved
Operation Manual - Ductless Systems KSWX012-H113, KSWX018-H213, KSWX024-H213,

Care and Maintenance
Troubleshooting
1.Turn off the air-conditioner and remove the electrical plug from the outlet.
2.Wipe the indoor unit with dry cloth or wet cloth which is dipped by cold water.
Cleaning the indoor unit
Cleaning
Note :
¡
¡
¡
£
Cleaning air filter
Maintenance
¡
Air filter
Front panel
Air filter
Front panel
Check the following before requesting on service centre of AUX if the malfunction occurs.
Phenomenon Trouble shooting
Air conditioner dose not operate at all
Has the power been shut down?
Is the wiring loose?
Is the fuse burnt?
Does it reach the set time for start up?
Don t use thinner, polishing powder, benzene and other volatile chemicals.
¡
Don t ¡use water above 45 to wash the panel, or it could cause deformation or depigment.
¡
1.Raise up the front panel of indoor unit until it suddenly stop, then raise up the protruded
part of air filter, and then take it out.
2. Use a vacuum cleaner or wash them with water, then dry it in the shade.
3. Reinsert the air filter into the indoor unit until being entirely fixed, then close the
front panel.
1. Select ¡FAN¡operation mode,
make the air conditioner run a
long time to dry.
2. Turn off the air conditioner and cut off
the power supply.
4. Clean air filters and other parts.
3. Take out the batteries from the remote
controller.
-6-
Klimaire Products Inc. All rights Reserved
Operation Manual - Ductless Systems KSWX012-H113, KSWX018-H213, KSWX024-H213,

Phenomenon Trouble shooting
Remote controller is not available
Is the remote controller out of effective
distance to the indoor unit?
Is the battery exhausted?
Are there any obstructions between the
controller and the signal receptor?
Indoor unit does not operate
immediately when the air
conditioner is restarted
Once the air conditioner is stopped, it
will not operate in approximately 3
minutes to protect itself.
There is unusual smell blowing from
the outlet after operation is started.
This is caused by the odour in the room
permeated from building material,
furniture, or smoke.
Sound of water flow can be heard
during cooling operation
This is caused by the refrigerant
flowing inside the unit.
Mist is emitted during cooling
operation.
Mist is emitted during heating
operation.
Because the air of the room is cooled
down rapidly by the cold wind and it
looks like the fog.
This generate due to moisture in
defrosting process.
Low noise can be heard during
operation
A low hissing sound is caused by the
refrigerant flowing.
A low squeak sound is caused by the
deformation of plastic due to
temperature.
Cooling (Heating)efficiency is not
good
Is the setting temperature suitable?
Is the air inlet or outlet obstructed?
Are air filter dirty?
Is indoor fan speed set at low speed?
Is there any heat source in your room?
In case the following situation, please immediately stop all operations and cut off
the power supply, then contact with service centre of AUX.
The fuse and switch often breaks.
Carelessly splash water or something into air conditioner.
Unusual noise can be heard during operation.
Electrical wiring and power plug are very hot.
Wind blowing from the outlet smells terrible during operation.
The Run light or other display flashes rapidly and keeps flashing after repluging.
-7-
Klimaire Products Inc. All rights Reserved
Operation Manual - Ductless Systems KSWX012-H113, KSWX018-H213, KSWX024-H213,

8
The installation must be done by professional referring to the¡Installation instructions¡.
The wiring must be done by qualified electrician according to the electrical safety
requirements.
The customer should have a qualified power supply which coincides with the tag of air
conditioner, the normal voltage should be in the range of 90-110% of its rated voltage.
The air conditioner must be well grounded, the switch of the main power of air-
conditioner must be reliably grounded.
n all-pole switch
must be installed in the fixed wiring and the distance between contacts should be
no less than 3.0 mm.
leakage protector must be installed in the fixed wiring,
operating current of which shall not exceed 30 mA.
The power supply circuit should have leakage protector and air switch of which the
capacity should be more than 1.5 times of the maximum current.
If your air conditioner is not fitted with a supply cord and a plug, a
If your air conditioner is permanently connected to the fixed wiring and have a leakage
current that may exceed 10 mA,
Guide for customer
Notices
¡
¡
The appliance shall be installed in accordance with national wiring regulations.
Fix the machine firmly, otherwise it will produce abnormal noise and vibration.
Install the outdoor unit in the place where it wouldn t disturb your neighbour.
The method of connection of the appliance to the electrical supply and inter
connection of separate somponents, please see the electric connection elements
shart which stick on the machine.
Is the power supply cord is damaged, it must be replaced by the manufacture or its
service agent or a similar qualified person.
After installation, the power plug should be easily reached.
The air conditioner must be installed on well strong supporter.
Installation Guide
Klimaire Products Inc. All rights Reserved
Operation Manual - Ductless Systems KSWX012-H113, KSWX018-H213, KSWX024-H213,

Technical Specifications
-9-
Klimaire Products Inc. All rights Reserved
Operation Manual - Ductless Systems KSWX012-H113, KSWX018-H213, KSWX024-H213,
& KFWX019-C213

7909 N.W. 54th Street,
Miami, FL 33166 USA
Phone: [phone]
Fax: + 1 [phone]
e-mail: [e-mail]
www.klimaire.com
