- 1 -
INDEX
1. Specifications
2. Dimension
3. Installation and connection
4. Accessories
5. Electrical wiring
6. Display controller operation
7. Troubleshooting
8. WIFI instruction
9. Exploded diagram
10. Maintenance
Thank you for purchasing our product for your pool or spa heating. Heat Pumps use the ambient air
temperature to heat your pool or spa water efficiently. Heat Pumps perform better with warmer ambient
temperatures & it will heat your water and maintain constant temperature whilst the ambient air
temperature is between -5 to 43 . The use of a heat pump will extend your swimming season & provide ℃
extra enjoyment for you and your family.
ATTENTION: This manual includes all the necessary information regarding the use and the
installation of your heat pump.
The installer must read the manual and attentively follow the instructions in implementation and
maintenance.
The installer is responsible for the installation of the product and should follow all the instructions of the
manufacturer and the regulations in application. Incorrect installation against the manual implies the
exclusion of the entire guarantee and warranty.
The manufacturer declines any responsibility for the damage caused to people, objects and errors due to
incorrect installation. It is the owners responsibility to ensure that the pool or spa water maintains correct
water chemistry balance as bad water chemistry can damage the heat pump internal components which
will not be covered under this warranty. Any usage outside of what is stated within this manual or its
designed purpose of manufacturing will be regarded as dangerous and is not recommended.
WARNING: Please always shut off the power supply if you need to open the heat pump cabinet to work
inside the heat pump. As this is an electrical product there is high voltage electricity inside. Any electrical
connections and/or repairs should be conducted by a licensed electrician.
WARNING: When using the 10mtr external control panel extension please ensure the display controller is
located in a dry area. Also keep the insulation cover closed to protect the display on the controller from
being damaged by humidity and possible rain.

KlimaTeknik Top Heat pump
- 2 -
1. Specifications
Vertical design, R410A, Heating & Cooling function
Model KT135CV-TOP KT300CV-TOP
* Heating Capacity at Air 28℃, Water 28℃,Humidity 80%
Max Heating Capacity kW 13.5 30
Rated Heating Capacity kW 11.5 25.5
Input Power (Heating) kW 1.95 4.47
MAX C.O.P 6.9 6.7
C.O.P 5.9 5.7
* General data
Compressor type Rotary / R410A Scroll / R410A
Voltage 220-240V~50Hz/1PH 380-415V~50Hz/3PH
Running Current Heating A 8.6 8.0
Advised pool volume
(with pool cover) m³ 30-60 90-130
Advised water flux m3/h 3.5~7.1 7.1~14
Water Pressure Drop KPa 15 18
Heat exchanger Titanium in PVC
Water connection mm 50
No. of Fan 1
Ventilation type Vertical
Fan Speed RPM 650
Noise level(10m) dB(A) 43 48
Noise level(1m) dB(A) 52 58
Net Weight kg 70 113
Net Dimension (WxDxH) mm 730*652*720 865*685*910
Packing Dimension (WxDxH) mm 775*730*742 885*740*930
* Above data are subjects to modification without notice.

KlimaTeknik Top Heat pump
- 3 -

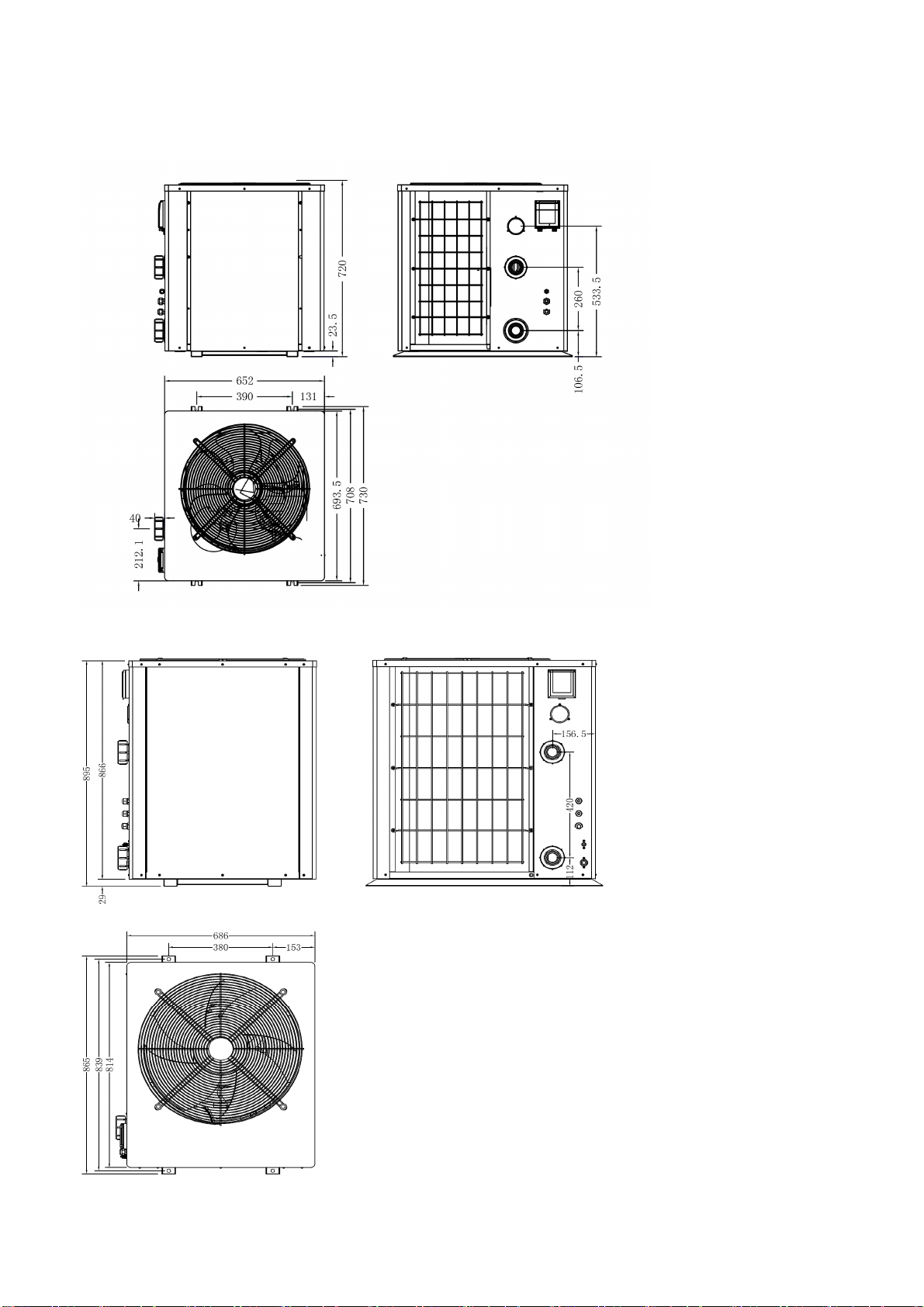

2. Dimensions
Model: KT135CV-TOP
Model: KT300CV-TOP

KlimaTeknik Top Heat pump
- 4 -
3. Installation and connection
3.1 Notes
Upon purchase you will receive your complete Heat Pump. All other components, including a bypass if
necessary, must be provided by the user or the installer.
Attention:
Please observe the following rules when installing the heat pump:
1. Any addition of automated chemicals must take place in the piping located downstream from the
heat pump.
2. Install a bypass if the water flow from the swimming pool pump is more than 20% greater than the
allowable flow through the heat exchanger of the heat pump.
3. Install the heat pump above the water level of the swimming pool.
4. Always place the heat pump on a solid foundation and use the included rubber mounts to avoid
vibration and noise.
5. Always hold the heat pump upright. If the unit has been held at an angle, wait at least 24 hours
before starting the heat pump.
3.2 Heat pump location
The unit will work properly in any desired location as long as the following three items are present:
1. Fresh air – 2. Electricity – 3. Swimming pool filtration
The unit may be installed in virtually any outdoor location as long as the specified minimum distances to
other objects are maintained (see drawing below). Please consult your installer for installation with an
indoor pool. Installation in a windy location does not present any problem at all, unlike the situation with a
gas heater (including pilot flame problems).
ATTENTION: Never install the unit in a closed room with limited air volume in which the air expelled from
the unit will be reused, or close to shrubbery/plant life that could block the air inlet. Such locations impair
the continuous supply of fresh air, resulting in reduced efficiency and possibly preventing sufficient heat
output. Heat Pumps require fresh air & maximum ventilation to be more productive.
See the drawing below for minimum dimensions.

KlimaTeknik Top Heat pump
- 5 -
3.3 Distance from your swimming pool
The heat pump is normally installed within a perimeter area extending 7.5 m from the swimming pool. The
greater the distance from the pool, the greater the heat loss in the pipes. As the pipes are mostly
underground, the heat loss is low for distances up to 30 m (15 m from and to the pump; 30 m in total)
unless the ground is wet or the groundwater level is high. A rough estimate of the heat loss per 30 m is
0.6 kWh (2,000 BTU) for every 5 ºC difference between the water temperature in the pool and the
temperature of the soil surrounding the pipe. This increases the operating time by 3% to 5%.
3.4 Check-valve installation
Note: If automatic dosing equipment for chlorine and acid (pH) is used, it is essential to protect the heat
pump against excessively high chemical concentrations which may corrode the heat exchanger. For this
reason, equipment of this sort must always be fitted in the piping on the downstream side of the heat
pump, and it is recommended to install a check-valve to prevent reverse flow in the absence of water
circulation.
Damage to the heat pump caused by failure to observe this instruction is not covered by the warranty.

KlimaTeknik Top Heat pump
- 6 -

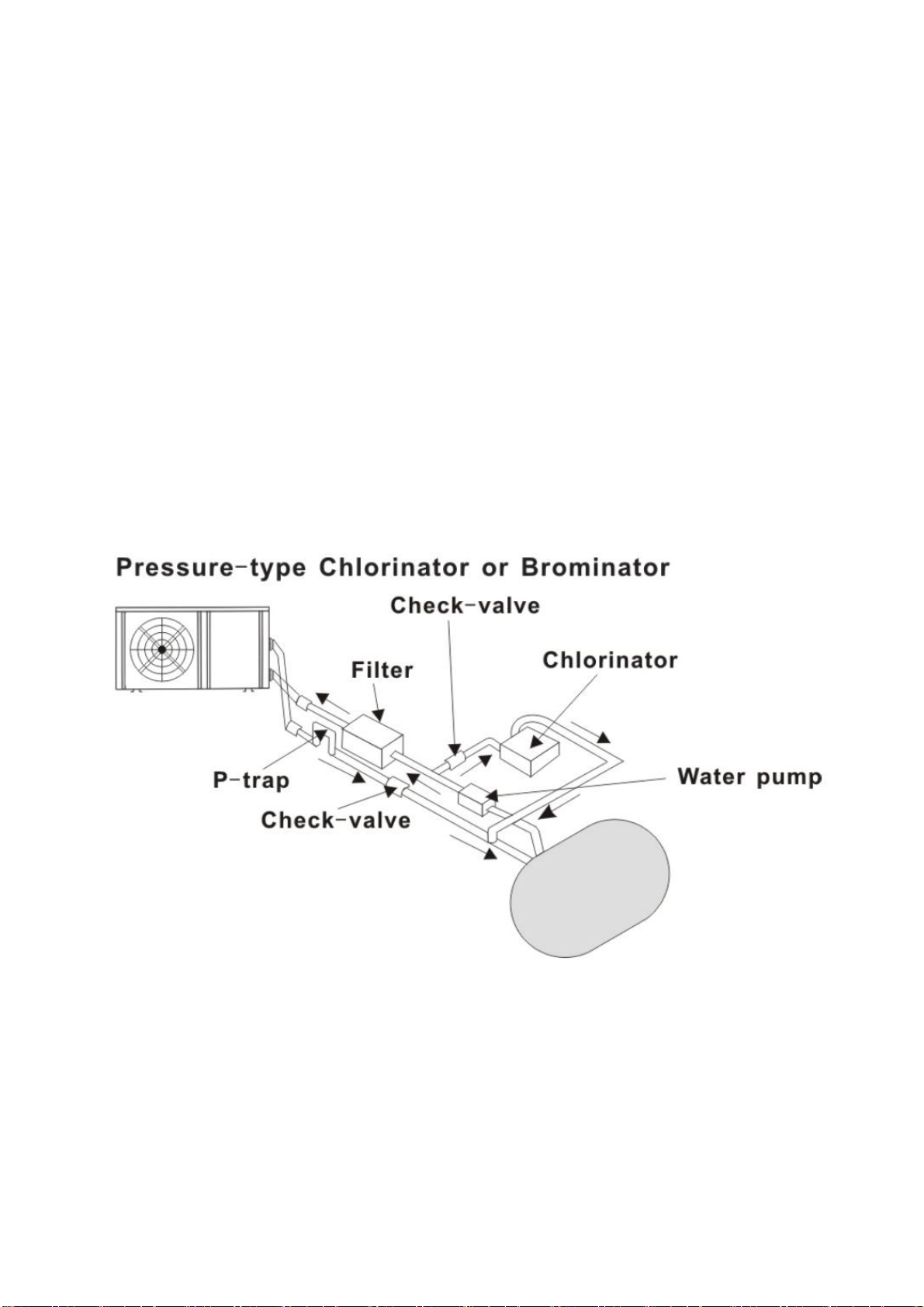

3.5 Typical arrangement
Note: This arrangement is only an illustrative example.
3.6 Adjusting the bypass
Note: Operation without a bypass or with improper bypass adjustment may result in sub-optimal
heat pump operation and possibly damage to the heat pump, which renders the warranty null and
void.
Out In
Heat Pump
Use the following procedure to adjust the
bypass:
1. Valve 1 wide open. Valve 2 & valve 3
closed.
2. Slowly open valve 2 & valve 3 by half,
then close the valve 1 slowly to
increase the water flow to valve 2 &
valve 3.
3. If it shows ‘ON’ or ‘EE3’ on display, it
means the water flow into heat pump is
not enough, then you need adjust the
valves to increase the water flow
through the heat pump.
To pool From pool

KlimaTeknik Top Heat pump
- 7 -
Drain out the water in winter for the units without drainage outlet in heat exchanger
Turn off the heat pump and be sure that it disconnected power
Turn off the water pump
- Close the valves 1 and 2
- Open the valve 4
Allow water to drain out over a long period until heat pump is fully drained.
NOTE: It need to close the valve 4 before turn on the heat pump.
3.7 Electrical connection
Note: Although the heat pump is electrically isolated from the rest of the swimming pool system,
this only prevents the flow of electrical current to or from the water in the pool. Earthing is still
required for protection against short-circuits inside the unit. Always provide a good earth
connection.
We also recommend that electrical installation is conducted by a licensed electrician.
Before connecting the unit, verify that the supply voltage matches the operating voltage of the heat pump.
It is recommended to connect the heat pump to a circuit with its own fuse or circuit breaker and adequate
wiring.
Connection: Open the terminal box on the side panel.
Connect the electrical wires to the terminal block marked ‘POWER SUPPLY’
A second terminal block marked ‘WATER PUMP ’ is located next to the first one. If you are using a
secondary pump to circulate water from the pool to the heat pump this pump can be connected to the
second terminal block here. This allows the filter pump operation to be controlled by the heat pump.
3.8 Initial operation
Note: In order to heat the water in the pool (or spa), the filtration pump must be running to cause
the water to circulate through the heat pump. The heat pump will not start up if the water is not
circulating through it.

KlimaTeknik Top Heat pump
- 8 -
After all connections have been made and checked, carry out the following procedure:
1. Switch on the filtration pump. Check for leaks and verify that water is flowing from and to the swimming
pool.
2. Connect power to the heat pump and press the On/Off button on the electronic control panel. The
unit will start up after the time delay expires (see below).
3. After a few minutes, check whether the air blowing out of the unit is cooler.
4. When turning off the filtration pump , the unit should also turn off automatically , if not, then adjust the
flow switch.
5. Allow the heat pump and the filtration pump to run 24 hours a day until the desired water temperature is
reached. The heat pump will stop running at this point. After this, it will restart automatically (as long as
the filter pump is running) whenever the swimming pool water temperature drops 2 degrees below the
set temperature.
Depending on the initial temperature of the water in the swimming pool and the air temperature, it may take
several days to heat the water to the desired temperature. A good swimming pool cover can dramatically
reduce the required length of heating time & is highly recommended as standard.
Water Flow Switch:
The heat pump is fitted with an automatic flow switch to protect the heat pump from inadequate water flow.
If the pool water level is
higher than 1m above or below the heat pump’s automatic adjustment knob, your dealer may need to
adjust its initial startup.
Time delay:
The heat pump has a built-in 3-minute start-up delay to protect the circuitry and avoid excessive contact
wear. The unit will restart automatically after this time delay expires. Even a brief power interruption will
trigger this time delay and prevent the unit from restarting immediately. Additional power interruptions
during this delay period do not affect the 3-minute duration of the delay.
3.9 Condensation
The air drawn into the heat pump is strongly cooled by the operation of the heat pump for heating the pool
water, this may cause condensation on the fins of the evaporator. The amount of condensation may be as
much as several liters per hour at high relative humidity. This is sometimes mistakenly regarded as a water
leak. If there is excessive water coming from your heat pump please see your installer.

KlimaTeknik Top Heat pump
- 9 -
4. Accessories
4.1 Accessories list
Anti-vibration base, 4 pcs Draining jet, 2 pcs Waterproof box, 1 pc
10M Signal wire, 1 pc
Water drainage pipes, 2 pcs
4.2 Accessories installation
Anti-vibration bases
1. Take out 4 Anti-vibration
bases
2. Put them one by one on the
bottom of machine feet like the
picture.
Draining jet
1. Install the draining jet under
the bottom panel
2. Connect with a water pipe to
drain the water.
Note: Lift the heat pump to
install the jet. Never overturn the
heat pump as it could damage
the compressor.

KlimaTeknik Top Heat pump
- 10 -
Water Inlet & outlet junction
1. Use the pipe tape to connect
the water Inlet & outlet junction
onto the heat pump
2. Install the two joints like the
picture shows
3. Screw them onto the water
Inlet & outlet junction
Mains cable wiring
Please refer to the photo
Water pump wiring
1. With the connector 1 and 2
you can pilot the water filtration
through the timer of the filtration
(dry contact)

KlimaTeknik Top Heat pump
- 11 -
5. Electrical Wiring
5.1 Electrical wiring diagram for KT135CV-TOP

KlimaTeknik Top Heat pump
- 12 -
5.2 Electrical wiring diagram for KT300CV-TOP
NOTE:
(1)Above electrical wiring diagram is only for your reference, please consult the manufacturer for repair
advice.
(2)The swimming pool heat pump must be connected to earth, although the units heat exchanger is
electrically isolated from the rest of the unit. Grounding the unit is still required to protect you against short
circuits inside the unit .Bonding is also required.
Disconnect: A disconnect means (circuit breaker, fused or un-fused switch) should be located within sight
of and readily accessible from the unit .This is common practice on commercial and residential heat pumps.
It prevents remotely-energizing unattended equipment and permits turning off power at the unit while the
unit is being serviced.

KlimaTeknik Top Heat pump
- 13 -
5.3 Installation of the control panel & external cable extension (to be completed prior to
electrical connection).
Photo(1) Photo(2) Photo(3) Photo(4) Photo(5)
Photo(6)
- 10 Meters signal wire with one plug (photo1)
- The side with plug connects with the control panel (photo2)
- The other side of the signal wire. (photo3)
- Open the electrical box cover and put the side without plug through the electrical box. (photo4,5)
- Insert the wiring into the designated position on the PC board. (photo6)

KlimaTeknik Top Heat pump
- 14 -
5.4 Connection to pilot the water pump
Dry contact timer connection
Dry contact pump connection

KlimaTeknik Top Heat pump
- 15 -
6. Controller Operation
1. Switch on/off your heat pump.
By clicking to switch on or off your heat pump, as below interfaces show.
2. Adjust the set temperature and running mode.
Click or to turn up or down the temperature you require; The main interface will show the
inlet water temperature after 5 seconds. Click and at the same time to check IN, OUT, SET
temperature.
Click to set the working mode: cooling mode, heating mode and auto mode, the default setting is
heating mode.
When the pool heat pump is in defrosting, the heating icon flashes.
3. Specification setting
Press for 2s to enter the query or setting for parameter, timer and error code, interface as below:

KlimaTeknik Top Heat pump
- 16 -
Click and to select and click to enter setting.
3.1 Parameter query
Select and click to enter setting.
Click and to check the parameter B to H.
Code Name Range Remark
B Water in temperature -9～99℃ Actual value
C Water out temperature -9～99℃ Actual value
D Heating pipe temperature -9～99℃ Actual value
E Gas return temperature -9～99℃ Actual value
F Ambient temperature -9～99℃ Actual value
G Cooling pipe temperature -9～99℃ Actual value
H EEV steps 0-480N Actual value
3.2 Parameter setting:
Select and click to enter setting.
Click and to check the parameter P0-P16. Click to enter setting.

KlimaTeknik Top Heat pump
- 17 -
Data Name Range Setting
p0 Water setting temp. Heating: 6～41℃
Cooling: 6～35℃
Auto: 6～41℃
Adjustable
p2 Entry into defrosting time period 30～90Min Adjustable
p3 Terms of enter defrosting function 0～-30℃ Adjustable
p4 Terms of exit defrosting 2～30℃ Adjustable
p5 Time of exit defrosting 1～12Min Adjustable
p6 Heating only / Heating & Cooling 0-1 Adjustable （Default: 1）0= Heating only
1= Heating&Cooling
q7 EEV value 0～1 Adjustable（Default: 1）0=Invalid
1=Adjustable
p8 Over heating in Heating mode -15～15 Adjustable（Default: 3）
p9 Over cooling in Cooling mode -15～15 Adjustable（Default: -2）
p10 EEV step adjust 18～94 Adjustable（Default: 70）
p11 Inlet water temp. calibration -9.9～9.9 ℃ Adjustable
p14 Return to factory set 0-1 0
p16 Wifi & MODBUS 0-1 0=WiFi 1=MODBUS
Remark: 1.p0-p16 are factory data and are not available for the end users. Press long for 15s to
enter the each parameter setting.
2.P0 could only be adjustable based on the P6 of ‘1’
3. Adjust the parameter P14 to ‘1’ for the factory rest.

KlimaTeknik Top Heat pump
- 18 -

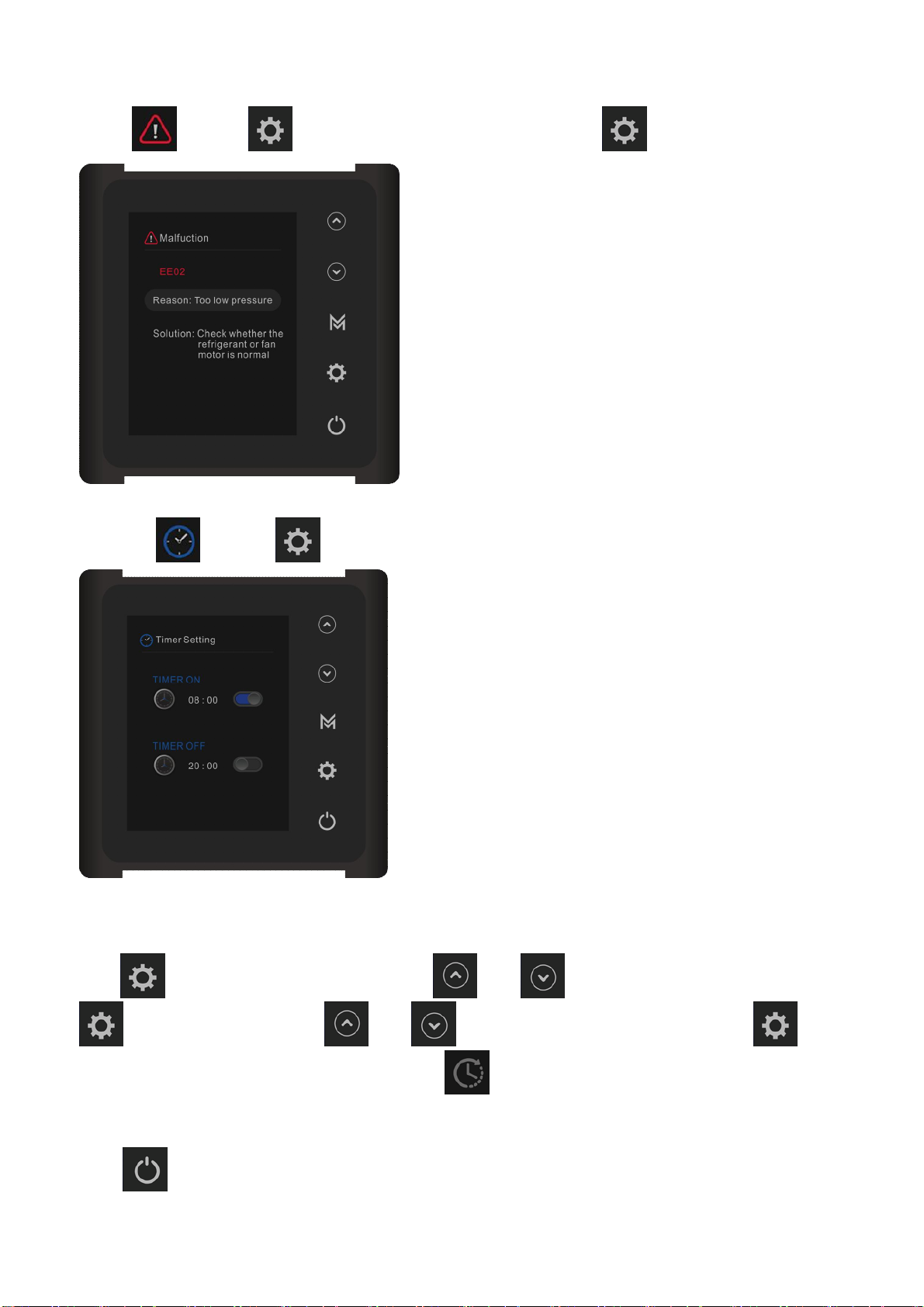

3.3 Error code query:
Select and click to enter setting. If the system is OK, click will not enter malfunction.
3.4 Timer setting:
Select the and click to enter timer setting.
The digits for HOURS or MINUTES will flash at its setting stage, click the up or down buttons to adjust the time
you require.
Click again and enter timer setting. Click and to select timer on or timer off. Click
to turn on and off and click and to change the time setting. Long press for 3s
to save the setting and exit. If the timer setting is on, will show in the main interface.
3.5 Exit
Click to exit the manual.

KlimaTeknik Top Heat pump
- 19 -
7. Troubleshooting
7.1 Error code display on controller
Malfunction Error code Reason Solution
Inlet water temperature
sensor failure
PP1 The sensor in open or short
circuit
Check or change the sensor
Outlet water temperature
sensor failure
PP2 The sensor in open or short
circuit
Check or change the sensor
Heating condenser sensor
failure
PP3 The sensor in open or short
circuit
Check or change the sensor
Gas return sensor failure PP4 The sensor in open or short
circuit
Check or change the sensor
Ambient temperature
sensor failure
PP5 The sensor in open or short
circuit
Check or change the sensor
Temperature difference
between water inlet and
outlet is too much
PP6 Water flow volume not
enough ,water pressure
difference is too low
Check the water flow volume,
backwash filter & check baskets
Cooling outlet water
temperature is too low
PP7 Water flow volume is not
enough
Check the water flow, backwash
filter & check baskets
First grade antifreeze
protection in Winter
PP7 Ambient temperature or water
inlet temperature is too low
Water pump will run
automatically for first grade
antifreeze
Second grade antifreeze
protection in Winter
PP7 Ambient temperature or water
inlet temperature is too low
Heat pump will start heating for
second grade antifreeze
Cooling condenser sensor
failure
PP8 The sensor in open or short
circuit
Check or change the sensor
High pressure protection EE1 1. Refrigerant is too high
2. Air flow is not enough
1. Discharge redundant
refrigerant from HP gas
system
2. Clean the air exchanger
Low pressure protection EE2 1. Refrigerant is low
2. Water flow is not enough
3. Filter jammed or pump
jammed
1. Check if there is any gas
leakage ,re-fill the refrigerant
2. Clean the air exchanger
3. Check filter & pump
Flow switch closed EE3 or ‘ON’ Low water flow, wrong flow
direction, or flow switch failure.
Check if the water flow is enough
and flow in right direction, or
check flow switch itself.
Power supply connections
wrong (for 3 phase unit)
EE4 Wrong connection Check the connection of power
cable
Inlet and outlet water
temperature difference
malfunction
EE5 Water flow volume is not
enough ,water pressure
difference is too low
Check the water flow rate,
backwash filter & empty baskets
Communication failure EE8 Wire connection is not good Check the wire connection
