10.01.2019 Standing Extraction Arm ERGO LUX-{M;K;L;D}-R
Use and Maintenance Manual
Standing Extraction Arm
ERGO LUX-M-R;
ERGO LUX-K-R;
ERGO LUX-L-R;
ERGO LUX-D-R

2
Standing Extraction Arm ERGO LUX-{M;K;L;D}-R 10.01.2019
Contents:
1. Introductory Remarks ........................................................................ 3
2. Application......................................................................................... 3
3. Reservations of Producer .................................................................... 3
4. Technical Data ................................................................................... 4
5. Structure and Function ...................................................................... 9
6. Assembly and Start-up........................................................................ 9
7. Operational Use .................................................................................. 10
8. Troubleshooting Guide........................................................................ 11
9. Maintenance....................................................................................... 11
10. Occupational Health and Safety.......................................................... 11
11. Transport and Storage ........................................................................ 12
12. Terms of warranty .............................................................................. 12
13. Sample of the Declaration of Conformity ............................................ 16

3
10.01.2019 Standing Extraction Arm ERGO LUX-{M;K;L;D}-R
1. Introductory Remarks
The purpose of the present Use and Maintenance Manual is to supply the Purchaser and the
future User with directions within the range of application, installation, start-up and the opera-
tional use of the ERGO LUX-R Extraction Arm.
Therefore, installing, start up and operational use are exclusively admissible after get-
ting acquainted with the contents of the Use and Maintenance Manual.
With regard to continuity of work carried on improvement of our products, we reserve for our-
selves the revision possibility of the draft and technological changes improving their functional
features and safety.
The construction of the ERGO LUX-R Extraction Arm meets the requirements of the current
state of technology as well as the safety and health assurances included in:

2006/42/EC Machinery Directive of the European Parliament and of the Council of 17 May,
2006 on machinery –amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/
The device has been constructed and produced on the basis of following harmonized
standards:

EN ISO-12100:2012
–
“Safety of machinery –Basic concepts, general principles
for design. Risk assessment and risk reduction”.
2. Application
ERGO LUX-R Extraction Arm has been developed for capturing the welding dust particles
and welding gas and also other fine dust particles, directly at the emission source, in order
to avoid the contamination expanding within the process room / hall and to protect the people
in the vicinity from inhaling the contamination.
The extraction arms are manufactured in hanging and standing version. They can work inde-
pendently, in a single configuration with one extraction fan, or in a group of extraction arms,
connected to the main collecting ductwork (with a central fan).
3. Reservations of Producer
A.
Producer is not responsible for failures arising during the use that is inconsistent to the
purpose of application.
B.
Installing any additional elements not belonging to the normal device structure (or acces-
sory set) is not acceptable.
C.
Any structural changes or modification of the unit carried out by User on one’s own are
not permitted.
D.
Protect the flexible elements and the suction duct segment (pipe) from mechanical dama-
ge.
E.
Prior to installing examine the load capacity of the of the wall or other building structure
in points where the device shall be mounted.
Unsure mounting could cause hazard to personnel / people in the vicinity, as well as da-
mage of the device itself.
F.
Do not use the device for conveying the air mixture with combustible substances,
in form of gas, vapour, mist or dust –that might create explosive atmosphere.

4
Standing Extraction Arm ERGO LUX-{M;K;L;D}-R 10.01.2019
G.
Do not apply the device for conveying the air containing viscous compounds that would de-
posit on the surface of the device elements.
H.
Do not apply the device for conveying the air containing aggressive compounds that would
have destructive effect on the device elements.
I.
Maximum admissible vacuum in the system cannot exceed 800 Pa.
In case of higher vacuum of the system, (where the ERGO LUX-R extraction arm is installed),
damage of the hoses would occur.
4. Technical Data

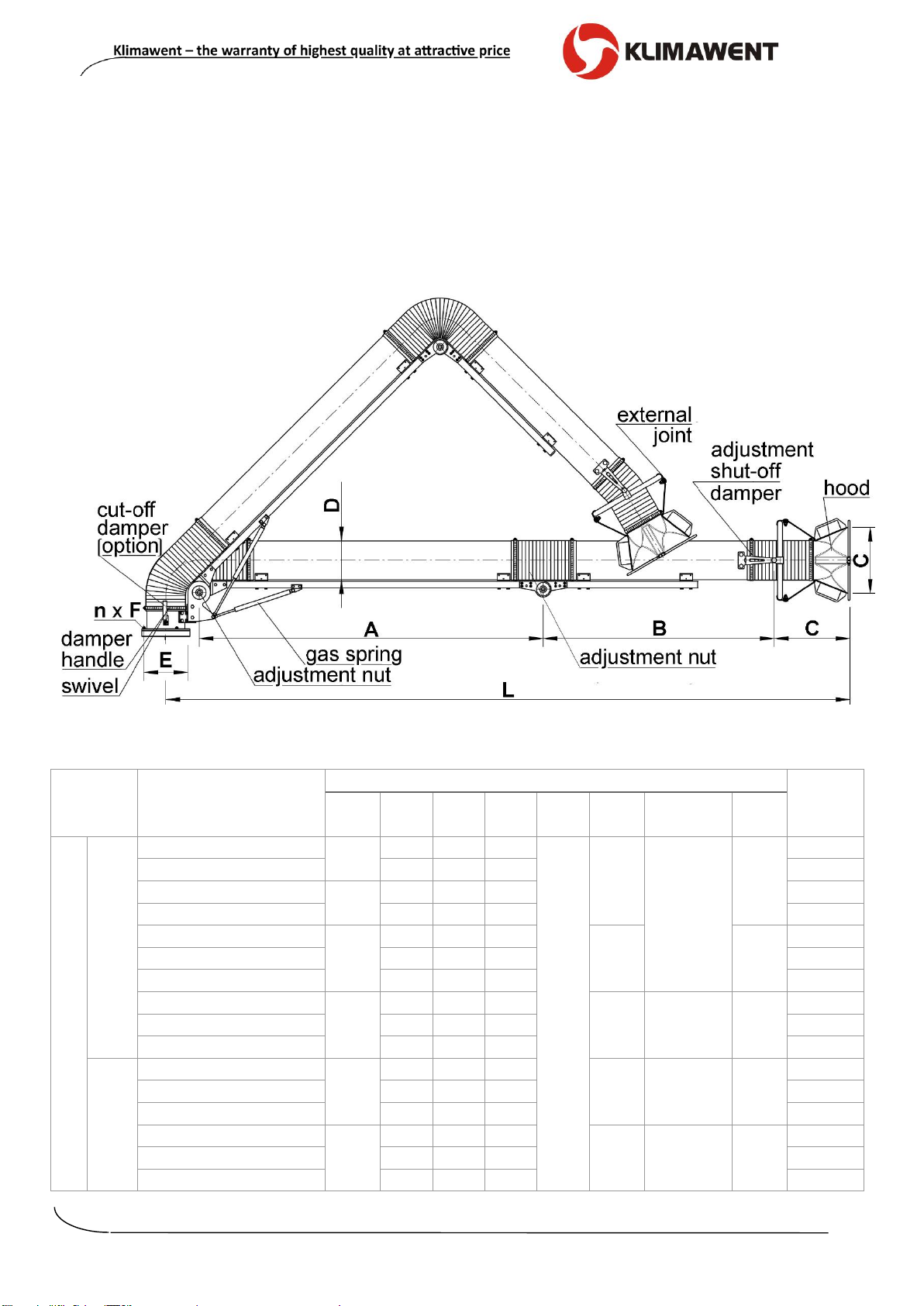

Fig. No.1 –Extraction Arms type ERGO LUX-R –Dimensions and Structure
Table No.1 –Extraction Arms type ERGO LUX-R –Dimension, weight
Remarks
Type
Dimensions
Weight
[kg]
Dn
[mm]
L
[m]
A
[mm]
B
[mm]
C
[mm]
E
[mm]
nx F
[mm]
G
[mm]
hanging version
standard hood
ERGO LUX-M/1,5-R
100
1,8
630
555
335
Ø155
6 x Ø6,5
Ø235
10,0
ERGO LUX-M/2-R
2,2
960
675
11,0
ERGO LUX-K/2-R
125
2,3
1055
650
12,5
ERGO LUX-K/3-R
3,0
1540
915
14,0
ERGO LUX-L/2-R
160
2,3
905
790
Ø194
Ø295
17,5
ERGO LUX-L/3-R
3,15
1530
1030
19,5
ERGO LUX-L/4-R
3,8
1910
1260
22,0
ERGO LUX-D/2-R
200
2,3
905
790
Ø246
8 x Ø8,5
Ø335
19,0
ERGO LUX-D/3-R
3,15
1530
1030
22,5
ERGO LUX-D/4-R
3,8
1910
1260
25,0
hood with
a spot-light
ERGO LUX-LL/2-R
160
2,3
905
790
Ø194
6 x Ø6,5
Ø295
17,5
ERGO LUX-LL/3-R
3,15
1530
1030
19,5
ERGO LUX-LL/4-R
3,8
1910
1260
22,0
ERGO LUX-DL/2-R
200
2,3
905
790
Ø246
8 x Ø8,5
Ø335
19,0
ERGO LUX-DL/3-R
3,15
1530
1030
22,0
ERGO LUX-DL/4-R
3,8
1910
1260
25,0

5
10.01.2019 Standing Extraction Arm ERGO LUX-{M;K;L;D}-R

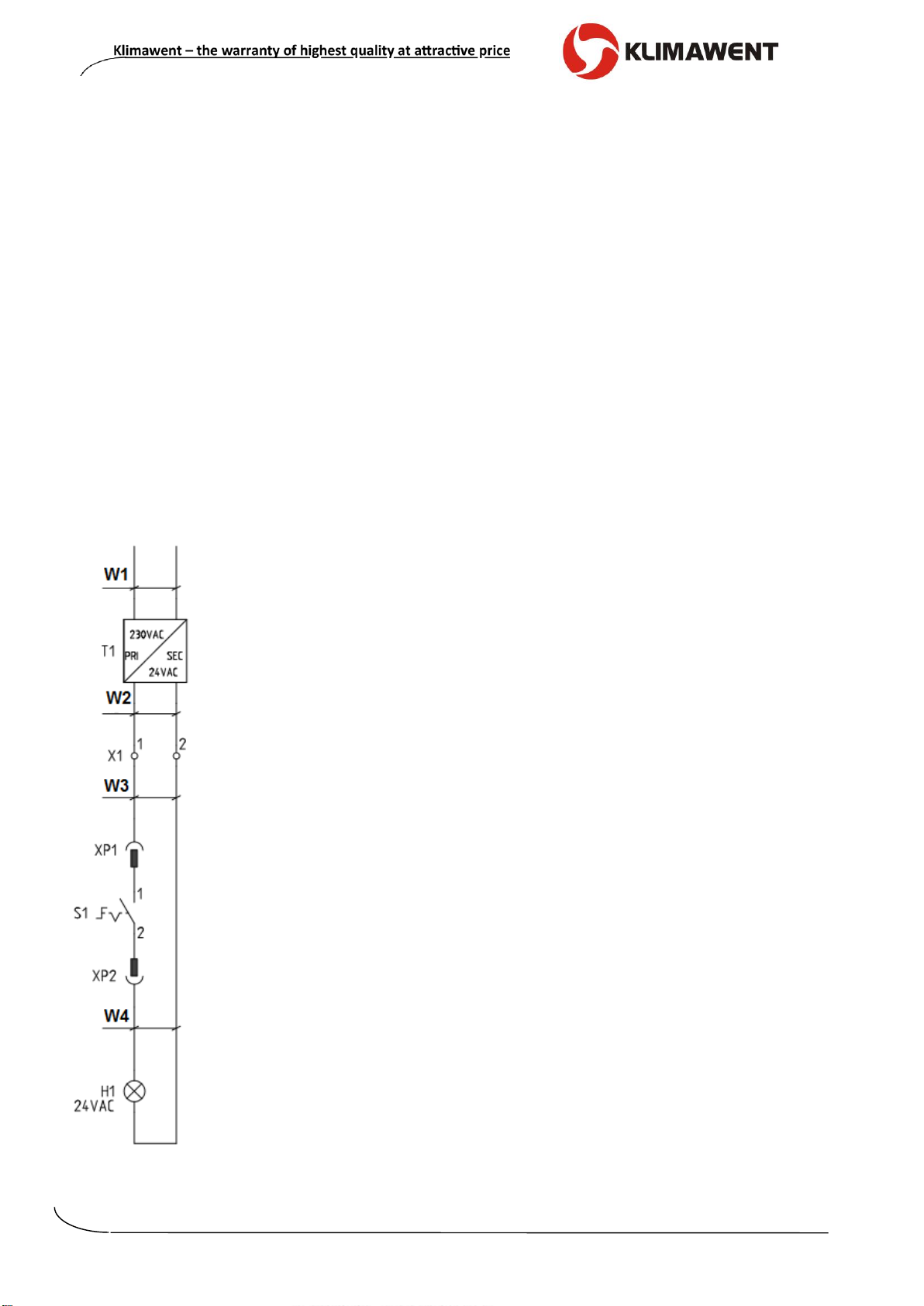

Extraction arms type ERGO LUX-LL-R and ERGO LUX-DL-R are equipped with hoods with
halogen spotlights. For information about the connection of the lighting see the Connection
Diagram enclosed to the present Use and Maintenance Manual (see Fig. No.4).

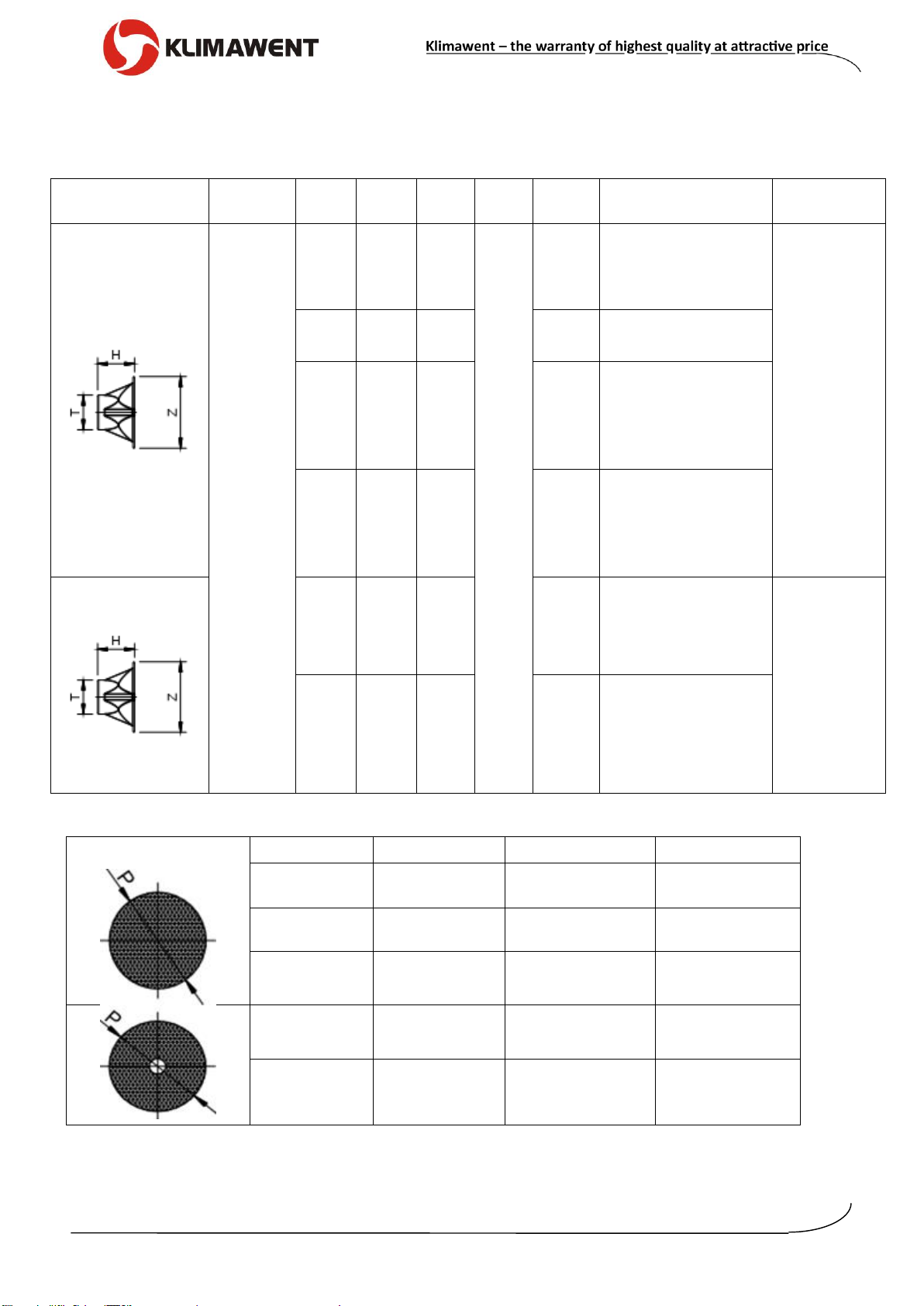

Table No.2 –Hoods for the ERGO LUX-R extraction arms
Sort of the
hood
Material
Type
Z
T
H
Weight
Application
Equipment
[mm]
[mm]
[mm]
[kg]
plastic
ABS
MST
330
100
190
0,35
ERGO LUX-M/1,5-R
ERGO LUX-M/2-R
–replace-
able
inlet wire-
mesh
KST
330
125
0,36
ERGO LUX-K/2-R
ERGO LUX-K/3-R
LST
365
170
0,42
ERGO LUX-L/2-R
ERGO LUX-L/3-R
ERGO LUX-L/4-R
DST
415
210
0,53
ERGO LUX-D/2-R
ERGO LUX-D/3-R
ERGO LUX-D/4-R
LLT
365
170
0,45
ERGO LUX-LL/2-R
ERGO LUX-LL/3-R
ERGO LUX-LL/4-R
–replace-
able
inlet wire-
mesh
–halogen
spotlight
12V
–switch
DLT
415
210
0,55
ERGO LUX-DL/2-R
ERGO LUX-DL/3-R
ERGO LUX-DL/4-R
Table No.3 –Inlet wire-mesh for the hoods
Type
P [mm]
Application
Weight [kg]
DST
~ø410
hood DST
0,15
LST
~ø360
hood LST
0,10
MKST
~ø320
hood MST
hood KST
0,08
LLT
~ø360
hood LLT
0,09
DLT
~ø410
hood DLT
0,14

6
Standing Extraction Arm ERGO LUX-{M;K;L;D}-R 10.01.2019
Table No.4 –Wall bracket –additional element of the device
Sort of the bracket
Material
Type
S
Masa
Cooperating
extraction arms
[mm]
[kg]
steel sheet
WBN-125-K
250
3
ERGO LUX-M-R
ERGO LUX-K-R
WBN-160-L
320
4,6
ERGO LUX-L-R
WBN-200-D
340
6,1
ERGO LUX-D-R

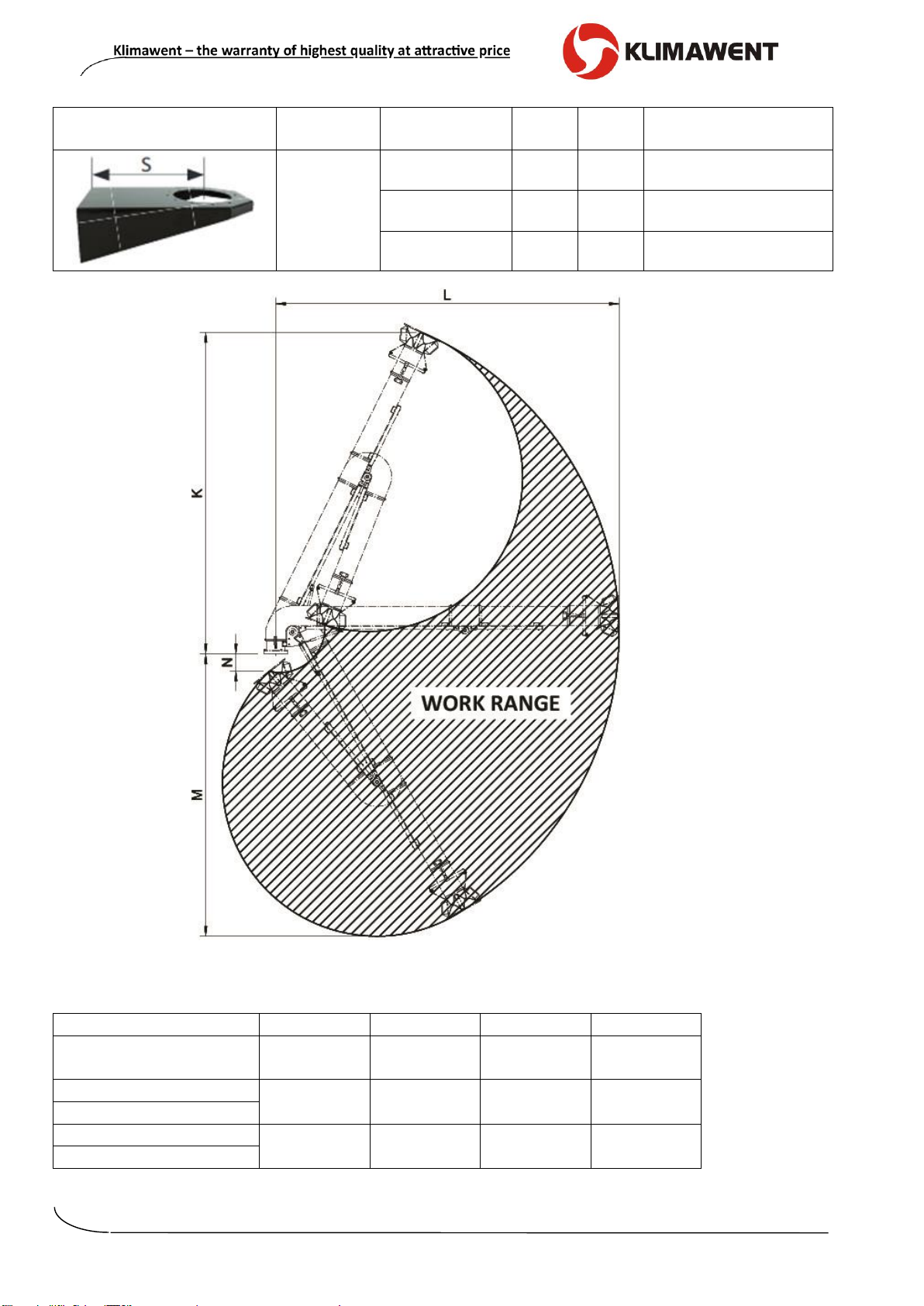

Fig. No.2 –Work ranges of the extraction arms
Table No.5 –Dimensions of the work ranges of the extraction arms
Type
K[m]
M[m]
N[m]
L[m]
ERGO LUX-L(L)/2-R
ERGO LUX-D(L)/2-R
2,0
1,7
0
2,2
ERGO LUX-L(L)/3-R
2,85
2,5
0,15
3,0
ERGO LUX-D(L)/3-R
ERGO LUX-L(L)/4-R
3,4
3,0
0,5
3,65
ERGO LUX-D(L)/4-R

7
10.01.2019 Standing Extraction Arm ERGO LUX-{M;K;L;D}-R

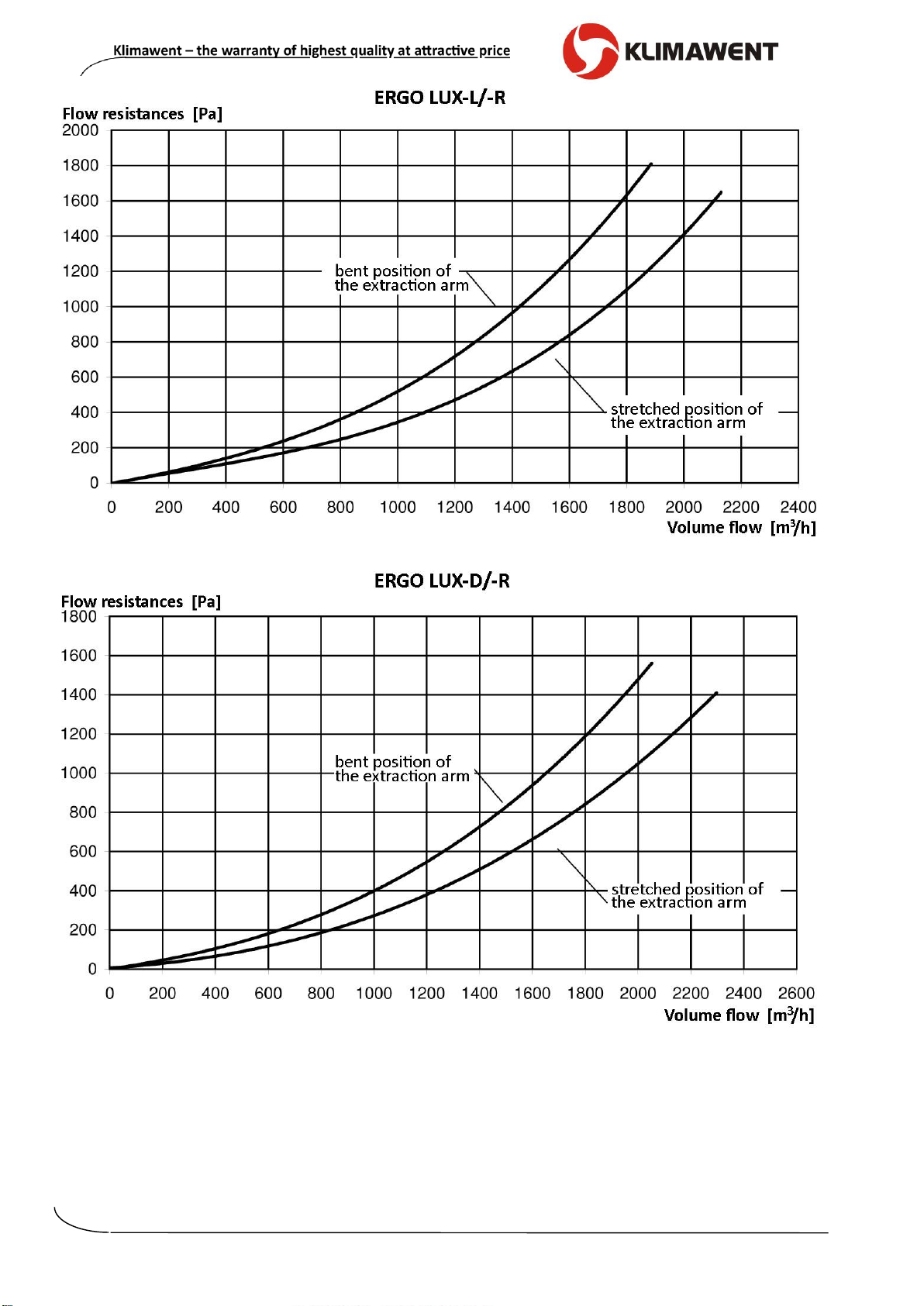

4.1 –Flow charts of the ERGO LUX-R extraction arms

8
Standing Extraction Arm ERGO LUX-{M;K;L;D}-R 10.01.2019
CAUTION: The bent position of the arm –angle 45º in the middle joint

9
10.01.2019 Standing Extraction Arm ERGO LUX-{M;K;L;D}-R
5. Structure and Function

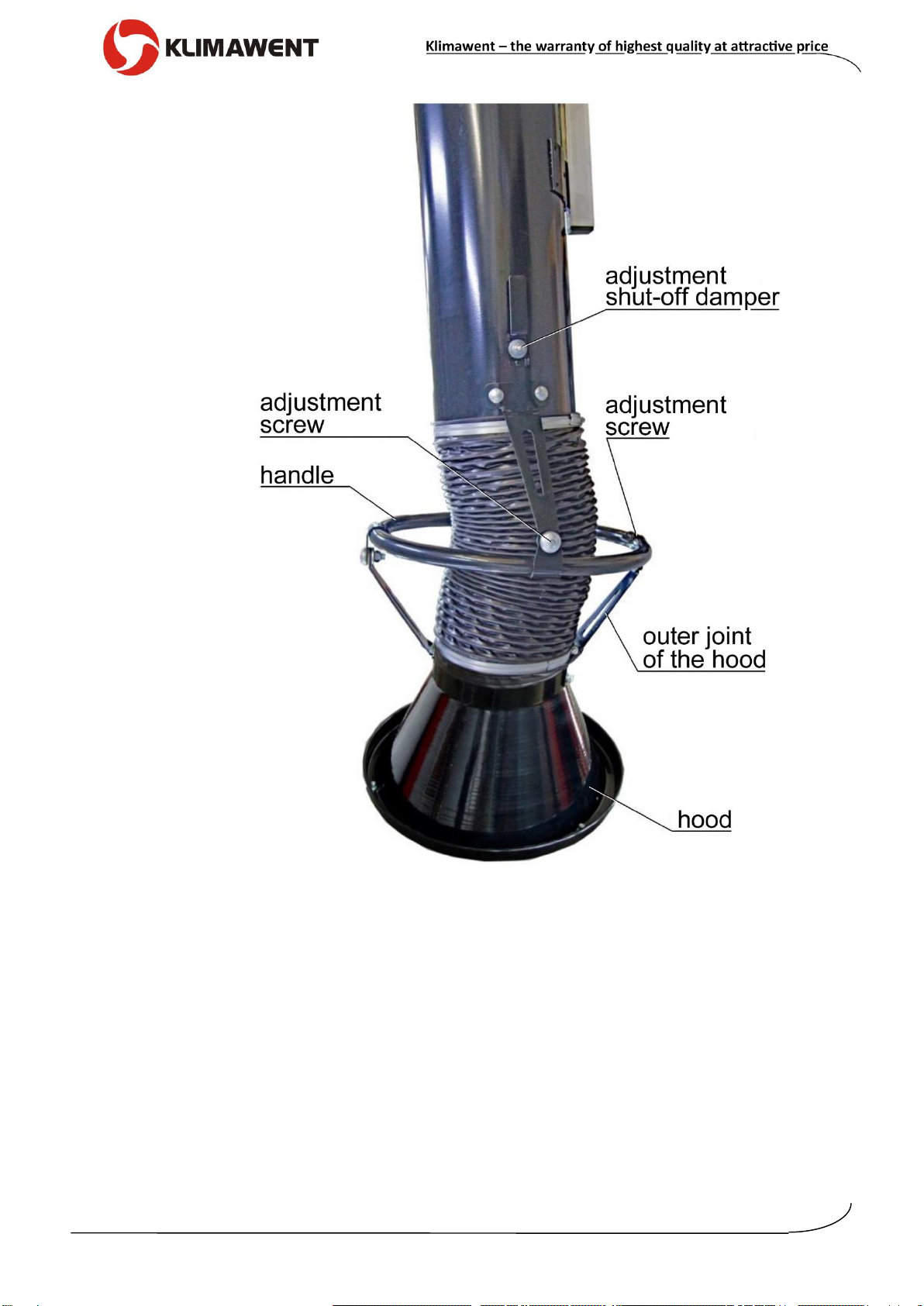

Structure of the ERGO LUX-R extraction arms is illustrated in Fig. No.1. They consist of sub-
sequent elements:
●
two arms (duct segments) connected with frictional joints,
●
gas springs –to equilibrate the weight of the duct segments,
●
plastic hood –with the inlet wire-mesh –to protect the inlet from entering the glowing ciga-
rette butts (embers) and spatters into the extraction arm.
●
adjustment shut-off damper,
●
swivel –with an integrated tight cut-off damper, as additional equipment.
The swivel guarantees full rotation of the whole extraction arm around its vertical axis and, ad-
ditionally, provides easy device positioning in the requested point within the work area, during
the use.
The swivel and the pipe segments, integrated together with hose sections (flexible connectors),
along with the hood and swivel are forming a ventilation ducting functioning for extraction the
dust laden air.
This suction duct configuration can be changed within the work range of the given type of the
extraction arm.
Frictional joints and gas springs provide the comfort of easy manoeuvring with the whole extrac-
tion arm. The suction hood can be equipped with a halogen spot-light that can be turned on
by means of a switch on the hood. The lamp lights up the field of operation.
The extraction arm is installed to the wall or a supporting column, by means of a wall bracket.
6. Assembly and Start-up
Extraction arms are delivered in cardboard packages, in a partly assembled state. Before the
extraction arm is installed at the workplace –it is important to put the extraction arm together
into a form of a completely assembled structure –according to the enclosed assembly instruc-
tion (see page 13 of the present Use and Maintenance Manual).
Wall brackets, (by means of which the extraction arms are mounted), are delivered on separate
order. The diameter and distribution of the mounting holes in the bracket and in the arm swivel
are identic.

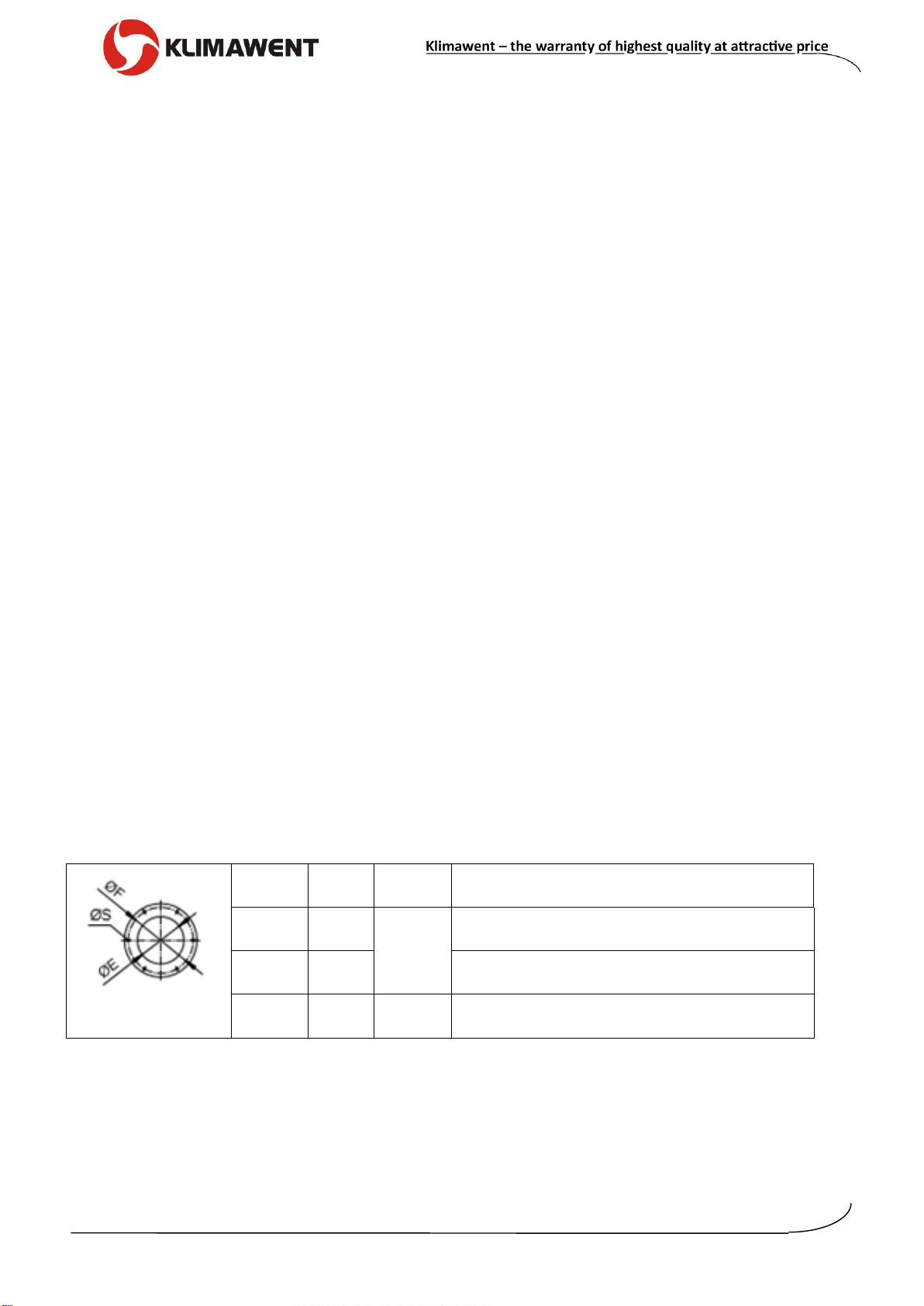

Table No.6 –Diameters and mounting hole patterns in the swivel
E
[mm]
F
[mm]
S
[mm]
Application
~ ø110
ø155
6xø6,5
ERGO LUX-M/1,5-R;
ERGO LUX-K/2-R;
ERGO LUX-M/2-R;
ERGO LUX-K/3-R
~ ø160
ø194
ERGO LUX-L/2-R;
ERGO LUX-L/4-R
ERGO LUX-L/3-R;
~ ø195
ø246
8xø8,5
ERGO LUX-D/2-R;
ERGO LUX-D/4-R
ERGO LUX-D/3-R;
Do not install the ERGO LUX-R extraction arms directly to the ventilation ducting, because they
are usually not constructed to carry such charges during the operational use of the device.

10
Standing Extraction Arm ERGO LUX-{M;K;L;D}-R 10.01.2019
START-UP:
●
Prior to work, start the extraction fan and make sure the ventilation discharge ductwork is
functioning.
●
Set the hood into suitable position: not more than 30 cm from the welding arc, and not less
than 20 cm –because the spatters might damage the hood and the suction stream could
interrupt the protection gas shield (CO2, argon).
●
The position of the hood and the shut-off damper lever can be changed many times during
the work, so User can adjust them best to the current needs.
●
After the work is completed –leave the extraction arm in the last used operational position,
when it do not cause obstacle to personnel / traffic.
●
Switch off the extraction fan (in configuration when the arm cooperates with the extraction
system, close the shut-off damper).
7. Operational Use
The appliance does not require additional maintenance operations to work safely. Mainly, the
adjustment of the ERGO LUX-R extraction arm consists in the settings within the frictional joints.
The frictional brakes are placed in each joint and their function is to provide the balance and
self-supporting properties of the whole extraction arm and to guarantee easy manoeuvring du-
ring the operation.

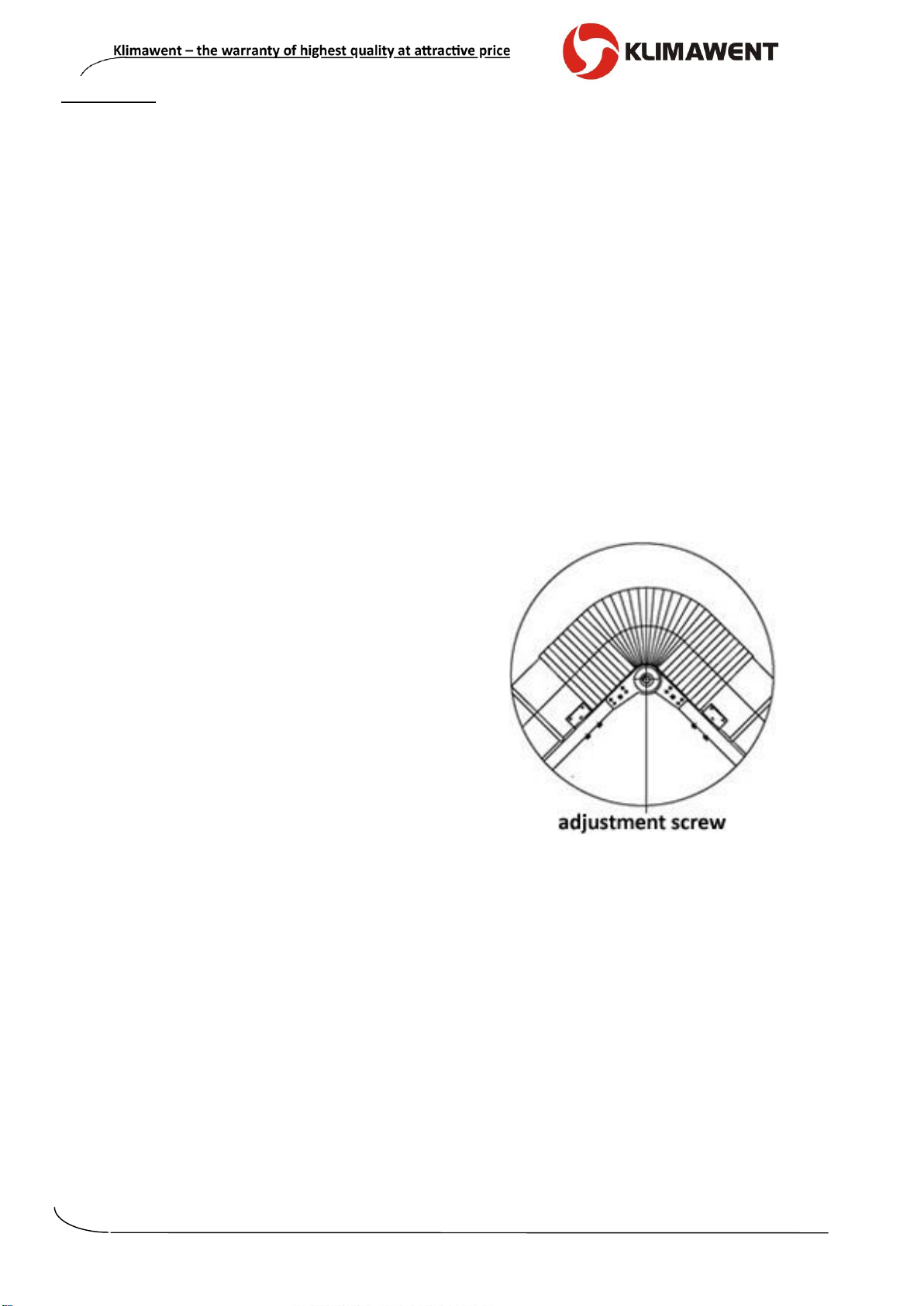

The adjustment of the frictional brakes is carried
out by increasing or reducing the tension of the
nuts upon the frictional elements.
The brake adjustment in the following joints ought
to be executed in such a way that it guarantees
the stability and self-supporting features of the ex-
traction arm (which is important to keep the sta-
ble arm position).
Whereas, on the other hand, do not tighten up too
strongly, as this might effect in excessive opera-
tional wear of the frictional elements and, subse-
quently the joints would get loose / released au-
tomatically.
The placement of the adjustment nuts is illustrated
in Fig. No.1, whereas the frictional joint is shown
in Fig. No.3.
Fig. No.3 –Frictional joint
Maximum admissible vacuum in the system cannot exceed 800 Pa. In case of higher vacuum
of the system, (where the ERGO LUX-R extraction arm is installed), damage of the hoses would
occur.

11
10.01.2019 Standing Extraction Arm ERGO LUX-{M;K;L;D}-R
8. Troubleshooting Guide
Table No.7
Problem
Possible reason
Corrective action
1.
The extraction arm falls.
Incorrectly adjusted
Increase the tension upon joint
frictional brake of the joint.
frictional disks of the brake,
within the joint by tightening
the adjustment nuts.
2.
The extraction arm
The rotation axis of the
Carry out the positioning of the
is automatically setting
extraction arm is not
mounting flange of the
always in the same position.
positioned vertically.
extraction arm.
3.
Drop in the air suction rate
Incorrect impeller rotation
Change the phase connection
along with the increased
sense of the extraction fan.
sequence of the three-phase
noise level of the extraction
motor.
installation with the
The protective wire-mesh
Clean the wire-mesh inlet grill
extraction arm.
inlet grill is clogged.
using a wire brush.
9. Maintenance
Maintenance activities consist in following steps:
●
Periodically, clean the hood surface and the inlet wire mesh of the deposited dust and impu-
rities to provide proper flow of the extracted air. In case of welding dust, rinse the hood ad-
ditionally with the anti-spattering preparation (to avoid gluing up the welding chipping on the
on the hood surface).
●
Undertake the adjustment of its joint system in case when the extraction arm loses its self-
-supporting properties.
●
Lubricate the swivel every 3 months using solid grease (lubrication nipple is located in the
swivel flange).
●
After 1 operational year, submit the device to technical revision and repair / or replace the
the spotted faulty element.
●
Clean the internal surfaces of the extraction segments from the deposited impurities. Fre-
quency of these steps depends on the intensity of use. Within a period of 3 months, it is
recommended to examine the pollution state and undertake cleaning when necessary.
10. Occupational Health and Safety
Prior to start and use, it is important to get acquainted with the present Use and Mainte-
nance Manual.
The ERGO LUX-R extraction arms will not cause any hazard under the condition that they are
firmly and correctly mounted to the wall or another structural element of the building.
Unsure mounting could result in an uncontrolled detachment of the device and would cause se-
rious hazard to personnel / people in the vicinity.
Having completed the work, leave the extraction arm in the ultimate operational position, in case
when it constitutes obstacle / barrier to personnel, set in into the home position.
Prior to installing check the load carrying capacity of the building structure.

12
Standing Extraction Arm ERGO LUX-{M;K;L;D}-R 10.01.2019
11. Transport and Storage
Extraction arms ought to be stored and transported in partly assembled state and in special
packages (designed for this purpose).
During the transport and reloading protect the device from damage, scratching, indentations
and pay attention that the markings would not get detached / obliterated.
Store the extraction arms in dry rooms and areas of efficient ventilation.
12. Terms of warranty
The period of warranty for the purchased device is indicated in the “Card of Warranty”. The war-
ranty does not comprise:
●
mechanical damage and dysfunctions caused by User,
●
device failures caused during use which was in contradiction with the purpose of operatio-
nal use and the present Use and Maintenance Manual,
●
damages being effected during improper transport, storage or incorrect maintenance,
Infringement of the section 3 “Reservations of Producer” of the Use and Maintenance Manual
and especially modifications undertaken by User on one’s own shall result in the loss of war-
ranty validity.
Fig. No.4 –Connection diagram of the halogen lamp

13
10.01.2019 Standing Extraction Arm ERGO LUX-{M;K;L;D}-R
ASSEMBLY INSTRUCTION –EXTRACTION ARMS TYPE ERGO LUX-{M,K,L,D}-R
1.
Take out the ERGO LUX-R extraction arm from the transport package and put it stably on
the even surface.
2.
Pull the arm segments apart to enable further assembly.
3.
Screw up the swivel support, to the plate of the lower joint –according to the information
in Fig. No.5Detail “C”.
4.
Fold in the loose hose fabric edge (to even it up), at the end of the hose –then sleeve the
hose onto the swivel ferrule and secure it with a hose clamp.
5.
Screw together the terminations of the gas spring with a plate of the lower joint –accor-
ding to the Fig. No.5Detail “A”(see also Photo No.1).
6.
Connect the segment II with the segment Iusing a hose –according to information in the
Clause 4.
7.
Screw up the element of the hood joint, with the pipe –according to the information in Fig.
No.6, Detail “B”.
8.
Using a hose, connect the segment II with the hood –according to the information in the
Clause 4.
9.
Install the ERGO LUX-R extraction arm at a wall bracket or to a device (see Photo No.1).
Fig No.5
CAUTION:
In case of extraction arms ERGO LUX-L-4-R, ERGO LUX-D-3-R and ERGO LUX-D-4-R in
the middle joint, is introduced the additional gas spring.

14
Standing Extraction Arm ERGO LUX-{M;K;L;D}-R 10.01.2019
Fig. No.6 –Assembly instruction of the extraction arms type ERGO LUX-{M;K;L;D}-R
Photo No.1 –Wall bracket

15
10.01.2019 Standing Extraction Arm ERGO LUX-{M;K;L;D}-R
Photo No.2 –Hood
In case when the extraction arm is installed at the wall bracket, it is important to level the moun
-ting plane of the wall bracket during its installing to the wall (see Photo No.1).
If the bracket mounting plane is not horizontal, the extraction arm would tend to set (turn) itself
always in the same position, and it is difficult to adjust the arm position.

16
Standing Extraction Arm ERGO LUX-{M;K;L;D}-R 10.01.2019
13. Sample of the Declaration of Conformity
Declaration of conformity EC No. ……………..
Manufacturer (eventually the authorized representative / importer):
name: KLIMAWENT S.A.
address: 81-571 Gdynia, Chwaszczyńska 194
A person, authorized for issuing the technical documentation: Teodor Świrbutowicz, KLIMAWENT S.A.
hereby declares that the appliance:
name: Standing Extraction Arm
type/model: ERGO LUX-R
serial number: …………………………….. year of production: ………………………..
meets the requirements of the subsequent European Directives:

2006/42/EC Machinery Directive of the European Parliament and of the Council of May 17th, 2006 on machinery –amen-
ding the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/
The appliance meets following harmonized standard:

EN ISO-12100:2012
–
“Safety of machinery –Basic concepts, general principles
for design. Risk assessment and risk reduction”.
……………………………
……………………………
……………………………
place, date
signature of authorised person
name, surname, function
of the signatory
KLIMAWENT S.A.
District Court Gdańsk-Północ
NIP: 958 159 21 35
Supported Employment Enterprise
in Gdańsk, VII Wydział Gospodarczy
REGON: 220631262
81-571 Gdynia, ul. Chwaszczyńska 194
of the National Register of Court
Bank Account: Santander Bank Polska S.A.
phone: [phone]
KRS 0000308902 company stock
56 1500 1025 1210 2007 8845 0000
email: [e-mail]
13.779.200 zł paid in total
www.klimawent.com.pl

17
10.01.2019 Standing Extraction Arm ERGO LUX-{M;K;L;D}-R
NOTES:

18
Standing Extraction Arm ERGO LUX-{M;K;L;D}-R 10.01.2019
NOTES:

19
10.01.2019 Standing Extraction Arm ERGO LUX-{M;K;L;D}-R
NOTES:

20
Standing Extraction Arm ERGO LUX-{M;K;L;D}-R 10.01.2019
Producer:
KLIMAWENT S.A.
81-571 Gdynia, ul. Chwaszczyńska 194
tel. [phone]
fax [phone]
e-mail: [e-mail]
www.klimawent.com.pl
810R80
ERGO LUX-M-1,5-R
10.01.2019/EN
810R81
ERGO LUX-M-2-R
10.01.2019/EN
810R82
ERGO LUX-K-2-R
10.01.2019/EN
810R83
ERGO LUX-K-3-R
10.01.2019/EN
810R84
ERGO LUX-L-2-R
10.01.2019/EN
810R85
ERGO LUX-L-3-R
10.01.2019/EN
810R86
ERGO LUX-L-4-R
10.01.2019/EN
810R87
ERGO LUX-D-2-R
10.01.2019/EN
810R88
ERGO LUX-D-3-R
10.01.2019/EN
810R89
ERGO LUX-D-4-R
10.01.2019/EN
809R08
ERGO LUX-LL-2-R
10.01.2019/EN
809R09
ERGO LUX-LL-3-R
10.01.2019/EN
809R10
ERGO LUX-LL-4-R
10.01.2019/EN
809R11
ERGO LUX-DL-2-R
10.01.2019/EN
809R12
ERGO LUX-DL-3-R
10.01.2019/EN
809R13
ERGO LUX-DL-4-R
10.01.2019/EN
