Kling & freitag Spectra 212 sub-adapter User manual

K&F SPECTRA 212 Sub Adapter

User‘s Manual

EN | Translation of the original instructions

Version 2.0

Released: 06.03.2019

Important Information,

Please Read Before Use!

KLING & FREITAG GmbH

Junkersstraße 14

D-30179 Hannover

TEL +49 (0) 511- 96 99 70

FAX +49 (0) 511- 67 37 94

www.kling-freitag.de

User‘s Manual K&F SPECTRA 212 Sub Adapter

Table of Content

Chapter / Content Page

1. Introduction 4

1.1 Icons Used 4

1.2 About this Manual 4

2. Product Description 5

2.1 Intended Use 5

2.2 Items Included 5

2.3 Components 5

3. Safety Instructions 6

3.1 General Safety Instructions 6

3.2 Safety Instructions for Stacked Speakers 6

4. Mounting and Use Instructions 7

4.1 Configurations 7

4.2 Sample Configurations 8

4.3 Installation 9

5. Dimensions and Weight 12

6. Care and Maintenance 13

7. Transportation and Storage 13

8. Disposal 13

Page 4 of 13 Version 2.0 © KLING & FREITAG GMBH

User's Manual K&F SPECTRA 212 Sub Adapter

1. Introduction

1.1 Icons Used

This icon indicates a risk of injury or death. Not following these instructions may result in serious health

problems including potentially fatal injuries.

This icon indicates a possibly dangerous situation. Not following these instructions may cause minor in-

juries or damage.

This icon marks instructions for proper use of the described products. Not following these instructions

may cause malfunctions or damage.

This icon marks information provided for simplified use of the described products.

Warning

Caution

Tip

1.2 About this Manual

All specifications regarding the features of the described products and applicable safety guidelines pro-

vided in this manual are based on information available at the time of publishing.

We assume no responsibility for technical specifications, dimensions, weights, and properties.

All information in this manual is subject to change without notice.

To ensure safe operation, all persons using the speaker system must have access to

these user's manual and all other relevant material during installation. Ohne dieses

gelesen, verstanden und griffbereit vor Ort zu haben, darf das Lautsprechersystem

weder aufgebaut noch eingesetzt werden.

All KLING & FREITAG manuals are originally authored in German.

KLING & FREITAG spare manuals are separately available for order or can be downloaded from our web-

site: www.kling-freitag.de.

Warning

Contact

Us:

[email protected]

KLING & FREITAG GMBH, Junkersstr. 14, D-30179 Hannover

Phone +49 (0) 511 96 99 70, fax +49 (0) 511 67 37 94

User's Manual K&F SPECTRA 212 Sub Adapter

In combination with the specified KLING & FREITAG subwoofers, the K&F SPECTRA212 Sub-Adapter

provides a means for safely placing K&F SPECTRA212 speakers.

•

K&F SPECTRA212 Sub-Adapter (1 item)

•

User manual (1 item)

•

M20 x 25 bolt (1 item)

1. Adapter plate

2. Safety lever

3. Slot accommodating the speaker feet

4. M20 bolt

5. Speaker-alignment bore (0°–15°)

6. Speaker-alignment bore (15°–37.5°)

7. Speaker-alignment bore (37.5°–45°)

8. Support rail

2. Product Description

•

K&F SW 215E

•

K&F SW 215E-SP

•

K&F SW 118E

•

K&F SW 118E-SP

•

K&F NOMOS LS II

•

K&F NOMOS LT

•

K&F NOMOS XLS

•

K&F NOMOS XLT

•

K&F SEQUENZA 10B

2.1 Intended Use

In combination with the specified KLING & FREITAG subwoofers, the K&F SPECTRA212 Sub-

Adapter provides a means for safely placing K&F SPECTRA212 speakers. Using this Sub-Adapter

adapter, you can mount up to three interconnected K&F SPECTRA212 speakers

Warning

2.2 Items Included

2.3 Components

1 2 3 4 5 6 7 8

Page 6 of 13 Version 2.0 © KLING & FREITAG GMBH

User's Manual K&F SPECTRA 212 Sub Adapter

3. Safety Instructions

3.1 General Safety Instructions

The information described here does not relieve the user of the duty to follow the given safety

requirements and legal regulations.

The technicians responsible for installing the system on site are responsible for and guarantee

safe setup and use.

To prevent injury and damage, be sure to securely place the speaker system as specified in the

DGUV regulations 17 (BGV C1) or similar locally applicable accident-control standards.

Unless otherwise stated, use only KLING & FREITAG original parts for mounting the speakers.

Never use other parts (in particular, parts not made by KLING & FREITAG).

Be sure to always visually inspect all accessories and loudspeakers before use. In fixed installa-

tions, regularly check all system components for signs of wear. Visual inspection includes check-

ing the system components of the speakers as well as the mounting components. During the

inspection, check all mounting components carefully for deformations, cracks, bolt damage,

and corrosion. If there are signs of wear, cracks, or deformation, etc., replace the affected parts

immediately. See also the ‘Care and

Warning

3.2 Safety Instructions for Stacked Speakers

Tipping speakers impose a deadly risk for people standing near-by!

Be sure to follow the relevant national specifications, norms, and safety regulations.

Always make sure that the speakers are sufficiently secured, so they cannot fall over even when

external forces affect the speaker stack. Before installation, carefully check whether there are

any external factors that may cause the stack to fall over. These include, for example, the

ground slope or bearing capacity, winds, and impacts of persons or vehicles. Qualified and ap-

propriately trained installation personnel are in charge of evaluating the scenario and perform-

ing all required steps (including statics analysis). Proof of stability must be obtained if and as

necessary.

Stacked systems must not fall over even if they are inclined by 15° in any direction. If this re-

quirement is not fulfilled, be sure to take appropriate steps. E.g. lashing the

Where the stability of installed systems cannot be proven without additional safety measures,

those systems must be effectively secured against sliding and tipping to achieve compliance. For

example, secure the system against tipping using water tanks or floor bolts. Other possible

measures include lashing the speakers onto a suitable base or fastening them using straps.

With applications where winds may occur, for example, outdoor events, tradeshows, etc., be

sure to perform extra stability checks.

Make sure that the feet of stacked subwoofers engage with the corresponding hollows of the

lower speaker.

Warning

User's Manual K&F SPECTRA 212 Sub Adapter

The K&F SPECTRA212 Sub Adapter allows for securely mounting up to three K&F SPECTRA212 speak-

ers on a horizontally placed K&F subwoofer:

•

K&F NOMOS LT

•

K&F NOMOS XLT

•

K&F SEQUENZA 10B

•

K&F SW 212 E

•

K&F SW 215 E SP

When placing the K&F subwoofer upright instead, you can mount one K&F SPECTRA212 speaker on

one of these K&F subwoofers:

The K&F SPECTRA212 Sub Adapter has to be bolted onto the subwoofer. The adapter plate provides

three bores for establishing the bolted connection.

•

a: Speaker-alignment bore (0°–15°)

•

a: Speaker-alignment bore (15°–37,5°)

•

a: Speaker-alignment bore (37,5°–45°)

With an array of 3 tops, connect the middle one to the K&F SPECTRA212 Sub Adapter!

4. Mounting and Use Instructions

4.1 Configurations

•

K&F SW 215E

•

K&F SW 215E-SP

•

K&F SW 118E

•

K&F SW 118E-SP

•

K&F NOMOS LS II

•

K&F NOMOS LT

•

K&F NOMOS XLS

•

K&F NOMOS XLT

•

K&F SEQUENZA 10B

Page 8 of 13 Version 2.0 © KLING & FREITAG GMBH

User's Manual K&F SPECTRA 212 Sub Adapter

Example 1:

1 x K&F subwoofer, 1 x K&F SPECTRA212 speaker:

Example 2:

1 x K&F subwoofer, 2 x K&F SPECTRA212 speaker:

Example 3:

1 x K&F subwoofer, 3 x K&F SPECTRA212 speaker:

4.2 Sample Configurations

User's Manual K&F SPECTRA 212 Sub Adapter

4.3 Installation

1. Place the K&F SPECTRA212 Sub Adapter

on the subwoofer and align it.

2. Tighten the M20 bolt using a suitable Allen

key (wrench size: 20).

3. Place a single K&F SPECTRA212

Make sure that the rear feet of the speaker

slide into the K&F SPECTRA212 Sub

Adapter slots. This causes the support rails

of the Sub Adapter to engage with the

speaker’s flybars.

Page 10 of 13 Version 2.0 © KLING & FREITAG GMBH

User's Manual K&F SPECTRA 212 Sub Adapter

4. Push the speaker backwards until it stops.

Doing so will lock the speaker in place.

5. To secure the speakers in its position, reach

through the lower speaker handle at the

rear and throw the safety lever of the K&F

SPECTRA212 Sub Adapter.

6. Next, you can mount another K&F SPEC-

TRA212 loudspeaker on each side of the

first speaker if required.

To do so, place another speaker side by side

to the mounted one.

User's Manual K&F SPECTRA 212 Sub Adapter

You can now start wiring the speakers.

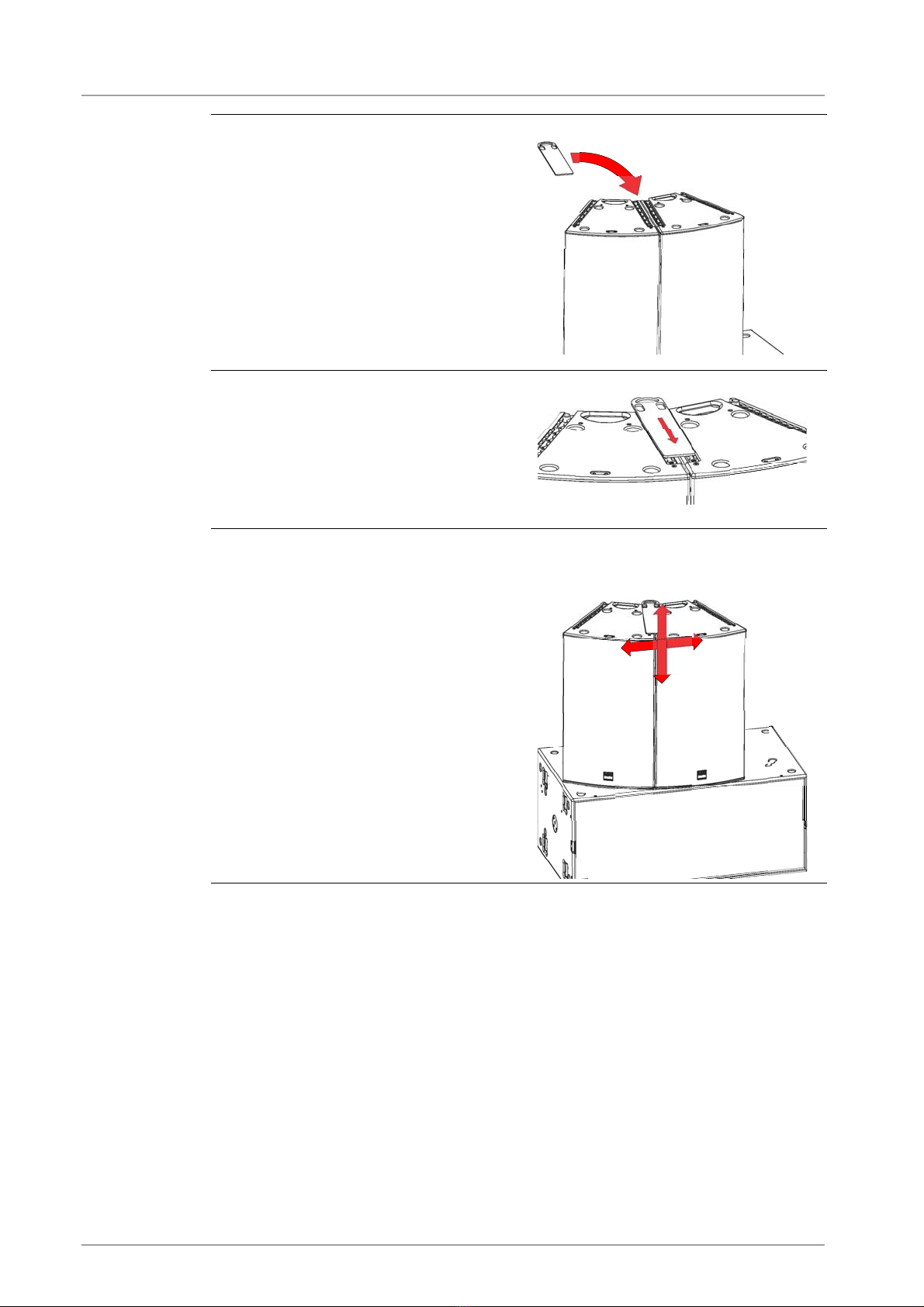

7. Attach a K&F SPECTRA212 Connector.

8. Drücken Sie die K&F SPECTRA212

Verbindungsschiene nach vorne, so dass sie

durch die Federbolzen arretiert wird.

9. Check all speakers carefully for secure fit

and stability.

Page 12 of 13 Version 2.0 © KLING & FREITAG GMBH

User's Manual K&F SPECTRA 212 Sub Adapter

Permanent weight: 3,1 kg

5. Dimensions and Weight

User's Manual K&F SPECTRA 212 Sub Adapter

This product is protected against the effects of temporary humidity and moisture, etc. Nevertheless, be

sure to store, transport, and use it in dry

Make sure that the system is adequately ventilated during longer storage periods so any residual moisture

can escape from the equipment.

In addition, make sure that the prpduct is protected from mechanical strains in order to prevent damage.

To protect the speaker from the above impacts, we recommend using suitable transport and storage

equipment.

Dispose of this product according to local ordinance regulations.

Ensure that the product cannot be re-used or used otherwise after disposal.

6. Care and Maintenance

1. For the owner and user, it is mandatory to be aware that speaker accessories used to fly or mount the

speakers are fundamentally safety-relevant.

Over time, the accessories may exhibit signs of wear, for example, from mechanical strain, transport dam-

age, corrosion, or improper handling.

As a basic principle, you must visually inspect the speaker accessory before and after you use it. For fixed

installations, you must inspect it for signs of wear at regular intervals.

When performing those checks, particularly look for deformations, cracks, dents, damage to threads, and

corrosion. Also check slings and lifts (e.g. shackles, chains, and steel ropes) carefully for wear and defor-

mation.

If as a result of these checks any uncertainty should arise with regard to safety or if specific faults are

found, stop using the accessories and send in the product to

Inspection regulations may vary depending on application and country of use. Observe all applicable reg-

ulations; If in doubt, contact local authorities.

Many countries require regular inspection of mounting components and accessories. An additional annu-

al inspection is typically required to be performed by a technical expert. Moreover, a legally certified or

official authority must perform a detailed inspection every four years.

Therefore, be sure to maintain an inspection log. Enter the values determined for each speaker and ac-

cessory during the periodic checks into this log. This way, relevant data are always at hand in case of in-

spection. This inspection log book shall be updated with the inspection steps, test intervals and parts lists.

2. Clean this speaker accessory regularly using a corrosion-prevention penetrating oil (for example, WD-40).

Warning

7. Transportation and Storage

8. Disposal
