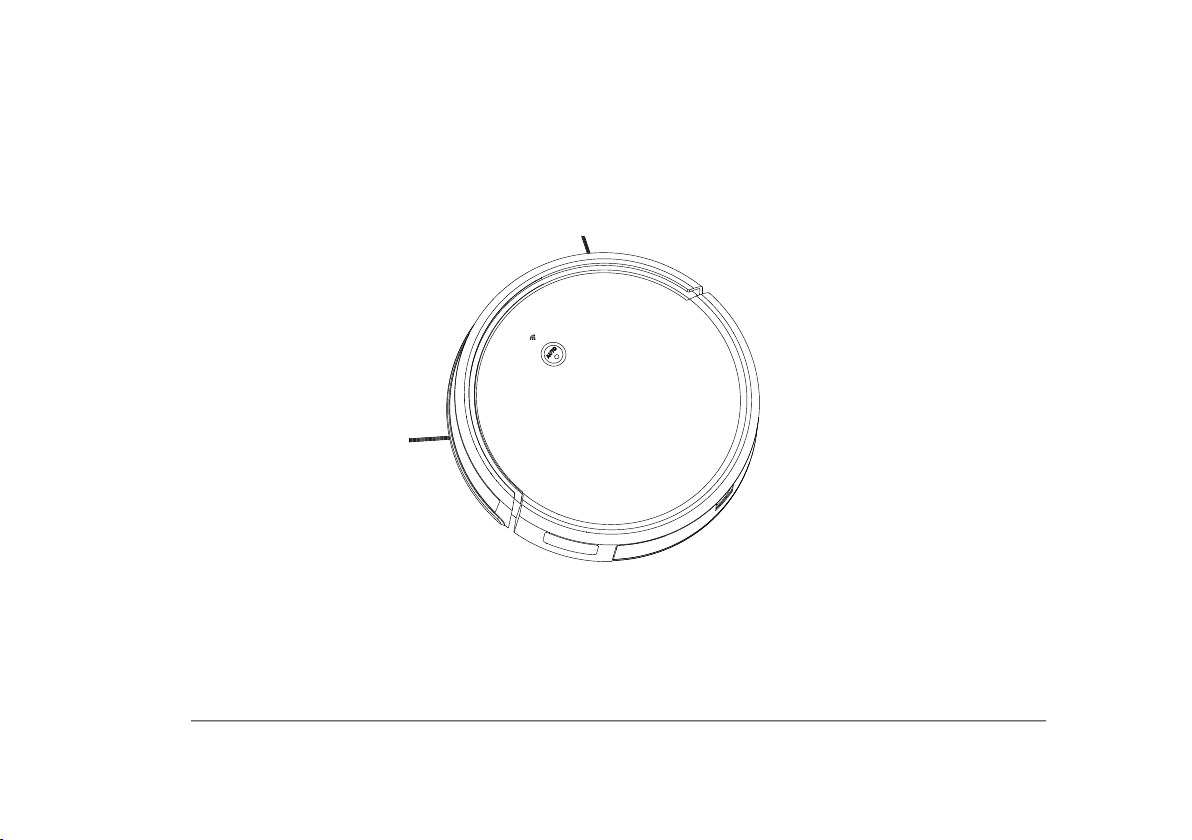

Klinsmann K185 User manual

ROBOT VACUUM CLEANER
K185 USER MANUAL
Thanks for your purchasing
Please read this manual carefully before using

Contents
1. Important Safety Instructions ..............................................................................................3-5
2. Package Contents /Structure introduction ......................................................................6-8
3.Technical Specifications ...........................................................................................................9
4. Instruction for Use ...................................................................................................................10-21
5. Routine Maintenance ..............................................................................................................22-26
6. Troubleshooting .........................................................................................................................27-28
2

1.Important Safety Instructions
When using an electrical Appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
SAVE THESE INSTRUCTIONS
1. This Appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use
of the Appliance in a safe way and
understand the hazards involved.Children
shall not play with the Appliance.Cleaning
and user maintenance shall not be made by
children without supervision.
2. Clear the area to be cleaned. Remove power
cords and small objects from the floor that
could entangle the Appliance. Tuck rug
fringe under the rug base, and lift items such
as curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area
due to a step or stairs, you should operate
the Appliance to ensure that it can detect
the step without falling over the edge. It
may become necessary to place a physical
barrier at the edge to keep the unit from
falling. Make sure the physical barrier is not
a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by
the manufacturer.
5. Please make sure your power supply source
voltage matches the power voltage marked
on the Docking Station.
6. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
7. Use only the original rechargeable battery and
Docking Station provided with the Appliance
from the manufacturer. Non-rechargeable
batteries are prohibited. For battery information,
please refer to Specifications section.
3

1.Important Safety Instructions
8. Do not use without dust bin and/or filters in
place.
9. Do not operate the Appliance in an area
where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold
environments (below -5˚C/23˚F or above
40˚C/104˚F).
11. Keep hair, loose clothing, fingers, and all
parts of body away from any openings and
moving parts.
12. Do not operate the Appliance in a room
where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or
surfaces with standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present.
16. Do not use Appliance to pick up anything that is
burning or smoking, such as cigarettes, matches,
hot ashes, or anything that could cause a fire.
17. Do not put objects into the suction intake.
Do not use if the suction intake is blocked.
Keep the intake clear of dust, lint, hair, or
anything that may reduce air flow.
18. Take care not to damage the power cord.
Do not pull on or carry the Appliance or
Docking Station by the power cord, use the
power cord as a handle, close a door on the
power cord, or pull power cord around sharp
edges or corners. Do not run Appliance over
the power cord. Keep power cord away from
hot surfaces.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the Docking Station if it is
damaged. The power supply is not to be
repaired and not to be used any longer if it
is damaged or defective.
4

1.Important Safety Instructions
21. Do not use with a damaged power cord or
receptacle. Do not use the Appliance or
Docking Station if it is not working properly,
has been dropped, damaged, left outdoors,
or come in contact with water. It must be
repaired by the manufacturer or its service
agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning
or maintaining the Appliance.
23. The plug must be removed from the
receptacle before cleaning or maintaining
the Docking Station.
24. Remove the Appliance from the Docking
Station, and turn OFF the power switch to
the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded
according to local laws and regulations
before disposal of the Appliance.
26. Please dispose of used batteries according
to local laws and regulations.
27. Do not incinerate the Appliance even if it is
severely damaged. The batteries can explode
in a fire.
28. When not using the Docking Station for a
long period of time, please unplug it.
29. The Appliance must be used in accordance
with the directions in this Instruction Manual.
ROBOTICS cannot be held liable or responsible
for any damages or injuries caused by improper
use.
30. The robot contains batteries that are only
replaceable by skilled persons. To replace
the robot’s battery, please contact Customer
Service.
31. If the robot will not be used for a long time,
power OFF the robot for storage and unplug
the Docking Station.
32. WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit CH1630A provided with the appliance.
5

ROBOT VACUUM CLEANER
K185 USER MANUAL
Thanks for your purchasing
Please read this manual carefully before using
Robot
Adapter
Docking Station
Instruction Manual
Side Brushes Remote Control Mop
Cleaning Brush
6
2.Package Contents /Structure introduction
2.1 Package Contents
Note: Figures and illustrations are for reference only and may differ from actual
product appearance

WiFi indicator
button
dust box power
switch
charging
socket
Glass Pannel
main brush
sensor
sensor
cliff
brush brush
window
7
2.Package Contents /Structure introduction

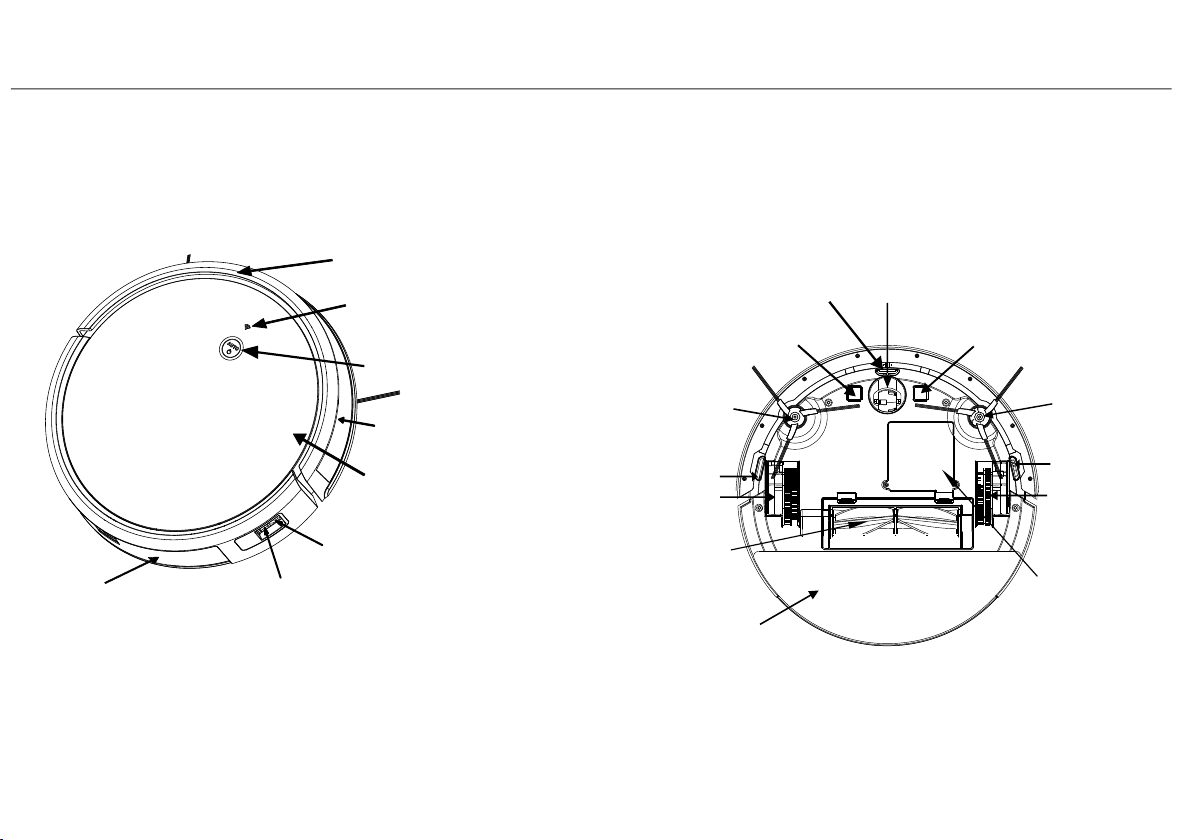

2.2 Structure introduction
water tank
signal
bumper universal
wheel
cliff sensor
charging contact
charging contact
cliff
cleaning cloth
battery shell
left wheel
right wheel
left side
right side

water tank filter
HEPA
HEPA
cover
dust box
water hole
water tank
water
water tank
lock
tank
socket
window
supporterfilter
plug
8
2.Package Contents /Structure introduction
2.2 Structure introduction
Docking Station
Dust Box & Water Tank
adapter
charging contact
signal

9

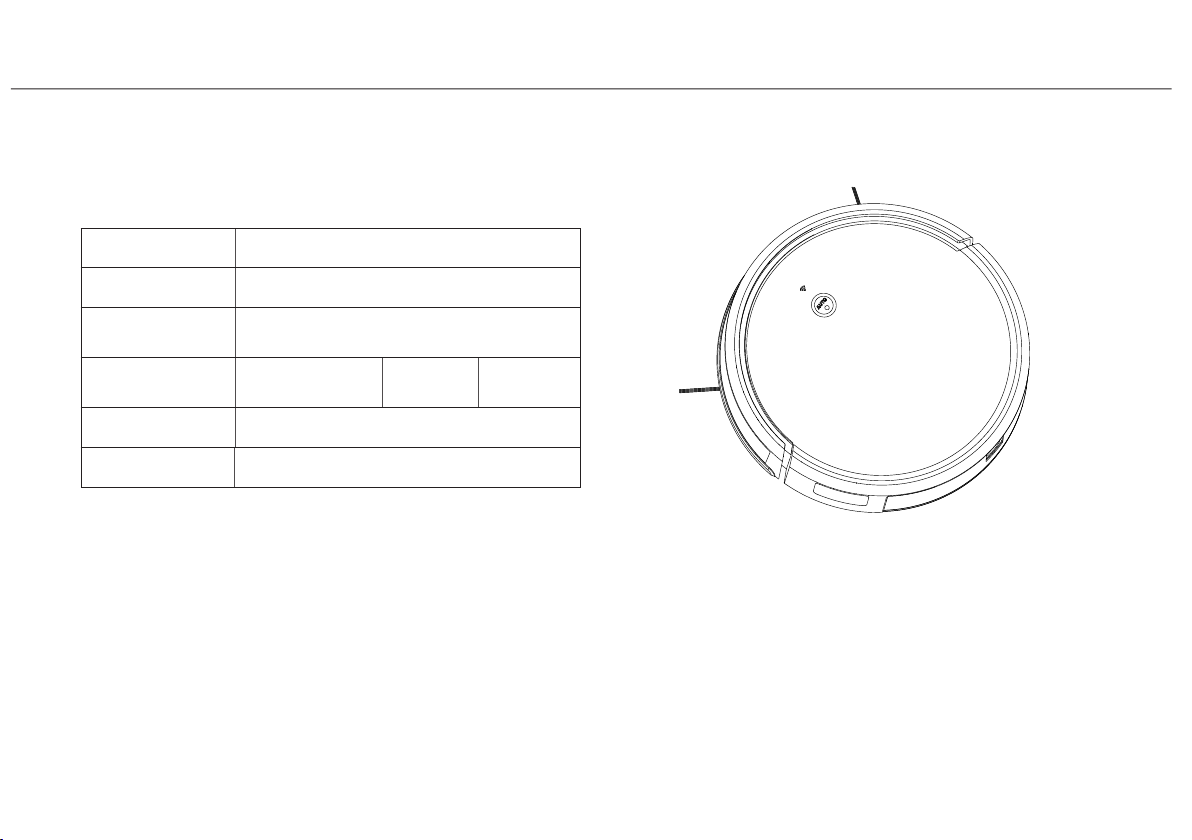

3.Technical Specifications
Model K185
3.1 Specifiaction
Working Voltage
Docking Station
Model
Input Output 19V DC,
0.6A
Battery 2600mAh Li-ion
14.8V
19V DC,
0.6A
KCH217
Rated Power 20W
Note:Technical and design specifications may be changed for continuous
product improvement

10
4.Instruction for Use
4.1 Notes Before Cleaning
1.Arrange the furniture neatly
Please arrange chair table and
other objects neatly to leave
the biggest space before cleaning
2.Remove unfriendly obstacles
Remove the weight scale ,fan
base and other low objects that
may affect the robot clean
It may be necessary to place
a physical barrier at the edge
of a drop to stop the unit from
falling over the edge.
3.Prevent robot from falling
Before using the
product on a rug
with tasseled edges,
please fold the
rug edges under.
Please do not use
mop function on
the rug.

11
4.Instruction for Use
4.Block out objects with strong
reflective surfaces
Please ensure height 9cm from floor
without strong reflective surface,
such as mirror or glass, or ooclude it
otherwise it will influence the robot
cleaning.
5.Please stay away from the
robot when it's working
Please do not stand in narrow
places such as thresholds or
aisles, otherwise the robot
can not identifying the area
that needs to be cleaned.
please do not touch the water
tank button when pick up robot,
otherwise ,the robot will fall.
6.Avoid touching the water
tank release button
9CM
4.1 Notes Before Cleaning

1.Place the docking station against the wall edge on a flat surface
and connect adapter with mains power.
Note:
a. The docking station should have more than 0.5m(1.6ft)
of clearance on each side, and more than 1.5m(5ft) in
the front.
b. If the power cable is vertical to ground,it may be caught
by the machine,causing the docking station to be
disconnected.
2.Power on and charge
Press power switch to turn on the robot.
Robot power indicator lights up with a voice prompt,
place the robot onto the docking station to begin charging or
charging directly with adapter.
Note:
a. Please charging more than 8 hours for first time using.
b. The robot will not turn on when battery is too low, please
manual charging the robot.
c. Users can control auto charging function through remote
control or APP. 12
4.Instruction for Use
4.2 Docking Station Installation
More than 0.5m(1.6ft)
More than 0.5m(1.6ft)
More than 1.5m(5ft)

4.Instruction for Use

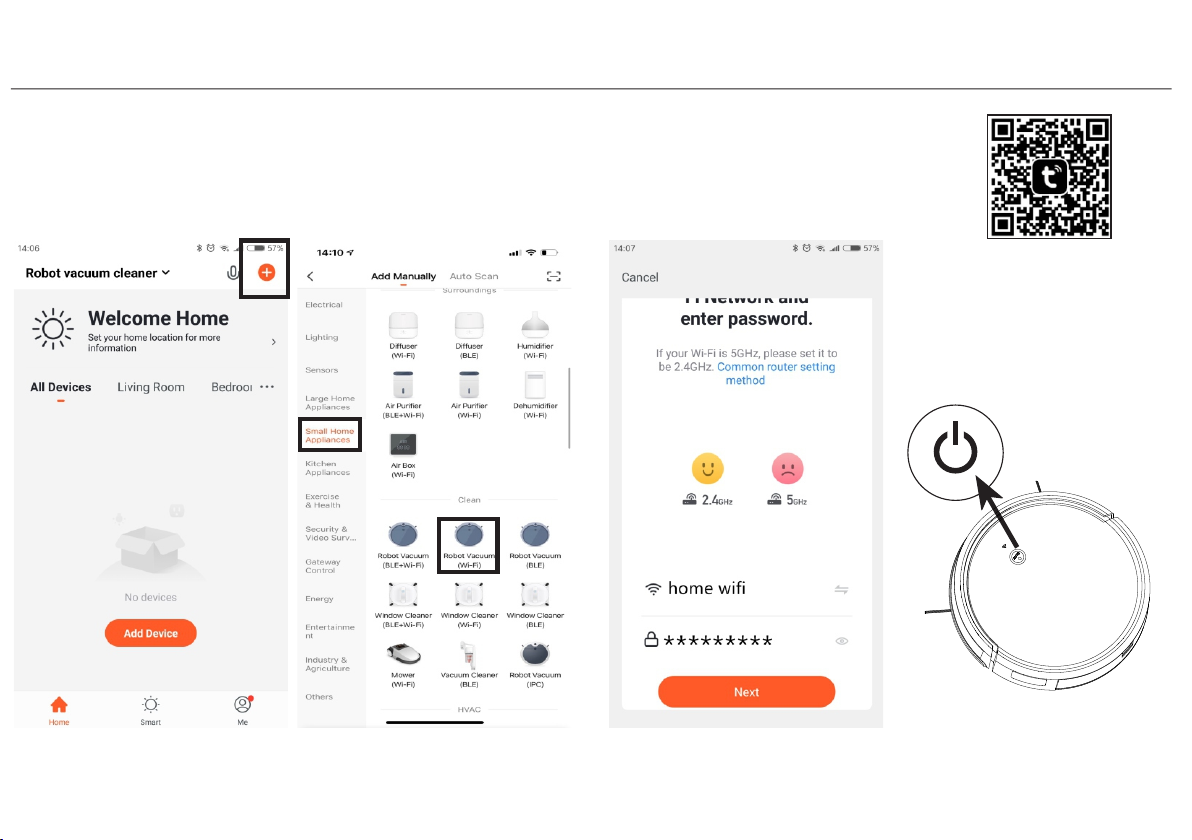

4.3 APP Connection
1. Download the Tuya APP Search “TUYA” in the App Store or Google Play,
or scan the QR code below, then download and install the app. Follow the
app step to register and login.
13
Step 2
Choose small home
appliance-robot vacuum
Step 3
Enter wifi password
wifi as above
Step 1
Press “+”mark
Step 4
Turn on robot,
hear prompt sound
long press button till

Step 5
Choose EZ mode and wait for connect
If the wifi indicator
blinking rapidly
14
4.Instruction for Use
4.3 APP Connection
If the wifi indicator
blinking slowly，please follow step 6
Step 6
Choose AP mode
Step 7
Press next

from the above description
in APP.
the robot, reset
your robot as a new device.
the WiFi, and add
15
4.Instruction for Use
4.3 APP Connection

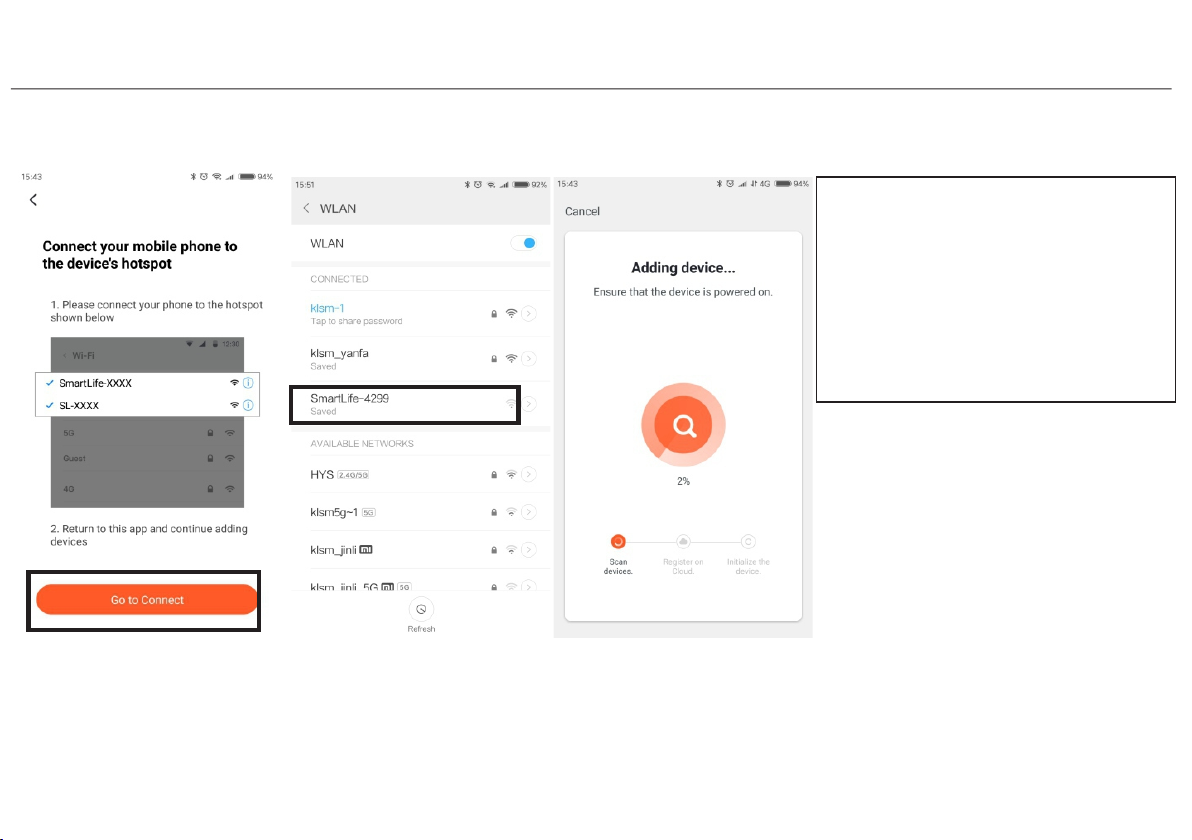

Choose wifi hotspot
Step 9
Step 8
Go to connect
corresponding wifi hotspot
SmartLife-XXXX(xxmeans
a wifi hotspot,each robot with
differ hotspot
Step 10
After connect wifi hotspot
back to APP wait for connection
Note:
a. Due to ongoing app development,
the actual process may differ slightly
Always follow the instruction given
b. Only support 2.4GHz WiFi.
c. If you can't connect your phone to

4.Instruction for Use

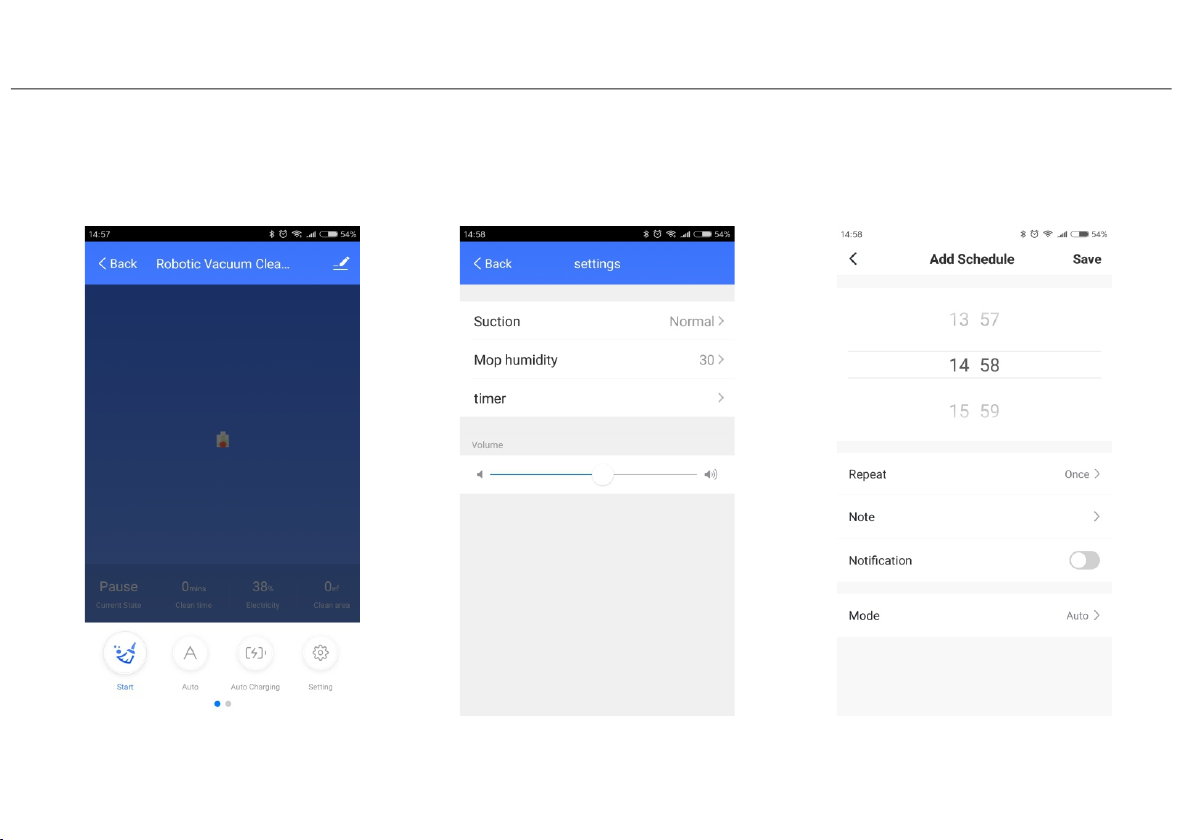

4.4 Function Use
16

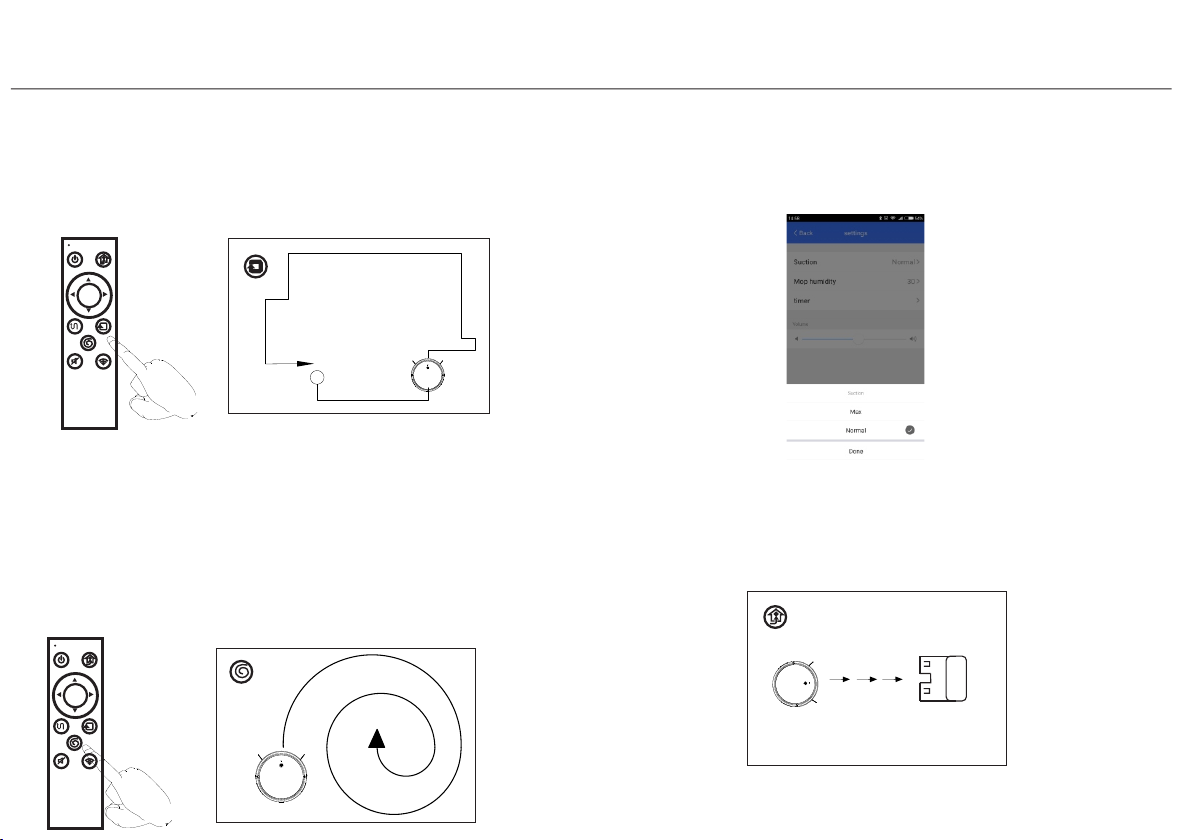

1.Auto Clean Mode
Turn on robot, press robot button or remote control OK button or auto button in APP, the robot will start
auto clean mode. Please close the door if only clean one room, robot will back to start place after
cleaning finish.
Note:
In auto mode, robot start with smart zigzag cleaning route, please do not move or control
the robot , otherwise, robot will restart cleaning route and repeat clean the area.
Robot may stop when working for thinking and judging the missing area or planning clean route
The number of pauses and time depends on the complexity of the home environment
SPOT
sleep/wake/stop
charge
OK
AUTO EDGE
MUTE WIFI
return

2.Edge Clean Mode
Press edge button in app or remote control
edge to cleaning
SPOT
sleep/wake/stop
charge
OK
AUTO EDGE
MUTE WIFI
return
3.Sprial Clean Mode
Focus on specific areas ,cleaning more thorough,
it is recommended use in the living room or
other area with less obstacles.
SPOT
sleep/wake/stop
charge
OK
AUTO EDGE
MUTE WIFI
return
4.Suction Option Mode
Adjust suction through APP setting
5.Auto charge Mode
Robot will find docking station
automatically when battery
power is low
4.4 Function Use
Machine along the object
Note：If the battery power below 10%，robot will
shut down. Please manual charging the robot.
Press remote control spot button or sprial in app.
4.Instruction for Use
17

4.4 Function Use
1.Enter setting 2.Choose timer 3.Set and save
6.Schedule Clean (set in APP)
Note:
Due to ongoing app development, the actual process may differ slightly from the above
description. Always follow the instruction given in APP.
4.Instruction for Use
18

4.4 Function Use
19
4.Instruction for Use
7.Mopping Function
Inject Water
Remove out water tank Remove dust box
Open plug, fill with water Close plug tightly
Install water tank
Wet the cloth, stick it Put back dust box
Install cloth plate to water tank
Slide water tank into robot
until you hear it lock with
a click.
Note:
a. It is recommended that all floors are vacuumed at least three times before the first
mopping session to reduce excessive dirt buildup on the mop.
b. To prevent corrosion or damage, do not use cleaning fluid or disinfectant in the water tank.
c. Do not use hot water ,which may cause the tank to deform.

4.4 Function Use
4.Instruction for Use
7.Mopping Function
Adjust mop humidity
in the APP as required
20
Start mopping cleaning
Ensure the robot is fully with power and turn on it,
press auto button or use the app to start cleanup.
Note:
a. Remove cloth plate and washing the cloth, then empty the water tank frequently
is recommended if not use it to prevent odors or mildew.
b. Remove the mop cloth plate if not mopping.
c. Cleaning the mop cloth after 60 minutes of mopping is recommended to ensure
water flow and cleaning quality
