Klipsch THE FIVES User manual

1
THE FIVES

2
2 - INSIDE
4 - RIGHT SPEAKER (ACTIVE)

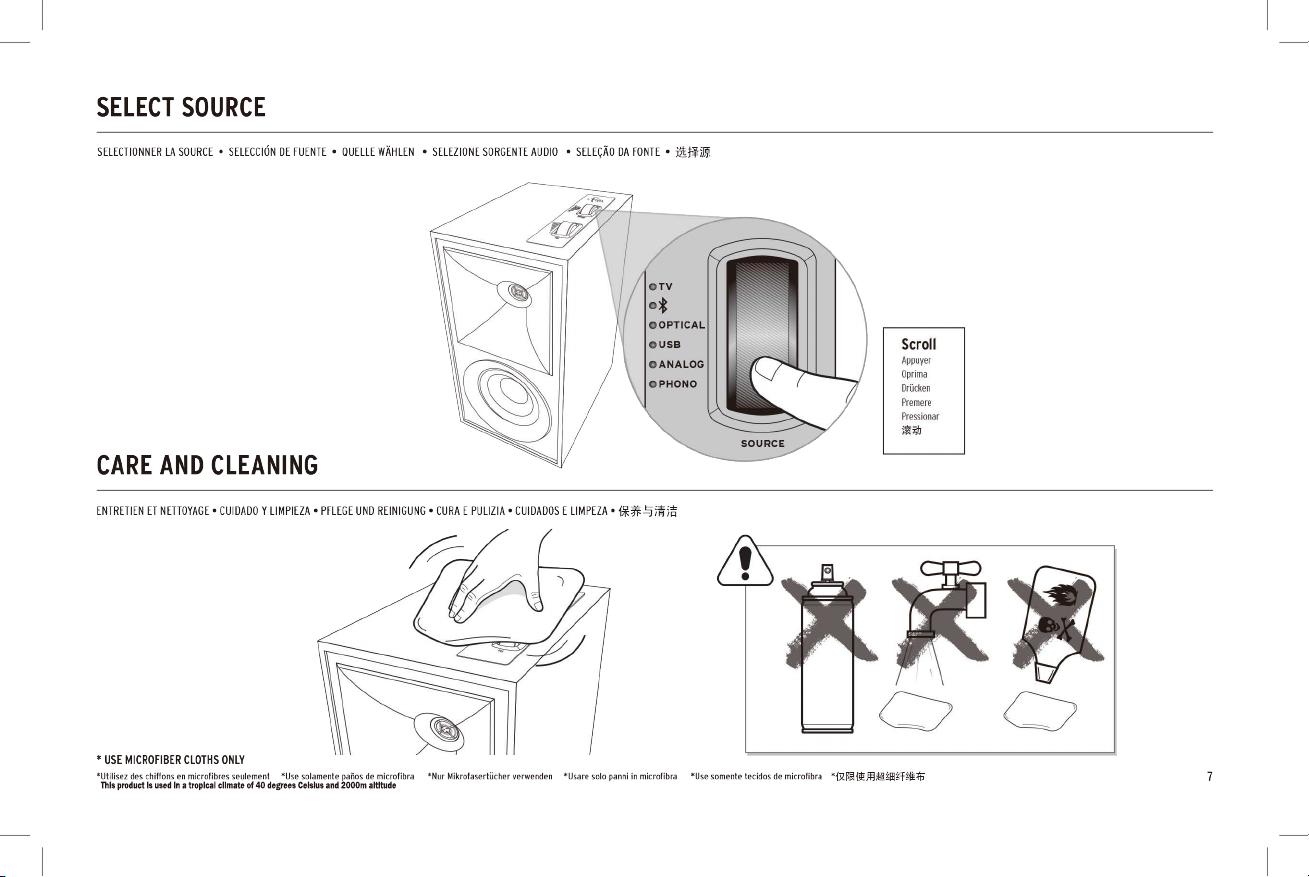

6 - SETUP
7 - SELECT SOURCE
7 - CARE AND CLEANING
8 - HDMI ARC
9 - CONNECTIONS - TV
10 - CONNECTIONS - COMPUTER
11 - CONNECTIONS - TURNTABLE
12 - REMOTE
15 -

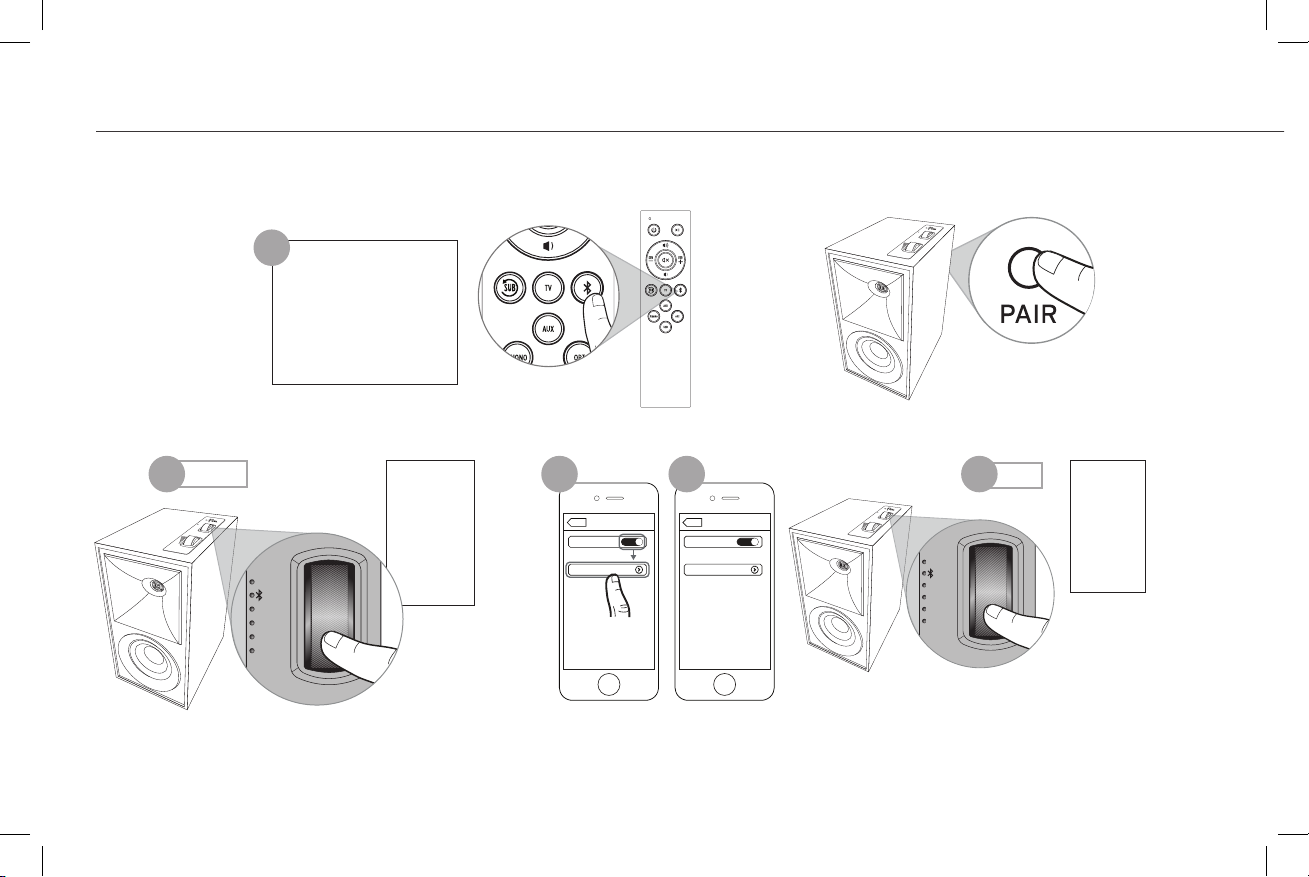

BLUETOOTH
®WIRELESS TECHNOLOGY
16 - SUBWOOFER OUTPUT
16 - LED SOURCE INDICATOR
17 - DYNAMIC BASS EQ
19 - FACTORY RESET
20 - REMOTE CONTROL CODES
20 - TROUBLESHOOTING
21 - PRODUCT REGISTRATION
INSIDETABLE OF CONTENTS
CONTENU • CONTENIDO • INHALT • CONTENUTO • CONTEÚDO • 目录
Speakers (2)
Speakers (2)
Enceintes (2)
Altavoces (2)
Lautsprecher (2)
Altoparlanti (2)
Caixas acústicas (2)
音箱 (2)

3
INSIDE
HDMI CableMain Power Cord USB Cable (A to B)
Manual Batteries
Remote
Télécommande
Control remoto
Fernbedienung
Telecomando
Controle remoto
遥控器
Batteries
Les Piles
Pilas
Batterien
Baterias
Batterie
电池
Main Power Cord
Cordon d’alimentation principal
Cordón principal de alimentación
Hauptnetzkabel
Cavo di alimentazione principale
Cabo de alimentação principal
主电源线
HDMI Cable
Câble HDMI
Cable de HDMI
HDMI-Kabel
Cavo HDMI
Cabo HDMI
HDMI 电缆
USB Cable
Câble USB
Cable USB
USB-Kabel
Cavo USB
Cabo USB
USB 电缆
Speaker Wire
Fil d’enceinte
Cable de altavoz
Lautsprecherkabel
Cavo altoparlante
Cabo para caixa acústica
音箱导线
4M Speaker Cable
MANUAL
Remote
TV

4
RIGHT SPEAKER (ACTIVE)
ENCEINTE DROITE (ACTIVE) • ALTAVOZ DERECHO (ACTIVO) • RECHTER LAUTSPRECHER (AKTIV) • ALTOPARLANTE DESTRO (ATTIVO) • CAIXA ACÚSTICA DIREITA (ATIVA) • 右音箱（有源）
PRIMARY SPEAKER
SECONDARY SPEAKER OUT
PRIMARY
L R
PAIR
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any
interference received. including
interference that may cause undesired
operation.
62 7
1112
84
9
5
10
1
3

5
LED Source Indicator
Indicateur de source à DEL
Indicador LED de fuente
LED-Quellenanzeige
Spia LED sorgente audio
LED indicador de fonte
LED 源指示灯
Phono/Line Switch
Interrupteur Phono/Ligne
Conmutador de tocadiscos y línea
Phono/Line-Schalter
Selettore phono/linea
Chave fono/linha
唱机/线路开关
Volume/Source Control
Commande Volume/Source
Control de volumen y fuente
Regler Lautstärke/Quelle
Comando volume/sorgente audio
Controle de volume/fonte
音量/源控制
Phono Input
Entrées phono
Entradas de tocadiscos
Phono-Eingänge
Ingressi phono
Entradas fono
唱机输入
Auxiliary 3.5mm Input
Entrée auxiliaire de 3,5 m
Entrada auxiliar de 3.5 mm
3,5-mm-AUX-Eingang
Ingresso ausiliario da 3,5 mm
Entrada auxiliar de 3,5 mm
辅助 3.5mm 输入
Subwoofer Output
Sortie du haut-parleur d’extrêmes
graves
Salida de subwoofer
Subwoofer-Ausgang
Uscita subwoofer
Saída para subwoofer
低音炮输出
Optical Input
Connexion Optique
Conexión Óptica
Optische verbindung
Connessione Ottica
Conexão Ótica
数字光纤连接
USB Audio Input
Entrée USB
Entrada de audio USB
USB-Audio-Eingang
Ingresso audio USB
Entrada de áudio USB
USB 音频输入
Left Speaker Terminal
Borne d’enceinte gauche
Terminal de altavoz izquierdo
Linker Lautsprecherterminal
Terminale altoparlante sinistro
Terminal da caixa acústica esquerda
左音箱端子
Ground Screw Terminal
Borne de la vis de raccord à la terre
Terminal de tornillo de conexión a tierra
Erdungsanschluss
Terminale a vite di messa a terra
Terminal de parafuso terra
接地螺钉端子
Service Port
Port de service
Puerto de servicio
Service-Port
Porta di servizio
Porta de serviço
服务端口
HDMI ARC
HDMI ARC
Arco HDMI
HDMI ARC
HDMI ARC
HDMI ARC
HDMI弧
1
6
2
7
11 12
3
8
4
9
5
10

6
SETUP
INSTALLATION • CONFIGURACIÓN • SETUP • INSTALLAZIONE • INSTALAÇÃO • 设置
1
2
3
VOL
SOURCE
-
- PHONO
- ANALOG
- OPT ICAL
- USB
- TV

This product is used in a tropical climate of 40 degrees Celsius and 2000m altitude

8
CONNECTIONS - HDMI-ARC (IF TV HAS NO HDMI-ARC OUT SEE NEXT PAGE)
TV
HDMI-ARC
HDMI
1
3
4
2
VOL
SOURCE
-
-PH ONO
-AN ALOG
-OP TICAL
-US B
-TV
CONNEXIONS - HDMI-ARC • CONEXIONES - HDMI-ARC • ANSCHLÜSSE – HDMI-ARC • CONNESSIONI - HDMI-ARC • CONEXÕES - HDMI-ARC • 连接 – HDMI-ARC •
A Basic TV HDMI input will not
transfer the TV audio signal
to the Speakers. The Fives
will only receive TV audio
through HDMI-ARC (with CEC
turned ON), Optical or Analog
connection.
Une entrée TV HDMI de base ne
transférera pas le signal audio
TV vers altavoces. Los Fives ne
recevra l’audio TV qu’au moyen
d’une connexion HDMI-ARC
(avec CEC sur MARCHE (ON)),
Optique ou Analogique.
Una entrada básica de HDMI de
una TV no transere la señal
de audio de haut-parleurs. Les
Fives solo recibirá el audio de
la TV a través de una conexión
óptica o análoga de tipo HDMI-
ARC (con el CEC encendido).
Ein einfacher HDMI-Eingang
kann das TV-Audiosignal
nicht an derLautsprecher
übertragen. Die Fives kann das
das TV-Audiosignal nur über
HDMI-ARC (bei aktiviertem
CEC), eine optische oder
analoge Verbindung
empfangen.
Il normale input televisivo
HDMI non permette di
trasmettere i segnali audio
televisivi alla altoparlanti.
La Fives riceve i segnali
audio televisivi soltanto dai
connettori HDMI-ARC (con
CEC impostata su ON), ottici o
analogici.
Uma entrada HDMI TV básica
não transfere o sinal de áudio
da TV para a alto-falante.
Os Fives recebe áudio da
TV somente através de uma
conexão HDMI-ARC (com CEC
ligado), óptica ou analógica.
一个基本的电视 HDMI 输
入端不会将电视音频信号
传送到声霸扬声器。The
Fives 声霸扬声器只能通
过 HDMI-ARC （CEC 打
开状态下）接收 电视音
频、光学或类比信号。
(HDMI)HDMI ARC
Si le téléviseur n'est pas équipé d'une sortie
HDMI-ARC, reportez-vous à la page suivante
Si el televisor no tiene salida HDMI-ARC, vea
la página siguiente
Wenn Fernseher nicht über einen HDMI-ARC-
Ausgang verfügt, siehe nächste Seite
Se il televisore non ha un’uscita HDMI-ARC
vedere alla pagina successiva
Se a TV não tiver saída HDMI-ARC, consulte a
próxima página
如果电视没有 HDMI-ARC 输出，请
参见下一页

9
CONNECTIONS - TV
CONNEXIONS – TV • CONEXIONES DEL TELEVISOR • ANSCHLÜSSE – TV • CONNESSIONI – TV • CONEXÕES - TV • 连接 – 电视
PRIMARY SPEAKER
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any interfer-
ence received. including interference that
may cause undesired operation.
PRIMARY SPEAKER
L R
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any
interference received. including
interference that may cause undesired
operation.
Optical
Digital Audio Out
Audio Out
R
L
PRIMARY SPEAKER
L R
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any
interference received. including
interference that may cause undesired
operation.
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
OR
OU
O BIEN
ODER
OPPURE
OU
或
OR
OU
O BIEN
ODER
OPPURE
OU
或
*
* Your TV will need to be set to PCM (or Stereo Only)
* Votre télévision devra être réglée sur la sortie MIC (Modulation d’impulsion codée) (ou stéréo seulement) * Su televisor debe jarse en PCM (o Solo estéreo) * Ihr Fernseher muss auf PCM (oder Nur Stereo) eingestellt sein * Il televisore deve essere impostato su PCM (o solo stereo)
* A TV precisa ser congurada para PCM (ou apenas estéreo) * 需要将您的电视设置为 PCM （或仅设置为“立体声”）

10

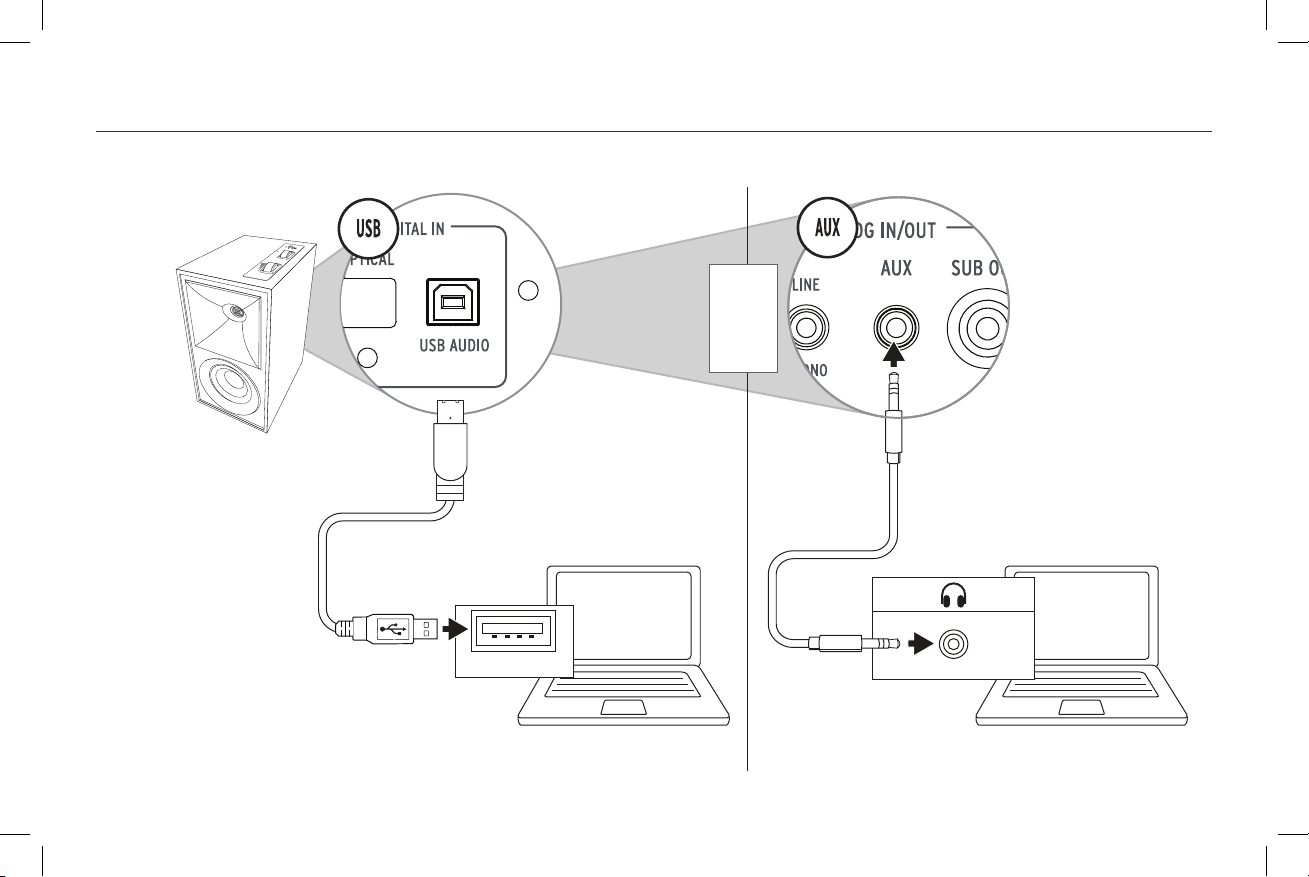

CONNECTIONS - COMPUTER
CONNEXIONS – ORDINATEUR • CONEXIONES DE LA COMPUTADORA • ANSCHLÜSSE – COMPUTER • CONNESSIONI – COMPUTER • CONEXÕES - COMPUTADOR • 连接 – 计算机
PC / MAC PC / MAC
PRIMARY SPEAKER
L R
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any interfer-
ence received. including interference that
may cause undesired operation.
USB
PRIMARY SPEAKER
L R
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any
interference received. including
interference that may cause undesired
operation.
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
OR
OU
O BIEN
ODER
OPPURE
OU
或

11
CONNECTIONS - TURNTABLE
CONNEXIONS – PLATINES • CONEXIONES DEL TOCADISCOS • ANSCHLÜSSE – PLATTENSPIELER • CONNESSIONI – GIRADISCHI • CONEXÕES - TOCA-DISCOS • 连接 – 计算机
PRIMARY SPEAKER
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any
interference received. including
interference that may cause undesired
operation.
PRIMARY SPEAKER
L R
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any
interference received. including
interference that may cause undesired
operation.
Audio Out
R
L
GND
PRIMARY SPEAKER
L R
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any interfer-
ence received. including interference that
may cause undesired operation.
PRIMARY SPEAKER
SECONDARY SPEAKER OUT
5788A-THEFIVES
STI-THEFIVES
Model: the Fives
Powered Monitor Speakers
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any
interference received. including
interference that may cause undesired
operation.
VOL
SOURCE
-
-P HONO
- ANALOG
-O PTICA L
- USB
- TV
OPTIONAL
OPTIONNEL
OPCIONAL
OPTIONAL
FACOLTATIVO
OPCIONAL
可选项

12
REMOTE

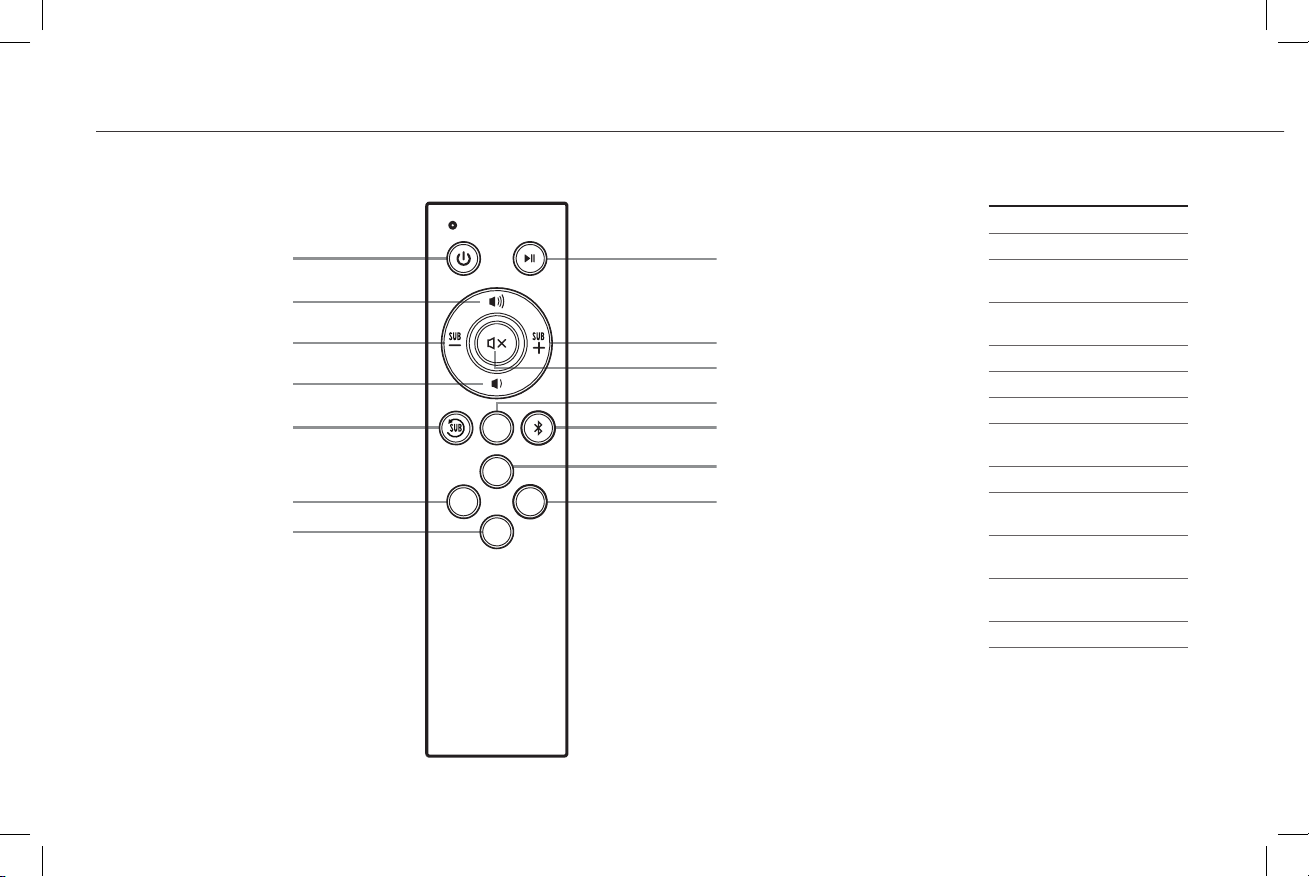

TÉLÉCOMMANDE • CONTROL REMOTO • FERNBEDIENUNG • TELECOMANDO • CONTROLE REMOTO • 遥控器
USB
AUX
TV
PHONO OPT
Bluetooth
®Source Select
TV / ARC
Play/Pause
Auxiliary Source Select
Volume Up
Volume Down
Subwoofer Level Up
Subwoofer Level Down
Mute
Optical Source Select
Sub Reset
Phono Source Select
USB Source Select
ON/OFF
IR REMOTE CONTROL CODES
ON / OFF 0x 807F 1AE5
Mute 0x 807F 01FE
Subwoofer
Level Up 0x 807F 07F8
Subwoofer
Level Down 0x 807F 0AF5
Volume Up 0x 807F 03FC
Volume Down 0x 807F 06F9
TV / ARC 0x 807F 19E6
Subwoofer
Level Reset 0x 807F 3EC1
Play/Pause 0x 807F 21DE
Phono
Source Select 0x 807F 0FF0
Auxiliary
Source Select 0x 807F 0EF1
Digital Optical
Source Select 0x 807F 0CF3
USB Source Select 0x 807F 12ED
Bluetooth
®
Source Select 0x 807F 0DF2

13
ON / OFF
Sous tensio / Hors tension
Encendido / Apagado
Ein / Aus
Acceso / Spento
Ligar / Desligar
开/关
Mute
Sourdine
Silenciador
Stummschaltung
Disattivazione audio
Desativar áudio
静音
Subwoofer Level Up
Niveau haut du haut-parleur d’extrêmes graves
Subida de nivel de subwoofer
Subwoofer-Pegel Plus
Aumento livello subwoofer
Aumentar nível de volume do subwoofer
低音炮电平上升
Subwoofer Level Down
Niveau bas du haut-parleur d’extrêmes graves
Bajada de nivel de subwoofer
Subwoofer-Pegel Minus
Riduzione livello subwoofer
Diminuir nível de volume do subwoofer
低音炮电平下降
Volume Up
Volume haut
Subida de volumen
Lauter
Aumento volume
Aumentar o volume
音量增大
Volume Down
Volume bas
Bajada de volumen
Leiser
Riduzione volume
Diminuir o volume
音量减小
Phono Source Select
Sélection de la source Phono
Selección de fuente de tocadiscos
Phone-Quellenwahl
Selezione sorgente phono
Seleção de fonte fono
唱机源选择
Auxiliary Source Select
Sélection de la source auxiliaire
Selección de fuente auxiliar
AUX-Quellenwahl
Selezione sorgente ausiliaria
Seleção de fonte auxiliar
辅助源选择
Digital Optical Source Select
Sélection de la source optique numérique
Selección de fuente óptica digital
Digital-optische Quellenwahl
Selezione segnale ottico digitale
Seleção de fonte ótica digital
数字光学源选择
USB Source Select
Sélection de la source USB
Seleccione de fuente USB
USB-Quellenwahl
Selezione sorgente USB
Seleção de fonte USB
USB 源选择
Bluetooth
®Source Select
Sélection de la source Bluetooth
®
Selección de fuente Bluetooth
®
Bluetooth
®-Quellenwahl
Selezione segnale Bluetooth
®
Seleção de fonte Bluetooth
®
蓝牙源选择
Subwoofer Level Reset
Réinitialisation du niveau du haut-parleur d’extrêmes graves
Restablecimiento de nivel de subwoofer
Subwoofer-Pegel zurücksetzen
Ripristino livello subwoofer
Restabelecer nível de volume do subwoofer
低音炮电平复位
TV
LA TÉLÉ
TV
FERNSEHER
TV
TELEVISÃO
电视
Play/Pause
Lecture/pause
Reproducción/pausa
Wiedergabe/Pause
Riproduzione / Pausa
Reproduzir/Pausar
播放/暂停

14
Solid
Continu
Continuo
Dauerhaft
Luce ssa
Constante
常亮
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
RIGHT SPEAKER OUT
–
L
VOL
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Klipsch Fours
Phone
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Bluetooth
Bluetooth
ON
Klipsch Fours
Devices
Not Paired
Settings
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
Flashing
Clignotant
Destello
Blinkt
Lampeggiante
Intermitente
闪烁
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
RIGHT SPEAKER OUT
–
L
VOL
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Klipsch Fours
Phone
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Bluetooth
Bluetooth
ON
Klipsch Fours
Devices
Not Paired
Settings
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
Solid
Flashing
BLUETOOTH
®WIRELESS TECHNOLOGY
TECNOLOGÍA INALÁMBRICA BLUETOOTH
®• CONFIGURACIÓN DE TECNOLOGIA WIRELESS
BLUETOOTH ®• DRAHTLOSE BLUETOOTH ®-TECHNOLOGIE-SETUP • CONFIGURAZIONE TECNOLOGIA WIRELESS BLUETOOTH
®•
CONFIGURAÇÃO DE TECNOLOGIA SEM FIO BLUETOOTH ®• BLUETOOTH ® 蓝牙无线电技术
PAIR
CONNEXION
CONEXIÓN
VERBINDEN
COLLEGAMENTO
CONECTAR
连接
Hold 3 Seconds
Appuyer pendant 3 secondes
Mantenga oprimido durante 3 segundos
3 Sekunden gedrückt halten
Tenere premuto per 3 secondi
Manter pressionado por 3 segundos
保持 3 秒
1
32 4 5
OR
OU
O BIEN
ODER
OPPURE
OU
或
VOL
SOURCE
-
-PH ONO
-AN ALOG
-OP TICAL
-US B
-TV
VOL
SOURCE
-
-PH ONO
-AN ALOG
-OP TICAL
-US B
-TV
RIGHT SPEAKER OUT
–
L
VOL
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Klipsch Fours
Phone
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Bluetooth
Bluetooth
ON
Klipsch Fours
Devices
Not Paired
Settings
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
VOL
SOURCE
-
-PH ONO
-AN ALOG
-OP TICAL
-US B
-TV
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
SOURCE
-
-PH ONO
-AN ALOG
-OP TICAL
-US B
-TV
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
Example only. Your device may differ.
• À titre d’exemple seulement. Votre appareil peut être différent. • Este es solo un ejemplo. Es posible que su dispositivo sea diferente. • Nur als Beispiel. Ihr Gerät kann anders aussehen
• Solo a titolo esemplicativo. Lo specico dispositivo può essere diverso. • Apenas para exemplo. O dispositivo pode ser diferente. • 仅为示例。实际设备可能有所不同
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
RIGHT SPEAKER OUT
–
L
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Klipsch Fours
Phone
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Bluetooth
Bluetooth
ON
Klipsch Fours
Devices
Not Paired
Settings
PHONO
ANALOG
OPTICAL
USB
TV
SOURCE
VOL
PHONO
ANALOG
OPTICAL
USB
TV
SOURCE
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
PHONO
ANALOG
OPTICAL
USB
TV
SOURCE
VOL

15
Solid
Continu
Continuo
Dauerhaft
Luce ssa
Constante
常亮
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
RIGHT SPEAKER OUT
–
L
VOL
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Klipsch Fours
Phone
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Bluetooth
Bluetooth
ON
Klipsch Fours
Devices
Not Paired
Settings
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
Press x1
Appuyer 1 fois
Oprima 1 vez
1x drücken
Premere 1 volta
Pressionar uma vez
按 1 次
RECONNECT
RECONNECTER
RECONECTAR
ERNEUT VERBINDEN
RICONNESSIONE
RECONECTAR
重新连接
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
RIGHT SPEAKER OUT
–
L
VOL
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Klipsch Fours
Phone
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Bluetooth
Bluetooth
ON
Klipsch Fours
Devices
Not Paired
Settings
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
RIGHT SPEAKER OUT
–
L
12Solid
Press x1 3

16
SUBWOOFER OUTPUT
LED SOURCE INDICATOR
SORTIE DU HAUT-PARLEUR D’EXTRÊMES GRAVES • SALIDA DE SUBWOOFER • SUBWOOFER-AUSGANG • USCITA SUBWOOFER • SAÍDA PARA SUBWOOFER • 低音炮输出
INDICATEUR DE SOURCE À DEL • INDICADOR LED DE FUENTE • LED-QUELLENANZEIGE • SPIA LED SORGENTE AUDIO • LED INDICADOR DE FONTE • LED 源指示灯
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
RIGHT SPEAKER OUT
–
L
VOL
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Klipsch Fours
Phone
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch Fours Connected
Bluetooth
Bluetooth
ON
Klipsch Fours
Devices
Not Paired
Settings
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
OPTICAL
USB
ANALOG
PHONO
TV
SOURCE
VOL
DIGITAL IN
ANALOG IN/OUT
OPTICALSUB OUTAUX 2 INAUX 1 IN
LINE
R
USB
VOL
SOURCE
-
- PHONO
- ANALOG
- OPTICA L
- USB
- TV
Bluetooth
® Input
Entrée Bluetooth
®
Entrada Bluetooth
®
Bluetooth
®-Eingang
Ingresso Bluetooth
®
Entrada Bluetooth
®
LED 源指示灯
Phono Input
Entrée phono
Entrada de tocadiscos
Phono-Eingang
Ingresso phono
Entrada fono
唱机输入
Auxiliary Input
Entrée auxiliaire
Entrada auxiliar
AUX-Eingang
Ingresso ausiliario
Entrada auxiliar
辅助输入
Optical Input
Connexion Optique
Conexión Óptica
Optische verbindung
Connessione Ottica
Conexão Ótica
数字光纤连接
USB Audio Input
Entrée audio USB
Entrada de audio USB
USB-Audio-Eingang
Ingresso audio USB
Entrada de áudio USB
USB 音频输入
TV
La télé
TV
Fernseher
TV
Televisão
电视

17
ÉGALISATION DYNAMIQUE DES BASSES • ECUALIZACIÓN DE BAJOS DINÁMICOS • DYNAMISCHER BASS-EQ • EQUALIZZAZIONE DEI BASSI DINAMICA • EQUALIZAÇÃO DINÂMICA DE GRAVES • 动态低音均衡
DYNAMIC BASS EQ
Dynamic Bass EQ applies loudness correction
to automatically adjust low frequency levels
as volume changes.
L’égalisation dynamique des graves applique
une correction du volume sonore pour régler
automatiquement le niveau des basses fréquences au
fur et à mesure des variations de volume.
La ecualización de bajos dinámicos corrige la sonoridad
para ajustar automáticamente los niveles de las frecuencias
bajas según los cambios de volumen.
Der Dynamische Bass-EQ setzt eine Lautstärkeregelung
ein, um bei Lautstärkeänderungen die Tieffrequenzpegel
automatisch anzupassen.
L’equalizzazione dei bassi dinamica applica la correzione
della sonorità per regolare automaticamente i livelli a
bassa frequenza in funzione delle variazioni del volume.
A equalização dinâmica de graves aplica correção de
intensidade para ajustar automaticamente os níveis de
baixa frequência quando há mudança no volume.
动态低音均衡器应用响度校正功能，随音量变
化自动调节低音电频。
For best results, increase input source volume
to maximum.
Pour de meilleurs résultats, augmentez au maximum le
volume de la source d’entrée.
Para obtener resultados óptimos, aumente el volumen
de la fuente de entrada al máximo.
Steigern Sie am besten die Lautstärke der
Eingangsquelle aufs Maximum.
Per ottenere risultati ottimali, aumentare al massimo il
volume della sorgente audio.
Para obter melhores resultados, aumente o volume da
fonte de entrada para o máximo.
为获得最佳效果，请将输入音量增加到最大。

18
RIGHT SPEAKER OUT
–
L
Flashes x2
Clignote x2
Destella x2
Blinkt x2
Lampeggia x2
Piscará x2
闪烁 x2
2
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch R-41PM Connected
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch R-41PM Connected
Bluetooth
Bluetooth
ON
Klipsch R-41PM
Devices
Not Paired
Settings
Klipsch R-15PM
Phone
RIGHT SPEAKER OUT
DIGITAL IN
ANALOG IN/OUT
VOLUME/SOURCE
OPTICALSUB OUT
GND
AUX INAUX 1 IN
+–
AUX 1
PHONO LINE
RL
UPDOWN
USB
LED
USB
PHONO OPT
AUX
SUBSUB
SUB
USB
PHONO OPT
AUX
SUBSUB
SUB
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
VOL
SOURCE
-
-PH ONO
-AN ALOG
-OP TICAL
-US B
-TV
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch R-41PM Connected
Bluetooth
Bluetooth
ON
Devices
Settings
Klipsch R-41PM Connected
Bluetooth
Bluetooth
ON
Klipsch R-41PM
Devices
Not Paired
Settings
Klipsch R-15PM
Phone
RIGHT SPEAKER OUT
DIGITAL IN
ANALOG IN/OUT
VOLUME/SOURCE
OPTICALSUB OUT
GND
AUX INAUX 1 IN
+–
AUX 1
PHONO LINE
RL
UPDOWN
USB
LED
USB
PHONO OPT
AUX
SUBSUB
SUB
USB
PHONO OPT
AUX
SUBSUB
SUB
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
VOL
SOURCE
-
-PH ONO
-AN ALOG
-OP TICAL
-US B
-TV
VOL
SOURCE
-
-P HONO
-A NALOG
-O PTICAL
-U SB
-T V
DÉSACTIVEZ/ACTIVEZ L’ÉGALISEUR DES GRAVES DYNAMIQUE • DESACTIVAR / ACTIVAR LA ECUALIZACIÓN DE BAJOS DINÁMICOS • DYNAMISCHEN BASS-EQ DEAKTIVIEREN/AKTIVIEREN • ABILITA / DISABILITA EQUALIZZAZIONE DEI BASSI DINAMICA • DESATIVAR/
ATIVAR A EQUALIZAÇÃO DINÂMICA DE GRAVES • 禁用/启用动态低音均衡器
DISABLE / ENABLE DYNAMIC BASS EQ
Hold 3 Seconds
Appuyer pendant 3 secondes
Mantenga oprimido durante 3 segundos
3 Sekunden gedrückt halten
Tenere premuto per 3 secondi
Manter pressionado por 3 segundos
保持 3 秒
Hold 3 Seconds
Appuyer pendant 3 secondes
Mantenga oprimido durante 3 segundos
3 Sekunden gedrückt halten
Tenere premuto per 3 secondi
Manter pressionado por 3 segundos
保持 3 秒
1
1
RIGHT SPEAKER OUT
–
L
Flashes x1
Clignote x1
Destella x1
Blinkt x1
Lampeggia x1
Piscará x1
闪烁 x1
2
ENABLED
D’ACTIVATION
ACTIVAR
AKTIVIEREN
ATTIVATA
ATIVAR
启用
DISABLED
DÉSACTIVATION
DESACTIVAR
DEAKTIVIEREN
DISATTIVATA
DESATIVAR
禁用

19
Press
Appuyer
Oprima
drücken
Premere
Pressionar
按
Release
Libération
Lanzamiento
Freisetzung
Liberare
Lançamento
发布
Press and Hold
Appuyer et Maintenir
Presione y mantenga
Drücken und halten
Tieni premuto
Pressione e segure
按下并保持
FACTORY RESET
RÉINITIALISATION • RESTABLECIMIENTO DE FÁBRICA • RÜCKSETZUNG AUF WERKSEINSTELLUNG • RIPRISTINO IMPOSTAZIONI DI FABBRICA • RESTABELECIMENTO DAS CONFIGURAÇÕES DE FÁBRICA • 恢复出厂设置
*NOTE* Factory Reset will
clear the Bluetooth®
pairing history
*REMARQUE* La réinitialisation aux réglages
d’usine effacera l’historique d’association
Bluetooth®
*NOTA* El restablecimiento de fábrica borra el
historial de vinculación de Bluetooth®
*HINWEIS* Rücksetzung auf Werkseinstellungen
löscht die gespeicherten Bluetooth®-Kopplungen
*NOTA* Il ripristino delle impostazioni
di fabbrica cancella la cronologia delle
associazioni Bluetooth®
*OBSERVAÇÃO* O restabelecimento das
congurações de fábrica apagará o histórico de
emparelhamento Bluetooth®
*注*： 出厂设置恢复将清除蓝牙
配对历史
3
4
2Flashes 10 Seconds
Clignote 10 secondes
Destella 10 segundos
10 Sekunden Blinkt
Lampeggia 10 secondi
Piscará 10 segundos
闪烁 10 秒
5
VOL
SOURC E
-
- PHON O
- ANALO G
- OPTI CAL
- USB
- TV
Select Source to Phono, Analog, Digital or USB
Sélectionner la source Phono, auxiliaire, Optique ou USB
Seleccionar tocadiscos, auxiliar, Óptica o bien USB
Quellenwahl auf Phone, AUX, Optische oder USB
Selezionare il segnale per phono, ausiliaria, Ottica oppure USB
Selecione a fonte para o fono, auxiliar, Ótica ou USB
选择源至唱机,辅,数字或USB
1
RIGHT SPEAKER OUT
–
L

20
REMOTE CONTROL CODES (FOR UNIVERSAL OR CABLE REMOTES)
RCA*41609 OR 43915
DIRECTV 31609
XFINITY** 30531 OR 31023
BRIGHT HOUSE 288
AT&T (SILVER) 5156 OR 5023
AT&T (BLACK) 5156
HEX CODES - SET 1
VOLUME UP 0x 856A 9F60
VOLUME DOWN 0x 856A 9E61
MUTE 0x 856A 9966
HEX CODES - SET 3
VOLUME UP 0x A55A 0AF5
VOLUME DOWN 0x A55A 0BF4
MUTE 0x A55A 12ED
HEX CODES - SET 4
VOLUME UP 0x 859A 817E
VOLUME DOWN 0x 859A 827D
MUTE 0x 859A 8778
* MUST HAVE AUDIO/AUX BUTTON OR AUDIO·SB BUTTON
** RED CENTER BUTTON
NOTE: NOT ALL UNIVERSAL REMOTES ARE COMPATIBLE
TROUBLESHOOTING
DÉPANNAGE • DETECCIÓN • HINWEISE ZUR PROBLEMBEHEBUNG • SOLUZIONE DEI PROBLEMI • SOLUCIONAR PROBLEMAS • 故障排除
For more in-depth information and troubleshooting instructions visit Klipsch.com
Pour plus d’informations et des instructions de dépannage détaillées, consultez Klipsch.com
Hay información más detallada e instrucciones de detección y reparación de averías en Klipsch.com
Detailliertere Anweisungen und Hinweise zur Problembehebung nden Sie unter Klipsch.com
Per informazioni più dettagliate e istruzioni per la soluzione dei problemi, visitare Klipsch.com
Para obter informações mais detalhadas e instruções para solucionar problemas, visite o site Klipsch.com
欲了解更详细的信息和故障排除说明，请访问 Klipsch.com
