1. GENERAL DESCRIPTION
1.1 Console
The equipment's functioning state is displayed by the console. Many types of displays and the
available settings based on the selected menu can be made by accessing the menu using key 3
(SET).

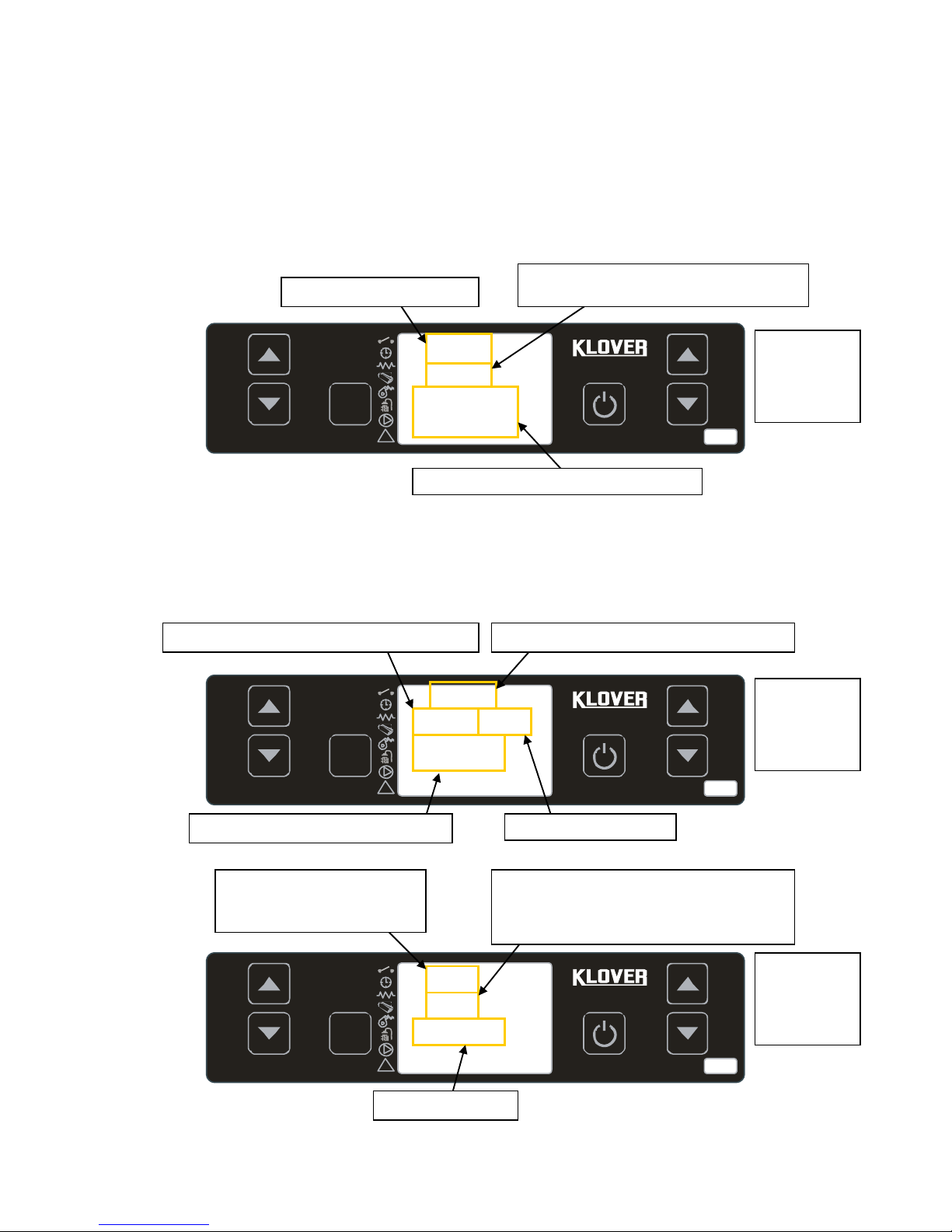

Figure 1 shows the display in equipment on or off conditions.
Set
!
1
2 3 4 5
6
Set
!
1
2 3 4 5
6

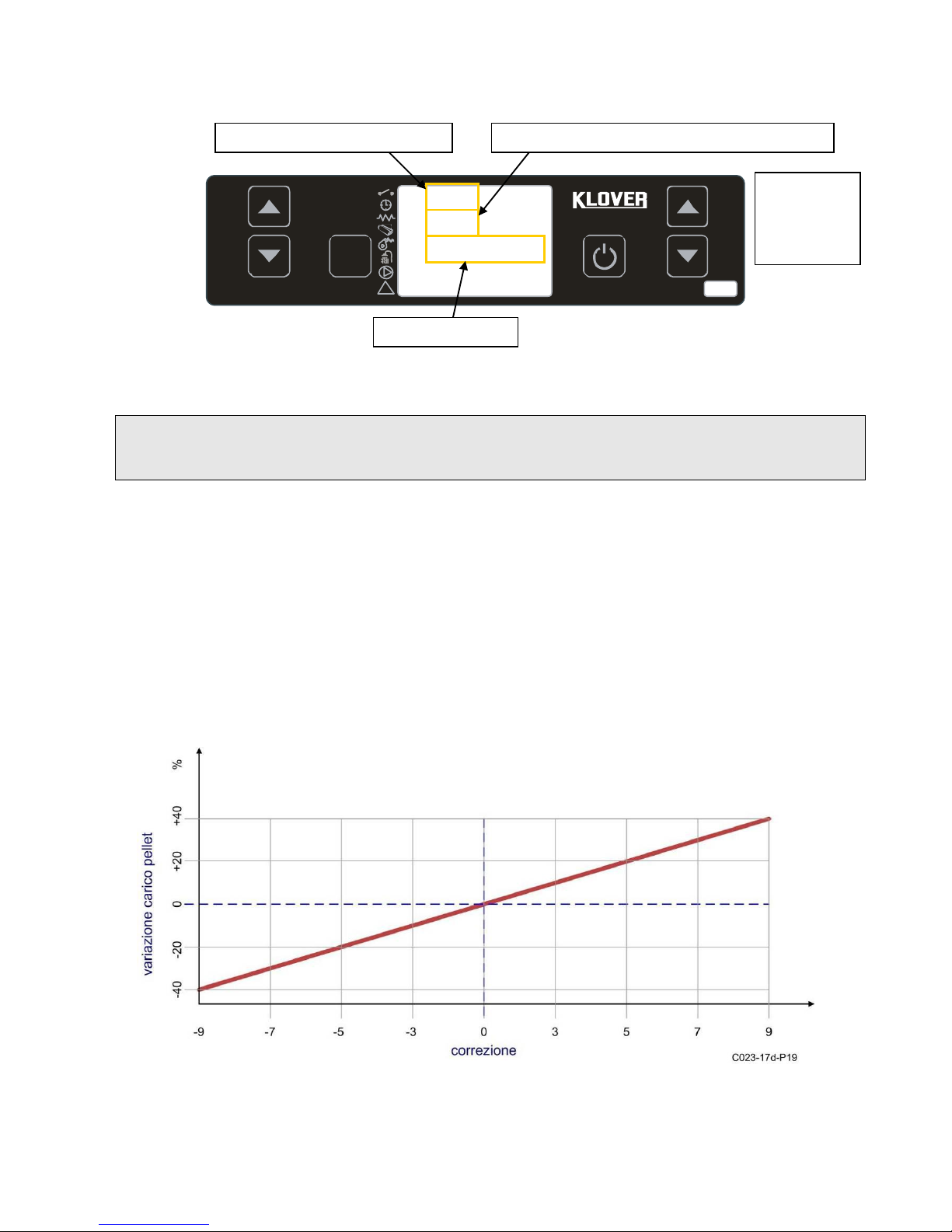

Figure 3 describes the meaning of the state signals on the display's left wall (1st LED SERIES).
!
ROOM THERMOSTAT: the LED is on when room thermostat contact is open.
CHRONO-THERMOSTAT: the LED is on when at least one ignition and switch-off program is active.
IGNITION RESISTANCE: the LED is on when ignition resistance is active.
SCREW FEED: the LED is on when the pellet load motor reducer switches on.
FLUE GAS EXTRACTOR: the LED is on when the flue gas intake device is active.
DHW FLOW SWITCH: the LED is on when DHW flow switch contact is closed (DHW is requested).
Used only on prepared models.
PUMP: the LED is on when system circulation pump is active.
ALARM: the LED is on when the stove is in alarm state.
2nd LED SERIES
1st LED SERIES
17:19
- - - - 60°C
OFF
Fig. 1
DIALOGU
E
WATER TEMPERATURE
CLOCK
ROOM TEMPERATURE (optional)
Fig. 2
Fig. 3

5
Meaning of the state signals is found top-right of display (2nd LED SERIES).
1–the LED is on when the chrono-thermostat's daily program is active.
2–the LED is on when the chrono-thermostat's weekly program is active.
3–the LED is on when the chrono-thermostat's week-end program is active.
4–the LED is on (flashing) when the functioning parameters are being modified.
5–the LED is on when the summer function is active (currently unused).
6–the LED is on when the winter function is active.
7–the LED is not currently used.

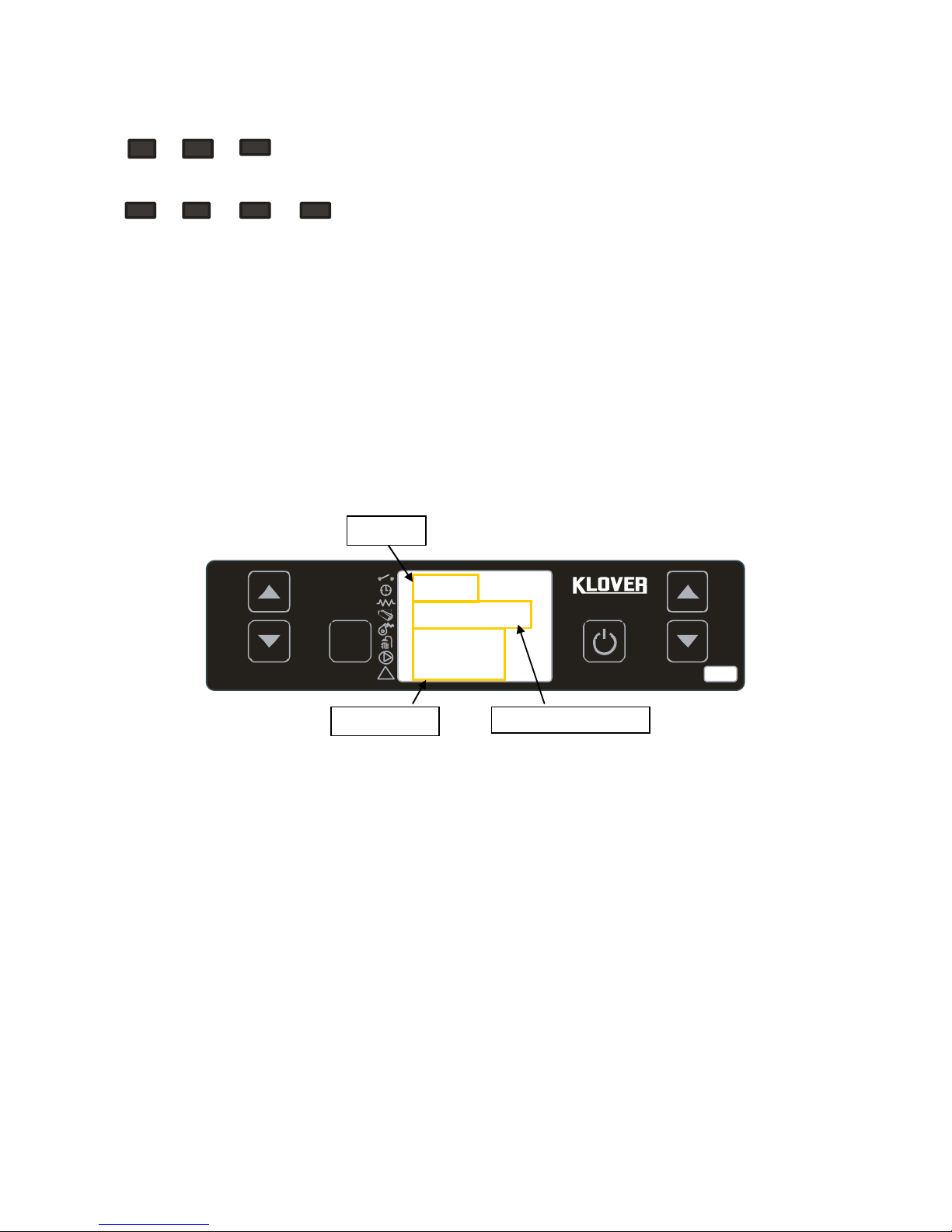

Figure 5 shows the display during operative parameters setting or programming.
Set
!
1
2 3 4 5
6
The INPUT area shows the entered programming values.
The MENU LEVEL area shows the current parameter/menu level.
The DIALOGUE area displays the current parameter/menu's meaning.
1
2
3
4
5
6
7
Fig. 4
On
M - 2 - 2 - 01
CHRONO
DAY
Fig. 5
DIALOGUE
MENU LEVEL
INPUT

6
1.2 What are the buttons for
BUTTON
DESCRIPTION
MODE
ACTION
1
Increases temperature (1)
In programming..
Modifies/increases the selected menu value.
Working/off..
Increases room/water thermostat
temperature value.
2
Decreases temperature (2)
In programming..
Modifies/decreases the selected menu
value.
Working/off..
Decreases room/water thermostat
temperature value.
3
Set
-
Accesses the selected menu.
In menu..
Accesses the subsequent sub-menu level.
4
ON/OFF
Outlet
Working..
Ignites and/or switches off stove when
pressed for 2 seconds.
In alarm block..
Releases alarm.
In menu/programming..
Goes to upper menu level memorising the
made modifications.
5
Decreases power (3)
Working/off..
Decreases DHW thermostat temperature
value. Decreases stove's work power.
In menu..
Goes to subsequent menu entry.
In programming..
Goes to subsequent sub-menu entry
memorising the made modifications.
6
Increases power (4)
Working/off..
Increases DHW thermostat temperature
value. Increases stove's work power.
In menu..
Goes to previous menu entry.
In programming..
Goes to previous sub-menu entry
memorising the made modifications.
(1) Selects WATER TEMPERATURE SET “SET H2O” first time pressed
Keeping it pressed for two seconds on first pressing, the stove state can be displayed
(see “Menu 08 – Stove state”)
(2) Selects ROOM TEMPERATURE SET “SET ROOM” first time pressed
Keeping it pressed for two seconds on first pressing, the stove state can be displayed
(see “Menu 08 – Stove state”)
(3) Selects DHW TEMPERATURE SET “SET DHW” first time pressed
Keeping it pressed for two seconds on first pressing, the stove state can be displayed
(see “Menu 08 –Stove state”)
(4) Selects WORK POWER “SET POWER” first time pressed
Keeping it pressed for two seconds, the stove state can be displayed upon first pressing
(see “Menu 08 – Stove state”)

7
2. THE MENU
Access the Menu by pressing key 3 (Set).
This is divided into different entries and levels to access the board's programming and settings.
The technical programming access menu entries (parameters reserved to Technical Assistance Centre) are
protected by access key.
The menu structure is summarised in the following table:
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4
VALUE
01 –Set clock
01 –Day
Week day
02 –Hours
Hour
03 –Minutes
Minute
04 –Day
Month day
05 –Month
Month
06 –Year
Year
02 –Set chrono
01 –Enable chrono
01 –Enable chrono
On/off
02 –Day program
01 –Day chrono
On/off
02 –Start 1 day
Hour
03 –Stop 1 day
Hour
04 –Star 2 day
Hour
05 –Stop 2 day
Hour
03 –Week program
01 –Week chrono
On/off
02 –Start prog 1
Hour
03 –Stop prog 1
Hour
04 –Monday prog 1
On/off
05 –Tuesday prog 1
On/off
06 –Wednesday prog 1
On/off
07 –Thursday prog 1
On/off
08 –Friday prog 1
On/off
09 –Saturday prog 1
On/off
10 –Sunday prog 1
On/off
11 –Start prog 2
Hour
12 –Stop prog 2
Hour
13 –Monday prog 2
On/off
14 –Tuesday prog 2
On/off
15 –Wednesday prog 2
On/off
16 –Thursday prog 2
On/off
17 –Friday prog 2
On/off
18 –Saturday prog 2
On/off
19 –Sunday prog 2
On/off
20 –Start prog 3
Hour
21 –Stop prog 3
Hour
22 –Monday prog 3
On/off
23 –Tuesday prog 3
On/off
24 –Wednesday prog 3
On/off
25 –Thursday prog 3
On/off
26 –Friday prog 3
On/off
27 –Saturday prog 3
On/off
28 –Sunday prog 3
On/off
29 –Start prog 4
Hour
30 –Stop prog 4
Hour
31 –Monday prog 4
On/off
32 –Tuesday prog 4
On/off
33 –Wednesday prog 4
On/off
34 –Thursday prog 4
On/off
35 –Friday prog 4
On/off
36 –Saturday prog 4
On/off
37 –Sunday prog 4
On/off

8
04 –Program week-end
01 –Chrono
On/off
02 –Start 1
Off/hour
03 –Stop 1
Off/hour
04 –Start 2
Off/hour
05 –Stop 2
Off/hour
03 –Choose language
Italian
Spanish
French
German
English
04 –Enable contact
On/off
05 –3-Way valve
threshold
°C Temperature
06 –Acoustic alarm
On/off
07 –Initial load
Set
08 –Stove state
-
09 –Technical
calibrations
01 –Access key
00 / P5
01 –Pellet type
01 –Pellet load
09 / -09
02 –Chimney type
01 –Chimney flue gas
intake device
09 / -09
03 –Database
01 –Access key
00 / P5
04 –Various Calibrations
See “Parameters tables”
05 –Outputs test
01 –Spark plug test
On/off
02 –Screw feed test
Seconds 0.0” / 8.0”
03 –Flue gas test
Volt Off / 220V
04 –Pump Test
On/off
05 –3-Way valve test
On/off
06 –Default settings
See “Parameters tables”
07 –Reset part hours
Access key
00 / P5
08 –Reset alarms
Access key
00 / P5
09 –Counter memories
Total hours
Partial hours
Start Number
Mem-all1
Mem-all2
Mem-all3
Mem-all4
Mem-all5
2.1 Menu 01 –Set clock
Sets current date and time

9
2.2 Menu 02 –Set chrono
Sub-menu 02 –01 –enable chrono
It allows globally enabling and disabling all chrono-thermostat functions.
Sub-menu 02 –02 –daily program
It allows enabling, disabling and setting the daily chrono-thermostat functions.
Two functioning bands can be set defined by times set according to the following table where OFF indicates
to the clock to ignore the control:
MENU LEVEL
SELECTION
MEANING
POSSIBLE VALUES
02 –02 –02
START 1
Ignition time
Time –OFF
02 –02 –03
STOP 1
Switch-off time
Time –OFF
02 –02 –04
START 2
Ignition time
Time –OFF
02 –02 –05
STOP 2
Switch-off time
Time –OFF
Sub-menu 02 –03 –weekly program
It allows enabling, disabling and setting the weekly chrono-thermostat functions.
The weekly programmer has 4 independent programs which final effect consists in the combination of the 4
individual programmings.
The weekly programmer can be activated or deactivated.
Also, the clock ignores the corresponding control by setting OFF in the time field.
PROGRAM 1
MENU LEVEL
SELECTION
MEANING
POSSIBLE VALUES
02 –03 –02
START PROG 1
Ignition time
Time –OFF
02 –03 –03
STOP PROG 1
Switch-off time
Time –OFF
02 –03 –04
MONDAY PROG 1
Days of reference
On/off
02 –03 –05
TUESDAY PROG 1
On/off
02 –03 –06
WEDNESDAY PROG 1
On/off
02 –03 –07
THURSDAY PROG 1
On/off
02 –03 –08
FRIDAY PROG 1
On/off
02 –03 –09
SATURDAY PROG 1
On/off
02 –03 –10
SUNDAY PROG 1
On/off
PROGRAM 2
MENU LEVEL
SELECTION
MEANING
POSSIBLE VALUES
02 –03 –11
START PROG 2
Ignition time
Time –OFF
02 –03 –12
STOP PROG 2
Switch-off time
Time –OFF
02 –03 –13
MONDAY PROG 2
Days of reference
On/off
02 –03 –14
TUESDAY PROG 2
On/off
02 –03 –15
WEDNESDAY PROG 2
On/off
02 –03 –16
THURSDAY PROG 2
On/off
02 –03 –17
FRIDAY PROG 2
On/off
02 –03 –18
SATURDAY PROG 2
On/off
02 –03 –19
SUNDAY PROG 2
On/off
PROGRAM 3
MENU LEVEL
SELECTION
MEANING
POSSIBLE VALUES
02 –03 –20
START PROG 3
Ignition time
Time –OFF
02 –03 –21
STOP PROG 3
Switch-off time
Time –OFF
02 –03 –22
MONDAY PROG 3
Days of reference
On/off
02 –03 –23
TUESDAY PROG 3
On/off
02 –03 –24
WEDNESDAY PROG 3
On/off
02 –03 –25
THURSDAY PROG 3
On/off
02 –03 –26
FRIDAY PROG 3
On/off
02 –03 –27
SATURDAY PROG 3
On/off
02 –03 –28
SUNDAY PROG 3
On/off

10
PROGRAM 4
MENU LEVEL
SELECTION
MEANING
POSSIBLE VALUES
02 –03 –29
START PROG 4
Ignition time
Time –OFF
02 –03 –30
STOP PROG 4
Switch-off time
Time –OFF
02 –03 –31
MONDAY PROG 4
Days of reference
On/off
02 –03 –32
TUESDAY PROG 4
On/off
02 –03 –33
WEDNESDAY PROG 4
On/off
02 –03 –34
THURSDAY PROG 4
On/off
02 –03 –35
FRIDAY PROG 4
On/off
02 –03 –36
SATURDAY PROG 4
On/off
02 –03 –37
SUNDAY PROG 4
On/off
Sub-menu 02 –04 –week-end program
It allows enabling, disabling and setting the week-end (Saturdays and Sundays) chrono-thermostat
functions.
2.3 Menu 03 –Choose language
It allows selecting the dialogue language from the available ones (Italian, English, French, German
and Spanish).
2.4 Menu 04 –Enable T.A. contact (only active if room probe enabled on remote
control)
Enables Room Thermostat contact functioning if room probe on external remote control is activated
(also see “Remote control”).
Functioning of Room Thermostat contact is always active if room probe on external remote control is
not enabled.
Example:
ADVICE: unless knowing exactly what to obtain, activate one program at a time to avoid confusion and
unwanted start and stop operations.
If wanting to use the weekly program, deactivate the daily one. if using the weekly program in programs 1, 2,3
and 4, keep the week-end program deactivated.
Only activate week-end programming after having deactivated the weekly one.

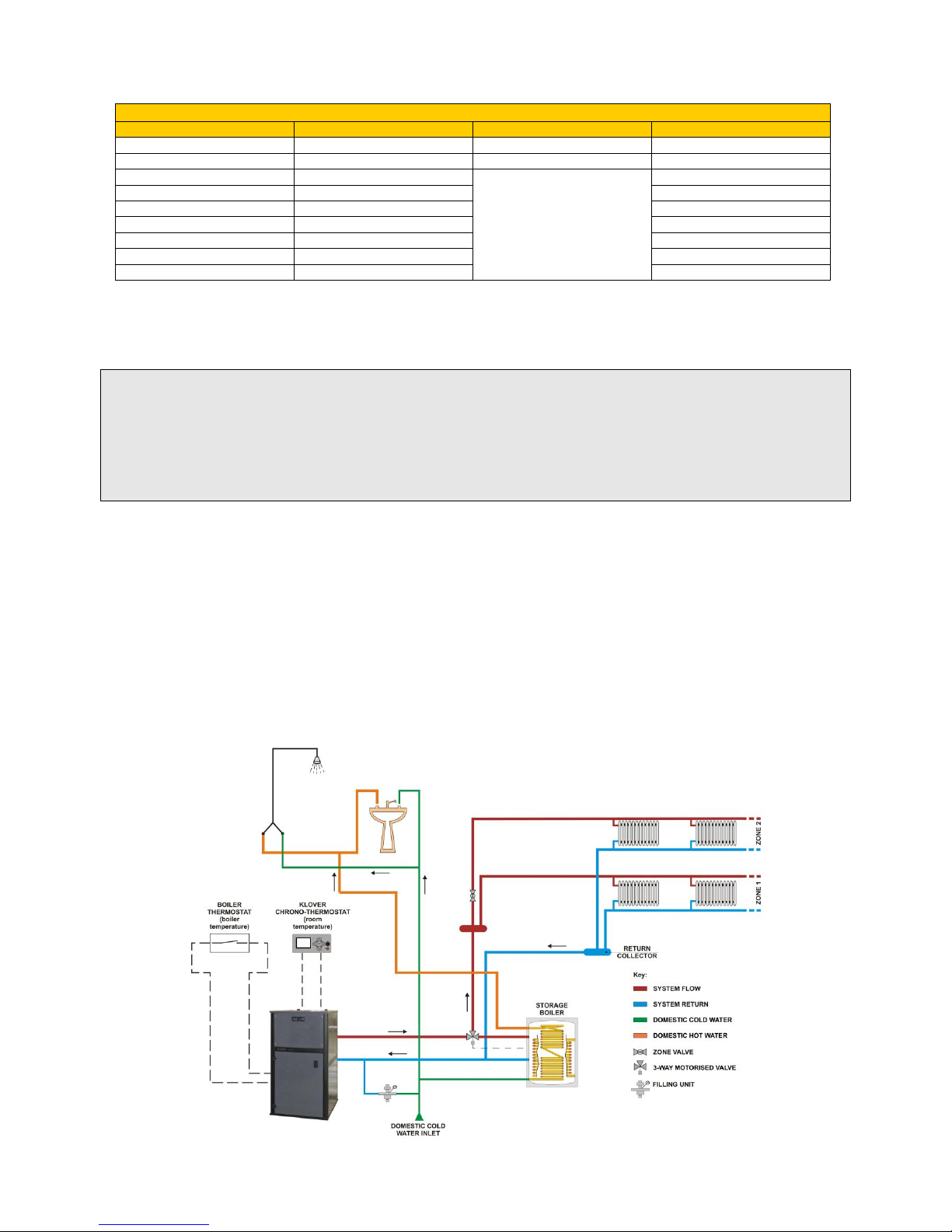

Fig. 6

11
In this condition...
...if wanting to control stove with KLOVER remote control room temperature only, I must:
enable room probe on remote control (stove settings menu +> Enable room probe -> ON)
disable boiler thermostat contact on stove display (menu 4 enable contact -> OFF)
In this case, the stove firstly enters functioning economy and then automatically switches off when room
temperature (detected with KLOVER remote control) is satisfied.
...if wanting to control stove with KLOVER remote control room temperature and with boiler thermostat, I
must:
enable room probe on remote control (stove settings menu +> Enable room probe -> ON)
enable boiler thermostat contact on stove display (menu 4 enable contact -> ON)
In this case, the stove firstly enters functioning economy and then automatically switches off when both
temperatures are satisfied.
...if wanting to control stove with boiler temperature only, I must:
disable room probe on remote control (stove settings menu +> Enable room probe -> OFF). The room
probe is automatically disabled if external remote control is not connected.
enable or disable boiler thermostat contact on stove display (menu 4 enable contact -> ON/OFF)
In this case, the stove firstly enters functioning economy and then automatically switches off when boiler
temperature (detected with external thermostat immersed in boiler) is satisfied. This may be a good solution
to heat DHW during the summer period.
...if not wanting to control stove with external thermostats but with heating system water temperature only, I
must:
disable room probe on remote control (stove settings menu +> Enable room probe -> OFF). The room
probe is automatically disabled if external remote control is not connected.
enable or disable boiler thermostat contact on stove display (menu 4 enable contact -> ON/OFF). The
contact must be bridged (done in factory).
Only upon reaching of temperature set in “SET H2O” or “SET DHW” does the stove enter functioning
economy.
Summary:
CASE
REMOTE CONTROL ROOM
PROBE
ROOM THERMOSTAT
CONTACT
ACTION
1
OFF
OFF
Works with room thermostat contact
2
OFF
ON
Works with room thermostat contact
3
ON
OFF
Works with remote control room probe only
4
ON
ON
Works with remote control room probe and
room thermostat contact
2.5 Menu 05 –3-Way Valve Threshold
Allows setting temperature threshold for switch-over of 3-Way motorised valve installed in DHW
system. Change-over happens after 30" from reaching set temperature and with hysteresis of 2°C.
Example:
3-Way Valve Threshold = 55°C
The valve opens after 30" from reaching 55°C.
Valve closes if 52°C is reached.
2.6 Menu 06 –Acoustic alarm
It allows enabling or disabling acoustic signal in case of alarm. Acoustic signal is only present on
stove board and not on external remote control.

12
2.7 Menu 07 –Initial load
It allows pre-loading pellet for 90” with stove off and cold. Start using key 1 and stop using key 4.
Useful if stove is ignited once the tank has been fully emptied or it is the first time it is filled.
2.8 Menu 08 –Stove state
It allows displaying the instantaneous stove's state showing the state of the many devices connected
to it. Different pages displayed in succession are available.
Set
!
1
2 3 4 5
6
* Example:
PB110610-1-ENC
PB = equipment code. In this case PB stands for PELLET BOILER (pellet boiler).
110610 = firmware realisation date.
- 1 = firmware progressive number. The loaded firmware in this case is the first realised.
Set
!
1
2 3 4 5
6
Set
!
1
2 3 4 5
6
60°C
1850
PB110610
-1-ENC
Fig. 7
2.1’’
tErM P-1
LOAD
Fig. 8
22’’
10’
RAL 30
Fig. 9
Also
displayed by
keeping key 2
pressed
Also
displayed by
keeping key 1
pressed
Also
displayed by
keeping key 6
pressed
INSTALLED FIRMWARE CODE*
FLUE GAS TEMPERATURE
REFERENCE TO SCREW FEED TIME
INSTANTANEOUS
POWER
CLOSED ROOM THERMOSTAT CONTACT
SCREW FEED TIME INSTANTANEOUS ON
BRAZIER CLEANING
DURATION
(countdown during cleaning)
INTERVAL DURATION BETWEEN TWO
CLEANING PHASES
(indicates maximum ignition cycle remaining
time during ignition phase)
ALARMS DELAY
FLUE GAS INTAKE DEVICE EFFECTIVE
TURNS

13
Set
!
1
2 3 4 5
6
2.9 Menu 09 –Technical calibrations
N.B. The following description is reserved to the Authorised Technical Assistance Centre with specific
product competence. Haphazardly modifying parameters can seriously damage the equipment, persons
and the environment.
It allows to access all that reserved to Technical Assistance Centre. It is possible to display and
modify the functioning parameters, test functioning on the individual components and display the
number of ignitions, functioning hours and detected alarms memory counter.
Access this technical menu by entering access key “A9”.
Access the utility to calibrate the flue gas probe by entering access key “F9”.
Sub-menu 09 –01 –pellet type
The pellet load can be changed to the many work powers through this "Sub-menu", without directly
intervening on each individual parameter.
Select the pellet load change value using keys 1 and 2. Confirm with key 3.
For every changed unit (+1, +2, +3, … or -1, -2, -3, …) the change corresponds to the values in
figure 11. This change is only made in parameters (Pr06, Pr07, Pr08, Pr09, Pr10, Pr36).
25°C
0.6b
-- -- -- -- --
Fig. 10
Also
displayed by
keeping key 5
pressed
BOILER WATER TEMPERATURE
H2O BAR PRESSURE (currently unused)
ALARM STATE
Fig. 11

14
Sub-menu 09 –02 –chimney type

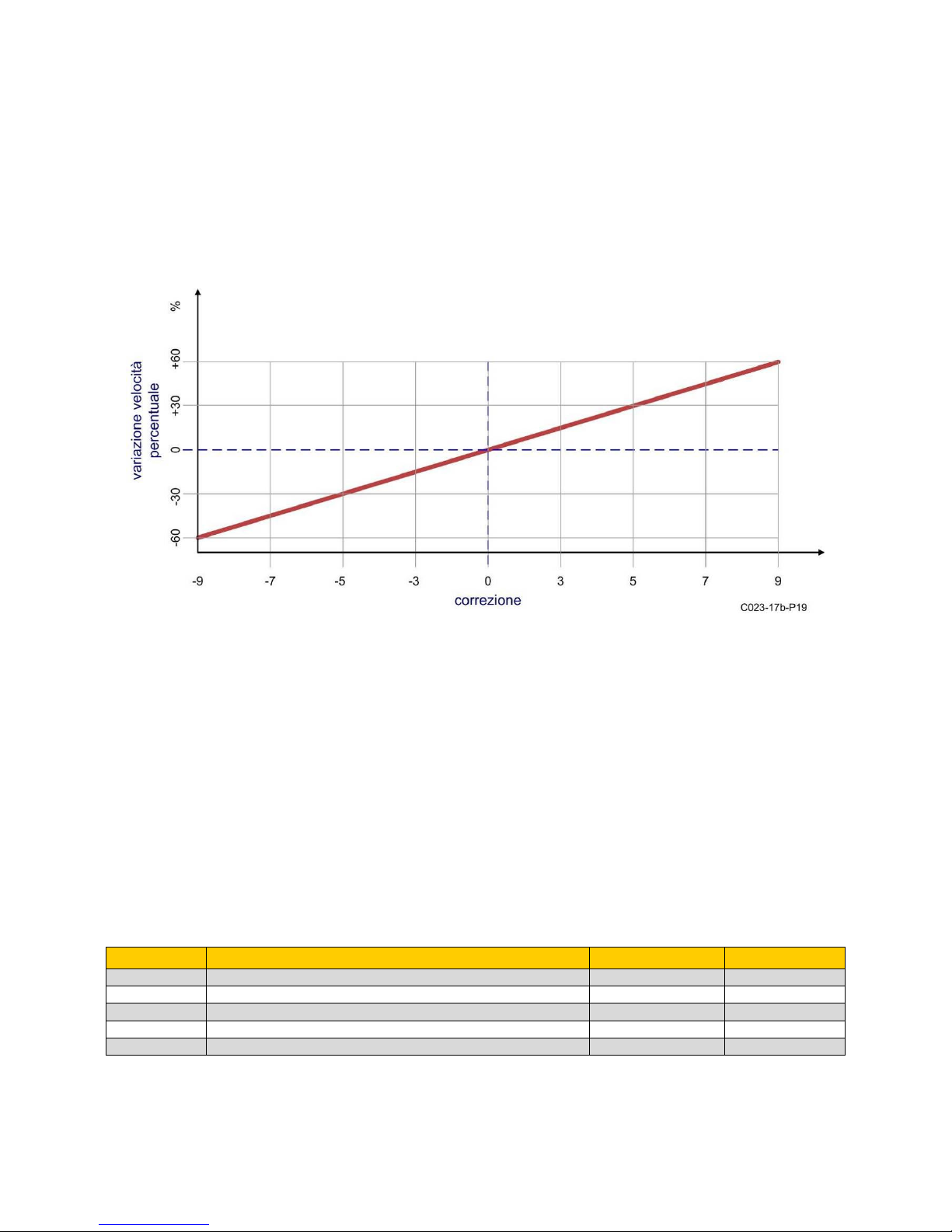

The flue gas intake device speed (rev/min) can be changed to the many work powers through this
"Sub-menu", without directly intervening on each individual parameter. It is undoubtedly the most
used sub-menu by the Assistance Centres as it allows correctly adjusting combustion according to
the flue's draught and type of pellet used during Commissioning (test).
Select the flue gas intake device speed change value using keys 1 and 2. Confirm with key 3.
For every changed unit (+1, +2, +3, … or -1, -2, -3, …) the change corresponds to the values in
figure 12. This change is only made in parameters (Pr16, Pr17, Pr18, Pr19, Pr20, Pr21, Pr22, Pr29,
Pr37, Pr42).
Sub-menu 09 –03 –database
A range of default settings called DATABASES (recipes) can be found inside the device. These
settings with dependent number from the device version, are available but not modifiable. This to
allow adapting to different types of stoves without having to program one parameter at a time or in
relation to particular requirements.
Enter the correct key corresponding to the wanted database to load the recipes. For example, for the
PELLET BOILER 35 pellet boiler, the key corresponding to the database is o0.
Sub-menu 09 –04 –various calibrations
It allows setting a series of operative parameters (from Pr38 to Pr51). Refer to the table “Various
calibrations” to find the meaning of each individual parameter.
Sub-menu 09 –05 –outputs test
It allows igniting each individual component to check its correct functioning. Test can only be run with
stove off.
Select component to be tested:
Menu level
Description
Display writing
Value field
M –9 –5 –01
Ignition resistance test
Spark plug test
ON/OFF
M –9 –5 –02
Screw feed motor reducer test
Screw feed test
0.0” / 8.0”
M –9 –5 –03
Flue gas intake device test
Flue gas test
OFF - 65V / 225V
M –9 –5 –04
System pump test
Pump Test
ON/OFF
M –9 –5 –05
Test the three-way motorised valve installed on DHW system
3-Way valve test
ON/OFF
It is possible to set voltage to be applied during test for the flue gas intake device.
The activation time for the test can be pre-set for the screw feed.
Test is interrupted by pressing key 4.
Fig. 12

15
Sub-menu 09 –06 –default settings
It allows setting a series of operative parameters (from Pr01 to Pr37). Refer to the table “Default
settings” to find the meaning of each individual parameter.
Sub-menu 09 –07 –reset partial hours
Resets the functioning partial hours.
Accessible only with access key “55”.
Sub-menu 09 –08 –reset alarms
Deletes last occurred alarms from memory.
Accessible only with access key “55”.
Sub-menu 09 –09 –counter memories
The following memory records are displayed in sequence using keys 6 and 5.
Total hours
Partial hours
Start number (total number of ignitions)
Mem-all 1 (alarm no. 1 memory or the most recently detected alarm)
Mem-all 2 (alarm no. 2)
Mem-all 3 (alarm no. 3)
Mem-all 4 (alarm no. 4)
Mem-all 5 (alarm no. 5)
2.10 Flue gas probe calibration
Calibrate the flue gas probe once this is connected, by accessing menu 9 (Technical calibrations)
and entering access key “F9”.
The display value represents probe temperature reading. Use keys 1 and 2 (increase and decrease
temperature) to correspond this value to the temperature detected by the thermometer near the
probe.
Make reading correspond to room temperature detected by a thermostat of reference, if operation is
performed with stove off and cold.
Figure 13 shows the display during calibration.
Set
!
1
2 3 4 5
6
27°C
FLUE GAS
PROBE ADJ
Fig. 13
TEMPERATURE DETECTED BY THE FLUE GAS
PROBE

16
3. OPERATIVE MODE
The stove's normal functioning principle with reference to the available functions for the user is
described below.

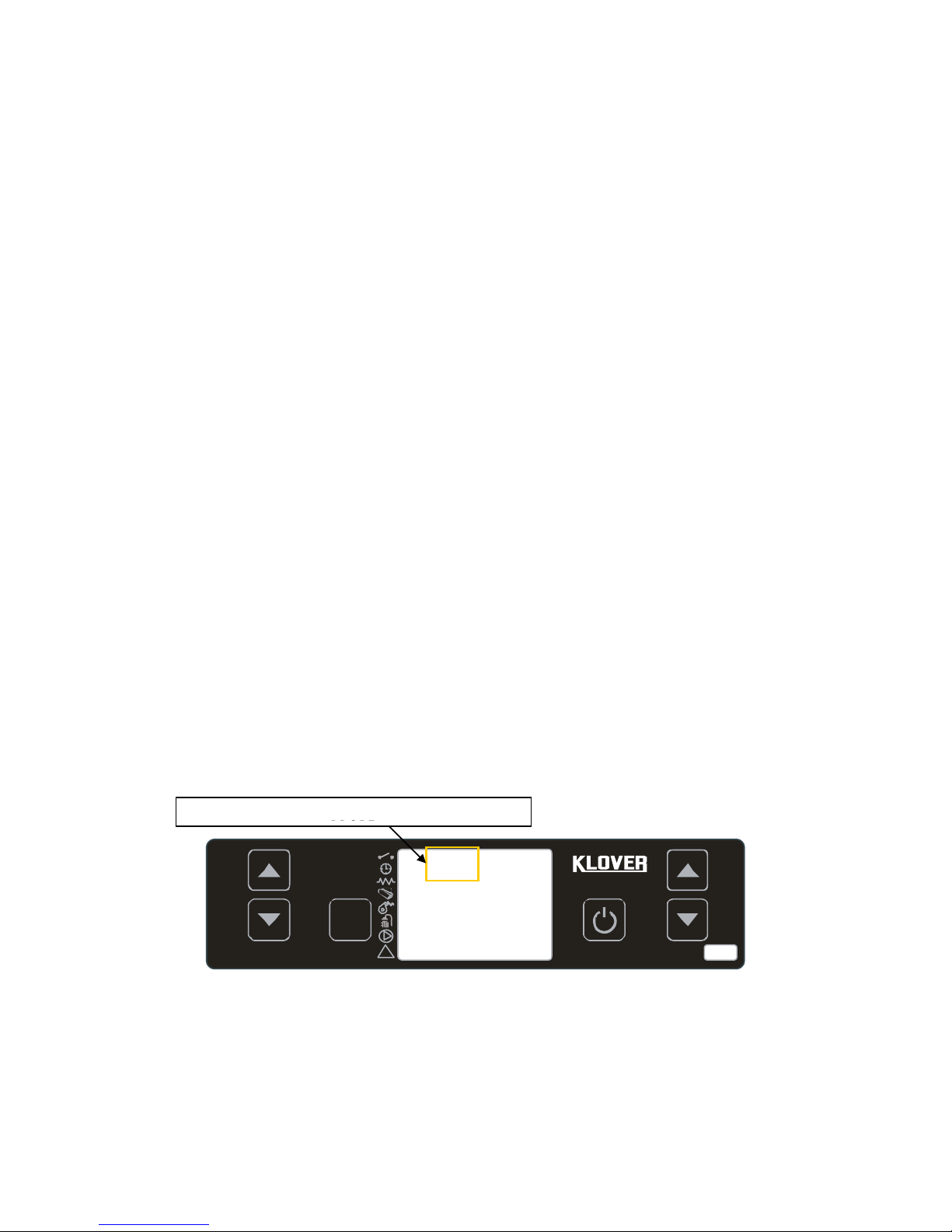

The display appears as in figure 14 before igniting the stove.
Set
!
1
2 3 4 5
6
3.1 Stove ignition
Press key 4 for a few seconds to ignite the stove. Ignition is shown on display as in figure 15.
Set
!
1
2 3 4 5
6
The stove sequentially runs the start-up phases as defined by the parameters managing levels and
timing (see “Parameters tables”), after stove ignition.
The method according to which the stove reaches work condition is shown in the following
prospectus, if alarm or anomaly conditions do not arise.
The various functioning conditions, which cleaning, economy modulation, etc. are also described.
15.35
- - - - 20 °C
OFF
Fig. 14
CLOCK
BOILER WATER TEMPERATURE
ROOM TEMPERATURE
(when remote control is used)
DIALOGUE
15.35
- - - - 20 °C
START
Fig. 15
CLOCK
BOILER WATER TEMPERATURE
ROOM TEMPERATURE
(when remote control is used)
DIALOGUE

17
Devices
Country
Duration
Ignition
resistance
Flue gas
intake
device
Screw feed
Pump
When it occurs
OFF
-
OFF
OFF
OFF
OFF
ON/OFF
IGNITION CYCLE
START
40”
ON
ON
OFF
OFF
For the first 40" in ignition
LOAD PELLET
(pre-load)
Pr40
ON
ON
ON
OFF
For a time set on Pr40 after “START” state
WAITING FIRE
Max Pr01
ON
ON
ON
OFF
Within a time set on Pr01 or before reaching
temperature on Pr13 after “LOAD PELLET”
state
FIRE ON
Pr02
OFF
ON
ON
OFF/ON
For a time set on Pr02 after “WAITING FIRE”
state
WORK
-
OFF
ON
ON
ON
- H2O Temperature < “SET H2O”
- Room temperature < “SET ROOM”
- Closed room thermostat contact
- Flue gas temperature < Pr14
- No alarm detected
DHW
-
OFF
ON
ON
OFF/ON *
- Manually setting DHW power
- Closed flow switch contact
OVEN
-
OFF
ON
ON
ON
- Manually setting oven power
T-OFF
ECONOMY
-
OFF
ON
ON
OFF
- Open room thermostat contact with H2O
temperature < “SET H20” and “SET DHW”
- Reached temperature set on “SET ROOM”
T-ROOM
ECONOMY
-
OFF
ON
ON
OFF
- Open room thermostat contact with H2O
temperature < “SET H20” and “SET DHW”
- Reached temperature set on “SET ROOM”
T-H2O ECONOMY
Pr43 or
Pr44
OFF
ON
ON
OFF/ON *
- Reached temperature set on “SET H2O”
T-DHW ECONOMY
Pr43 or
Pr44
OFF
ON
ON
OFF/ON *
- Reached temperature set on “SET DHW”
T-OVEN
ECONOMY
Pr43 or
Pr44
OFF
ON
ON
ON
- Reached temperature set on “SET OVEN”
STOP FIRE
Pr43
OFF
OFF
OFF
OFF/ON *
- Exceeded temperature set on Pr43 after
having reached temperature set on “SET
H2O”
- Exceeded time set on Pr44 after having
reached temperature set on “SET H2O”
STOP ECO T-OFF
Pr43 and
room
thermostat
and
thermostat
contact
consent
OFF
OFF
OFF
OFF/ON *
- Exceeded temperature set on Pr43 with
room probe or thermostat contact consent
after having reached temperature set on
“SET H2O”
- Exceeded time set on Pr44 with room probe
or thermostat contact consent after having
reached temperature set on “SET H2O”
BRAZIER
CLEANING
Pr12
OFF
ON
ON
OFF/ON *
- Lapsed time set on Pr03
FINAL CLEANING
Pr39 (**)
OFF
ON
OFF
OFF/ON *
After having pressed key 4 for a few seconds.
(**) Duration depends on Pr39 after flue gas
temperature < Pr13
* Pump switch-on depends on whether the room thermostat contact is open or closed in this condition. In both cases, the
pump switches on if water in boiler temperature reaches 83°C (safety condition to avoid over-temperature).

18
3.2 No stove ignition
If the flue gas temperature has not reached Pr13 minimum value admitted after Pr01 time has
lapsed, the stove places itself in “NO IGNIT-“alarm state.
3.3 Stove working
The stove goes to work phase, representing the normal functioning mode, after positive ignition.
The system pump switches on if water in boiler temperature is higher than Pr33.
The stove's display appears as shown in figure 16 during normal work phase.
Set
!
1
2 3 4 5
6
3.4 Modification of DHW, room and water temperature setting.
- Water Temperature
Press key 1 to select “SET H2O” mode to modify water temperature. Press keys 1 and 2. The
display appears as in figure 17 during this operation.
Set
!
1
2 3 4 5
6
Press key 4 or wait a few seconds to confirm the wanted value setting.
The stove enters functioning economy upon reaching said temperature.
The stove now automatically switches off if at least one of the following conditions exist:
If it remains in Functioning Economy “T-H2O ECONOMY” for a time set on Pr44 (30 minute
default setting).
If it exceeds temperature differential set on Pr43 (5°C default setting) or H2O Temperature >
(“SET H2O” + Pr43)
70°C
SET
H2O
Fig. 17
15.35
- - - - 20 °C
WORK 5
3
Fig. 16
CLOCK
BOILER WATER TEMPERATURE
ROOM TEMPERATURE
(when remote control is used)
DIALOGUE WITH SET
POWER
EFFECTIVE WORK POWER

19
- Room Temperature
Press key 2 to select “SET ROOM TEMP” mode to modify room temperature. Press keys 1 and 2.
The display appears as in fig. 18 during this operation.
Set
!
1
2 3 4 5
6
Press key 4 or wait a few seconds to confirm the wanted value setting.
ATTENTION: if the remote control to be wall fitted is connected, the room thermostat temperature is
taken into consideration (see also ”Menu 04” – Enable T.A. contact).Room probe must be enabled
in the remote control also (see “Remote control”).
- DHW Temperature
Press key 5 to select “SET DHW”mode to modify DHW temperature. Press keys 5 and 6. The
display must appear as in fig. 19 during this operation.
Set
!
1
2 3 4 5
6
Press key 4 or wait a few seconds to confirm the wanted value setting.
4. TEMPERATURE PROBES
The used temperature probes' features are given below.
4.1 Room/water temperature probe
The room/water probe used to measure water or room (in case of air stoves) temperature has the
following features:
IP67, NTC Thermoplastic probe: like NTC 10K ± 1% = 3435
Measuring field: -50/+120°C
Obtain a tester to check if probe is faulty, set it in ohm and measure the two probe pins (wire ends):
The probe measures about 10kohm at 25°C if it works correctly
If the probe is faulty: - resistance greater than 1Mohm (open)
- resistance to 0 ohm (in short)
The tester can also be used to check if the probe connection to the power board contacts are in
short; if 0 ohm resistance is measured by connecting the tester to the contacts, these are in short.
The display shows water (or room) temperature at 00°C if the room/water probe is not connected to
the power board. The display appears as in figure 20.
75°C
SET
DHW
25°C
SET ROOM
TEMPERATUR
E
Fig. 18
Fig. 19

20
Set
!
1
2 3 4 5
6
4.2 Pellet flue gas temperature probe
The flue gas probe used to measure the pellet's flue gas temperature has the following features:
Thermocouple probe: J type
Measuring field: 0/+350°C
Obtain a tester to check if probe is faulty, set it in ohm and measure the two probe pins (wire ends);
however, this only verifies if the probe is interrupted (no change compared to value shown on
unconnected tester).
The tester can also be used to check if the probe connection to the power board contacts are in
short; if 0 ohm resistance is measured by connecting the tester to the contacts, these are in short.
The display shows the pellet flue gas temperature (by keeping key 2 pressed) at 396°C if the pellet
flue gas probe is not connected to the power board. The display appears as in figure 21.
Set
!
1
2 3 4 5
6
Pay attention to wires polarity when connecting the pellet flue gas probe to the power board.
A fixed temperature appears on display that does not change with the increase of flue gas
temperature if the wires' polarity is inverted.
15.35
- - - - 00 °C
WORK 5
3
Fig. 20
CLOCK
BOILER WATER TEMPERATURE
ROOM TEMPERATURE
(when remote control is used)
DIALOGUE WITH SET
POWER
EFFECTIVE WORK POWER
396°C
1850
PB110610
-1-ENC
Fig. 21
The display
appears as in
figure by
keeping key 2
pressed
INSTALLED FIRMWARE CODE*
FLUE GAS TEMPERATURE
FLUE GAS INTAKE DEVICE EFFECTIVE TURNS
