Klugmann KI901 User manual

KI901
Cooktop
INSTRUCTION MANUAL
Klugmann Hausgeraete GmbH.
Gropiusstraße 7,
48163 Münster, Deutschland
[e-mail]
www.klugmann-hausgeraete.de
408-594060250149+

1
Dear Customer;
Please keep this manual within your reach for future reference. First of all, thank you for buying
our product.
Please read all the instructions and warnings in this manual carefully. The
manual includes important information about safe installation, use, and
maintenance of your product, as well as necessary warnings for optimum use of
your appliance. The manufacturer can not be held responsible for any damage
that may occur due to translated or printed versions of this manual, or for any
bodily, environmental or other material harm that may arise from incorrect use
of the appliance.

2
SAFETY INFORMATION AND WARNINGS
A)The appliance is set to 220-240 Volt.
B)The appliance's plug is earthed, thus it must be connected to a earthed outlet.
C)Avoid routing the appliance's power cord through hot areas.
D)Place cookware on the hob gently; do not throw or slam them.
E)Choose cooking zones proportionally based on size of the cookware you will use. Do not
use big cookware on smaller cooking zones, and small cookware on bigger cooking zones.
F)Do not use cookware that may transfer excess heat down to the glass surface.
G)Center your cookware on the cooking zone.
H)Do not place sharp materials on the hob.
In order to get maximum efficiency from the hobs, make sure to use cookware with
appropriate diameters and smooth bottoms.
SURFACE DETAILS
Vitroceramic is a strong and hard-wearing material that is much more durable than glass.
However, please do not step on your hob to reach higher places, e.g. for repairing lamps,
and do not drop heavy objects on the hob.
SECURITY
1.High Temperature Safety
The product has a built-in heat control sensor. It turns off all the functions of your hob if it
detects any extreme temperature within the appliance.
2.Residual Heat Indicator
The cooking zones may remain at a certain heat after cooking process. In order to warn the
user, the indicator on the control panel will display 'H' sign.
3.Automatic Power Off Safety
If you start to heat up your hob without placing anything on it, the hob will automatically turn
off after a certain period depending on the selected power level. These periods differ for
each power level as shown on the table below.

3

4
MODEL - 2
V 8001

5
MODEL - 3
V 9001

6
SAFETY INFORMATION AND
TROUBLESHOOTING
Never use your vitroceramic hob near a gas range or
similar heater.
Never place inflammable or combustible materials
under the counter top where your hob is installed.
Do not turn on your hob without placing any
cookware on it. Do not use your hob for any other
purpose than cooking and heating.
Do not heat canned products such as tinned foods
on your hob as they pose explosion risk.
If the mains power cord of the product is damaged, it
must be replaced only by the manufacturer's
authorized service.
Do not place cookware with crinkled or rough
bottoms on the hob, and avoid using cookware that
may damage the surface of the appliance.

7
If the surface of the appliance is broken or cracked,
disconnect immediately the appliance from the power
supply to prevent an electrical shock.
Do not wash or immerse your hob.
Do not turn on your hob with an empty cookware on it.
Do not touch the surface of your hob right after cooking
as it may still be hot. You can follow the residual heat
indicator to avoid such burns.
The appliance is not suitable for use by children or
mentally handicapped persons. Do not allow children to
tamper with the appliance.
This product is intended for indoor use only.

8
HOB ENERGY EFFICIENCY
-Use smooth bottomed cookware on the hob. These will ensure maximum use of heat energy.
-It is recommended not to use convex bottomed cookware.
-Please use cookware of suitable sizes. Try not to use cookware with diameters smaller than
that of the cooking zone. Use of small diameter cookware may not only cause spillovers but
also reduce the hob's efficiency.
-Use dry bottomed cookware on the hob. Do not put saucepan lids, especially wet lids on the
hob.
-Wipe the hob with a wet cloth after use. If it is very dirty, clean thoroughly using detergent
water. After cleaning the hob, heat it up for a few minutes to dry its top surface.
INFORMATION ABOUT TRANSPORTATION
-Keep the original packaging.
Carry the product in its original package. Follow the handling signs on the package.
-Take caution against impacts on outer surfaces of your product. Do not place heavy loads on
it.
-While carrying, hold/place the product upwards parallel to the ground (top side facing up).
If you don't have the original package;
-Take caution against impacts on outer surfaces of your product. Do not place heavy loads on
it.
-While carrying, hold/place the product upwards parallel to the ground (top side facing up).

9
INSTALLATION OF HOBS
Note: Any paddle box, aspirator or furniture to be placed over the hob must be at minimum
650 mm distance. 3.Affix your hob to your kitchen top using glue on all four sides of the
appliance. Once you place the hob, you can adjust its suitable position and level.
Warnings
1.The hob must be installed by an authorized service. Please do not try to install it
yourself.
2.Make sure that the hob is not installed very near to products such as refrigerator, dish
washer, etc.
3.For optimum efficiency, the hob must be installed to a correct location.
4.Surfaces of the wall and worktop surrounding the hob must be heat-resistant.
5.The adhesives and similar materials to be used for installing the hob must be
heat-resistant.
6.While installing your hob, allow for minimum 50 mm distance from any stove or similar
product that may be located under the appliance.

10
INSTALLATION OF HOBS
The power connection of your hob must be established according to appropriate standards.
Types of connection to main power inlet
Authorized service must make sure that the connections of your hob are established
according to standards and rules.
* Grounding cable must be minimum 2 cm longer than the other cable.
*Fuse and connection values must be in accordance with the information tag on the bottom of
the hob.
*The power connection system must be earthed in accordance with the applicable law and
regulations. THE PRODUCT MUST BE EARTHED.
*If your appliance was not provided with a mains cord and/or a plug, only use materials that
comply with the current value and operating temperatures given on the information tag. In such
cases, a switch with 3 mm contact distance must be used to cut power of all the poles on the
product.
*If direct connection to fuse is preferred, the fuse to be equipped with a switch that has the
above mentioned features must comply with power level and resistance, as well as statutory
requirements (The switch must not cut the yellow/green grounding connection). When the
appliance is installed, the switch must be located at an accessible location.
*The cable to be used must never exceed a temperature that is 50 C hotter than room
temperature.
*Power connection of the hob must be established only by an Authorized Service by following
the appropriate values and instructions based on the model of the hob.
If the mains power cord of the product is damaged, it must be replaced only by the
manufacturer's authorized service.

11
V 9001
V 6004 V8001
INSTALLATION OF HOBS
1. Choosing installation equipment
Make an aperture on the worktop according to the given dimensional values of your product. For
ease of use and installation, leave 50 mm area around the aperture empty.

12
2 ) Please make sure that air inlet and outlet points of your hob are not blocked.
Make sure that your hob is installed in a manner that it can operate
properly.

13

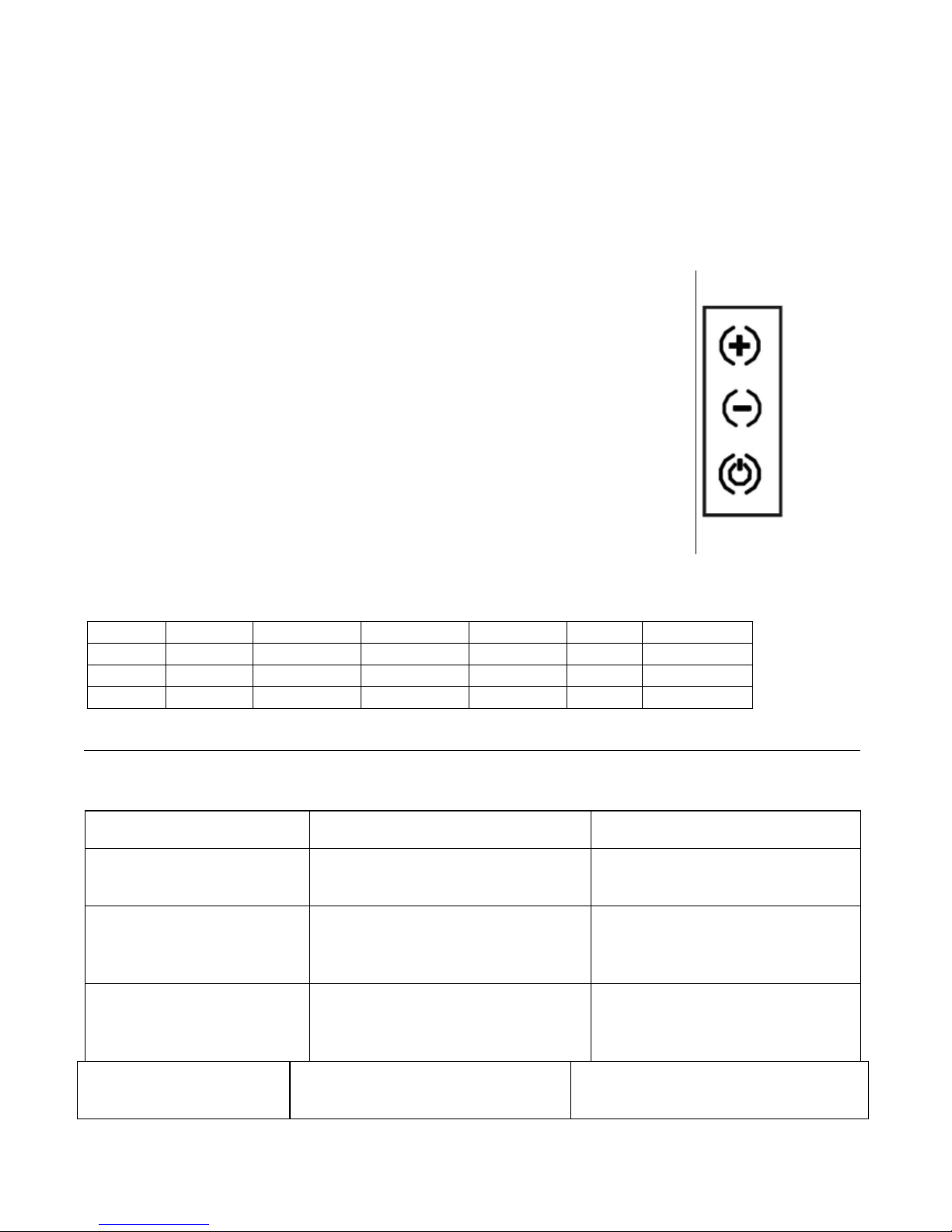

USE OF HOBS
Place your cookware on the cooking zone. When you turn on your hob, all
the signs on it will light for a second. Then the hob will automatically switch
to standby mode, and the lights will go off.
Once the “ON/OFF" button is pressed, all indicators will light in '-' position.
You can adjust any temperature level for each cooking zone.
Note:
When the hob is in standby mode, if you press 'ON/OFF' button and enter
no power value within 2 minutes, the hob will switch back to standby mode.
Each cooking zone is independent.
Power details of cooking zones are given in the table below:
Model
Left Rear
Right Rear
Right Front
Left Front
Center
Total
V 6004
1200 W
1100/2000W
1200W
750/2200W
6600 W
V 8001
1200W
1100/2000W
1200 W
750/2200W
6600 W
V 9001
1200 W
2200 W
1200 W
1800 W
2000 W
8400 W
CLEANING AND MAINTENANCE
You can clean your hob properly by following the methods given in the table below.
Level of contamination
Cleaning method
Cleanser
Mild
Clean with damp cloth and
wipe again with a dry cloth
Cleaning sponge
Accumulated
contamination
Clean with damp cloth and
wipe again with a dry cloth
Special sponge produced
specifically for vitroceramic
surface
Round stains and
hardened stains
Clean dirty surface with white
vinegar and wipe again with a
dry cloth
Special cleaning materials
for vitroceramic surfaces
Melted plastics and
very hardened stains
Use a suitable scraper for
these surfaces
Special scraper

14
TECHNICAL SPECIFICATIONS
MODEL
V 6004
V 8001
V9001
SAFETY LOCK
BOOSTER FEATURE
ELECTRICAL
DUAL ZONE
CENTER ZONE
2
2
3
SMALL ZONE
2
2
2
CONTROL PANEL
TOUCH OPERATED
TOUCH OPERATED
TOUCH OPERATED
DIGITAL DISPLAY
LED
LED
LED
COLOR
BLACK
BLACK
BLACK
COOKING TIME
SETTING
RESIDUAL HEAT
INDICATORS
PRODUCT
DIMENSIONS (MM)
590X520
785X520
860X510
SLOT DIMENSIONS
(MM)
560X490
7550X490
830X490
LEFT FRONT ZONE
POWER
750/2200W
750/2200W
1800 W
RIGHT FRONT ZONE
POWER
1200 W
1200 W
1200 W
LEFT REAR ZONE
POWER
1200 W
1200 W
1200 W
RIGHT REAR ZONE
POWER
1100/2000W
1100/2000W
2200 W
CENTER ZONE
POWER
2000 W
