Knick VariTrans P 43000 Series User manual

User Manual P43000
High Voltage Transducer
www.knick.de
Read before installation.
Keep for future use.

P43000
2
Supplemental Directives
READ AND SAVE THIS DOCUMENT FOR FUTURE REFERENCE. BEFORE ATTEMPTING TO ASSEMBLE, INSTALL,
OPERATE OR MAINTAIN THE PRODUCT, PLEASE ENSURE A COMPLETE UNDERSTANDING OF THE INSTRUC-
TIONS AND RISKS DESCRIBED HEREIN. ALWAYS OBSERVE ALL SAFETY INFORMATION. FAILURE TO COMPLY
WITH INSTRUCTIONS IN THIS DOCUMENT COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.
These supplemental directives explain how safety information is laid out in this document and what
content it covers.
Safety Chapter
This document's safety chapter is designed to give the reader a basic understanding of safety. It illus-
trates general hazards and gives strategies on how to avoid them.
Warnings
This document uses the following warnings to indicate hazardous situations:
Symbol Category Meaning Remark
WARNING Designates a situation that can lead to death or serious
(irreversible) injury.
The warnings contain
information on how to
avoid the hazard.
CAUTION Designates a situation that can lead to slight or moderate
(reversible) injury.
None NOTICE Designates a situation that can lead to property or environ-
mental damage.

P43000
3
Table of Contents
1 Safety............................................................................................................................................. 4
1.1 Intended Use ......................................................................................................................................................... 4
1.2 Personnel Requirements ................................................................................................................................... 4
1.3 Isolation ................................................................................................................................................................... 4
2 Product.......................................................................................................................................... 5
2.1 Package Contents ................................................................................................................................................ 5
2.2 Product Identification......................................................................................................................................... 5
2.3 P43000D2 Basic Type Ranges .......................................................................................................................... 6
2.4 Nameplates ............................................................................................................................................................ 7
2.5 Symbols and Markings....................................................................................................................................... 8
2.6 Function .................................................................................................................................................................. 8
2.6.1 Functional Description......................................................................................................................... 8
2.6.2 Block Diagram ......................................................................................................................................... 9
2.6.3 Application Example............................................................................................................................. 9
2.7 Terminal Assignments........................................................................................................................................ 10
2.8 Installation and Commissioning..................................................................................................................... 11
2.9 Operation................................................................................................................................................................ 12
2.10 Maintenance.......................................................................................................................................................... 12
2.11 Troubleshooting................................................................................................................................................... 12
2.12 Decommissioning................................................................................................................................................ 13
2.12.1 Removal ..................................................................................................................................................... 13
2.12.2 Return ......................................................................................................................................................... 13
2.12.3 Disposal...................................................................................................................................................... 13
2.13 Dimension Drawings .......................................................................................................................................... 14
2.14 Specifications ........................................................................................................................................................ 15
Abbreviations ............................................................................................................................... 18
Index.............................................................................................................................................. 19

P43000
4
1 Safety
This document contains important instructions for the use of the product. Always follow all instructions
and operate the product with caution. If you have any questions, please contact Knick Elektronische
Messgeräte GmbH & Co. KG (sometimes hereafter referred to as “Knick”) using the information provided
on the back page of this document.
1.1 Intended Use
The P43000 is a high voltage transducer for measuring unipolar or bipolar input currents in the range
of 0…(±)100mA to 0…(±)5A ➜Application Example, p. 9
The input is galvanically isolated from the output and auxiliary power. The input signal is converted
into a standardized analog output signal (±)20mA, (±)10V, or 4…20mA.
The P43000 is available in different versions:
• Versions with up to 16 calibrated and switchable input and output ranges. The input and output
ranges are switched via an isolated rotary switch and the corresponding connection of the
outputs. ➜Terminal Assignments, p. 10
• Versions that are permanently set to an input and output range (without rotary switch).
The specific version of the product is stated on the nameplates attached to the product. Different
properties for special versions are indicated on the nameplates. The information on the nameplates is
binding.
The defined operating conditions must be observed when using this product. ➜Specifications, p. 15
USE CAUTION AT ALL TIMES WHEN INSTALLING, USING, OR OTHERWISE INTERACTING WITH THE PRODUCT.
ANY USE OF THE PRODUCT EXCEPT AS SET FORTH HEREIN IS PROHIBITED, AND MAY RESULT IN SERIOUS
INJURY OR DEATH, AS WELL AS DAMAGE TO PROPERTY. THE OPERATING COMPANY SHALL BE SOLELY
RESPONSIBLE FOR ANY DAMAGES RESULTING FROM OR ARISING OUT OF AN UNINTENDED USE OF THE
PRODUCT.
Comply with the information on proper storage. ➜Specifications, p. 15
See also
➜Product Identification, p. 5
➜Nameplates, p. 7
1.2 Personnel Requirements
The operating company shall ensure that any personnel using or otherwise interacting with the
product is adequately trained and has been properly instructed.
The operating company shall comply and cause its personnel to comply with all applicable laws, regu-
lations, codes, ordinances and relevant industry qualification standards related to product. Failure to
comply with the foregoing shall constitute a violation of operating company’s obligations concerning
the product, including but not limited to an unintended use as described in this document.
1.3 Isolation
Distances to slave devices and conductive parts in the vicinity of the device must be measured accord-
ing to the applied standard. The operating company must carry out, evaluate, and safeguard isolation
coordination with the clearance and creepage distances and the relevant standards (e.g., EN 50124‑1).
See also
➜Insulation, p. 16

P43000
5
2 Product
2.1 Package Contents
• P43000 in the version ordered
• Insertable jumper, as applicable1)
• Test Report 2.2 according to EN 10204
• Installation Guide with safety instructions
Note: The User Manual (this document) is published in electronic form. ➜knick.de
2.2 Product Identification
The different versions of the P43000 are encoded in a model designation.
The model designation can be found on the nameplate and the delivery note. ➜Nameplates, p. 7
Input Output Model Designation
Working Voltage
≤2.2kVAC/DC
Test Voltage
10kVAC
Model Designation
Working Voltage
≤3.6kVAC/DC
Test Voltage
15kVAC
±1A, ±1,5A, ±2A, ±3A,
±5A, bipolar
Calibrated switching
±20mA, ±10V, bipolar, and
4…20mA
Calibrated switching
P43000D2 –
0…(±)100mA to 0…(±)5A,
unipolar/bipolar
1 to 16 ranges to customer
requirements, calibrated
switching
(±)20mA, (±)10V, unipolar/bipolar,
and/or 4…20mA
One or more ranges to customer
requirements, calibrated switching
P43000D2-nnnn –
0…(±)100mA to 0…(±)5A,
unipolar/bipolar
To customer requirements,
fixed setting
(±)20mA, (±)10V, unipolar/bipolar,
or 4…20mA
To customer requirements, fixed
setting
P43000D2-nnnn P43100D2-nnnn
1) Dependent on the ordered version ➜Product Identification, p. 5

P43000
6
2.3 P43000D2 Basic Type Ranges
Input Terminal Output Terminal Rotary Encoder
Switch Position
+ - + -
−1…1A 14 16 -20…20mA 25 27 0
-1.5…1.5A 14 16 -20…20mA 25 27 1
-2…2A 14 16 -20…20mA 25 27 2
-3…3A 14 15 -20…20mA 25 27 3
-5…5A 14 15 -20…20mA 25 27 4
−1…1A 14 16 4…20mA 25 27 5
-1.5…1.5A 14 16 4…20mA 25 27 6
-2…2A 14 16 4…20mA 25 27 7
-3…3A 14 15 4…20mA 25 27 8
-5…5A 14 15 4…20mA 25 27 9
−1…1A 14 16 −10…10V 25 and 26 28 A
-1.5…1.5A 14 16 −10…10V 25 and 26 28 B
-2…2A 14 16 −10…10V 25 and 26 28 C
-3…3A 14 15 −10…10V 25 and 26 28 D
-5…5A 14 15 −10…10V 25 and 26 28 E
-5…5A 14 15 −10…10V 25 and 26 28 F
Factory Setting
• Input: −5…5A
• Output: -10…10V
• Rotary encoder switch PositionF
Note: The insertable jumper must be installed in terminals 25 and 26 for voltage output. No insertable
jumper must be installed for current output. ➜Installation and Commissioning, p. 11
Note: The terminal assignments for the current input are dependent on the version of the P43000. The
assignments are specified on the nameplate and are available on request. ➜[e-mail]
See also
➜Nameplates, p. 7
➜Terminal Assignments, p. 10

P43000
7
2.4 Nameplates
The P43000 is identified by nameplates on the side and front of its housing. The information on the
nameplates varies depending on the version of the product.
➜Product Identification, p. 5
HIGH VOLTAGE INDUSTRIAL
CONTROL EQUIPMENT
ACCESSORY
E356768
LISTED
UL
®
Additional Input Ratings (UL 347):
Input
Ranges
Rated
Isolation*
±60 mV to ±100 V
±60 mV to ±100 V
±0.1 A to ±5 A
±0.1 A to ±5 A
±100 V to ±2200 V
±100 V to ±3600 V
2200 V
3600 V
2200 V
3600 V
2200 V
3600 V
6600 V
BIL / rated lightning impulse withstand
voltage (1.2/50 µs): 30 kV
BIL / rated lightning impulse withstand
voltage (1.2/50 µs): 33 kV
*AC (45 to 65 Hz) / DC
Types
P410...
P421...
P430...
P431...
P4421..
P411...
P420...
Overvoltage Cat III Pollution Degree 2
Contains no serviceable parts
Use copper wires only 01
Input
Load
< 50 µA
< 50 µA
(0.4 VA)
(1 VA)
> 1M
> 1M
< 0.6
< 0.6
2
3
1
5
7
23
6
4
10
11
8
14
15
16
18
19
21
17
22
8
6
9
12
7
13
11
12
13
12
13
20
24
1Nameplate, device front 13 Manufacturer
2Nameplate, right side 14 CE mark
3UL nameplate, left side 15 WEEE mark
4Output terminal assignments 16 Manufacturer’s address with designation of origin
5Power supply terminal assignments 17 Barcode: product number, serial number, check digit
6Product line 18 UKCA mark
7Product number, serial number 19 Input and output ranges
8Special conditions and danger points 20 Permissible ambient temperature
9Input terminal assignments 21 Type test voltage
10 Rotary encoder switch position marking 22 Power supply1)
11 Model designation 23 UL mark with identification number
12 Product name 24 Terminal assignments
1) The device is supplied with power from a broad-range power supply (DC or AC). ➜Power Supply, p. 15

P43000
8

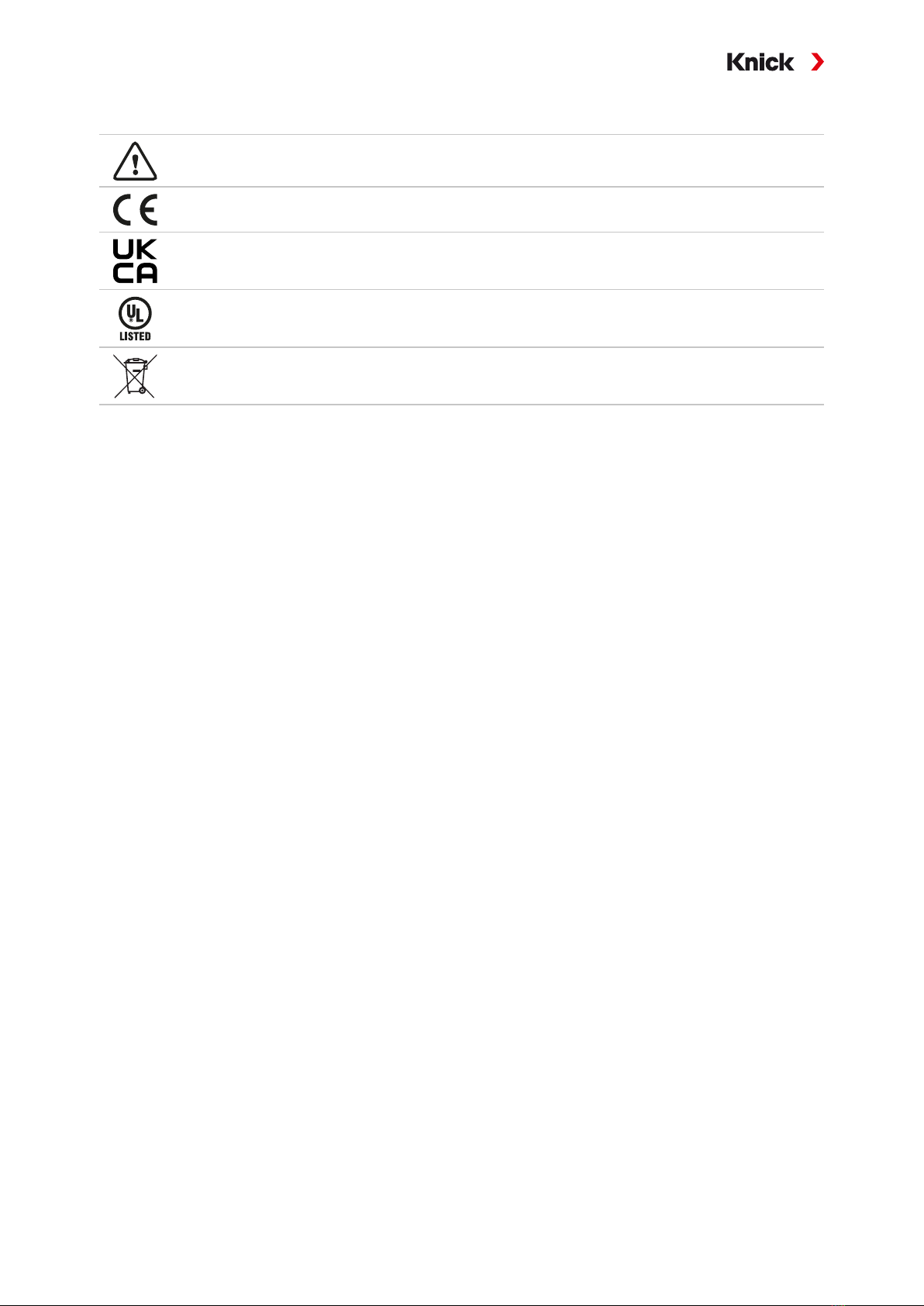

2.5 Symbols and Markings
Special conditions and danger points! Observe the safety information and instructions on safe use of the
product as outlined in the product documentation.
CE marking.
UK Conformity Assessed: Conformity mark for the United Kingdom (England, Scotland, and Wales)
UL Certification Mark
The symbol on Knick products means that the waste devices must be disposed of separately from un-
sorted municipal waste.
2.6 Function
2.6.1 Functional Description
The P43000 is available in different versions. The product properties vary depending on the version.
➜Product Identification, p. 5
The unipolar or bipolar input signal is detected by the P43000 and converted into a standardized ana-
log output signal. ➜Block Diagram, p. 9
An example application is directly measuring the current at high input potential.
➜Application Example, p. 9
The high potential of the input circuit is isolated by 3-port isolation between input, output, and power
supply. ➜Insulation, p. 16
The electronic components of the P43000 are protected from environmental influences, shock, and vi-
bration by vacuum encapsulation. ➜Standards and Approvals, p. 16
The power supply to operate the P43000 is provided by an integrated broad-range power supply.
➜Power Supply, p. 15
See also
➜Intended Use, p. 4
➜Specifications, p. 15

P43000
9
2.6.2 Block Diagram
+
–
+
–
–
Current Input
≤ 5 A
C 1 nF Output V/I
Z 15 V
Power supply 20 ... 253VAC/DC
≤ 2 A
2.6.3 Application Example
Note: The figure shows an example of direct measurement at high input potential. The specified
values refer to the P43100D2-nnnn version.
Note: In the figure, Control is used as an umbrella term for any form of further processing of the
output signal.
See also
➜Product Identification, p. 5

P43000
10
2.7 Terminal Assignments
Note: The insertable jumper must be installed in terminals 25 and 26 for voltage output. No insertable
jumper must be installed for current output. ➜Installation and Commissioning, p. 11
Note: The terminal assignments for the current input are dependent on the version of the P43000. The
assignments are specified on the nameplate and are available on request. ➜[e-mail]
13 or 14 Input Current (+)
See information on nameplate
15 or 16 Input Current (-)
See information on nameplate
19 Power supply AC/DC
20 Power supply AC/DC
25 Output Current/voltage (+)
26 Output Voltage (+)
27 Output Current (-)
28 Output Voltage (-)
See also
➜Nameplates, p. 7

P43000
11
2.8 Installation and Commissioning
WARNING! Shock potential. Do not install the product live.
NOTICE! Product damage due to electrostatic discharge (ESD). Take protective measures against
electrostatic discharge.
NOTICE! Damage to the screw terminals due to excessive tightening torque. Tighten the screw
terminals with a max. torque of 0.8Nm.
Note: P43000 may only be operated in a (lockable) control cabinet.
01. Disconnect the electrical system from live parts.
02. Secure the electrical system against restart.
03. Verify that the electrical system is dead.
04. Ground and short-circuit the electrical system.
05. Cover or isolate adjacent live parts with insulating materials.
06. For switchable versions: Position the rotary switch.
Note: The available input and output ranges, and the factory settings, are indicated on the name-
plate on the side.
07. For current output: As necessary, remove the pre-installed insertable jumper.
➜Terminal Assignments, p. 10
Note: Switchable versions are delivered from the factory with an installed insertable jumper
(=voltage output). When switching to current output, the installed insertable jumper must be
removed. Fixed-range versions are delivered with an installed insertable jumper for voltage output
and without an insertable jumper for current output.
08. Snap the P43000on to the 35mm DIN rail.
09. Strip 8mm of insulation from the cable ends, fit ferrules to the stranded wires. Twist pairs of cables
to a point close to the connection.
Maximum cable cross-section 1 x 2.5 mm2 stranded wire with ferrule
1 x 4mm2 solid
2 x 1.5 mm2 stranded wire with ferrule
2 x 2.5mm2 solid
Minimum cable cross-section 1 x 0.5 mm2 solid or stranded wire with ferrule
10. Connect the cables for the output.
11. Connect the power supply cables.
Note: The polarity of the auxiliary power can be freely selected during connection.
12. Connect the cables for the input. The terminal assignments are specified on the nameplate.
13. Reset the electrical system to its initial state. Reverse the steps taken to ensure voltage-free
operation.
14. Switch on the power supply.
Note: The power supply to operate the P43000 is provided by an integrated broad-range power
supply (20…253VAC/DC).
See also
➜Nameplates, p. 7
➜Terminal Assignments, p. 10
➜Troubleshooting, p. 12

P43000
12
2.9 Operation
The P43000 is designed for continuous operation. The product must be operated inside a lockable
control cabinet.
The defined operating conditions must be observed when using this product. ➜Specifications, p. 15
Note: With switchable versions, do not switch the input and output ranges using the rotary encoder
switch during operation. ➜Installation and Commissioning, p. 11
See also
➜Product Identification, p. 5
➜Nameplates, p. 7
2.10 Maintenance
The P43000 does not require any maintenance. Because it is fully encapsulated, it is not possible to
repair the product.
2.11 Troubleshooting
USE CAUTION WHEN CONDUCTING ANY TROUBLESHOOTING. FAILURE TO ABIDE BY THE REQUIREMENTS
SET FORTH HEREIN MAY RESULT IN SERIOUS INJURY OR DEATH, AS WELL AS DAMAGE TO PROPERTY.
Malfunction State Possible Causes Remedy
Wrong signal at output Inputs/outputs not correctly connected,
e.g., polarity reversed.
Connect inputs/outputs as specified on the
nameplate.
Selectable versions: Rotary switch not
correctly positioned.
Position the rotary switch as specified on
the nameplate.
Selectable versions: For voltage output,
insertable jumper not present or not
correctly mounted.
Position the insertable jumper as specified
on the nameplate.
No output current P43000 is not connected to the power
supply.
Check the installation and switch on the
power supply.
Further troubleshooting support can be obtained from ➜suppor[email protected].
See also
➜Terminal Assignments, p. 10
➜Installation and Commissioning, p. 11

P43000
13
2.12 Decommissioning
2.12.1 Removal
WARNING! Shock potential. Do not uninstall the product live.
01. Disconnect the electrical system from live parts.
02. Secure the electrical system against restart.
03. Verify that the electrical system is dead.
04. Ground and short-circuit the electrical system.
05. Cover or isolate adjacent live parts with insulating materials.
06. Check the input of the P43000 to ensure it is dead.
07. Switch off the power supply.
08. Open the screw terminals with a screwdriver and remove the cables.
09. Pull down the housing’s base latch using a screwdriver. Lift the P43000 up and off the 35 mm DIN
rail.
2.12.2 Return
If required, send the product in a clean condition and securely packed to your local contact.
➜knick.de
2.12.3 Disposal
Local codes and regulations must be observed when disposing of the product.
Customers can return their waste electrical and electronic devices.
Details on the return and environmentally friendly disposal of electrical and electronic equipment can
be found in the manufacturer’s declaration on our website. If you have any queries, suggestions, or
questions regarding the recycling of waste electrical and electronic equipment from Knick, please
send an email to ➜[e-mail]

P43000
14
2.13 Dimension Drawings
Note: All dimensions are given in millimeters [inches].

P43000
15
2.14 Specifications
Input
Input P43000D2 ±1A, ±1,5A, ±2A, ±3A, ±5A, bipolar
Calibrated switching
Factory setting: ±5A
P43000D2‑nnnn 0…(±)100mA to 0…(±)5A, unipolar/bipolar
1 to 16 ranges to customer requirements, calibrated
switching
P43100D2‑nnnn 0…(±)100mA to 0…(±)5A, unipolar/bipolar
To customer requirements, fixed setting
Input resistance <0.6Ω
Input capacitance Approx. 1 nF
Overload capacity 20 % full scale
Output
Output P43000D2 ±20mA, ±10V, bipolar, and 4…20mA
Calibrated switching
Factory setting: ±10V
P43000D2-nnnn (±)20mA, (±)10V, unipolar/bipolar, and/or 4…20mA
One or more ranges to customer requirements, calibrated
switching
P43100D2-nnnn (±)20mA, (±)10V, unipolar/bipolar, or 4…20mA
To customer requirements, fixed setting
Offset Up to ±150 % by default
Load With output current: ≤12V (600Ω at 20mA)
With output voltage: ≤10mA (1000Ω at 10V)
Offset error < 20 µA or 10 mV
Ripple <10mVrms
Transmission Behavior
Gain error < 0.3% of measured value
Cutoff frequency (−3dB) Approx. 5 kHz
Optional factory setting: 10 Hz
Response time T90 Approx. 110 µs
Common-mode rejection
ratio
CMRR1)
DC: approx. 160dB
AC 50Hz: approx. 120dB
Temperature coefficient2) < 0.005 %/K full scale
Power Supply
Power supply 22…230VAC, ±10%, 48…62Hz, approx. 2VA
22…230VDC, ±10%, approx.1.2W
1) Common-mode rejection ratio = differential voltage gain / common-mode voltage gain
2) Reference temperature for temperature coefficient specifications = 23 °C (73.4 °F) The average temperature coeffi-
cient is stated.

P43000
16
Insulation
Galvanic isolation 3-port isolation between input, output, and power supply
Test voltage Calibrated switching 10 kV AC across input and output/power supply
Fixed (P430**D2-nnnn) 10 kV AC across input and output/power supply
Fixed (P431**D2‑nnnn) 15 kV AC across input and output/power supply
All types 4kV AC across output and power supply
Insulation coordination: For applications with high working voltages, take measures to prevent accidental con-
tact and make sure that there is sufficient distance or insulation between adjacent
devices.
Working voltage (basic
insulation) according to
EN 61010‑1
Calibrated switching or
fixed (P430**D2- nnnn)
Up to 2200 V AC/DC across input and output/power sup-
ply with overvoltage category III and pollution degree 2
(transient overvoltage: max. 13.5 kV)
Fixed (P431**D2‑nnnn) Up to 3600 V AC/DC across input and output/power sup-
ply with overvoltage category III and pollution degree 2
(transient overvoltage: max. 20 kV)
Rated insulation voltage
according to EN50124‑1
Calibrated switching or
fixed (P430**D2- nnnn)
Up to 2200 V AC/DC across input and output/power sup-
ply with overvoltage category III and pollution degree 2
Fixed (P431**D2‑nnnn) Up to 3600 V AC/DC across input and output/power sup-
ply with overvoltage category III and pollution degree 2
Protection against electric
shock
Calibrated switching or
fixed (P430**D2- nnnn)
Protective separation according to EN61140 by rein-
forced insulation according to EN 61010‑1. Working volt-
ages at overvoltage category III and pollution degree 2:
• Up to 1100 V AC/DC across input and output/power
supply
• Up to 300 V AC/DC across output and power supply
Fixed (P431**D2‑nnnn) Protective separation according to EN61140 by rein-
forced insulation according to EN 61010‑1. Working volt-
ages at overvoltage category III and pollution degree 2:
• Up to 1800 V AC/DC across input and output/power
supply
• Up to 300 V AC/DC across output and power supply
Rated voltage according to
UL347
P430** 2200VAC (45…65Hz) / DC
P431** 3600VAC (45…65Hz) / DC
Input impedance <0.6Ω
BIL/rated surge voltage 30kV(1.2/50µs)
Overvoltage category OV3
Pollution degree PD2
P43000 does not contain any components that require maintenance.
Use copper cables only.
Standards and Approvals
EMC1) Product standard EN61326‑1
Emitted interference Class B
Immunity to interference Industrial applications
UL Listed according to UL347 E356768
Mechanical strength IEC61373
RoHS conformity According to Directive 2011/65/EU
1) Slight deviations are possible during interference.

P43000
17
Device
MTBF1) Approx. 96 years
Ambient temperature Operating2) −10…70°C (14…158°F)
Transport and storage -40…85°C (-40…185°F)
Ambient conditions Indoor use3)
Relative humidity 5…95%, no condensation
Altitude up to 2000m(6500 ft), air pressure: 790…1060hPa4)
Design Modular housing with screw terminals (max. tightening torque 0.8 Nm)
Housing width P43***D2 45 mm
Other dimensions ➜Dimension Drawings, p. 14
Connection M3.5 connecting screws with self-lifting terminal clamps
Maximum cable
cross-section
1 x 2.5 mm2 stranded wire with ferrule
1 x 4mm2 solid
2 x 1.5 mm2 stranded wire with ferrule
2 x 2.5mm2 solid
Minimum cable
cross-section
1 x 0.5 mm2 solid or stranded wire with ferrule
Degree of protection Housing IP40, terminals IP20
Mounting 35 mm DIN rail for snap-on mounting according to EN60715
Weight Approx. 350 g
1) Mean time between failures (MTBF) according to EN61709 (SN29500). Requirements: stationary operation in well-
kept spaces, average ambient temperature 40 °C, no aeration, continuous operation.
2) Extended operating temperature range −40…75°C(−40…167°F), short-time 85°C(185°F) on request
3) In enclosed areas, protected from the weather; not permissible are: water or wind-driven precipitation (rain, snow,
hail etc.)
4) At low air pressure, the permissible working voltages are reduced.

P43000
18
Abbreviations
BIL Basic impulse level (rated insulation voltage according to UL 347)
CE Conformité Européenne (European conformity)
EMC Electromagnetic compatibility
EN European standard
ESD Electrostatic discharge
IP International Protection / Ingress Protection
MTBF Mean time between failures
OV Overvoltage category
PD Pollution degree
UKCA United Kingdom Conformity Assessed
UL Underwriter Laboratories (recognized testing and certification organization)
WEEE Waste from electrical and electronic equipment

P43000
19
Index
35mm DIN rail 17
A
Application example 9
Approvals 16
B
Base latch 13
Basic type 6
C
Causes, malfunctions 12
Conformity 16
D
Dimension drawing 14
DIN rail 17
Disposal 13
E
Electrical installation 11
Electromagnetic compatibility 16
Electrostatic discharge 11
Environmental damage 4
Error elimination 12
F
Factory setting 11
G
Galvanic isolation 16
I
Input 15
Insertable jumper 11
Insulation 16
Introductory safety chapter 2
J
Jumper 11
M
M3.5 connecting screw 17
Malfunction states 12
Markings 8
Measuring ranges 6
Model designation
Coding 5
Versions 6
Mounting 17
N
Nameplate
Device front 7
Side 7
UL 7
Notes on safety information 2
O
Order code 5
Output 15
P
Package contents 5
Personnel 4
Personnel requirements 4
Power supply 15
Product code 5
Property damage 4
Q
Qualified personnel 4
R
Range selection 11
Recycling 13
Remedies, malfunctions 12
Retrurn of waste equipment 13
Returns 13
Rotary switch 11
S
Safety chapter 4
Safety instructions 2
Standards 16
Supplemental directives 2
Supply voltage 15
Symbols and markings 8
T
Terminal assignments 10
Terminals 10
Test voltage 16
Transmission behavior 15
Troubleshooting 12
Type designation 5
Typical application 9
V
Variants 6
Versions 5
W
Warnings 2

Knick
Elektronische Messgeräte
GmbH & Co. KG
Headquarters
Beuckestraße 22 • 14163 Berlin
Germany
Phone: [phone]
Fax: [phone]
[email protected]
www.knick.de
Local Contacts
www.knick-international.com
Translation of the original instructions
Copyright 2023 • Subject to change
Version 6 • This document was published on April 20, 2023.
The latest documents are available for download on our
website under the corresponding product description.
TA-253.108-KNEN06
100446
