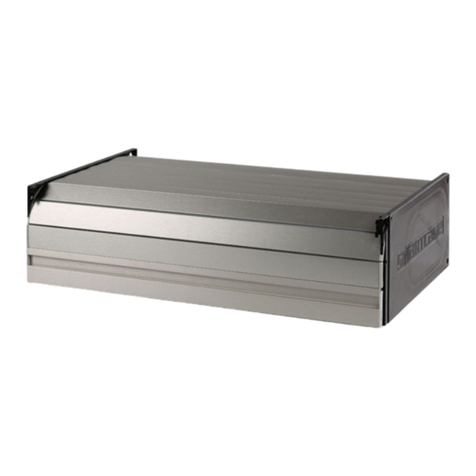

KNOKE Quasar reflex User manual

102743_06.2013Knoke Beschlagtechnik GmbH
Südstraße 2
32130 Enger
Telefon+ 49 (0)5224 9945-0
Telefax + 49 (0)5224 9945-25
[email protected]
www.knoke.eu
Quasar reflex
1KNOKE
Beschlagtechnik
Dear customer
Through the purchase of this smart case you decided for a quality
product made by KNOKE Beschlagtechnik. Please accept our
thanks for your condence. Please make yourself familiar with the
product and its accessories before you start the assembly.
This instruction describes the mounting and handling of the
KNOKE Quasar reex.
Please read through this manual carefully and follow all security
advice before you start the workings.
Please keep this instruction ready to hand. In case of damages
that occur through disregard of this manual and of the security
After having unpacked the goods please compare
the contents of the package with the speci-
cations regarding the scope of delivery. Please
check the drive and mains cable regarding intact-
ness. If you note damages you are not alowedto
use the appliance. in this case please contact
your distributor.
Important indications
Cabinet dimensions
(measurement in mm)
Contents:
min.
25 mm
min.
25 mm
min. 329 mm
max. 1500 mm
X
50 mm slats X - height X - height
Cabinet height side 16 mm side 19 mm
300 - 1500 mm 158 mm 155 mm
1x Roller shutter module
1x Aluminium cover prole
1x Pair of plastic guiding proles
1x Pair of aluminium guiding proles
2x Upper cover caps
(mounted onto aluminium guiding proles)
2x Lower cover caps
(mounted onto aluminium guiding proles)
10x screws 3,5 x 16 mm
2x Damper with holder
2x Supporting bar
6x screws 4 x 25 mm
1
2
3
4
5
advice the guarantee expires. We assume no liability for
consequential damages that originate from this.
1
2
3 3
4 4
5
6
7
8
9
10
6
7
8
9
10

102743_06.2013Knoke Beschlagtechnik GmbH
Südstraße 2
32130 Enger
Telefon+ 49 (0)5224 9945-0
Telefax + 49 (0)5224 9945-25
[email protected]
www.knoke.eu
Quasar reflex
2KNOKE
Beschlagtechnik
4 x 25 mm
1286
25
11
X
16
128
min.
25
268
268
Attaching the supporting bar
1
Attaching the cover prole
2
Push the Quasar reex completely into the cabinet
3
Fixing the plastic guiding proles
4

102743_06.2013Knoke Beschlagtechnik GmbH
Südstraße 2
32130 Enger
Telefon+ 49 (0)5224 9945-0
Telefax + 49 (0)5224 9945-25
[email protected]
www.knoke.eu
Quasar reflex
3KNOKE
Beschlagtechnik
6
Attaching the aluminium guiding proles
Push the aluminium onto the plastic guiding proles
Insert the dampers
Version A
5
5 A

102743_06.2013Knoke Beschlagtechnik GmbH
Südstraße 2
32130 Enger
Telefon+ 49 (0)5224 9945-0
Telefax + 49 (0)5224 9945-25
[email protected]
www.knoke.eu
Quasar reflex
4KNOKE
Beschlagtechnik
4
6.1 6.2
6.3
kg
+
kg
_
+
-
+
-
Insert the dampers
Adjusting the spring force (if necessary)
Error correction
Version B
6
5 B
Problem Possible cause Solution
Roller shutter does not stop in
requested position
Spring force is not adjusted
accordingly
Adjust the spring force as shown

102743_06.2013Knoke Beschlagtechnik GmbH
Südstraße 2
32130 Enger
Telefon+ 49 (0)5224 9945-0
Telefax + 49 (0)5224 9945-25
[email protected]
www.knoke.eu
Quasar reflex
5KNOKE
Beschlagtechnik
50 mm slats: Recommended cabinet construction for vertical operation
50 mm slats: Recommended cabinet construction for horizontal operation, single sided
Version BVersion A
min.
25 mm
min.
25 mm
min.
25 mm
min.
25 mm
min.
13 mm
min. 329 mm min. 329 mm
min. 329 mm
X
X
front view plan view
side view
X
30 mm
X

102743_06.2013Knoke Beschlagtechnik GmbH
Südstraße 2
32130 Enger
Telefon+ 49 (0)5224 9945-0
Telefax + 49 (0)5224 9945-25
[email protected]
www.knoke.eu
Quasar reflex
6KNOKE
Beschlagtechnik
50 mm slats: Recommended cabinet construction for horizontal operation, double sided
min. 329 mm
front view plan view
side view
X X
30 mm
X X
