KnoxGear KN-MIP01 User manual

MICROPHONE
ISOLATION SHIELD
USER MANUAL
Please read all instructions before use for best performance of this product.
Save these instructions for future reference.
Model: KN-MIP01

Dear Knox Gear customer,
Congratulations on your purchase of the Knox Gear
Microphone Isolation Shield. With normal use and proper
treatment, it will provide you with years of reliable service.
Please read this manual carefully before using this product,
and keep it in a safe place for future reference.
We hope you enjoy your new Knox Gear Microphone
Isolation Shield. For technical assistance and warranty
service, please email us at [e-mail].
WELCOME!

1. Connecting rod
2. Washer
3. Connecting rod nut
4. Crossbar
5. 3/8” gasket (optional)
6. 5/8” gasket (optional)
7. 5/8” female to 3/8” male adapter
8. 3/8” female to 5/8” male adapter
9. Isolation shield
NOTE: This product does not include a microphone or
shock mount.
9
4
12
3
5
7
8
6

Step 1: Mount the crossbar onto the neck of the microphone
stand (not included).
(1) If using a stand with a 5/8” thread, mount using the 5/8”
hole at the end of the crossbar, as pictured. Insert the thread
into the hole, and then attach the included 5/8” female to
3/8” male adapter.
(2) If using a stand with a 3/8” thread, mount using the
smaller 3/8” semicircular hole.
(3) Use the included gaskets to hold the bracket in place, if
necessary.
(4) Screw the isolation shield onto the microphone stand.

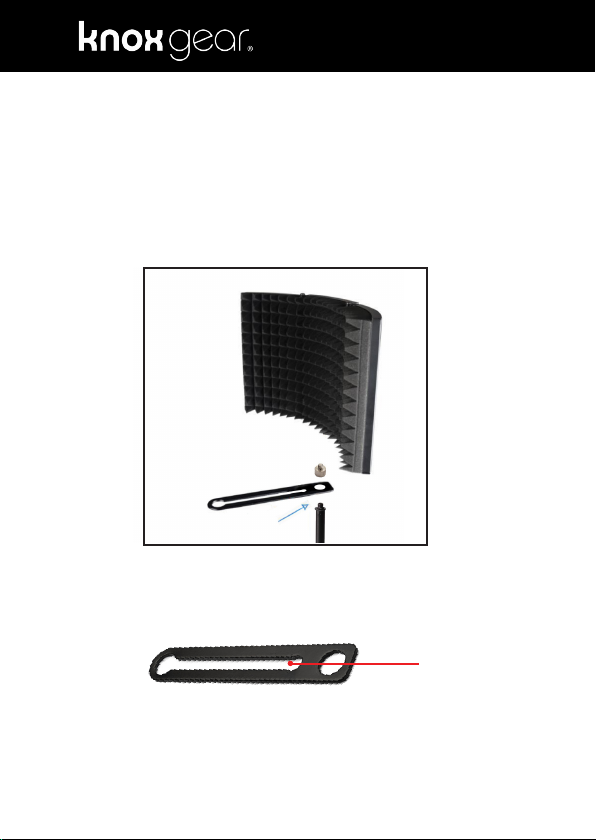

Semicircular Hole

Step 2: Connect a shock mount or microphone (not included).
(5) Attach a shock mount or microphone (not included) to
the connecting rod.
(a) If using a microphone or shock mount with 5/8”
threading, use 3/8” female to 5/8” male adapter.
(6) Mount the connecting rod to the crossbar with the
washer and connecting rod nut.
(7) Tighten the connecting rod in place.
