KOA CCTV CV-57VR User manual

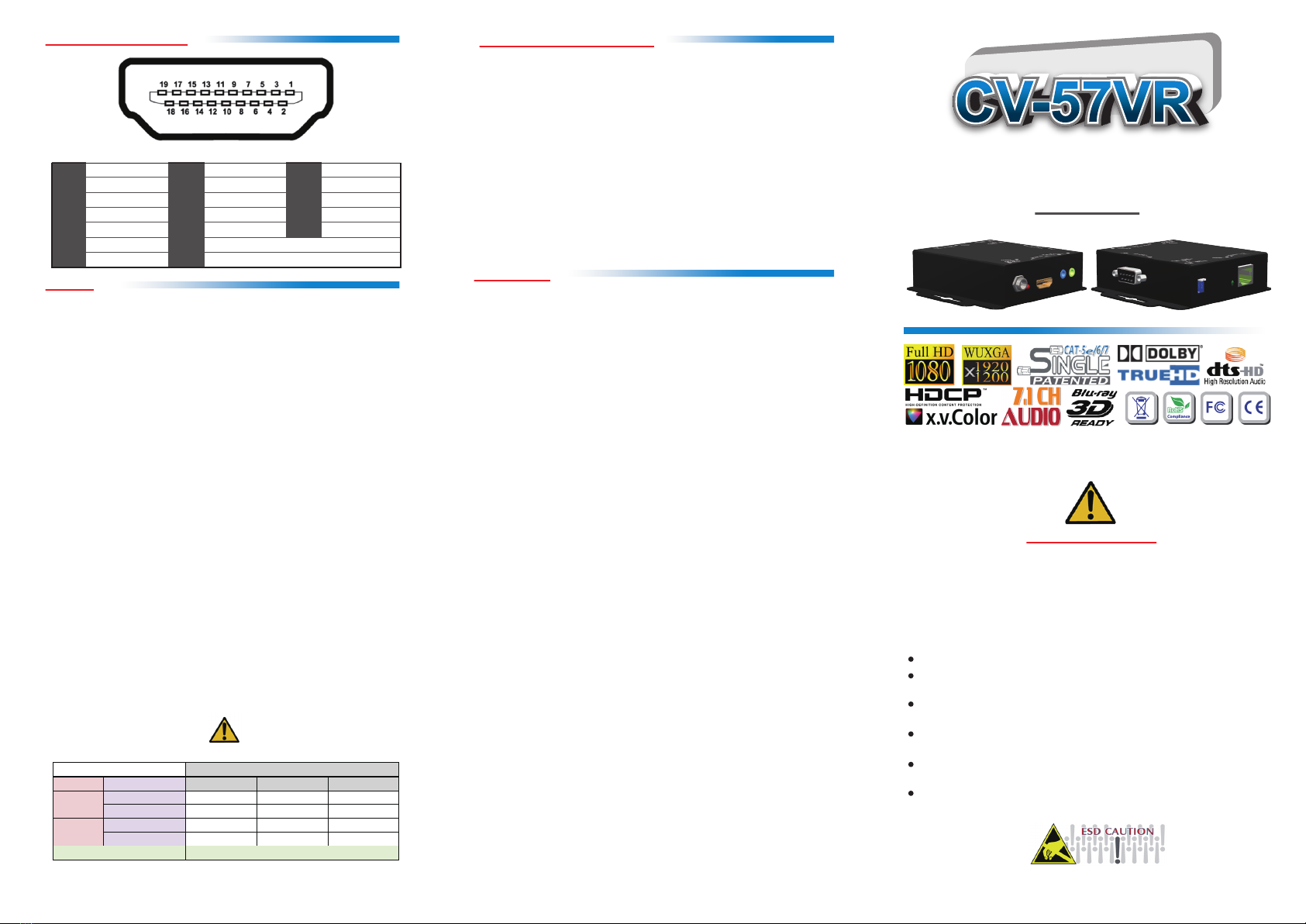

Type A (Receptacle) HDMI
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Pin 10
Pin 11
Pin 12
Pin 13
Pin 14
Pin 15
Pin 16
Pin 17
Pin 18
Pin 19
TMDS Data2+
TMDS Data2 Shield
TMDS Data2–
TMDS Data1+
TMDS Data1 Shield
TMDS Data1–
TMDS Data0+
TMDS Data0 Shield
TMDS Data0–
TMDS Clock+
TMDS Clock Shield
TMDS Clock–
CEC
Reserved(N.C. on device)
SCL
SDA
DDC/CEC Ground
+5V Power
Hot Plug Detect
HDMI Extender over Single Cat.X with
HDBaseT-Lite, Bi-directional IR and RS-232
User Manual
Safety and Notice
T he CV-57VR HDMI Extender over Single Cat.X with HDBaseT-Lite,
Bi-direconal IR and RS-232 has been tested for conformance to safety
regulaons and requirements, and has been cerfied for internaonal
use. However, like all electronic equipments, the CV-57VR should be
used with care. Please read and follow the safety instrucons to protect
yourself from possible injury and to minimize the risk of damage to the
unit.
Connect a HDMI or DVI source (such as a Blu-ray Disc player) to
the transming unit CV-57VR-TX.
Connect a HDMI or DVI display (such as a LCD TV) to the
receiving unit CV-57VR-RX.
Connect IR Blaster/Receiver to both TX and RX units.
Connect a Cat-5/5e/6 cable between the transming and
receiving units.
Make sure this Cat-5/5e/6 cable is ghtly connected and not
loose.
Plug in 5V DC power supply unit to the power jack of the
receiving unit CV-57VR-RX and the transming unit
CV-57VR-TX.
Follow all instrucons and warnings marked on this unit.
Do not aempt to service this unit yourself, except where
explained in this manual.
Provide proper venlaon and air circulaon and do not use near
water.
Keep objects that might damage the device and assure that the
placement of this unit is on a stable surface.
Use only the power adapter and power cords and connecon
cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always
unplug the power to the device before cleaning.
HDMI PIN DEFINITION HARDWARE INSTALLATION
NOTICE
1.
2.
3.
4.
5.
6.
All HDMI over CAT5 transmission distances are measured using
Belden 1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video
Signal Generator VG-859C & VG-870B.
Incorrect placement of IR Blaster and Receiver may result in the
failure of the IR extenders. Please check carefully before plugging in
the IR extender to the respecve IR sockets. Warranty will not cover
the damage.
The transmission length is largely affected by the type of Cat-5/5e/6
cables, the type of HDMI sources, and the type of HDMI display. The
tesng result shows solid UTP cables (usually in the form of 300m
[1,000] bulk cables) can transmit a lot longer signals than stranded
UTP cables (usually in the form of fixed length patch cords).
Shielded STP cables are beer suited than unshielded UTP cables. A
solid UTP Cat-5e cable shows longer transmission range than
stranded STP Cat-6 cable. For long extension applicaons, solid
UTP/STP cables are the only viable choice.
EIA/TIA-568-B terminaon (T568B) for Cat-5/5e/6 cables is
recommended for beer performance.
To reduce the interference among the unshielded twisted pairs of
wires in Cat-5/5e/6 cable, one can use shielded STP cables to
improve EMI problems, which is worsen in long transmission.
Because the quality of the CAT5/6 cables has the major effect on
how long the transmission limit can achieve and how good is the
received picture quality, the actual transmission range is subject to
one’s choice of Cat-5/5e/6 cables. For desired resoluons greater
than 1080i or 1280x1024, a Cat-6 cable is recommended.
If your HDMI display has mulple HDMI inputs, it is found that the
first HDMI input [HDMI input #1] generally can produce beer
transmission performance among all HDMI inputs.
1.
2.
3.
4.
5.
6.
7.
Performance Guide for HDMI over Category Cable Transmission
Performance rating Type of category cable
Wiring Shielding CAT5 CAT5e CAT6
Solid Unshielded (UTP)   
Shielded (STP)   
Stranded Unshielded (UTP)  
Shielded (STP) 
Termination Please use EIA/TIA-568-B termination (T568B) at any time
WARRANTY
The SELLER warrants the CV-57VR HDMI Extender over Single
Cat.X with HDBaseT-Lite,
Bi-direconal IR and RS-232 free from
defects in the material and workmanship for 1 year from the date of
purchase from the SELLER or an authorized dealer. Should this product
fail to be in good working order within 1 year warranty period, The
SELLER, at its opon, repair or replace the unit, provided that the unit has
not been subjected to accident, disaster, abuse or any unauthorized
modificaons including stac discharge and power surge. This warranty
is offered by the SELLER for its BUYER with direct transacon only. This
warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under condions other than those covered will be
repaired at the current price of parts and labor in effect at the me of
repair. Such repairs are warranted for 90 days from the day of
reshipment to the BUYER. If the unit is delivered by mail, customers
agree to insure the unit or assume the risk of loss or damage in transit.
Under no circumstances will a unit be accepted without a return
authorizaon number.
The warranty is in lieu of all other warranes expressed or implied,
including without limitaons, any other implied warranty or fitness or
merchantability for any parcular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty.
Customers outside Taiwan are responsible for shipping charges to and
from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly
coiled.
The content of this manual has been carefully checked and is
believed to be accurate. However, The SELLER assumes no responsibility
for any inaccuracies that may be contained in this manual. The SELLER
will NOT be liable for direct, indirect, incidental, special, or consequenal
damages resulng from any defect or omission in this manual, even if
advised of the possibility of such damages. Also, the technical
informaon contained herein regarding the CV-57VR features and
specificaons is subject to change without further noce.

Definition of IR Earphone Jack
RS-232: Connect to host/device serial port
with a DSUB-9 male-male cable here
The CV-57VR HDMI Extender over Single Cat.X with HDBaseT-Lite,
Bi-direconal IR and RS-232 boosts up your video/audio transmission
distance up to 60m (198) in HDTV 1080p with 48-bit color depth.
CV-57VR also supports the most advanced 3D video format complaint
with HDMI specificaon and therefore guarantees the highest 3D video
compability on the market. With only one cost effecve Cat.5/5e/6
cable, users can readily extend HDTV sources from DVD players, Blu-ray
Disc player, PS3, PC, and any other kinds of sources compliant with
TMDS to distant display monitors including HDMI or DVI enabled TV
sets or LCD PC monitors. With the advanced design for the latest HDMI
technology, deep color video, DTS-HD or Dolby TrueHD audio, and
HDCP supports and compability are all further insured. This flexibility
makes HDCP compliant DVD players or PS3 transmit utmost high
quality video and audio with a greater distance at the minimal cost,
when integrang several components apart. In addion, CV-57VR is
also equipped with bi-direconal IR pass-through path and RS-232
serial port control. These bonus features allow users to boost IR control
distance up to 60m (198 ) and makes IR control possible through only
single Cat.5/5e/6 cable including HDMI signals. In addion, serial port
offers the convenient path for interacve applicaon, such as touch
panels.
The CV-57VR includes two units: transming unit CV-57VR-TX
and receiving unit CV-57VR-RX. The transming unit is used to capture
the input HDMI / DVI signals with IR control packets and carry the
signals via one cost effecve Cat.5/5e/6 cable. The receiving unit is
responsible for equalizing the transmied HDMI signal and
reconstrucng IR signals. CV-57VR offers the most convenient soluon
for digital signage with long distance A/V transmission path, and with
10G transmission width ready, CV-57VR is ready for your next HDMI
generaon and applicaons!
Support HDMI Deep Color & full 3D & 4K2K@30 (HDBaseT-Lite
technology)
Extend the transmission up to 60m (198) from the HDMI source at
Full HD 1080p 48-bit and 40m (130) at 4K2K@30
HDCP & EDID Bypass
CEC support
Auto equalizaon
Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6
cable transmission
DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
Support full frequency IR signal from 20KHz to 60KHz
Bi-direconal IR path-through
Full Duplex RS-232 control up to 115,200 bps through connector
Wall mounng housing design for easy and robust installaon
1x CV-57VR [TX & RX]
2x 5V DC power supply
1x User Manual
1x IR blaster
1x IR receiver
INTRODUCTION SPECIFICATIONS
FEATURES
PACKAGE CONTENTS
iThe length depends on the characteriscs and quality of the
cables. Higher resoluons and longer transmission distances
require low skew cables (<25ns/100m) for best performance.
Unshielded CAT6 with metal RJ45 connectors is recommended.
IR PASS-THROUGH
IR Extenders

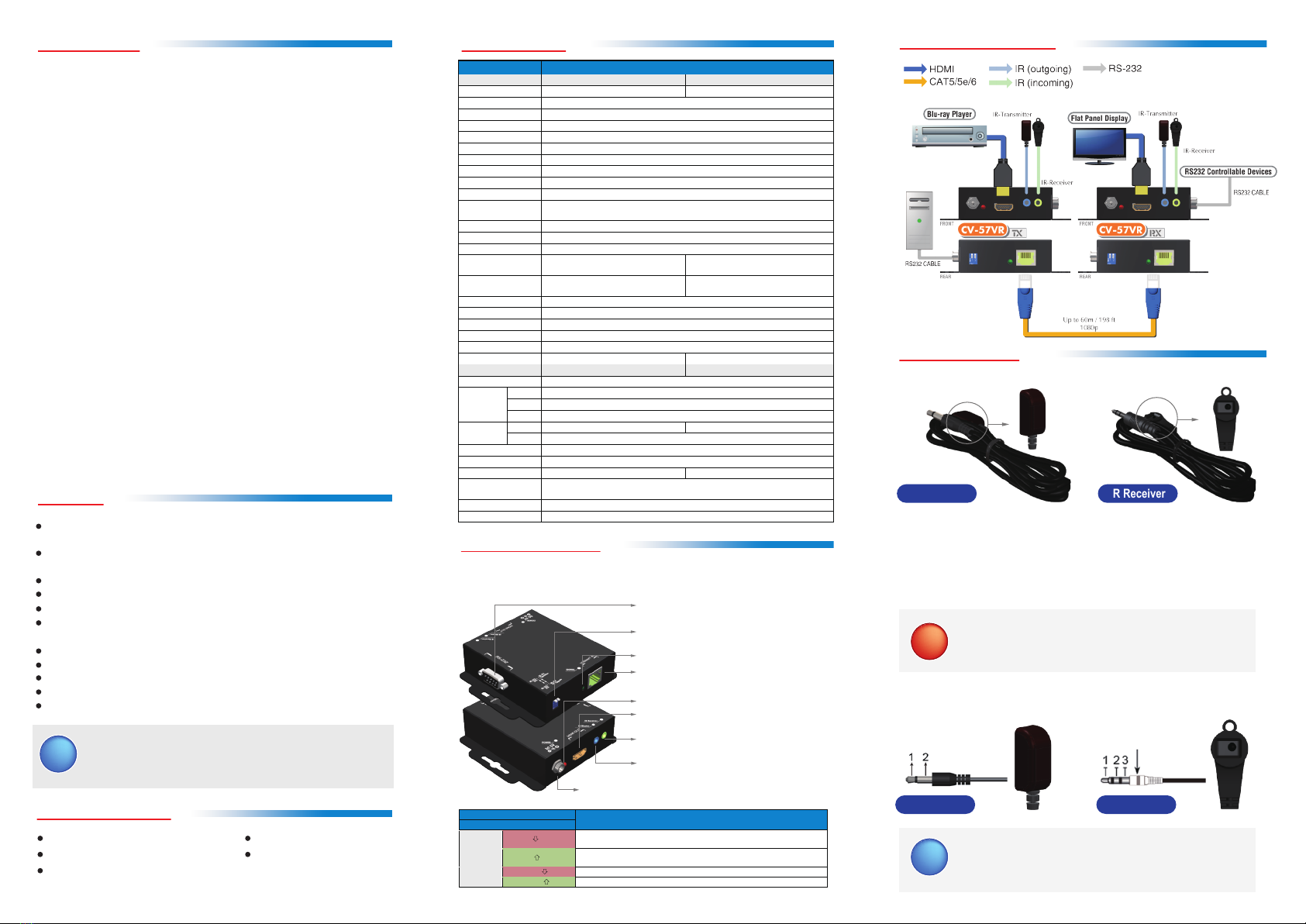

CONNECTION DIAGRAM
PANEL DESCRIPTIONS
Transmitting unit ► CV-57VR-TX[RX]
Dip Switch: Setup the RS-232 mode for serial
communication channel
LED: TX/RX link indicator
RJ45: Plug in a Cat-5/5e/6 cable that needs
to be linked to the TX or RX.
LED: Power indicator
HDMI IN[OUT]: Connects to a HDMI
source[Display] with a HDMI male-male cable
IR Receiver: Infrared 3.5mm socket for
plugging in the extension cable of IR receiver
IR Blaster: Infrared 3.5mm socket for
plugging in the extension cable of IR blaster
Latch-locking power jack: Connect to 5V DC power supply
IR ReceiverIR Blaster
IR ReceiverIR Blaster
IR Sockets
IR BLASTER: plug in the IR blaster to emit all IR command signals
received from the IR receiver from the other end to control the devices
corresponding to the IR signals.
IR RECEIVER: plug in the IR receiver to receive all IR command signals
from the IR remote controls of the corresponding devices.
!
Incorrect placement of IR Blaster and Receiver may result in
the failure of the IR extenders. Please check carefully before
plugging in the IR extender to the respecve IR sockets.
Warranty will not cover the damage.
You can buy any IR extension cables in the market that are
compable to the definion of the IR sockets for the matrix
if necessary for replacement use. However, IR cables longer
than 2m (6-) may not work.
1. IR Signal
2. Grounding
1. IR Signal[20-60 kHz]
2. Grounding
3. Power
i
[Receiving unit]
Model Name
CV-57VR
Technical
CV-57VR[Tx]
CV-57VR[Rx]
Role of usage
Transmitter [TX]
Receiver [RX]
HDMI compliance
HDMI Deep Color, full 3D & 4K2K@30
HDCP compliance
Yes
Video bandwidth
Single-link 340MHz [10.2Gbps]
Video support
480i / 480p / 720p / 1080i / 1080p60
HDMI over UTP
1080p@60 60m (198ft) [CAT5e]
Audio support
Surround sound [up to 7.1ch) or stereo digital audio
Equalization
Auto
Input TMDS signal
1.2 Volts [peak-to-peak]
Input DDC signal
5 Volts [peak-to-peak, TTL]
ESD protection [1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
PCB stack-up
4-layer board [impedance control — differential 100Ω; single 50Ω]
IR pass-thru
Bi-directional
RS-232 support Yes
Input 1x HDMI
1x 3.5mm
1x RJ-45[HDBaseT]
1x 3.5mm
Output
1x RJ-45[HDBaseT]
1x 3.5mm
1x HDMI
1x 3.5mm
HDMI source control Controllable via IR pass-through from RX to TX with IR extenders
HDMI connector
Type A [19-pin female]
Min DIN connector
DIN-9
RJ-45 connector WE/SS 8P8C(Reverse Mode)
Rotary control switch
None
3.5mm connector
IR receiver / IR blaster
IR receiver / IR blaster
Mechanical
CV-57VR[Tx]
CV-57VR[Rx]
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
73 x 89 x 26mm [2.9" x 3.5" x 1"]
Package
175 x 125 x 216mm [6.8" x 4.9" x 8.5"]
Carton
647 x 366 x 237mm [2'1" x 1'2" x 9.3"]
Weight
Model
200g [7oz]
196g [6.9oz]
Package
900g [2 lbs]
Fixedness
Wall-mounting case with screws
Power supply
5V 2A DC
Power consumption
3 Watt [max]
7 Watt [max]
Operation
temperature 0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
DIP Switch Position
Description
TX& RX
PIN#1
ON [](DTE) TxD: The 2
nd
pin of RS-232, which is in charge of sending data
RxD: The 3rd pin of RS-232, which is in charge of receiving data
OFF [](DCE) TxD: The 3
rd
pin of RS-232, which is in charge of sending data
RxD: The 2
nd
pin of RS-232, which is in charge of receiving data
PIN#2
ON [

]
Firmware Update
OFF [] Normal
