Kobalt SGY-AIR236 User manual

ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your
retailer, please call our Customer Service Department at
1-888-3KOBALT, 8 a.m. – 8 p.m., EST, Monday – Friday.
ITEM #0840780
MODEL #SGY-AIR236
1/2-IN 1000-FT-LB
IMPACT WRENCH
Français p. 16
Español p. 31
AB171057
Kobalt®is a registered trademark of LF, LLC.
All rights reserved.
1

2
TABLE OF CONTENTS
Safety Information..........................................................................................3
Compressor Requirements.............................................................................2
Package Contents..........................................................................................9
Product Specifications....................................................................................3
Preparation...................................................................................................10
Assembly Instructions...................................................................................10
Operating Instructions..................................................................................12
Care and Maintenance.................................................................................13
Troubleshooting............................................................................................14
Warranty.......................................................................................................15
COMPRESSOR REQUIREMENTS
IMPORTANT: To operate correctly, this tool requires airflow of at least 5
Standard Cubic Feet per Minute (SCFM) at 90 Pounds per Square Inch (PSI)
at the tool. The air hose length could affect how much air pressure the tool is
actually receiving. You may need to adjust the air pressure higher on the air
regulator to achieve the working pressure of 90 PSI.
5
SCFM 90 PSI
Tool Requirements
Exigences relatives aux outils
Requisitos de herramientas
@

3
PRODUCT SPECIFICATIONS SPECIFICATIONS
COMPONENT
SAFETY INFORMATION
Please read and understand this entire manual before attempting to
assemble, operate or maintain this product. If you have any questions,
please call our Customer Service Department at 1-
To reduce your exposure to chemicals, work in a well-ventilated area and
work with approved safety equipment, such as a respirator or dust masks
which are specially designed to filter microscopic particles.
888-3KOBALT,
8 a.m. – 8 p.m., EST, Monday – Friday.
WARNING
WARNING
Improper operation or maintenance of this tool could result in serious injury
and property damage. Read and understand all warnings and operation
instructions before using this tool. When using any tool, basic safety
precautions should always be followed to reduce the risk of personal injury.
Use each tool for its intended function only. Do not use this product in
unsafe work conditions. It is always recommended to keep a fire
extinguisher and first aid kit near work areas.
FAILURE TO OBSERVE AND FOLLOW SAFETY INSTRUCTIONS COULD
RESULT IN INJURY OR DEATH.
1/2 IN.
7,000 RPM
1,000 FT.-LBS.
5 SCFM
1/4 IN. NPT
3/8 IN.
90 PSI
DRIVE
FREE SPEED
MAXIMUM TORQUE
AVERAGE AIR CONSUMPTION
AIR INLET
AIR HOSE
WORKING PRESSURE

4
SAFETY INFORMATION
RISK OF EYE OR HEAD INJURY
WARNING
WARNING
WARNING
WHAT COULD HAPPEN HOW TO PREVENT IT
WHAT COULD HAPPEN HOW TO PREVENT IT
WHAT COULD HAPPEN HOW TO PREVENT IT
This air powered tool is capable of
propelling materials such as
fasteners, metal chips, and other
debris at high speed which could
result in serious injury.
Always wear ANSI approved Z87.1
safety glasses.
Never leave operating tool
unattended.
Disconnect tool from air supply when
tool is not in use or when changing
accessories to prevent accidental
operation.
Compressed air can be hazardous,
propelling objects or particles that
can cause injury into soft tissues
such as eyes and ears.
For additional protection, use an
approved face shield in addition to
safety glasses.
Tool attachments can become loose
or break and fly apart, becoming
projectiles or propelling other objects
at the operator or bystanders in the
work area.
Make sure all attachments are
properly assembled and securely
fastened before use.
Always use the tool at a safe distance
from others in the work area.
Maintain awareness of work area
safety at all times.
RISK OF LOSS OF HEARING
RISK OF FIRE OR EXPLOSION
Always wear ANSI S3.19 hearing
protection.
Exposure to noise produced by air
tools can lead to permanent hearing
loss.
This tool is capable of generating
sparks, which can result in ignition of
flammable materials.
Never operate tools near flammable
substances such as gasoline,
naphtha, cleaning solvents, etc.
Work in a clean, well-ventilated area
free of combustible materials.
Never use oxygen, carbon dioxide or
other bottled gases as a power
source for air tools.

5
SAFETY INFORMATION
WARNING
WARNING
WHAT COULD HAPPEN HOW TO PREVENT IT
WHAT COULD HAPPEN HOW TO PREVENT IT
RISK OF ENTANGLEMENT
RISK OF CUTS OR BURNS
Loose hair, clothing, jewelry or other
loose objects can become entangled
in the moving elements of this tool
and can cause serious injury.
Do not wear loose clothing, jewelry,
or anything that may get caught or
tangled when using tool.
Remove any jewelry which may be
caught by the tool.
Always keep hands and body parts
away from moving parts.
Always wear properly fitted clothing
and other properly fitted safety
equipment when using this tool.
This tool is capable of causing
serious injury if operated improperly,
or in a manner for which the tool is
not intended.
Keep the working part of the tool
away from hands and body.
Accessories can become extremely
hot through friction where they
contact the workpiece.

6
SAFETY INFORMATION
RISK OF ELECTRIC SHOCK
WARNING
WARNING
WHAT COULD HAPPEN HOW TO PREVENT IT
WHAT COULD HAPPEN HOW TO PREVENT IT
RISK OF PERSONAL INJURY
This tool is not provided with an
insulated gripping surface. Contact
with a “live” wire will also make
exposed metal parts of the tool “live”
and can result in electrical shock,
electrocution or death.
Never use air tools where they may
come in contact with energized
electrical wiring.
Thoroughly investigate workpieces
and work areas for possible hidden
wiring before performing work.
Air tool accessories such as impact
sockets that come into contact with
hidden electrical wiring could cause
electrocution or death.
A tool left unattended or with the air
hose attached can be activated by
unauthorized persons leading to
their injury or injury to others.
Air tools can propel fasteners or
other materials throughout the work
area.
Air tools can become activated by
accident during maintenance or tool
changes.
Disconnect the tool from the air
supply during accessory changes,
tool changes, maintenance or repair.
Never carry the tool by the air hose.
To avoid unintentional operation,
never carry the tool with the trigger
depressed or engaged.
Only an authorized service
representative should service the
tool.
Remove air hose when the tool is
not in use and store tool in a secure
location away from reach of children
and untrained users.
Use only parts, fasteners and
accessories recommended by the
manufacturer.
Keep work area clean and free of
clutter.
Do not allow children to operate tool,
and keep children away from the
work area.
Keep work area well lit.

7
SAFETY INFORMATION
RISK OF PERSONAL INJURY
WARNING
WHAT COULD HAPPEN HOW TO PREVENT IT
Air tools can cause the workpiece to
move upon contact, leading to injury. Always make sure the workpiece is
secure. Use clamps or other devices
to prevent movement.
Before changing accessories,
making repairs, or when tool is not in
use, shut off the air supply and
release/drain air pressure from hose.
Disconnect tool from air supply and
store in a safe location.
Never use the tool while using drugs
or alcohol.
Loss of control of the tool can lead
to operator injury or injury to others
in the work area.
There is a risk of bursting if the tool
is damaged.
Poor quality, improper or damaged
attachments can detach or fly apart
during operation, sending projectiles
through the work area and causing
serious injury.
Follow lubrication instructions for
best and safest operation.
Follow instructions on how to
properly change accessories.
Always use tool attachments rated
for the speed of the power tool.
Never use tools, which have been
dropped, impacted, or are damaged.
Do not apply excessive force to the
tool; let the tool perform the work.
Never use a tool that is leaking air,
has missing or damaged parts, or
requires repairs.
Keep proper footing at all times when
handling tools. Slipping, tripping
and/or falling are major causes of
serious injury and or death.
Keep tool handles dry, clean and
free from oil/grease.
Stay alert. Use common sense.
Do not operate tools when you are
tired.
Always follow assembly, operation,
maintenance instructions.

8
SAFETY INFORMATION
RISK OF PERSONAL INJURY
WARNING
WHAT COULD HAPPEN HOW TO PREVENT IT
Improperly maintained tools and
accessories can cause serious injury.
Using an accessory not intended for
a specific tool increases the risk of
injury to the operator and everyone
else in the work area.
Repetitive motions, awkward
positions and exposure to vibration
can be harmful to hands and arms.
Discontinue use of tool if discomfort,
tingling feeling or pain occurs.
Consult a physician before resuming
use if any of these symptoms occur.
Always use accessories and
attachments designed for the tool
and the work at hand.
Do not improvise or modify tools or
accessories.
Maintain the tool and accessories
with care.
Keep tools clean and properly oiled
for best and safest performance.

9
PACKAGE CONTENTS
PREPARATION
DESCRIPTION QUANTITY
1
1
1
1
1
1
1
PART
A
B
C
DR
DF
F
1/2 in. Impact Wrench
Anvil
Trigger
Reverse Button
Forward Button
Air Inlet
E Torque Setting Switch
B
C
F
A
DR DF
E
Before assembling this tool, make sure all parts are present. Compare parts
with package contents list. If any part is missing or damaged, do not attempt
to assemble the tool.
Tools and Materials Required for Assembly (not included):
• 3/4 in. (19 mm) wrench
• 9/16 in. (14 mm) or adjustable wrench
• Thread sealant tape
• Tool oil
• Male plug
Estimated Assembly Time: 1 – 3 minutes
R
F

10
ASSEMBLY INSTRUCTIONS 1
2
1. Remove plastic air inlet protective cap
from air inlet (E) (See Figure 1).
NOTE: The air inlet (E) will spin freely, so
two wrenches are required to inert the
male plug.
2. Insert the male plug into the air inlet (E).
Using a 3/4 in. (19 mm)
wrench (not included) hold the air inlet
nut (E), and tighten the male plug by
turning it clockwise using a 9/16 in.
(14 mm) wrench (not included)
for an air tight connection (See Figure 2).
DO NOT OVERTIGHTEN.
E
E
33. Place 2 – 3 drops of air tool oil
(not included) into the opening of the
male air plug before each use
(See Figure 3).
NOTE: Use threaded sealant tape
(not included) on the threading of the
male plug.

11
ASSEMBLY INSTRUCTIONS
5
6
6. Connect the air supply hose to the male air
plug (See Figure 6), making sure it is
completely seated and secure. Set the
working pressure at 90 PSI for best tool
performance.
5. For a longer reach, mount the socket onto
the end of an extension bar (not provided)
and then mount the extension bar onto the
anvil (See Figure 5).
TM
Working pressure is the amount of
air pressure the tool sees when operating.
NOTE:
4
B
4. Select the correct impact socket
(not included) and mount it onto
the anvil (B) until it clicks into place
(See Figure 4).
Use only adapters and sockets with a torque
rating equal to or greater than the tool itself.
Always make sure adapters and sockets are
properly mounted and secure before using
the tool. Loose attachments can break or fly
off, causing serious injury to the operator or
bystanders in the work area. Always follow
all manufacturers’ specifications for proper
attachment and use.
WARNING
NOTE: Make sure the socket and extension
bar are securely fastened before operating
the tool. B

12

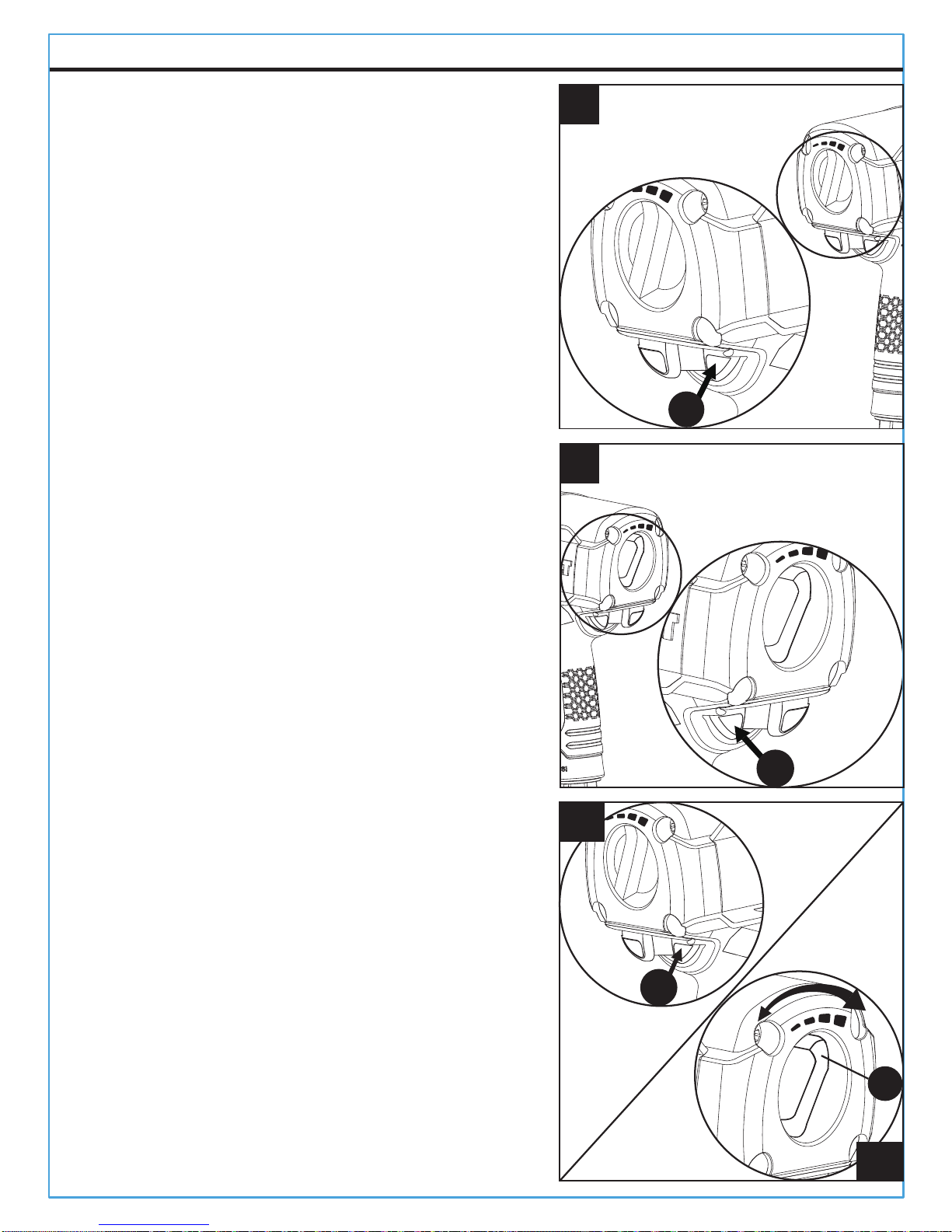

OPERATING INSTRUCTIONS
1. To operate the tool in the forward
direction, push the forward button (DF)
(See Figure 1).
2. To operate the tool in the reverse
direction, push the reverse button (DR)
(See Figure 2).
This tool has 4 forward and 1 reverse torque
settings with the maximum torque being in
the reverse direction.
3. To select a torque setting in the forward
direction, make sure forward button (DF)
is pushed in all the way (See Figure 3-1).
The torque indicator goes from low to high
(See Figure 3-2).
The smaller the rectangle, the lower the
torque; the larger the rectangle, the higher
the torque.
To choose the the appropriate torque setting
required for the specific job, turn the torque
setting switch (E) either clockwise or
counterclockwise (See Figure 3-2).
2
R
F
R
F
1
R
F
R
F
R
F
DF
R
F
DR
E
DF
3-1
3-2

13
CARE AND MAINTENANCE
ALWAYS DISCONNECT TOOL FROM THE AIR SUPPLY BEFORE
PERFORMING ANY MAINTENANCE ON THE TOOL.
Always make sure the tool is properly lubricated during operation. Proper
lubrication is shown in this instruction manual.
An in-line oiler (not included) is recommended to help increase tool life and
keep the tool properly lubricated. The in-line oiler should be regularly
checked and filled with air tool oil as needed. Proper adjustment of the in-line
oiler can be performed by placing a sheet of paper next to the tool’s exhaust
ports while holding the throttle completely open for 30 seconds. When a light
stain of oil collects on the paper, the oiler is properly adjusted. Excessive
amounts of oil should be avoided.
Clean the entire tool with a cotton rag and lubricate the tool after each use.
If storing the tool for an extended period, run for approximately
30 seconds to ensure oil has been evenly distributed throughout the tool.
Always store tools in a clean, dry environment away from the reach of
children.
Recommended lubricants: air-tool oil or any other high grade turbine oil
containing moisture absorbent, rust inhibitors, metal wetting agents and an
EP (Extreme Pressure) additive. Consult your local retailer for further
assistance in selecting air tool oil best suited for proper lubrication.
STORING:
Tool must be well cleaned and lightly lubricated before storing.
Store tool in a dry, safe place out of the reach of children.

14
TROUBLESHOOTING
POSSIBLE PROBLEM SOLUTION
Air hose leaks.
Replace rotor blade.
Water in compressor tank; drain tank. (See air
compressor manual.)
Oil the tool and run until no water is evident.
Oil the tool again and run 1 – 2 seconds.
Low air pressure.
Worn rotor blade.
Moisture blowing out of
tool exhaust.
Be sure the hose is the proper size. Long hoses
or tools using large volumes of air may require
an internal diameter of 1/2 in. I.D. or larger,
depending on total hose length.
Do not use multiple hoses connected together
with quick-connect fittings. This causes
additional loss of pressure and reduces the tool
power. Use single hoses of the proper length.
Tighten and seal hose fittings if leaks are found.
Use sealing tape.
If the tool runs slowly or will not operate, check these possible problems and
take the required corrective action:
Grit or gum in tool.
No oil in tool.
Low air pressure. Lubricate the tool.
Adjust the regulator on the tool to the maximum
setting.
Adjust the compressor regulator to tool
maximum of 90 PSI.
NOTE: Air hoses may cause up to 15 PSI loss
in pressure, so you may need to set a higher
compressor output to maintain the required
pressure at the tool.
Flush the tool with air-tool oil or gum solvent.

15
WARRANTY
This tool is warranted by the manufacturer to the original purchaser from the
original purchase date for three (3) years subject to the warranty coverage
described herein.
This tool is warranted to the original user to be free from defect in material
and workmanship. If you believe that a tool is defective, return the tool with
proper proof of purchase to the point of purchase. If it is determined that the
tool is defective and covered by this warranty, the distributor will replace the
tool or refund the purchase price.
This warranty is void if: defects in materials or workmanship or damages
result from repairs or alterations which have been made or attempted by
others or the unauthorized use of nonconforming parts; the damage is due
to normal wear, damage is due to abuse (including overloading of the tool
beyond capacity), improper maintenance, neglect or accident; or the damage
is due to the use of the tool after partial failure or use with improper
accessories or unauthorized repair or alteration.
This warranty gives you specific legal rights, and you may also have other
rights that vary from state to state.
For warranty questions, call our customer service department at
1-888-3KOBALT, 8:00 a.m.-8:00 p.m. EST, Monday-Friday.
Printed in China

JOIGNEZ VOTRE REÇU ICI
Numéro de série Date d'achat
Des questions, des problèmes, des pièces manquantes? Avant
de retourner l'article au détaillant, communiquez avec notre service
à la clientèle au 1 888 3KOBALT, entre 8 h et 20 h (HNE), du lundi
au vendredi.
ARTICLE #0840780
MODÈLE #SGY-AIR236
CLÉ À CHOCS DE 1/2 PO
ET DE 1000 LB-PI
Kobalt®est une marque de commerce
déposée de LF, LLC. Tous droits réservés.
16

17
TABLE DES MATIÈRES
Consignes de sécurité..................................................................................18
Exigences relatives au compresseur............................................................17
Contenu de l’emballage................................................................................24
Caractéristiques du produit...........................................................................18
Préparation...................................................................................................25
Instructions pour l’assemblage.....................................................................25
Mode d’emploi..............................................................................................27
Entretien.......................................................................................................28
Dépannage...................................................................................................29
Garantie........................................................................................................30
EXIGENCES RELATIVES AU COMPRESSEUR
IMPORTANT : Pour fonctionner convenablement, cet outil nécessite un débit
d’air d’au moins 5 pi³/min standard à une pression de 90 lb/po². La longueur
du tuyau à air peut avoir une incidence sur la pression d’air reçue par l’outil.
Il est possible que vous ayez à augmenter la pression d’air sur le régulateur
de débit d’air afin d’atteindre la pression de service de 90 lb/po².
5
SCFM 90 PSI
Tool Requirements
Exigences relatives aux outils
Requisitos de herramientas
@

18
CARACTÉRISTIQUES DU PRODUIT
CARACTÉRISTIQUESCOMPOSANTE
CONSIGNES DE SÉCURITÉ
Veuillez vous assurer de lire et de comprendre l’intégralité du présent guide
avant d’assembler, faire fonctionner ou entretenir cet article. Si vous avez
des questions, veuillez téléphoner au service à la clientèle au
1 888 3KOBALT, entre 8 h et 20 h (HNE), du lundi au vendredi
Afin de limiter votre exposition à des produits chimiques, travaillez dans un
endroit bien ventilé et utilisez de l’équipement de sécurité approuvé, tel
qu’un appareil respiratoire ou un masque antipoussières conçu
spécialement pour filtrer les particules microscopiques.
AVERTISSEMENT
Une utilisation ou un entretien inadéquats de cet outil peut entraîner des
blessures graves ou des dommages matériels. Assurez-vous de lire et de
comprendre tous les avertissements et toutes les instructions avant d’utiliser
l’outil. Lorsque vous utilisez un outil, observez toujours les mesures de
sécurité de base afin de réduire les risques de blessure. Utilisez uniquement
un outil, quel qu’il soit, pour l’usage auquel il est destiné. N’utilisez pas cet
article dans des conditions de travail dangereuses. Il est toujours
recommandé d’avoir un extincteur d’incendie et une trousse de premiers
soins à proximité des aires de travail.
LE NON-RESPECT DES CONSIGNES DE SÉCURITÉ PEUT ENTRAÎNER
DE GRAVES BLESSURES OU LA MORT.
1/2 PO
7000 TOURS/MINUTE
1000 LB-PI
5 PI³/MIN STANDARD
1/4 PO NPT
3/8 PO
90 LB/PO²
EMBOUT
VITESSE LIBRE
COUPLE MAXIMAL
CONSOMMATION D’AIR MOYENNE
ENTRÉE D’AIR
TUYAU À AIR
PRESSION DE SERVICE
AVERTISSEMENT

19
CONSIGNES DE SÉCURITÉ
RISQUES DE BLESSURE AUX YEUX OU À LA TÊTE
AVERTISSEMENT
RISQUES MESURES PRÉVENTIVES
RISQUES MESURES PRÉVENTIVES
Cet outil pneumatique peut projeter
des fixations, des fragments de
métal et d’autres débris, ce qui
peut causer des blessures graves.
Portez toujours des lunettes de
sécurité conformément à la norme
ANSI Z87.1.
Ne laissez jamais un outil en marche
sans supervision.
Débranchez l’outil de l’alimentation
en air lorsque vous ne l’utilisez pas
ou lorsque vous changez
d’accessoire, afin d’éviter qu’il se
déclenche accidentellement.
L’air comprimé peut être dangereux,
car il est susceptible de projeter des
objets ou des particules pouvant
causer des blessures aux tissus
mous du corps, notamment les
yeux et les oreilles.
Pour plus de protection, utilisez un
écran facial approuvé et portez des
lunettes de sécurité.
Les accessoires de l’outil peuvent se
desserrer ou se briser et se
détacher. Ils peuvent ainsi se
transformer en projectiles ou
percuter d’autres objets et les
projeter vers l’utilisateur ou d’autres
personnes se trouvant dans la zone
de travail.
Assurez-vous que tous les
accessoires sont bien assemblés et
correctement fixés avant d’utiliser
l’outil.
Utilisez toujours l’outil à une distance
sécuritaire des autres personnes
présentes dans l’aire de travail.
Assurez-vous que les mesures de
sécurité dans l’aire de travail sont
connues en tout temps.
RISQUE DE PERTE AUDITIVE
Portez toujours des protecteurs
auditifs conformes à la norme
ANSI S3.19.
L’exposition au bruit produit par les
outils pneumatiques peut entraîner
une perte auditive permanente.
AVERTISSEMENT

20
CONSIGNES DE SÉCURITÉ
RISQUE D’EMMÊLEMENT
RISQUE DE COUPURE OU DE BRÛLURE
Les cheveux, les bijoux ou les
vêtements amples peuvent se
prendre dans les pièces mobiles de
cet outil et causer des blessures
graves.
Ne portez pas de vêtements amples,
de bijoux, ni tout autre article qui
pourrait s’accrocher ou s’emmêler
dans l’outil lorsque vous utilisez l’outil.
Retirez tout bijou susceptible de
s’accrocher dans l’outil.
Gardez toujours vos mains et les
autres parties de votre corps à
distance des pièces en mouvement.
Portez toujours des vêtements et un
équipement de protection bien
ajustés lorsque vous utilisez cet outil.
Cet outil peut causer des blessures
graves s’il est utilisé d’une manière
inadéquate ou autre que celle pour
laquelle il est conçu.
Prenez garde à vos mains lorsque
vous utilisez l’outil.
La friction des accessoires sur les
pièces travaillées peut rendre ces
derniers extrêmement chauds.
RISQUES D’INCENDIE OU D’EXPLOSION
Cet outil peut produire des étincelles
susceptibles d’enflammer certains
matériaux.
N’utilisez jamais un outil à proximité
d’une substance inflammable
comme de l’essence, du naphta, des
solvants de nettoyage, etc.
Travaillez dans un endroit propre,
bien ventilé et dépourvu de
matériaux combustibles.
N’utilisez jamais d’oxygène, de
dioxyde de carbone ni d’autre gaz
embouteillé comme source
d’alimentation pour les outils
pneumatiques.
AVERTISSEMENT
AVERTISSEMENT
AVERTISSEMENT
RISQUES MESURES PRÉVENTIVES
RISQUES MESURES PRÉVENTIVES
RISQUES MESURES PRÉVENTIVES
