i
User Manual
DIGITAL CAMERA
KODAK PIXPRO AZ405
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Kodak PIXPRO
Astro Zoom AZ405 Bianco o cerca il tuo prodotto tra le migliori offerte di Fotocamere

1
Declaration of Conformity
Responsible Party: JK Imaging Ltd.
Address: JK Imaging Ltd., 17239 So. Main Street, Gardena, CA 90248 USA
Company website: kodakpixpro.com
For Customers in the USA
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired camera operation.
For Customers in Europe
"CE" mark indicates that this product complies with the European requirements for safety, health,
environment and customer protection. "CE" marked cameras are intended for sales in Europe.
This symbol [crossed-out wheel bin WEEE Annex IV] indicates separate collection of electrical waste
and electronic equipment in the European countries. Please do not throw the equipment into domestic
refuse. Please use the return and collection systems available in your country for proper, safe disposal
of this product.
Batteries: Please dispose of used batteries at designated collection centers.
Packaging: Please follow local regulations for the recycling of packaging.
BEFORE YOU START

2
About this Manual
Thank you for purchasing this KODAK PIXPRO Digital Camera. Please read this manual carefully and keep it in
a safe place for future reference.
JK Imaging Ltd. reserves all rights of this document. No part of this published manual may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated into any language or computer
language, in any form, by any means, without the prior written permission of JK Imaging Ltd.
All trademarks mentioned in this manual are used for identiication purposes only and are properties of
their respective owners.
This manual provides you with instructions on how to use your new KODAK PIXPRO Digital Camera. Every
effort has been made to ensure that the contents of this manual are accurate: however JK Imaging Ltd.
reserves the right to make changes without notice.
Throughout this manual, the following symbols are used to help you locate information quickly and easily:
Indicates useful information.
The following symbols may be used throughout this manual to facilitate your understanding of how to
operate the camera:
[Item properties]: The optional properties in the camera interface are indicated by the [ ] symbol.

3
SAFETY NOTES
Safety Notes for this Camera
Do not drop the camera or allow it to hit solid objects.
Do not attempt to disassemble or repair the camera.
Do not use or store the camera in dusty places or on a beach without taking precautions to help prevent
dust or sand from entering the camera, causing possible damage.
Do not use or store the camera in a hot environment or in direct sunlight.
Do not use or store the camera near powerful magnetic ields, for example near a magnet or transformer.
Avoid touching the lens of the camera.
Do not expose the camera to direct sunlight for a long period of time.
To prevent the camera from being damaged by moisture, do not use or store the camera in very humid
environments, such as in rain or near bodies of water.
If water accidentally comes in contact with the camera, turn the camera off immediately, remove the
battery and the memory card and dry it completely within 24 hours.
When you take the camera from a cold environment to a warmer environment, condensation may occur.
Please wait for a reasonable period of time before you turn the camera on and use it.
Before you remove the battery and memory card, the camera should be turned off.
When you clean the body of the camera, do not use abrasive, alcohol-based or organic cleansers or solvents.
Use a professional lens cleaning cloth and appropriate cleaner to wipe and clean the lens.
Download your photos and remove the memory card when you are going to store the camera for long
periods of time.
If this camera is not in use for a long period of time, please keep it in a dry and clean storage location.
Our company will not pay compensation for any failure of playback including: pictures or videos damaged
or unrecoverable by improper operation.

4
Safety Notes for Batteries
If battery luid leaks inside the camera, contact our customer service department immediately. If battery
luid leaks onto your skin, rinse your skin with clean water and seek immediate medical attention.
Disposal of used batteries should be carried out in accordance with your local (national or regional)
regulations.
To prevent the batteries from being damaged, do not drop the batteries or allow them to hit solid objects
or to be scratched by foreign objects.
Do not let the batteries come in contact with metal objects (including coins) to avoid short circuiting,
discharging, excessive heat or possible leakage.
Do not attempt to disassemble the batteries.
Do not expose the batteries to water. Always keep the batteries contacts dry.
Do not heat the batteries or throw them into a ire to avoid a possible explosion.
Do not store the batteries in a hot environment or in direct sunlight.
When the camera is stored for a long period of time, remove the batteries and keep them in a safe, dry
place that is not accessible to infants and children.
In colder environments, the performance of batteries could be noticeably reduced.
When you install the batteries, align the batteries markings according to the positive and negative
markings inside the camera battery compartment. Never force the battery into the battery compartment.

5
Safety Notes for Memory Cards
We highly suggest buying only well-known, name brand memory cards to ensure peak performance and
reliability. This KODAK PIXPRO digital camera is not sold with a SD card unless purchased as a bundle and
sold as such.
This KODAK PIXPRO digital camera uses a standard SD, SDHC or SDXC memory card, Class 10 or higher
with 4GB to 512GB of storage/memory.
Format the memory card using the camera before you use it or insert a new one.
Do not drop the memory card or allow it to hit solid objects to avoid damaging it.
Do not attempt to disassemble or repair the memory card.
Do not expose the memory card to water. Always keep it dry.
Do not remove the memory card when the camera is turned on. Otherwise, the memory card and photo /
video iles could be permanently damaged.
Do not directly edit the data on the memory card. Copy the data to your computer before you edit iles.
When the camera is stored for long periods of time, be sure to download your photos and remove the
memory card. Store the memory card in a dry environment.
Do not modify the name of the iles or folders of the memory card using your computer. Modifying the ile
names may cause the iles to not be recognized on the camera or a possible permanent error may occur.
A photo taken with the camera will be stored in the folder that is automatically generated on the memory
card. Do not store photos that are not taken using this camera in these folders as the pictures cannot be
recognized during playback.
When you insert the memory card, make sure the notch of the card matches the markings on the top of
the camera card slot.

6
Other Safety Notes
Do not disconnect the power or turn the camera off during the update process. Doing so may cause
incorrect data to be written and the camera may not power on later.
Do not hang the neck or wrist strap of the camera around the neck of a child.
When using your camera on an airplane, observe the relevant rules speciied by the airline and FAA
regulations.
Due to the limitations of manufacturing technology, the LCD may have a few dead or bright pixels. These
pixels do no effect the quality or performance of the camera, photos or video as is completely normal in
the manufacturing process.
Do not expose the camera’s LCD to water. In a humid environment, only wipe it with a soft, dry and
cleaning cloth.
If the LCD is damaged and the liquid crystal comes into contact with your skin, wipe your skin with a dry
cloth immediately and rinse it with clean water. If liquid crystal comes into contact with your eyes, wash
them with clean water at least for 15 minutes and seek immediate medical attention. If you accidentally
swallow liquid crystal, rinse your mouth immediately and seek medical attention.

7
WARNING
Altering, tampering or modifying the any parts of AZ405 camera is unauthorized and will void the
manufacturer’s warranty and “could” void Federal and/or State Compliance.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this camera equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the camera equipment and receiver
- Connect the camera equipment into an outlet on a circuit different from that to which the receiver is
connected
- Consult the dealer or an experienced radio / TV technician for help

8
BEFORE YOU START..........................1
SAFETY NOTES .................................3
CONTENTS........................................8
GETTING STARTED.......................... 12
Accessories Included......................................12

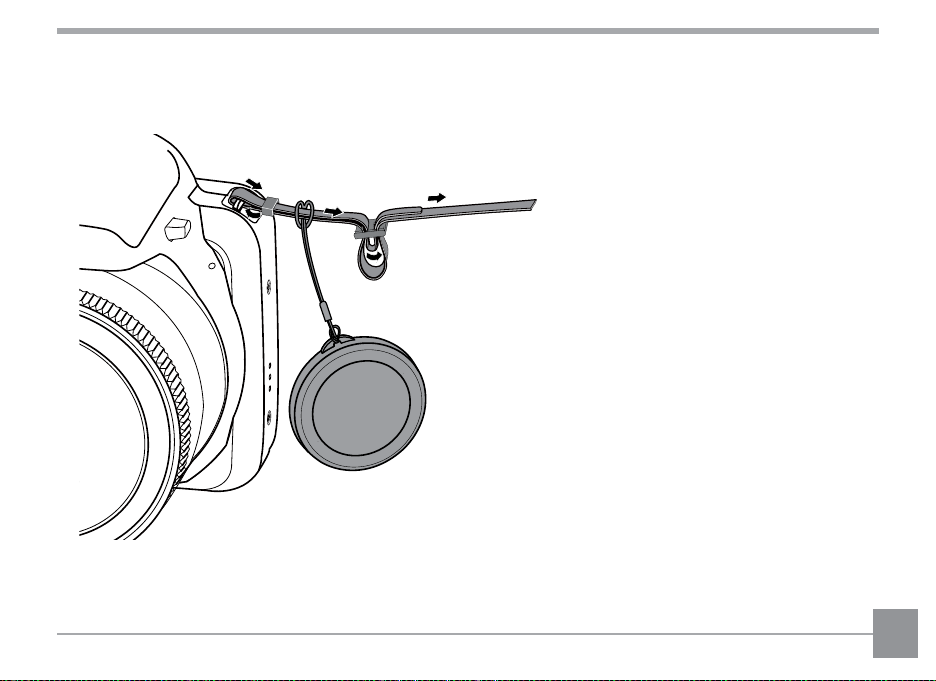

Installing Lens Cap and Neck Strap ...............13
Part Names ......................................................14
Installing AA Batteries and Memory Card ...... 15
Turning Camera On and Off ...........................17
How to Take Pictures.......................................18
Set your Language, Date / Time.....................18
Set your Language, Date / Time
after the First Power-On............................18
Resetting your Language..........................19
Resetting Date/Time .................................20
MODE OVERVIEW ........................... 21
Display Setting ................................................ 21
LCD Screen Display......................................... 22
Overview of the Screen Icons in
Photo Shooting Mode............................... 22
Overview of the Screen Icons in
Movie Mode............................................... 23
Overview of the Screen Icons in
Playback Mode.......................................... 24
Using the Mode Dial ........................................ 25
Auto Mode ..........................................25
Program AE ........................................25
Shutter Priority ...................................25
Aperture Priority ................................26
Manual Mode ..................................... 26
Face Beautiier .................................26
CONTENTS

9
Panorama Mode ................................27
Scene Mode ....................................28
Movie Mode ....................................... 31
Custom Settings ................................31
BASIC OPERATION.......................... 33
Using the Zoom Function................................33
Focus Setting...................................................34
Macro Mode.....................................................35
Self-Timer Setting............................................ 36
Flash Mode ......................................................37
White Balance Setting.....................................39
Continuous Shot ............................................. 40
EV Setting ........................................................41
Exposure Compensation ..........................41
ISO.............................................................41
Shutter Adjustment...................................42
Aperture Adjustment ................................42
Using Quick Recording ................................... 42
Color Setting ...................................................43
PLAYBACK ....................................... 45
Viewing Photos and Videos ............................ 45
Thumbnail View...............................................46
Using Zoom Playback (for still pictures only). 48
Slideshow ........................................................49
Animation Panorama Playback ....................... 50
Photo and Video Deletion ............................... 51
USING THE MENUS......................... 52
Photo Menu .....................................................52
Expo Metering
(Exposure Metering) .........................52
Image Size ........................................53
Continuous AF .................................. 53

10
OIS (Optical Image Stabilization) ....54
HDR (High Dynamic Range) .............54
Face Beautiier ..................................55
Scene .................................................55
Photo Shoot Settings Menu .....................56
Quality .......................................................56
AF Assist Beam..........................................57
Digital Zoom.............................................. 57
Date Imprint ..............................................58
Quick Review.............................................58
Custom Settings .......................................59
Face Detection ..........................................59
Movie Menu .....................................................60
Expo Metering
(Exposure Metering) .........................60
Video Quality ....................................61
OIS (Optical Image Stabilization) .... 62
Movie Shooting Settings Menu ...............62
AF Assist Beam..........................................63
Digital Zoom.............................................. 63
Custom Settings .......................................63
Playback Menu ................................................ 65
Display Mode .................................... 65
HDR (High Dynamic Range) ..............66
Touch-up ............................................ 66
Rotate .................................................67
Resize .................................................67
Color.......................................................... 68
Playback Settings Menu ......................... 69
Protect.......................................................69
Delete ........................................................70
DPOF (Digital Print Order Format)............ 71

11
Trim............................................................ 71
General Settings .....................................72
Sound Settings..........................................73
Power Saver...............................................73
Language...................................................74
World Time ................................................74
Date & Time............................................... 74
LCD Brightness..........................................74
Connection Settings ...............................75
Connecting to a Computer ......................76
Transferring Files to Your Computer ........ 76
File Settings ............................................ 77
Format ......................................................78
Copy to Card............................................. 78
File Numbering..........................................79
Reset..........................................................79
Firmware (FW) Version .............................. 79
APPENDICES ................................... 80
Speciications..................................................80
Prompts and Warning Messages .................... 84
Troubleshooting ..............................................88
Memory Card Compatibility ...........................89

12
GETTING STARTED
Accessories Included
Your camera box should contain the camera model you purchased along with the following accessories.
If anything is missing or appears to be damaged, please contact your retailer irst or our customer service
center.
*AA Alkaline ‘Starter’
Battery x4
Micro USB Cable Neck Strap Lens Cap with Cord
Quick Start Guide
WarrantyCard
STOP
Quick Start Guide Warranty Card Service Card
*The AA Alkaline ‘Starter’ batteries are intended to allow you to test and set up your new camera. We
highly recommend purchasing name brand, top tier AA batteries for best performance and to keep extra
batteries on hand to swap out when needed.

13
Installing Lens Cap and Neck Strap
1
3
4
5
2

14
Part Names
22 2321
20
19
18
28
17
2112324 25 26
27
4
5
6
12
13
15 1416
29
78
911
10
1LCD 10 [] Delete Button / Self-Timer
Button / Arrow Button (Down) 20 Continuous Shot Button
2Fast Video Recording
Button 11 [] Macro Button /
Arrow Button (Left)
21 Strap Eyelet
3 Indicator Lamp 22 Power Switch
4 Micro USB Port 12 Playback Button 23 AF Assist Beam /
Self-Timer Lamp
5Menu Button 13 Display Button
6“I” Button 14 Battery Cover Lock 24 Mode Dial
7[] AF Button /
Arrow Button (Up)
15 Battery Door Cover 25 Flash Lamp
16 Tripod Socket 26 Flash Button
8SET Button 17 Zoom Lever 27 Microphone
9[] Flash Button /
Arrow Button (Right)
18 Shutter Button 28 Speaker
19 Exposure Compensation Button 29 Lens

15
Installing AA Batteries and Memory Card
1. Open the battery cover door. 2. Insert 4 AA batteries into the battery slot in
the correct direction as shown in the following
diagram:
3
1
2
Please use brand name batteries (such as Energizer®, Duracell® or equivalent) for optimal performance.
Do not mix new and old batteries or use different brands of batteries. When replacing batteries, please
replace all 4 batteries at the same time.
The performance and life expectancy of alkaline batteries will vary depending on the brand.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, i-mh, etc.) batteries.

16
3. Insert the memory card into the memory card
slot as shown in the diagram below:
4. Close the battery cover door.
Write Protection
Toggle Switch
1
2
A memory card (SD / SDHC / SDXC) is necessary to store photos and videos and not included in all
camera packaging. It needs to be purchased separately. Please use a memory card which is Class 10 or
higher and has a capacity of 4GB to 512GB.
To remove your memory card, open the battery cover door, gently press the memory card to eject it and
remove it carefully.

17
Turning Camera On and Off
Slide the Power Switch to turn the camera on/off.
Power Switch
When the power is off, press and hold the Playback Button to power on and enter Playback Mode.

18
How to Take Pictures
1. Hold the camera with both hands, being careful to not block the lash and lens with ingers.
2. Point the Lens toward the object you want to take a picture of, then frame it with the LCD.
3. Use the Zoom Lever to select Tele or Wide positions to zoom in or out on your subject.
4. Press the Shutter Button halfway down to focus on the subject. When the focus frame turns green, press
the Shutter Button all the way down completely to take the picture.
Set your Language, Date / Time
Set your Language, Date / Time after the First Power-On
1. When you turn the camera on for the irst time, the language selection screen appears.
2. Press the [ ] / [ ] / [ ] / [ ] buttons to select your desired language.
3. After you press the button to conirm your language selection, the Date / Time settings screen will
appear.
4. Press the [ ] / [ ] buttons to select the Date / Time to be adjusted: This information is displayed in
YYYY.MM.DD / HH:MM.
5. Press the [ ] / [ ] buttons to adjust the value for the desired Date / Time.
6. Press the button to conirm the time settings and the snapshot screen will appear.

19
Resetting your Language
After you set your language for the irst time, follow the instructions below to reset your desired language.
1. Press the button and press the [ ] / [ ] buttons to select . Press the button to enter
the menu.
2. Press the [ ] / [ ] buttons to select , and press the / [ ] button to enter the menu.
3. Press the [ ] / [ ] buttons to select [Language] and press the / [ ] button to enter the
menu.
4. Press the [ ] / [ ] / [ ] / [ ] buttons to select your desired language and press the
button to conirm.
5. Press the button and the snapshot screen will appear.
Sound Settings
Power Saver Auto
Language English
World Time Home
Date & Time 2022.07.01 00:00
Español
English
Français
Português
Italiano
Deutsch
Svenska
Language
