Kodak Advantix T570 Auto-Focus User manual

T570 Auto-Focus
Camera
ENGLISH/ESPAÑOL
Consumer Imaging
EASTMANKODAKCOMPANY
Rochester, NY 14650
©EastmanKodakCompany,2001 Pt.No. 9201195
Unfoldfrontand backcoverflaps ofmanualtoviewcamera diagrams.
1
8
Camera Identification
2
3
4
5
7
1Shutterbutton
2Lenscover/flash
3Print-format
switch
4Self-timerlamp
5Viewfinder
6Meter-cell
window
7Lens
8Strappost
6
Unfoldfrontand backcoverflaps ofmanualtoviewcamera diagrams.

LCD Panel
19
20
9
21
13
14
15
16
12
10 11 9LCDpanel
10 Flash/camera-
readylamp
11 Viewfinder
eyepiece
12 Film-rewind
button
13 MENU
14 ENTER
15 Filmdoor
16 Filmchamber
17 Film-door
switch
18 SELECT
19 Batterydoor
20 MODES
21 Tripodsocket
Camera Identification
17
18
22 Date/timedisplay
23 Auto-flashindicator
24 Fill-flashindicator
25 Flash-offindicator
26 Mode-selectorarrow
27 ISOfilm-speed
display
28 Infinity-focus
indicator
29 Nightview indicator
30 PMindicator
31 Self-timerindicator
32 Title-selectindicator
33 Film-presence
symbol
34 Batterysymbol
35 Picturecounter
22
23 24 25
26
27
28
29
30
31
3233
34
35
Thisdevice complies with part 15of the FCC Rules. Operationis subject to the follow-
ing two conditions: (1) this device may not cause harmful interference, and (2) this
devicemust acceptany interference received, including interference that may cause
undesiredoperation.
NOTE: Your model camera has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits provide
reasonable protection against interference in residential use. The camera generates,
uses and can radiate radio frequency energy and, if not used in accordance with the
instructions, may cause interference to radio communications. There is no guarantee
that interference will not occur. If this camera does cause interference to radio or tele-
vision reception, which can be determined by turning the camera off and on, you may
reduce the interference by the following:
— Reorient or relocate the receiving antenna.
— Increase the separation between the camera and the receiver.
— Consult the dealer or an experienced radio/television technician for help.
Changes or modifications not approved by the party responsible for compliance could
void the user’s authority to operate the equipment.

1
NEED HELP WITH YOUR CAMERAOR MORE
INFORMATIONABOUT THEADVANCED PHOTO SYSTEM?
Go to our web site at http://www.kodak.com or call:
Kodak (USA only) from 9:00 a.m. to 7:00 p.m. (Eastern time)
Monday through Friday at 1 [phone].
When you call, please have your camera available.
For warranty purposes, please keep your sales receipt as proof
of the date of purchase.
KODAKADVANTI X
T570Auto-FocusCamera
ENGLISH

2
CAMERAFEATURESANDBENEFITS ... 3
GETTINGSTARTED ............................... 7
Loadingthebattery ..........................7
Dateandtime .................................. 8
Settingthedate ............................ 8
Settingthetime .......................... 10
Attachingthecamerastrap ............ 12
CONTROL-BUTTONACTUATOR ........... 13
OTHERBATTERYINFORMATION ......... 13
Low-batteryindicator ...................... 13
Batterytips .................................... 14
Powershut-off ................................ 15
LOADINGTHEFILM ............................ 16
TAKINGPICTURES ............................. 18
Typical print sizes (formats) ............ 20
Using the focus lock ........................ 21
Tips for better pictures ..................... 22
FLASHANDPICTURE-
TAKINGOPTIONS ............................. 23
Flash/camera-ready
lampindicator ............................. 24
Autoflash ...................................... 24
Fill flash ........................................ 24
Flashoff ........................................ 25
Nightview ...................................... 25
Infinityfocus ................................. 25
Selectingtheflashand
picture-takingoptions .................. 26
Flash/warning-lampsignals ........... 27
Flash-to-subjectdistance ............... 28
CONTENTS

3
CAMERAFEATURES
AND BENEFITS
Three Print Formats
•You can take three different
size pictures: Classic (C),
Group/HDTV (H), and
Panoramic (P) pictures from
the same film cassette. The
viewfinder changes to show
the selected picture size.
USINGTHESELF-TIMER .................... 28
SETTINGTHEPRINTTITLE
ANDLANGUAGE .............................. 30
Title-selectlist ............................... 32
Language-selectlist ...................... 33
UNLOADINGTHEFILM ........................ 33
Automaticrewind ........................... 33
Manualrewind ............................... 35
CARINGFORYOURCAMERA ............. 36
TROUBLESHOOTING ........................... 37
SPECIFICATIONS ................................ 40

4
Picture Quality Information
Exchange (PQix)
•This camera records vital
scene data on the film’s
magnetic information strip and
communicates that information
to the photo lab to optimize
lighting and color for better-
looking prints.
Date, Time, and Title Imprinting
•The date, time, and cassette
ID number are printed on the
back of your prints, which
makes it easy to organize
pictures and order reprints.
You can choose from one of
10 pre-programmed titles
(6 languages available) to print
on the back of the prints. See
your photofinisher for a full
description of the available
services.
Flip Flash
•The extension of the flash
helps to minimize red eyes in
flash pictures and prevents
hand obstruction in front of
the flash. When the flash is
closed, it protects the lens
and viewfinder.

5
Double Exposure Protection
(DEP)
•You don’t need to worry about
accidentally re-exposing your
film. Your camera reads the
Film Status Indicator (FSI) on
the film cassette to prevent re-
exposure.
Easy, Drop-in Loading
•Easy, drop-in loading is fast
and virtually error-free,
eliminating blank rolls and
double exposures. The camera
uses KODAK ADVANTIX Film.
The film cassette, unlike the
traditional 35 mm cartridge,
becomes the carrier and
storage container for the
processed film.

6
4
3
2
1
Look for this logo to be certain that the film
you buy is made for this camera.
ProcessedNegatives Fullyexposed
Partiallyexposed
Unexposed
Film Status Indicator (FSI)
•A highlighted indicator
advances from one symbol to
another to identify the status
of the film inside the cassette.
Look for this logo to select a certified photofinisher
for developing your film and to assure that you get all
the features of the Advanced Photo System.

7
GETTING STARTED
Loading the battery
This camera uses one 3V lithium
KODAK KCR2 (or equivalent)
Battery that supplies power for all
camera operations.
1. Open the battery door (19).
•Before you remove the old
battery, close the lens
cover/flash.
2. Insert the
battery
into the
chamber
as shown.
3. Snap the
battery
door
closed.
•After you load a new
battery into the camera, you
will need to reset the date
and time.

8
Date and time
This camera has a quartz clock
and automatic calendar through
the year 2040. It uses the film’s
magnetic data-recording
capabilityto record date and time
information which your photo-
finisher imprints on the back of
your prints.
Setting the date
You can choose from three
formats: month/day/year,
day/month/year, or
year/month/day.
1. Completely lift up the Lens
cover/flash (2) to raise the
flash and to turn on the
camera.

9

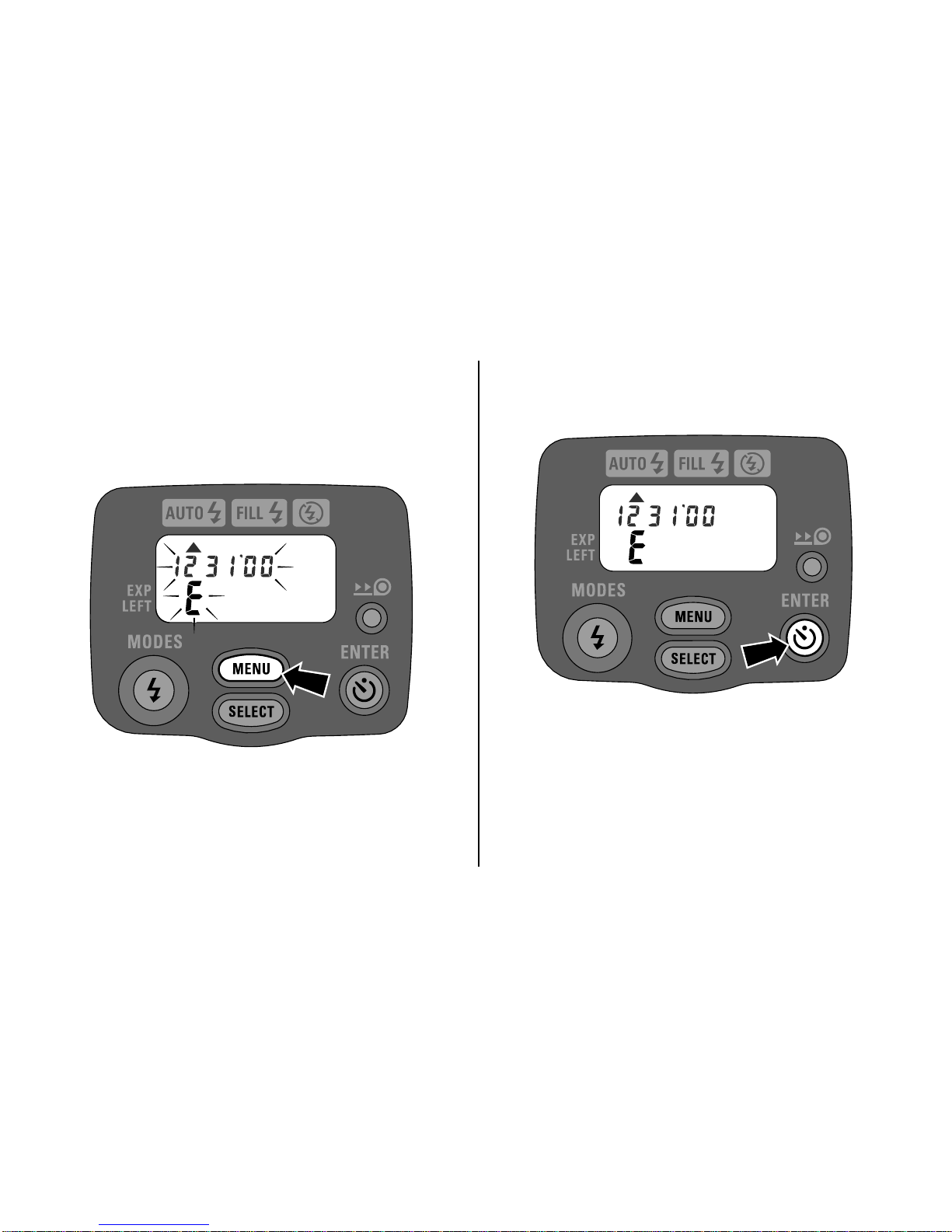

2. Repeatedly press MENU (13)
until the blinking “date format”
of your choice appears on the
LCD panel (9).
•The blinking “E”indicates
there is no film in the
camera.
3. Press
ENTER (14) to set the
format.
•If the camera is already at
this format, you can bypass
this step.

10

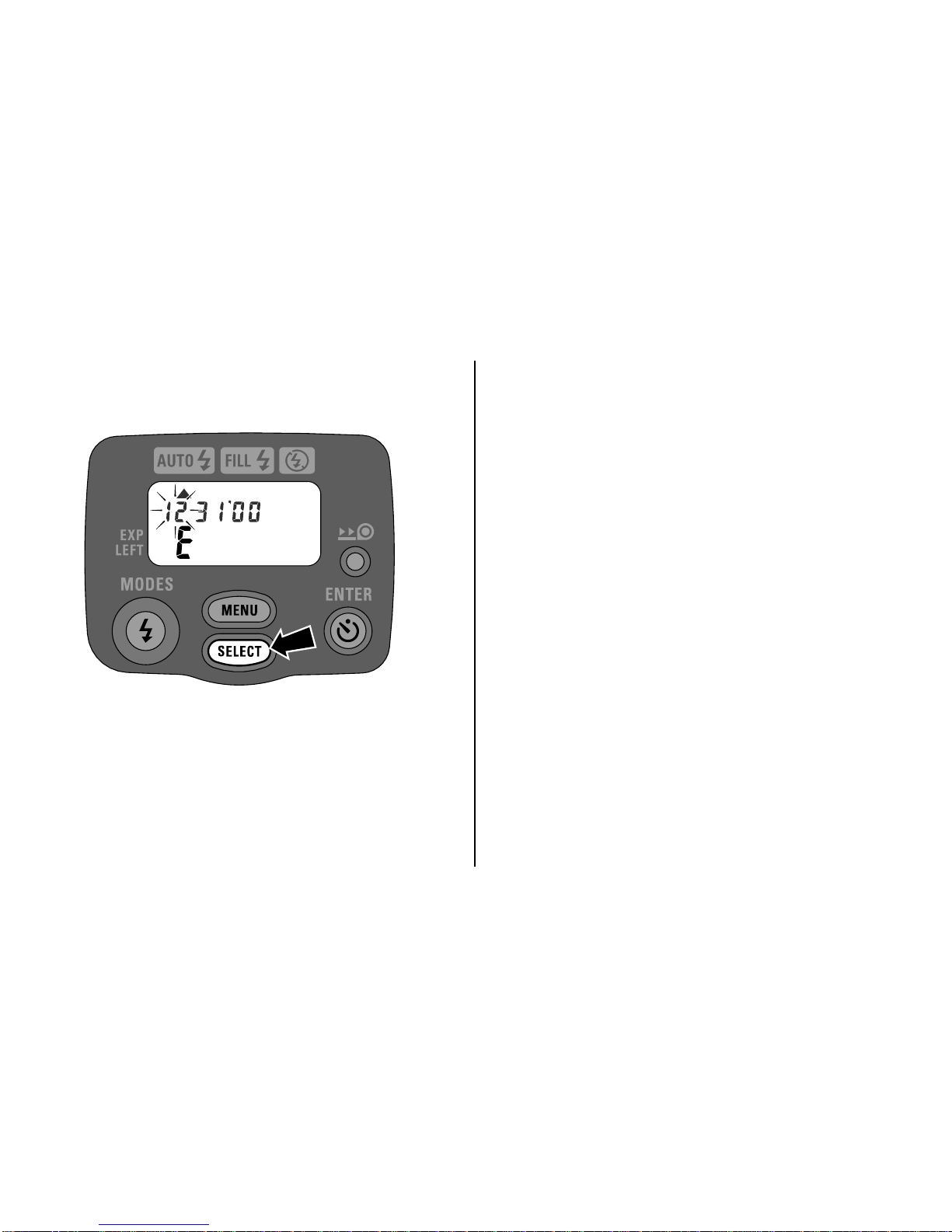

4. Press SELECT (18) to actuate
the setting for month.
5. Repeatedly press and/or hold
SELECT to select the new
number for month.
6. Press
ENTER (14) to set the
month and to actuate the
setting for day.
•Press
ENTER again if you
want to end the selection.
7. Follow steps 4 and 5 to finish
setting the date.
Setting the time
(hour/minutes)
The camera has a 12-hour clock
with PM display.
1. Completely lift up the Lens
cover/flash (2) to raise the
flash and to turn on the
camera.

11
2. Repeatedly press MENU (13)
until the time appears on the
LCD panel (9).
3. Press
SELECT (18) to actuate
the setting for hour.
4. Repeatedly press and/or hold
SELECT to select the new
number for hour.
5. Press ENTER (14) to set the
hour and to actuate the setting
for minutes.
6. Follow steps 3 and 4 to finish
setting the time.
•The camera automatically
defaults to the date setting
but you can view the time by
pressing
MENU .

12
Attaching the camera strap
1. Insert the shorter looped end
of the strap behind the Strap
post (8).
2. Thread the longer end of the
strap through the shorter loop.
3. Pull the strap tight.

13
OTHER BATTERY
INFORMATION
Low-battery indicator
It’s time to replace the
battery when —
•the Battery symbol (34)
“blinks”
on the LCD panel (9)
or
•none of the indicators, except
for a steady battery symbol,
appears on the LCD panel and
the Shutter button (1) cannot
be operated.
CONTROL-BUTTON
ACTUATOR
You can use the knob on the
clasp of the camera strap to
actuate the small control buttons
on the camera.

14
Battery tips
•Dispose of battery according
to local and national
regulations.
•Keep a spare battery with you
at all times.
•Read and follow all warnings
and instructions supplied by
the battery manufacturer.
•Keep batteries away from
children.
•Do not try to take apart,
recharge or short circuit the
battery, or subject it to
high temperature or fire.
•Store the battery in its original
packaging prior to use.
•Do not use rechargeable
batteries.
•Remove the battery from the
camera when the camera is
not going to be used for an
extended length of time.
•In the unlikely event that
battery fluid leaks onto your
skin, contact Kodak Health,
Safety and Environment
Information in the U.S. at
1-716-722-5151. Customers
outside the U.S. can contact
their local health
care provider.

15
•In the unlikely event that
battery fluid leaks inside the
camera, U.S. customers can
contact the Kodak Information
Center (KIC) at 1-800-242-2424.
Customers outside the U.S.
can contact their local Kodak
Customer Service
representative.
Power shut-off
To conserve battery power, the
camera automatically goes to
sleep if it is not operated for more
than 2 ½minutes. You can press
any of the control buttons,
except for the print-format switch,
or close and reopen the Lens
cover/flash (2) to awaken the
camera. When the camera is not
used for an extended time, close
the lens cover/flash to completely
turn off the camera.

16
LOADING THE FILM
You can load film into the camera
with the camera on or off.
1. Turn the camera upside down
and move the Film-door
switch (17) to open the Film
door (15).
•The safety interlocked film
door opens only when the
film chamber is empty or the
film in the camera is
completely rewound into the
film cassette.
2. Insert the film cassette
completely into the Film
chamber (16).
•Make sure the Film Status
Indicator (FSI) on the film
cassette is at
● (#1 position)
for a new cassette.

17
•Do not force the film
cassette into the film
chamber.
1
2
3
4
3. Close the film door to start the
automatic film advance.
•The Picture counter (35) on
the LCD panel (9) shows the
number of pictures remaining
on the film.

18
TAKING PICTURES
You can take Classic (C),
Group/HDTV (H)*, and
Panoramic (P) pictures on the
same film cassette. Your photo-
processing cost may be based on
the format size(s) that you use to
expose the film.
1. Completely lift up the Lens
cover/flash (2) to raise the
flash and to turn on the
camera.
* HighDefinitionTelevision(HDTV)
printsarethesame aspectratioas
theTVforCDinterface capabilities.
•The ISO film speed briefly
appears on the LCD panel
followed by the date.
2. Frame your subject within the
Viewfinder eyepiece (11). For a
sharp picture, stand at least
1.3 ft (0.4 m) from your
subject.
