Kodak Auto-Focus Camera User manual

Consumer Imaging
EASTMANKODAK COMPANY
Rochester, NY 14650
© Eastman Kodak Company,2002
Pt.No. 20228531
T570 Auto-Focus
Camera
CameraIdentification
Unfoldthe front and back flaps of this manual for easy reference to the camera’s parts.
Unfoldthe front and back flaps of this manual for easy reference to the camera’s parts.
1
2
3
4
5
7
8
ENGLISH/FRANÇAIS
1Shutterbutton
2Lens cover/flash
3Print-formatswitch
4Self-timerlamp
5Viewfinder
6Meter-cellwindow
7Lens
8Strappost
6

Thisdevice complies with part 15 of the FCC Rules. Operation is subject to
thefollowing two conditions: (1) this device may not cause harmful
interference,and (2) this device must accept any interference received,
includinginterference that may cause undesired operation.
NOTE:Your model camera has been tested and found to comply with the limits
fora Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
providereasonable protection against interference in residential use. The camera
generates,uses and can radiate radio frequency energy and, if not used in
accordancewith the instructions, may cause interference to radio
communications.There is no guarantee that interference will not occur. If this
cameradoes cause interference to radio or television reception, which can be
determinedby turning the camera off and on, you may reduce the interference by
thefollowing:
—Reorient or relocate the receiving antenna.
—Increase the separation between the camera and the receiver.
—Consult the dealer or an experienced radio/television technician for help.
Changesor modifications not approved by the party responsible for compliance
couldvoid the user ’s authority to operate the equipment.
LCD Panel
19
20
9
21
13
14
15
16
12

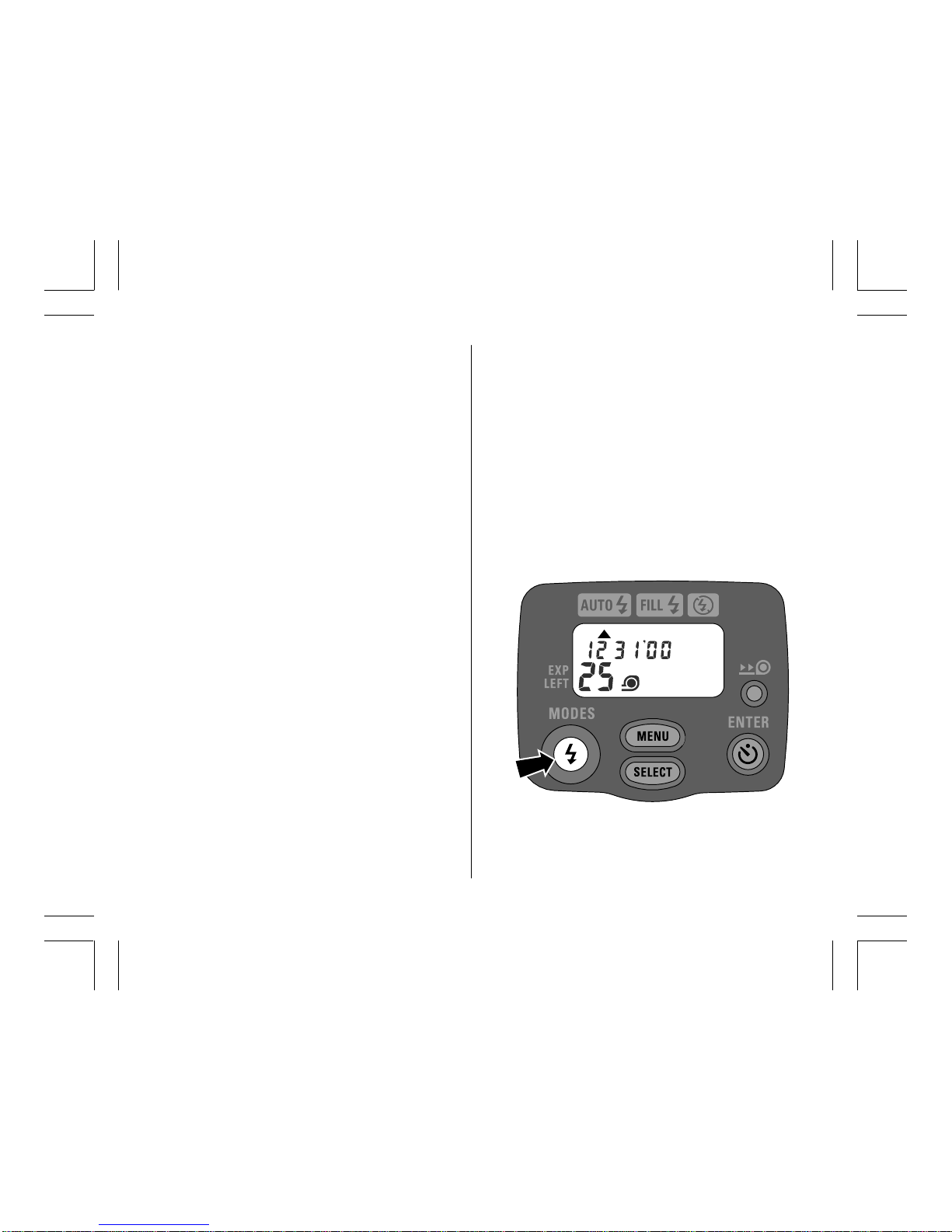

10 11 9LCDpanel
10 Flash/camera-
readylamp
11 Viewfinder
eyepiece
12 Film-rewind
button
13 MENU
14 ENTER
15 Filmdoor
16 Filmchamber
17 Film-door
switch
18 SELECT
19 Batterydoor
20 MODES
21 Tripodsocket
CameraIdentification
17
18
22 Date/timedisplay
23 Auto-flash
indicator
24 Fill-flashindicator
25 Flash-offindicator
26 Mode-selector
arrow
27 ISOfilm-speed
display
28 Infinity-focus
indicator
29 Nightview
indicator
30 PMindicator
31 Self-timerindicator
32 Title-select
indicator
33 Film-presence
symbol
34 Batterysymbol
35 Picturecounter
22
23 24 25
26
27
28
29
303132
33
34
35
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations

1
KODAK ADVANTI X
T570 Auto-Focus Camera
ENGLISH
NEED HELP WITHYOUR CAMERAOR MORE INFORMATION
ABOUTTHEADVANCED PHOTOSYSTEM?
Go to our web site at http://www.kodak.com or call:
Kodak (Canada only) from 8:00 a.m. to 5:00 p.m. (Eastern time) Monday through
Friday at 1 [phone], ext. 36100; for the Toronto area, call [phone],
ext. 36100.
Kodak (USA only) from 9:00 a.m. to 7:00 p.m. (Eastern time) Monday through
Friday at 1 [phone].
When you call, please have your camera available.
For warranty purposes, please keep your sales receipt as proof
of the date of purchase.

2
CONTENTS
CAMERA FEATURES AND BENEFITS ....3
GETTING STARTED .................................5
Loading the battery ..............................5
Date and time........................................5
Setting the date................................5
Setting the time ................................6
Attaching the camera strap ..................7
CONTROL-BUTTON ACTUATOR .............8
OTHER BATTERY INFORMATION ...........8
Low-battery indicator ............................8
Battery tips ............................................8
Power shut-off.......................................9
LOADING THE FILM .............................. 10
TAKING PICTURES ............................... 11
Typical print sizes (formats) ................ 12
Using the focus lock........................... 13
Tips for better pictures ....................... 14
FLASH AND PICTURE-
TAKING OPTIONS ............................. 14
Flash/camera-ready
lamp indicator................................. 15
Auto flash ........................................... 15
Fill flash............................................... 15
Flash off ............................................. 15
Nightview ............................................ 15
Infinity focus ....................................... 16
Selecting the flash and
picture-taking options .................... 16
Flash/warning-lamp signals ............... 16
Flash-to-subject distance................... 17
USING THE SELF-TIMER ...................... 17
SETTING THE PRINT TITLE
AND LANGUAGE ............................... 18
Title-select list ..................................... 19
Language-select list........................... 19
UNLOADING THE FILM ......................... 19
Automatic rewind................................ 19
Manual rewind .................................... 20
CARING FOR YOUR CAMERA .............. 20
TROUBLESHOOTING............................ 21
SPECIFICATIONS .................................. 23

3
CAMERAFEATURESAND BENEFITS
Flip Flash
•The extension of the flash helps to
minimize red eyes in flash pictures and
prevents hand obstruction in front of
the flash. When the flash is closed, it
protects the lens and viewfinder.
Double Exposure Protection (DEP)
•You don’t need to worry about
accidentally re-exposing your film.
Your camera reads the Film Status
Indicator (FSI) on the film cassette
to prevent re-exposure.
Easy, Drop-in Loading
•Easy, drop-in loading is fast and virtually
error-free,eliminating blank rollsand
doubleexposures.ThecamerausesKODAK
ADVANTIXFilm.The film cassette,unlikethe
traditional35 mm cartridge, becomes the
carrier and storage container for the
processedfilm.
Three Print Formats
•You can take three different size
pictures: Classic (C), Group/HDTV (H),
and Panoramic (P) pictures from the same
film cassette. The viewfinder changes to
show the selected picture size.
Picture Quality Information Exchange
(PQix)
•This camera records vital scene data on the
film’smagnetic information stripand
communicatesthat informationto thephoto
lab to optimize lighting and color for better-
lookingprints.
Date, Time, and Title Imprinting
•The date, time, and cassette ID number are
printed on the back of your prints, which
makes it easy to organize pictures and order
reprints. You can choose from one of 10 pre-
programmedtitles (6 languages available)to
print on the back of the prints.
See your
photofinisher for a full description of the
available services.

4
4
3
2
1
Look for this logo to be certain that the film you buy is
made for this camera.
Look for this logo to select a certified photofinisher for
developing your film and to assure that you get all the
features of the Advanced Photo System.
Processed Negatives
Fullyexposed
Partially
exposed
Unexposed
Film Status Indicator (FSI)
• A highlighted indicator advances from
one symbol to another to identify the
status of the film inside the cassette.

5
GETTINGSTARTED
Loading the battery
This camera uses one 3 V lithium KODAK
KCR2 (or equivalent) Battery that supplies
power for all camera operations.

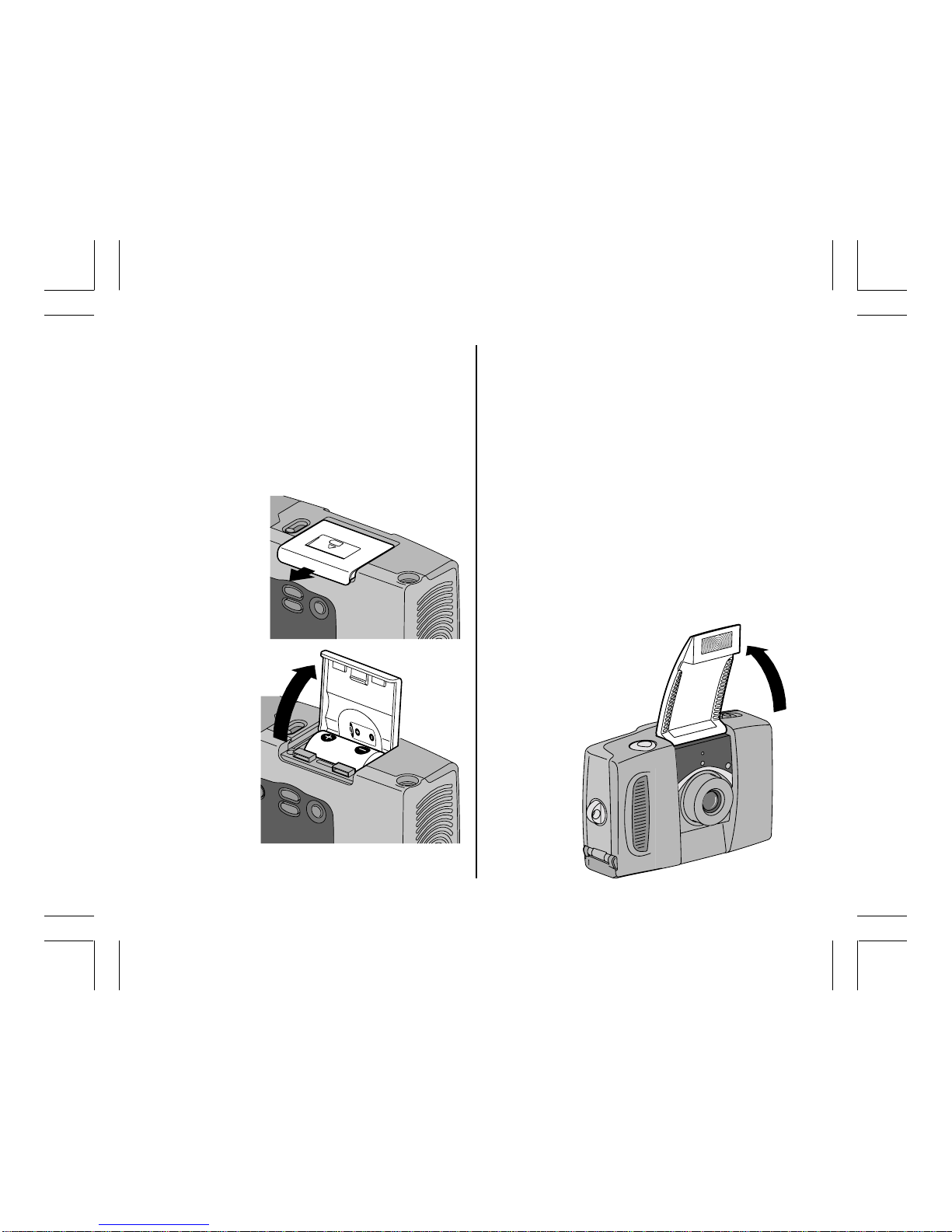

1. Open the battery door (19).
•Before you
remove the
old battery,
close the
lens cover/
flash.
2. Insert the
battery into
the chamber
as shown.
3. Snap the
battery door
closed.
•After you
load a
new
battery
into the
camera,
you will need to reset the date
and time.
Date and time
This camera has a quartz clock and
automatic calendar through the year 2040.
It uses the film’s magnetic data-recording
capability to record date and time
information which your photofinisher
imprints on the back of your prints.
Setting the date
You can choose from three formats:
month/day/year, day/month/year, or
year/month/day.

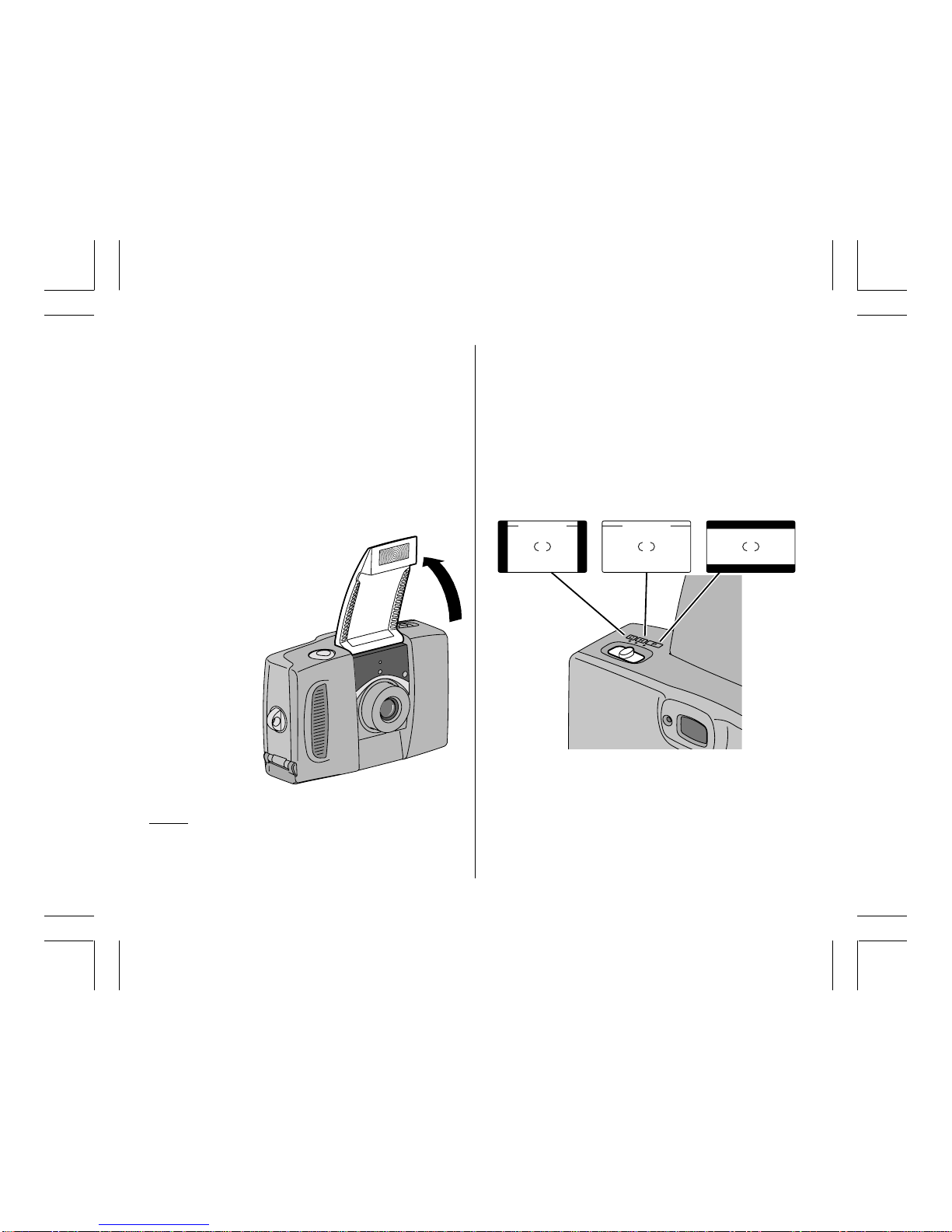

1. Completely lift up the Lens cover/
flash (2) to raise the flash and to turn
on the camera.

6

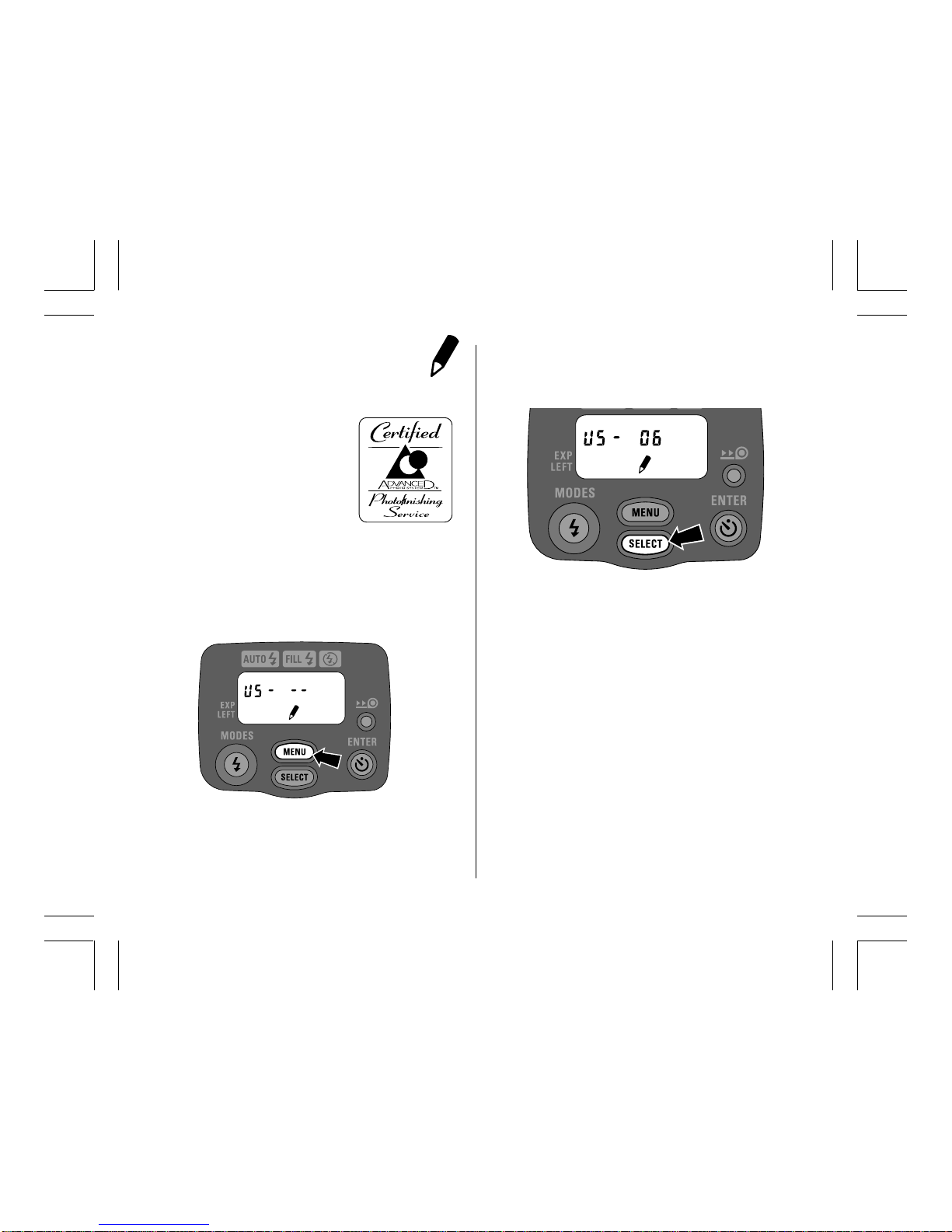

2. Repeatedly press MENU (13) until the
blinking “date format”of your choice
appears on the LCD panel (9).
•The blinking “E”indicates there is no
film in the camera.
3. Press ENTER (14) to set the format.
•If the camera is already at this format,
you can bypass this step.
4. Press SELECT (18) to actuate the setting
for month.
5. Repeatedly press and/or hold SELECT to
select the new number for month.
6. Press ENTER (14) to set the month and
to actuate the setting for day.
•Press ENTER again if you want to end
the selection.
7. Follow steps 4 and 5 to finish setting
the date.
Setting the time (hour/minutes)
The camera has a 12-hour clock with
PM display.
1. Completely lift up the Lens cover/
flash (2) to raise the flash and to turn on
the camera.

7
2. Repeatedly press MENU (13) until the
time appears on the LCD panel (9).
3. Press SELECT (18) to actuate the setting
for hour.
4. Repeatedly press and/or hold SELECT to
select the new number for hour.
5. Press ENTER (14) to set the hour and to
actuate the setting for minutes.
6. Follow steps 3 and 4 to finish setting
the time.
•The camera automatically defaults to
the date setting but you can view the
time by pressing MENU.

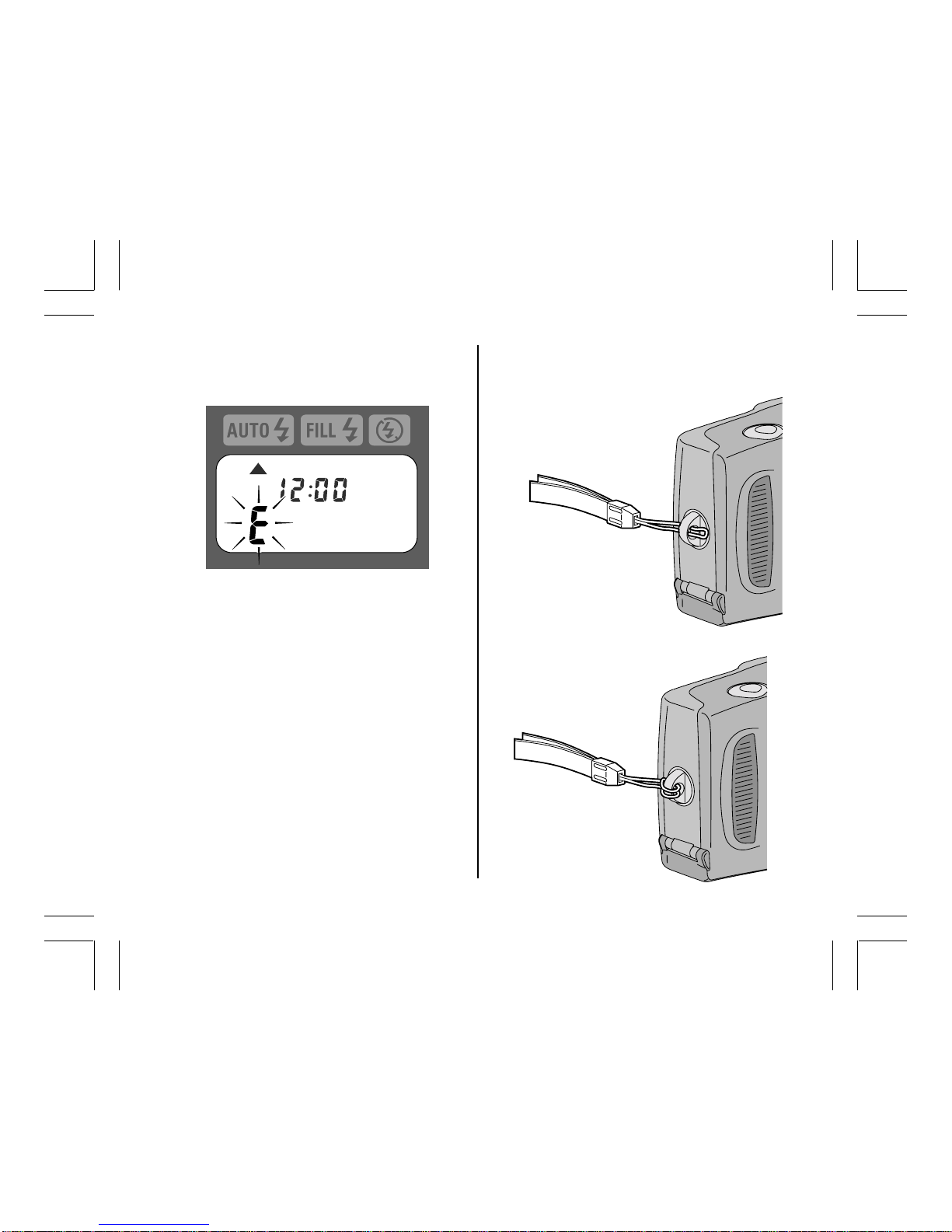

Attaching the camera strap
1. Insert the shorter looped end of the
strap behind the Strap post (8).
2. Thread the longer end of the strap
through the shorter loop.
3. Pull the strap tight.

8
OTHERBATTERY
INFORMATION
Low-battery indicator
It’s time to replace the battery when —
•the Battery symbol (34) “blinks” on the
LCD panel (9)
or
•none of the indicators, except for a
steady battery symbol, appears on the
LCD panel and the Shutter button (1)
cannot be operated.
Battery tips
•Dispose of battery according to
local and national regulations.
•Keep a spare battery with you at
all times.
•Read and follow all warnings and
instructions supplied by the battery
manufacturer.
•Keep batteries away from children.
•Do not try to take apart, recharge or
short circuit the battery, or subject it to
high temperature or fire.
CONTROL-BUTTONACTUATOR
You can use the knob on the clasp of the
camera strap to actuate the small control
buttons on the camera.

9
•Store the battery in its original packaging
prior to use.
•Do not use rechargeable batteries.
•Remove the battery from the camera
when the camera is not going to be used
for an extended length of time.
•In the unlikely event that battery
fluid leaks onto your skin, contact your
local health care provider. In the U.S.,
contact Kodak Health, Safety and
Environment Information at
1-716-722-5151.
•In the unlikely event that battery fluid
leaks inside the camera, contact your
local Kodak Customer Service
representative. In the U.S., customers
can contact the Kodak Information
Center (KIC) at 1-800-242-2424.
Power shut-off
To conserve battery power, the camera
automatically goes to sleep if
it is not operated for more than
2 ½minutes. You can press any of the
control buttons, except for the print-format
switch, or close and reopen the Lens
cover/flash (2) to awaken the camera.
When the camera is not used for an
extended time, close the lens cover/flash
to completely turn off the camera.

10
1
2
3
4
LOADINGTHEFILM
You can load film into the camera with the
camera on or off.
1. Turn the camera upside down and move
the Film-door switch (17) to open the
Film door (15).
•The safety interlocked film door opens
only when the film chamber is empty
or the film in the camera is completely
rewound into the film cassette.
2. Insert the film cassette completely into
the Film chamber (16).
•Make sure the Film Status
Indicator (FSI) on the film cassette is
at ● (#1 position) for a new cassette.
•Do not force the film cassette into
the film chamber.
3. Close the film door to start the automatic
film advance.
•The Picture counter (35) on the
LCD panel (9) shows the number
of pictures remaining on the film.

11
TAKINGPICTURES
You can take Classic (C), Group/
HDTV (H)*, and Panoramic (P) pictures on
the same film cassette. Your photo-
processing cost may be based on the
format size(s) that you use to expose
the film.
1. Completely lift up the Lens cover/
flash (2) to raise the flash and to turn on
the camera.
•The ISO
film speed
briefly
appears
on the
LCD panel
followed
by the
date.
* High Definition Television (HDTV) prints are
the same aspect ratio as the TV for CD
interface capabilities.
2. Frame your subject within the Viewfinder
eyepiece (11). For a sharp picture, stand
at least 1.3 ft (0.4 m) from your subject.
3. Slide the Print-format switch (3) to select
thedesiredformat (C,H,orP).The viewfinder
changes to show the selected
picture size.
PC H
•See the Typical print sizes (formats)
on page 12.

12
4. Partially press
down the
Shutter
button (1).
Typical print sizes (formats)
CHP
Classic Group(HDTV) Panoramic
3.5 x 5 in. or 4 x 6 in. 3.5 x 6 or 4 x 7 in. 3.5 x 8.5 in. to 4 x 11.5 in.
(88.9 x 127 mm or (88.9 x 152 mm or (88.9 x 216 mm to
102x 152 mm) 102x 178 mm) 102x 292.7 mm)
NOTE: Your photofinisher generally provides 4 x 6, 4 x 7, and 4 x 11.5 in. (102 x 152, 102 x 178,
and 102 x 292.7 mm) sizes. Some local printers may offer 3.5 x 5, 3.5 x 6, and 3.5 x 8.5 in.
(88.9 x 127, 88.9 x 152, and 88.9 x 216 mm) sizes.
5. When the Flash/
camera-ready
lamp (10) glows
green, fully press
down the shutter
button to take
the picture.
•See the Flash/
warning-lamp
signals on
page 16.

13
Using the focus lock
This camera automatically focuses on
whatever is within the Auto Focus (AF)
circle of the viewfinder eyepiece. To get a
sharp picture, make sure the AF circle is on
your main subject. If you want to take the
picture with the subject positioned outside
of the AF circle, use the focus lock
as follows:
1. Place the AF circle on the subject that
you want focused in the picture.
VIEWFINDER
AF Circle
2. Partially press down and hold the
Shutter button (1) to lock the
focus position.
VIEWFINDER
3. While still partially pressing down on the
shutter button, move the camera until
your subject is where you want it within
the Viewfinder eyepiece (11).
4. Press the shutter button completely
down to take the picture.

14
FLASHAND PICTURE-
TAKINGOPTIONS
Besides the auto-flash mode (default
setting of the camera), you can select
fill flash, flash off, infinity focus without
flash, and nightview with flash.
Repeatedly press MODES (20) to select the
flash mode that best suits your subject and
surroundings or a picture-taking mode that
lets you tailor the camera’s fully
automatic settings.
Tips for better pictures
•Move close enough to your subject so it
fills the viewfinder but not closer than
1.3 ft (0.4 m).
•Take pictures at the subject’s level.
Kneel down to take pictures of
children and pets.
•Hold your camera vertically to
capture tall, narrow subjects, such
as a waterfall, skyscraper, or a
single person.
•Add interest to your picture by framing it
with a tree branch, a window, or
even the rails of a fence.
•Keep the sun behind you. This provides
the best subject illumination.
•Stand at an angle to shiny surfaces like
windows or mirrors to avoid flash
reflection and bright spots in
your pictures.
•Turn on all room lights and have your
subject look at the flash to reduce red
eyes in flash pictures.

15
Fill flash
When in bright sun or when bright light
comes from behind the subject, dark
shadows (especially on faces) may occur.
Use fill flash to lighten these shadows and
to add sparkle to your subject’s eyes.
Flash off
When you do not want to use the flash,
especially indoors where flash is
prohibited, or to capture the ambiance of
existing light, use the flash-off feature.
Use a tripod or place the camera on
another firm support, and use high-speed
film because the shutter speed in these
situations will most likely be slow.
Nightview
In this mode, the camera balances the
flash and existing light exposure so you
can take beautiful pictures of people at
sunset or at night. Use a tripod or place
the camera on another firm support, and
use high-speed film because the shutter
speed at night will most likely be slow.
Flash/camera-ready lamp indicator
When you partially press down the Shutter
button (1) and the Flash/camera-ready
lamp (10) glows green, the flash is fully
charged and ready for you to take pictures.
Auto flash
In dim light, such as indoors or outdoors in
heavy shade, or on dark overcast days,
you need flash. Your camera features an
automatic flash that fires when you need it.
The flip-up flash helps to minimize red eyes
in flash pictures and prevents hand
obstruction in front of the flash.

16
Infinity focus
Capture sharp, distant scenery when you
take pictures outdoors during the day or
through windows.
Selecting the flash and
picture-taking options
1. Completely lift up the Lens cover/
flash (2) to raise the flash and to turn
on the camera.
2. Keep the subject within the distance
range for the speed of film in your
camera (see Flash-to-subject
distance table on page 17).
•Don’t take pictures beyond the
maximum distance or your pictures
will be dark.
3. Repeatedly press MODES (20) until the
Mode-selector arrow (26) points to the
Auto-flash indicator (23), Fill-flash
indicator (24) or Flash-off indicator (25),
or until the Infinity-focus indicator (28) or
Nightview indicator (29) appears on the
LCD panel (9).
4. Frame your subject within the
Viewfinder eyepiece (11).
5. Partially press down the Shutter
button (1). When the Flash/camera-
ready lamp (10) glows green, fully
press down the shutter button to
take the picture.
The flash, infinity-focus, and nightview
modes remain selected after you take
the picture. To cancel the selection,
press MODES to select another setting
or close and reopen the lens cover/flash
to automatically return to the
default setting.
Flash/warning-lamp signals
Lamp Indicator Situation
Glows green •Flash fully charged
Glows red* •Subject closer than
1.3 ft (0.4 m)
“Blinks”red* •Flash not
fully charged
•Camera movement
* See the TROUBLESHOOTING table for
more information.

17
Flash-to-subject distance
ISO film
speed Flash-to-subject distance
50 1.3 to 9 ft (0.4 to 2.7 m)
100 1.3 to 13 ft (0.4 to 4.0 m)
200 1.3 to 18 ft (0.4 to 5.5 m)
400 1.3 to 26 ft (0.4 to 7.9 m)
800 1.3 to 36 ft (0.4 to 11 m)
1600 1.3 to 52 ft (0.4 to 15.8 m) 4. Look through the Viewfinder
eyepiece (11) to compose the picture
and to allow room for yourself in it.
5. Press the Shutter button (1).
6. Quickly position yourself in the
composed picture making sure that you
see the Self-timer lamp (4).
•The self-timer lamp on the front of the
camera blinks for approximately 10
seconds before the picture
is taken.
•To cancel the self-timer selection
before the shutter releases, press
ENTER twice or close the lens
cover/flash.
•The self-timer automatically turns
off after the shutter releases.
USING THE SELF-TIMER
Use this feature to include yourself
in pictures.
1. Use the Tripod socket (21) to attach the
camera to a tripod or place it on another
firm support.
2. Completely lift up the Lens cover/
flash (2) to raise the flash and to turn
on the camera.
3. Press ENTER (14).
•The Self-timer indicator (31) appears
on the LCD panel (9).

18
SETTING THE PRINT TITLE
ANDLANGUAGE
You can choose a print title from one of
10 pre-programmed titles
and a language (6 options)
before you take the picture.
The title you select is
recorded on the film’s
magnetic data strip. At
certified Advanced Photo
System labs, the title is printed on the back
of your photograph.
1. Repeatedly press MENU (13) until the
Title-select indicator (32) appears on the
LCD panel (9).
2. Press SELECT (18).
•The “title-select indicator”and the
No-title (cancel title) designator
“_ _”blinks.
3. Repeatedly press and/or hold SELECT to
select a title number. See the Title-
select list on page 19.
4. Press ENTER (14) to set the title and to
start the language setting.
•The language code “US”and the
“title-select indicator”blinks.
5. Repeatedly press SELECT to select the
language code. See the Language-
select list on page 19.
6. Press ENTER to set the language and
end your selection.
•The print title/language remains
selected after you take the picture.
•To cancel the title for subsequent
pictures, follow steps 1through 3, but
for step 3, select No title (cancel title)
“_ _”or select a different title.
