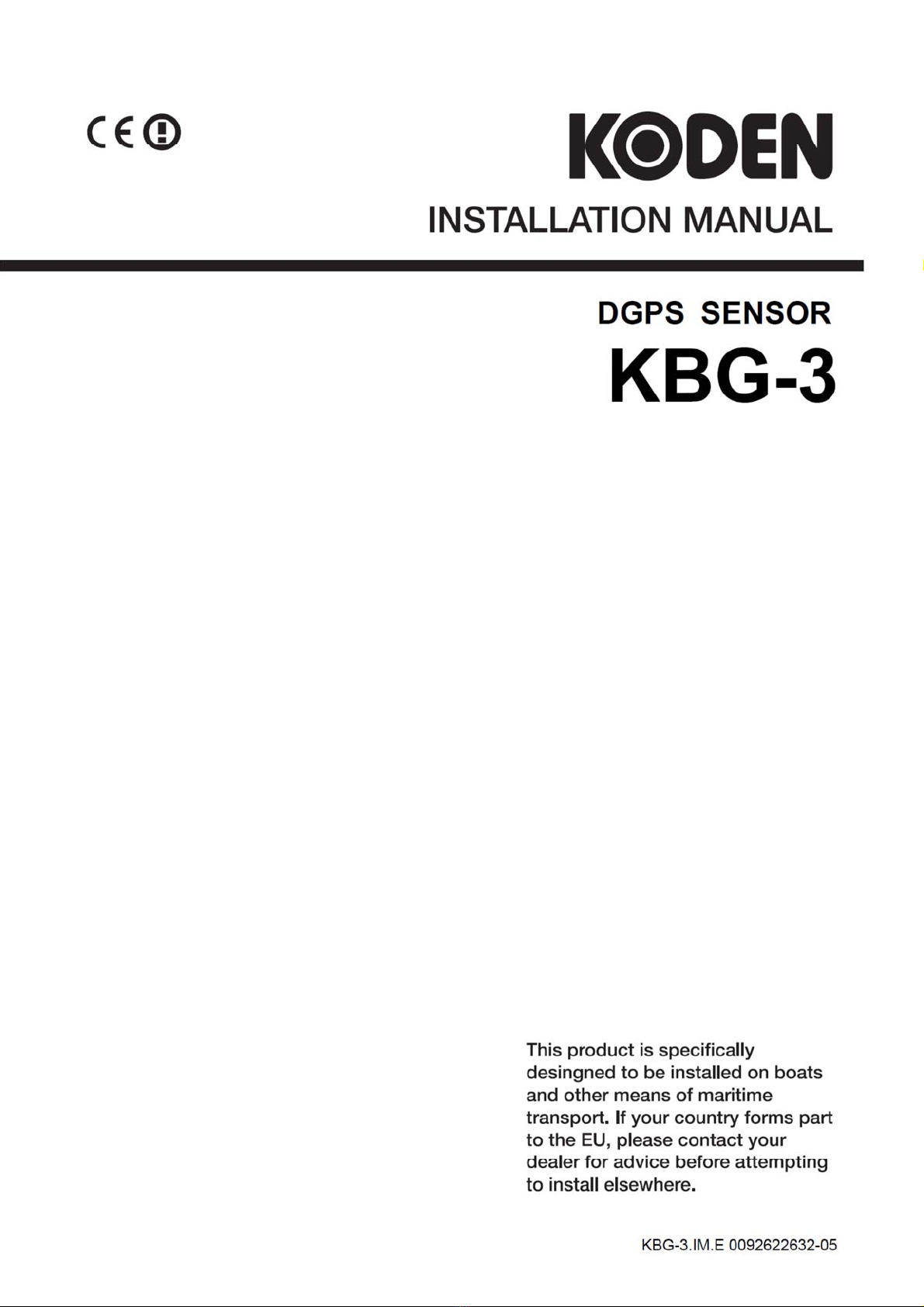

Koden KBG-3 User manual

Declaration of Conformity
(As required by Article 6.3 of Directive 1999/5/EC-RTTE Directive)
Declares under his sole responsibility that the Marine GPS sensor module manufactured
by Koden Electronics Co., Ltd.
5278 Uenohara
Uenohara-Shi,
Yamanashi-Ken
409-0112, Japan
Telephone [phone] Telefax [phone]
Intended for Worldwide use as a Marine GPS sensor for use aboard non-SOLAS vessels
and Identified by the type number KBG-3 to which this declaration refers
is in conformity with the EMC, Health and Safety standards of
EN60945
and complies with the essential requirements of Directive
1999/5/EC
Conformity assessment under Annex II of 1999/5/EC (internal production control) has
been undertaken.
Koden Electronics Co., Ltd.
5278 Uenohara, Uenohara-Shi
Yamanashi-Ken
409-0112, Japan
Telephone [phone]
Telefax [phone]
Signed ………………………………………
Kenichi Chiwaki
Manager / Quality Assurance Department
Dated ………………………………………
20 Jun. 2006

AMENDMENT HISTORY
KBG-3 INSTALLATION MANUAL
Doc No: 0092622632
No. Document No & Rev No. Revised Date
Y/M /D
Amendments
0 0092622632-00 2005/12/06 First issue
1 0092622632-01 2006/06/27 Chapter 5
2 0092622632-02 2008/09/22 Declaration
3 0092622632-03 2010/02/26 Chapter 5
4 0092622632-04 2013/06/06 Chapter 4
5 0092622632-05 2017/06/12 Chapter 1
6
7
8
9
10
11
12
13
14
15
Amendment policy
When any change is applied in the document, only the document number of the relevant sheet(s) and
cover sheet are modified and the rest of the sheets are not changed. The document number is shown in
the footer area, right or left bottom of each sheet.
○
c2005-2017 Koden Electronics Co., Ltd.All rights reserved.
No part of this publication may be reproduced, transmitted, translated in any form by any means without
the written permission of Koden Electronics Co., Ltd. The technical descriptions contained in this
publication are subject to change without notice. Koden assumes no responsibility for any errors,
incidentals or consequential damages caused by misinterpretation of the descriptions contained in this
publication.

- This page intentionally left blank.-

KGB-3 Preface
Installation Manual
0092622632-01 (1)
Preface
Safety Precautions
zBe Sure to "Disconnect" Inboard Power Supply
It is still possible to receive an electric shock caused by unintentionally switching on
the power supply during maintenance work. To prevent this from happening, be sure
to disconnect the inboard power supply and the power supply switch of equipment.
Place a notice "Men working" near the power supply switch of equipment to ensure
safety.
zBe Careful about Dust
Dust can cause temporarily the respiratory diseases. While cleaning inside of
equipment, be careful not to inhale dust. It is advisable to wear a safety mask etc.
zTake Countermeasures against Static Electricity
Carpets laid on the floor and synthetic fiber clothes can generate static electricity, and
can damage the electronic parts on the printed circuit boards. Take appropriate
countermeasures against static electricity before handling the printed circuit boards.

Preface KBG-3
Installation Manual
(2) 0092622632-01
Symbols used in this installation manual
The following symbols are used in this installation manual. You are requested to be fully aware of
the meaning of each symbol before carrying out maintenance and check.
Alarm mark
Caution mark
Prohibition mark
To handle the equipment ignoring this sign may lead to injury to
the human body or damage to the equipment.
Warning
This sign indicates that a specified action is prohibited. The
prohibited action will be shown in the vicinity of the mark.
To handle the equipment ignoring this sign may lead to a
malfunction or a failure of the equipment.
Caution

KGB-3 Preface
Installation Manual
0092622632-01 (3)
How to use this installation manual
Scope
This installation manual contains necessary information about installation and inboard
maintenance of the DGPS sensor KBG-3.
Structure
To ensure quick reference of necessary information in this installation manual, the
whole structure is divided into chapters according to the contents. The contents
contained in each chapter are as follows.
Chapter 1: Overview
-About GPS
-About DGPS, SBAS
-Equipment outline
-Applicable standard
-Equipment interconnection diagram
Chapter 2: Equipment composition
-Standard equipment composition list
Chapter 3: Equipment specifications
-Specifications
-Serial data
-Power supply specifications
-Environment conditions
-External dimensions and weight
Chapter 4: Installation
-Installation precautions
-Unpacking and inspection of the goods
-Selection of the installation site
-Installation method

Preface KBG-3
Installation Manual
(4) 0092622632-01
Chapter 5: Technical references
-Details of input/output data
-Cable connections and connector pinouts
-List of geodetic systems
-Table of DGPS reference stations

KBG-3 Chapter 1
Installation Manual Overview
0092622632-00 Contents
Chapter 1 Overview
Contents
Page No.
1.1 About GPS.............................................................................1-1
1.1.1 GPS satellite alignment..........................................................1-1
1.1.2 GPS system configuration.....................................................1-1
1.2 About DGPS, SBAS ..............................................................1-1
1.3 Equipment outline ................................................................1-1
1.4 Applicable standard..............................................................1-1
1.5 Equipment interconnecting diagram ..................................1-2

- This page intentionally left blank.-

KBG-3 Chapter 1
Installation Manual Overview
0092622632-05 1-1
Chapter 1 Overview
1.1 About GPS
1.1.1 GPS satellite alignment
GPS (Global Positioning System) is a position measuring system that uses 4 satellites for each of 6
orbits, with durations of 11 hours 58 minutes, orbiting approximately 20,000km above the earth.
1.1.2 GPS system configuration
GPS is based on the principle of calculating the distance of 3 or more satellites from the user and
deriving the user’s position. The intersecting points of the sphere with the satellite located at its origin
indicate the current position (latitude, longitude, and altitude) measured by you.
Note: GPS uses the WGS (World Geodetic System) coordinate system. Previous
global maps used different coordinate systems for different zones.
The nautical chart of WGS coordinate system and the nautical chart of
non-WGS coordinate system may be different in the latitude and longitude.
1.2 About DGPS, SBAS
DGPS (differential GPS) can improve the GPS positioning accuracy in coastal waters. To get DGPS
positioning, you require a differential GPS navigator. The system works as follows.
Your GPS navigator gets position data from satellites (measured by the GPS) and combines this with
correction data from a DGPS reference station (existing radio beacon station).
The DGPS station compares the known surveyed position of the station itself with current position
information from the GPS system and calculates the error based on this data. The DGPS station then
sends correction data via (RTCM SC-104 format) using the beacon transmitter and to your DGPS
receiver module. The DGPS receiver module receives this information and applies this correction to
your navigator.
The accuracy is higher the closer you are to the beacon station. Generally speaking, the DGPS
system can be used within 100 to 200 nautical miles from the reference station.
SBAS is a robust system designed to improve the accuracy of GPS positioning using geostationary
satellites that are currently being developed in the US, Europe and Japan. There are 3 types of
systems being developed: WAAS in the US, EGNOS in Europe and MSAS in Japan. WAAS and
EGNOS are in operation. MSAS is going through application testing and is transmitting position
correction data at the same frequency as GPS satellites. Because position correction data is
transmitted from geostationary satellites, it is possible to receive position correction data anywhere in
the world. However, in case of application testing, the quality of the position correction data may be
degraded depending on the time.

Chapter 1 KBG-3
Overview Installation Manual
1-2 0092622632-05
1.3 Equipment outline
The KBG-3 incorporates an 18-channel parallel GPS receiver sensor that corresponds to SBAS. It
also incorporates a DGPS beacon receiver. It is a high-performance DGPS sensor. By simply
connecting a power supply, highly accurate position data can be quickly supplied to a Plotter or the
ship’s navigation devices.
When the unit is shipped out from the factory, it is initially set for automatic DGPS mode (Differential
GPS by beacon signal) and at automatically selects the best beacon station to use by just turning on
the unit. Of SBAS correction or manual selection of a beacon station is required, please setup the unit
by referring to the operation manual of KBG-3 and the interlaced navigation equipment. Setup may not
be effective sometimes except connection to Koden plotters.
1.4 Applicable standard
The KBG-3 conforms to the technical criteria of international standard that specifies General
Requirements of Maritime Navigation and Radiocommunication Equipment and Systems, IEC 60945
(Ed.4).

KBG-3 Chapter 1
Installation Manual Overview
0092622632-05 1-3
1.5 Interconnection diagram
Fig. 1.1 DGPS sensor KBG-3 interconnection
DGPS Sensor
KBG-3-B
CW-569-15M
(with plastic connector)
Chart Plotter
GTD-110/150
Echo Sounder
CVS-841/851 Series
CVS-842/852 Series
CVS-843
CVS-1410/1410HS
Plotter Sounder
CVG-80/200
Radar Plotter
MDP-600series
MDP-1200serise

- This page intentionally left blank.-

KBG-3 Chapter 2
Installation Manual Equipment Composition
0092622632-00 Contents
Chapter 2 Equipment Composition
Page No.
2.1 Standard equipment composition table...................................2-1

- This page intentionally left blank.-

KBG-3 Chapter 2
Installation Manual Equipment Composition
0092622632-01 2-1
Chapter 2 Equipment Composition
2.1 Standard equipment composition table
No. Name Descriptions Remarks Weight Q'ty
KBG-3-A Cable, CW-570-15M
with metal connector
１DGPS sensor
KBG-3-B Cable, CW-569-15M
with plastic connector
760 g
excluding
cable 1
2 Installation
manual English 1

- This page intentionally left blank.-
