Kodiak CG2350T User manual

Overview & Warnings ..................1
Safety Precautions ...................2, 3
Assembly Instructions ..................4
Operating Instructions ..................5
Using the Accessories..................6
Working with Detergent ................7
Shutdown Instructions ..................8
Storage & Winterizing ..................9
Basic Maintenance ................9, 10
Troubleshooting ....................11, 12
Warranty Information ..................13
Customer Service Hotline:
1-877-888-9572
visit our website:
www.kodiakequipment.ca
Gas Powered Pressure Washer
Owner's Manual
CG2350T
IMPORTANT: Do not operate this equipment until you have read and understand all of the
enclosed Owner's Manuals. Carefully read all Warnings, Safety Precautions, Assembly
and Operating Instructions, Maintenance and Storage information.
Specifications
Model: CG2350T
Pressure: 2350 PSI *
Flow Rate: 2.0 GPM
Engine: 4.75 HP Briggs & Stratton
* Stated pressure is peak pressure.
Product may not be exactly as shown.

1
Never aim water spray at persons, animals, electrical devices, or the machine itself.
Never touch water spray.
Never use hot water.
Never operate pressure washer without the water turned on.
Never drink alcohol or use drugs while operating this equipment.
Never allow the pressure washer to freeze.
Always wear safety glasses and protective clothing.
Always ensure that you have read and understand all of the
enclosed Owner's Manuals before operating this equipment.
Overview
Warning!
Note: Check for visible shipping damage. Shipping damage will cause problems in the operation
of this unit. Contact the Customer Service Hotline immediately if there are missing or damaged
parts. DO NOT return this product to the store.
Customer Service Hotline:
1-877-888-9572
visit our website:
www.kodiakequipment.ca
Water outlet (OUTLET)
Water inlet (INLET)
Cart frame
High-pressure hose
Cart handle
Gun with safety-lock
Gun/lance assembly
Detergent suction hose (not shown)
Spray lance
Adjustable nozzle
Mounting hardware (not shown)
Item Description
4
3
2
1
6
11
12
10
9
8
7
5
1
2
10
3
4
9
7
5
6
8

2
Safety Overview
This unit was designed for specific applications. It
should not be modified or used for any application
other than that for which it was designed.
The Owner's Manual constitutes an essential part
of the pressure washer and should be kept in a
safe place for future reference. If you sell the
pressure washer, all manuals should be provided
to the new owner. Read this manual carefully
before using the product – know your equipment.
Save these instructions. The Owner's Manual
should remain with unit at all times.
continued ...
Important Safety Precautions
6. Always use both hands during operation to
maintain complete control of the gun/lance
assembly. Expect it to kick back when the
gun is triggered.
7. Always engage the gun safety-lock when not
spraying to prevent accidental triggering.
8. Always wear protective clothing and safety
glasses. Protect your eyes and skin from
contact with sprayed materials.
9. Stay alert – watch what you are doing.
10. DO NOT operate the product when fatigued
or under the influence of alcohol or drugs.
11. Learn how to stop the machine and release
pressure quickly. Be thoroughly familiar with
the controls.
12. Parts of the engine get extremely hot during
operation. Never touch engine while it is hot
or running; allow engine to cool down to avoid
injury.
13. DO NOT add fuel while the engine is running
or still hot. Doing so could result in a fire or an
explosion. (Please refer to the engine
Owner's Manual for fueling procedures.)
14. Before transport, ensure that there is no fuel
in the unit. Fuel vapor or spilled fuel may ignite.
Ensure that the unit is in an upright position.
15. DO NOT allow the hose to touch any part of
the engine while it is running or still hot. A hot
engine could melt through the hose.
16. Work in a well-ventilated area.The pressure
washer should not be used in areas where
gas vapours may be present. A spark could
cause an explosion or fire.
17. To allow free air circulation, DO NOT cover the
pressure washer during operation.
18. DO NOT over reach or stand on an unstable
support. Keep good footing and balance at all
times when using this equipment.
19. The narrow pencil-point spray is very powerful.
It is NOT recommended for use on painted
surfaces, wood surfaces or items attached
with an adhesive backing.
20. Only use pressure washer detergent with this
product. Carefully observe all instructions and
warnings before using detergents.
21. DO NOT use this product to spray chemicals,
acids, solvents, insecticides or any flammable
material. These products can cause physical
injuries to the operator and irreversible
damage to the unit.
Safety Precautions
The following safety precautions are essential for
the safe operation of your pressure washer. Make
sure anyone who may be using this gas-powered
pressure washer is familiar with these important
safety and equipment precautions.
If safety precautions are overlooked or ignored,
personal injury or property damage may occur.
Always heed these precautions, as they are
essential when using any mechanical equipment.
1. High-pressure spray can be dangerous if
subject to misuse. DO NOT direct the water
spray at persons, animals, electrical devices,
or the machine itself.
2. Never touch the water spray.
3. Never hold on to the hose or fittings while
operating the pressure washer.
4. Keep operating area clear of all persons. To
reduce the risk of injury, DO NOT operate the
machine near children.
5. Keep work area free of obstacles. Remove
loose objects from spray path. Secure light
objects to be cleaned.
IMPORTANT:Your pressure washer operates
at fluid pressures and velocities high enough
to penetrate human and animal flesh, which
could result in serious injury or amputation.
Leaks caused by loose fittings, damaged or
worn hoses can result in injection injuries.
WARNING: DO NOT treat fluid injection as
a simple injury. Fluid injection can lead to
amputation or fatality. See a physician
immediately.

3
Safety Precautions – continued
22. DO NOT allow your pressure washer to freeze
during colder months. Damage as a result of
freezing will void the warranty.
23. Prior to starting the pressure washer in cold
weather, be sure that ice has not formed in
any part of the equipment.
24. Never tie knots or kink the high-pressure hose
as damage could result. DO NOT operate the
unit if the high-pressure hose is damaged.
25. The Gun Safety Lock PREVENTS the trigger
from accidentally being engaged. This safety
feature DOES NOT lock trigger in the ON
position.
26. To avoid serious injury and damage to the unit,
DO NOT operate this pressure washer with
any components (i.e. spray guns, hoses, hose
couplings, etc…) that are rated at less than
the models rated PSI (2000 PSI for model
CG2000T; 2350 PSI for model CG2350T).
27. DO NOT allow the pressure washer to run for
more than 3 minutes with the gun closed and
the engine running. Prolonged operation in
bypass mode can result in damage to the pump.
28. Shut the engine OFF if you are not using the
pressure washer.
CAUTION: The pressure has been pre-set by
the manufacturer. DO NOT attempt to adjust the
pressure higher than its factory setting. Doing so
will damage the pump, void the warranty and
could result in personal injury or damage.
CAUTION: This machine has been designed
for use with pressure washer detergents only.
Important Safety Precautions – continued
Water Supply (Cold Water Only)
This pressure washer must only be used with
clean water; use of unfiltered water or corrosive
chemicals will damage the pressure washer.
1. The supply hose should be at least 5/8"
in diameter
2. The water supply must be at least equal to
the flow rate of the pressure washer.
3. The water supply pressure must be a minimum
of 20 psi and must not exceed 120 psi.
4. The water supply temperature must not exceed
40°C/104°F.
5. Never use the pressure washer to draw in
water contaminated with solvents, e.g. paint
thinners, gasoline, oil, etc.
6. Always prevent debris from being drawn into
the unit by using a clean water source.
7. Calcium build-up due to hard water is NOT
covered by the warranty.
Important Safety Precautions – continued

4
Step 1
Align the handle to the frame
of the pressure washer
Step 3
Connect the garden hose
hose to the INLET.
Hand tighten.
Step 4
Connect the high-pressure
hose to the OUTLET.
Hand tighten.
Step 5
Connect the high-pressure
hose to the gun assembly.
Hand tighten.
Step 6
Connect the lance
to the gun assembly.
Hand tighten.
Assembly Instructions
Step 2
Insert bolts and tighten
with the hardware provided.
Note: Check for visible shipping damage. Shipping damage will cause problems in the operation
of this unit. Contact the Customer Service Hotline immediately if there are missing or damaged
parts. DO NOT return this product to the store.
CAUTION: Before connecting hoses to the pressure
washer, ensure that the supply hose is free of debris.
Any foreign particles entering the pump will damage the unit.
CAUTION: If the lance is not
securely locked into place, it
could be ejected under high-
pressure when operating the
gun, possibly causing injury
or damage.

5
WARNING: Operating unit without water can damage seals and void the warranty.
Always trigger gun until steady stream of water flows from nozzle to ensure unit is
receiving water correctly before starting the engine.
Step 5
Continue to squeeze gun
trigger until a steady stream
of water flows from nozzle
before releasing trigger.
Step 6
Start engine. Refer to the
Engine Owner's Manual.
Step 4
Release the gun safety-lock
and squeeze gun trigger.
Operating Instructions
WARNING: THE ENGINE IS SHIPPED WITHOUT OIL. Fill engine with the recommended oil to the
indicated level before operating the unit. Failure to do this will cause severe damage to the engine
and void the warranty. Please refer to the Engine Owner's Manual for details.
Step 2
Fill gas tank. Refer to the
Engine Owner's Manual.
Step 3
Connect the garden hose
to the water supply and
turn ON water full force.
Step 1
Check engine oil. Refer to
the Engine Owner's Manual.
Thermal Protection Valve
Your pressure washer is equipped with a thermal protection valve, located on the pump. If the engine
is left running for an extended time with the gun closed, the pressure washer will dump water into the
atmosphere through this valve.
NOTE: When beginning to spray, press the
gun trigger gently. Do NOT pump the trigger
rapidly between the ON and OFF setting.
CAUTION: Never allow the pressure washer to run for more than 3 minutes with the gun closed
and the engine running. Prolonged operation in bypass mode can result in damage to the pump.
NOTE: Always shut the engine OFF and engage
gun safety-lock when the pressure washer is not
in use. Refer to Shutdown Instructions on page 9.

6
Adjusting the Spray
The nozzle of the adjustable spray lance can
adjust from a wide "fan spray" to a concentrated
"pencil-point spray".
High/Low Pressure Settings
The nozzle of the adjustable spray lance slides
from a high-pressure setting to a low-pressure
setting for detergent application.
To decrease angle to pencil-point
spray, turn the nozzle clockwise.
WARNING: DO NOT disassemble the nozzle
for any reason. Doing so can result in personal
injury and will void the warranty.
Using the Accessories
Optional Cleaning Accessories
CAUTION: The pencil-point spray adjustment
is very aggressive. We recommend that for most
cleaning applications, the wide "fan" spray angle
be used to avoid damage to the surface being
sprayed.
To increase angle to a fan spray,
turn the nozzle counter-clockwise.
For low-pressure spray (detergent
application) push nozzle away from
the gun/lance assembly.
For high-pressure spray, pull nozzle
towards the gun/lance assembly.
CAUTION: Your pressure washer operates at fluid pressures and velocities high enough to cause
property damage. Before cleaning any surface, choose an inconspicuous area to test spray pattern
and distance for maximum cleaning results. If painted surfaces are peeling or chipping, use extreme
caution as pressure washer may remove the loose paint from the surface.
KODIAK offers a complete line of Accessories and
Concentrated Detergents to enhance the cleaning
performance of your pressure washer.
Please contact your local retailer for details, or visit our website at www.kodiakequipment.ca
Pressure Washer Accessory
• 25 ft Extension hose
(maximum 2600 psi)
Concentrated Detergents (4 Litres)
• All-Purpose Cleaner
• Deck & Fence Cleaner
• Heavy-Duty Degreaser
• House & Window Cleaner
• Car & Boat Wash 'n Wax
NOTE: The pressure of the spray increases as you
move the lance closer to the surface to be cleaned.
Pencil Point
Spray
Fan
Spray
Low
Pressure
High
Pressure

7

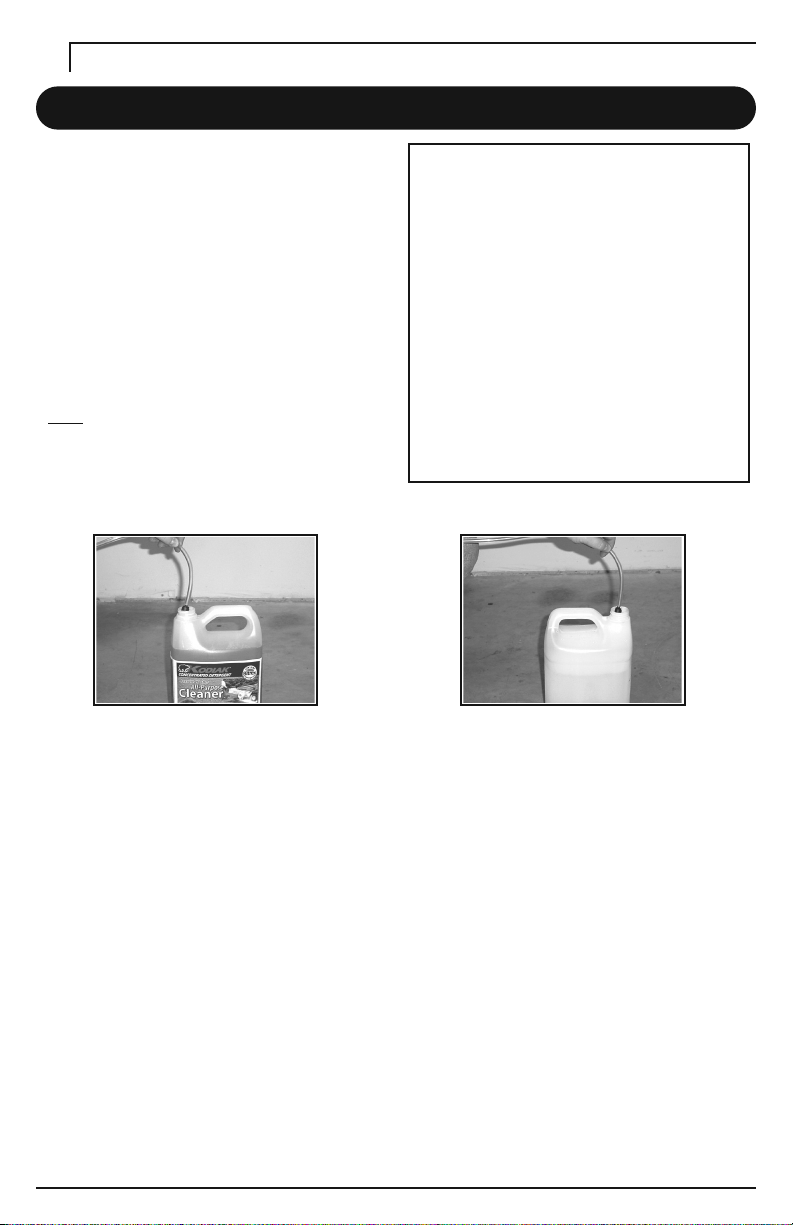

Cleanup Instructions
Working with Detergent
WARNING!
• Never use bleach, chlorine products and
other corrosive chemicals
• Never use liquids containing solvents
(i.e., paint thinners, gasoline, oils)
• Never use tri-sodium phosphate products
• Never use ammonia products
• Never use acid-based products
These products can cause physical injuries
to the operator and irreversible damage to
the machine and/or damage the surface
being cleaned.
Only use pressure washer detergent with
this product. Carefully observe all instructions
and warnings before using detergents.
Detergent Application
Step 1 Place suction hose into a container of
pressure washer detergent.
Step 2 Adjust the nozzle to low-pressure setting
to apply the detergent (see page 6).
Step 3 With the engine running, depress the gun
trigger to operate unit. The detergent will
be automatically injected and mixed with
water.
Step 4 Apply detergent to work area; DO NOT
allow detergent to dry on surface.
Step 5 Release the gun trigger and adjust nozzle
to high-pressure setting (see page 6).
Step 6 Press the gun trigger and rinse the surface
using a sweeping motion.
IMPORTANT: When you have finished using
detergent, always follow the Cleanup Instructions.
Failure to clean properly will cause the injection
system to become clogged and inoperable.
Step 1 Remove detergent suction tube from the
detergent container.
Step 2 Insert detergent suction tube into a clean
container (not supplied) with one gallon
(4 L) of fresh water.
Step 3 Set the nozzle to the low-pressure setting
(see page 6).
Step 4 With the engine running, press and hold
the gun trigger for one minute or until the
container of fresh water is empty.
Detergent Overview
To enhance the efficiency of the pressure washer,
sometimes it is necessary to use detergents to
help loosen tough dirt and grime.
CAUTION: This machine has been designed for
use with pressure washer detergents only. The
use of other detergents or chemicals may affect
the operation of the machine and will void the
warranty. Use of products other than pressure
washer detergent can cause damage to the unit
and physical injuries to the operator.
NOTE: To apply detergent, the adjustable nozzle
must be in the low-pressure position.

8
Shutdown Instructions
Step 1
Turn the engine to the
OFF (STOP) position.
Step 4
Disconnect the high-pressure
hose from the water OUTLET.
Step 2
Turn OFF the water supply.
Step 6
Engage the gun safety-lock.
Step 5
Disconnect the garden hose
from the water INLET.
Step 3
Discharge residual pressure
by pressing and holding the
gun trigger until no water
comes out the nozzle.
CAUTION: Failure to discharge the residual pressure could result in
personal injury due to discharge of high-pressure water.

9
Storage & Winterizing
Storage
CAUTION: Always follow Shutdown Instructions
on page 8 before storing the pressure washer or
the accessories. For your own safety, be sure to
turn the engine OFF and discharge the residual
pressure (see page 8).
Always store your pressure washer in a location
where the temperature will NOT fall below 0°C.
Store the machine and accessories in a dry place,
protected from freezing. The machine should NOT
be placed near an open flame i.e. furnace, hot
water heater, etc.
WARNING: The pressure washer pump is
susceptible to permanent damage if frozen.
Damage as a result of unit freezing is NOT
covered by the warranty.
If you must store your pressure washer in a
location where the temperature is below 0°C,
you can minimize the chance of damage to your
machine by utilizing the following procedure:
1. Shut off water supply and relieve pressure in
the spray gun by depressing the trigger.
2. Disconnect the garden hose from the unit, but
leave the high-pressure hose connected.
3. Connect a short hose (not supplied) to the
water inlet of the pressure washer.
4. Place the other end of this hose into container
of winter windshield washer fluid.
5. Start the engine to circulate the windshield
washer fluid in the pump.
6. Press and hold the gun trigger until the fluid
comes out the nozzle. Turn the engine OFF
immediately.
7. Discharge residual pressure by pressing and
holding the gun trigger, then disconnect the
high-pressure hose.
The winter windshield washer fluid will help protect
against freezing during storage, and help prevent
the pistons from sticking.
Winterizing
Always store your pressure washer in a location
where the temperature will NOT fall below 0°C.
CAUTION: Always remove gasoline from the
engine if storing the pressure washer indoors.

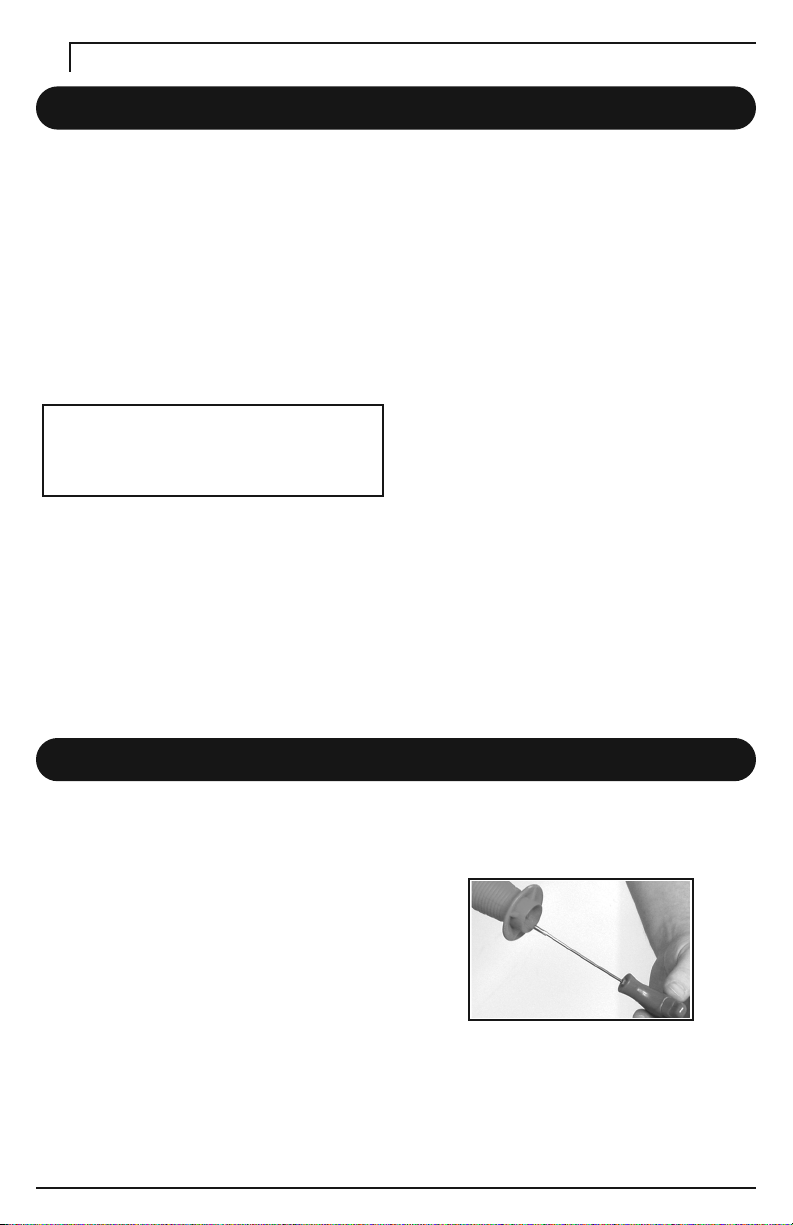

IMPORTANT: Always follow the Shutdown Instructions on page 8 before working on the pressure
washer or the accessories. For your own safety, be sure to turn the engine OFF and discharge the
residual pressure (see page 8) before carrying out any maintenance.
Nozzle
Clogging of the nozzle causes pump pressure to
be high and a distorted spray pattern can result.
Cleaning is immediately required with unit turned
OFF.
CAUTION: Failure to do discharge the residual
pressure could result in personal injury due to
discharge of high-pressure water.
Step 1. Set the nozzle to fan spray by turning
the nozzle clockwise (see page 6).
Basic Maintenance
Step 2. Remove the nozzle orifice using a 2 mm
hex key (turn counter-clockwise)
Step 3. Clean nozzle by blowing with air.
Step 4. Re-insert the nozzle orifice using a 2 mm
hex key (turn clockwise).
Restart the pressure washer and depress the trigger on the spray gun.
If the nozzle is still plugged, repeat steps 1 through 4.

10
Basic Maintenance – continued
Connections
Connections on hoses, the gun/lance assembly
and spray lance should be cleaned regularly and
lubricated with lithium grease to prevent leakage
and damage to the O-rings.
Water Screen
CAUTION: If the screen is not kept clean, the
flow of water to the pressure washer will be
restricted and the pump may be damaged.
The pressure washer is equipped with a water
inlet screen to protect the pump. Clogging of the
water screen will restrict flow of water. Cleaning
is immediately required with unit turned OFF.
1. Disconnect the garden hose from the INLET.
2. Remove the water screen from the INLET.
3. Clean screen under warm water.
4. Replace screen immediately to prevent any
foreign matter from entering the pump.
5. Reconnect the garden hose to the INLET.
CAUTION: Do not damage the screen while
removing or cleaning. Any foreign particles
entering the pump will damage the unit.
Pump Oil
The pump is lubricated for the life of the pump.
There is no need to change the pump oil, nor is
there a provision to do so.
Engine
To ensure proper care of the engine, be sure to
follow the manufacturer's maintenance schedule,
routine inspection procedures, and maintenance
procedures.
Please refer to the Engine Owner's Manual for
details on maintenance of the engine.
WARNING: Improperly maintaining the engine,
or failure to correct a problem before operation,
can cause a malfunction in which you can be
seriously hurt or killed.
NOTE: In the unlikely event that you have a
problem with the engine, you must contact a
Briggs & Stratton Service Centre. Please call
toll-free hotline at 1 800 999-9333 to locate the
nearest Authorized Service Centre.

11
Symptom Possible Cause Solution
Engine will not start. No gasoline.
Engine throttle is not in
correct position.
Choke in wrong position.
Excess pressure built up
in the unit.
IMPORTANT: Always follow the Shutdown Instructions (see page 8) before working on
the unit or the accessories. Always discharge residual pressure and turn the engine OFF.
Fill gas tank.
Refer to the Engine Owner’s Manual
for details.
Refer to the Engine Owner’s Manual
for details.
Press gun trigger to discharge
residual pressure (see page 8).
Engine running, but Water supply is restricted.
pump is not delivering
maximum pressure.
Diameter of garden hose
is too small.
Water inlet screen clogged.
Nozzle obstructed.
Spray nozzle is in
low-pressure mode.
Unit has been stored in
freezing temperatures.
Open water faucet to full force.
Check garden hose for kinks,
leaks and blockage.
Use a minimum 5/8" diameter
garden hose
Remove screen and clean (see page 10).
Clean nozzle (see page 9).
Adjust the spray nozzle to the
high-pressure position (see page 6).
Thaw out unit completely including
hose, gun and wand.
Output pressure varies Water supply is restricted.
between high and low.
Pump is sucking air.
Water inlet screen clogged.
Nozzle obstructed.
Open water faucet to full force.
Check garden hose for kinks,
leaks and blockage.
Check that hoses and fittings are airtight.
Turn off machine and purge pump by
squeezing gun trigger until a steady flow
of water emerges through the nozzle.
Remove screen and clean (see Page 10).
Clean nozzle (see Page 9).
Troubleshooting
Garden hose Loose fittings.
connection leaks. Missing or worn rubber washer.
Tighten or replace fittings.
Insert new washer.
Gun/lance assembly Spray lance not
or spray lance leaks. attached properly.
Broken O-ring.
Ensure the spray lance is connected
properly. Hand tighten the connection.
Call Customer Service hotline
to order a replacement O-ring.
continued ...

12
Symptom Possible Cause Solution
No detergent. Spray nozzle in
.edomerusserp-hgih
Detergent suction tube
.dehcattaylreporpton
noitcustnegretednoretliF
.deggolcsiebut
ebutnoit
custnegreteD
dekcolbrodegamad
.detcurtsboelzzoN
.ytpmereniatnoctnegreteD
Adjust the spray nozzle to the
low-pressure position (see page 6).
Check connection.
Run warm water through filter
to remove debris.
Remove obstruction or replace
detergent suction tube.
Clean nozzle (see Page 9).
Replace detergent container.
Pump is noisy. Pump is sucking air. Check that hoses and fittings are airtight.
Turn off machine and purge pump by
squeezing gun trigger until a steady flow
of water emerges through the nozzle.
Water or oil leaking
from bottom of unit.
Check that all fittings are tight.
If excessive leaking occurs,
call Customer Service hotline.
Loose fittings.
A small amount of leakage
is normal.
Excessive leaking may indicate
water seals damaged or worn.
Trigger will not move. Gun safety-lock engaged. Release safety lock.
If you encounter any difficulties not listed above,
please contact the Customer Service hotline.
IMPORTANT: Always follow the Shutdown Instructions (see page 8) before working on
the unit or the accessories. Always discharge residual pressure and turn the engine OFF.
Water leaking Loose fittings. Check that all fittings are tight.
Troubleshooting – continued
Customer Service Hotline:
1-877-888-9572
visit our website:
www.kodiakequipment.ca

13
Warranty Information
Customer Service Hotline:
1-877-888-9572
visit our website:
www.kodiakequipment.ca
Engine Warranty
The engine is warranted for a period of two years by Briggs & Stratton.
In the unlikely event that you have a problem with the engine you must contact an authorized
Briggs & Stratton Service Centre. Please call the Briggs & Stratton toll-free hotline at 1 800 999-9333
to locate the Service Centre nearest you.
Gas Powered Pressure Washer Warranty
This product is warranted to be free from defects in materials and workmanship under normal
household use and service, for a period of one year from the date of purchase, when operated and
maintained in accordance with the Maintenance and Operating Instructions supplied with the unit.
Hoses, spray lances and other accessories are warranted for 30 days. Warranty period commences
on date of purchase.
The warranty herein is expressly conditioned upon the customer's compliance with all precautions
and instructions contained in the Owner's Manual.
If the machine is still under warranty, the customer has a valid receipt, and the machine meets the
warranty criteria, then the repair will be made at no charge to the customer. Units and parts should
be returned at the customer's expense to the nearest Authorized Service Centre. Include original
purchase receipt with any claim, making sure to keep a copy for your files. Be sure to pack the unit
appropriately to avoid damage during transit. Damage in transit is NOT covered by warranty.
Warranty is void if any devices or accessories other than those distributed or recommended by
Kodiak are attached to or connected with the equipment in such a manner that the original factory
construction is altered.
Warranty is void if repairs are attempted by anyone other than an Authorized Service Centre. In the
event that a difficulty develops with the product, you should contact the nearest Authorized Service
Centre. Only these locations are authorized to make repairs to the product or affect replacement of
defective parts, which will be done at no charge within a reasonable time after receipt of the product.
This warranty shall not apply to any problem which is due to misuse, neglect, accident, abuse,
improper handling, freezing, normal wear and tear, use of improper detergents/chemicals, or
non-compliance with precautions and instructions contained in the Owner's Manual. Warranty is void
if the equipment is used for commercial or industrial purposes.This warranty is non-transferable.
The liability of Evolution Consumer Products Limited is limited to repair of the product and/or
replacement of parts, and is given to the purchaser in lieu of all other remedies including incidental
and consequential charges. There are no expressed warranties other than those specified herein.

13
Garantie
Garantie du moteur
Briggs & Stratton Company Limited offre une garantie de deux ans sur le moteur.
En cas de problème avec le moteur, vous devez vous adresser à un centre de service après-vente
autorisé Briggs & Stratton. Veuillez téléphoner à la ligne d'aide sans frais de Briggs & Stratton au
1 800 999-9333 pour connaître l'emplacement du centre de service après-vente le plus proche.
Garantie du pulvérisateur à essence
Cet appareil est garanti contre tout défaut de matériaux ou de fabrication dans des conditions
normales d'utilisation domestique pendant une période de un ans an à compter de la date d'achat,
pourvu qu'il soit utilisé et entretenu selon les directives d'entretien et d'utilisation fournies avec
l'appareil. Les tuyaux, lances et autres accessoires sont garantis pendant 30 jours. La période de
garantie commence à la date d'achat.
La présente garantie est liée expressément au respect par le client de toutes les précautions et
instructions décrites dans le Guide d'utilisation.
Si l'appareil est toujours couvert par la garantie, que le client dispose d'un reçu valable et que l'appareil
répond aux critères de la garantie, la réparation sera effectuée sans frais pour le client. L'appareil et les
pièces doivent être expédiées aux frais du client au centre de service après-vente autorisé le plus
proche. Joignez l'original du reçu d'achat à toute réclamation, en veillant à en conserver une copie
pour vos dossiers. Assurez-vous d'empaqueter l’appareil de manière appropriée, pour éviter tout
dommage lors du transport.Les dommages subis en cours de transport NE SONT PAS couverts
par la garantie.
La garantie est nulle si des dispositifs ou accessoires autres que ceux qui sont distribués ou
recommandés par Kodiak sont fixés ou branchés à l'appareil de sorte à en modifier la conception
d'origine.
La garantie est nulle si des réparations sont entreprises par quiconque qu'un centre de service après-
vente autorisé. En cas de difficulté avec l'appareil, vous devez communiquer avec le centre de service
après-vente autorisé le plus proche. Seuls ces centres de service après-vente sont autorisés à réparer
l'appareil ou à remplacer les pièces défectueuses, ce qui sera fait sans frais dans un délai raisonnable
suivant la réception de l'appareil.
Cette garantie ne s'applique pas aux pannes résultant d'un usage non approprié, d'une négligence,
d'un accident, d'un abus, d'une manipulation non appropriée, du gel, d'une usure normale, d'une
utilisation de détergents ou de produits chimiques non appropriés ou de non-respect des précautions
et instructions décrites dans le Guide d'utilisation. La garantie est nulle si l'appareil est utilisé à des
fins commerciales ou industrielles. Cette garantie n'est pas transférable.
La responsabilité de Evolution Consumer Products Limited se limite à la réparation de l'appareil ou au
remplacement des pièces, qui est fourni à l'acheteur au lieu et place de toute autre compensation, y
compris les frais accessoires. Il n'existe aucune garantie expresse autre que celle qui est décrite à la
présente.
Service à la clientèle :
1 877 888-9572
visitez notre site Web :
www.kodiakequipment.ca

12
Anomalie Problème Correctif
Pas de détergent. La buse se trouve en mode de
.noisserpetuah
Le tube d'aspiration de détergent
.tnemetcerrocéxifsaptse'n
Le filtre du tube d'aspiration
.éurtsbotsetnegretéded
tnegretédednoitaripsa'debuteL
.éurtsbouoégammodnetse
La buse est obstruée.
Le contenant est vide.
Placez la buse à la position de
basse pression (voir la page 6).
Vérifiez le raccord.
Faites couler de l'eau tiède dans
le filtre pour en retirer les débris.
Éliminez l'obstruction ou remplacez
le tube d'aspiration de détergent.
Nettoyez la buse (voir la page 9).
Remplacez le contenant de détergent.
La pompe est bruyante. La pompe aspire de l'air. Vérifiez l'étanchéité des tuyaux et des
raccords. Éteignez l'appareil et purgez
la pompe en appuyant sur la détente
du pistolet jusqu'à ce qu'un jet d'eau
constant s'échappe de la buse.
Fuite d'eau ou d'huile
dans la partie inférieure
de l'appareil.
Assurez-vous que tous les
raccords sont bien serrés.
En cas de fuite excessive,
téléphonez au service à la clientèle.
Raccords desserrés.
Une petite fuite est acceptable.
Une fuite excessive peut indiquer
que les joints d'étanchéité sont
endommagés ou usés.
La détente est bloquée.
Le cran de sûreté du pistolet
.élliuorrevtse
Déverrouillez le cran de sûreté.
Si vous éprouvez des difficultés
qui ne figurent pas ci-dessus, veuillez
communiquer avec le service à la clientèle.
IMPORTANT : Suivez toujours les instructions d'arrêt de l'appareil (voir la page 8) avant
d'entreprendre des travaux sur le pulvérisateur ou ses accessoires. Relâchez toujours
la pression résiduelle et éteignez le moteur.
Fuite d'eau. Raccords desserrés. Assurez-vous que tous les
raccords sont bien serrés.
Dépannage – suite
Service à la clientèle :
1 877 888-9572
visitez notre site Web :
www.kodiakequipment.ca

11
Anomalie Problème Correctif
Le moteur Manque d'essence
ne démarre pas.
Le papillon des gaz n'est
pas à la position appropriée.
Le volet de départ n'est pas
à la position appropriée.
Pression excessive
dans l'appareil.
IMPORTANT : Suivez toujours les instructions d'arrêt de l'appareil (voir la page 8) avant
d'entreprendre des travaux sur le pulvérisateur ou ses accessoires. Relâchez toujours
la pression résiduelle et éteignez le moteur.
Faites le plein.
Veuillez vous reporter au guide d'utilisation
du moteur.
Veuillez vous reporter au guide d'utilisation
du moteur.
Appuyez sur la détente du pistolet
pour relâcher la pression résiduelle. (p.8)
Le moteur tourne, La source d'eau est obstruée.
mais la pompe ne fournit
pas la pression maximum.
Le diamètre du tuyau
d'arrosage est trop petit.
Le filtre d'admission est obstrué
La buse est obstruée.
La buse se trouve en
mode de basse pression.
L'appareil a été entreposé
sous le point de congélation.
Ouvrez le robinet au maximum. Vérifiez si
le tuyau d'arrosage est pincé, obstrué ou
s'il comporte des fuites.
Utilisez un tuyau d'arrosage d'un
diamètre minimum de 5/8 po.
Retirez le filtre et nettoyez-le (p.10)
Nettoyez la buse (voir la page 9).
Placez la buse à la position
de haute pression (voir la page 6).
Faites dégeler l'appareil complètement,
y compris le tuyau, le pistolet et la lance.
La pression de sortie La source d'eau est obstruée.
alterne entre la basse
et la haute.
La pompe aspire de l'air.
Le filtre d'admission est obstrué.
La buse est obstruée.
Ouvrez le robinet au maximum. Vérifiez si
le tuyau d'arrosage est pincé, obstrué ou
s'il comporte des fuites.
Vérifiez l'étanchéité des tuyaux et des raccords.
Éteignez l'appareil et purgez la pompe en
appuyant sur la détente du pistolet jusqu'à ce
qu'un jet d'eau constant s'échappe de la buse.
Retirez le filtre et nettoyez-le (p. 10).
Nettoyez la buse (voir la page 9).
Dépannage
Le raccord du tuyau Raccords desserrés.
d'arrosage fuit.
Rondelle en caoutchouc
usée ou manquante
Serrez ou remplacez les raccords.
Insérez une nouvelle rondelle.
L'ensemble pistolet/lance La lance n'est pas fixée
or spray lance leaks. correctement.
Joint torique endommagé.
Assurez-vous que la lance est branchée
correctement. Serrez le raccord à la main.
Téléphonez au service à la clientèle pour
commander un joint torique de rechange.
suite ...

10
Entretien de base – suite
Raccords
Les raccords des tuyaux, de l'ensemble
pistolet/lance et de la lance doivent être nettoyés
régulièrement et lubrifiés avec de la graisse au
lithium pour prévenir les fuites et les dommages
aux joints toriques.
Filtre à eau
ATTENTION : Si le filtre n'est pas nettoyé, le
débit d'eau au pulvérisateur sera réduit, ce qui
pourrait causer des dommages à la pompe.
Le pulvérisateur est muni d'un filtre d'admission
d'eau qui sert à protéger la pompe. L'obstruction
de ce filtre fait diminuer le débit d'eau. Il faut alors
éteindre l'appareil et nettoyer le filtre sans attendre.
1. Débranchez le tuyau d'arrosage de l'ENTRÉE.
2. Retirez le filtre à eau de l'ENTRÉE d'eau.
3. Nettoyez le filtre à l'eau tiède.
4. Replacez le filtre sans attendre pour éviter que
tout corps étranger pénètre dans la pompe.
5. Rebranchez le tuyau d'arrosage à l'ENTRÉE.
ATTENTION : Évitez d'endommager le filtre en
le retirant ou en le nettoyant.Tout corps étranger
qui pénètre dans la pompe peut causer des
dommages à l'appareil.
Huile de la pompe
La pompe est lubrifiée pour sa durée de vie.
Il n'est pas nécessaire de changer l'huile de la
pompe et rien n'est prévu pour à cet effet.
Moteur
Afin d'assurer un entretien adéquat du moteur,
assurez-vous de respecter le programme d'entretien
du fabricant, les procédures d'inspection périodique
et les procédures d'entretien.
Veuillez vous reporter au guide d'utilisation du moteur
pour obtenir de plus amples renseignements sur
l'entretien du moteur.
MISE EN GARDE : Un entretien non approprié
du moteur ou le fait de ne pas corriger un problème
avant d'utiliser l'appareil peut entraîner une
anomalie pouvant causer des blessures graves
ou même la mort.
REMARQUE : En cas de problème avec le moteur,
vous devez vous adresser à un centre de service
après-vente. Veuillez téléphoner à la ligne d'aide
sans frais au 1 800 999-9333 pour connaître
l'emplacement du centre de service après-vente
autorisé le plus proche.

9
Entreposage et hivernage
Entreposage
ATTENTION : Suivez toujours les étapes d'arrêt
de l'appareil décrites à la page 8 avant d'entreposer
le pulvérisateur ou les accessoires. Pour assurer
votre sécurité, veillez à éteindre le moteur et à
relâcher la pression résiduelle (voir la page 8).
Entreposez toujours le pulvérisateur dans un endroit
où la température ne descend PAS en dessous de
0 °C. Rangez l'appareil et les accessoires dans un
endroit sec à l'abri du gel. Ne placez PAS l'appareil
près d'une flamme nue (calorifère, chauffe-eau, etc.).
MISE EN GARDE : La pompe du pulvérisateur
peut subir des dommages permanents en cas
de gel. Les dommages causés par le gel ne sont
PAS couverts par la garantie.
Si vous devez entreposer le pulvérisateur dans un
endroit où la température descend en dessous de
0 °C, vous pouvez minimiser le risque d'endommager
l'appareil et suivant cette procédure :
1. Coupez la source d'eau et relâchez la pression
du pistolet en appuyant sur la détente.
2. Débranchez le tuyau d'arrosage de l'appareil,
mais laissez branché le tuyau à haute pression.
3. Branchez un tuyau court (non fourni) à l'entrée
d'eau du pulvérisateur.
4. Placez l'autre extrémité de ce tuyau dans un
contenant de liquide de lave-glace antigel.
5. Démarrez le moteur pour faire circuler le
liquide de lave-glace dans la pompe.
6. Appuyez sur la gâchette du pistolet et maintenez-
la enfoncée jusqu'à ce que le liquide s'écoule de
la buse. Éteignez immédiatement le moteur.
7. Relâchez la pression résiduelle en appuyant sur
la gâchette et en la maintenant enfoncée, puis
débranchez le tuyau haute pression.
Hivernage
Entreposez toujours le pulvérisateur dans un
endroit où la température ne descend PAS en
dessous de 0 °C.
ATTENTION : Videz toujours le réservoir
d'essence si vous remisez le nettoyeur haute
pression à l'intérieur.
IMPORTANT : Suivez toujours les instructions d'arrêt de l'appareil à la page 8 avant d'entreprendre
des travaux sur le pulvérisateur ou ses accessoires. Pour assurer votre sécurité, veillez à éteindre le
moteur et à relâcher la pression résiduelle (voir la page 8) avant de procéder à un entretien.
Buse
L'obstruction de la buse fait augmenter la pression
de la pompe et peut modifier la forme du jet. Il faut
alors éteindre l'appareil et nettoyer la buse sans
attendre.
Étape 1 Débranchez la lance de l'ensemble
pistolet/lance.
Étape 2 Rincez la buse à rebours avec de l'eau.
Étape 3 Rebranchez la lance à l'ensemble
pistolet/lance.
Redémarrez le pulvérisateur et appuyez sur la
détente du pistolet. Si la buse est toujours obstruée,
répétez les étapes 1 à 3.
Entretien de base
ATTENTION : Le fait que la pression résiduelle
ne soit pas relâchée peut causer des blessures
lors de l'évacuation de l'eau sous haute pression.
Raccords
Les raccords des tuyaux, de l'ensemble
pistolet/lance et de la lance doivent être nettoyés
régulièrement et lubrifiés avec de la graisse au
lithium pour prévenir les fuites et les dommages
aux joints toriques.
Le liquide de lave-glace antigel aidera à protéger
l'appareil contre le gel pendant l'entreposage et il
aidera à empêcher les pistons de coller.

8
Arrêt de l'appareil
Étape 1
Éteignez le moteur.
Étape 4
Débranchez le tuyau à haute
pression de la SORTIE d'eau.
Étape 2
Coupez la source d'eau.
Étape 6
Verrouillez le cran de
sûreté du pistolet.
Étape 5
Débranchez le tuyau
d'arrosage de l'ENTRÉE d'eau.
Étape 3
Relâchez la pression résiduelle
en maintenant enfoncée la détente
du pistolet jusqu'à ce que l'eau
cesse de s'échapper de la buse.
ATTENTION : Le fait que la pression résiduelle ne soit pas relâchée peut causer
des blessures lors de l'évacuation de l'eau sous haute pression.
